Foton Auman ETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Construction Truck)

Export reference
MSRP N/A
Emission: China V
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 12.395ton
Wheelbase:: 4100+1350mm
Tire Size:: 12.00-20 16PR
Rated payload: 12.475ton
Drive 6X4 (10 wheels)
Horsepower 350
Cargo box type: Rear-dump body

Overview

The Foton Auman ETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Construction Truck) is a Heavy truck featuring 12.475t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP12NG350E50 engine, 350 hp, China V emissions and Fast Gear transmission.

China V 350 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3253VLPCE-1
Drive type: 6X4
Wheelbase: 4100+1350mm
engine: WeichaiWP12NG350E50
transmission: Fast Gear12JSD160T
Rear Axle Ratio: 5.92
Cab length: 8.77m
Cab width: 2.495m
Cab height: 3.4m
Front track width: 2005mm
rear track: 1865/1865mm
Curb Weight: 12.395ton
Rated payload: 12.475ton
GVWR: 25ton
Origin: Beijing
tonnage class: Heavy truck
Approach angle: 21°
departure angle: 17°
Version: Urban Construction & Muck
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12NG350E50
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 11.596L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1400-1600rpm
Rated speed: 2200rpm
Engine Type: Inline, water-cooled, wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn, single-point injection + oxidation catalyst
Transmission Parameters
Transmission Model: Fast Gear12JSD160T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height:
fuel tank
Fuel tank capacity: 450L
Chassis Specs
rear axle description: Tandem axle
rear axle allowable load: 18000kg
Axle ratio: 5.92
Leaf spring count: 9/12
Tire
Tire Size: 12.00-20 16PR
Number of tires: 10pcs

Photos

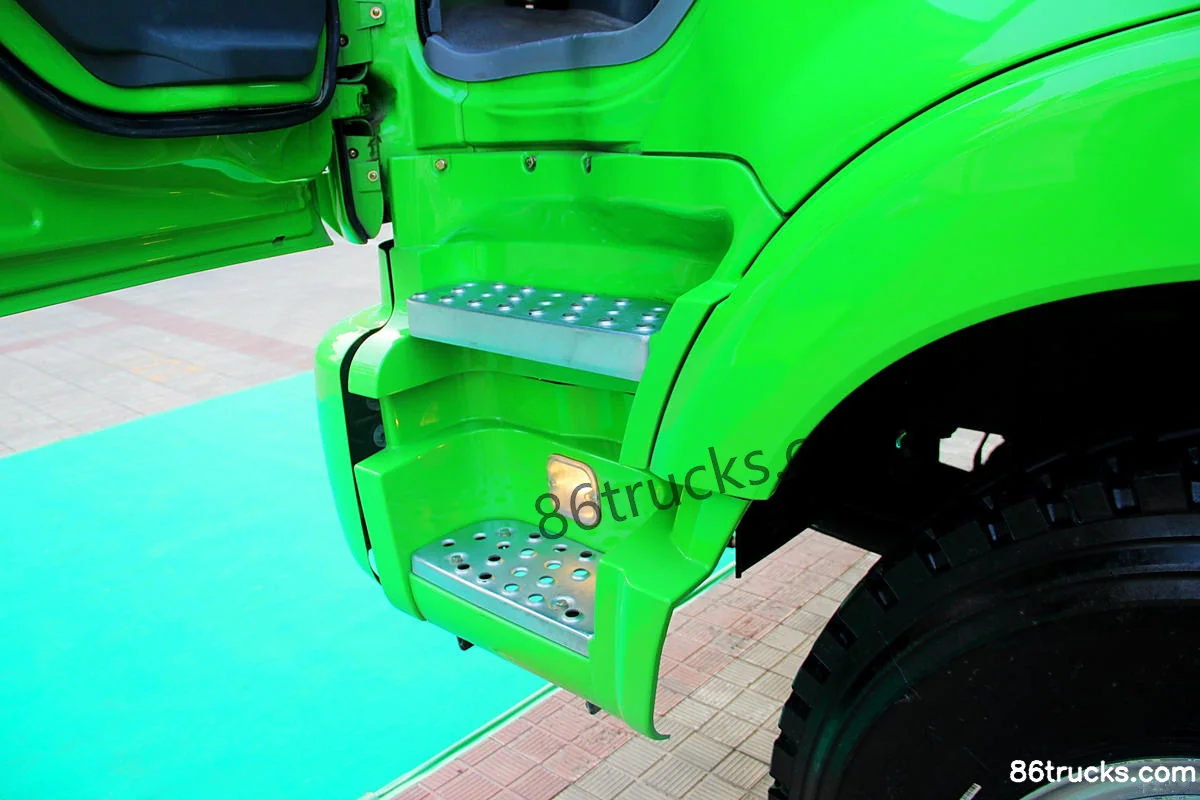

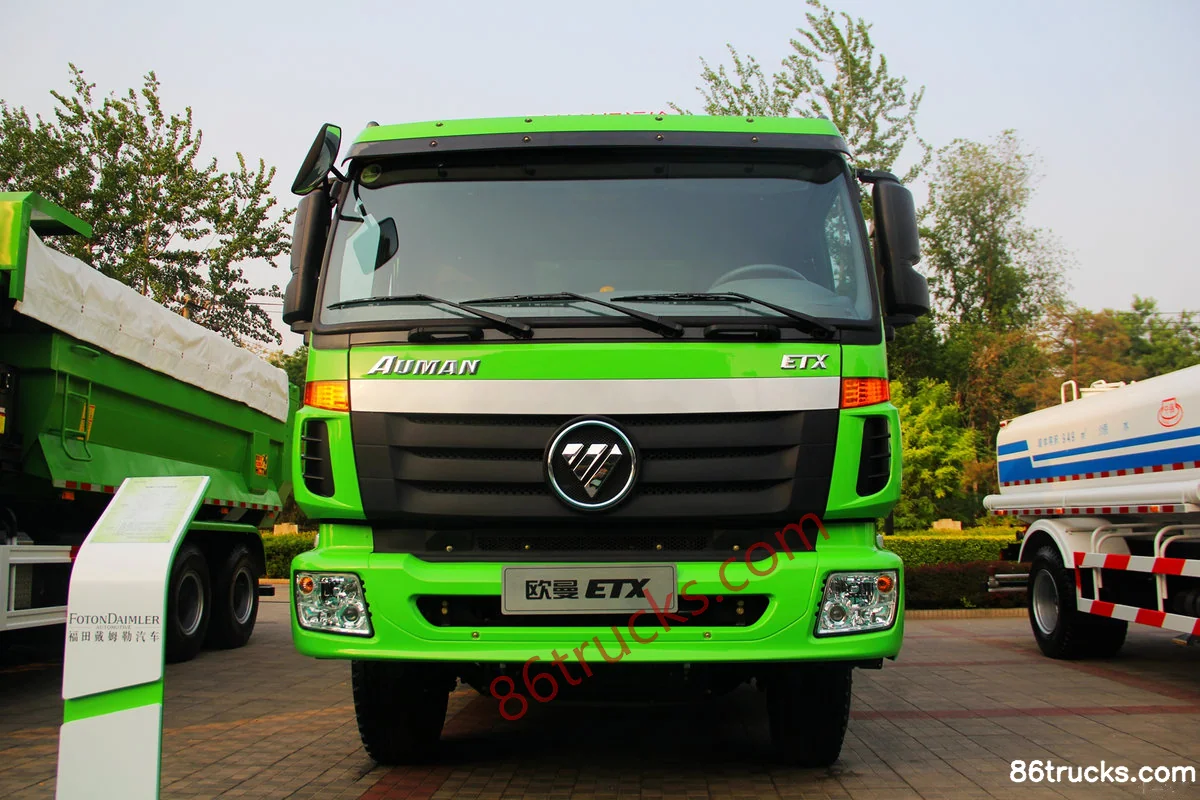

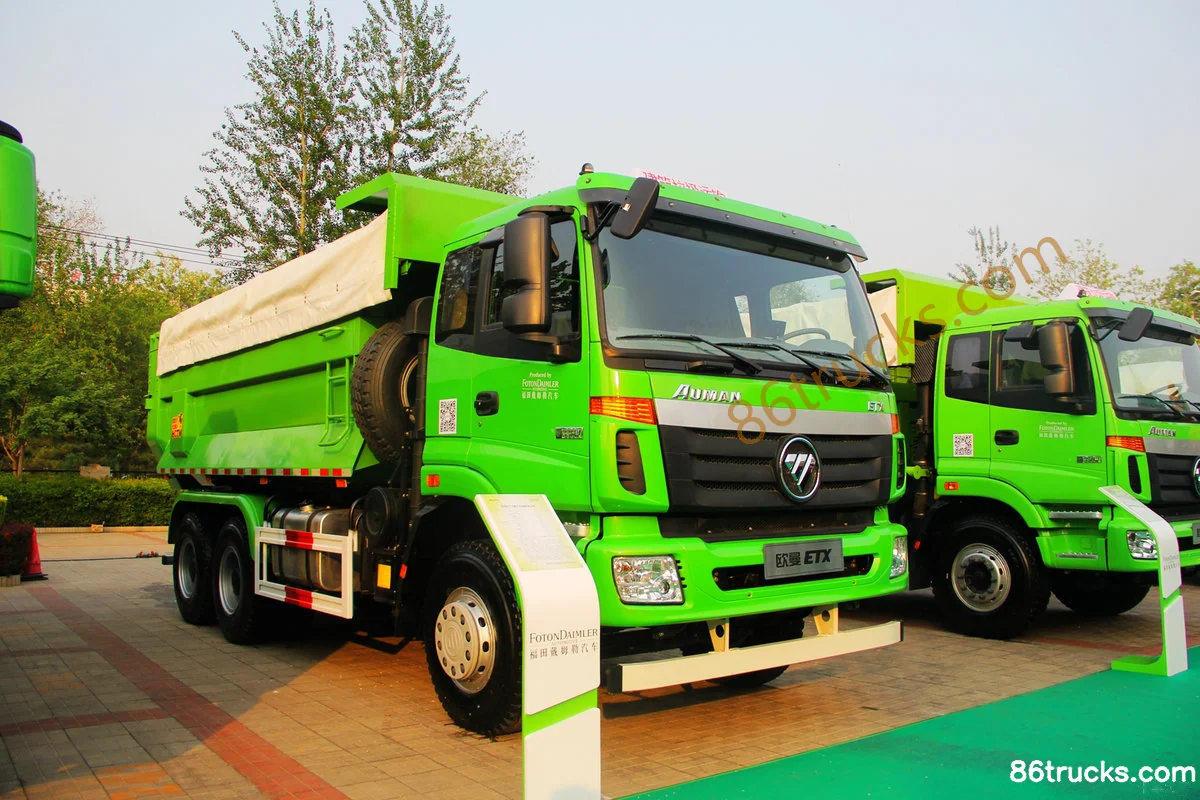

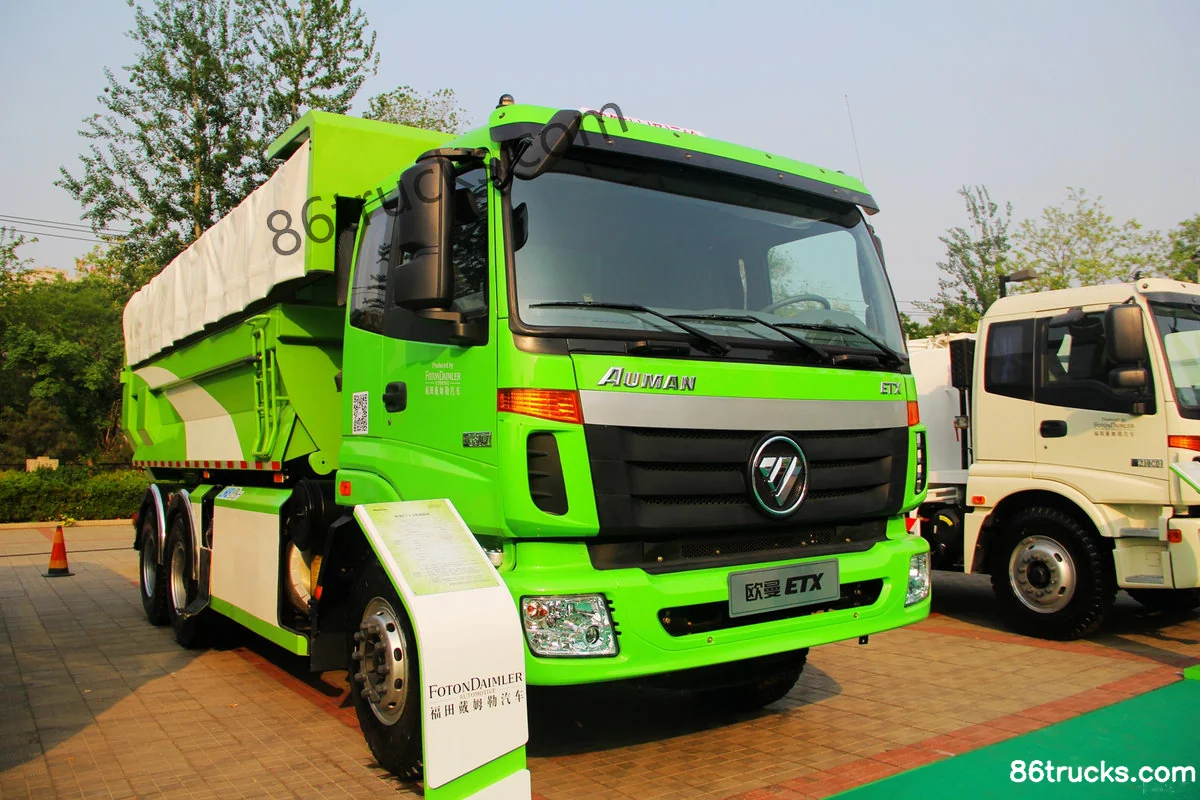

Exterior3

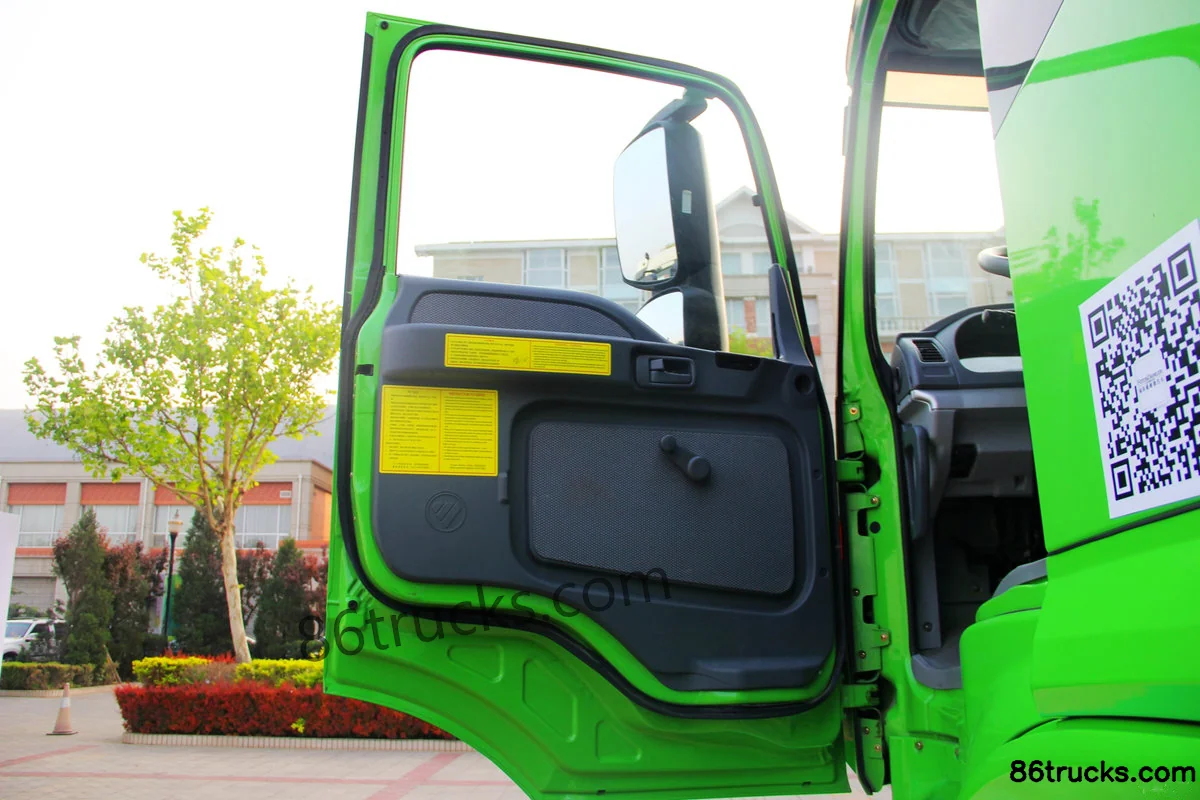

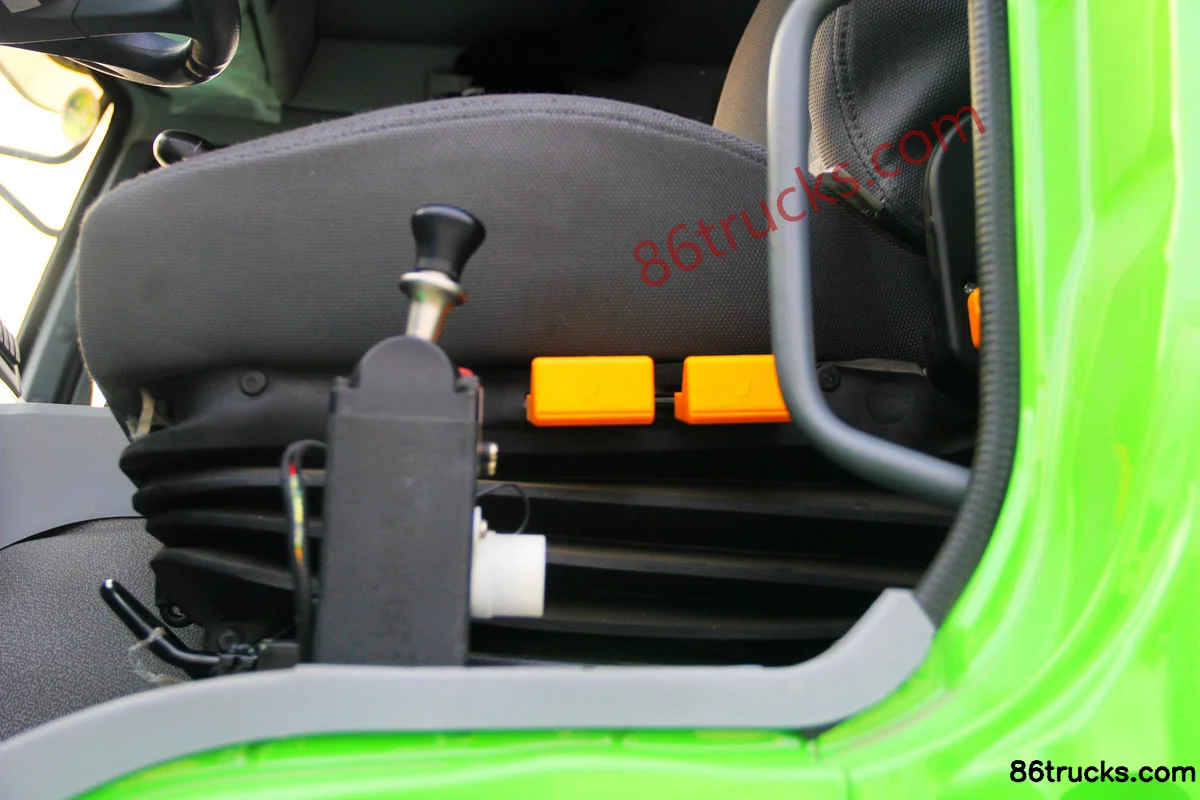

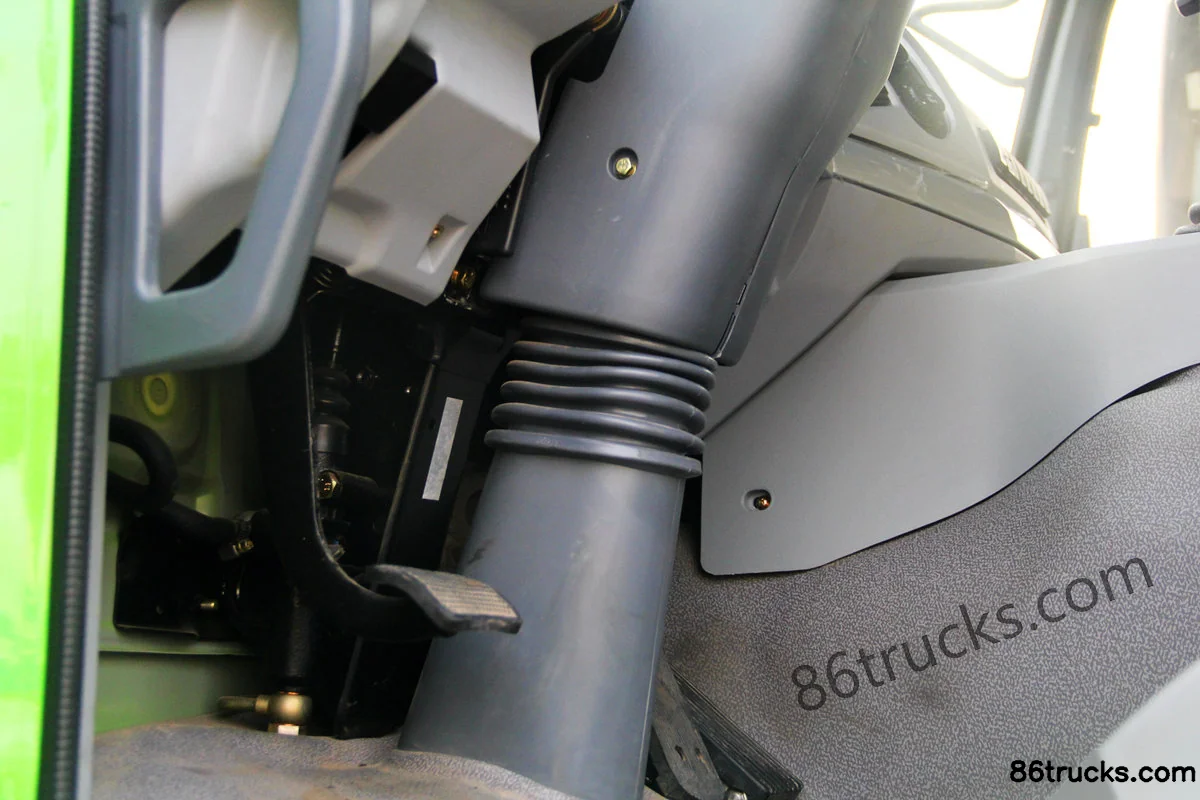

Cab3

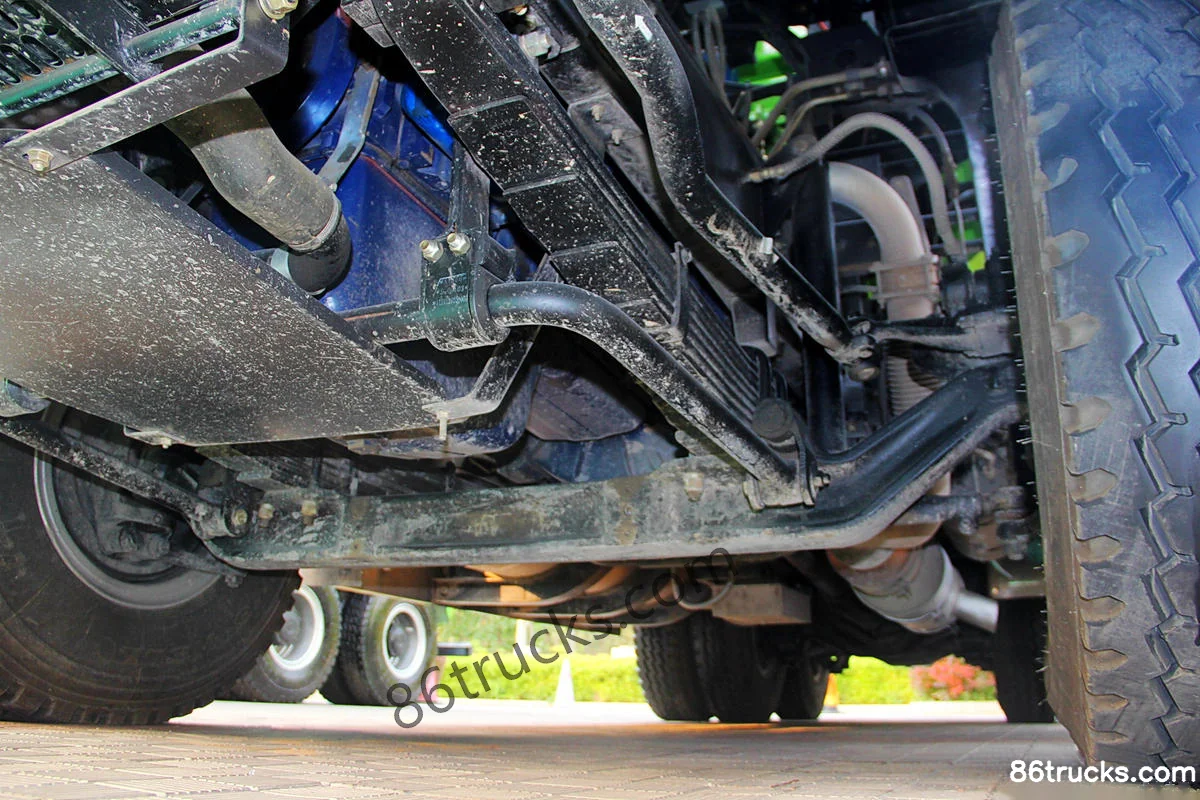

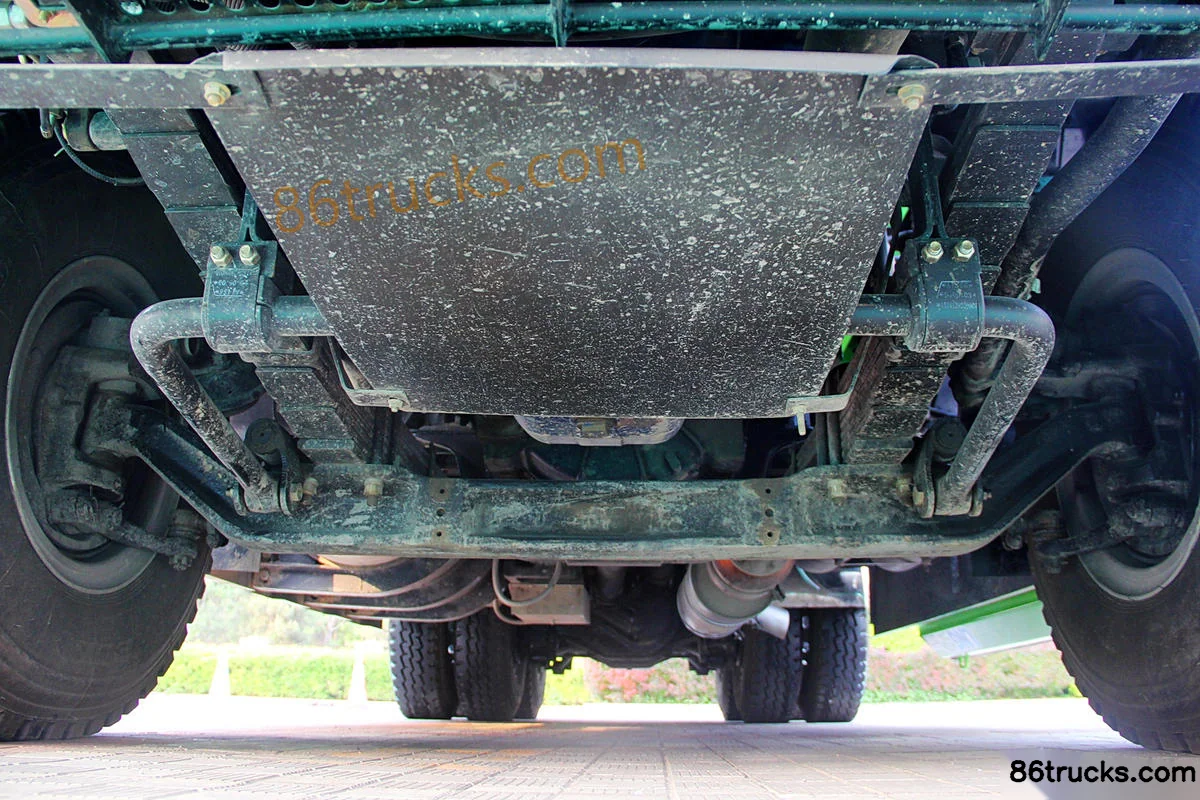

Chassis3

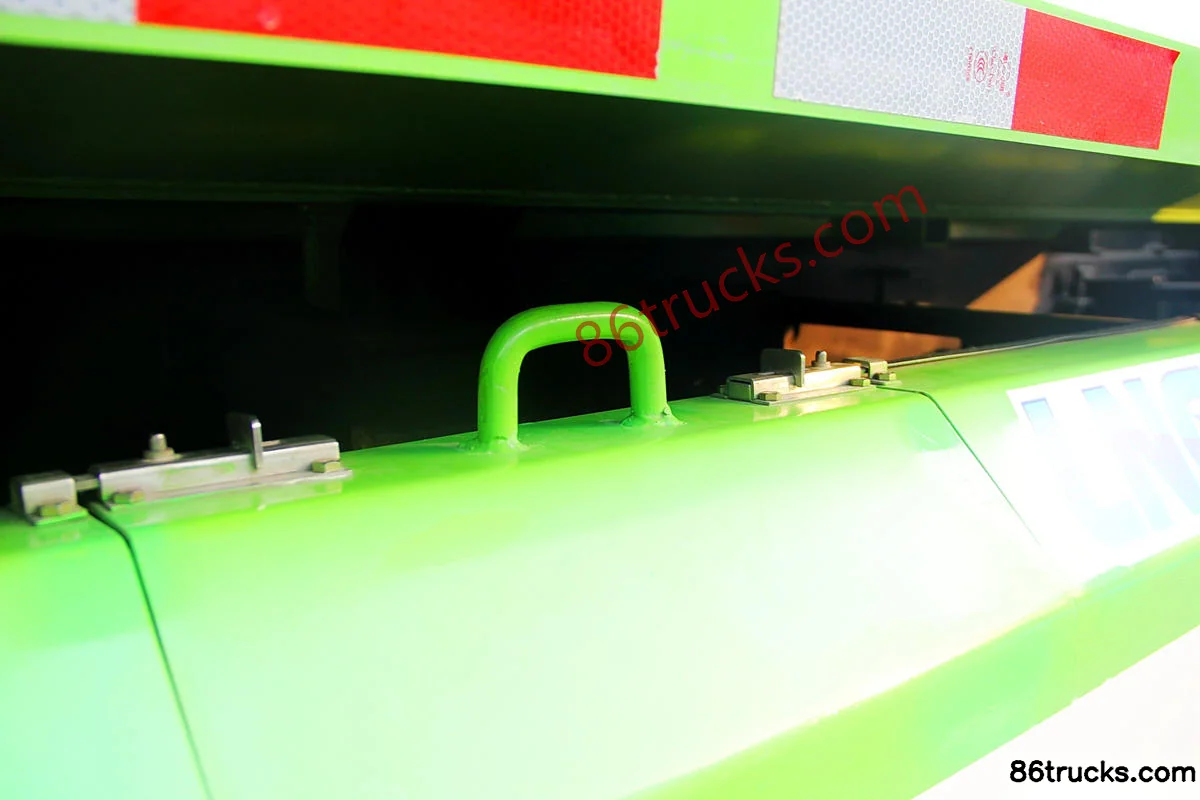

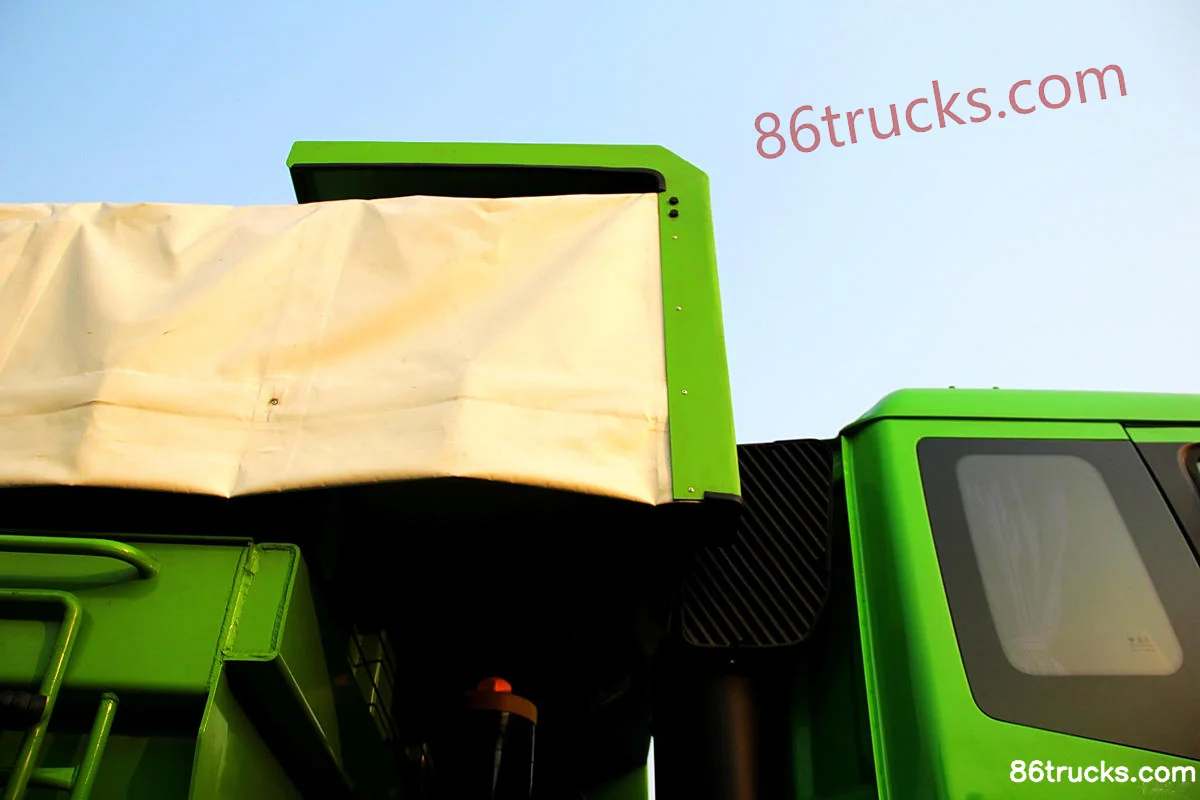

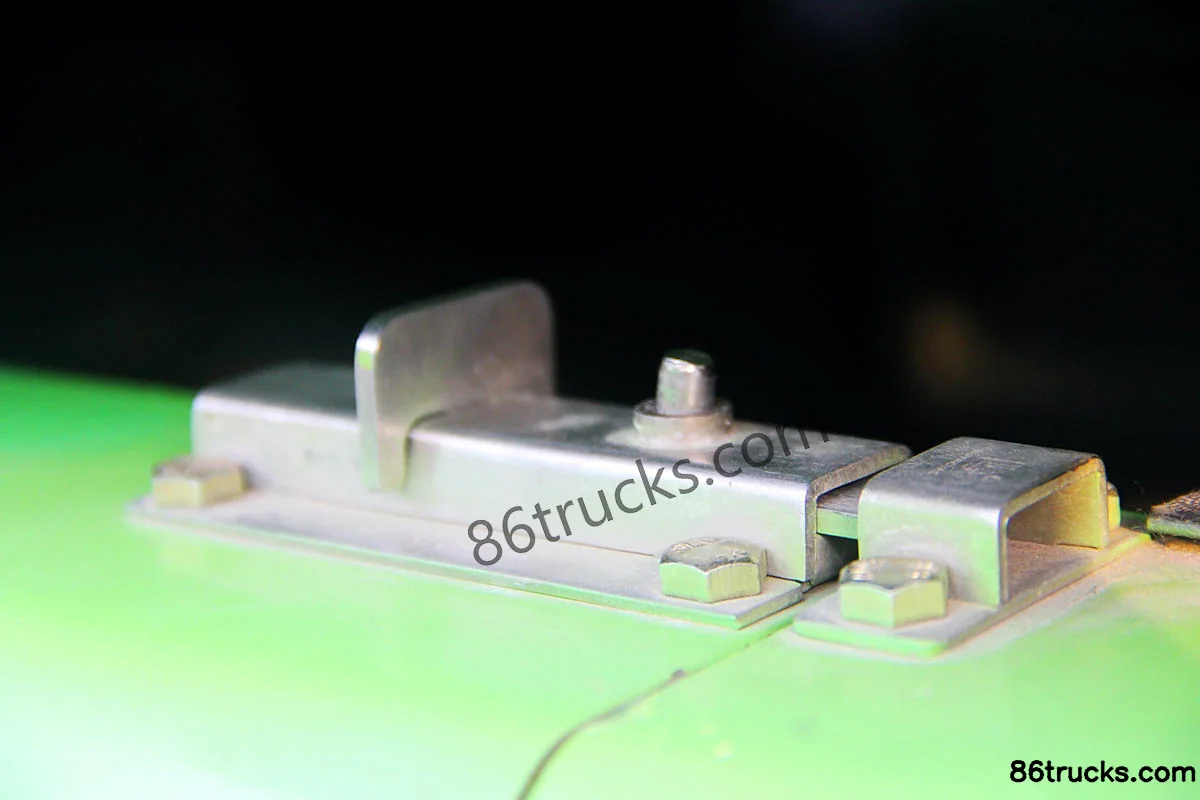

Body3

12 photos

FAQ

What emission standard does Foton Auman ETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Construction Truck) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman ETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Construction Truck)?

Key specs of Foton Auman ETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Construction Truck): Drive: 6x4; Horsepower: 350 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman ETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Construction Truck) suited for?

Foton Auman ETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Construction Truck) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Auman ETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Construction Truck) differ from other variants in the same series?

Foton Auman ETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Construction Truck) belongs to Foton Auman ETX Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman ETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Construction Truck)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman ETX 9 Series Heavy Truck 350 hp 6X4(10 wheels) 5.8m LNG Dump Truck (Construction Truck)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
