Kama GM3 130 hp 4X2(6 wheels) 3.5m Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 4.34ton
Wheelbase:: 3260mm
Tire Size:: 8.25R16LT 18PR
Rated payload: 6.665ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Rear-dump body

Overview

The Kama GM3 130 hp 4X2(6 wheels) 3.5m Dump Truck (China VI) is a Medium-duty truck featuring 6.665t payload, 11.2t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a QuanchaiQ28-130E60 engine, 130 hp, China VI emissions and WLY transmission.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3112GC326DP6
Drive type: 4X2
Wheelbase: 3260mm
engine: QuanchaiQ28-130E60
transmission: WLYWLY10H46
Rear Axle Ratio: 5.286
Cab length: 4.45m
Cab width: 2.17m
Cab height: 2.17m
Front track width: 1610mm
rear track: 1620mm
Curb Weight: 4.34ton
Rated payload: 6.665ton
GVWR: 11.2ton
Origin: Shouguang, Shandong
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 19°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ28-130E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.8L
Emission standard: China VI
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 405N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY10H46
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.5m
Cargo box width: 1.97m
Cargo box height: 0.8m
Cab parameters
Cab width: 1820mm
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 4000kg
rear axle allowable load: 7200kg
Axle ratio: 5.286
Leaf spring count: 9/8+4
Tire
Tire Size: 8.25R16LT 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

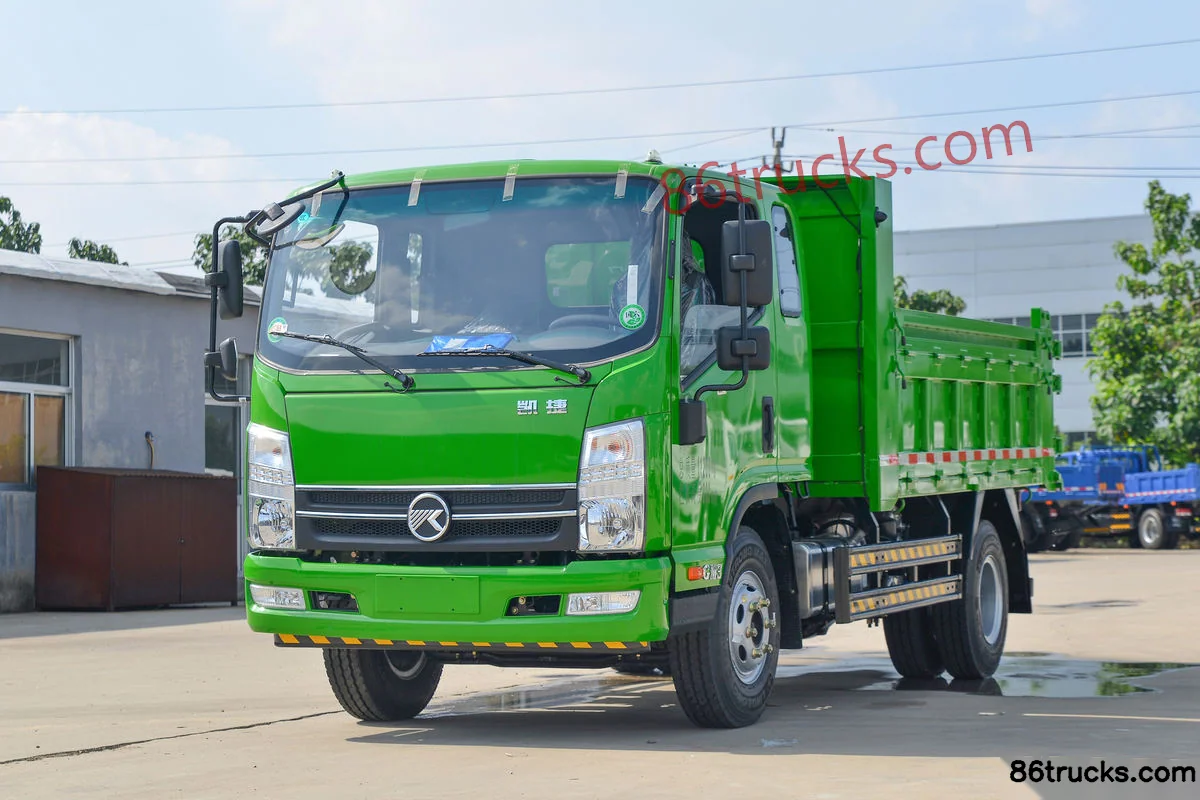

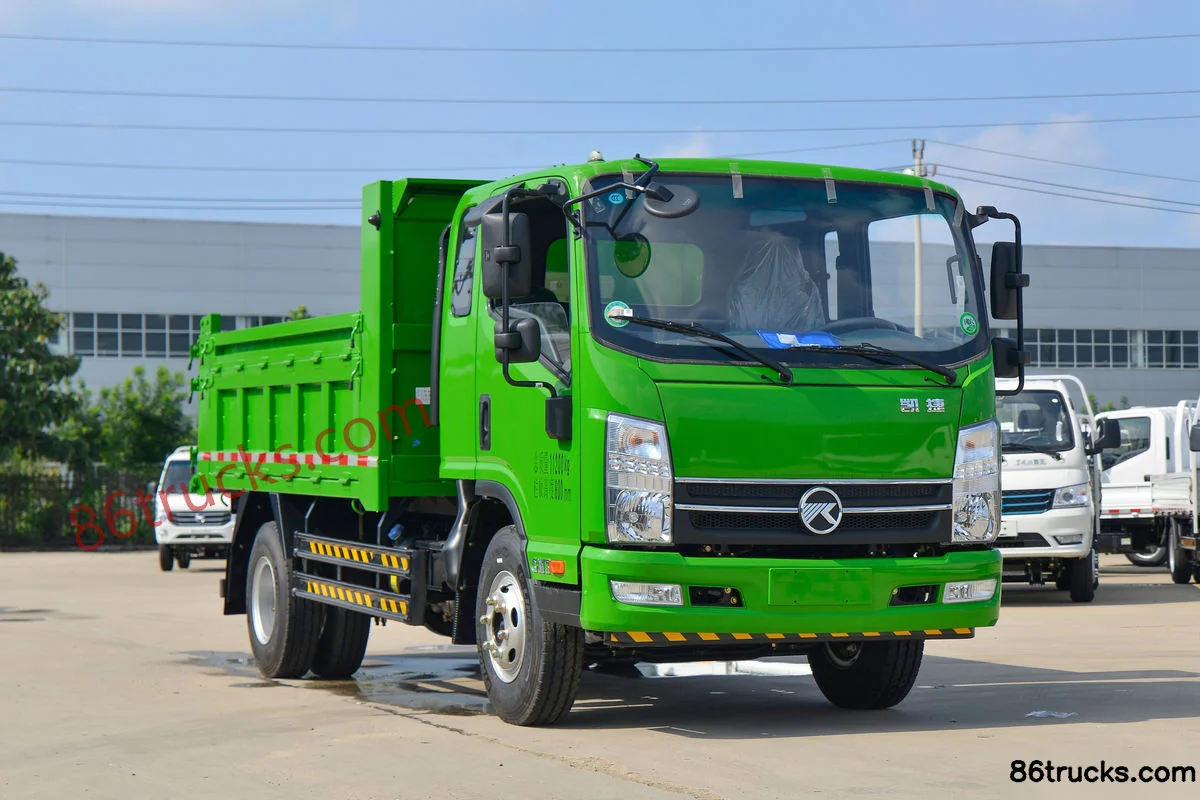

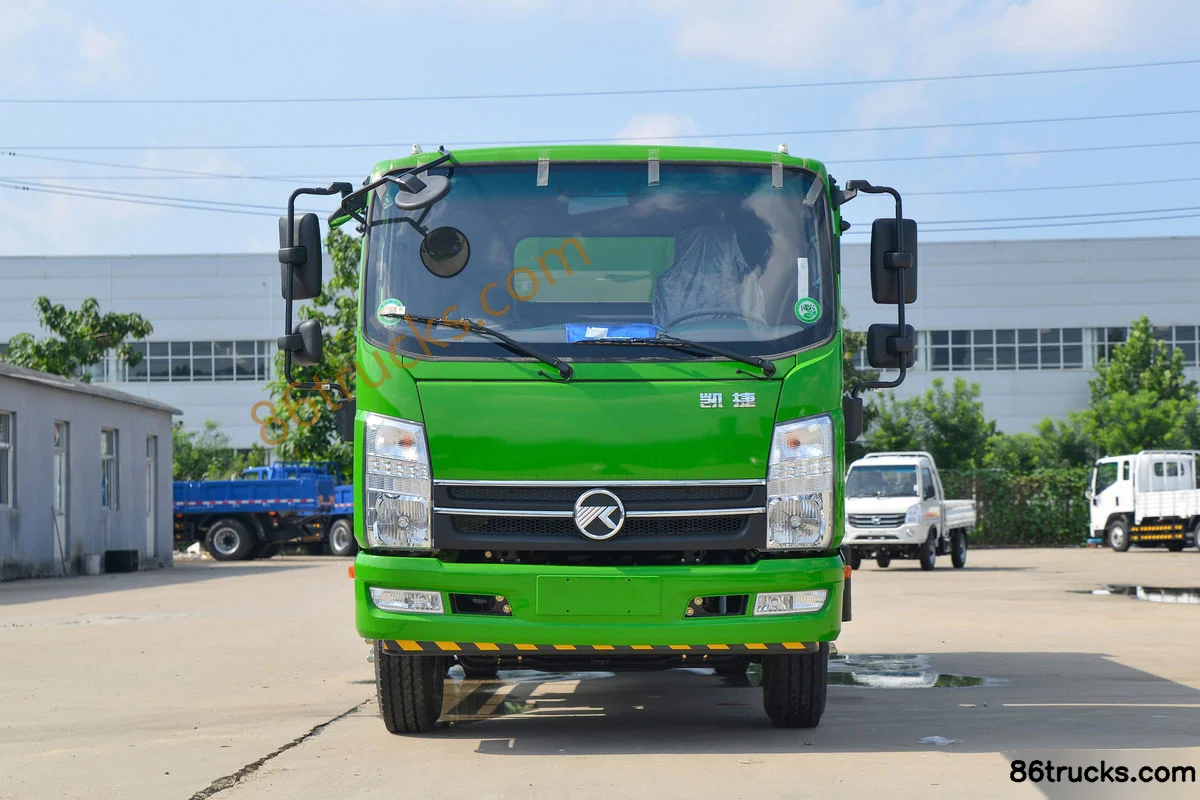

Exterior3

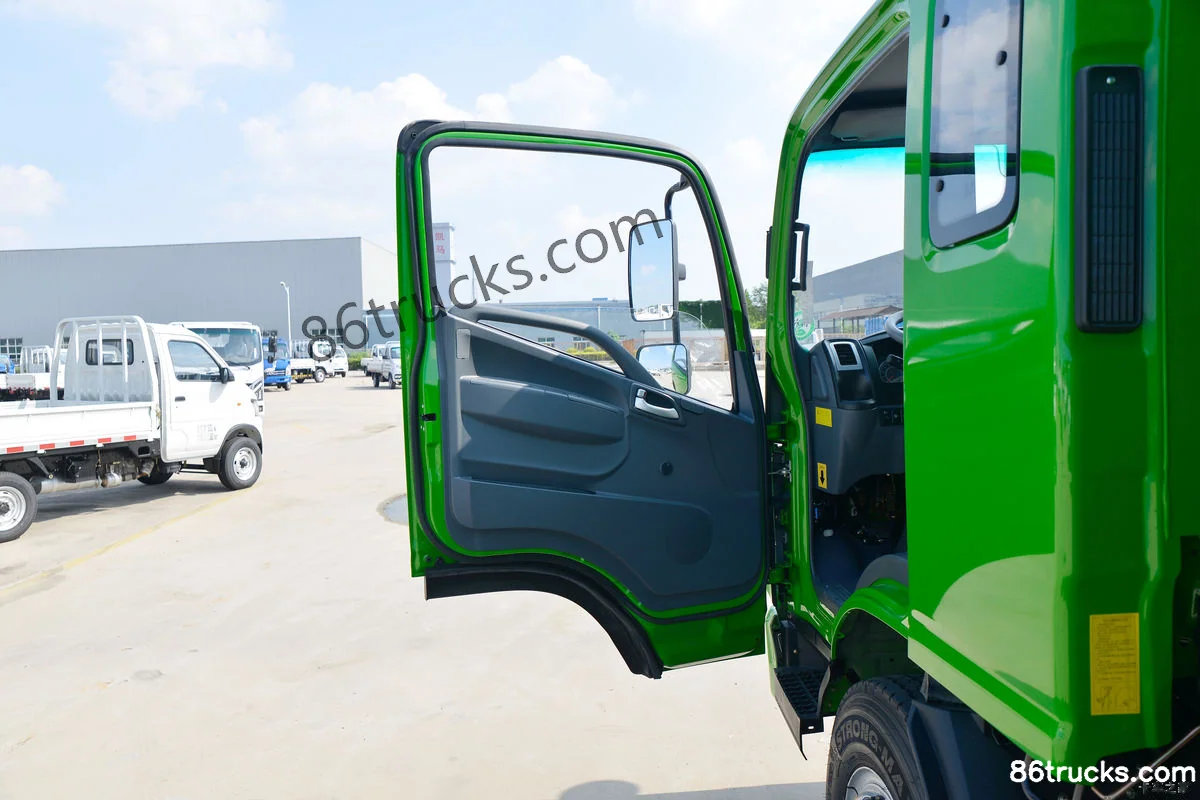

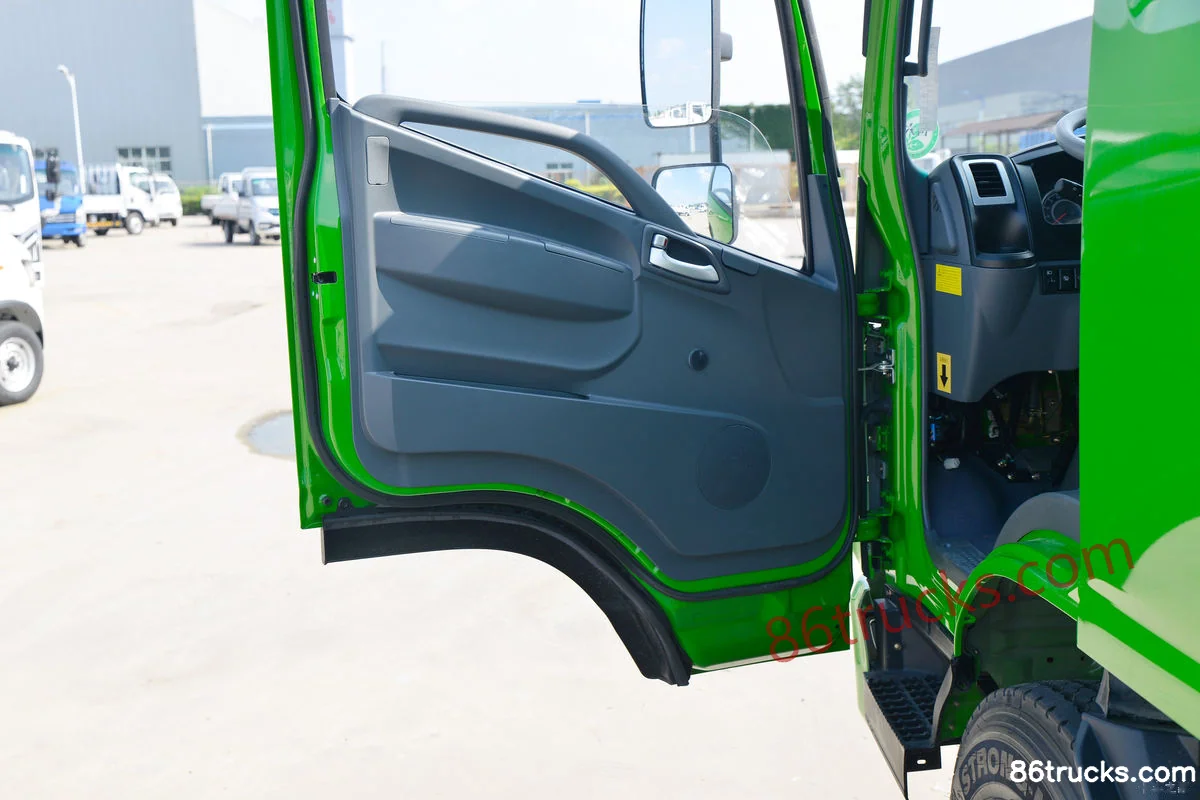

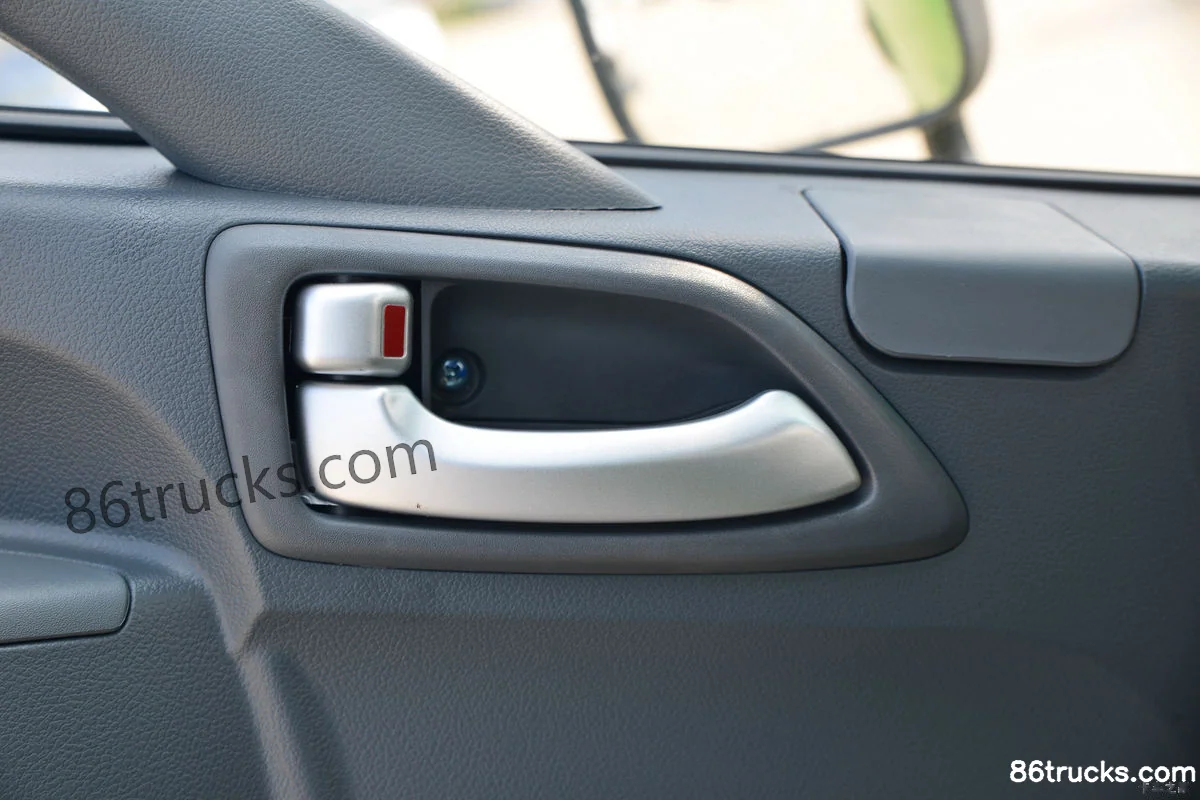

Cab3

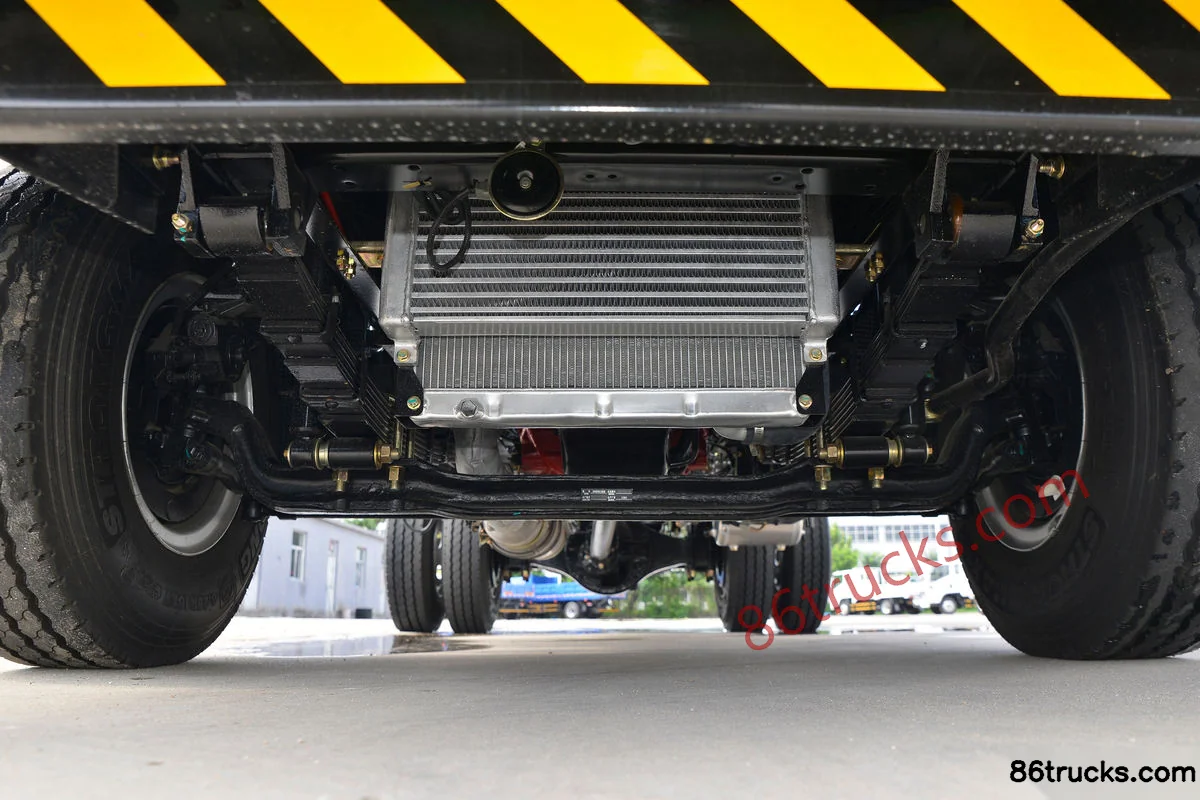

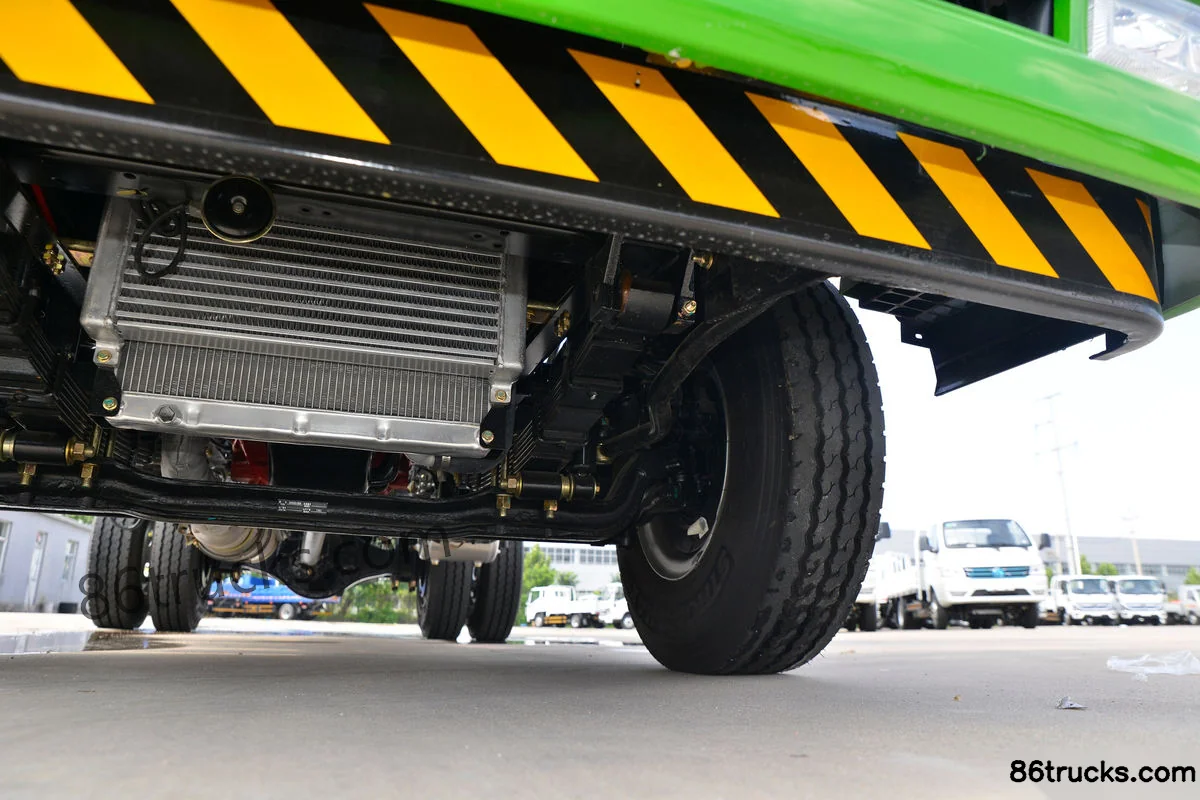

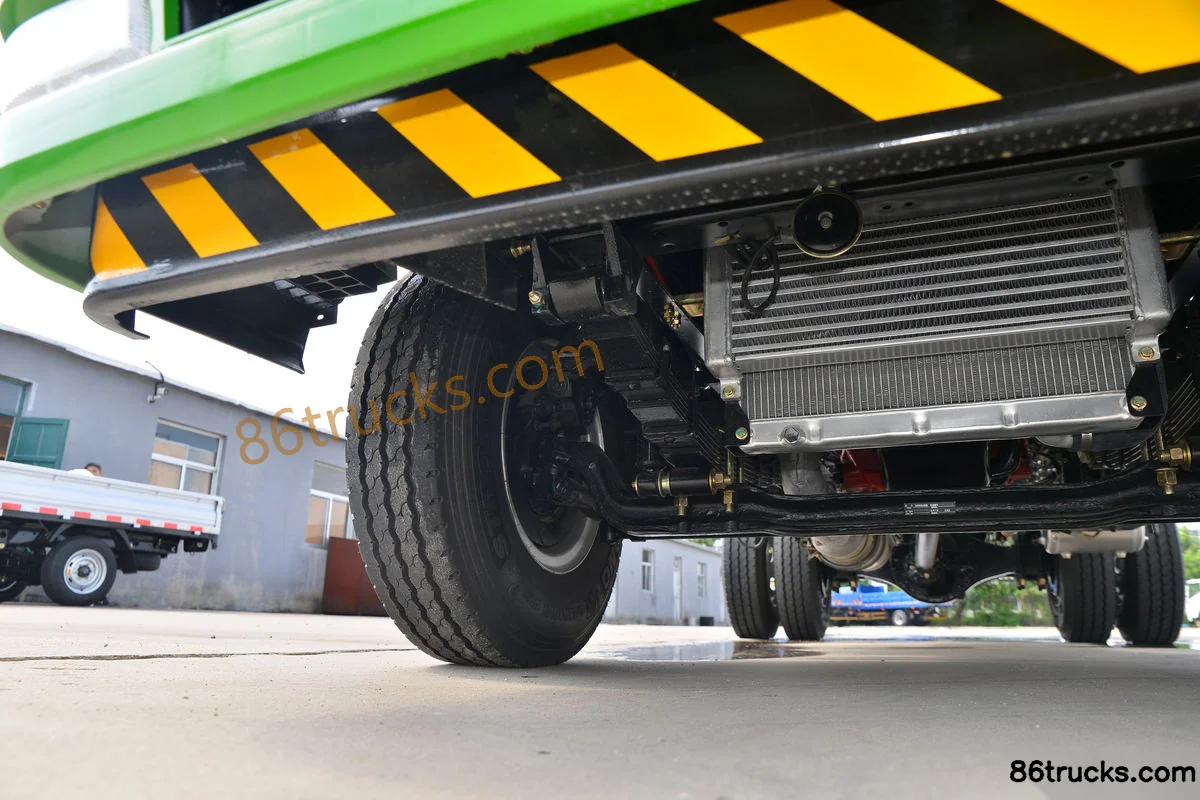

Chassis3

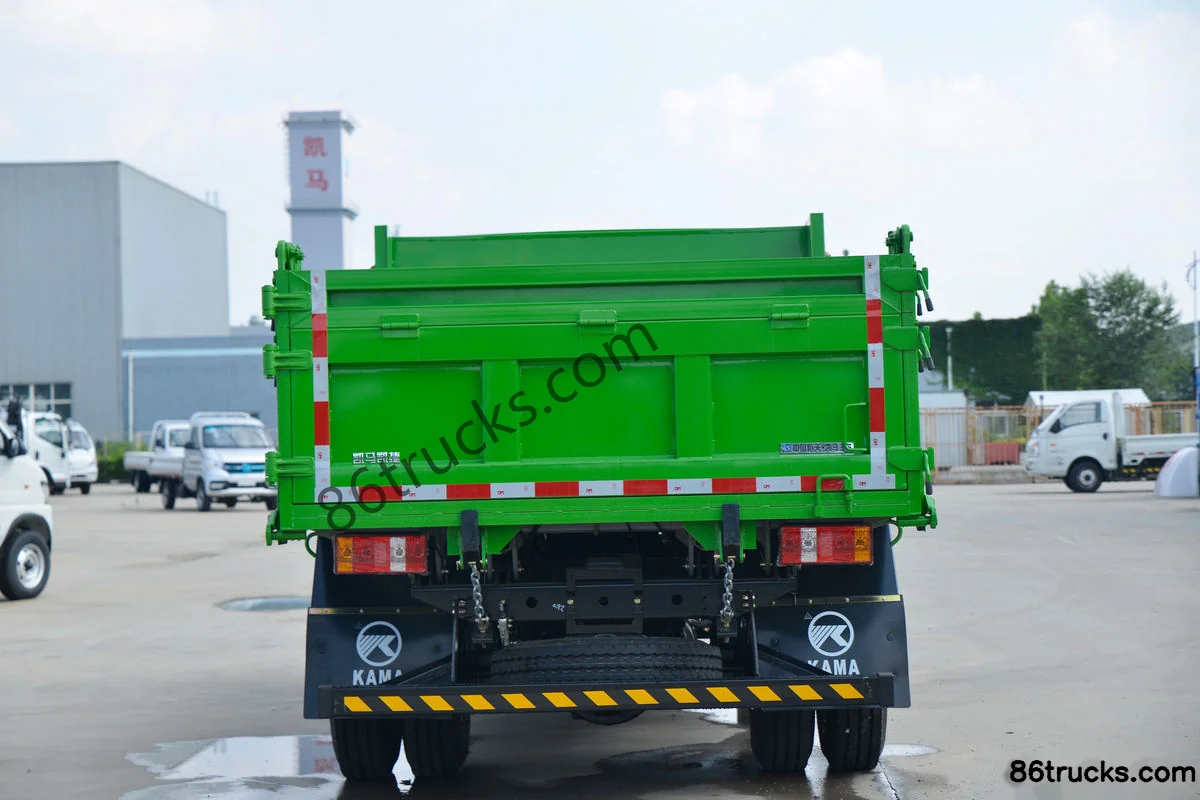

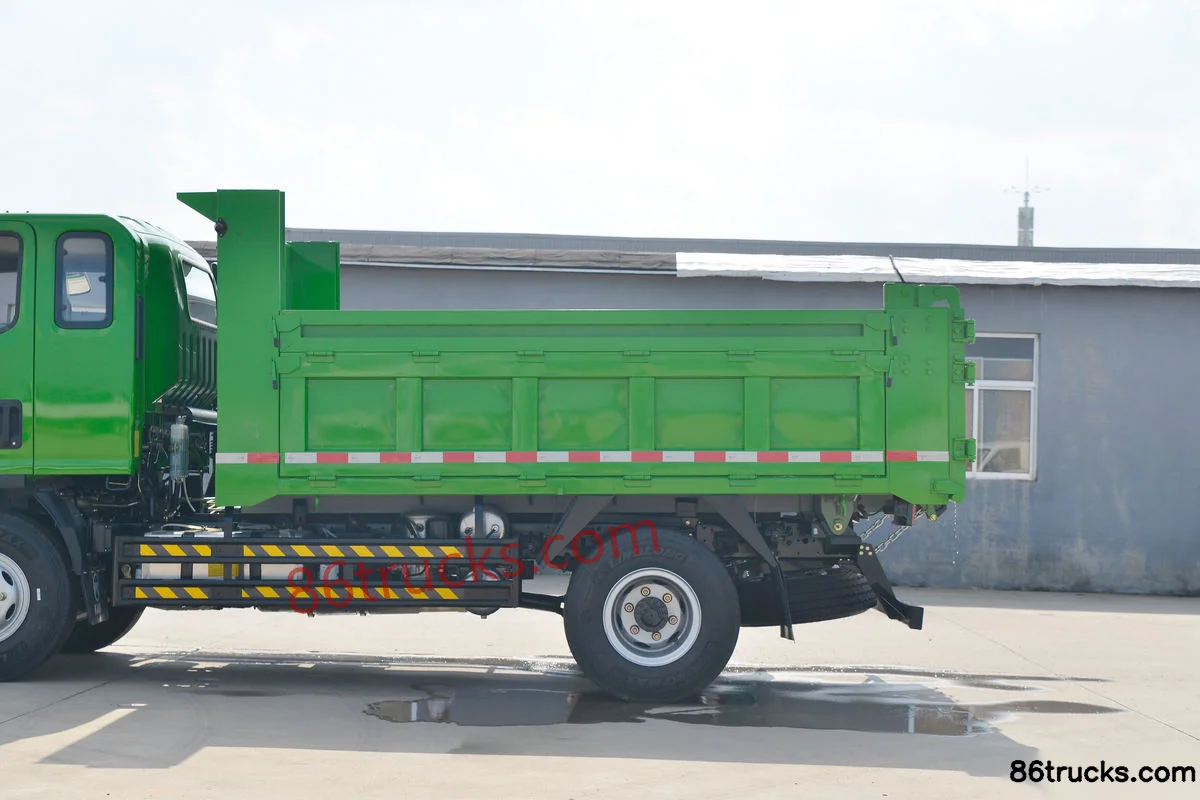

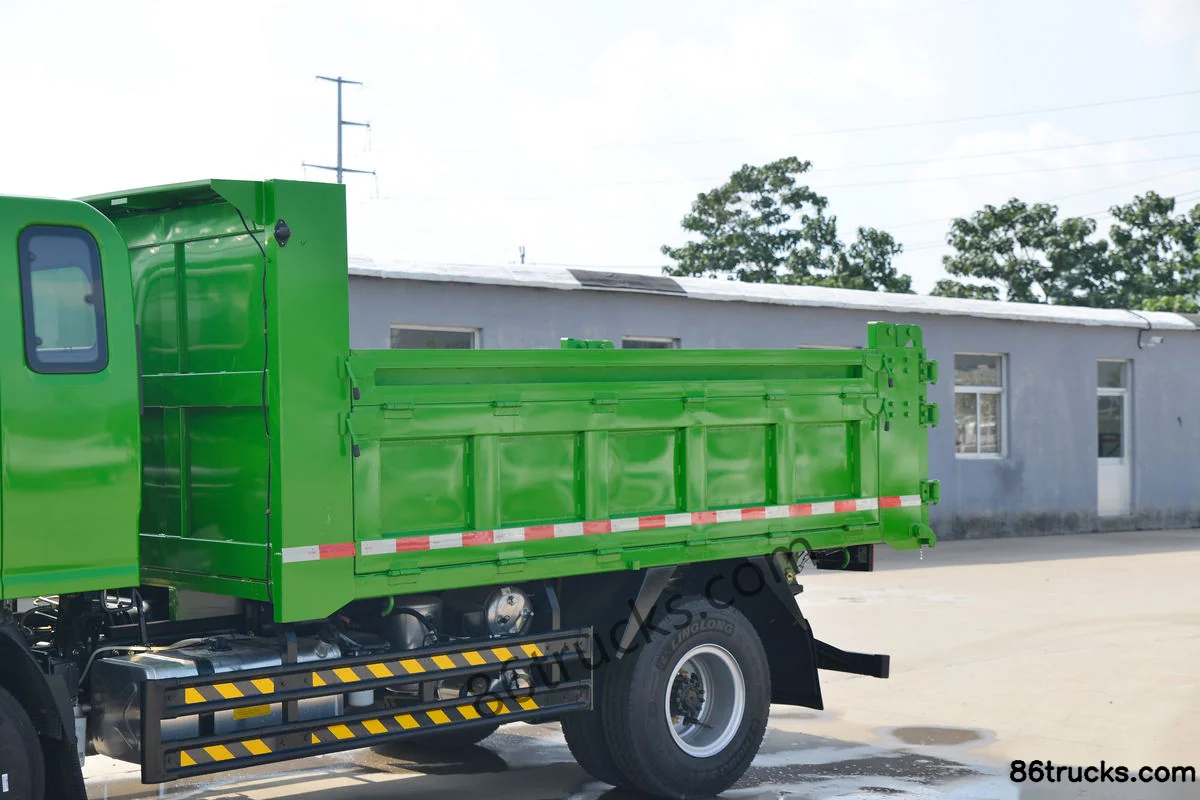

Body3

12 photos

FAQ

What emission standard does Kama GM3 130 hp 4X2(6 wheels) 3.5m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama GM3 130 hp 4X2(6 wheels) 3.5m Dump Truck (China VI)?

Key specs of Kama GM3 130 hp 4X2(6 wheels) 3.5m Dump Truck (China VI): Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama GM3 130 hp 4X2(6 wheels) 3.5m Dump Truck (China VI) suited for?

Kama GM3 130 hp 4X2(6 wheels) 3.5m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama GM3 130 hp 4X2(6 wheels) 3.5m Dump Truck (China VI) differ from other variants in the same series?

Kama GM3 130 hp 4X2(6 wheels) 3.5m Dump Truck (China VI) belongs to Kama Kaijie GM3 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama GM3 130 hp 4X2(6 wheels) 3.5m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama GM3 130 hp 4X2(6 wheels) 3.5m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
