JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck

Export reference
From $13,694
MSRP ¥9.86M CNY
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.6ton
Wheelbase:: 3300mm
Tire Size:: 8.25-16
Rated payload: 1.49ton
Drive 4X2 (6 wheels)
Horsepower 116
Cargo box type: Rear-dump body

Overview

The JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck is a Light Truck featuring 1.49t payload, 4.29t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN33CRD1 engine, 116 hp, China IV emissions and WLY transmission.

China IV 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3040PB91K1C7
Drive type: 4X2
Wheelbase: 3300mm
engine: Yunnei PowerYN33CRD1
transmission: WLYWLY10H46-05-173
Rear Axle Ratio: 5.28
Cab length: 5.7m
Cab width: 2.15m
Cab height: 2.45m
Front track width: 1665mm
rear track: 1724mm
Curb Weight: 2.6ton
Rated payload: 1.49ton
GVWR: 4.29ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 30°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRD1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China IV
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Electronically controlled high-pressure common rail
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: WLYWLY10H46-05-173
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.5m
Cargo box width: 2.15m
Cargo box height: 0.6m
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Frame Dimensions: 865×200×75× (7+3)mm
rear axle description: 7T Rear Axle
rear axle allowable load: 2745kg
Axle ratio: 5.28
Leaf spring count: 7/10+10
Tire
Tire Size: 8.25-16
Number of tires: 6pcs

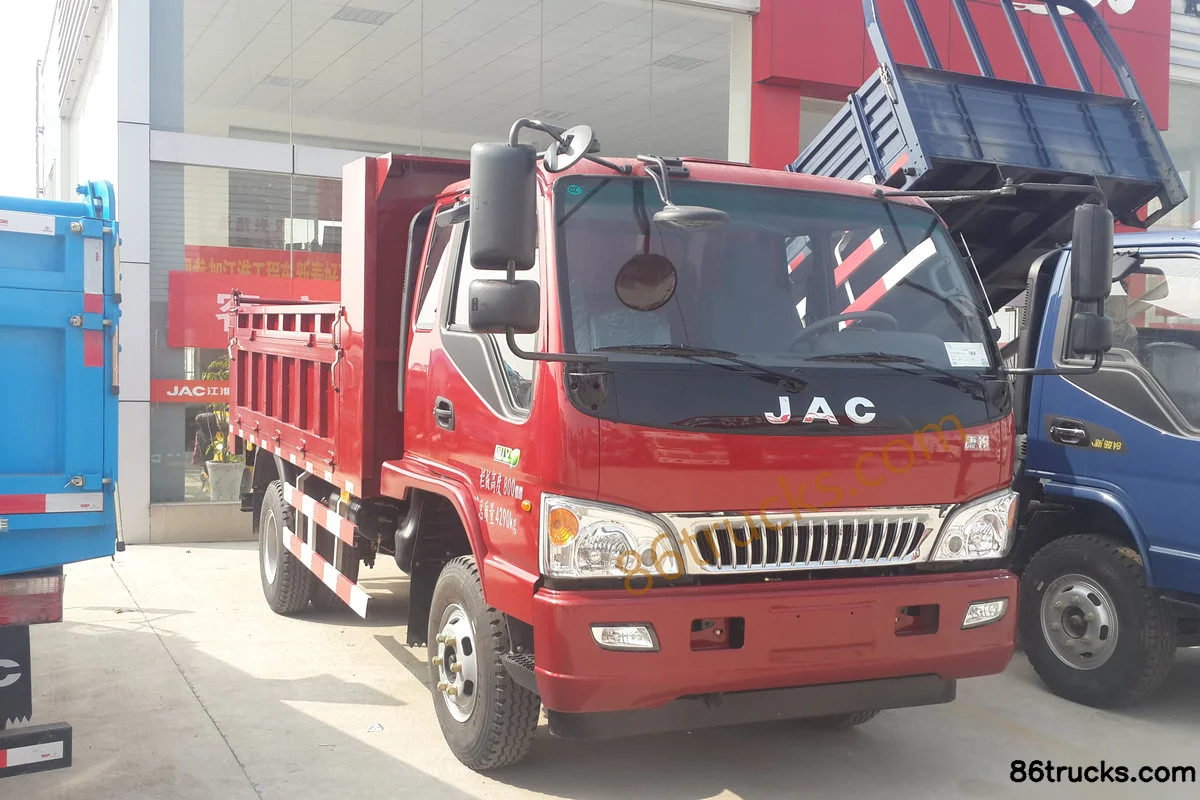

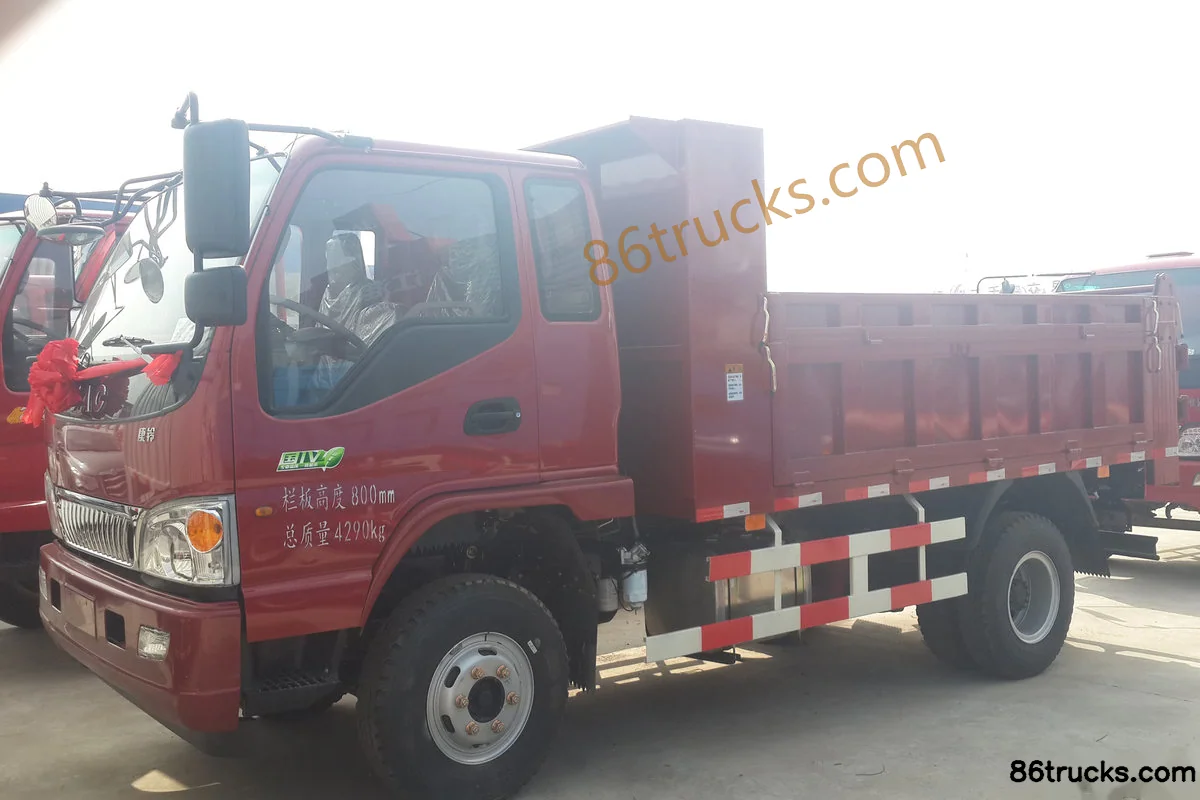

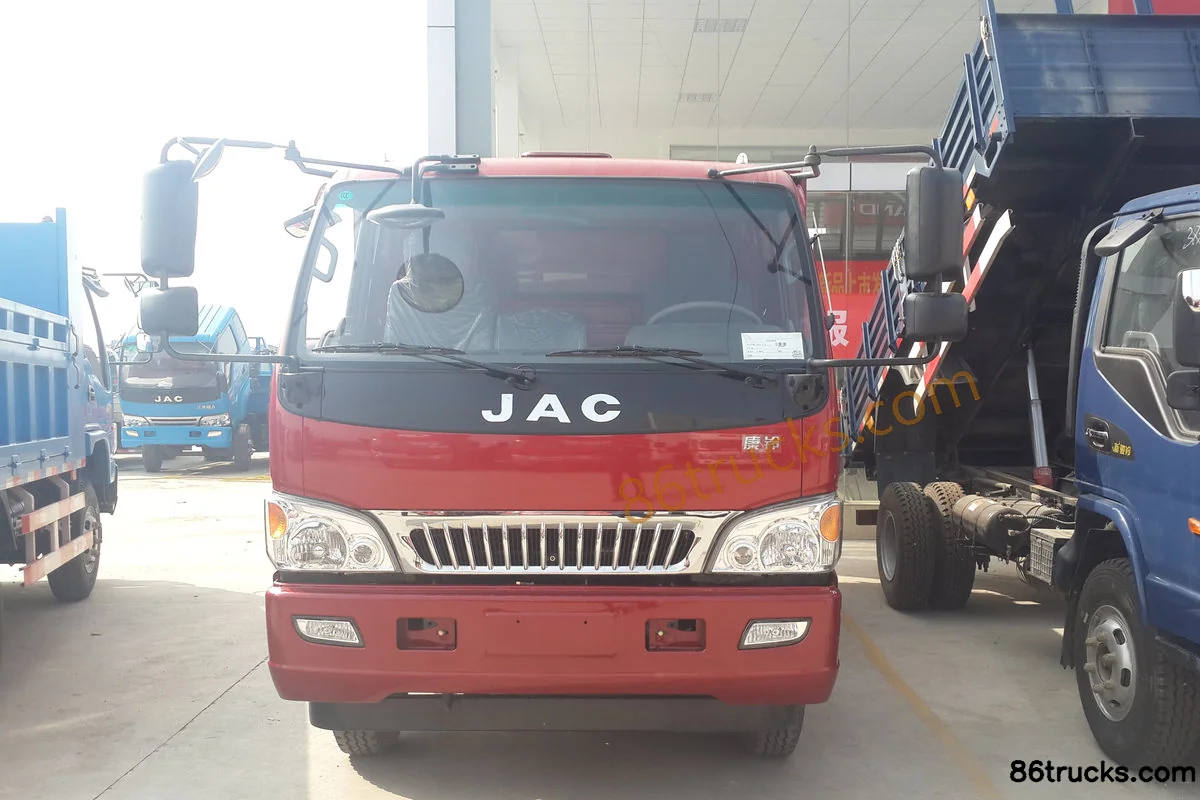

Photos

Exterior3

3 photos

FAQ

What is the export price of JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck, and what does it include?

JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck export reference is about From $13,694; MSRP is ¥9.86M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck?

Key specs of JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck: Drive: 4x2; Horsepower: 116 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck suited for?

JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck differ from other variants in the same series?

JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck belongs to JAC G light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling G 116 hp 4X2(6 wheels) 3.5m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
