Dongfeng EM10 4.15m Pure Electric Van Truck 40.86kWh

Export reference
From $16,639
MSRP ¥11.98M CNY
Wheelbase:: 2700mm
Cargo Box Height:: 1.225
Model code (announced):: DFA5020XXYCBEV2
Cab length:: 4.15m
GVWR:: 2.35ton
Max. speed:: 85km/h
CLTC range: 278km
Motor 1 Brand: Square
Curb Weight: 1.4ton
Rated payload: 0.82ton

Overview

The Dongfeng EM10 4.15m Pure Electric Van Truck 40.86kWh is a Electric Panel Van featuring 278km battery/range, Square motor, 0.82t payload and 1.225 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFA5020XXYCBEV2
Wheelbase: 2700mm
Cab length: 4.15m
Cab width: 1.62m
Cab height: 1.905m
CLTC range: 278km
Curb Weight: 1.4ton
Rated payload: 0.82ton
GVWR: 2.35ton
Max. speed: 85km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Square
Motor 1 Model: TZ205XFDM20C
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 20kW
Peak power: 45kW
total rated torque: 55N·m
total peak torque: 205N·m
Battery/Charging
Battery Brand: Changyi Huai'an
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 40.86kWh
Energy Density: 115.37
Chassis Specs
steering assist type: hydraulic power steering
Body Parameters
Cab structure: Load-bearing
Seat count: 2Seats
Body parameters
Max body depth: 2.05
Max body width: 1.374
Cargo Box Height: 1.225
Door Parameters
side door type: Sliding side door
Tailgate type: back door
Cab parameters
Seat rows:
Wheel brake
Front tire specification: 175/70R14LT
Rear Wheel Specification: 175/70R14LT
interior configuration
Power-Adjustable Rearview Mirror:
steering wheel adjustment:
AC control type: Manual
Power Windows:
Seat material: leather
lighting configuration
Front fog lamp:

Photos

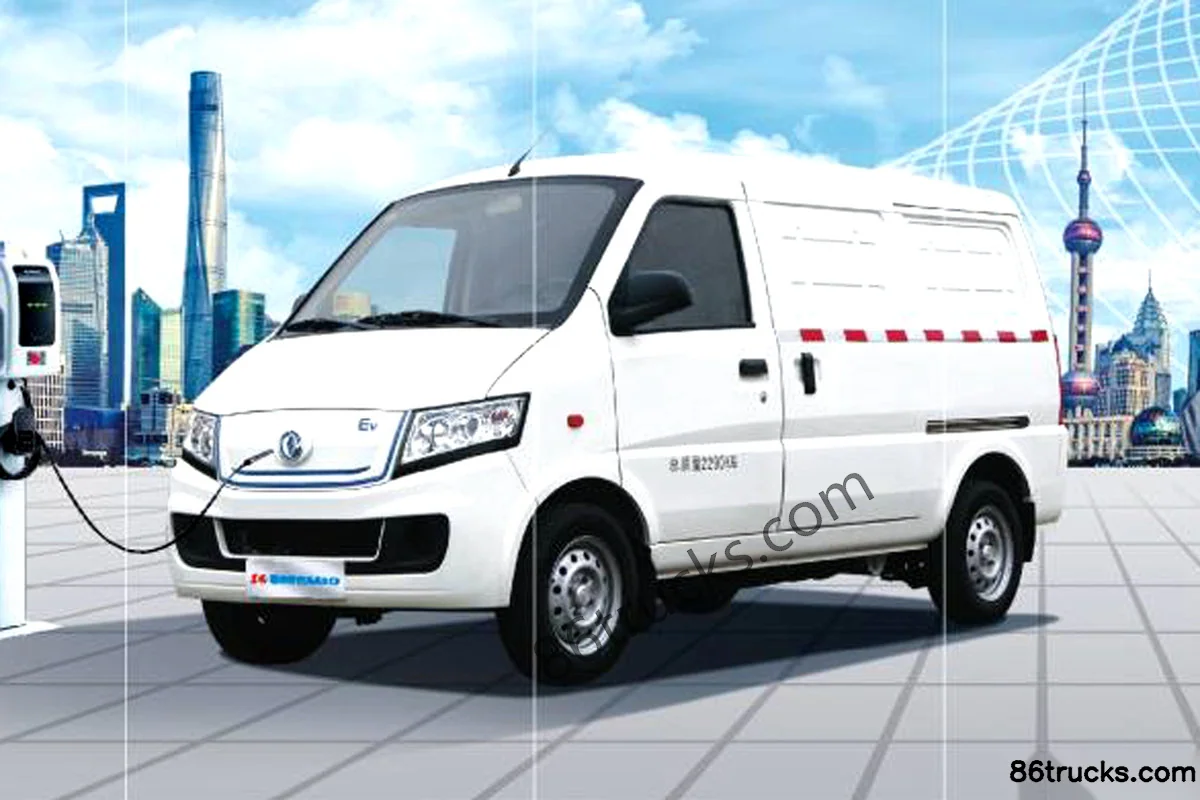

Exterior1

1 photos

FAQ

What is the export price of Dongfeng EM10 4.15m Pure Electric Van Truck 40.86kWh, and what does it include?

Dongfeng EM10 4.15m Pure Electric Van Truck 40.86kWh export reference is about From $16,639; MSRP is ¥11.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Dongfeng EM10 4.15m Pure Electric Van Truck 40.86kWh suited for?

Dongfeng EM10 4.15m Pure Electric Van Truck 40.86kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng EM10 4.15m Pure Electric Van Truck 40.86kWh differ from other variants in the same series?

Dongfeng EM10 4.15m Pure Electric Van Truck 40.86kWh belongs to Dongfeng EM10 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng EM10 4.15m Pure Electric Van Truck 40.86kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng EM10 4.15m Pure Electric Van Truck 40.86kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
