FARIZON Xingxiang Electric Panel Van

Main model photos

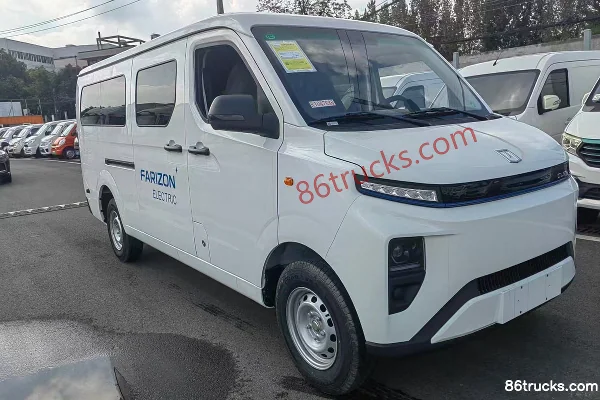

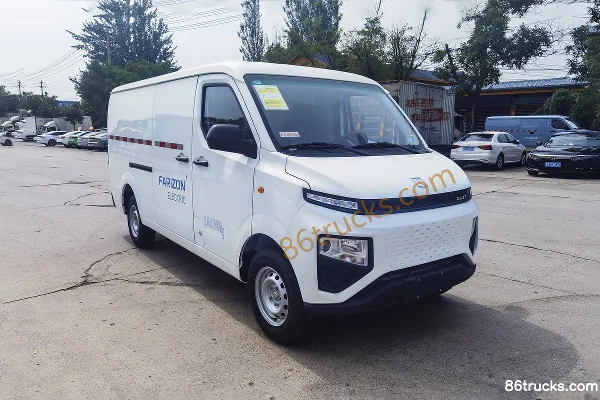

FARIZON Xingxiang Huanneng V01 2-seat Pure Electric Enclosed Van Guoxuan 45.15kWh Exterior FARIZON Xingxiang V6E Windowed Version 4.845m Electric Panel Van 41.86kWh Exterior FARIZON Xingxiang V6E Super Value Edition 3T 4.845m Pure Electric Enclosed Van 38.4kWh Exterior

165 photos

Models

Series Specs

Basic Info
Model code (announced): DNC5031XXYBEVGS3 / DNC5032XXYSEVGR3 / JHC6481BEVR4 / DNC5035XXYBEVGP1 / JHC6480BEV22 / DNC5032XXYSEVGR1 / DNC5032XXYBEVM1 / DNC5031XXYBEVGP2 / DNC5032XXYBEVM3 / DNC5037XXYBEVP1 / DNC5038XXYBEVGP9 / DNC5031XXYBEVGN2 / DNC5032XXYBEVGP1 / DNC5039XXYBEVGP2 / JHC6480BEV51 / DNC5037XXYBEVGP2 / DNC5037XXYBEVGP3 / DNC5037XYZBEVGP1 / DNC5039XXYBEVGP1 / DNC5037XXYBEVGN2 / JHC5032XXYBEVM2 / DNC5037XXYBEVGDN1 / JHC5037XXYBEVM4 / JHC5037XXYBEVM3 / JHC5032XXYBEVM3
Wheelbase: 3100 / 2920mm
Cab length: 4.845 / 4.54m
Cab width: 1.73m
Cab height: 1.985 / 2.185m
CLTC range: 260 / 265 / 240 / 285 / 325km
Curb Weight: 1.515 / 1.355 / 1.58 / 1.54 / 1.49 / 1.65 / 1.445 / 1.475 / 1.455 / 1.47 / 1.535 / 1.39 / 1.365ton
Rated payload: 1.355 / 1.515 / 1.29 / 1.38 / 1.22 / 1.025 / 1.395 / 1.415 / 1.4 / 1.08 / 1.105ton
GVWR: 3 / 2.51 / 2.325 / 2.6ton
Max. speed: 90 / 100km/h
Remarks: PP plastic floor, cargo box headliner, full rear side trim, no wheel covers, no spare tire, no cab rear bulkhead, V2L reverse charging. / Manual interior rearview mirror, PP plastic floor, cargo box headliner, fully wrapped rear side trim, no wheel covers, no spare tire, no cab rear bulkhead / Standard: front collision warning, ETO energy recovery / Avanti custom exterior (custom front trim pre-installed, rear emblem installed on behalf) / Huilian Custom Edition Exterior / Standard: rear 180° tailgate, aluminum checkered floor, cargo box ceiling, spare tire (with bracket). / Standard: rear 180° tailgate, PVC plastic floor, no cargo box ceiling, no spare tire / Standard: rear 180° tailgate, aluminum checkered floor, cargo box ceiling, wheel covers, spare tire (with bracket). / Standard: rear 180° tailgate, PVC plastic floor, no cargo box ceiling, no wheel covers, no spare tire.
Front/rear suspension: 0.635/1.11 / 0.635/0.985m
Version: Smart Edition / Smart Rich Edition / Fortune Edition II / Fortune Edition I / Clear-window version / Value Edition / Zunxiang Edition / Zunxiang Edition - Afanti Custom / Value Edition - Afanti Custom / Passenger transport version / Value Edition - Special Custom / Huilian Custom Edition / Postal Version / 2022 Premium Edition
electric motor
Motor 1 Brand: FARIZON Zhixin / Huzhou Zhixin / Wolong ZF / Inovance
Motor 1 Model: TZ180XSDSZX01 / TZ180XSZX14 / TZ180XSZX05 / TZ185XS022 / TZ180XSZX01 / TZ185XS0ZX / TZ180XS000
Motor Type: Permanent magnet synchronous motor
Energy Type: Electric
total rated power: 30 / 35 / 32kW
Peak power: 60 / 70kW
total peak torque: 220N·m
total rated torque: 90N·m
Battery/Charging
Charging method: Fast charge, optional slow charge / DC fast charge / slow charge / Fast Charge / Fast Charge, Standard Slow Charge (Slow Charge Gun Optional) / Standard: fast charge; Optional: 3.3kW slow charge / Fast charge, optional slow charge 3.3kW / Fast charge, optional 3.3kW slow charge / Fast charge, optional slow charge 3.3kW + slow charge gun / Fast charge, optional 3.3kW slow charge + charging gun / Fast Charge, 3.3kW Slow Charge / Fast charge, optional slow charge 3.3kW + charging gun / Standard: fast charge; Optional: 3.3kW slow charge + charging gun
Battery Brand: Xuanwu / Guoxuan High-Tech / CALB / CATL / EVE Power / Hefei Guoxuan High-Tech / Chuzhou Lishen / Huzhou Zhixin / Smart Core / EVE Energy, Hubei / EVE / Jiangxi Anchi
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 51.39 / 45.15 / 35 / 41.85 / 41.86 / 49.92 / 38.7 / 41.055 / 41.93 / 38.4 / 46.08 / 39.6 / 38.64 / 32.14kWh
fast charge time: 1.5h
Energy Density: 136.2 / 137.6 / 133.38 / 140.1
Body parameters
Cargo box volume: 6 / 5
Max body depth: 2.8 / 2.495
Max body width: 1.6
Cargo Box Height: 1.32 / 1.27
Chassis Specs
Front suspension type: Independent suspension / MacPherson independent suspension / McPherson independent
rear suspension type: Leaf spring / Leaf spring non-independent suspension / Longitudinal steel leaf spring non-independent suspension
Body Parameters
Seat count: 2 / 6Seats
Door Parameters
side door type: Sliding side door
Tailgate type: rear 270° tailgate / rear 180° double doors / rear 180° tailgate / 180° / Rear: 180°
Wheel brake
Front brake type: Disc brake / Disc
rear brake type: drum brake / Drum Type
Front tire specification: 185R14LT 8PR / 185R14LT / 175R14LT 8PR / 185R14LT 8PR,195/70R15LT 12PR / 195/70R15LT 12PR / Standard: 175R14LT 8PR, Optional: 185R14LT 8PR
Cab parameters
Seat rows: 1 / 3

FAQ

What kind of truck is FARIZON FARIZON Xingxiang Electric Panel Van?

FARIZON FARIZON Xingxiang is an export-oriented Electric Panel Van lineup with about 75 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for FARIZON Xingxiang Electric Panel Van?

FARIZON Xingxiang Electric Panel Van export reference is about $10,833 – $22,194. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What is Electric Panel Van typically used for?

Electric Panel Van focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.

How many models does FARIZON Xingxiang Electric Panel Van include?

FARIZON Xingxiang Electric Panel Van currently lists about 75 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for FARIZON Xingxiang Electric Panel Van?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
