FARIZON Xingxiang V6E 3T 2.8m Electric Panel Van 38.64kWh

Export reference
MSRP N/A
Wheelbase:: 3100mm
Cargo Box Height:: 1.32
Model code (announced):: DNC5037XXYBEVM1
Cab length:: 4.85m
GVWR:: 3ton
Max. speed:: 90km/h
Battery Brand: CATL
Motor 1 Brand: Wolong ZF
Curb Weight: 1.49ton
Rated payload: 1.38ton

Overview

The FARIZON Xingxiang V6E 3T 2.8m Electric Panel Van 38.64kWh is a Electric Panel Van featuring CATL battery/range, Wolong ZF motor, 1.38t payload and 1.32 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DNC5037XXYBEVM1
Wheelbase: 3100mm
Cab length: 4.85m
Cab width: 1.73m
Cab height: 1.985m
Curb Weight: 1.49ton
Rated payload: 1.38ton
GVWR: 3ton
Max. speed: 90km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Wolong ZF
Motor 1 Model: TZ185XS022
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 60kW
total peak torque: 220N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 38.64kWh
Battery Model: L125V01
Body Parameters
Seat count: 2Seats
Body parameters
Max body depth: 2.8
Max body width: 1.6
Cargo Box Height: 1.32
Cab parameters
Seat rows:
Wheel brake

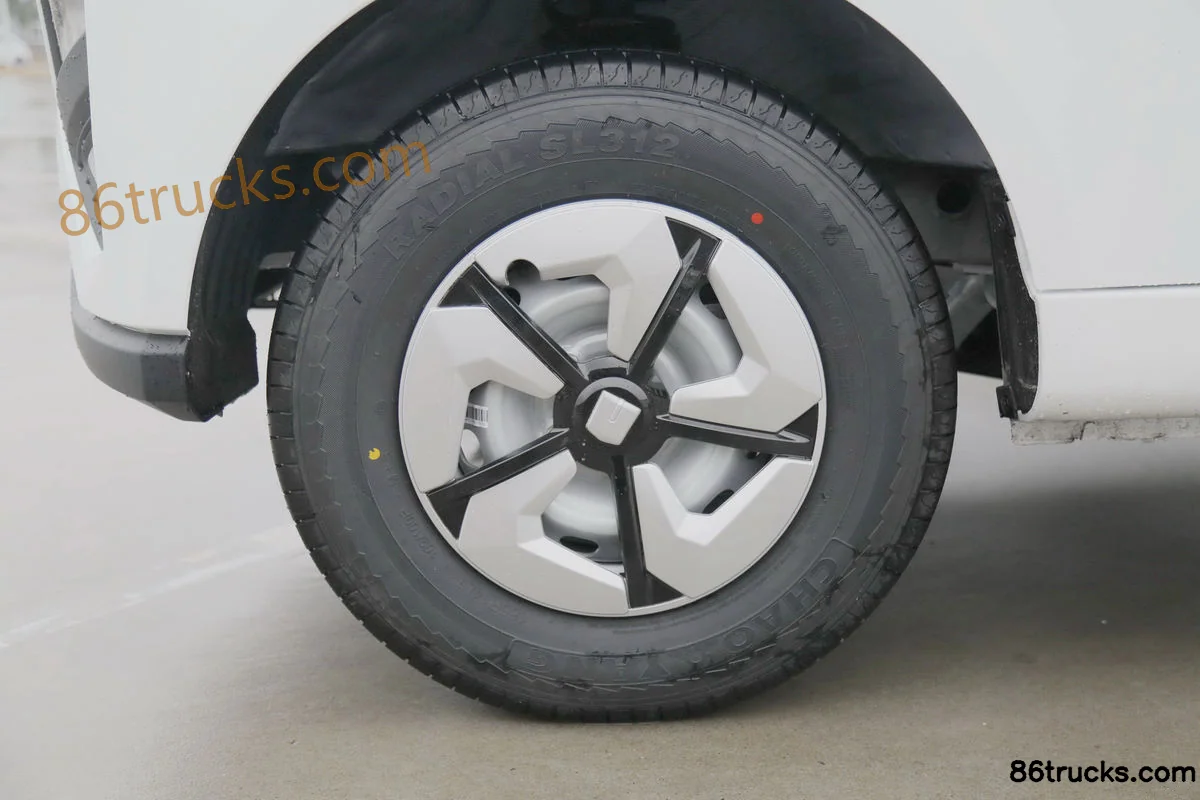

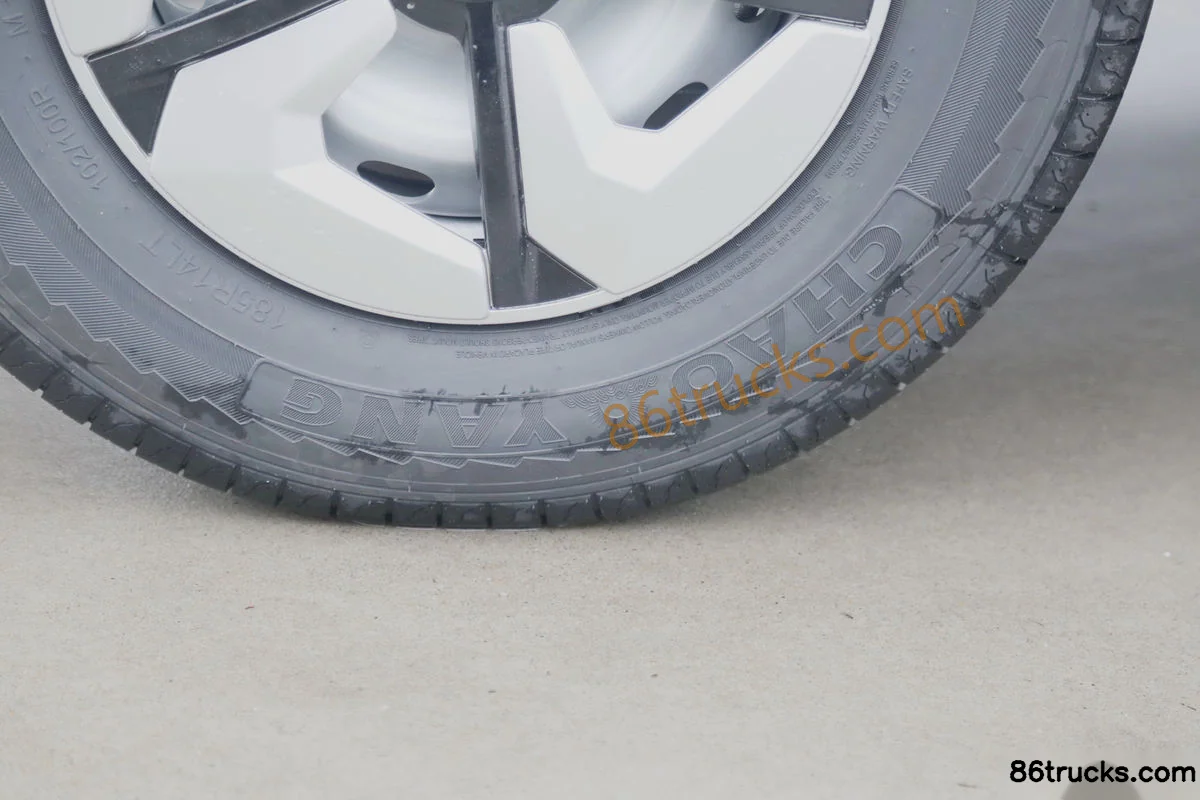

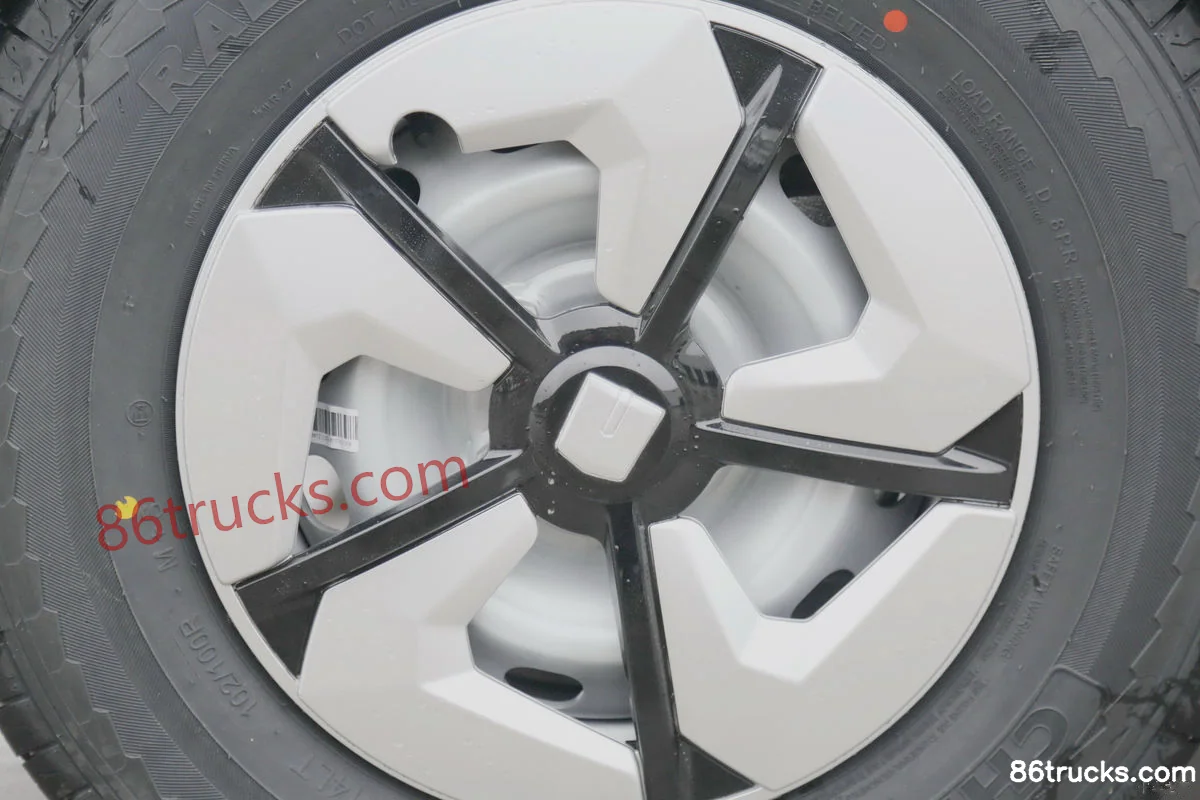

Front tire specification: 185R14LT 8PR
Rear Wheel Specification: 185R14LT 8PR
Control configuration
ABS:

Photos

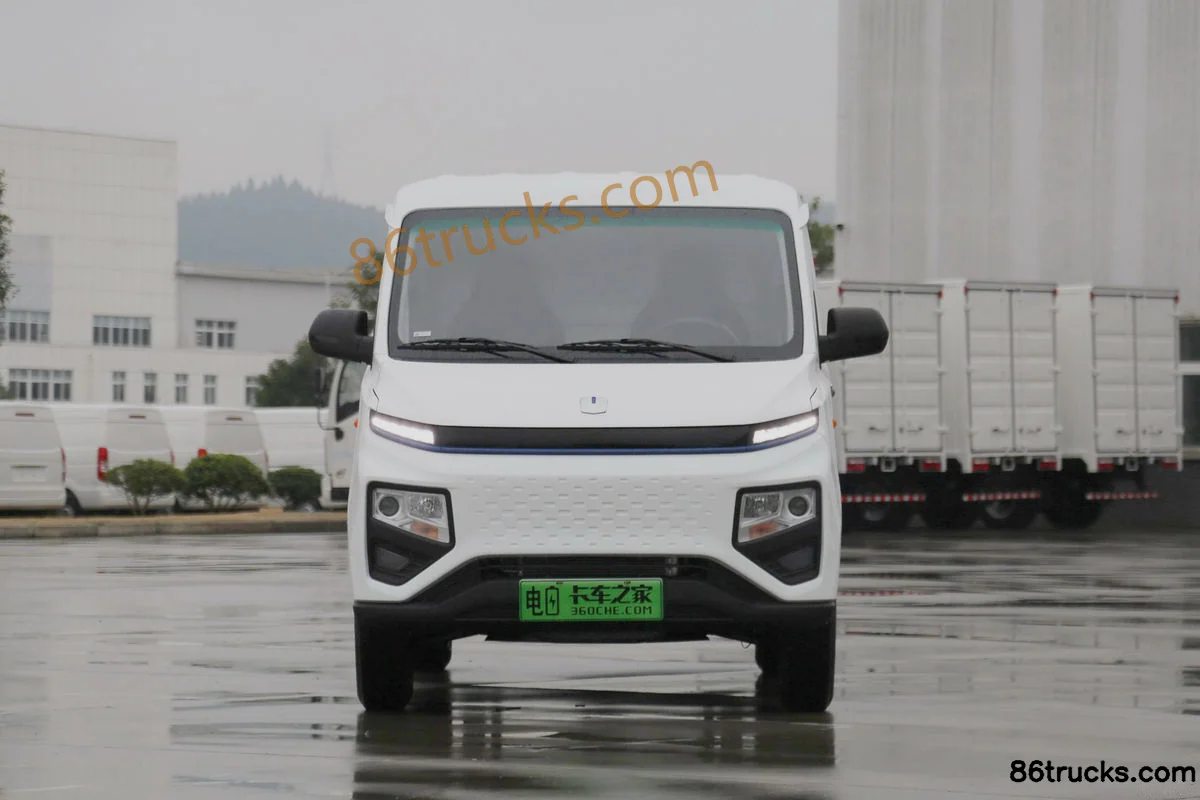

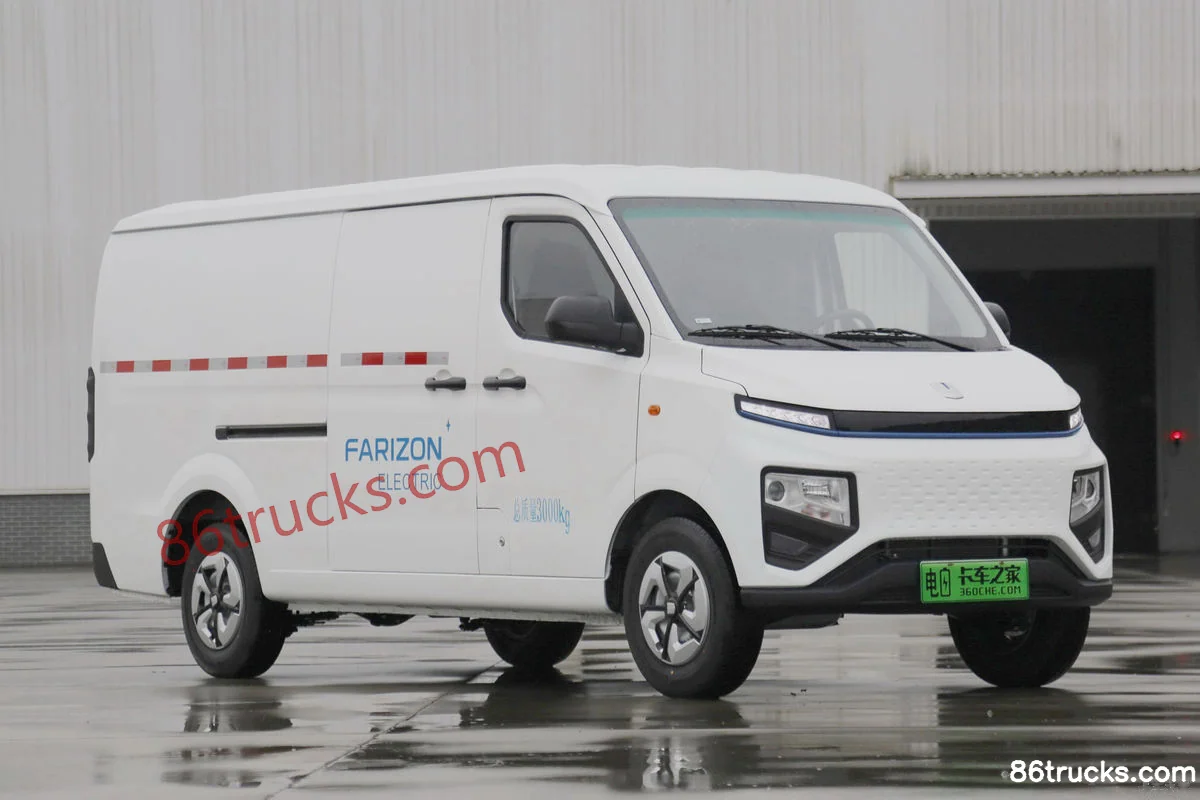

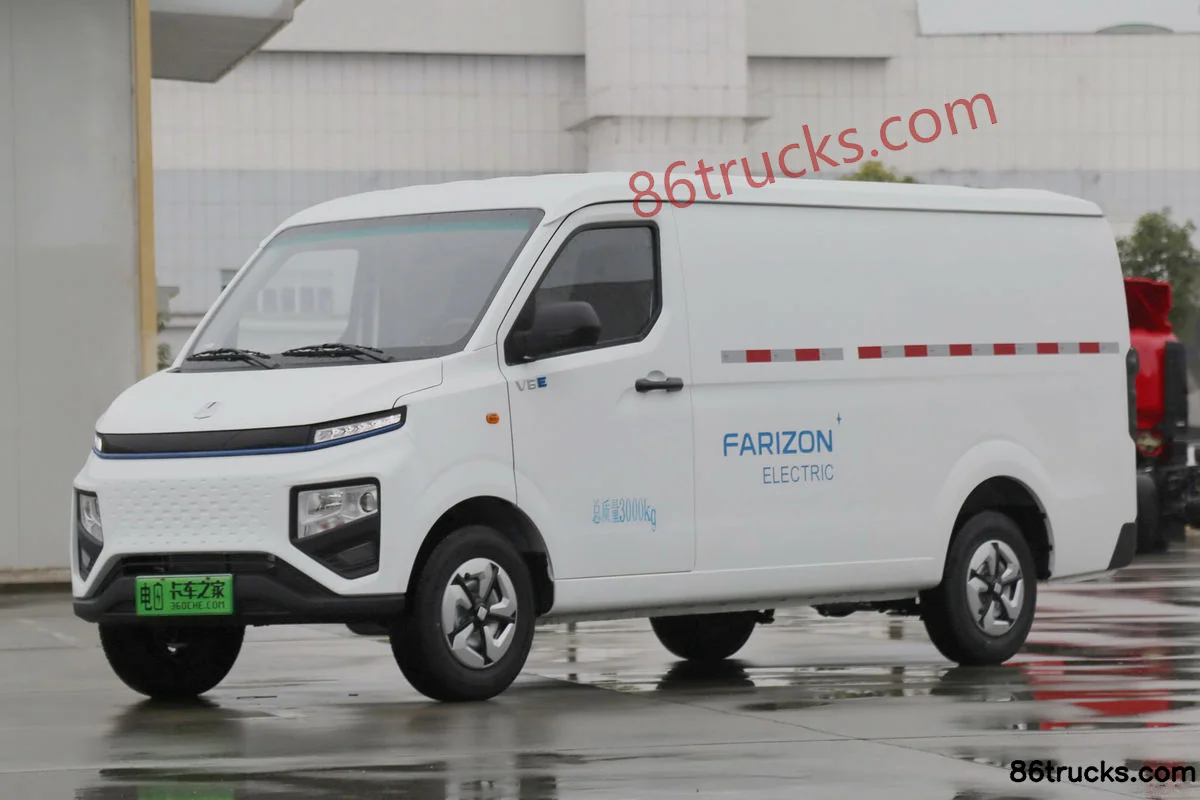

Exterior3

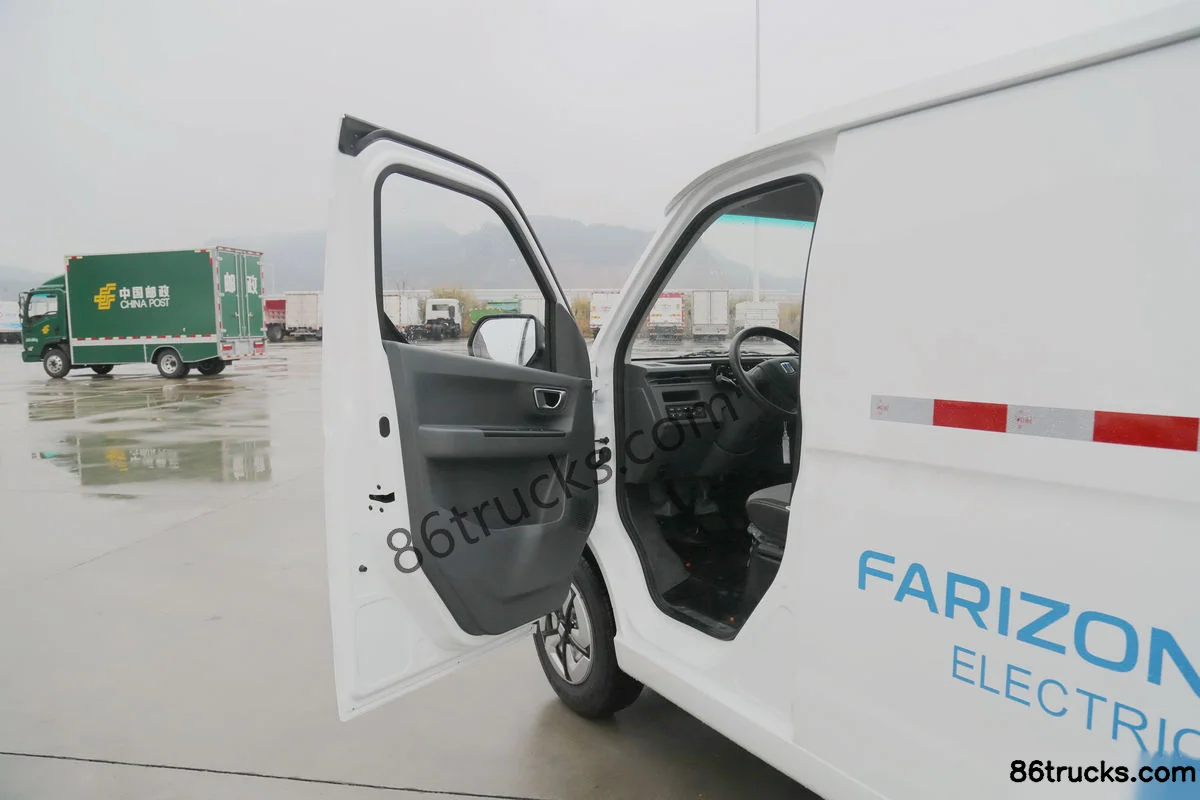

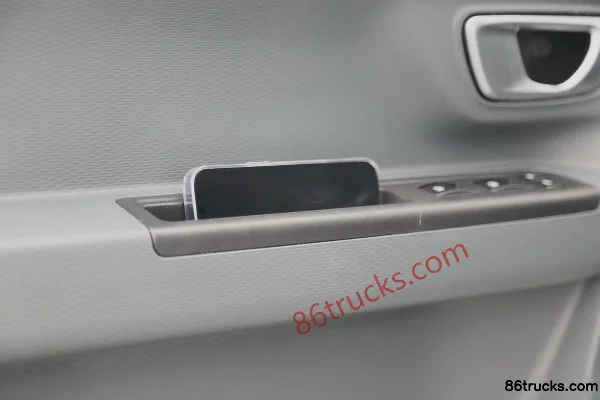

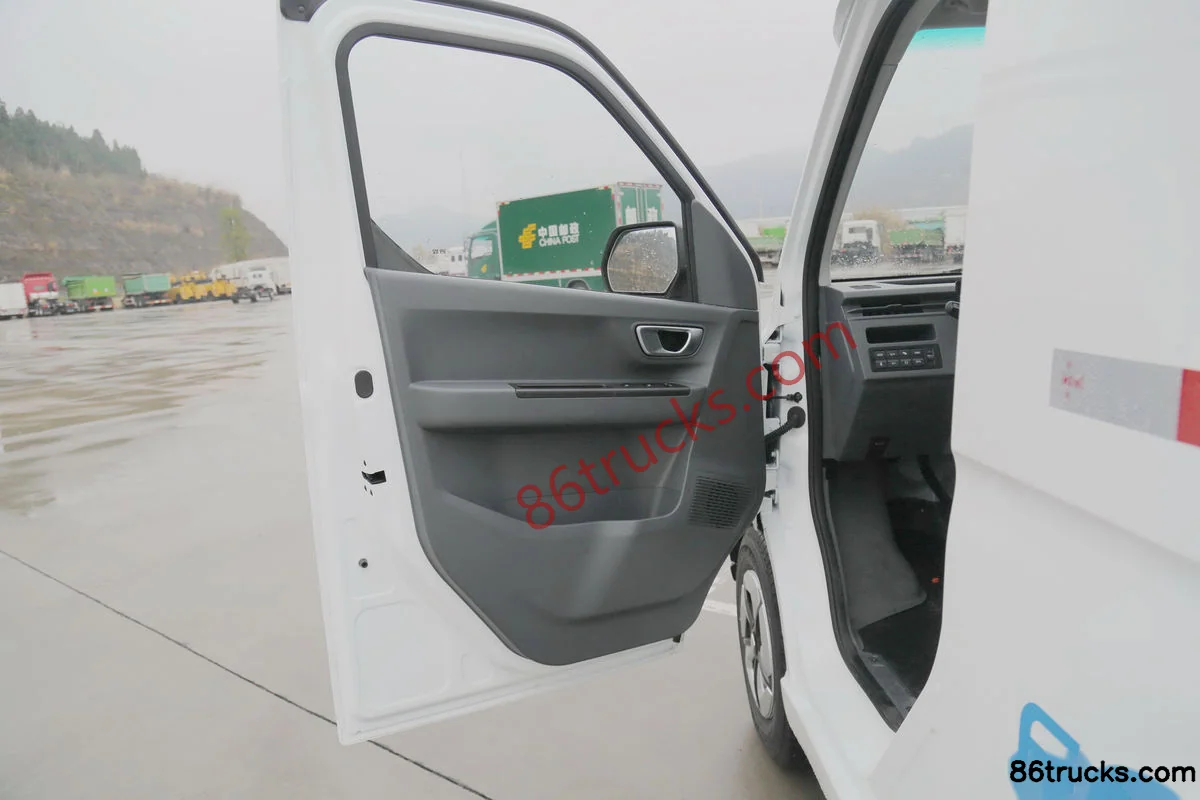

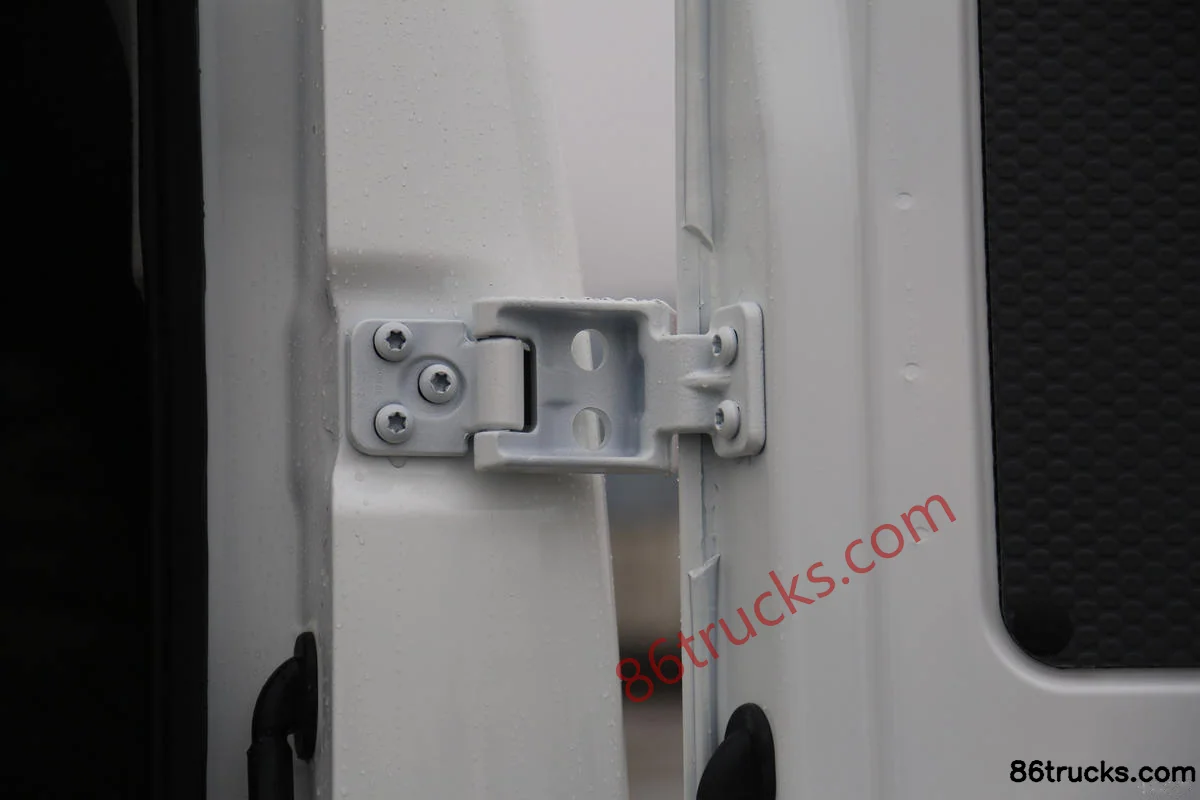

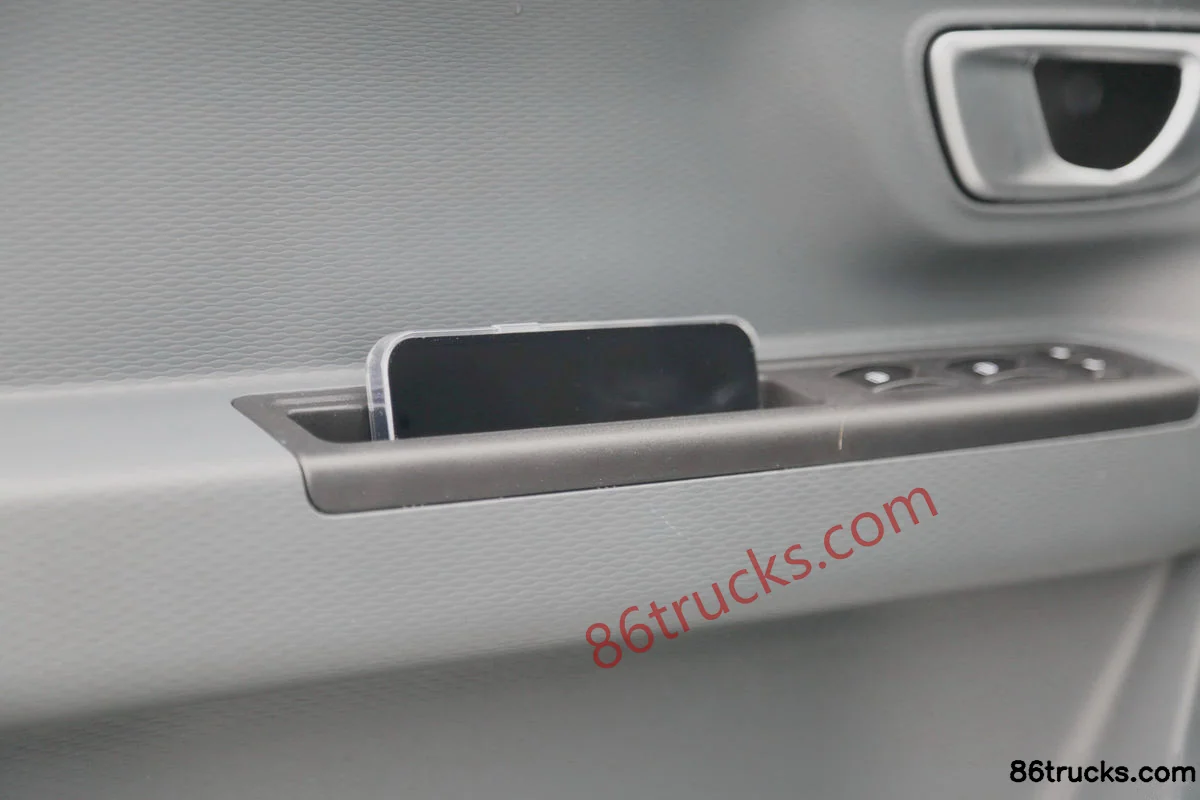

Cab3

Chassis3

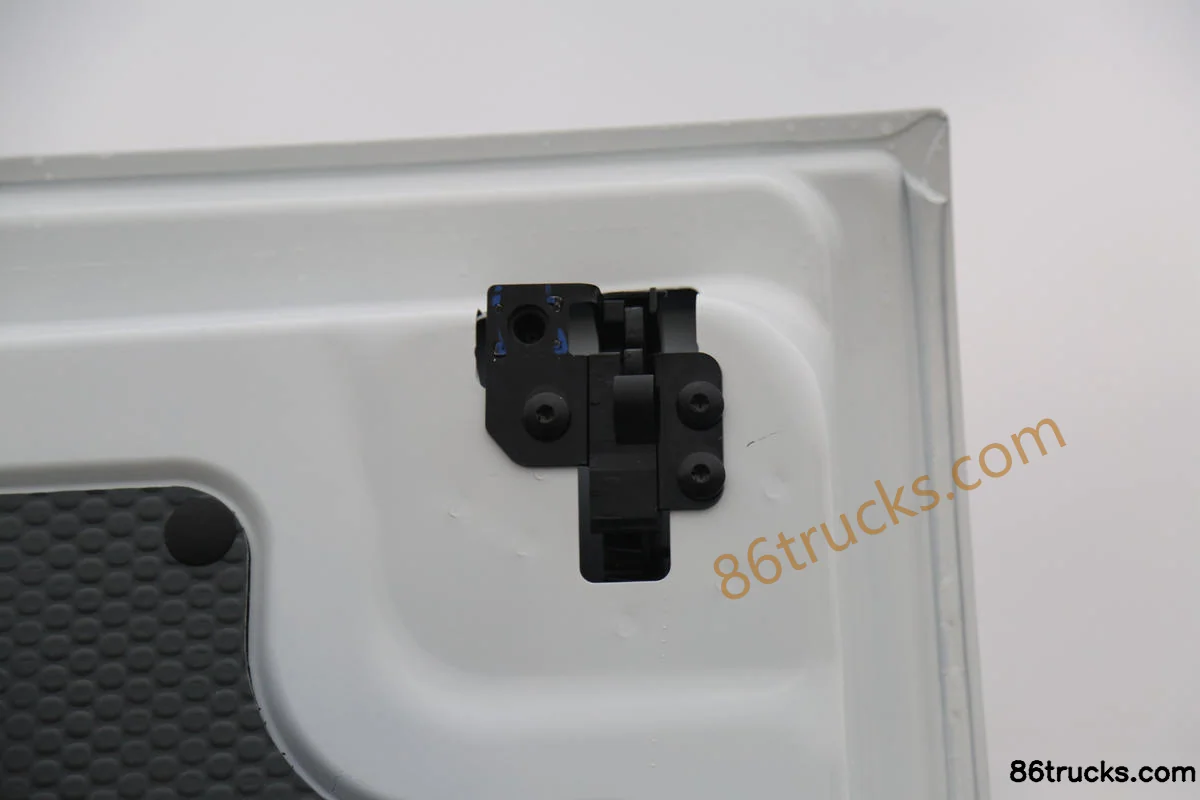

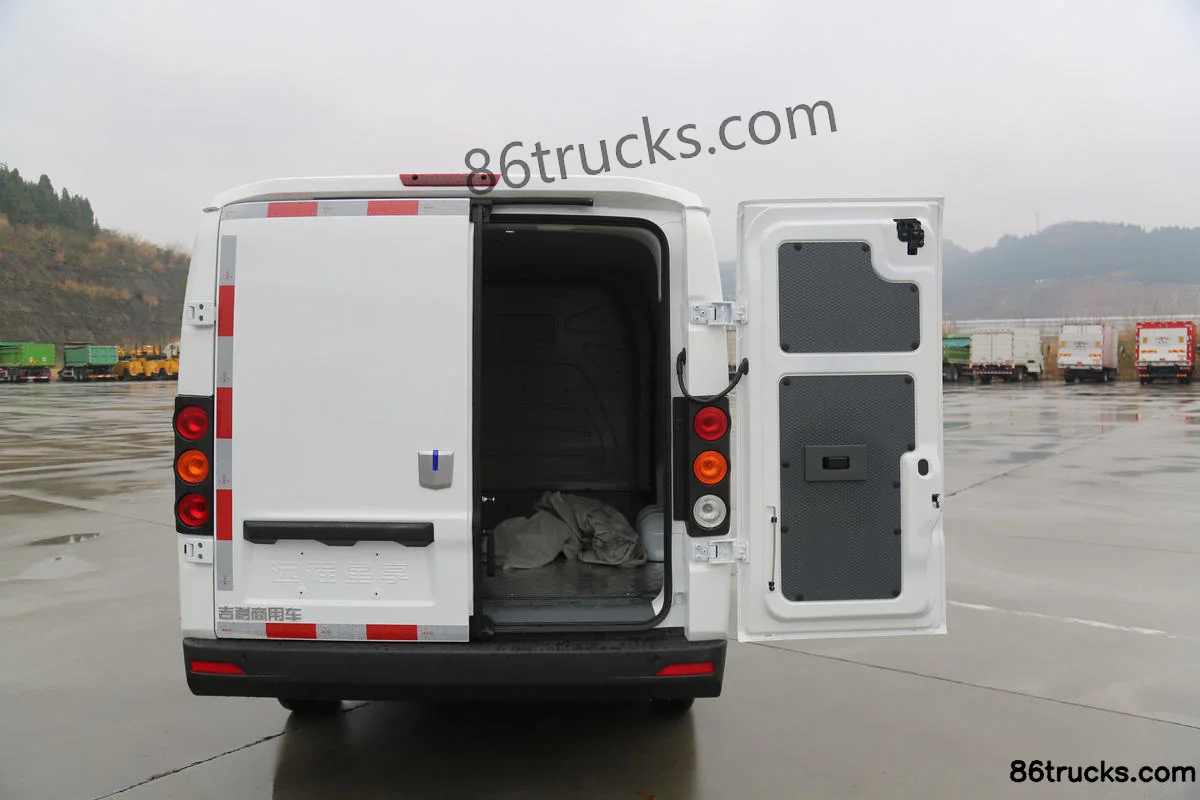

Cargo Box3

12 photos

FAQ

What transport jobs is FARIZON Xingxiang V6E 3T 2.8m Electric Panel Van 38.64kWh suited for?

FARIZON Xingxiang V6E 3T 2.8m Electric Panel Van 38.64kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FARIZON Xingxiang V6E 3T 2.8m Electric Panel Van 38.64kWh differ from other variants in the same series?

FARIZON Xingxiang V6E 3T 2.8m Electric Panel Van 38.64kWh belongs to FARIZON Xingxiang (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON Xingxiang V6E 3T 2.8m Electric Panel Van 38.64kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON Xingxiang V6E 3T 2.8m Electric Panel Van 38.64kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
