Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 2.72ton
Wheelbase:: 3180mm
Tire Size:: 195/75R16LT 8PR,195/75R16LT 10PR
Model code (announced):: KMC3043HH318D5
Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck exterior
View more photos (12)
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 110
Cargo box type: Rear-dump body

Overview

The Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP2.3Q110E50 engine, 110 hp, China V emissions and 5-speed transmission transmission.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): KMC3043HH318D5
Drive type: 4X2
Wheelbase: 3180mm
engine: WeichaiWP2.3Q110E50
transmission: 5-speed transmission
Cab length: 5.68m
Cab width: 1.95m
Cab height: 2.06m
Front track width: 1500mm
rear track: 1375mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3Q110E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.29L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: 5-speed transmission
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.6m
Cargo box width: 1.75m
Cargo box height: 0.4m
Chassis Specs
Front axle allowable load: 1550kg
rear axle allowable load: 2945kg
Leaf spring count: 3/5+3,3/6+4,7/9+5
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 195/75R16LT 8PR,195/75R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

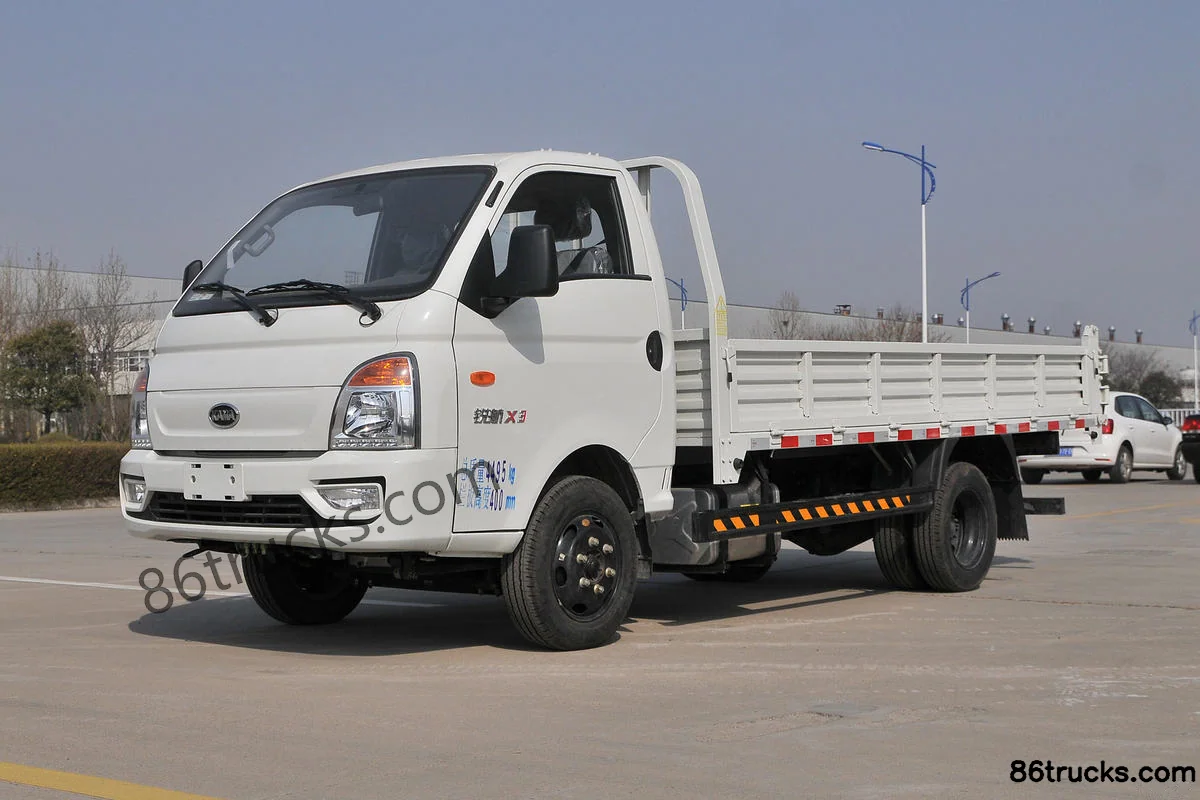

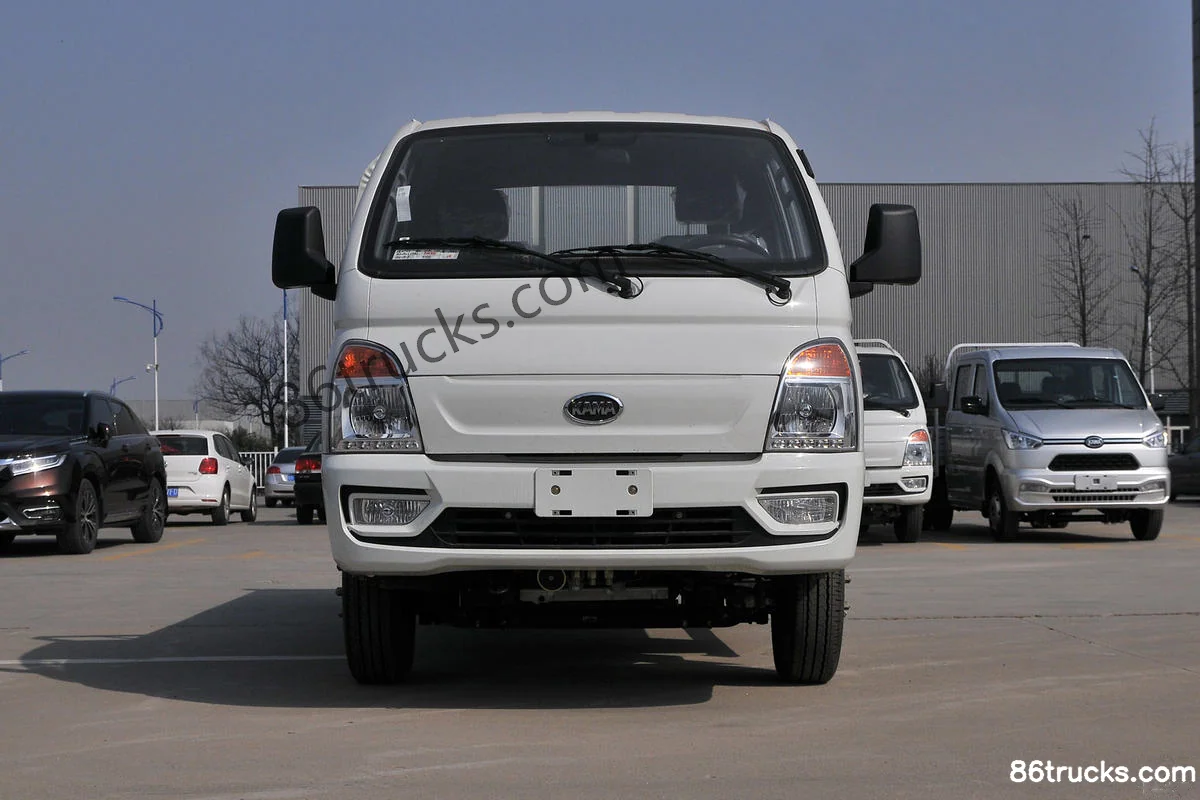

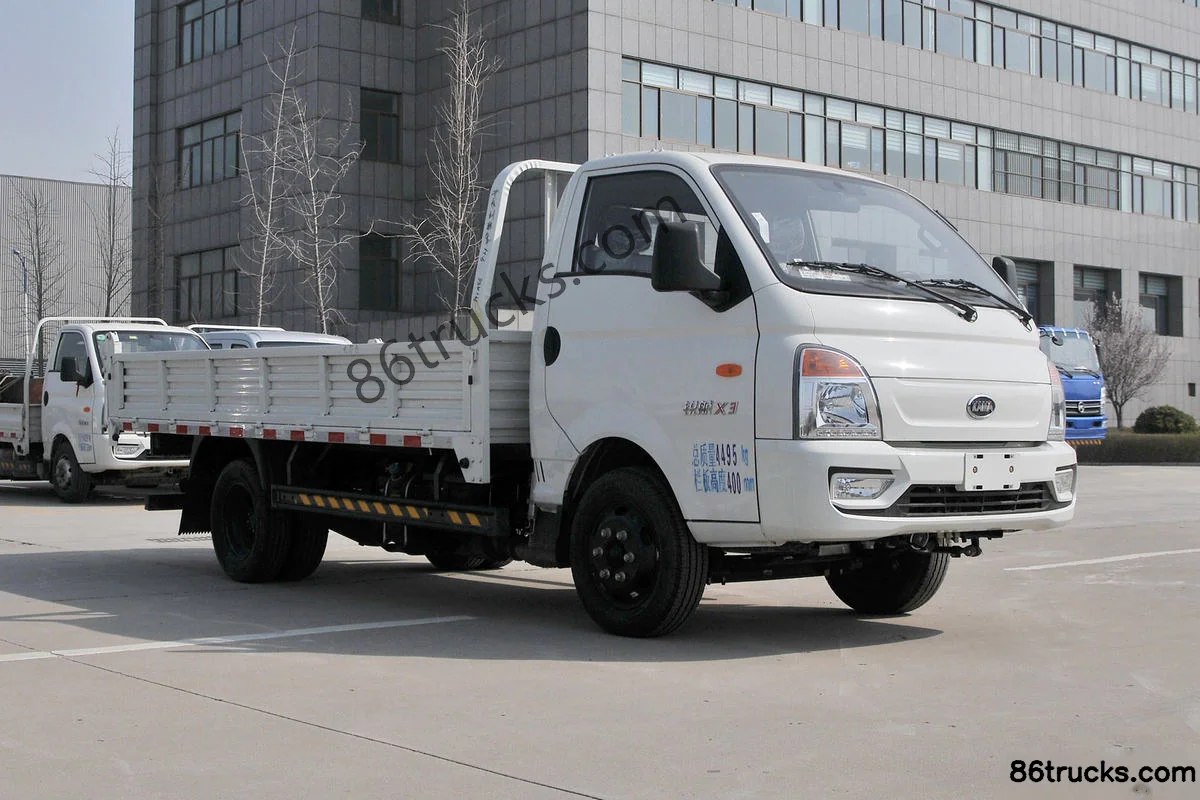

Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck Exterior (1) | 86Trucks Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck Exterior (2) | 86Trucks Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck Exterior (3) | 86Trucks

Cab3

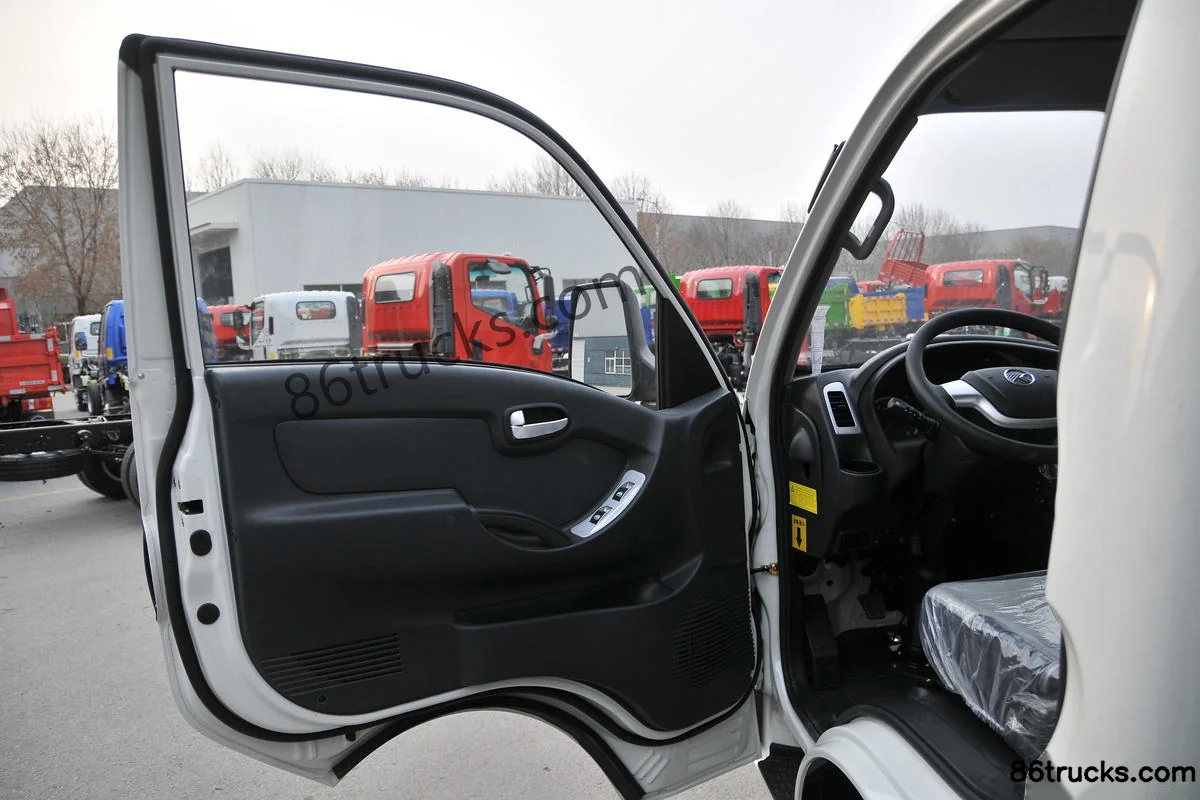

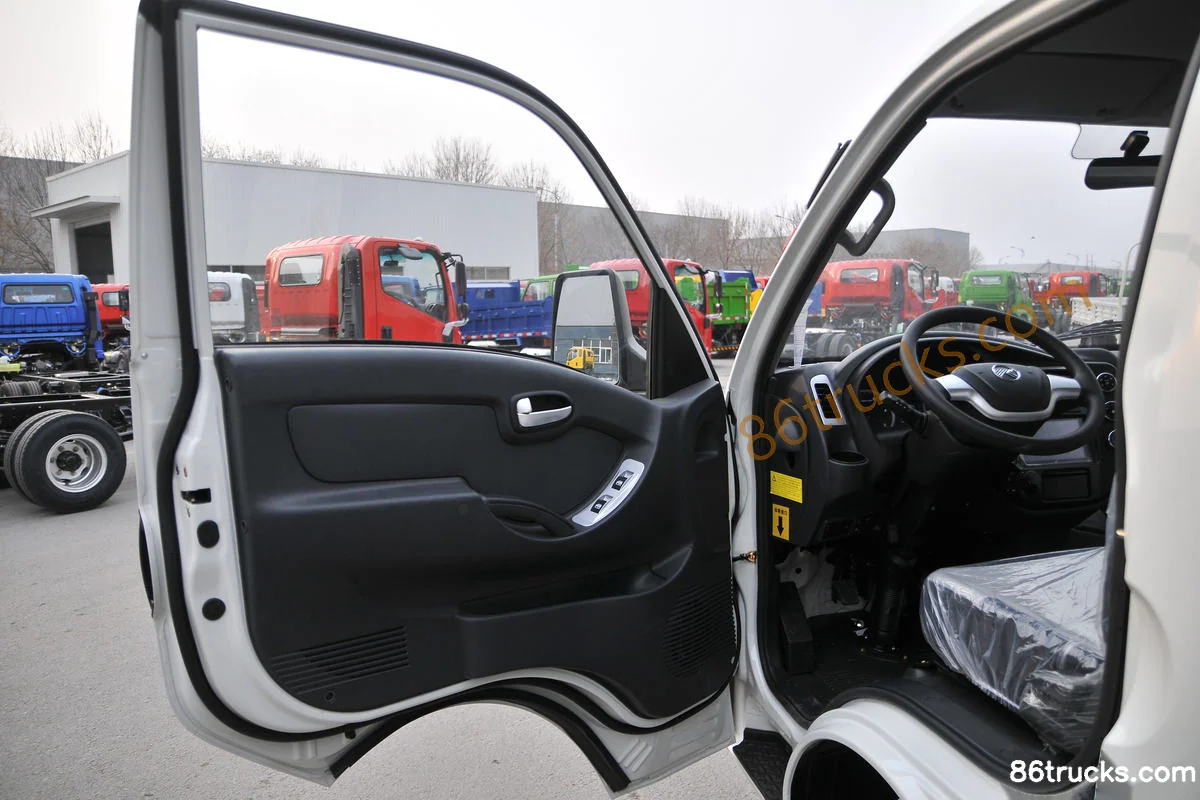

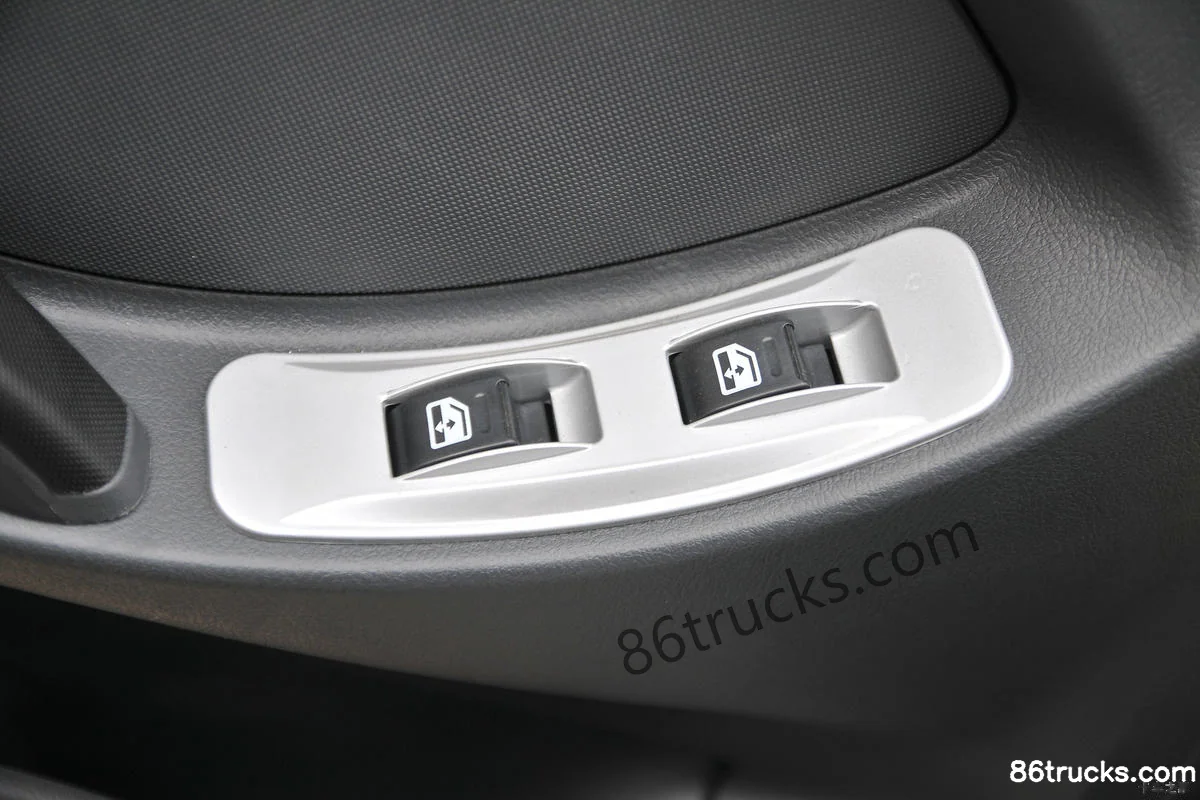

Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck Cab (1) | 86Trucks Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck Cab (2) | 86Trucks Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck Cab (3) | 86Trucks

Chassis3

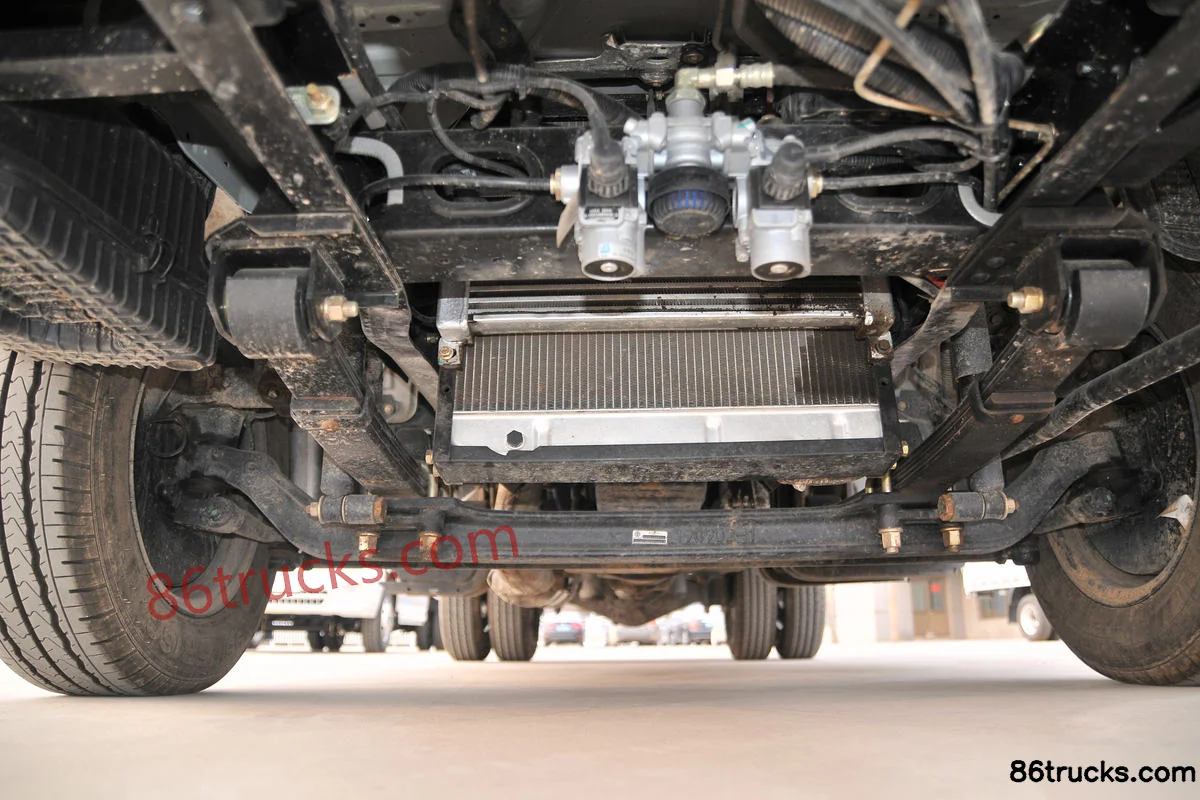

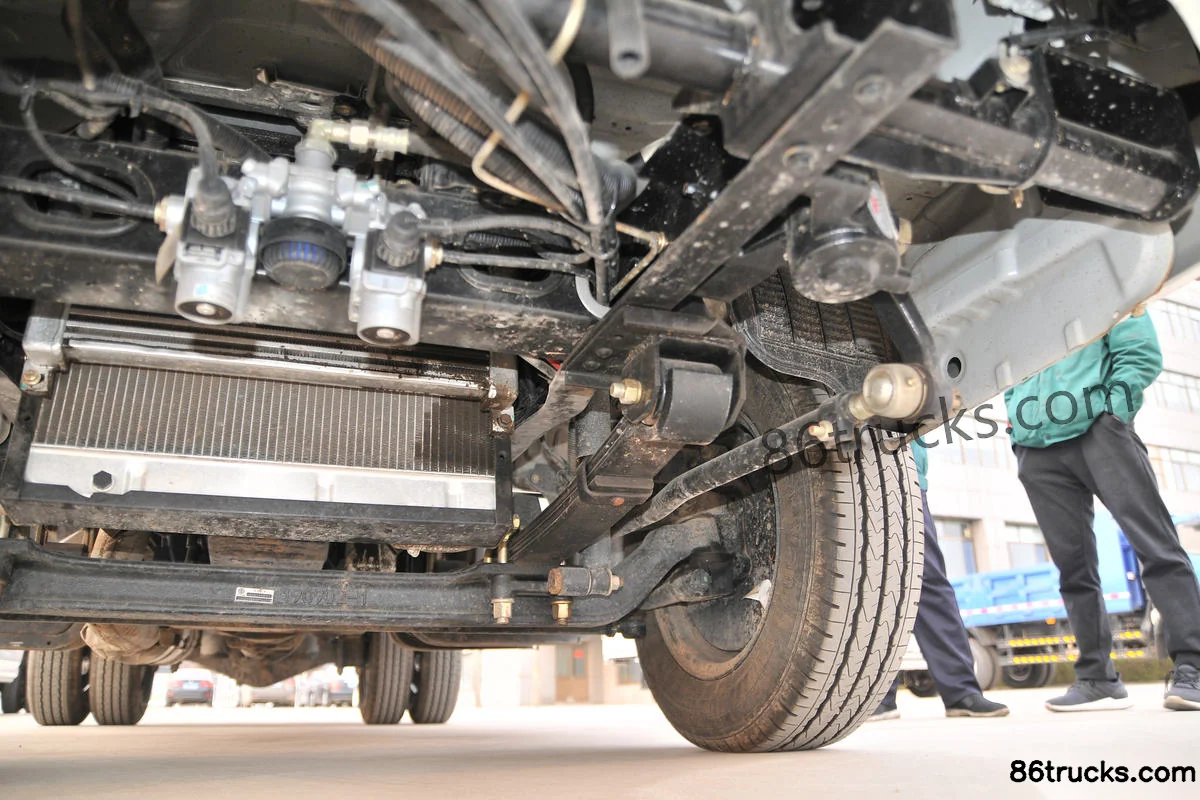

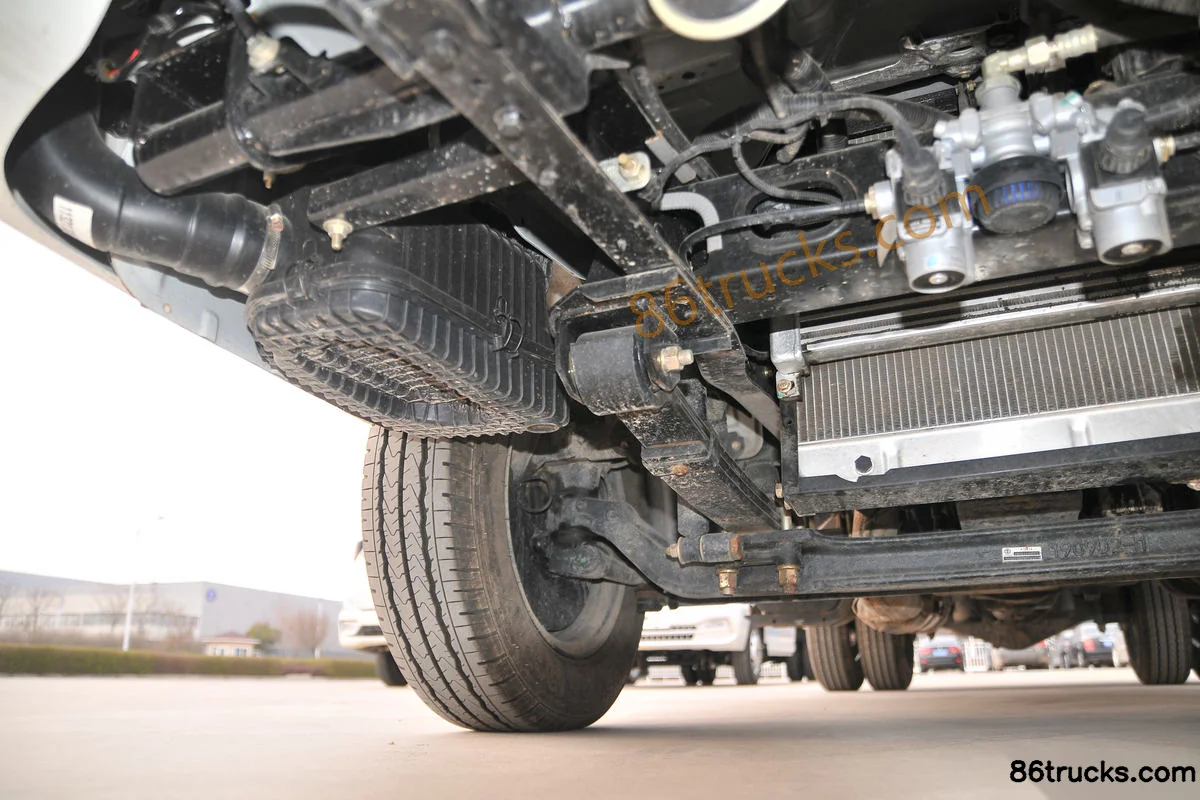

Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck Chassis (1) | 86Trucks Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck Chassis (2) | 86Trucks Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck Chassis (3) | 86Trucks

Body3

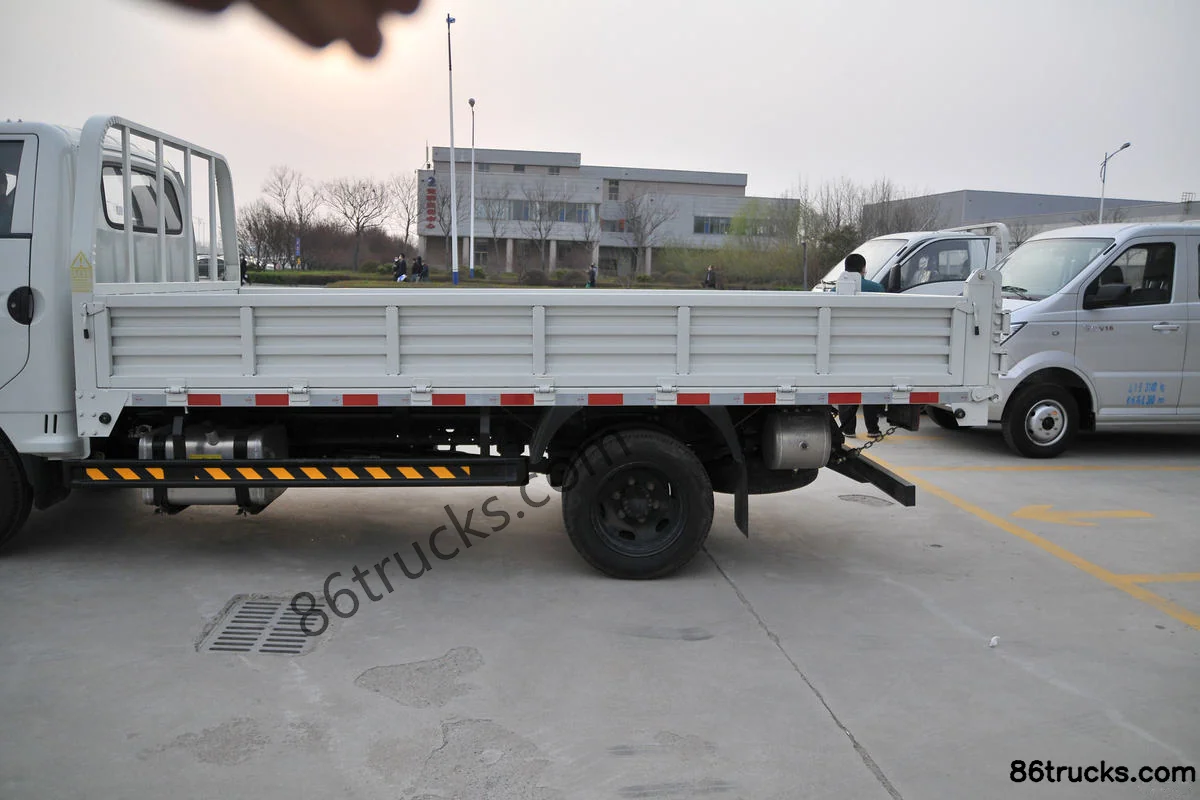

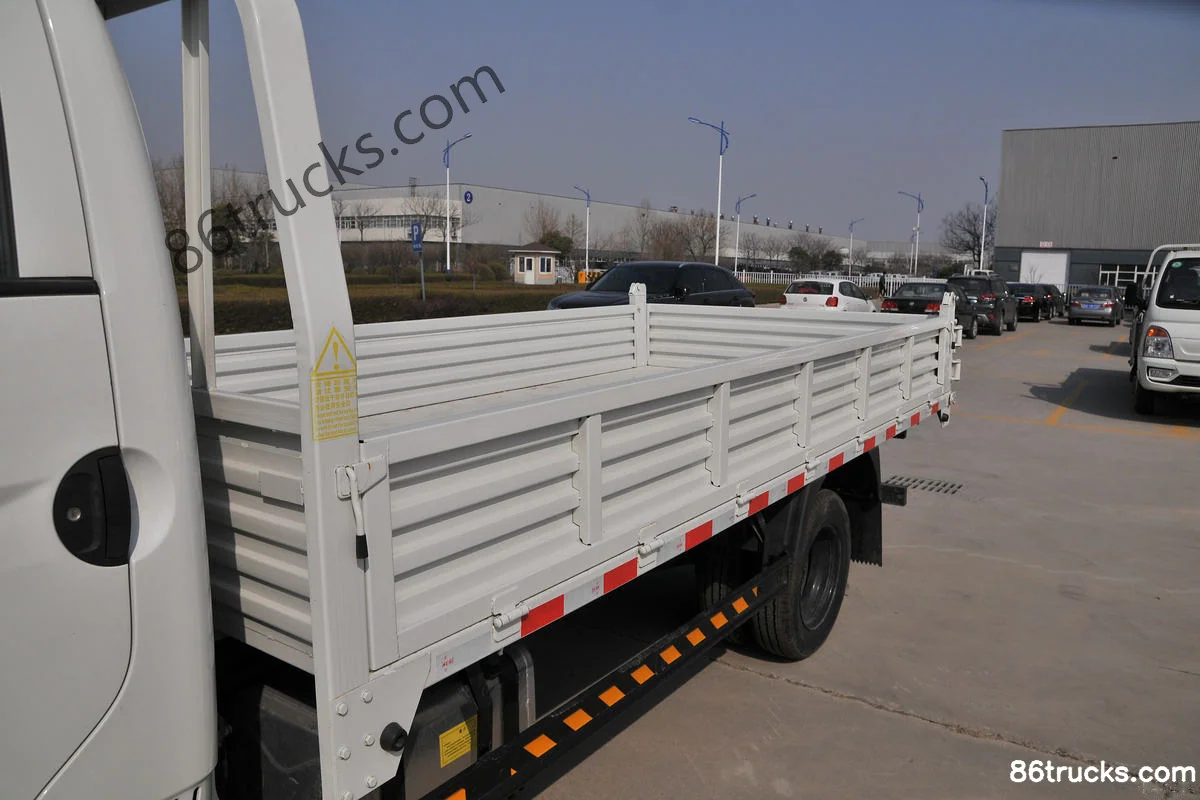

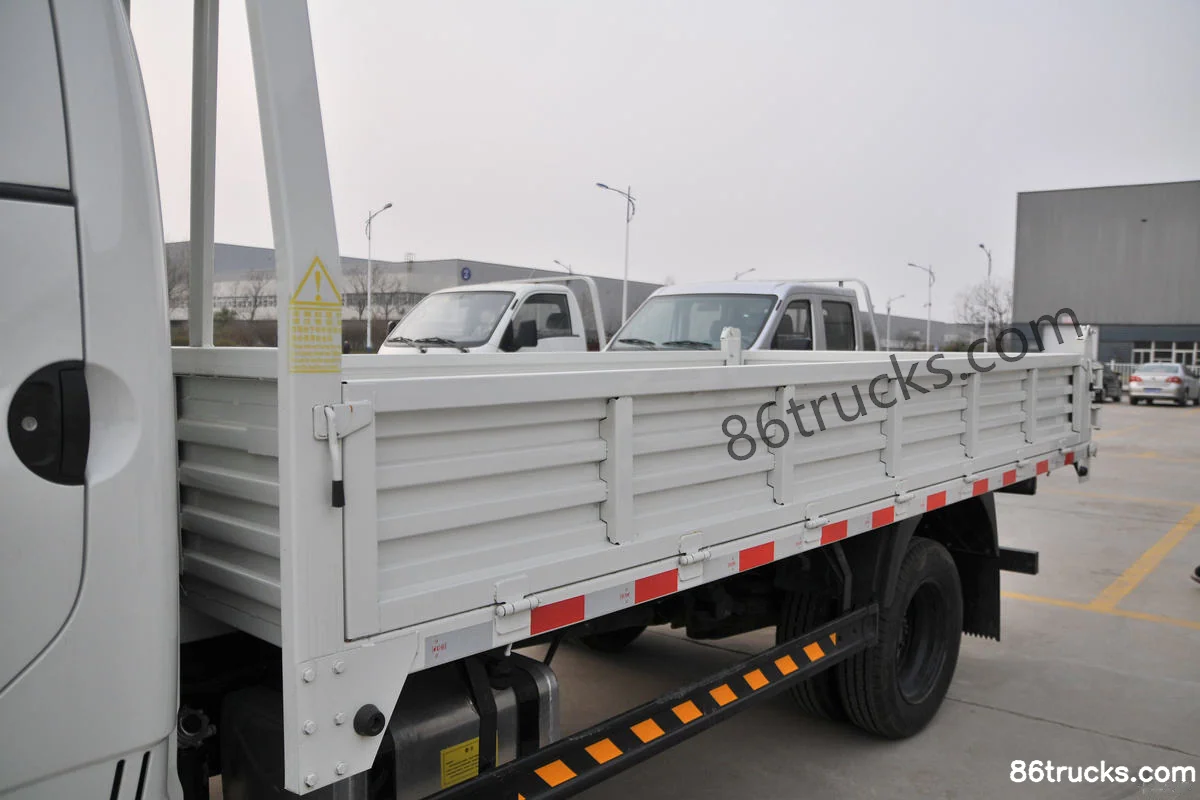

Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck Body (1) | 86Trucks Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck Body (2) | 86Trucks Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck?

Key specs of Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck: Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck suited for?

Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck differ from other variants in the same series?

Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck belongs to Kama Ruihang X1 Mini Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Ruihang X3 110 hp 4X2(6 wheels) 3.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
