FAW Jiefang Qingdao JH6 380hp 6X4(10 wheels) 4.5m³ concrete mixer truck (Zoomlion brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 14.99ton
Wheelbase:: 4400+1350mm
Tire Size:: 12.00R20
Cab dimensions:: 9.96×2.55×3.96m
Truck Type:: Concrete mixer truck
Rated payload: 9.88ton
Drive 6X4 (10 wheels)
Horsepower 380
Emission China VI

Overview

The FAW Jiefang Qingdao JH6 380hp 6X4(10 wheels) 4.5m³ concrete mixer truck (Zoomlion brand) is a concrete mixer truck featuring 9.88t payload, 14.99ton GVW, 6X4 (10 wheels) drive and JH6 raised floor flat roof full-floating cab. On the powertrain side, it comes with 380 hp, China VI emissions and Diesel fuel.

China VI 380 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.96×2.55×3.96m
Drive type: 6X4
Truck Type: Concrete mixer truck
Vehicle origin: Yuanjiang, Hunan
Front/rear track width: Front: 2020mm; Rear: 1878/1878
Wheelbase: 4400+1350mm
Curb Weight: 14.99ton
Rated payload: 9.88ton
Max. speed: 89km/h
Front/rear suspension: 1.495/2.815m
Body Parameters
Mixing drum capacity: 4.5m³
Vehicle certification code: ZLJ5253GJBJF
Body Brand: ZOOMLION
Engine parameters
Engine Model: XichaiCA6DL6-38E6
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.6L
Emission standard: China VI
Max output power: 283kW
Max hp: 380Horsepower
Rated speed: 1900rpm
Engine Type: 4-cylinder, inline, turbocharged with intercooler
Chassis Specs
Chassis Series: FAW JiefangJH6
Chassis Model: CA1250P27K2L2T1S2BE6A81
Front axle description: 2055
Frame Dimensions: 300*80*(8+8)mm
rear axle description: 300 hub reduction axle
Axle ratio: 5.921
Leaf spring count: 12/12
clutch: Φ430
Transmission Parameters
Number of gears: 10Gear
Transmission Model: FAWCA10TAX190M
Cab parameters
Cab: JH6 raised floor flat roof full-floating
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

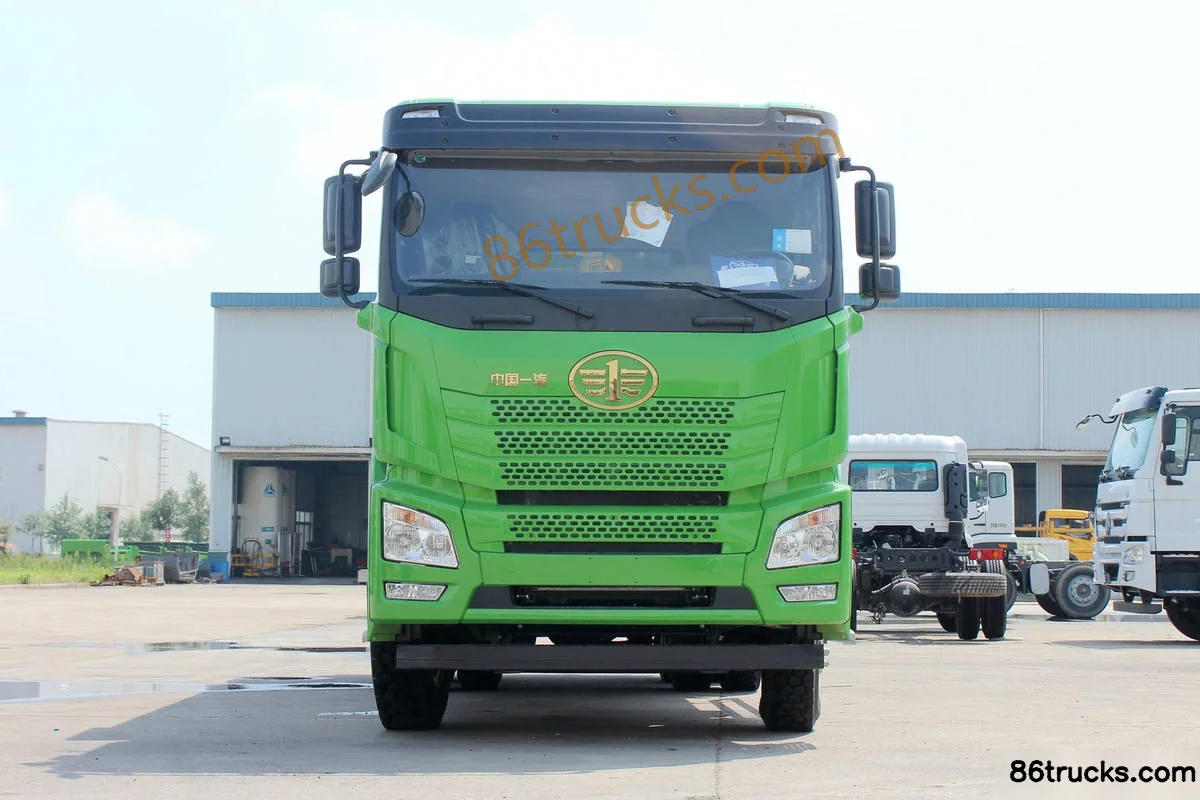

Photos

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Qingdao JH6 380hp 6X4(10 wheels) 4.5m³ concrete mixer truck (Zoomlion brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JH6 380hp 6X4(10 wheels) 4.5m³ concrete mixer truck (Zoomlion brand)?

Key specs of FAW Jiefang Qingdao JH6 380hp 6X4(10 wheels) 4.5m³ concrete mixer truck (Zoomlion brand): Drive: 6x4; Horsepower: 380 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JH6 380hp 6X4(10 wheels) 4.5m³ concrete mixer truck (Zoomlion brand) suited for?

FAW Jiefang Qingdao JH6 380hp 6X4(10 wheels) 4.5m³ concrete mixer truck (Zoomlion brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao JH6 380hp 6X4(10 wheels) 4.5m³ concrete mixer truck (Zoomlion brand) differ from other variants in the same series?

FAW Jiefang Qingdao JH6 380hp 6X4(10 wheels) 4.5m³ concrete mixer truck (Zoomlion brand) belongs to ZOOMLION FAW Jiefang Qingdao chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JH6 380hp 6X4(10 wheels) 4.5m³ concrete mixer truck (Zoomlion brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JH6 380hp 6X4(10 wheels) 4.5m³ concrete mixer truck (Zoomlion brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
