Hyundai Heavy Industries R225LC-7 Crawler Excavator

Export reference
MSRP N/A
Model:: R225LC-7
Engine Model:: crawler excavator
Tonnage:: 22ton
Bucket capacity:: 1.05cubic meter
boom length:: 5680mm
Arm Length:: 2920mm
Hyundai Heavy Industries R225LC-7 Crawler Excavator exterior
View more photos (3)
Operating weight: 22.1ton
Bucket type: backhoe
Fuel Tank Capacity: 320L
Product power: Conventional Power

Overview

The Hyundai Heavy Industries R225LC-7 Crawler Excavator is a excavator featuring 22.1ton GVW, backhoe bucket capacity, 320L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: R225LC-7
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 22ton
Operating weight: 22.1ton
Bucket capacity: 1.05cubic meter
boom length: 5680mm
Arm Length: 2920mm
Machine dimensions: 9.52×2.99×2.99mm
Track shoe width: 600mm
Track gauge: 2390mm
Counterweight ground clearance: 1060mm
Min ground clearance: 480cm
Rear Overhang Radius: 2830mm
hydraulic system
Max flow of main pump: 2×220L/min
Working hydraulic circuit: 330
travel hydraulic circuit: 330Mpa
Swing Hydraulic Circuit: 240Mpa
Oil capacity
Fuel Tank Capacity: 320L
coolant: 35L
hydraulic oil tank: 180L
Engine Oil Capacity: 24L
performance specs
Travel speed: 3.4-5.3km/h
Bucket digging force: 152kN
Arm Digging Force: 101kN
Max tractive force: 206.8kN
Operating Range
Max digging radius: 9940mm
Max digging depth: 6740mm
Max digging height: 9470mm
Max unloading height: 6670mm
Max vertical digging depth: 6120mm
Engine parameters
Engine Model: Cummins B5.9-C
Max output power: 112kW

Photos

Exterior3

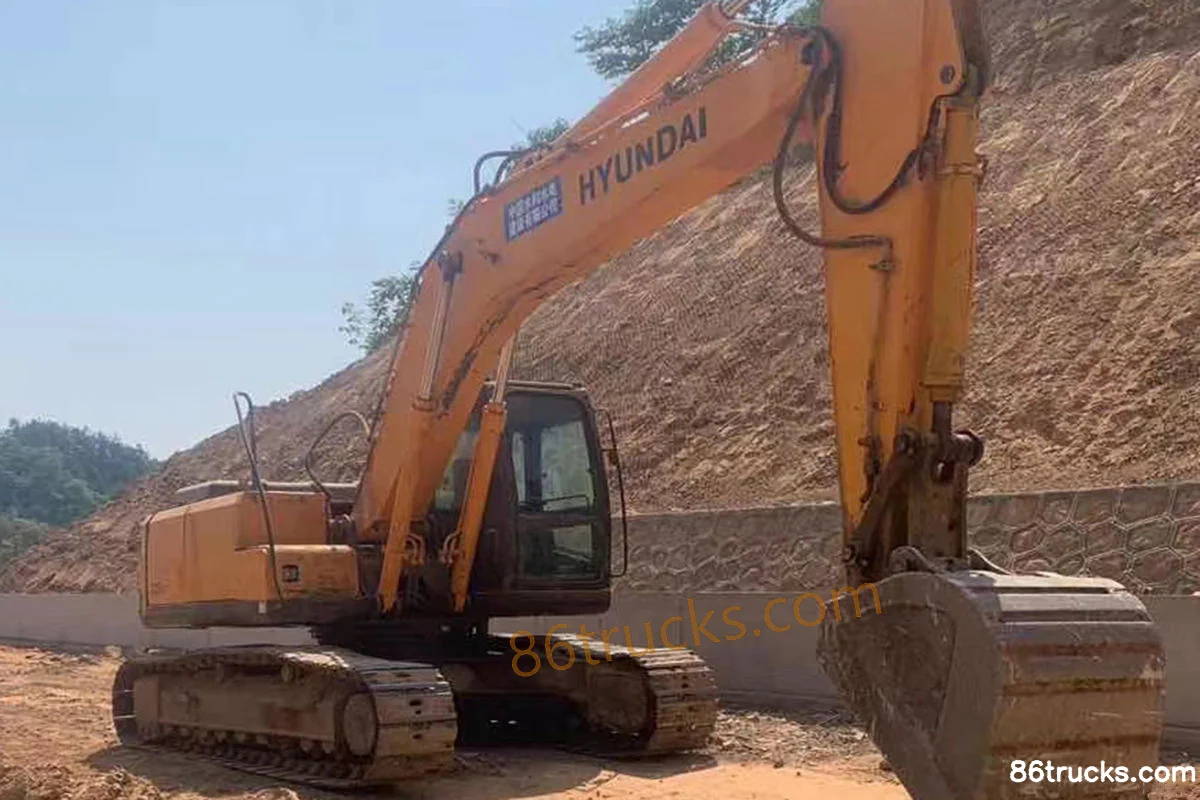

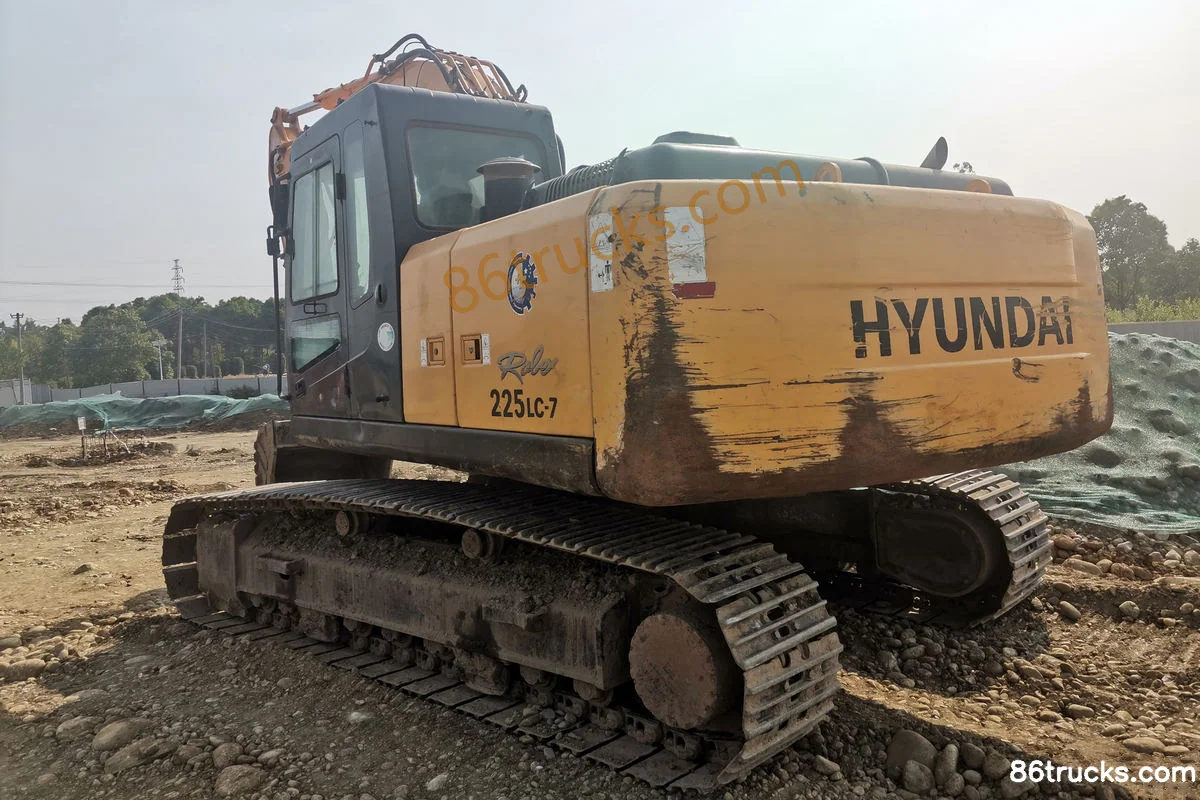

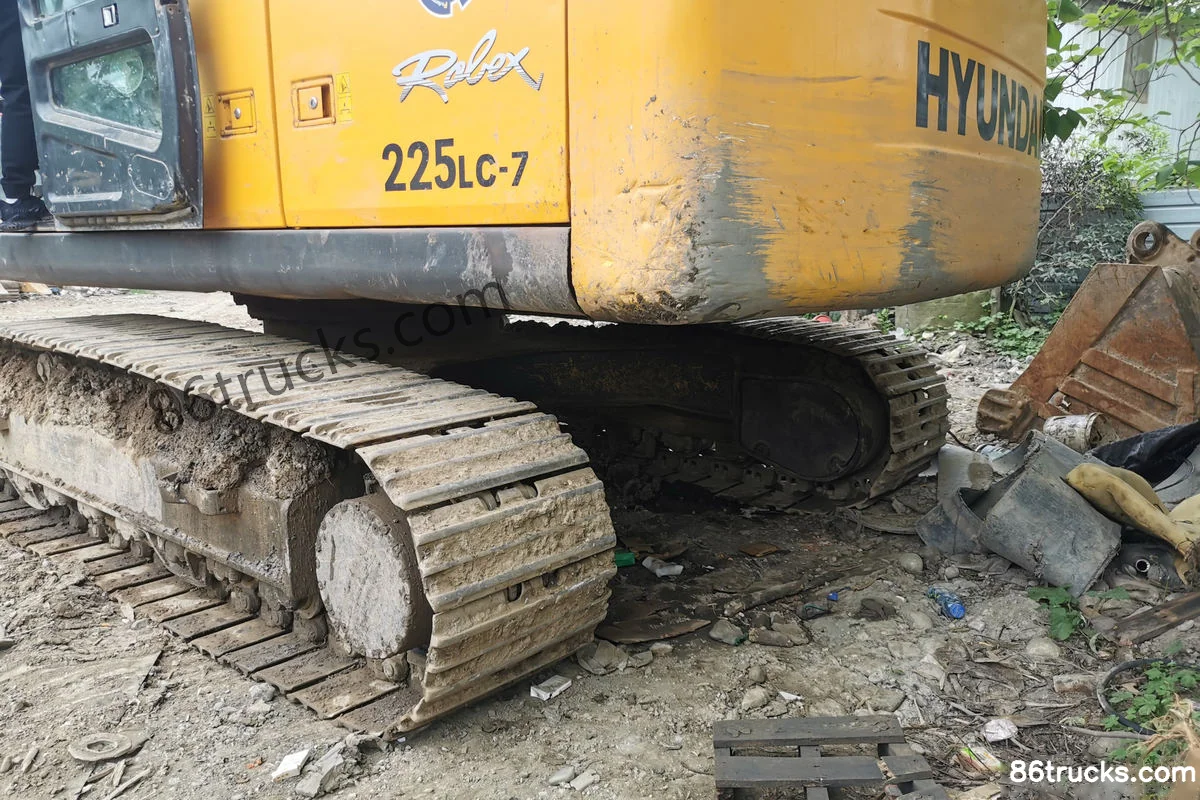

Hyundai Heavy Industries R225LC-7 Crawler Excavator Exterior (1) | 86Trucks Hyundai Heavy Industries R225LC-7 Crawler Excavator Exterior (2) | 86Trucks Hyundai Heavy Industries R225LC-7 Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Hyundai Heavy Industries R225LC-7 Crawler Excavator suited for?

Hyundai Heavy Industries R225LC-7 Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Hyundai Heavy Industries R225LC-7 Crawler Excavator differ from other variants in the same series?

Hyundai Heavy Industries R225LC-7 Crawler Excavator belongs to Hyundai Heavy Industries Hyundai Heavy Industries Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hyundai Heavy Industries R225LC-7 Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hyundai Heavy Industries R225LC-7 Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
