XCMG Crawler Excavator

Main model photos

66 photos

Models

On sale

Model	Drive / HP / Emission	EXW	Export quote
XCMG XE135B Crawler Excavator	—
XCMG XE470C Crawler Excavator	—

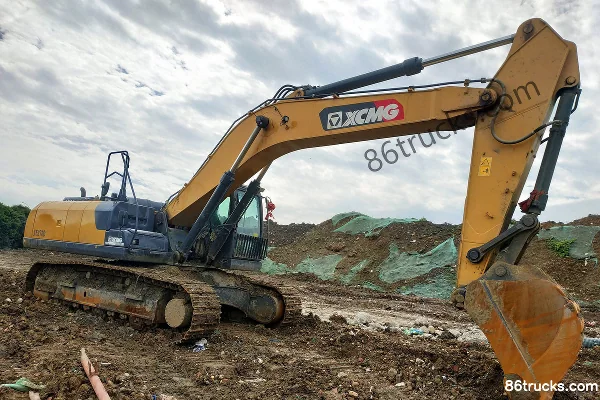

XCMG XE370D Crawler Excavator	—
XCMG XE370C Crawler Excavator	—
XCMG XE335C Crawler Excavator	—

Series Specs

Basic Info

Model: XE135B / XE470C / XE370D / XE370C / XE335C / XE270DK / XE265C / XE260C / XE230 / XE215D / XE215CA / XE215C / XE210 / XE200D / XE150D / XE150 / XE80D / XE80 / XE75D / XE65D / XE60D / XE60CA

Engine Model: crawler excavator / Wheel excavator / IsuzuISUZU BB-4BG1TRP / Cummins CUMMINS QSM11 / IsuzuISUZU AA-6HK1XQP / QSB7 / ISUZU CC-6BG1TRP-05 / IsuzuISUZU CC-6BG1TRP / Isuzu CC-6BG1TRP / IsuzuISUZU BB-6BG1TRP / IsuzuISUZU BB-6BG1TRP-01 / QSF3.8 / CumminsCummins B3.3 / V2607-DI-TE3B / YANMAR 4TNV94L

Product power: Conventional Power

Bucket type: backhoe

Tonnage: 13 / 47 / 37 / 33 / 27 / 26 / 23 / 21 / 6 / 20 / 15 / 8 / 7ton

Bucket capacity: 0.52 / 2.5 / 1.8 / 1.6 / 1.5 / 1.25 / 1 / 1.3 / 0.93 / 0.91 / 0.9 / 0.71 / 0.33 / 0.34 / 0.3 / 0.25 / 0.23cubic meter

Operating weight: 13.8 / 46.1 / 36.8 / 36.6 / 33.8 / 26.5 / 25.5 / 23.52 / 21.9 / 21.5 / 21.45 / 14.6 / 7.73 / 7.425 / 7.46 / 6.2 / 6.01 / 6ton

boom length: 4600 / 7060 / 6400 / 6000 / 5680 / 3710 / 3720 / 3000mm

Arm Length: 2510 / 2900 / 2670 / 2964 / 2960 / 2910 / 2520 / 1650 / 1622 / 1600mm

Machine dimensions: 7.77×2.512×2.88 / 12.03×3.58×3.842 / 11.105×3.19×3.3 / 11.226×3.19×3.3 / 10.17×3.19×3.175 / 10.16×3.19×3.1 / 10.16×3.195×3.1 / 10.16×2.99×3.05 / 9.625×2.99×3.1 / 9.565×2.99×3 / 9.525×2.99×3 / 9.525×2.99×3.05 / 7.795×2.59×2.9 / 6.155×2.22×2.61 / 6.15×2.23×2.685 / 5.86×2×2.585mm

Track shoe width: 500 / 600 / 450 / 400mm

Track gauge: 1990 / 2392 / 2525 / 2590 / 2390 / 1700 / 1750 / 1600mm

Counterweight ground clearance: 964 / 1360 / 1197 / 1170 / 1090 / 1050 / 948 / 786 / 815mm

Min ground clearance: 478 / 703 / 500 / 495 / 476 / 470 / 485 / 477 / 392 / 380 / 369cm

Rear Overhang Radius: 2294 / 3665 / 3450 / 2955 / 2985 / 2940 / 2890 / 2790 / 2750 / 2325 / 1770 / 1660mm

hydraulic system

Max flow of main pump: 2*123 / 2*360 / 2x280 / 2*259 / 2×256 / 2*231 / 2×225 / 2×209 / 2*206 / 2×123.5 / 1*198+21 / 138/143L/min

Working hydraulic circuit: 22

travel hydraulic circuit: 34.3 / 34.4 / 27.4Mpa

Swing Hydraulic Circuit: 25 / 28.4 / 26.5 / 28 / 23 / 27.5 / 20.6Mpa

performance specs

Travel speed: 5.16/3.03 / 5.4/3.2 / 5.5/3.3 / 6.1/3.8 / 5.9/4.0 / 3.5/5.5 / 5.4/3.1 / 5.5/3.5 / 5.3/3.2 / 4.2/2.7 / 5.4/2.9 / 4.2/2.2km/h

Bucket digging force: 85 / 271 / 263 / 242 / 185 / 161 / 163 / 149 / 138 / 106.9 / 57 / 53.6 / 48.3kN

Max tractive force: 220 / 194 / 184 / 134 / 68.3kN

Arm Digging Force: 65 / 231 / 174 / 225 / 129 / 125 / 116 / 111 / 103 / 73.4 / 39.2 / 38 / 32.5kN

Oil capacity

Fuel Tank Capacity: 250 / 650 / 600 / 630 / 400 / 360 / 260 / 127 / 130 / 110L

hydraulic oil tank: 130 / 360 / 320 / 220 / 240 / 105 / 124 / 76 / 85L

Engine Oil Capacity: 14 / 38 / 28 / 19.5 / 25 / 11 / 7 / 10 / 5.3L

Operating Range

Max digging radius: 8296 / 11631 / 11114 / 10720 / 10240 / 10270 / 9940 / 9925 / 9930 / 9615 / 8304 / 6245 / 6375 / 6260 / 6130mm

Max digging depth: 5538 / 7337 / 7423 / 6912 / 6925 / 6895 / 6960 / 6920 / 6680 / 6655 / 6605 / 6460 / 5535 / 4070 / 4140 / 4020 / 3830mm

Max digging height: 8641 / 10675 / 10445 / 10360 / 10095 / 9662 / 9595 / 9670 / 9620 / 9640 / 9725 / 9680 / 8649 / 7120 / 7167 / 7085 / 5630mm

Max unloading height: 6181 / 7409 / 7287 / 7134 / 7170 / 6810 / 6725 / 6795 / 6780 / 6800 / 6860 / 6185 / 5100 / 5160 / 3945mm

Max vertical digging depth: 4727 / 5225 / 6776 / 6480 / 5620 / 5480 / 6090 / 6165 / 5715 / 5695 / 5985 / 4697 / 3218 / 2920 / 2680mm

Engine parameters

Max output power: 69.6 / 250 / 212 / 184 / 150 / 135.5 / 128.5 / 125 / 135 / 106.5 / 103 / 93 / 44.8 / 60 / 43 / 39.8 / 35.5kW

FAQ

What kind of truck is XCMG XCMG Crawler Excavator excavator?

XCMG XCMG Crawler Excavator is an export-oriented excavator lineup with about 22 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is excavator typically used for?

excavator specs vary widely by job. Define the application first, then compare specs here and request a quote.

How many models does XCMG Crawler Excavator include?

XCMG Crawler Excavator currently lists about 22 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for XCMG Crawler Excavator?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
