XCMG XE135B Crawler Excavator

Export reference
MSRP N/A
Model:: XE135B
Engine Model:: crawler excavator
Tonnage:: 13ton
Bucket capacity:: 0.52cubic meter
boom length:: 4600mm
Arm Length:: 2510mm
XCMG XE135B Crawler Excavator exterior
View more photos (3)
Operating weight: 13.8ton
Bucket type: backhoe
Fuel Tank Capacity: 250L
Product power: Conventional Power

Overview

The XCMG XE135B Crawler Excavator is a excavator featuring 13.8ton GVW, backhoe bucket capacity, 250L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: XE135B
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 13ton
Bucket capacity: 0.52cubic meter
Operating weight: 13.8ton
boom length: 4600mm
Arm Length: 2510mm
Machine dimensions: 7.77×2.512×2.88mm
Track shoe width: 500mm
Track gauge: 1990mm
Counterweight ground clearance: 964mm
Min ground clearance: 478cm
Rear Overhang Radius: 2294mm
hydraulic system
Max flow of main pump: 2*123L/min
travel hydraulic circuit: 34.3Mpa
Swing Hydraulic Circuit: 25Mpa
Oil capacity
Fuel Tank Capacity: 250L
hydraulic oil tank: 130L
Engine Oil Capacity: 14L
performance specs
Travel speed: 5.16/3.03km/h
Bucket digging force: 85kN
Arm Digging Force: 65kN
Operating Range
Max digging radius: 8296mm
Max digging depth: 5538mm
Max digging height: 8641mm
Max unloading height: 6181mm
Max vertical digging depth: 4727mm
Engine parameters
Engine Model: IsuzuISUZU BB-4BG1TRP
Max output power: 69.6kW

Photos

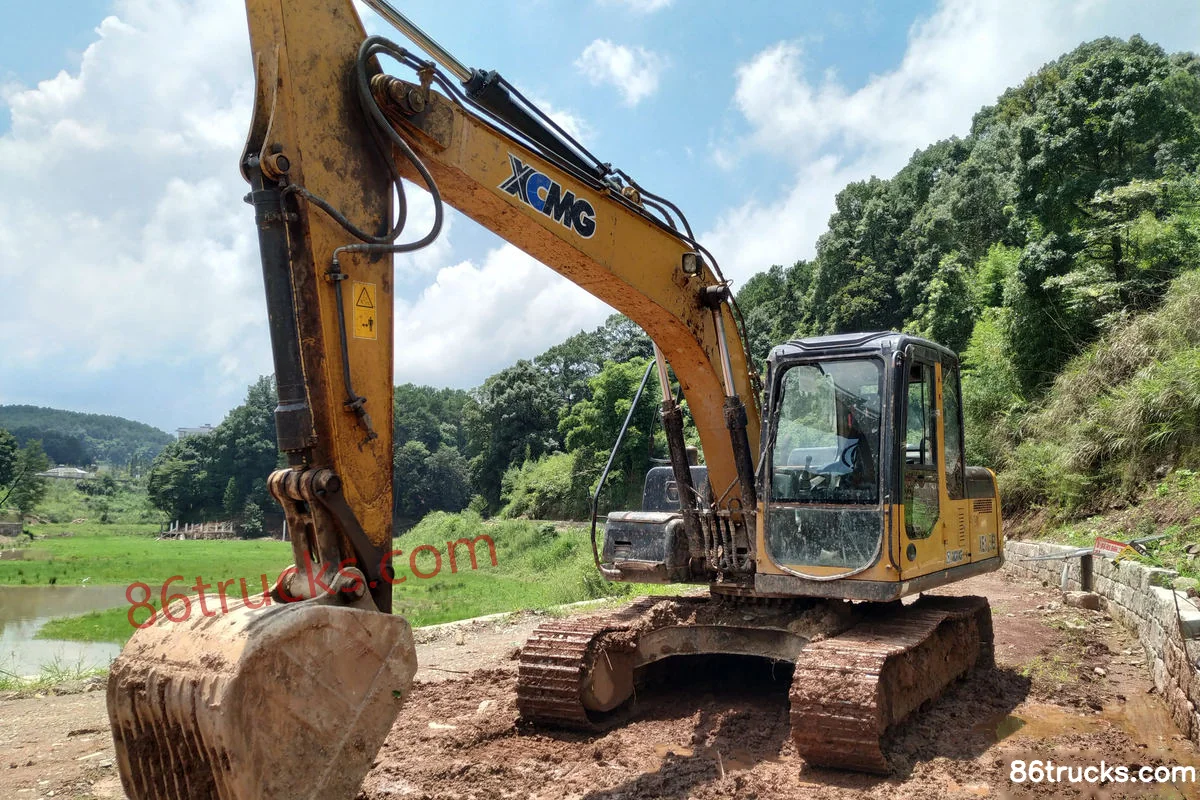

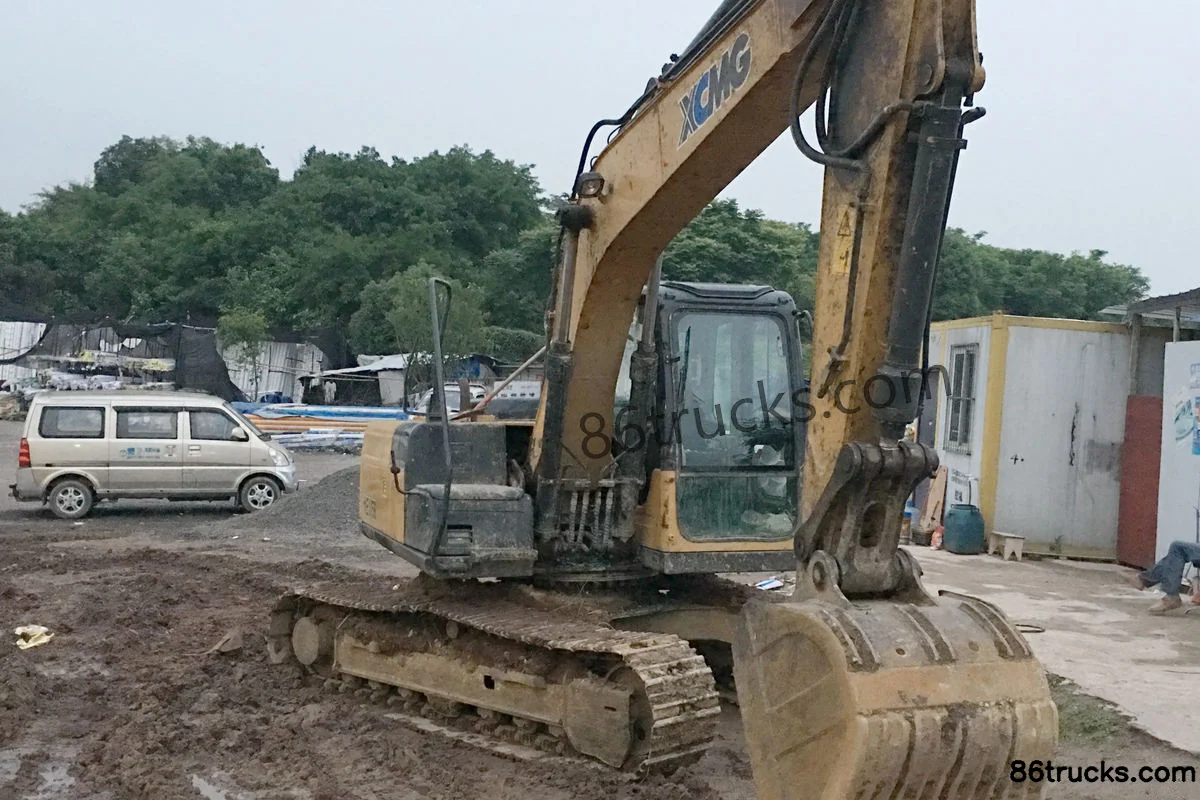

Exterior3

XCMG XE135B Crawler Excavator Exterior (1) | 86Trucks XCMG XE135B Crawler Excavator Exterior (2) | 86Trucks XCMG XE135B Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is XCMG XE135B Crawler Excavator suited for?

XCMG XE135B Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does XCMG XE135B Crawler Excavator differ from other variants in the same series?

XCMG XE135B Crawler Excavator belongs to XCMG Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG XE135B Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG XE135B Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
