XCMG XE470C Crawler Excavator

Export reference
MSRP N/A
Model:: XE470C
Engine Model:: crawler excavator
Tonnage:: 47ton
Bucket capacity:: 2.5cubic meter
boom length:: 7060mm
Arm Length:: 2900mm
XCMG XE470C Crawler Excavator exterior
View more photos (3)
Operating weight: 46.1ton
Bucket type: backhoe
Fuel Tank Capacity: 650L
Product power: Conventional Power

Overview

The XCMG XE470C Crawler Excavator is a excavator featuring 46.1ton GVW, backhoe bucket capacity, 650L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: XE470C
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 47ton
Bucket capacity: 2.5cubic meter
Operating weight: 46.1ton
boom length: 7060mm
Arm Length: 2900mm
Machine dimensions: 12.03×3.58×3.842mm
Track shoe width: 600mm
Track gauge: 2392mm
Counterweight ground clearance: 1360mm
Min ground clearance: 703cm
Rear Overhang Radius: 3665mm
hydraulic system
Max flow of main pump: 2*360L/min
travel hydraulic circuit: 34.3Mpa
Swing Hydraulic Circuit: 28.4Mpa
Oil capacity
Fuel Tank Capacity: 650L
hydraulic oil tank: 360L
Engine Oil Capacity: 38L
performance specs
Travel speed: 5.4/3.2km/h
Bucket digging force: 271kN
Arm Digging Force: 231kN
Operating Range
Max digging radius: 11631mm
Max digging depth: 7337mm
Max digging height: 10675mm
Max unloading height: 7409mm
Max vertical digging depth: 5225mm
Engine parameters
Engine Model: Cummins CUMMINS QSM11
Max output power: 250kW

Photos

Exterior3

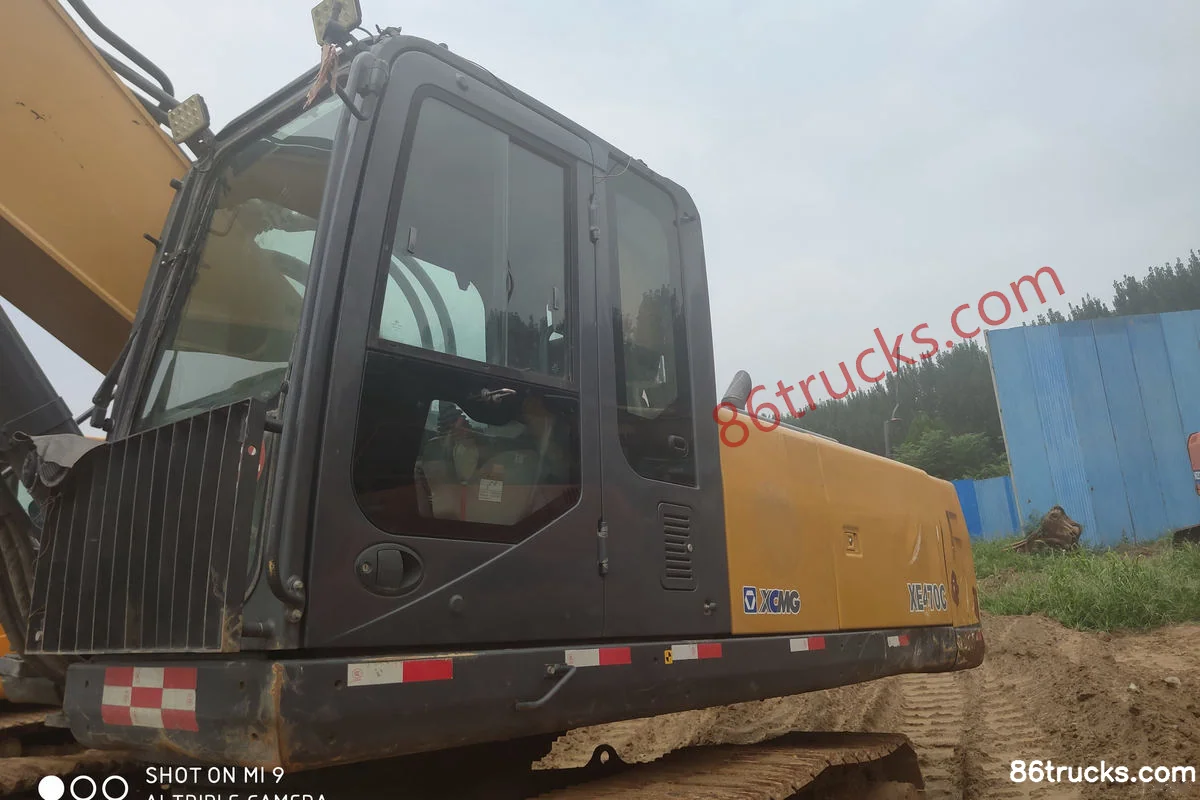

XCMG XE470C Crawler Excavator Exterior (1) | 86Trucks XCMG XE470C Crawler Excavator Exterior (2) | 86Trucks XCMG XE470C Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is XCMG XE470C Crawler Excavator suited for?

XCMG XE470C Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does XCMG XE470C Crawler Excavator differ from other variants in the same series?

XCMG XE470C Crawler Excavator belongs to XCMG Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG XE470C Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG XE470C Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
