XCMG XE335C Crawler Excavator

Export reference
MSRP N/A
Model:: XE335C
Engine Model:: crawler excavator
Tonnage:: 33ton
Bucket capacity:: 1.6cubic meter
boom length:: 6400mm
Arm Length:: 2670mm
Operating weight: 33.8ton
Bucket type: backhoe
Fuel Tank Capacity: 630L
Product power: Conventional Power

Overview

The XCMG XE335C Crawler Excavator is a excavator featuring 33.8ton GVW, backhoe bucket capacity, 630L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: XE335C
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 33ton
Bucket capacity: 1.6cubic meter
Operating weight: 33.8ton
boom length: 6400mm
Arm Length: 2670mm
Machine dimensions: 11.226×3.19×3.3mm
Track shoe width: 600mm
Track gauge: 2590mm
Counterweight ground clearance: 1170mm
Min ground clearance: 495cm
Rear Overhang Radius: 3450mm
hydraulic system
Max flow of main pump: 2*280L/min
travel hydraulic circuit: 34.3Mpa
Swing Hydraulic Circuit: 26.5Mpa
Oil capacity
Fuel Tank Capacity: 630L
hydraulic oil tank: 320L
Engine Oil Capacity: 28L
performance specs
Travel speed: 5.5/3.3km/h
Bucket digging force: 263kN
Arm Digging Force: 225kN
Operating Range
Max digging radius: 10720mm
Max digging depth: 6912mm
Max digging height: 10360mm
Max unloading height: 7134mm
Max vertical digging depth: 6480mm
Engine parameters
Engine Model: IsuzuISUZU AA-6HK1XQP
Max output power: 184kW

Photos

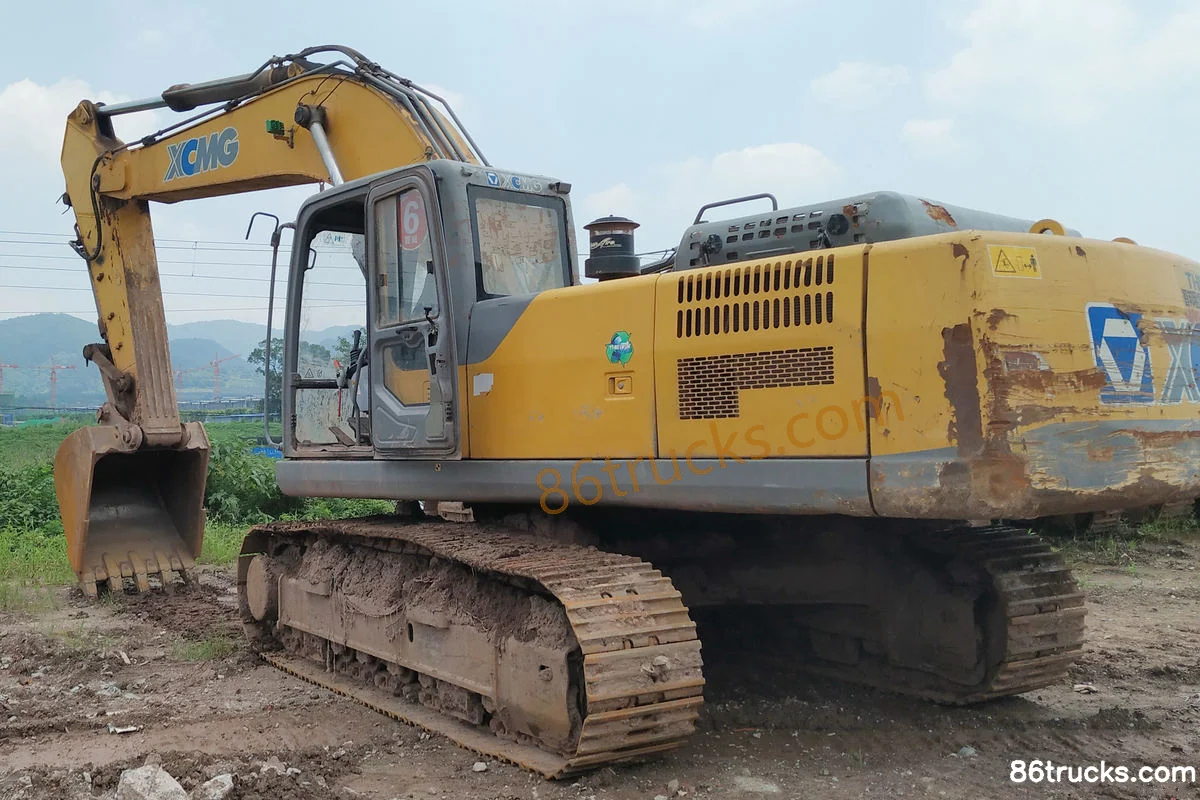

Exterior3

3 photos

FAQ

What transport jobs is XCMG XE335C Crawler Excavator suited for?

XCMG XE335C Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does XCMG XE335C Crawler Excavator differ from other variants in the same series?

XCMG XE335C Crawler Excavator belongs to XCMG Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG XE335C Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG XE335C Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
