Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh

Export reference
MSRP N/A
Wheelbase:: 1850+3650+1350mm
Cargo box type:: Van body
Type:: enclosed cargo truck
Cab length:: 10.335m
GVWR:: 31ton
Max. speed:: 89km/h
Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh exterior
View more photos (9)
Drive 8X4 (12 wheels)
CLTC range: 280km
Motor 1 Brand: Suzhou Green Control
Front axle allowable load: 6500/6500kg

Overview

The Dongfeng Commercial Vehicle Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh is a Heavy truck featuring 280km battery/range, Suzhou Green Control motor, 8X4 (12 wheels) drive and 6500/6500kg payload.

8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Type: enclosed cargo truck
Drive type: 8X4
Wheelbase: 1850+3650+1350mm
Cab length: 10.335m
Cab width: 2.515m
Cab height: 3.78m
CLTC range: 280km
GVWR: 31ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Suzhou Green Control
Motor 1 Model: TZ460XS-LKM3101
Motor Type: Permanent magnet synchronous motor
total rated power: 270kW
Peak power: 450kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.67h
Battery capacity: 352kWh
Cargo box parameters
Cargo box type: Van body
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
EBS electronic braking system:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Mirrors:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

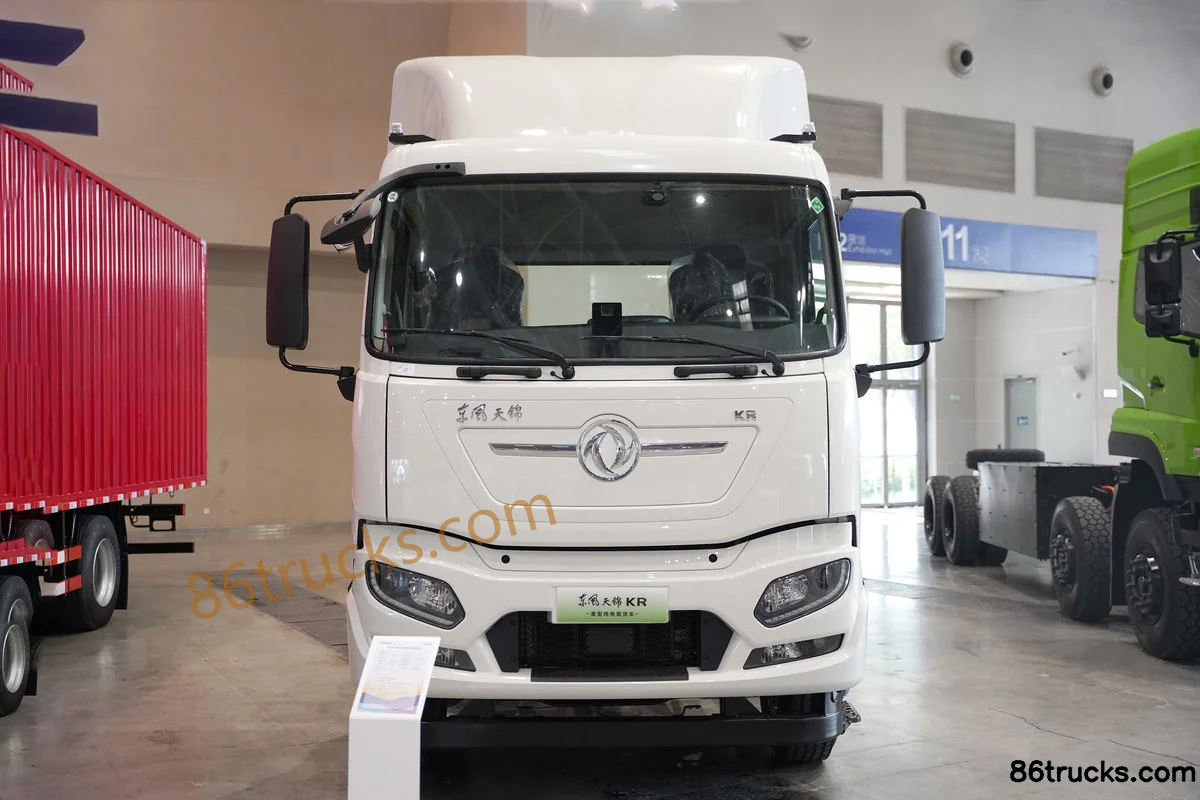

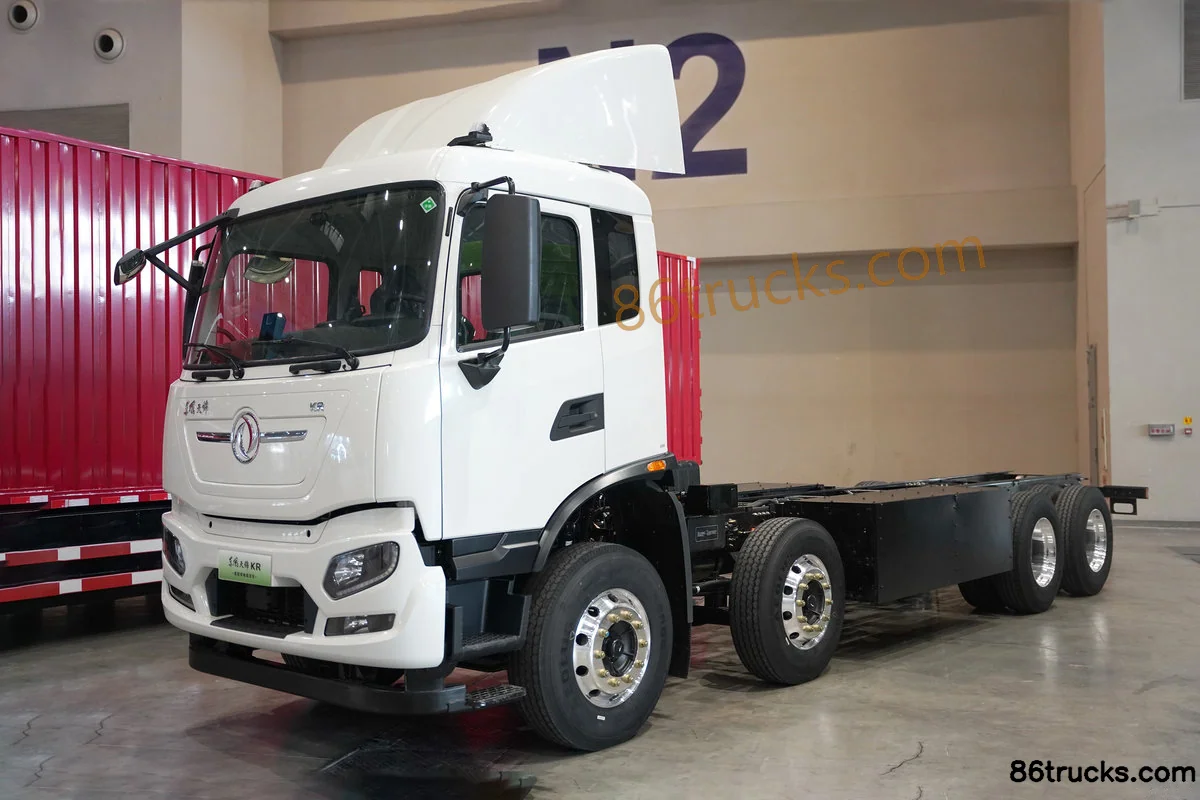

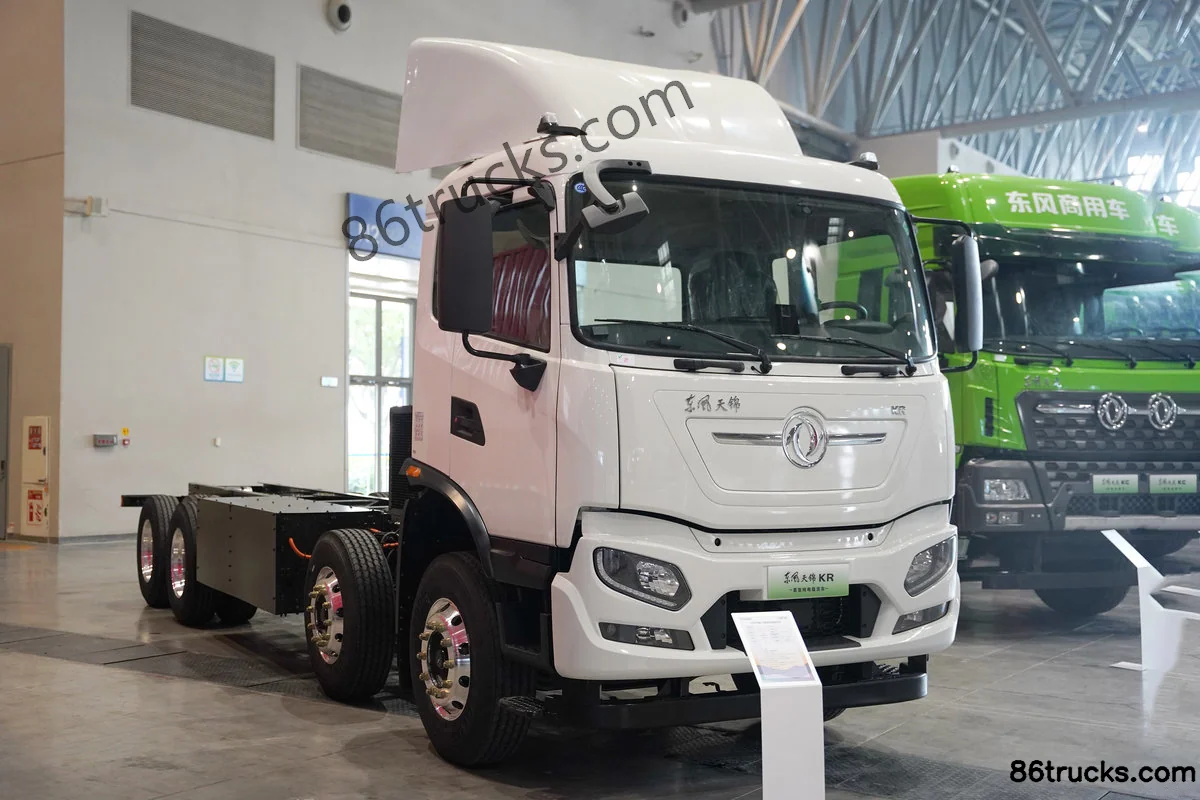

Exterior3

Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh Exterior (1) | 86Trucks Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh Exterior (2) | 86Trucks Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh Exterior (3) | 86Trucks

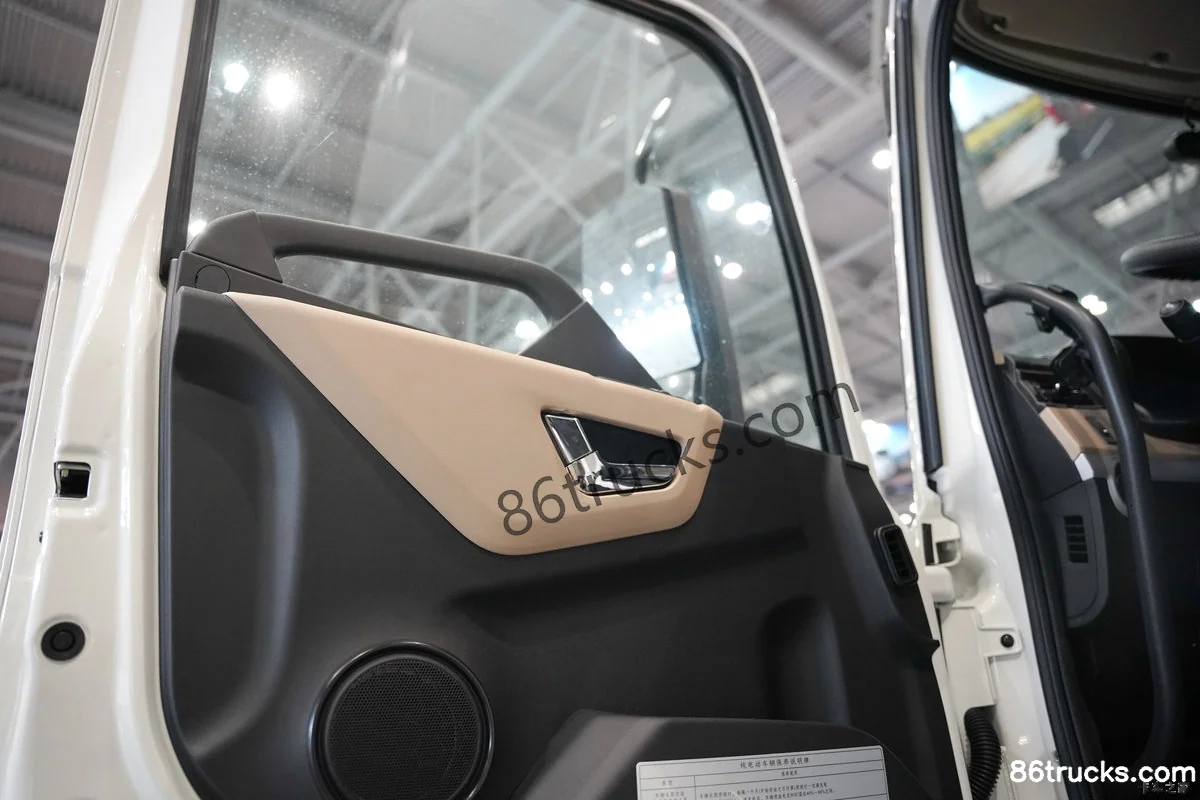

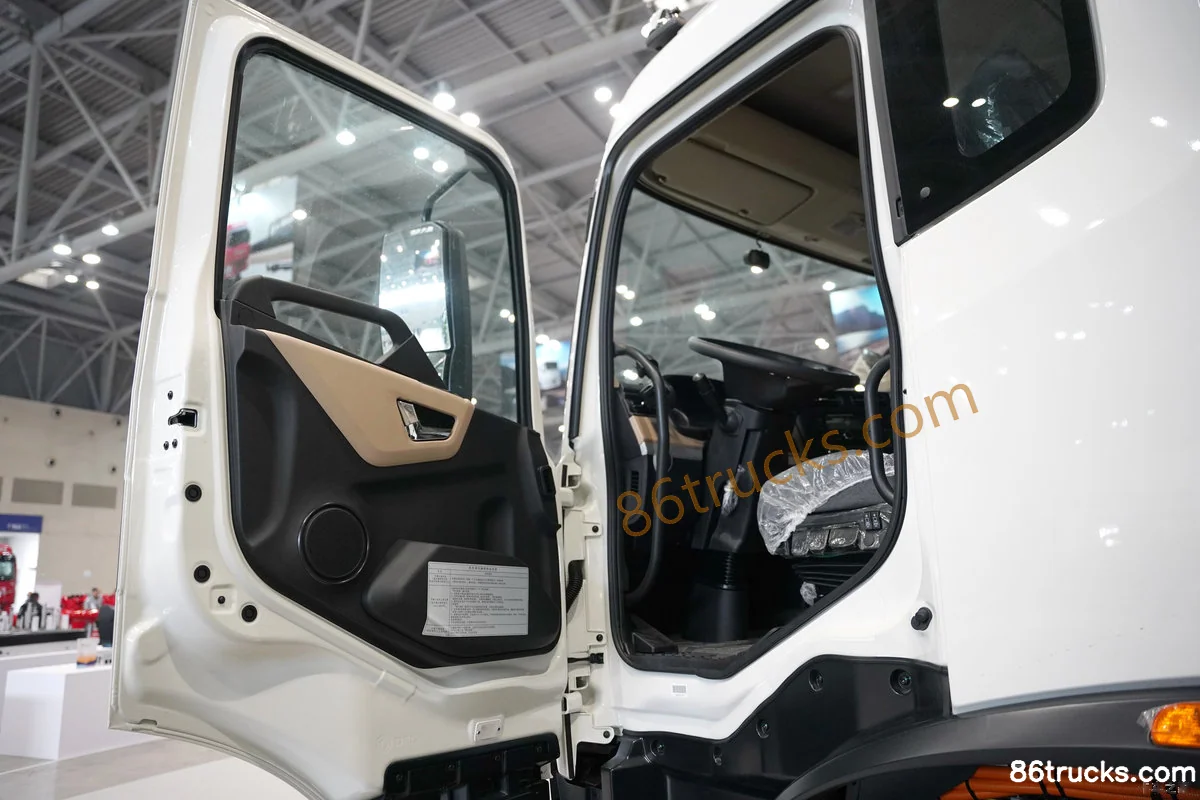

Cab3

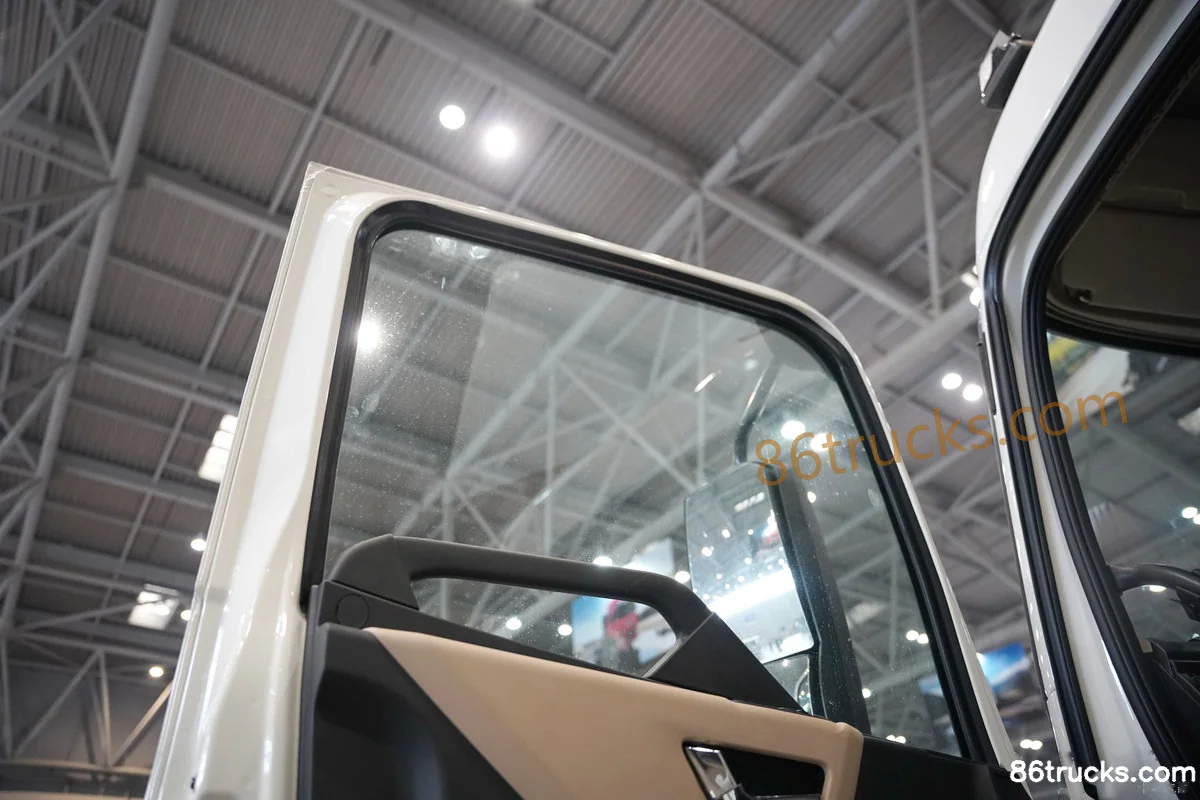

Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh Cab (1) | 86Trucks Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh Cab (2) | 86Trucks Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh Cab (3) | 86Trucks

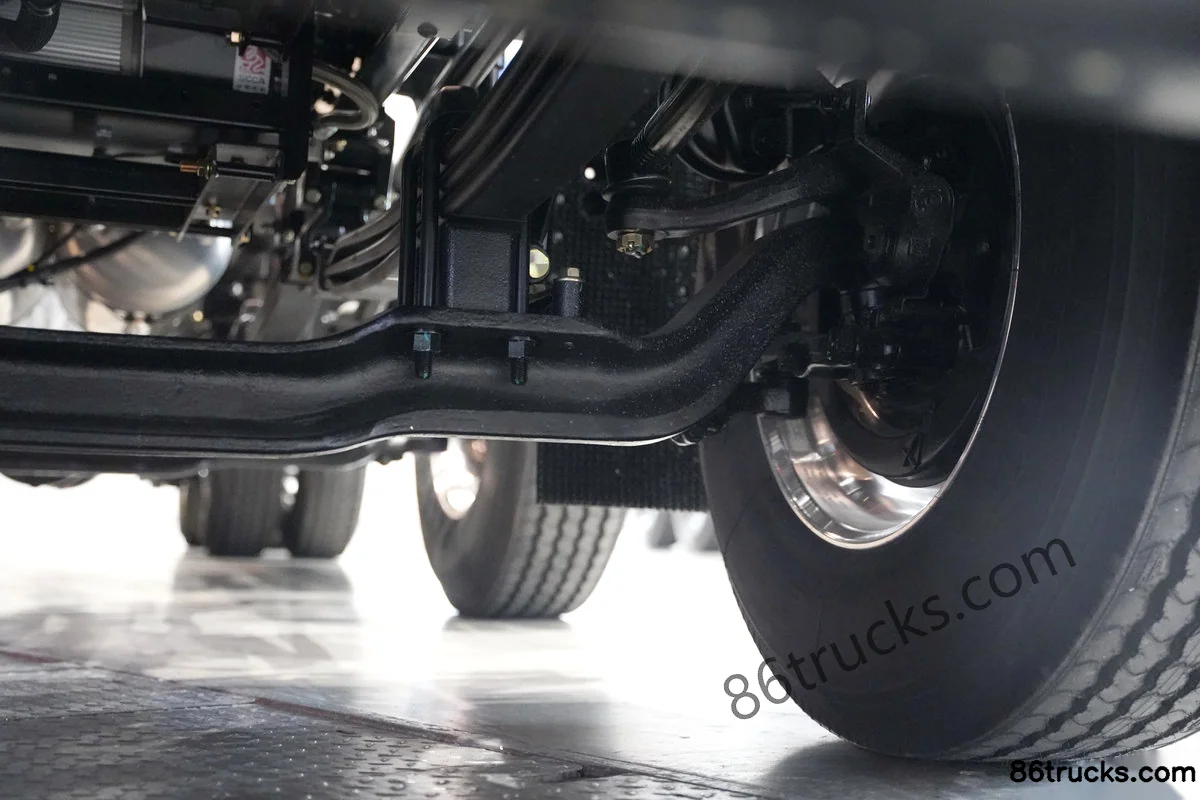

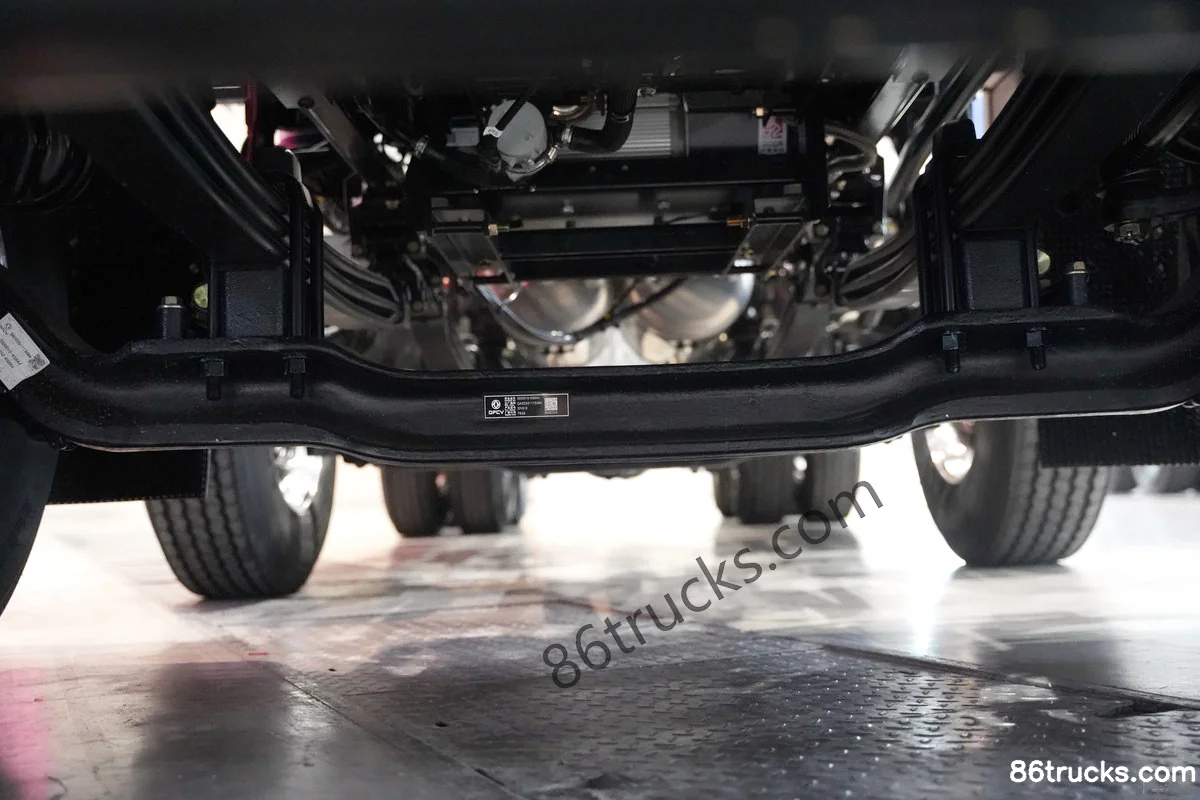

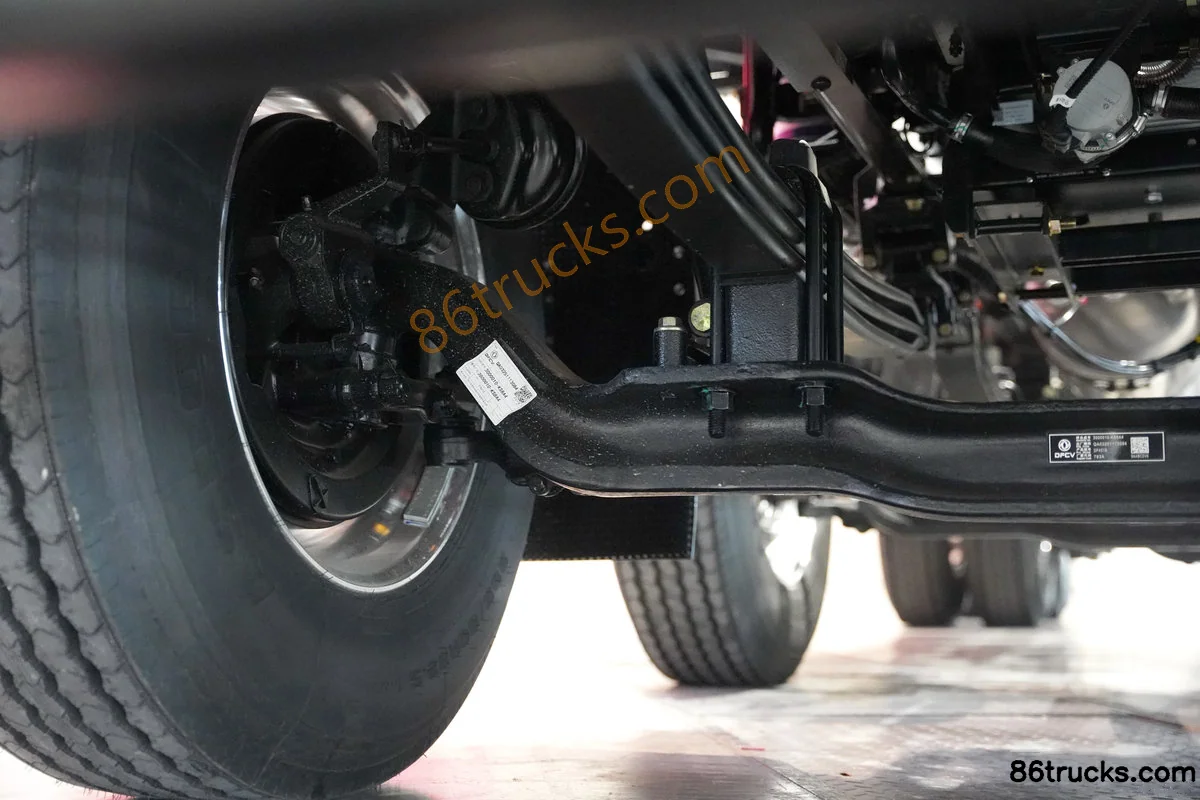

Chassis3

Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh Chassis (1) | 86Trucks Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh Chassis (2) | 86Trucks Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh?

Key specs of Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh suited for?

Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh differ from other variants in the same series?

Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh belongs to Dongfeng Tianjin KR (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianjin KR 8X4(12 wheels) Pure Electric Box Cargo Truck CATL 352kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
