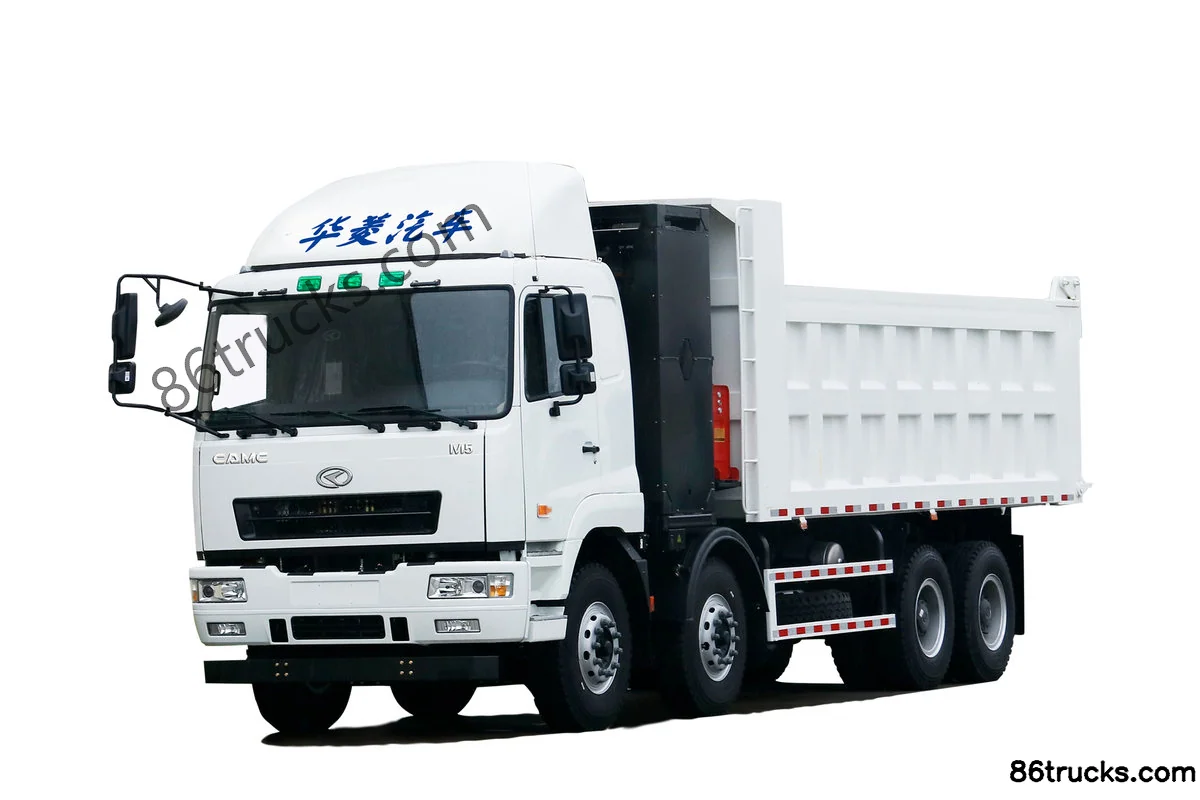

Hualing M5 31T 8X4(12 wheels) 5.6m Electric Dump Truck 350kWh

Export reference
MSRP N/A
Rated payload:: 11.27ton
Wheelbase:: 1850+3200+1350mm
Cargo box length:: 5.6m
Model code (announced):: HN3310B36C5BEV
Cab length:: 9.67m
GVWR:: 31ton
Drive 8X4 (12 wheels)
Battery Brand: CATL
Motor 1 Brand: Tebest
Curb Weight: 19.6ton

Overview

The Hualing M5 31T 8X4(12 wheels) 5.6m Electric Dump Truck 350kWh is a Heavy truck featuring CATL battery/range, Tebest motor, 8X4 (12 wheels) drive and 11.27t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN3310B36C5BEV
Drive type: 8X4
Wheelbase: 1850+3200+1350mm
Cab length: 9.67m
Cab width: 2.55m
Cab height: 3.36m
Curb Weight: 19.6ton
Rated payload: 11.27ton
GVWR: 31ton
Max. speed: 85km/h
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Tebest
Motor 1 Model: TZ400XSTPG06
Motor Type: Permanent magnet synchronous motor
total rated power: 220kW
Peak power: 360kW
total peak torque: 2100N·m
total rated torque: 1500N·m
Battery/Charging
Charging method: Dual-gun DC charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
fast charge time: 1.5h
Battery capacity: 350.08kWh
Transmission Parameters
Number of gears: 9Gear
shift type: AMT manual/auto
Transmission Model: 9-Speed AMT
Cargo box parameters
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 0.9m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
