FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand)

Export reference
From $32,708
MSRP ¥23.55M CNY
Curb Weight:: 9.305ton
Emission: China V
Fuel: Diesel
Wheelbase:: 1900+4700mm
Cab dimensions:: 10.2×2.5×3.3m
Truck Type:: Fuel tanker truck
Tank Size: 7.1×2.3×1.6m
Rated payload: 15.5ton
Drive 6X2 (8 wheels)
Horsepower 260

Overview

The Suizhou Lishen FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand) is a fuel tanker truck featuring 7.1×2.3×1.6m tank capacity, 15.5t payload, 19.6m³ volume and 9.305ton GVW. On the powertrain side, it comes with 260 hp, 6X2 (8 wheels) drive, China V emissions and Diesel fuel.

China V 260 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.2×2.5×3.3m
Truck Type: Fuel tanker truck
Drive type: 6X2
Vehicle origin: Suizhou, Hubei
Wheelbase: 1900+4700mm
Front track width: 1964/1964mm
rear track: 1860mm
Curb Weight: 9.305ton
Rated payload: 15.5ton
Max. speed: 89km/h
Front/rear suspension: 1.375/2.225m
Energy Type: Diesel
Body Parameters
Tank Size: 7.1×2.3×1.6m
Tank Volume: 19.6m3
Vehicle certification code: SLS5253GYYC5QA
Body Brand: Xingshi Brand
Engine parameters
Injection System: Common Rail (China IV)
Engine Brand: Xichai
Engine Model: XichaiCA6DLD-26E5
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.6L
Emission standard: China V
Max output power: 194kW
Max hp: 260Horsepower
Max torque: 1050N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: HanV
Chassis Model: CA1250P1K2L5T3BE5A80
Frame Dimensions: 280*80*(8+5)mm
rear axle description: 435 stamped-welded axle
Axle ratio: 4.444
Leaf spring count: 12/12/10+9,3/3/10+9,3/3/4+3,10/10/10+9
clutch: Φ430
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS105A
Cab parameters
Cab: HanV flat-floor high-roof
Tire
Tire Size: 12R22.5
Number of tires: 8pcs

Photos

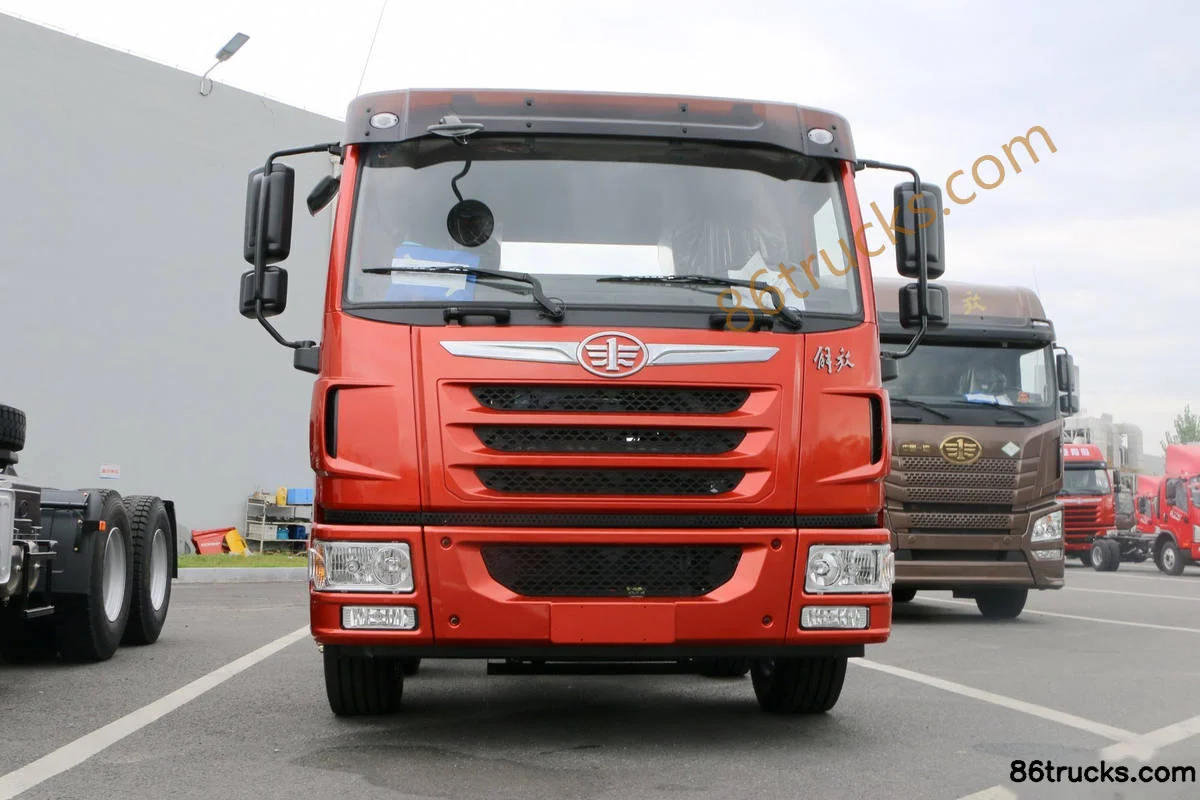

Exterior1

1 photos

FAQ

What is the export price of FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand), and what does it include?

FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand) export reference is about From $32,708; MSRP is ¥23.55M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand)?

Key specs of FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand): Drive: 6x2; Horsepower: 260 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand) suited for?

FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand) is a fuel tanker truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand) differ from other variants in the same series?

FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand) belongs to Suizhou Lishen FAW Jiefang Qingdao Chassis (fuel tanker truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Han V 260 hp 6X2(8 wheels) Oil Tank Truck (Xingshi Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
