JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck

Export reference
From $29,167
MSRP ¥21M CNY
Horsepower: 240
Emission: China VI
Fuel: Diesel
Engine: Ankang 4.5L
Transmission: Fast Gear
Curb Weight:: 8.15ton
seating capacity: 2Personnel
Rated payload: 9.655ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Gallop JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck is a Medium-duty truck featuring 10m cargo length, Van body cargo body, 2Personnel volume and 9.655t payload. Its segment focus covers Express & Freight, matching those duty cycles. On the powertrain side, it comes with a Ankang 4.5L engine, 240 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5181XXYP3K1A70S
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7150mm
Box length class: 10m
engine: Anhui CumminsB4.5NS6B240E
transmission: Fast Gear 8-speed
Rear Axle Ratio: 4.333
Cab length: 12m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 2050mm
rear track: 1860mm
Curb Weight: 8.15ton
Rated payload: 9.655ton
GVWR: 18ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Express & Freight
Front/rear suspension: 1.4/3.45m
Energy Type: Diesel
Engine parameters
Engine Brand: Anhui Cummins
Engine Model: B4.5NS6B240E
Engine info: Ankang 4.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5L
Emission standard: China VI
Max output power: 176kW
Max hp: 240Horsepower
Engine Type: DOC+DPF+SCR
Transmission Parameters
Transmission Model: 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 10m
Cargo box width: 2.48m
Cargo box height: 2.8m
*Cargo box interior width: 2.48
Cab parameters
Cab width: 2380mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 3/4+3
Maintenance-free wheel end:
Tire
Tire Size: 315/60R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
interior configuration
AC control type: Manual
Power Windows:
Power interface:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

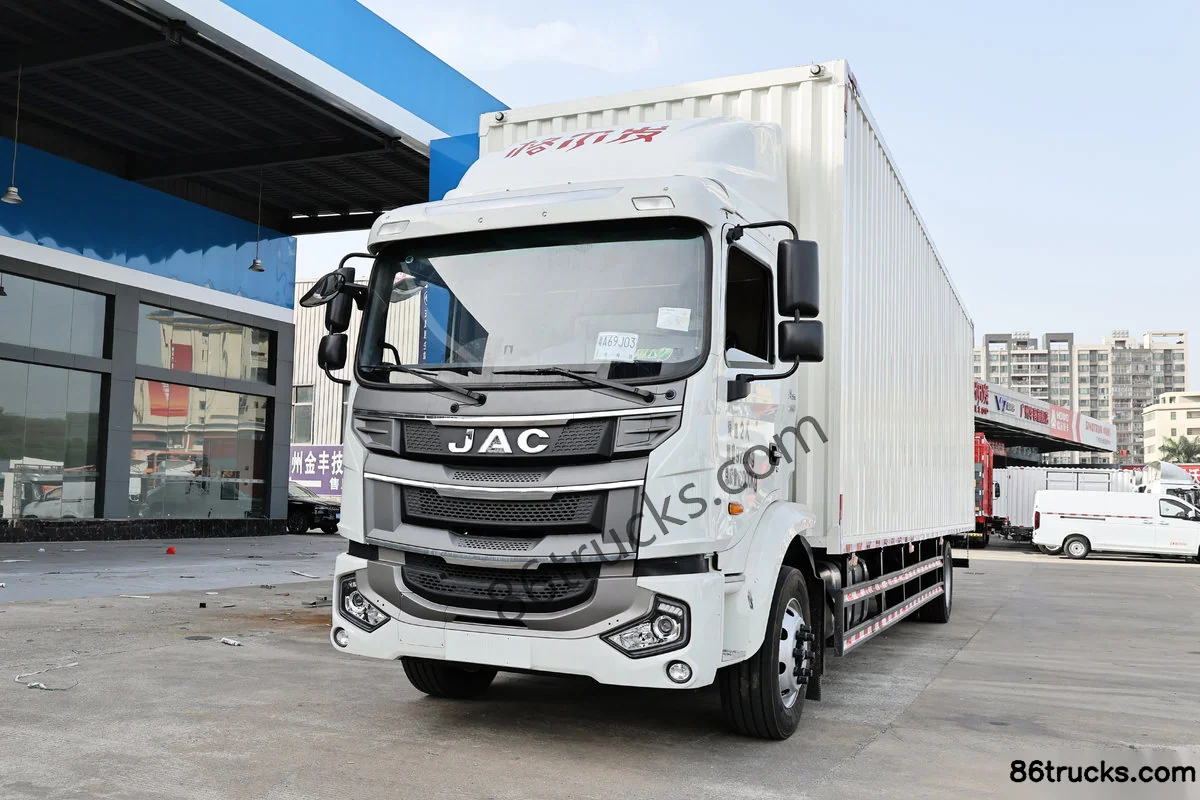

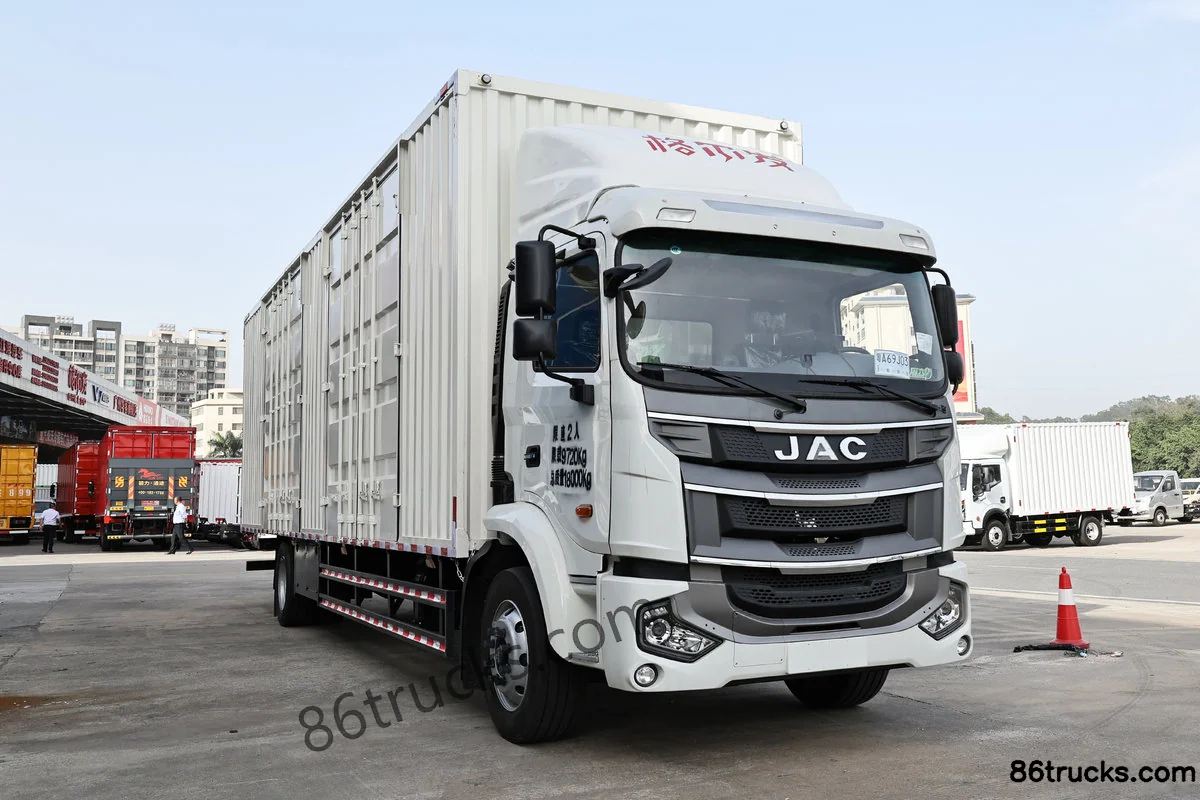

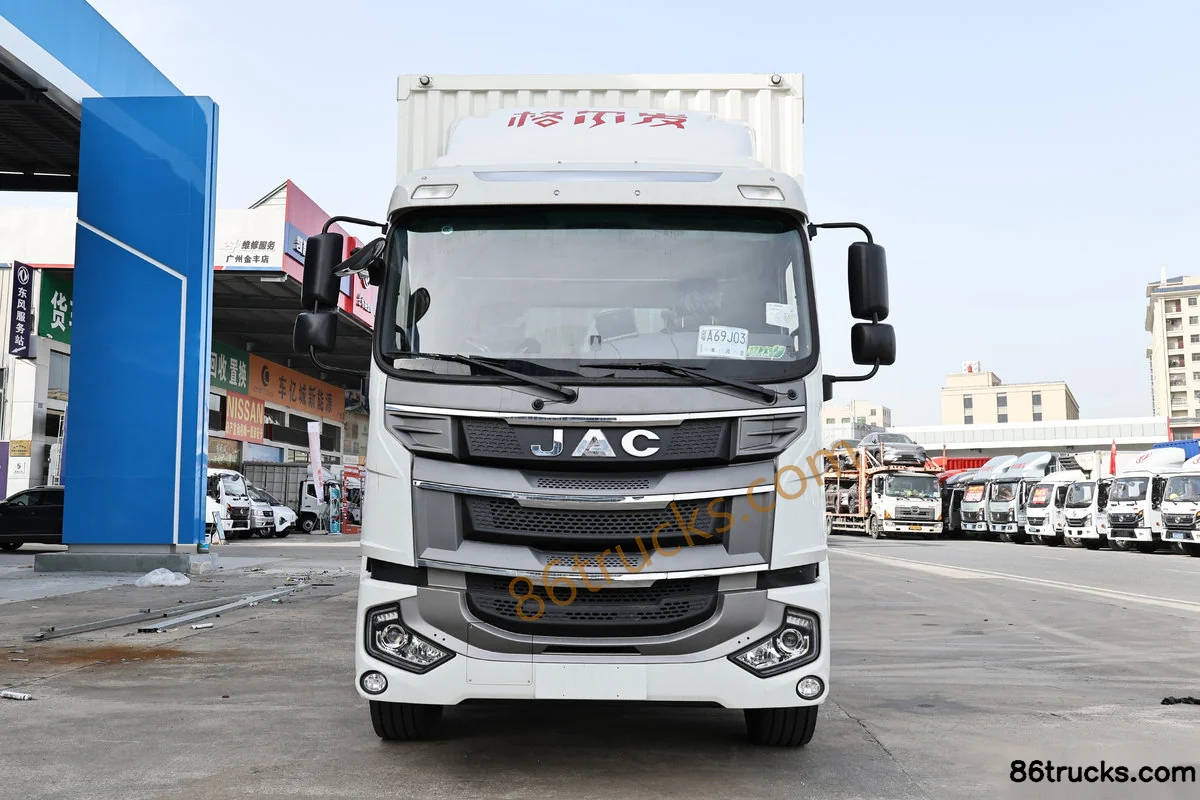

Exterior3

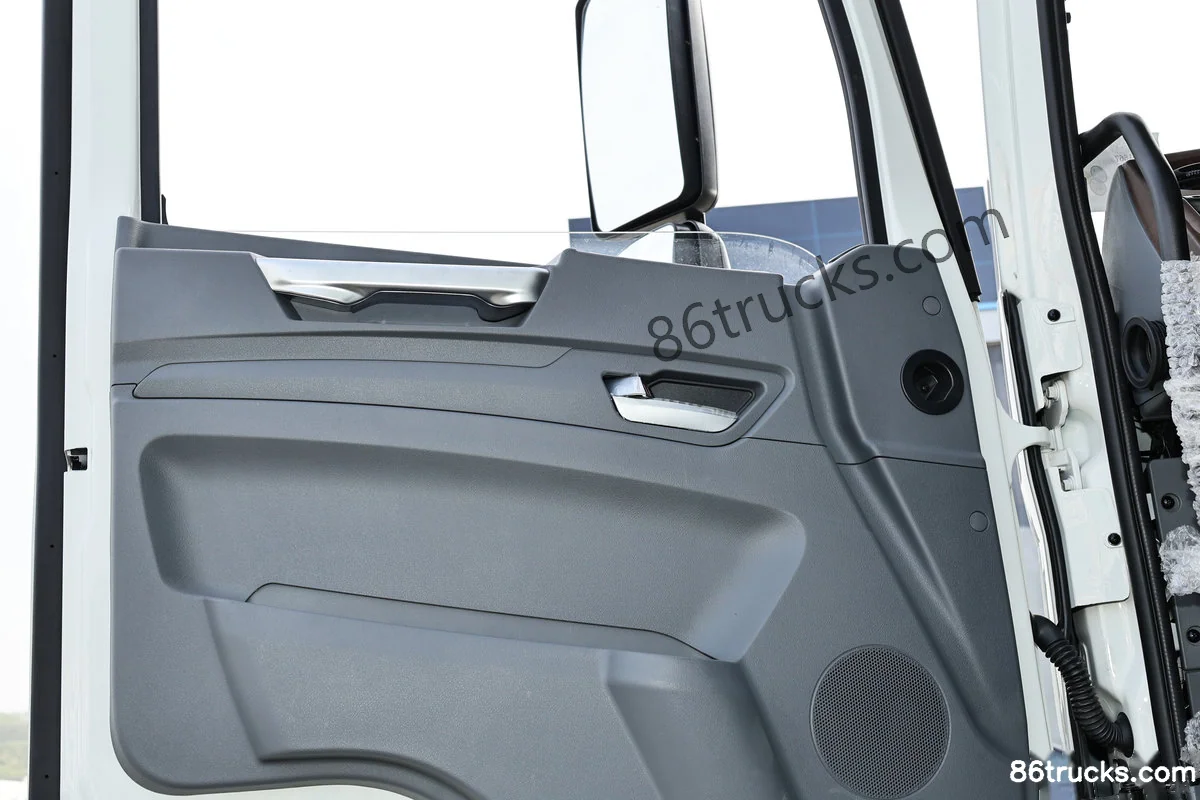

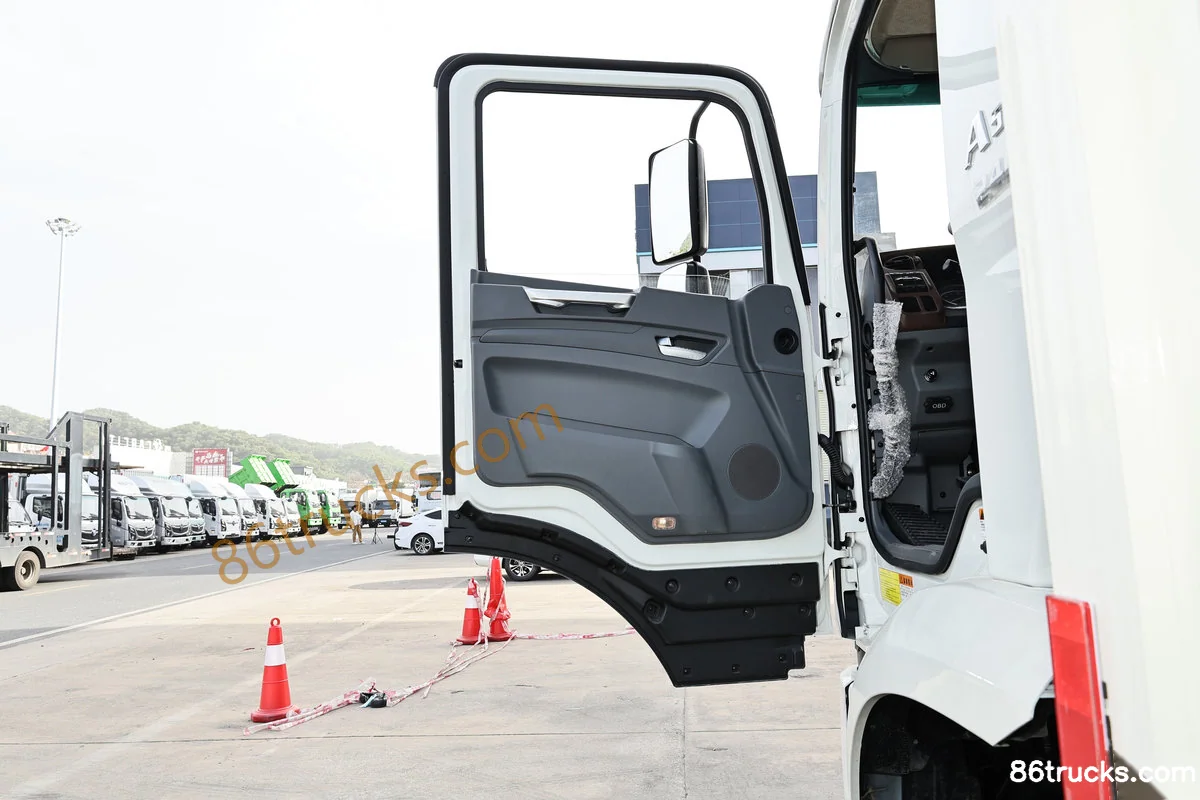

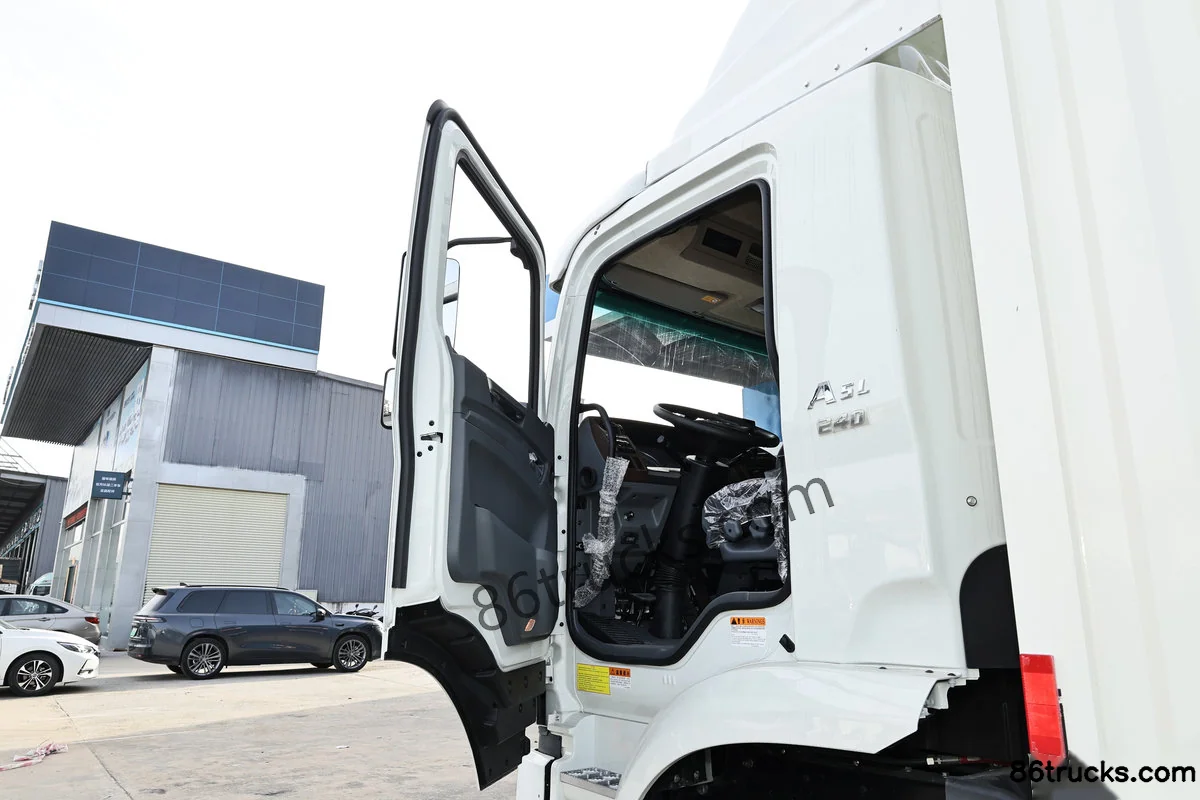

Cab3

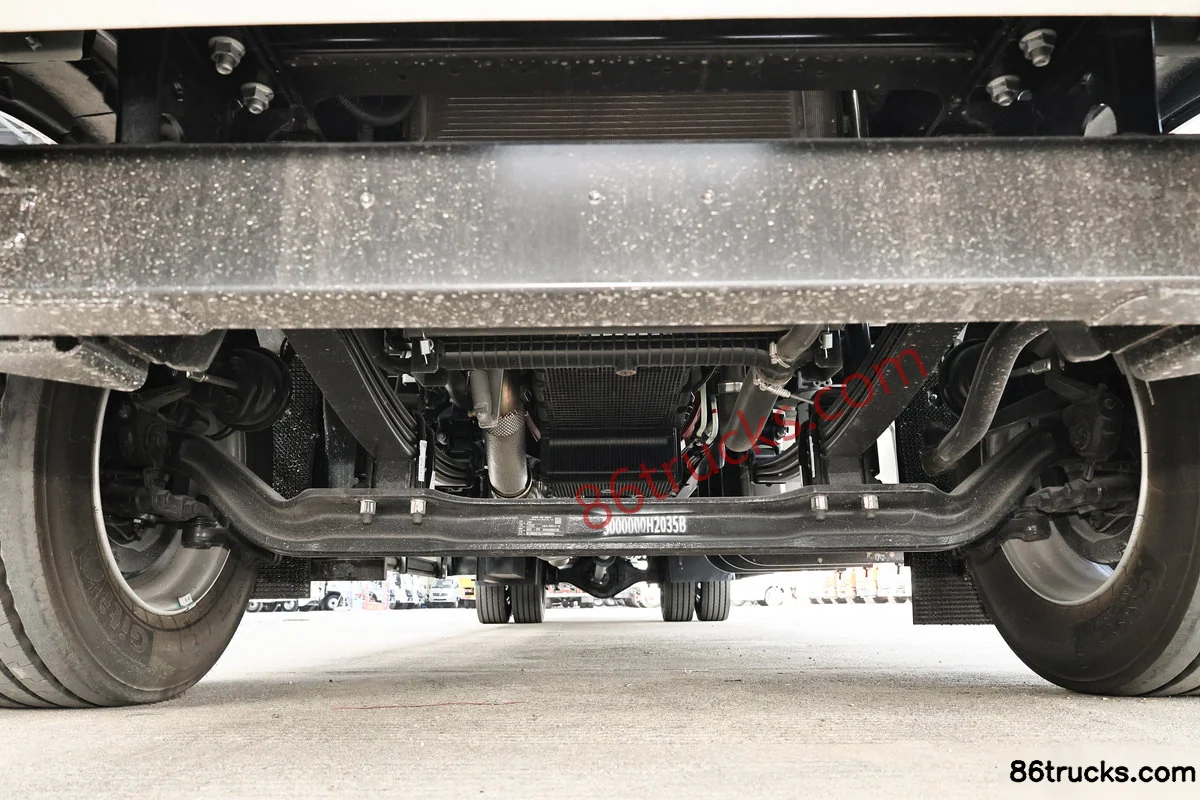

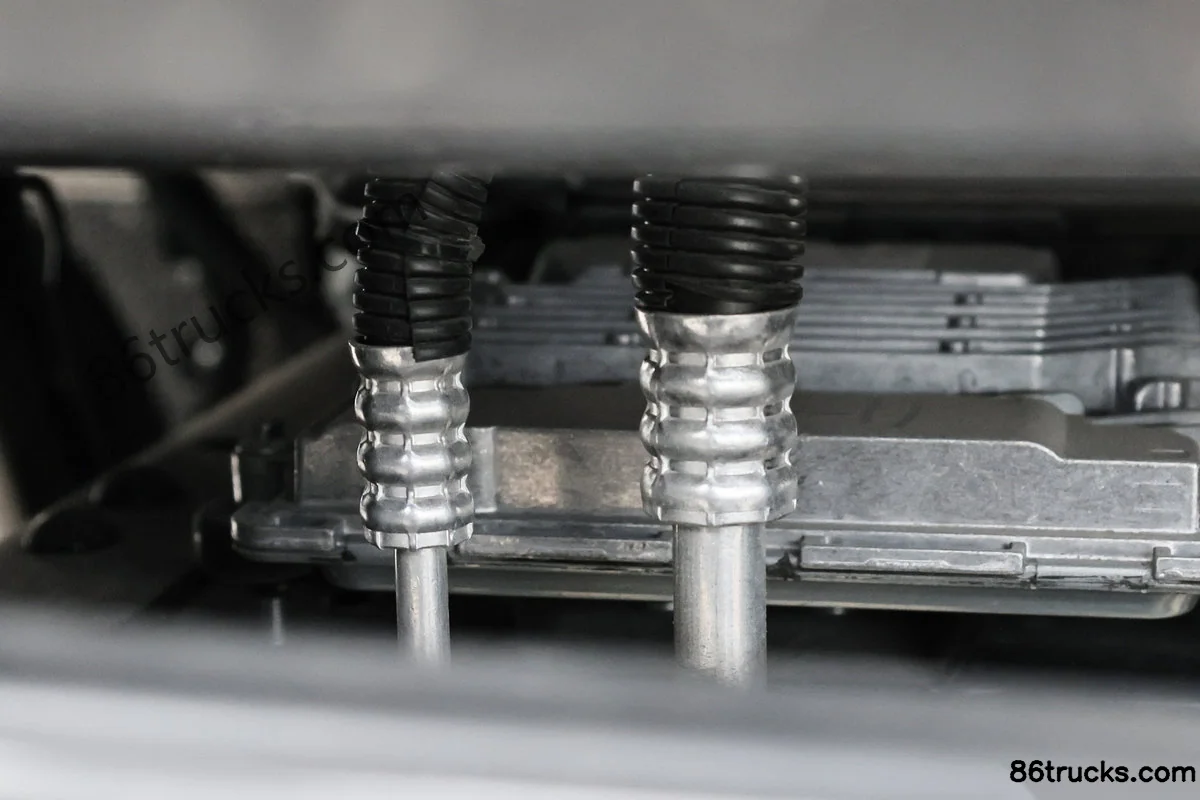

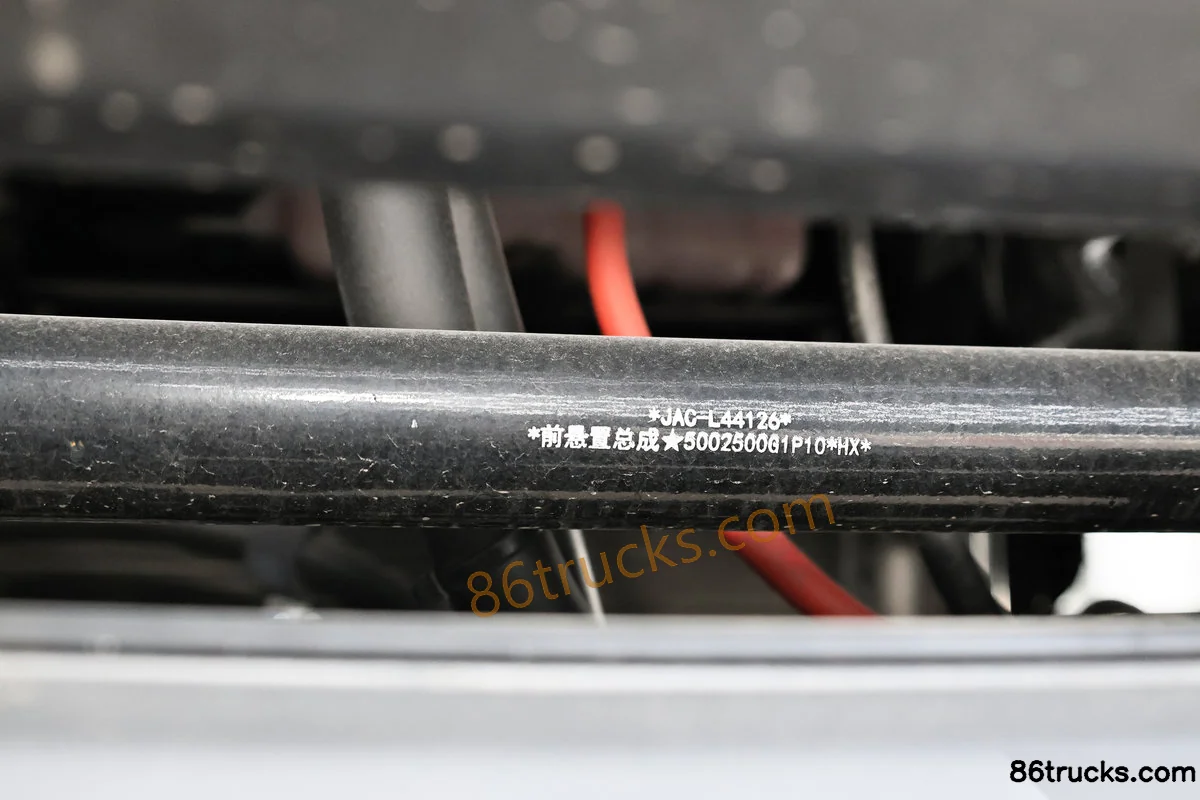

Chassis3

9 photos

FAQ

What is the export price of JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck, and what does it include?

JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck export reference is about From $29,167; MSRP is ¥21M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck?

Key specs of JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck: Drive: 4x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel; Engine: Ankang 4.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck suited for?

JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck differ from other variants in the same series?

JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck belongs to JAC Gallop A5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Heavy Truck Gallop A5L 4.5L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 10m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
