Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh

Export reference
MSRP N/A
Rated payload:: 9.205ton
Wheelbase:: 5000mm
Cargo box type:: Stake type
Model code (announced):: DFH5180CCYEEV13
Type:: stake truck
Box length class:: 6.8m
Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 460km
Motor 1 Brand: Dongfeng
Curb Weight: 8.6ton

Overview

The Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh is a Medium-duty truck featuring 460km battery/range, Dongfeng motor, 4X2 (6 wheels) drive and 9.205t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DFH5180CCYEEV13
Type: stake truck
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
Cab length: 9m
Cab width: 2.55m
Cab height: 3.88m
CLTC range: 460km
Curb Weight: 8.6ton
Rated payload: 9.205ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Dongfeng
Motor 1 Model: TZ230XS055DN02
Motor Type: Permanent magnet synchronous motor
total rated power: 130kW
Peak power: 230kW
Battery/Charging
Battery Brand: CATL
Charging method: single-gun DC
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 332kWh
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.75m
Cargo box width: 2.45m
Cab parameters
Cab: D560e
Cab width: 2200mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:

Photos

Exterior3

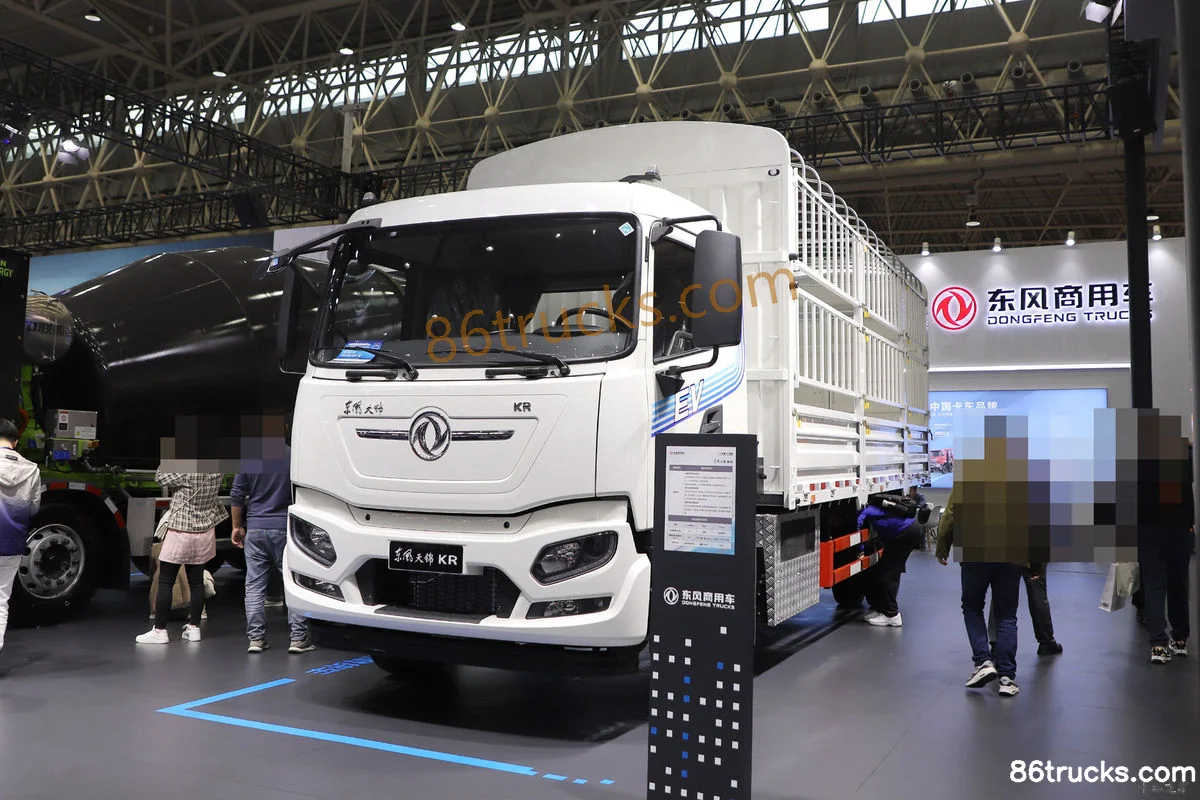

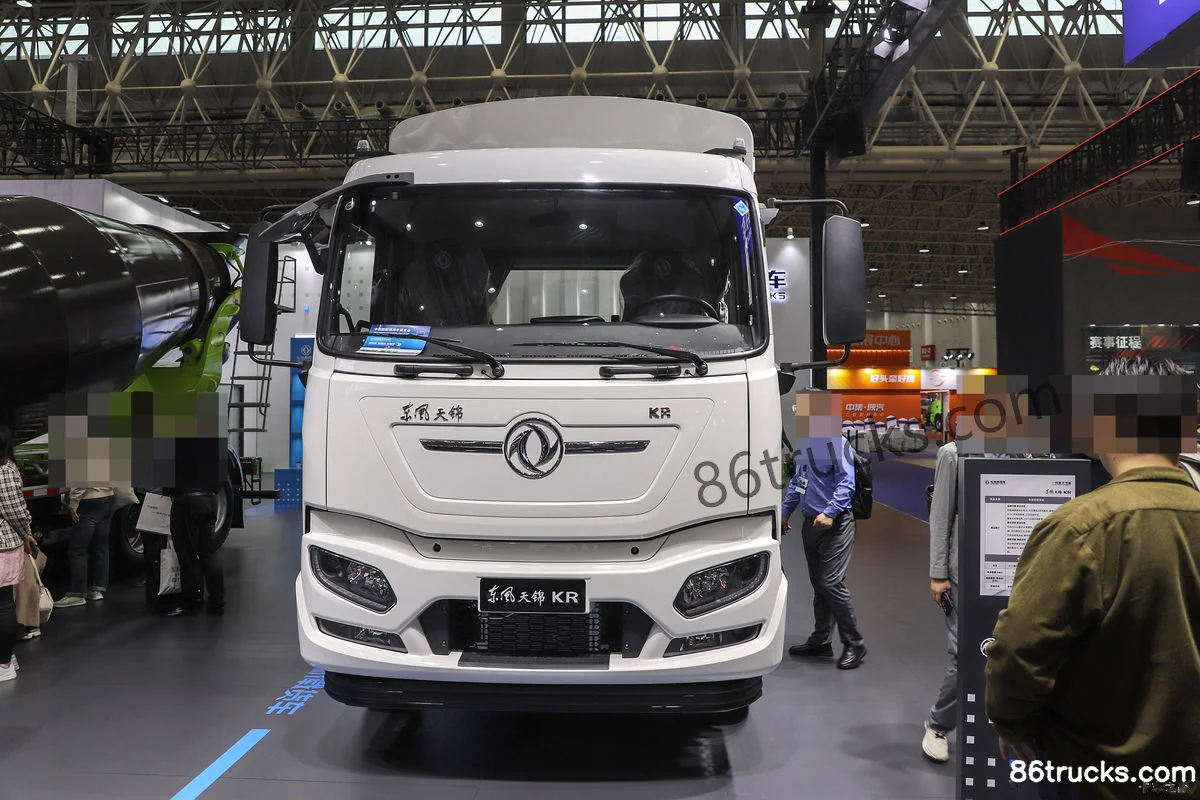

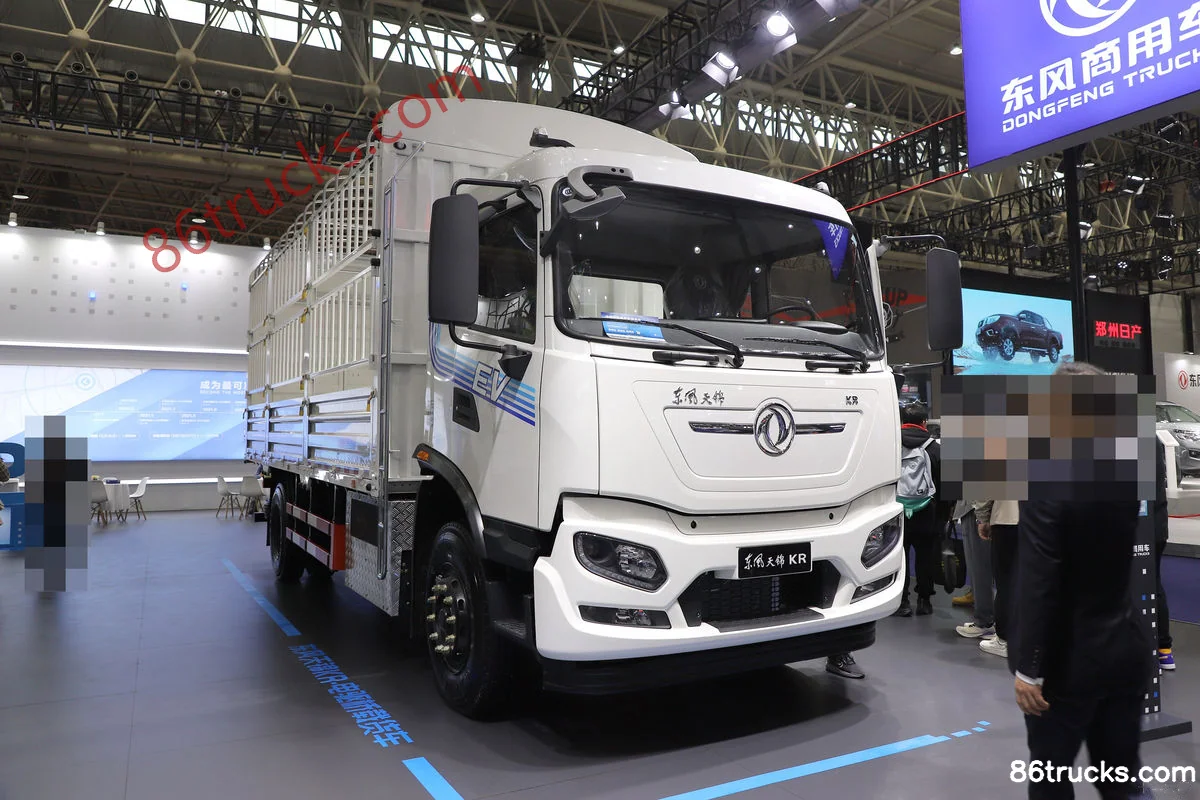

Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh Exterior (1) | 86Trucks Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh Exterior (2) | 86Trucks Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh Exterior (3) | 86Trucks

Interior3

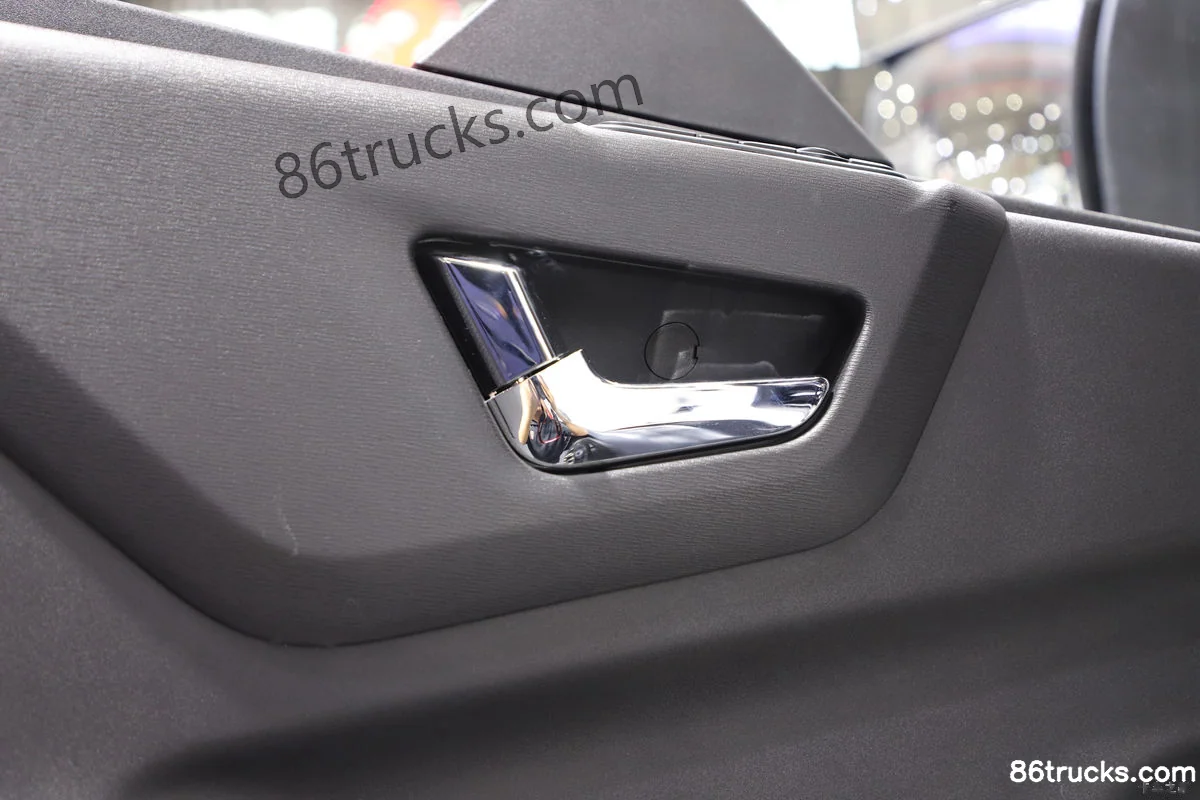

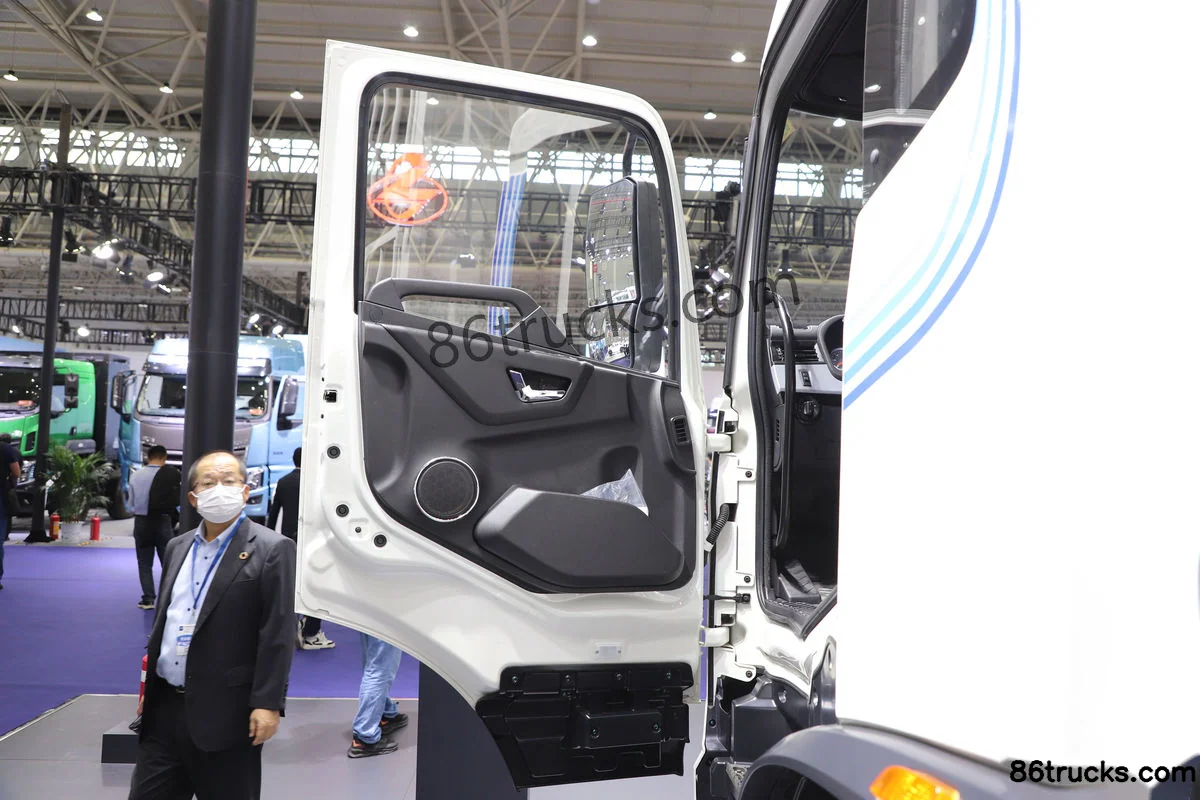

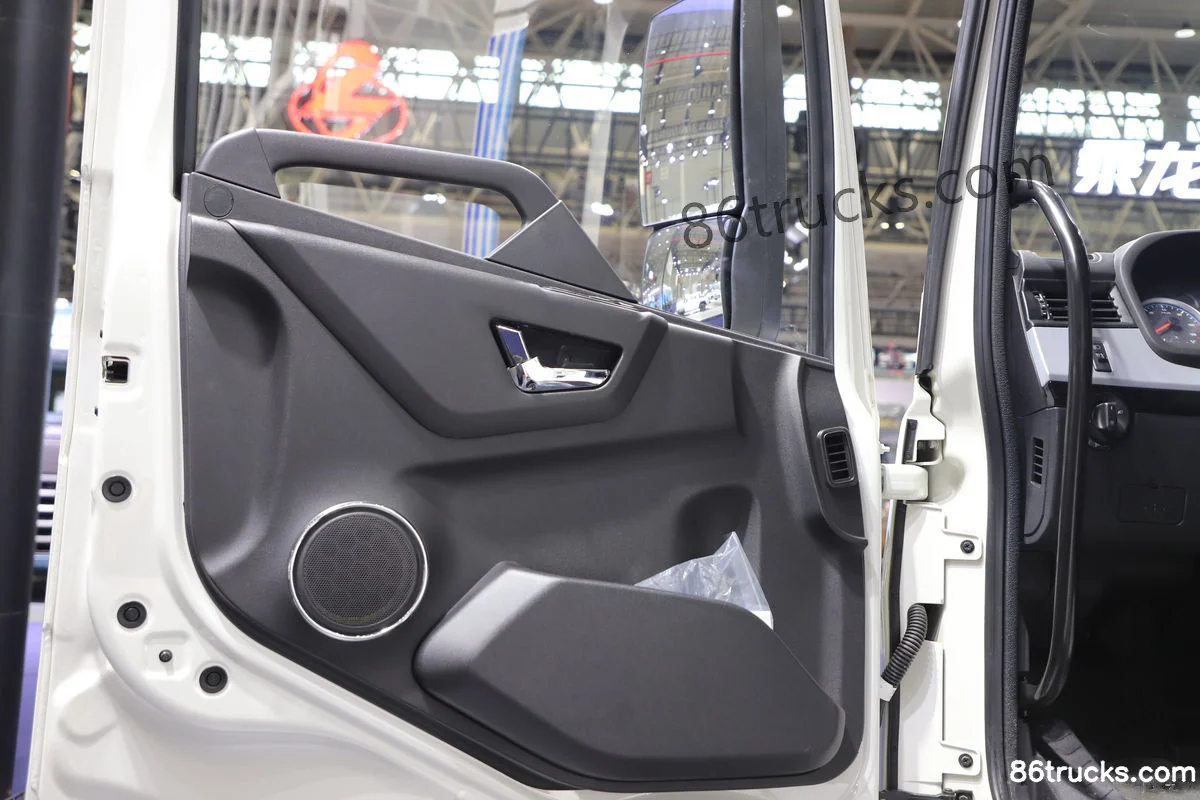

Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh Interior (1) | 86Trucks Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh Interior (2) | 86Trucks Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh Interior (3) | 86Trucks

Chassis3

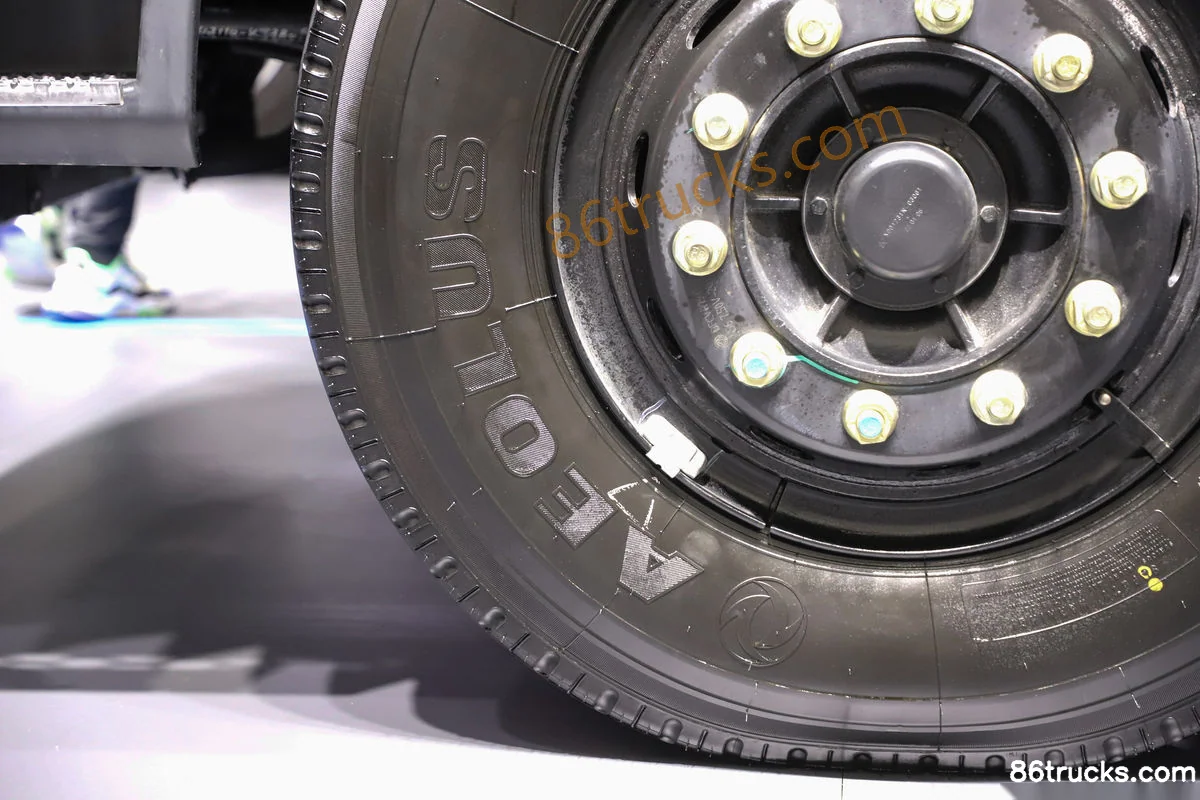

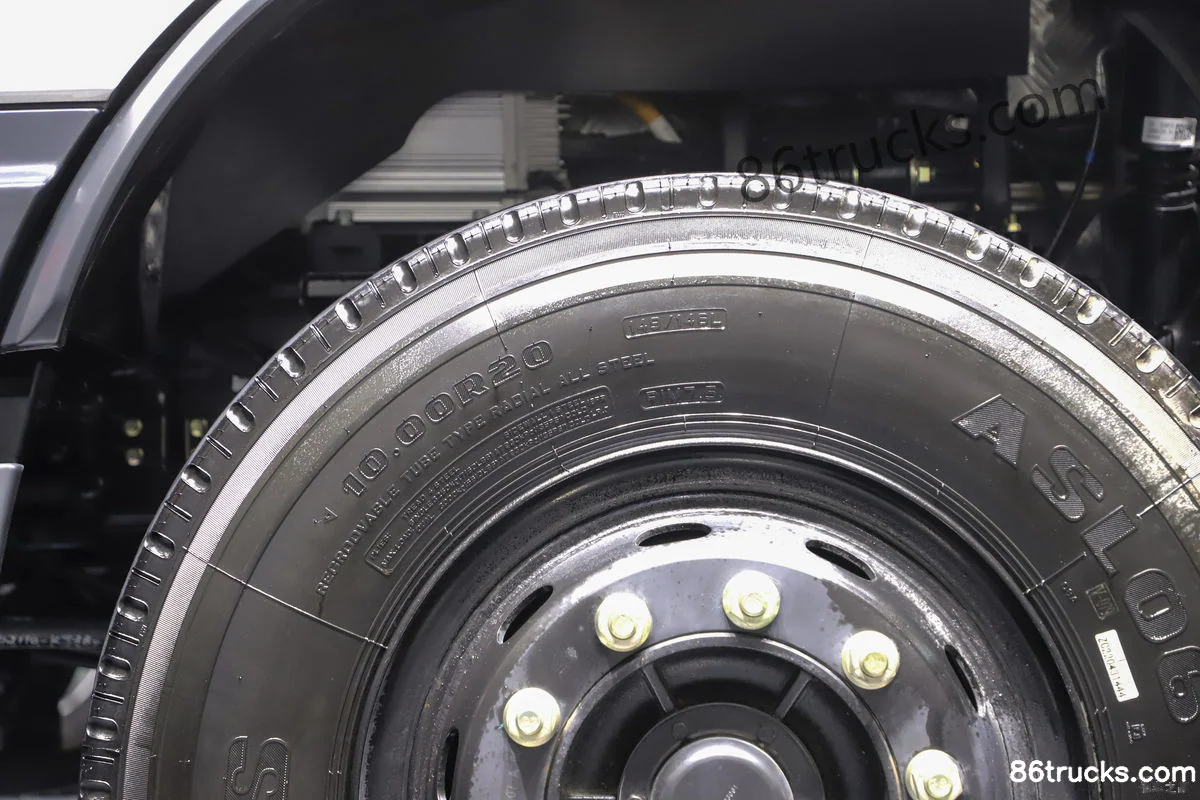

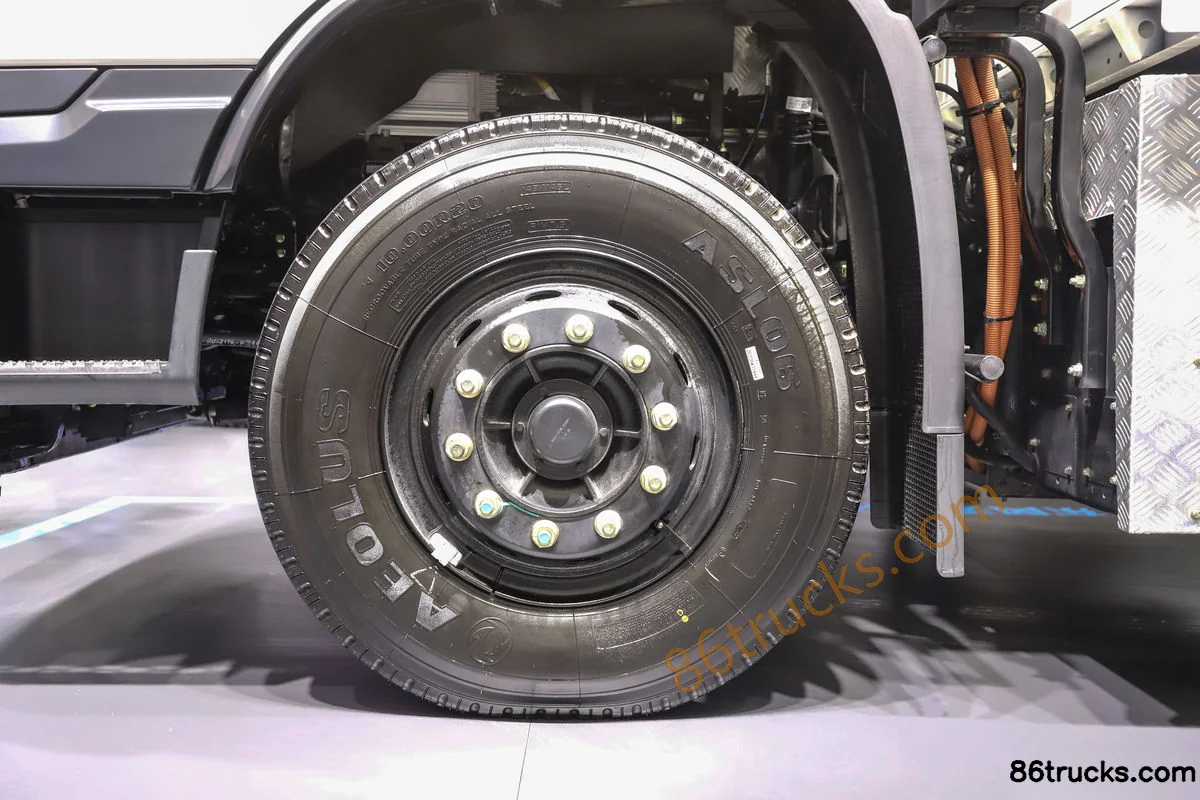

Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh Chassis (1) | 86Trucks Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh Chassis (2) | 86Trucks Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh Chassis (3) | 86Trucks

Body3

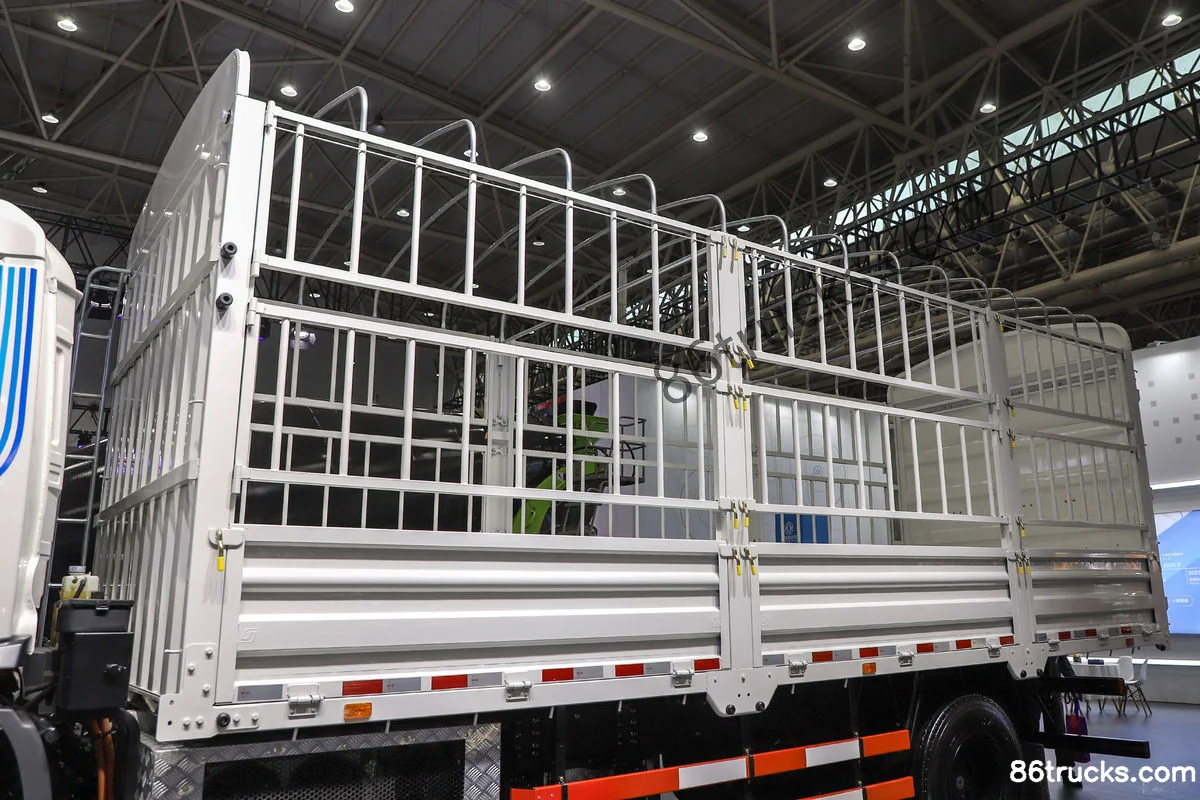

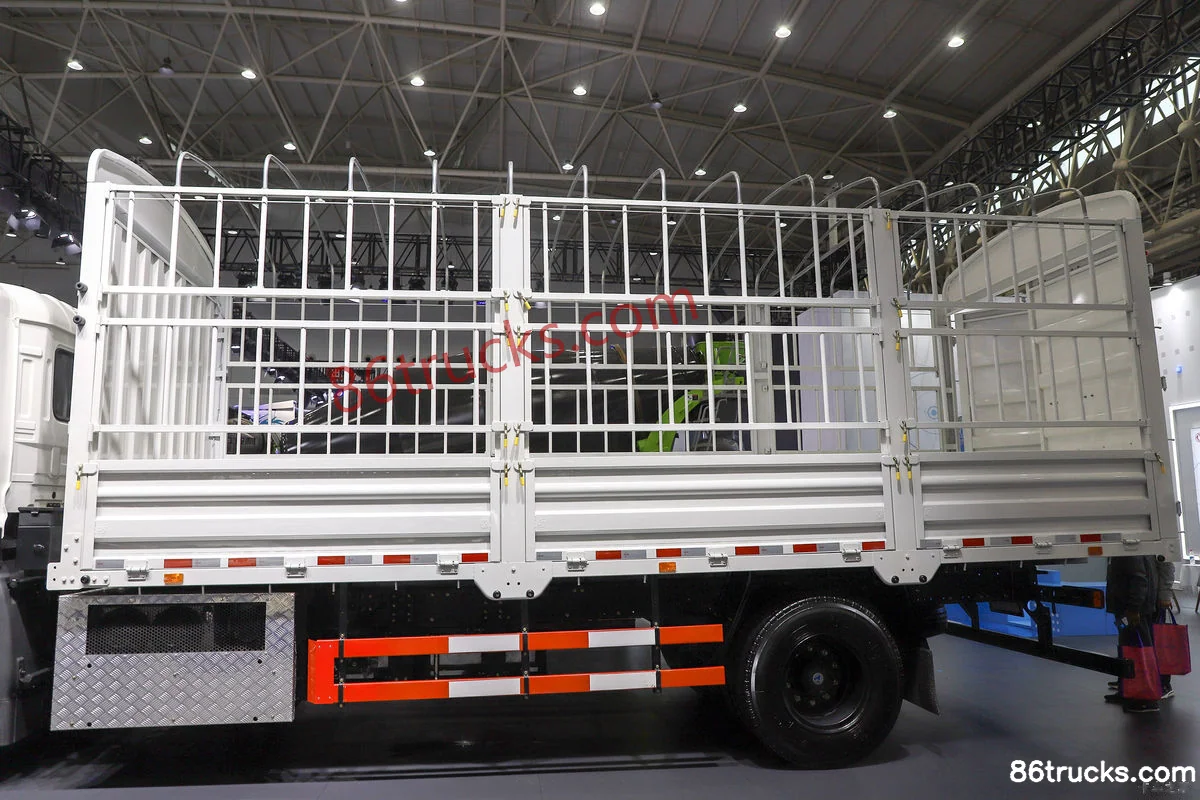

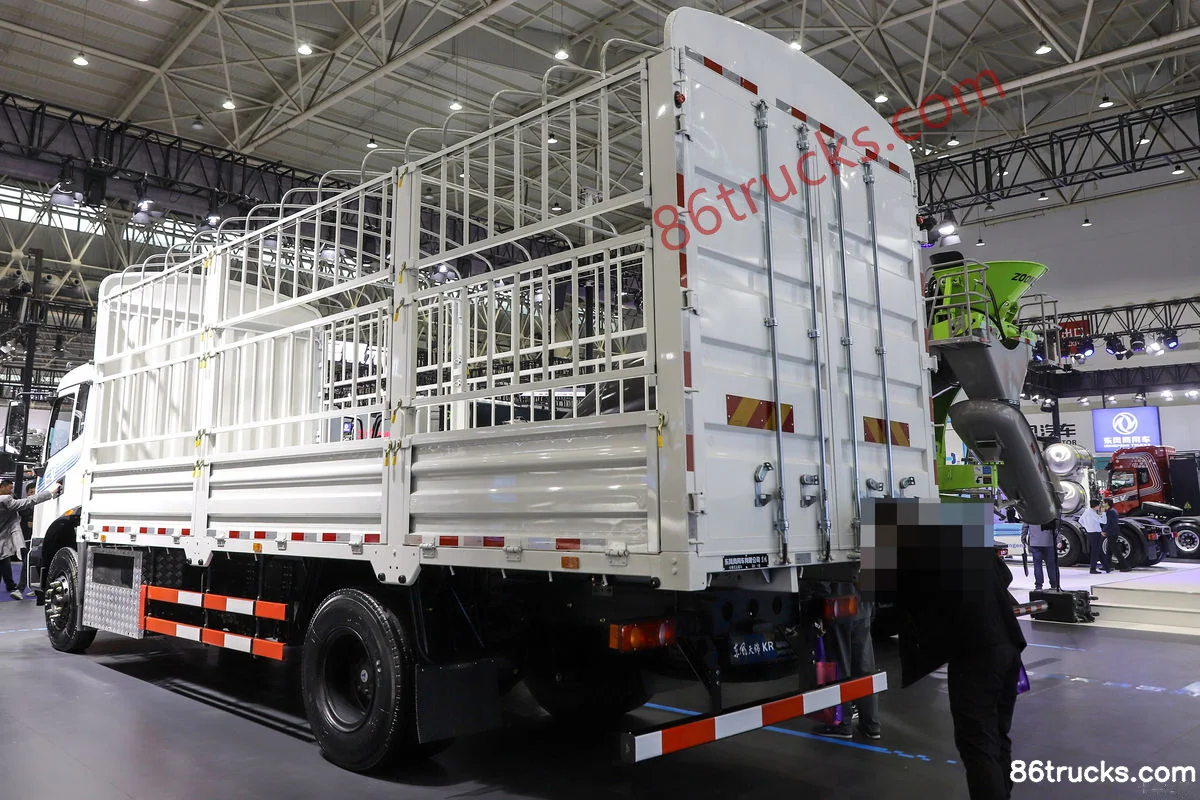

Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh Body (1) | 86Trucks Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh Body (2) | 86Trucks Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh?

Key specs of Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh suited for?

Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh belongs to Dongfeng Tianjin KR (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin KR 18T 4X2(6 wheels) 6.8m half-row pure electric cargo truck 332kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
