NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040)

Export reference
From $11,736
MSRP ¥8.45M CNY
Emission: China VI
Fuel: Diesel
Transmission: Mengwo
Curb Weight:: 2.37ton
Wheelbase:: 2600mm
Tire Size:: 6.00R15LT 10PR/235/75R17.5 16PR
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Horsepower 102
Cargo box thickness: Lightweight

Overview

The NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040) is a Light Truck featuring 1.995t payload, 4.495t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD20TCIF14 engine, 102 hp, China VI emissions and Mengwo transmission.

China VI 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3040
Drive type: 4X2
Wheelbase: 2600mm
engine: Yunnei PowerD20TCIF14
transmission: 5-speed gearbox
Rear Axle Ratio: 6.125
Cab length: 4.83m
Cab width: 1.82m
Cab height: 2.07m
Front track width: 1470mm
rear track: 1353mm
Curb Weight: 2.37ton
Rated payload: 1.995ton
GVWR: 4.495ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 23°
departure angle: 21°
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD20TCIF14
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2L
Emission standard: China VI
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Transmission Parameters
Transmission Model: 5-speed gearbox
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 2TG-70 ×400A
Cargo box thickness: Lightweight
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 2.8m
Cargo box width: 1.72m
Cargo box height: 0.4m
Body Parameters
Lifting type: dual cylinder
Cab parameters
Cab: Single Row
Cab width: 1600mm
seating capacity: 2Personnel
Chassis Specs
Front axle description: 1.8T
Front axle allowable load: 1610kg
Frame Dimensions: 160mm
rear axle description: 2.7T
rear axle allowable load: 2885kg
Axle ratio: 6.125
Leaf spring count: 7/8+6
Tire
Tire Size: 6.00R15LT 10PR/235/75R17.5 16PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:

Photos

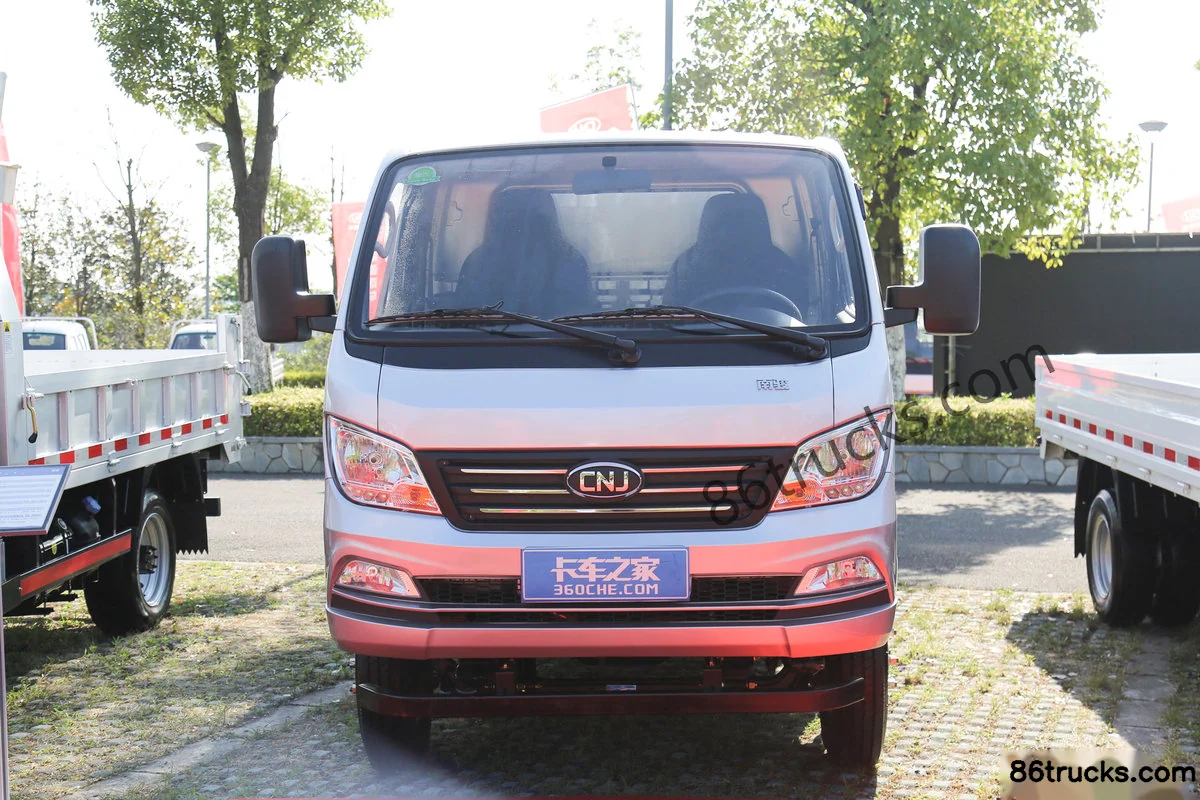

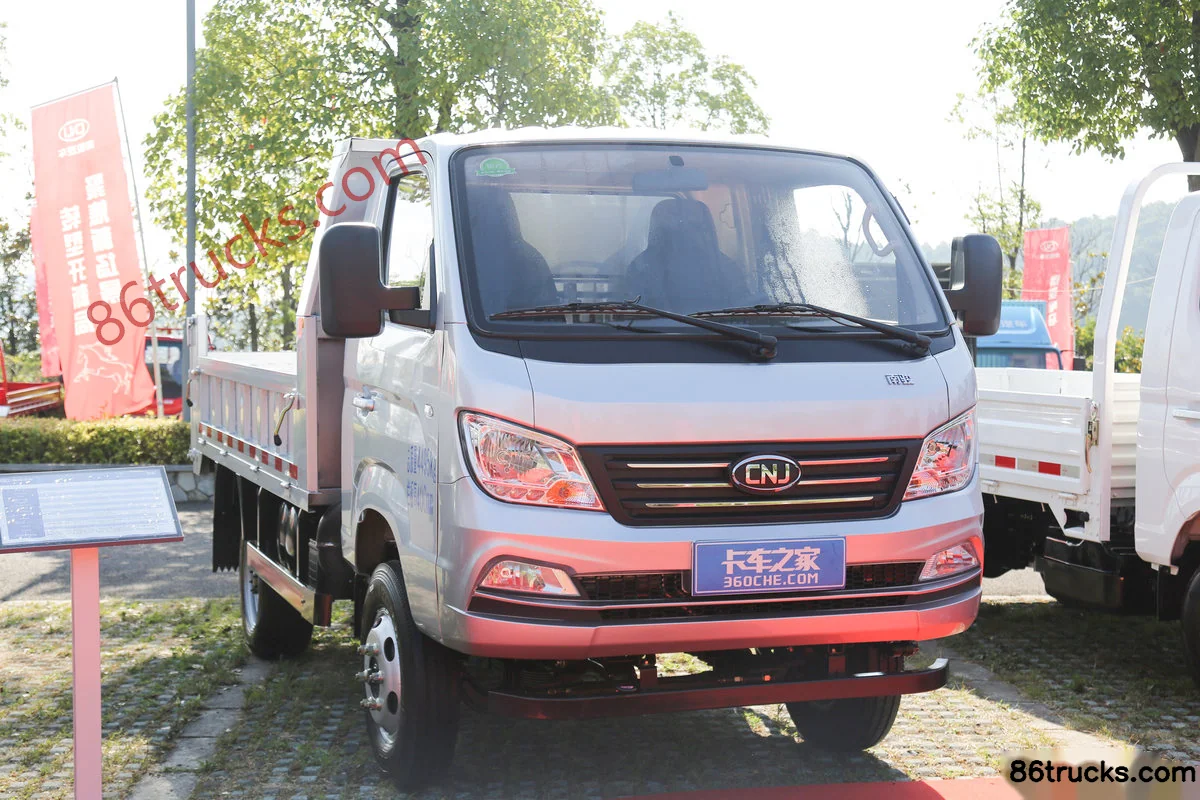

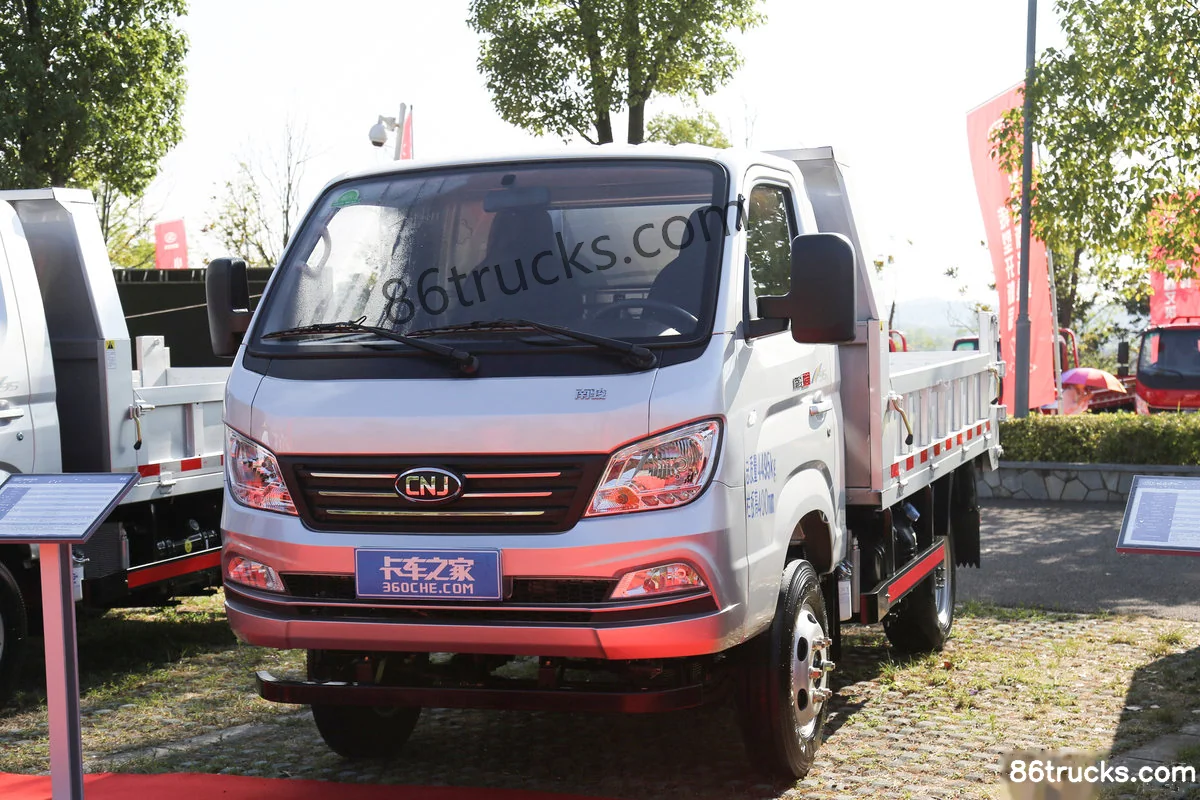

Exterior3

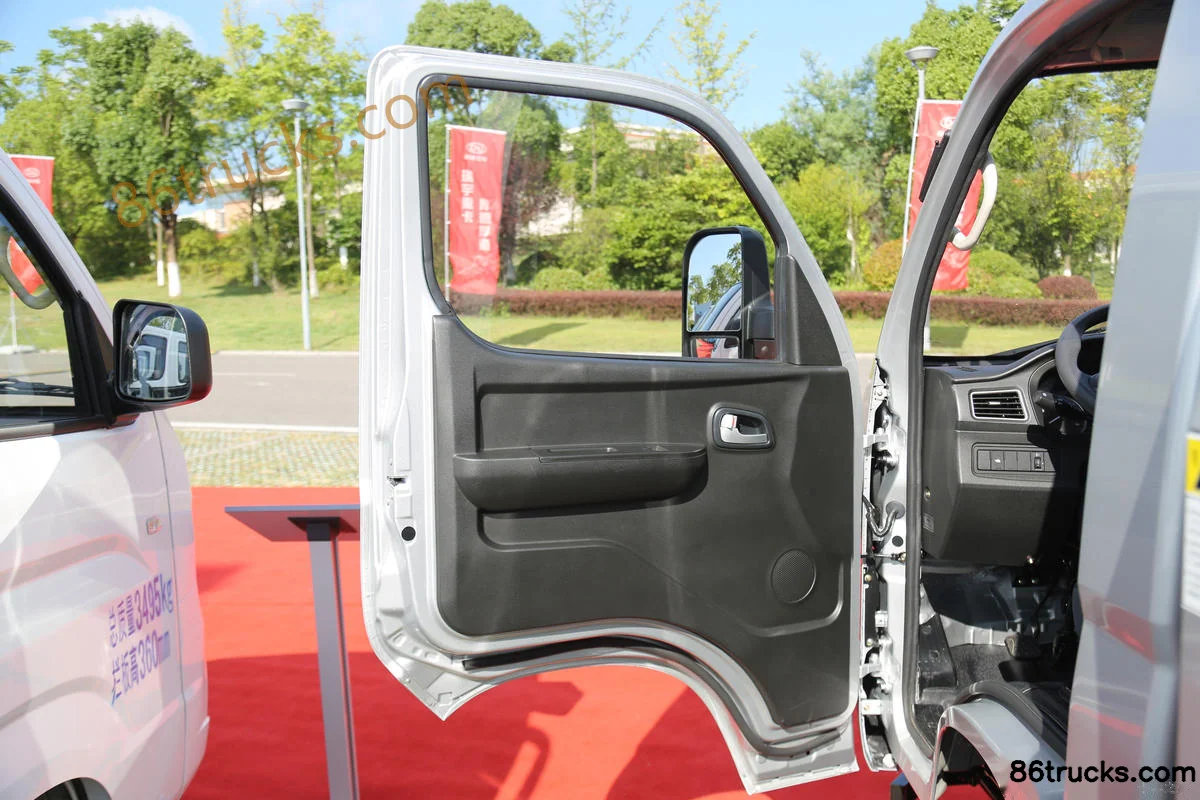

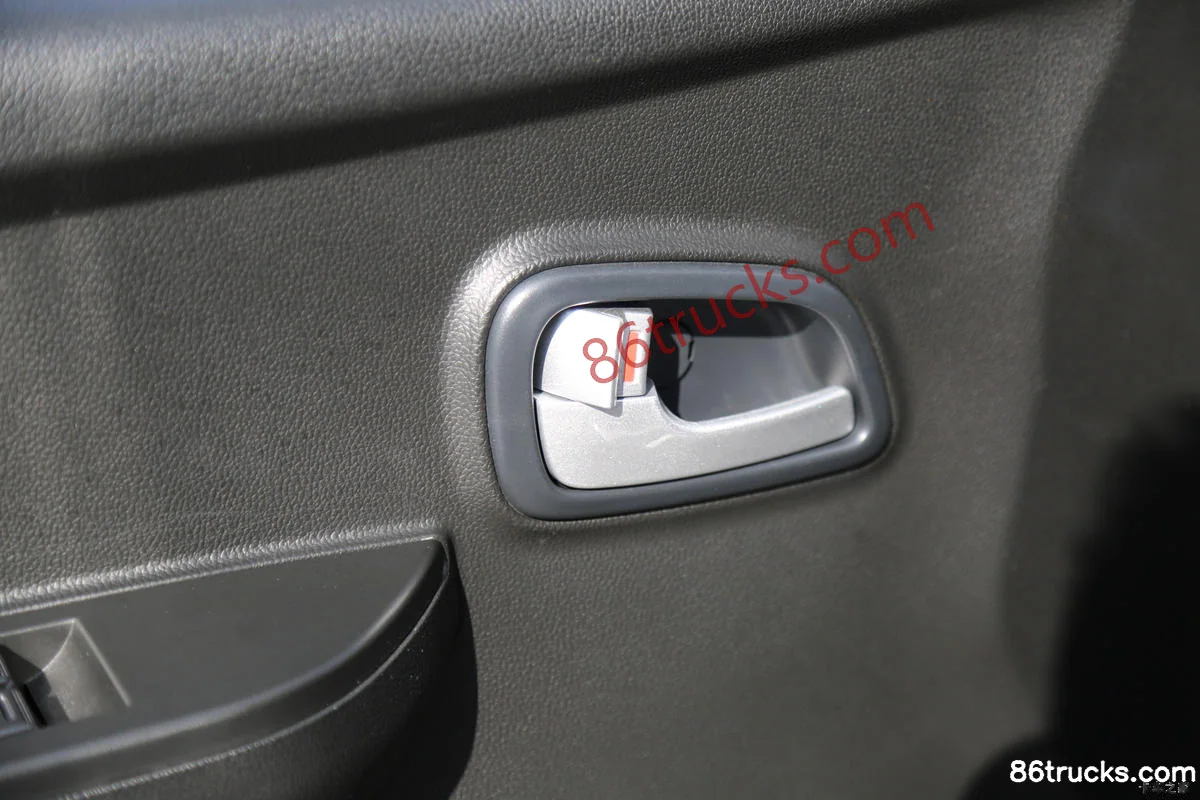

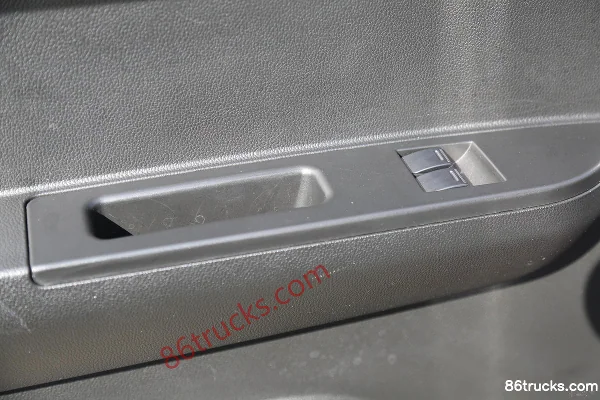

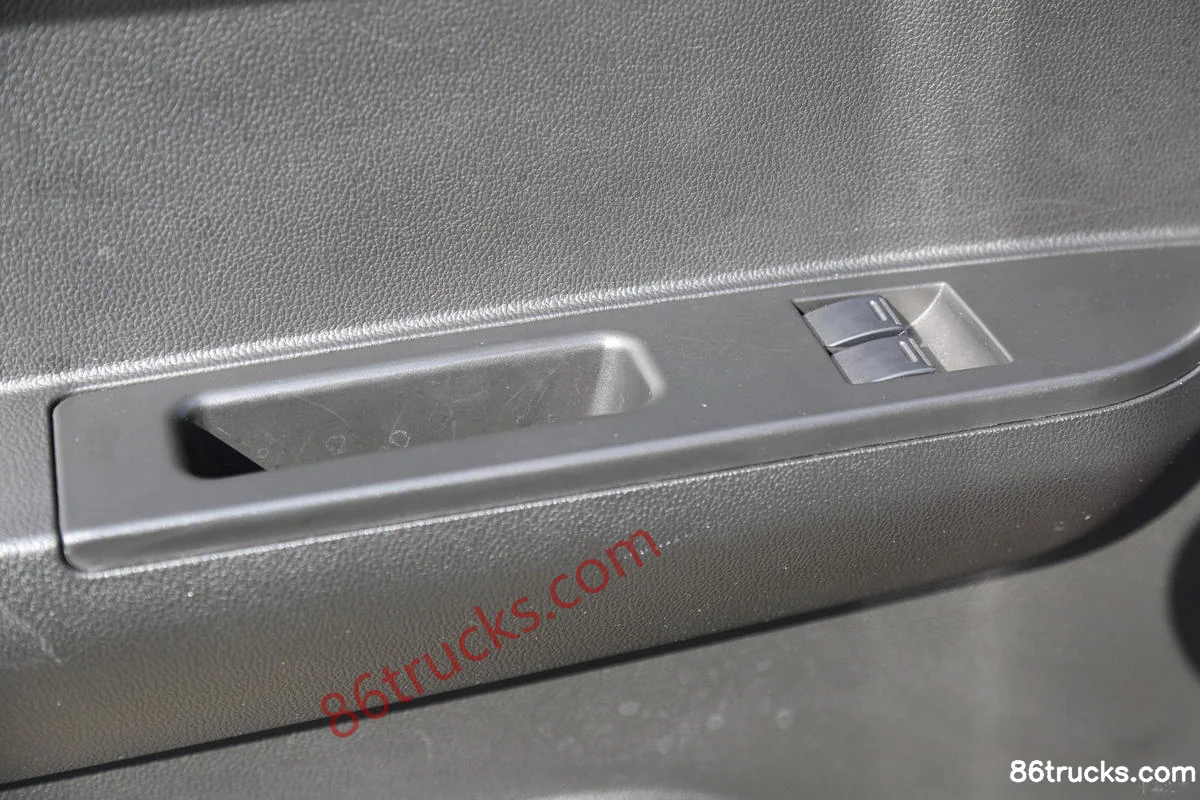

Cab3

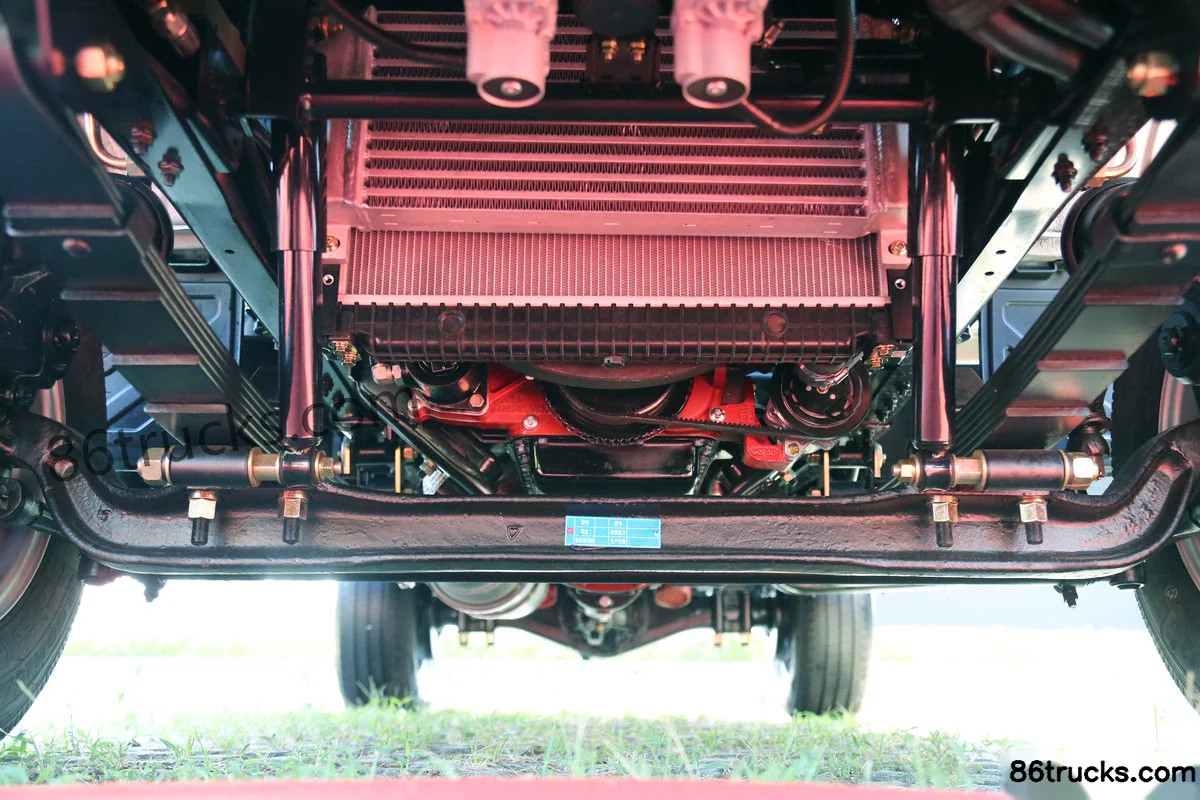

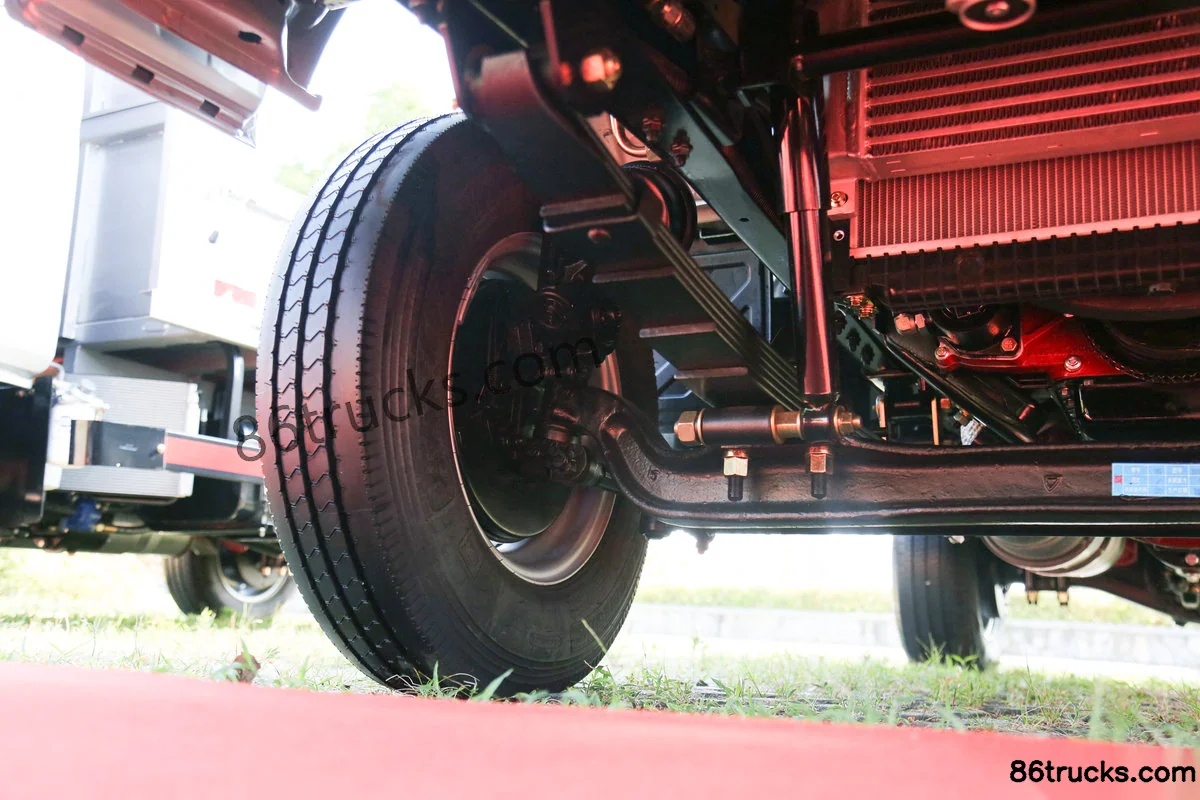

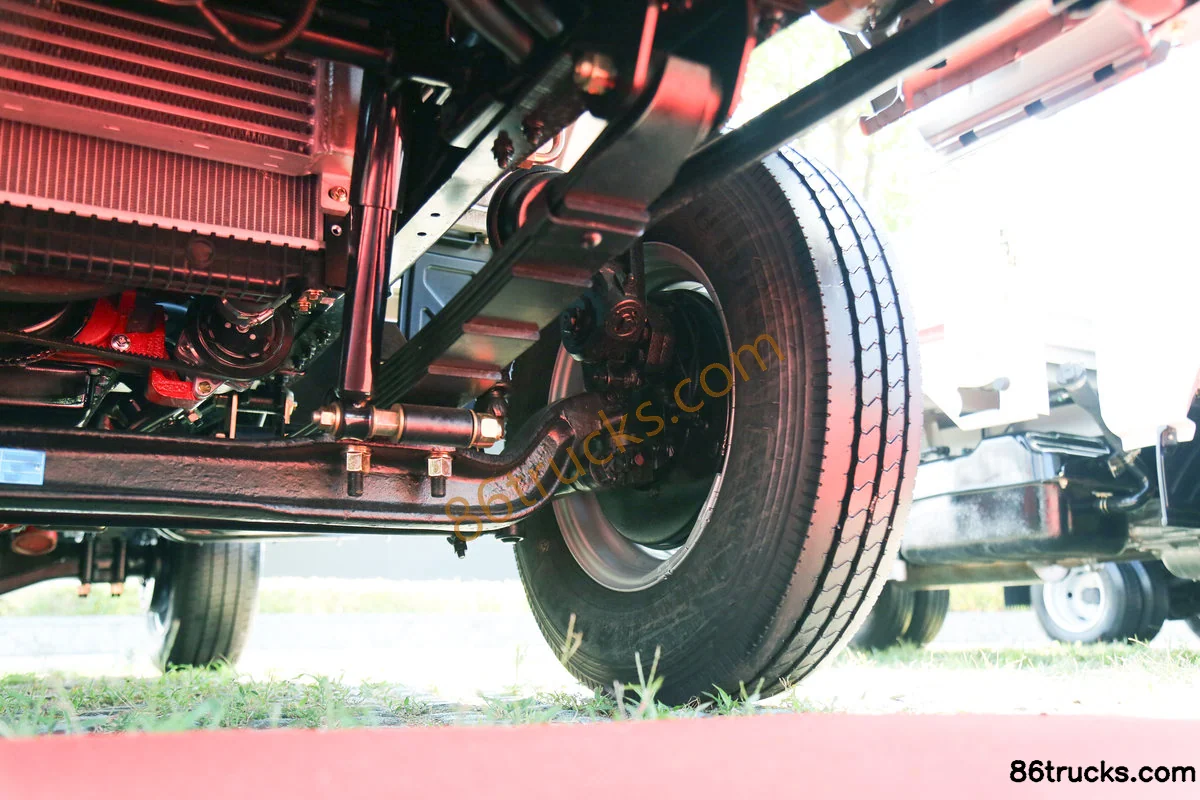

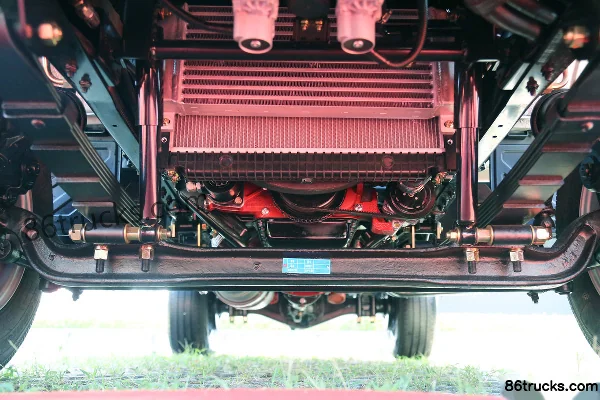

Chassis3

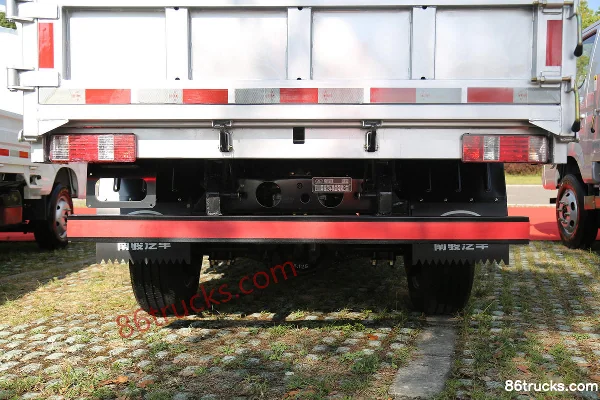

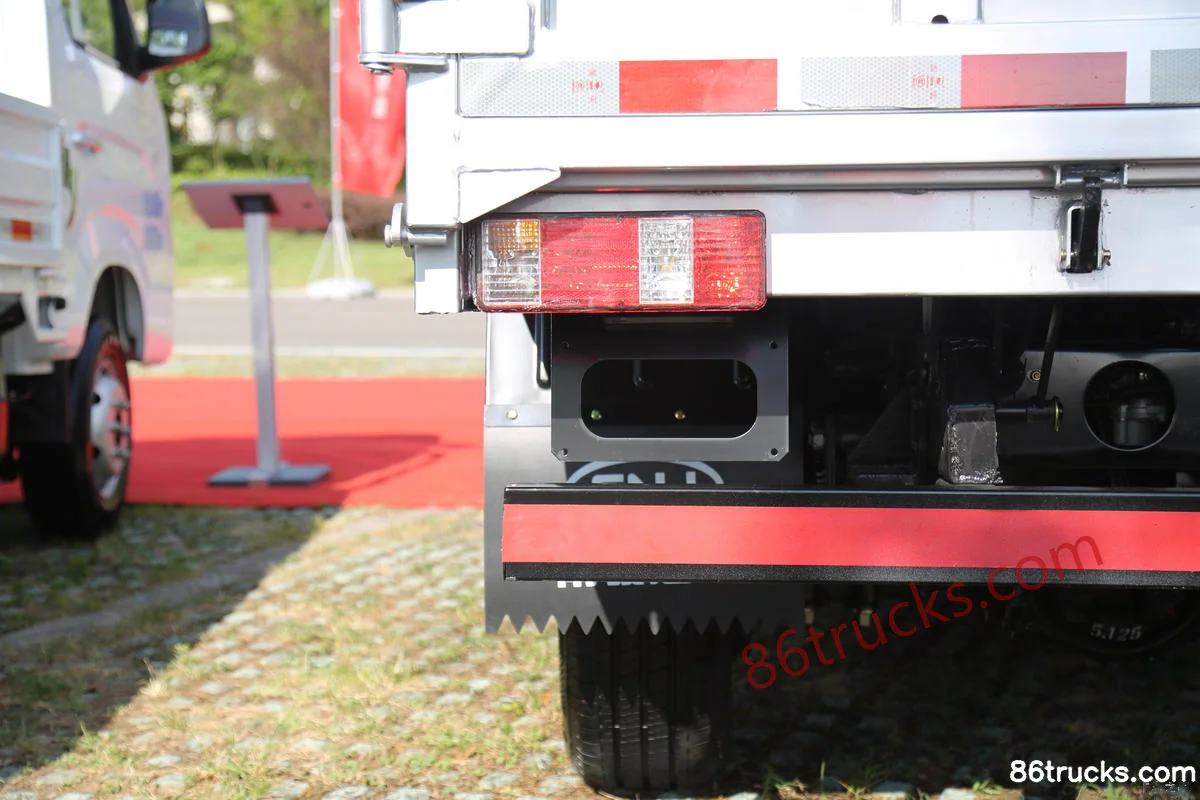

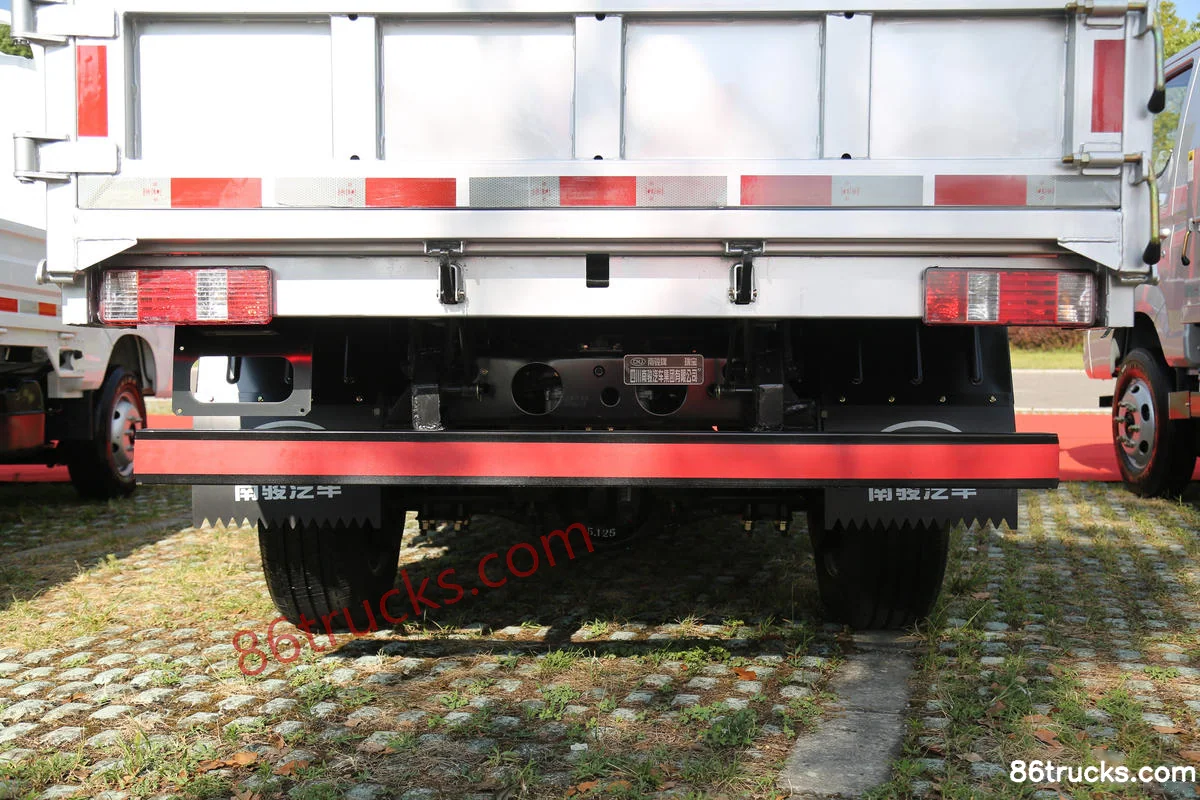

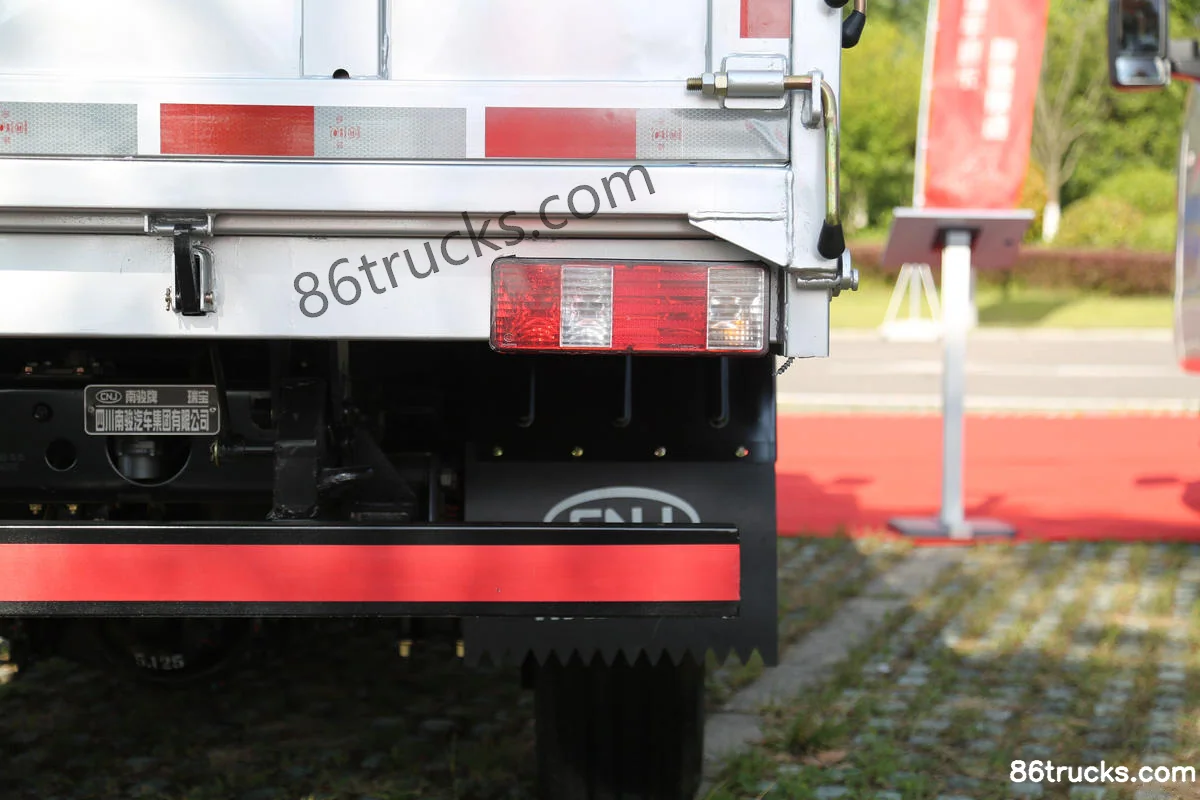

Body3

12 photos

FAQ

What is the export price of NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040), and what does it include?

NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040) export reference is about From $11,736; MSRP is ¥8.45M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040)?

Key specs of NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040): Drive: 4x2; Horsepower: 102 hp; Emission: China VI; Fuel: Diesel; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040) suited for?

NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040) differ from other variants in the same series?

NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040) belongs to NanJun Ruibao Mini Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruibao Deluxe 102 hp 4X2(6 wheels) 2.8m Dump Truck (China VI)(NJA3040)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
