Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m)

Export reference
MSRP N/A
Drive: 6X4 (10 wheels)
Wheelbase:: 3550+1500mm
Model:: ZZ5607VDNB36400
Cab dimensions:: 7.96×3m
Rated payload:: 40ton
GVWR:: 60ton
Curb Weight: 36.5ton
Horsepower 336
Max output power: 247kW
Emission China III / Euro III

Overview

The Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m) is a off-highway mining dump truck featuring 60t GVW, 336 hp, 247kW power and 6X4 (10 wheels) drive. On the powertrain side, it comes with a Sinotruk WD615.95E engine and China III / Euro III emissions.

China III / Euro III 336 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: ZZ5607VDNB36400
Cab dimensions: 7.96×3m
Drive type: 6X4
Wheelbase: 3550+1500mm
Curb Weight: 36.5ton
Rated payload: 40ton
GVWR: 60ton
Body Parameters
Truck Brand: Sinotruk
Engine parameters
Engine Model: Sinotruk WD615.95E
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Max torque speed: 1100~1600rpm
Cargo box parameters
Cargo box dimensions: 5.4x2.8x1.7m
Transmission Parameters
Number of gears: 10Gear
Transmission Model: HW18710
Tire
Tire Size: 13.00-25
Number of tires: 10pcs

Photos

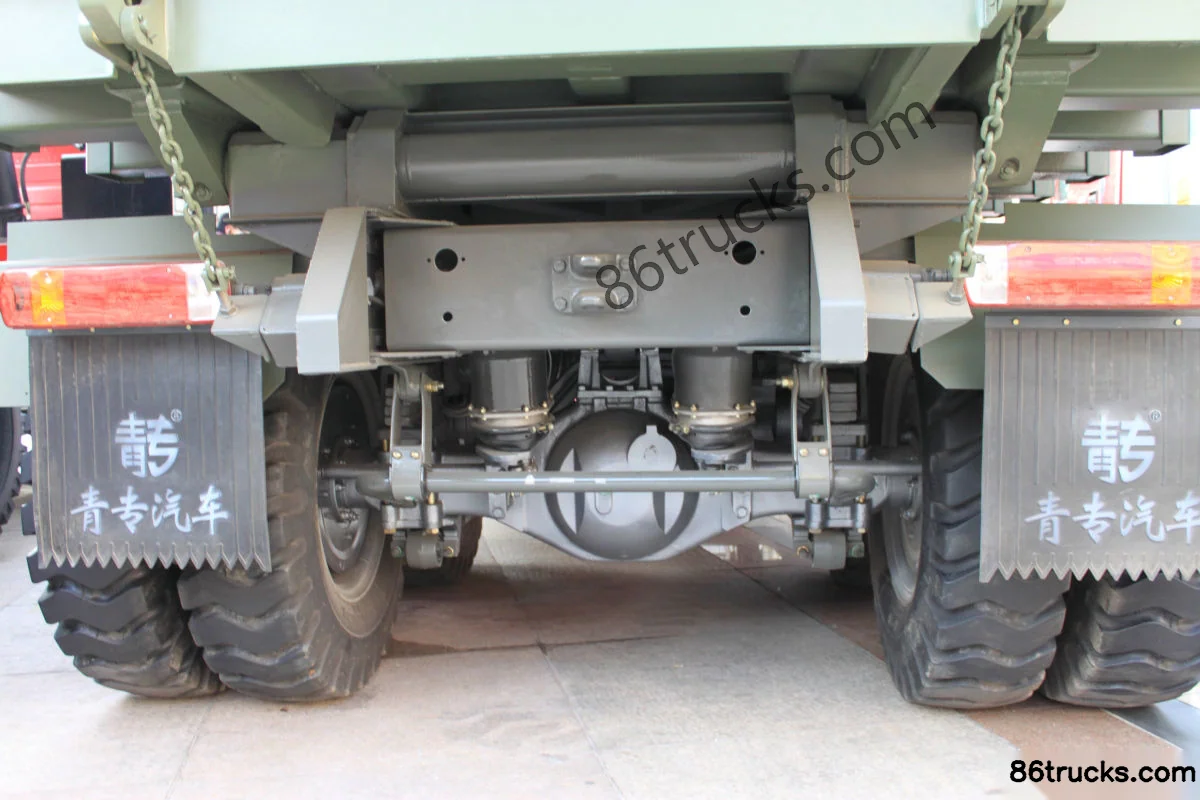

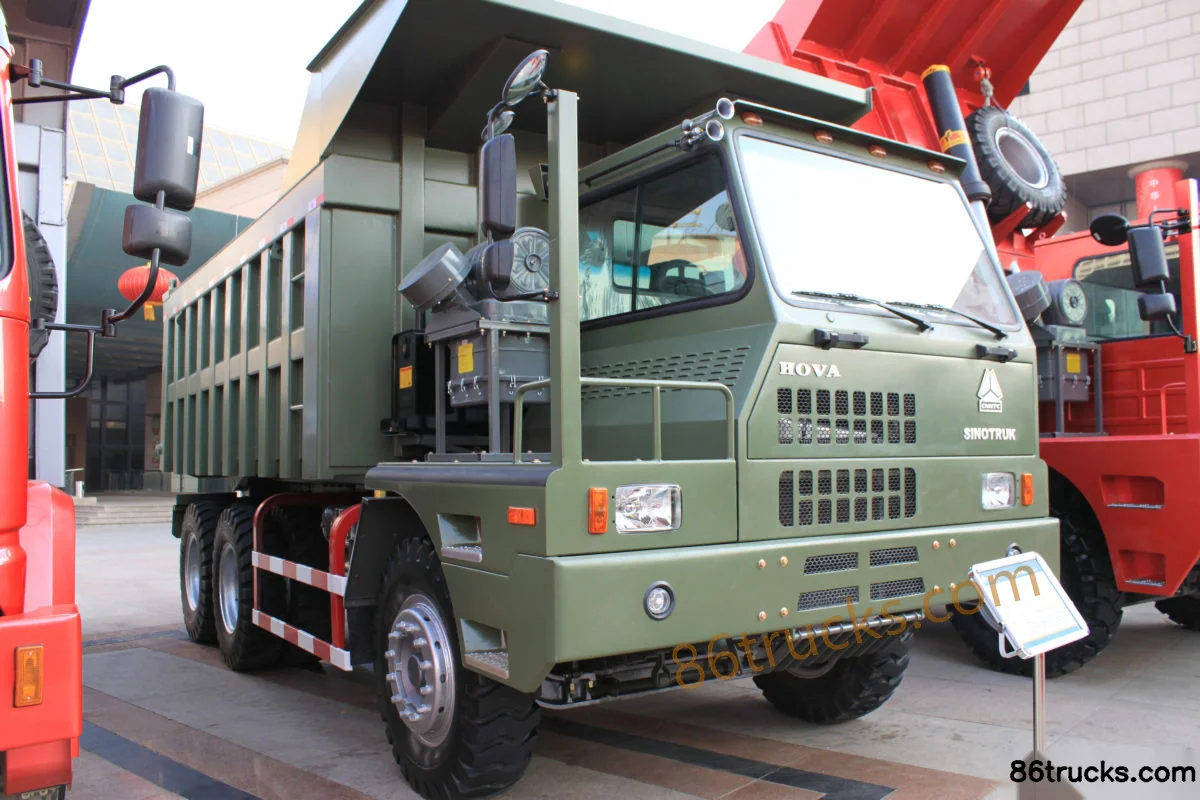

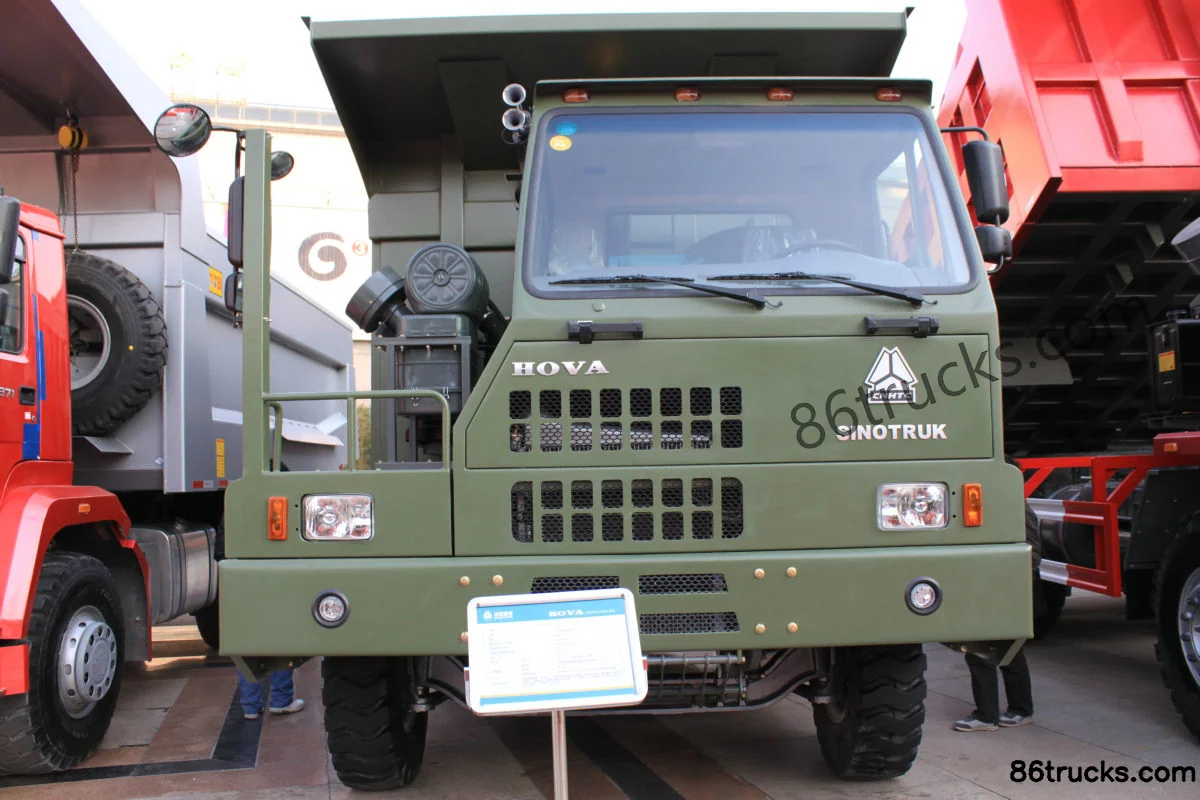

Exterior2

Cab2

4 photos

FAQ

What emission standard does Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m)?

Key specs of Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m): Drive: 6x4; Horsepower: 336 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m) suited for?

Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m) is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m) differ from other variants in the same series?

Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m) belongs to Sinotruk HOVA heavy truck (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
