Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m)
EXW
Export quote
Sinotruk HOVA heavy truck off-highway mining dump
Main model photos
20 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) | 6x4 / 336hp / China II/Euro II | ||
| Sinotruk HOVA 420 hp 8X4(12 wheels) Wide-body Mining Dump Truck | 8x4 / 420hp / China II/Euro II | ||
| Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m) | 6x4 / 336hp / China III / Euro III |

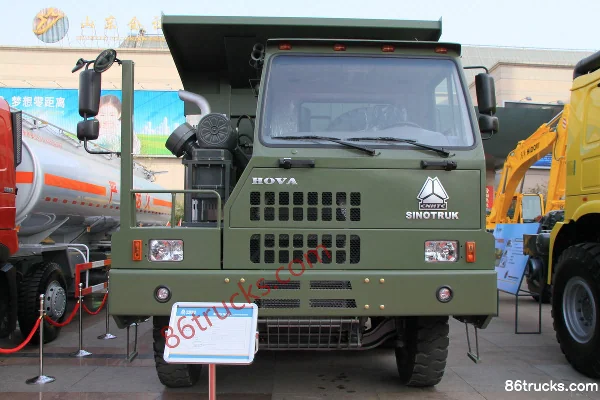

Sinotruk HOVA 420 hp 8X4(12 wheels) Wide-body Mining Dump Truck
EXW
Export quote

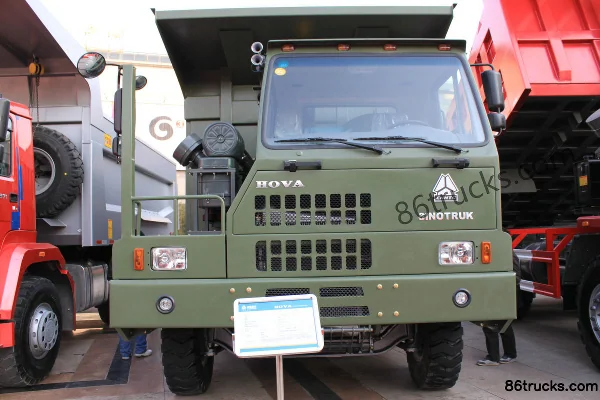

Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.4m)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 8.5×3×4.2 / 9.55×3×3.15 / 7.96×3m
Model: ZZ5607VDNB38400 / ZZ3657VDVB30600 / ZZ5607VDNB36400
Drive type: 6X4 / 8X4
Wheelbase: 3750+1500 / 1800+3000+1500 / 3550+1500mm
Front/rear track width: Front track: 2413mm; Rear track: 2204mm
Min turning radius: 21m
Max climbing ability: 50%
Approach/departure angle: 35.5°
Min ground clearance: 380cm
Curb Weight: 20 / 36.5ton
Rated payload: 40 / 43.5ton
GVWR: 60 / 65ton
Max. speed: 49km/h
Body Parameters
Truck Brand: Sinotruk
Other special notes: Mining bucket, 16Mn steel, Haiwo cylinder / Dedicated 10t dual-steer front axle, large-ratio 25t wide-body rear drive axle, high power, heavy load, cost-effective.
Max dump angle: 51°
Cargo box lifting time: 25S
Lifting type: Hyva front lift
Chassis Specs
Front/rear axle load: 10-15Tx2ton
Engine parameters
Engine Model: Sinotruk WD615.69 / Sinotruk D12.42 / Sinotruk WD615.95E
Displacement: 9.726 / 11.596L
Emission standard: China II/Euro II / China III / Euro III
Max output power: 247 / 309kW
Max hp: 336 / 420Horsepower
Max torque speed: 1350 /1600 / 1100～1600rpm
Cargo box parameters
Cargo box dimensions: 5.6×2.8×1.5 / 6.6x2.8x1.5 / 5.4x2.8x1.7m
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk HW10/F9 / Sinotruk HW 19710C / HW18710
Tire
Tire Size: 13-25 / 13.00-25
Number of tires: 10 / 12pcs
FAQ
What kind of truck is Sinotruk Sinotruk HOVA heavy truck off-highway mining dump truck?
Sinotruk Sinotruk HOVA heavy truck is an export-oriented off-highway mining dump truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Sinotruk HOVA heavy truck off-highway mining dump cover?
Sinotruk HOVA heavy truck off-highway mining dump mainly covers: Drive: 6x4 / 8x4; Horsepower: 336 hp / 420 hp; Emission: China II/Euro II / China III / Euro III. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk HOVA heavy truck off-highway mining dump?
For Sinotruk HOVA heavy truck off-highway mining dump: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is off-highway mining dump truck typically used for?
off-highway mining dump truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk HOVA heavy truck off-highway mining dump include?
Sinotruk HOVA heavy truck off-highway mining dump currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HOVA heavy truck off-highway mining dump?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
