Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m)

Export reference
MSRP N/A
Drive: 6X4 (10 wheels)
Wheelbase:: 3750+1500mm
Cab dimensions:: 8.5×3×4.2m
Model:: ZZ5607VDNB38400
Front/rear track width:: Front track: 2413mm; Rear track: 2204mm
Min turning radius:: 21m
Curb Weight: 20ton
Horsepower 336
Max output power: 247kW
Emission China II/Euro II

Overview

The Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) is a off-highway mining dump truck featuring 60t GVW, 336 hp, 247kW power and 6X4 (10 wheels) drive. On the powertrain side, it comes with China II/Euro II emissions.

China II/Euro II 336 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.5×3×4.2m
Model: ZZ5607VDNB38400
Drive type: 6X4
Wheelbase: 3750+1500mm
Front/rear track width: Front track: 2413mm; Rear track: 2204mm
Min turning radius: 21m
Max climbing ability: 50%
Approach/departure angle: 35.5°
Min ground clearance: 380cm
Curb Weight: 20ton
Rated payload: 40ton
GVWR: 60ton
Max. speed: 49km/h
Body Parameters
Truck Brand: Sinotruk
Other special notes: Mining bucket, 16Mn steel, Haiwo cylinder
Max dump angle: 51°
Cargo box lifting time: 25S
Lifting type: Hyva front lift
Chassis Specs
Front/rear axle load: 10-15Tx2ton
Engine parameters
Engine Model: Sinotruk WD615.69
Displacement: 9.726L
Emission standard: China II/Euro II
Max output power: 247kW
Max hp: 336Horsepower
Max torque speed: 1350 /1600rpm
Cargo box parameters
Cargo box dimensions: 5.6×2.8×1.5m
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk HW10/F9
Tire
Tire Size: 13-25
Number of tires: 10pcs

Photos

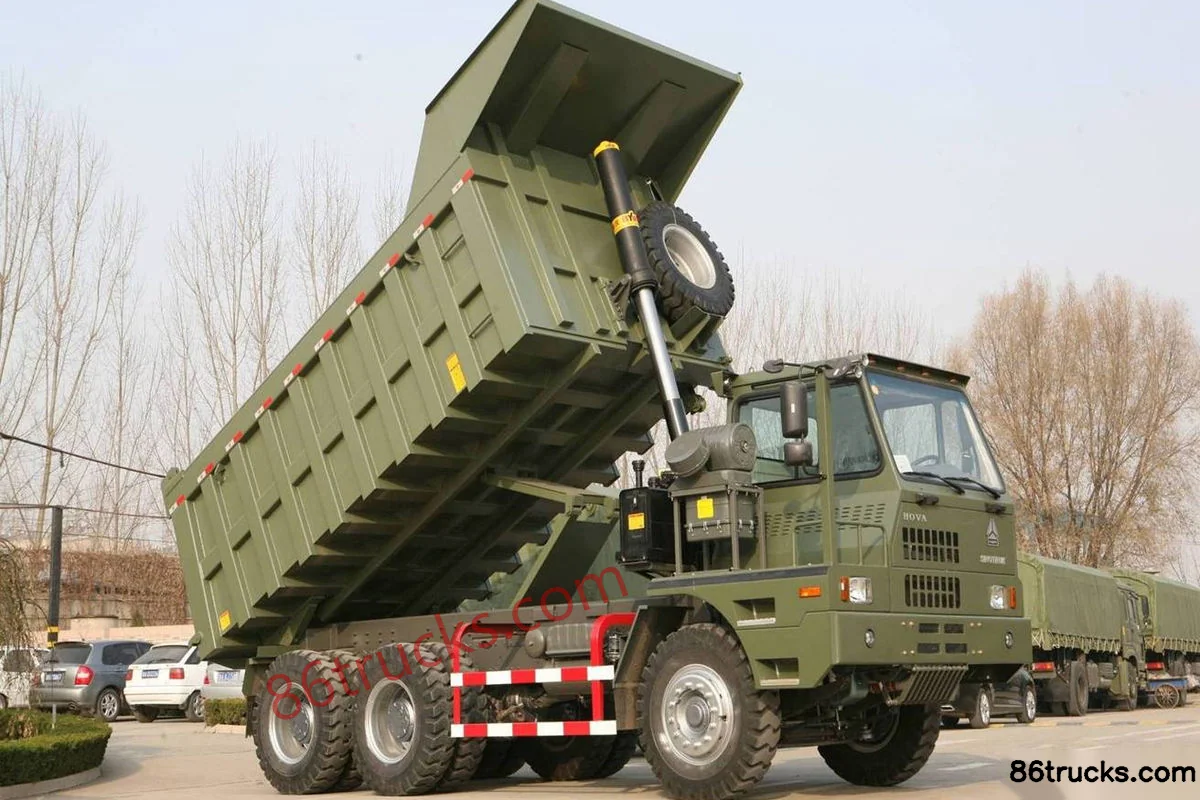

Exterior1

1 photos

FAQ

What emission standard does Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) use, and can it enter my country?

This model is listed as China II/Euro II. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m)?

Key specs of Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m): Drive: 6x4; Horsepower: 336 hp; Emission: China II/Euro II. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) suited for?

Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) differ from other variants in the same series?

Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) belongs to Sinotruk HOVA heavy truck (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOVA 336 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
