Yutong 533 hp 4X2(6 wheels) wide-body mining dump truck
EXW
Export quote
Yutong Zhengzhou Yutong Yutong Brand off-highway
Main model photos
85 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Yutong 533 hp 4X2(6 wheels) wide-body mining dump truck | 4x2 / 533hp | ||
| Yutong 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (50 tons) | 6x4 / 375hp / China III / Euro III | ||
| Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck | 6x4 / 380hp / China III / Euro III | ||
| Yutong 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (40 tons) | 6x4 / 375hp / China III / Euro III |

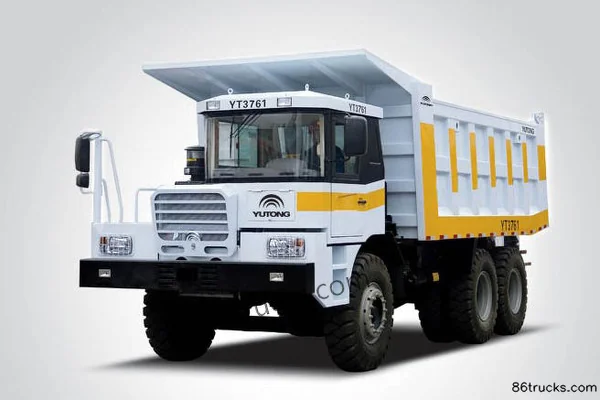

Yutong 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (50 tons)
EXW
Export quote

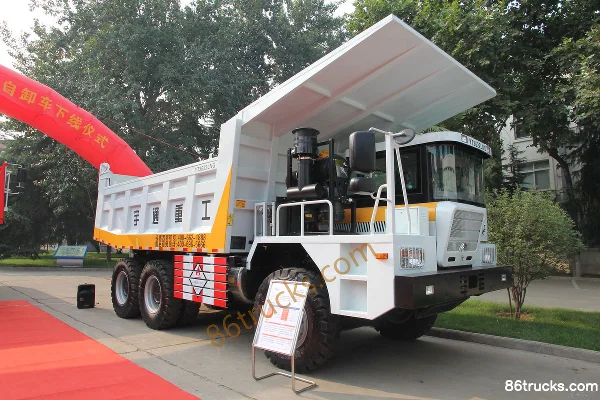

Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck
EXW
Export quote
Yutong 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (40 tons)
EXW
Export quote
Series Specs
Basic Info
Model: YTG50 / YT3761 / YT3622LNG / YT3621
Cab dimensions: 8.846X5X4.631 / 8.8×3.4×3.65 / 8.75×3.2×3.7 / 8.75×3.25×3.7m
Drive type: 4X2 / 6X4
Wheelbase: 3600/1550 / 3600 / 3600/1500mm
Front/rear track width: Front track: 2861mm; Rear track: 2463mm / Front track: 2422mm; Rear track: 2262mm / Front track: 2422; Rear track: 2262
Min turning radius: 11 / 0.011m
Max climbing ability: 35 / 30%
Approach/departure angle: 30/45°
Curb Weight: 35 / 26 / 22ton
Min ground clearance: 385 / 380cm
Rated payload: 45 / 50 / 40ton
GVWR: 76 / 62ton
Max. speed: 55 / 46 / 49km/h
Body Parameters
Truck Brand: Yutong / Zhengzhou Yutong Brand
Other special notes: Electronic control, automatic shifting, with torque converter and hydraulic retarder; lowering time 9s; body volume: level 22, heaped 28 m³; braking distance 19 m / Spring energy-storage air-release brake / Spring energy-storage air-release brake; Body volume level 26, heaped 31 m³, braking distance 16 / Spring energy-storage air-release brake; Body volume level 26, heaped 31; Braking distance 16m
Max dump angle: ＜22 / 22°
Cargo box lifting time: 13 / ＜22S
Lifting type: Offset tiltable suspended type
Chassis Specs
Front/rear axle load: 16T front axle / 30 / 13/25ton
Engine parameters
Engine Model: USA Cummins QSX15-C525 / Weichai WD12.375 / Weichai WP12NG380E30 / Weichai WD12.375 can replace Yuchai YC6M375-20
Displacement: 11.596L
Emission standard: China III / Euro III
Max output power: 392 / 276 / 280kW
Max hp: 533 / 375 / 380Horsepower
Max torque speed: 2278/1400 / 1500/1300-1600 / 1500/1550rpm
Transmission Parameters
Number of gears: 9Gear
Transmission Model: USA Allison H5620AR / Fast Gear 9JS220 / Fast Gear 9JS180
Tire
Tire Size: 21.00-35 / 14.00-24
Number of tires: 6 / 10pcs
FAQ
What kind of truck is Yutong Yutong Zhengzhou Yutong Yutong Brand off-highway mining dump truck?
Yutong Yutong Zhengzhou Yutong Yutong Brand is an export-oriented off-highway mining dump truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Yutong Zhengzhou Yutong Yutong Brand off-highway cover?
Yutong Zhengzhou Yutong Yutong Brand off-highway mainly covers: Drive: 4x2 / 6x4; Horsepower: 375 hp / 380 hp / 533 hp; Emission: China III / Euro III. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Yutong Zhengzhou Yutong Yutong Brand off-highway?
For Yutong Zhengzhou Yutong Yutong Brand off-highway: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is off-highway mining dump truck typically used for?
off-highway mining dump truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Yutong Zhengzhou Yutong Yutong Brand off-highway include?
Yutong Zhengzhou Yutong Yutong Brand off-highway currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Yutong Zhengzhou Yutong Yutong Brand off-highway?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
