Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck

Export reference
MSRP N/A
Drive: 6X4 (10 wheels)
Wheelbase:: 3600mm
Model:: YT3622LNG
Cab dimensions:: 8.75×3.2×3.7m
Front/rear track width:: Front track: 2422mm; Rear track: 2262mm
Min turning radius:: 11m
Curb Weight: 22ton
Horsepower 380
Max output power: 280kW
Emission China III / Euro III

Overview

The Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck is a off-highway mining dump truck featuring 62t GVW, 380 hp, 280kW power and 6X4 (10 wheels) drive. On the powertrain side, it comes with China III / Euro III emissions.

China III / Euro III 380 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: YT3622LNG
Cab dimensions: 8.75×3.2×3.7m
Drive type: 6X4
Wheelbase: 3600mm
Front/rear track width: Front track: 2422mm; Rear track: 2262mm
Min turning radius: 11m
Max climbing ability: 35%
Approach/departure angle: 30/45°
Curb Weight: 22ton
Min ground clearance: 380cm
Rated payload: 40ton
GVWR: 62ton
Max. speed: 49km/h
Body Parameters
Truck Brand: Zhengzhou Yutong Brand
Other special notes: Spring energy-storage air-release brake; Body volume level 26, heaped 31 m³, braking distance 16
Max dump angle: <22°
Cargo box lifting time: <22S
Lifting type: Offset tiltable suspended type
Chassis Specs
Front/rear axle load: 13/25ton
Engine parameters
Engine Model: Weichai WP12NG380E30
Displacement: 11.596L
Emission standard: China III / Euro III
Max output power: 280kW
Max hp: 380Horsepower
Max torque speed: 1500/1300-1600rpm
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JS180
Tire
Tire Size: 14.00-24
Number of tires: 10pcs

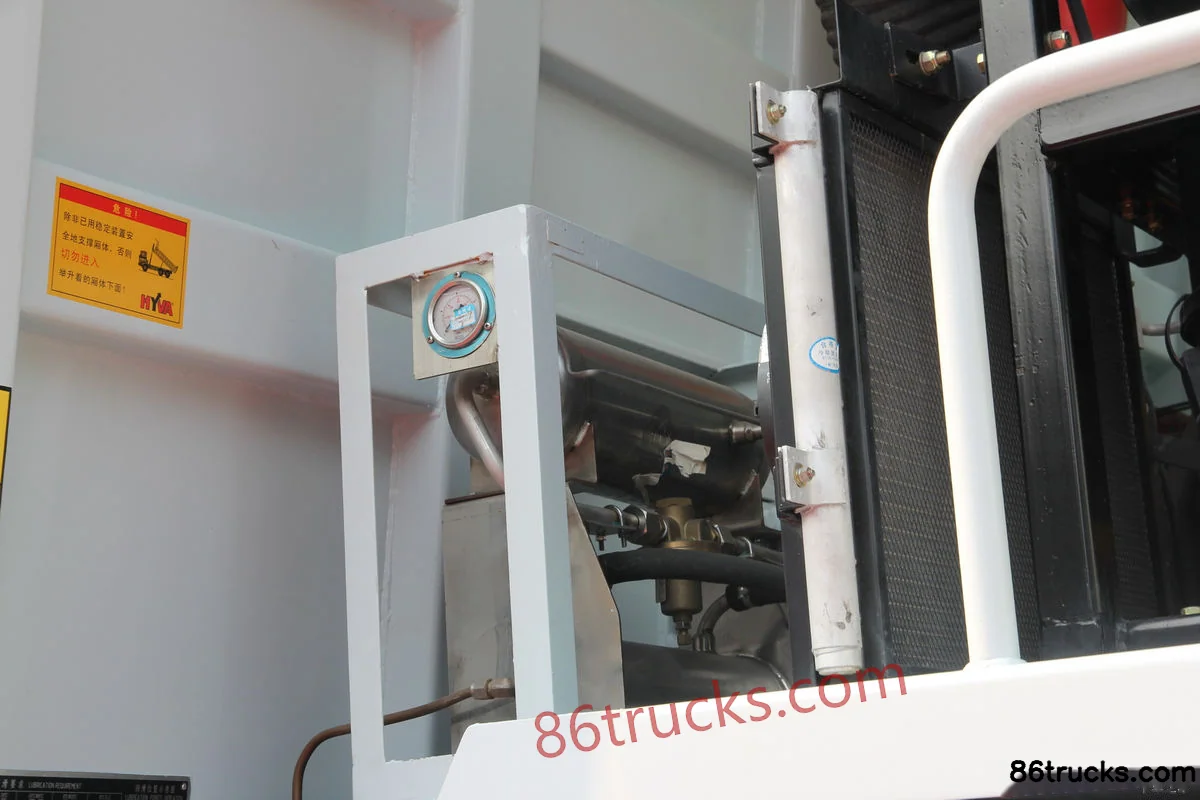

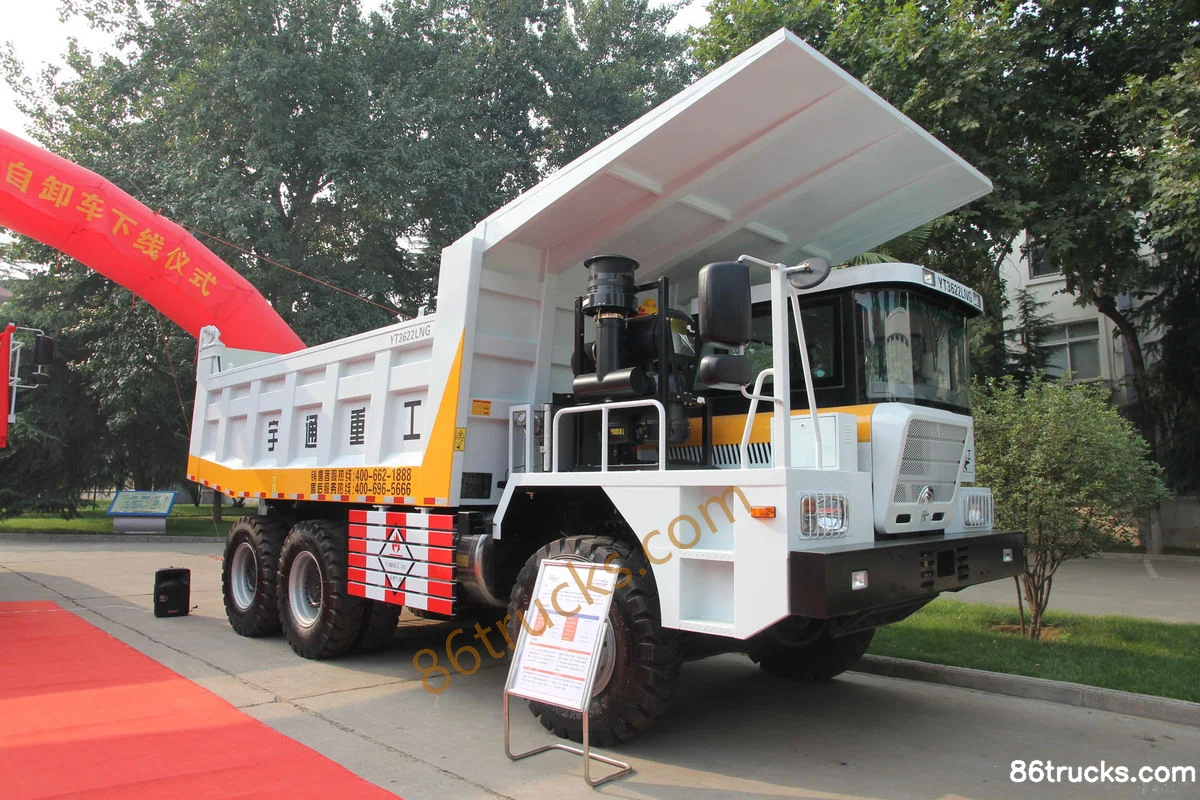

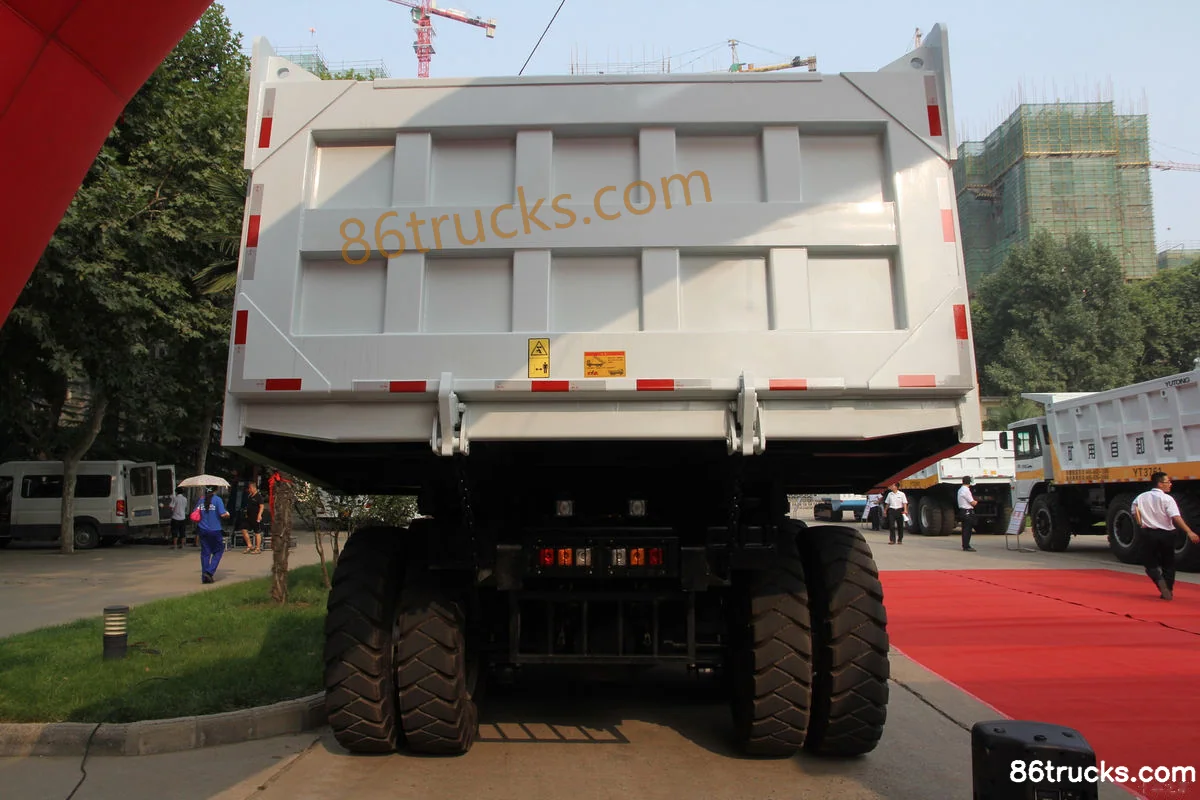

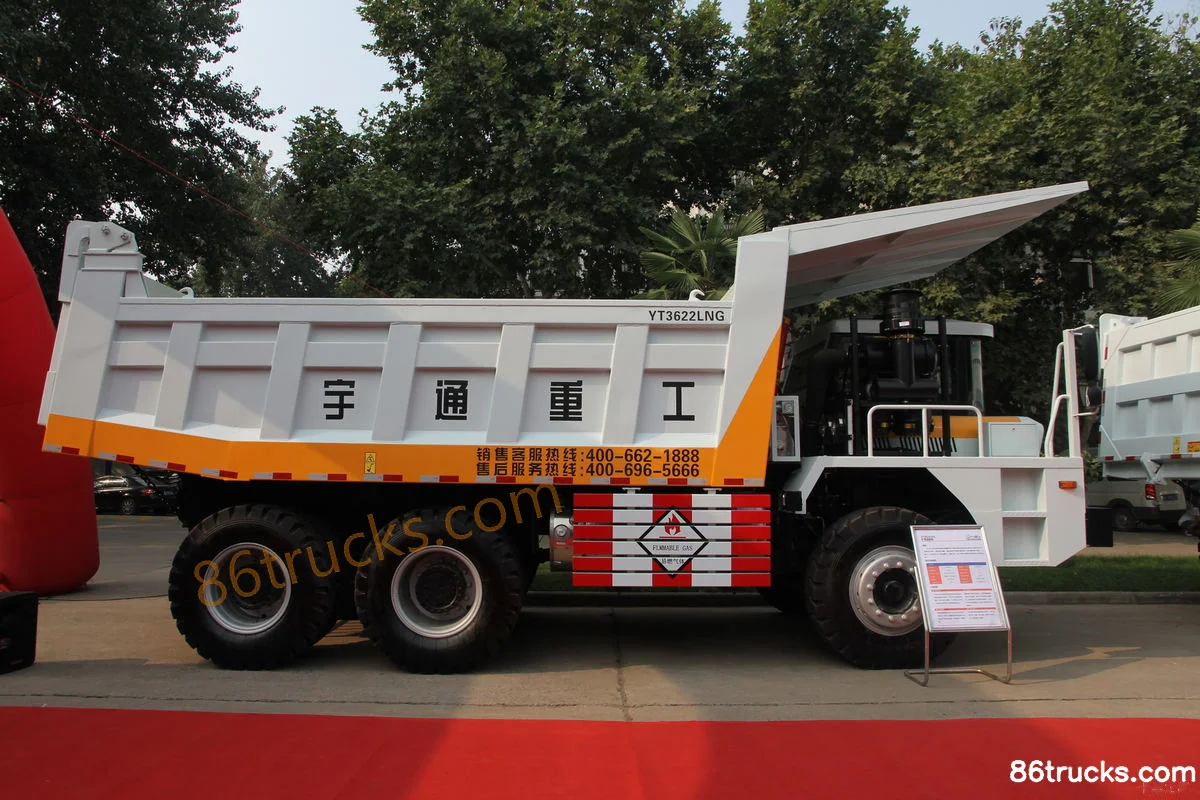

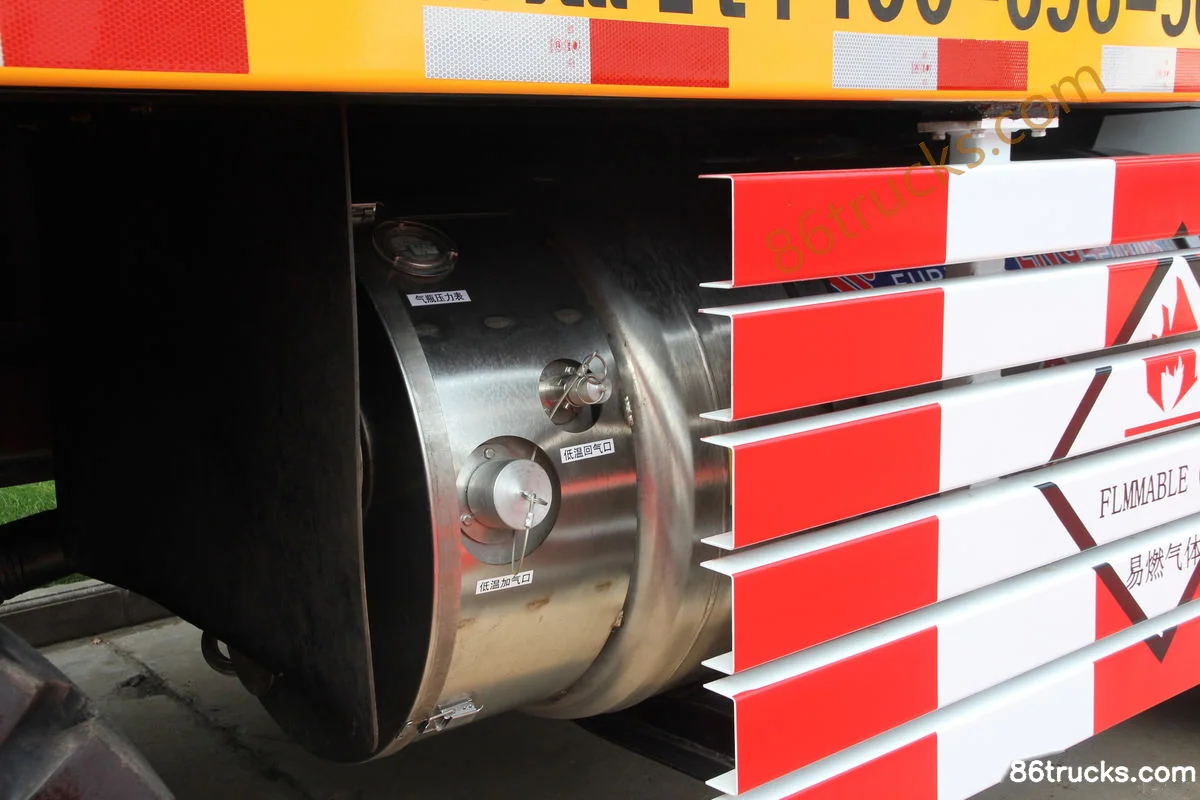

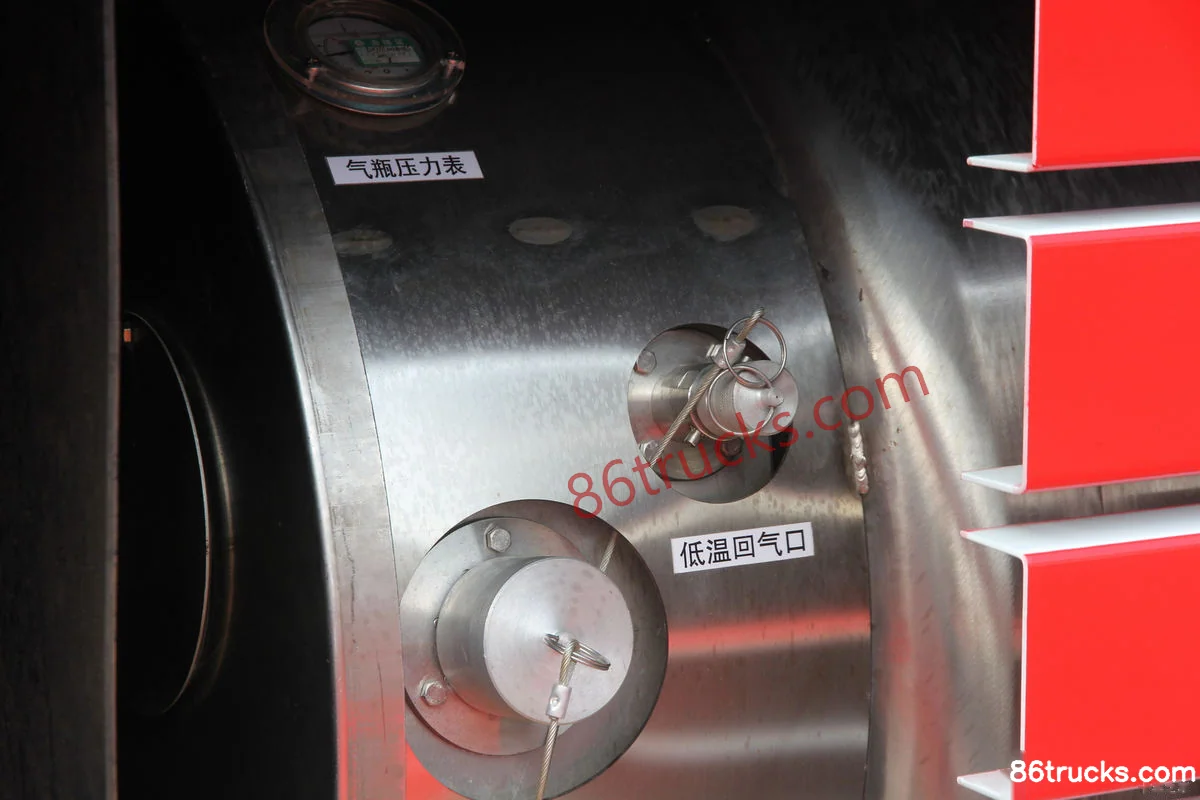

Photos

Exterior3

Chassis3

6 photos

FAQ

What emission standard does Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck?

Key specs of Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck: Drive: 6x4; Horsepower: 380 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck suited for?

Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck differ from other variants in the same series?

Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck belongs to Yutong Zhengzhou Yutong Yutong Brand (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yutong 380 hp 6X4(10 wheels) Wide-body Mining Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
