Yutong 533 hp 4X2(6 wheels) wide-body mining dump truck

Export reference
MSRP N/A
Cab dimensions:: 8.846X5X4.631m
Model:: YTG50
Max climbing ability:: 35%
Rated payload:: 45ton
Max. speed:: 55km/h
Truck Brand:: Yutong
Curb Weight: 35ton
Horsepower 533
Max output power: 392kW
Drive 4X2 (6 wheels)

Overview

The Yutong 533 hp 4X2(6 wheels) wide-body mining dump truck is a off-highway mining dump truck featuring 35ton GVW, 533 hp, 392kW power and 4X2 (6 wheels) drive.

533 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.846X5X4.631m
Model: YTG50
Drive type: 4X2
Max climbing ability: 35%
Curb Weight: 35ton
Rated payload: 45ton
Max. speed: 55km/h
Body Parameters
Truck Brand: Yutong
Other special notes: Electronic control, automatic shifting, with torque converter and hydraulic retarder; lowering time 9s; body volume: level 22, heaped 28 m³; braking distance 19 m
Cargo box lifting time: 13S
Engine parameters
Engine Model: USA Cummins QSX15-C525
Max output power: 392kW
Max hp: 533Horsepower
Max torque speed: 2278/1400rpm
Transmission Parameters
Transmission Model: USA Allison H5620AR
Tire
Tire Size: 21.00-35
Number of tires: 6pcs

Photos

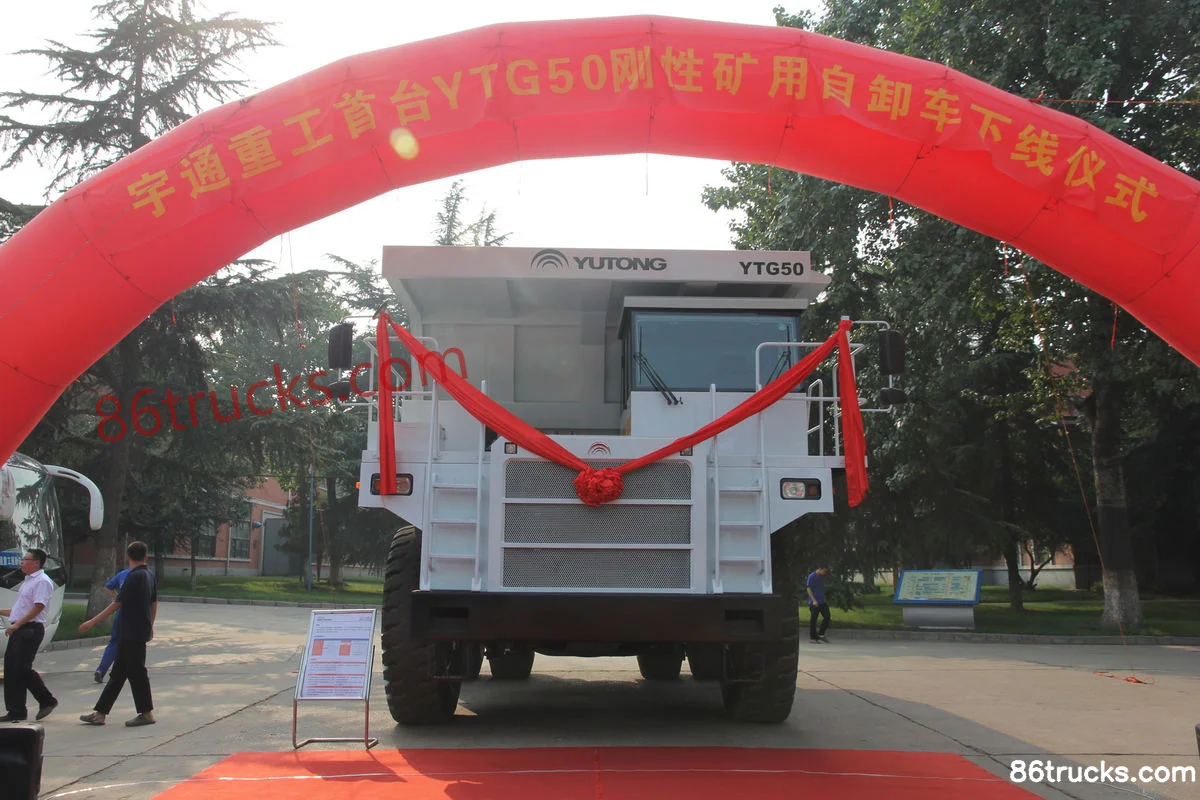

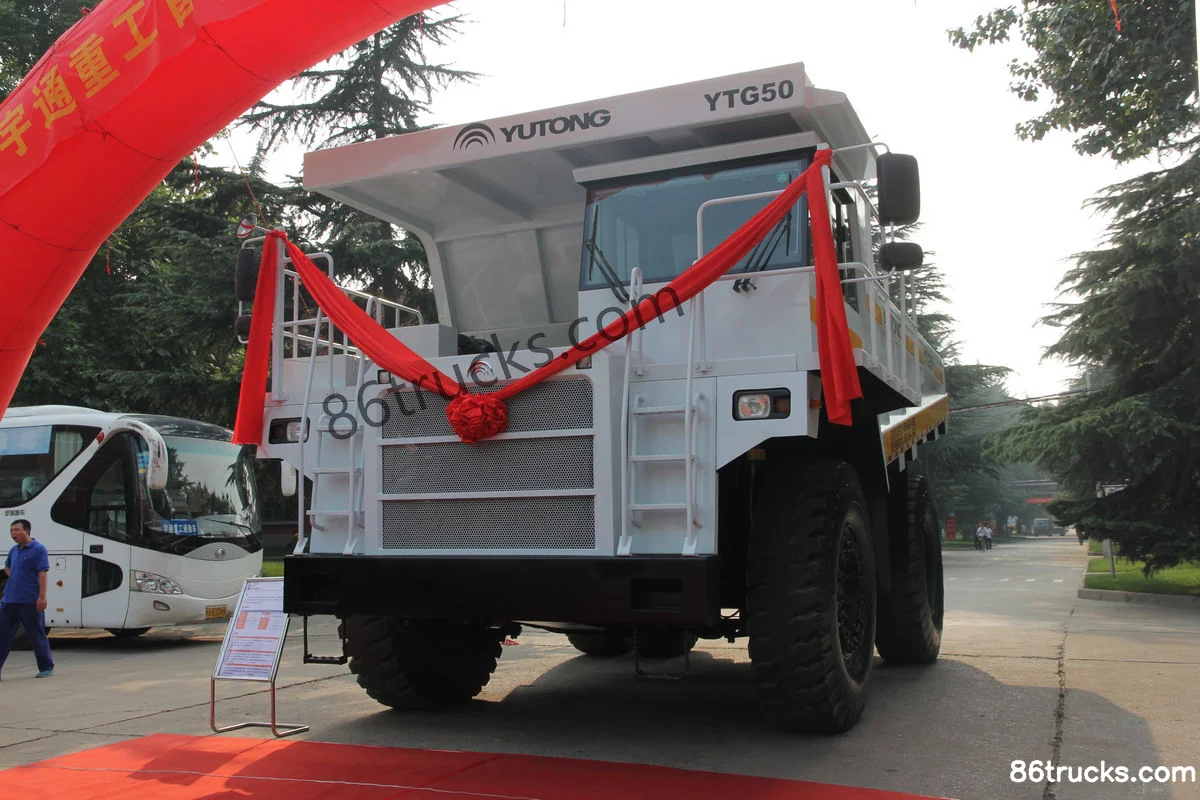

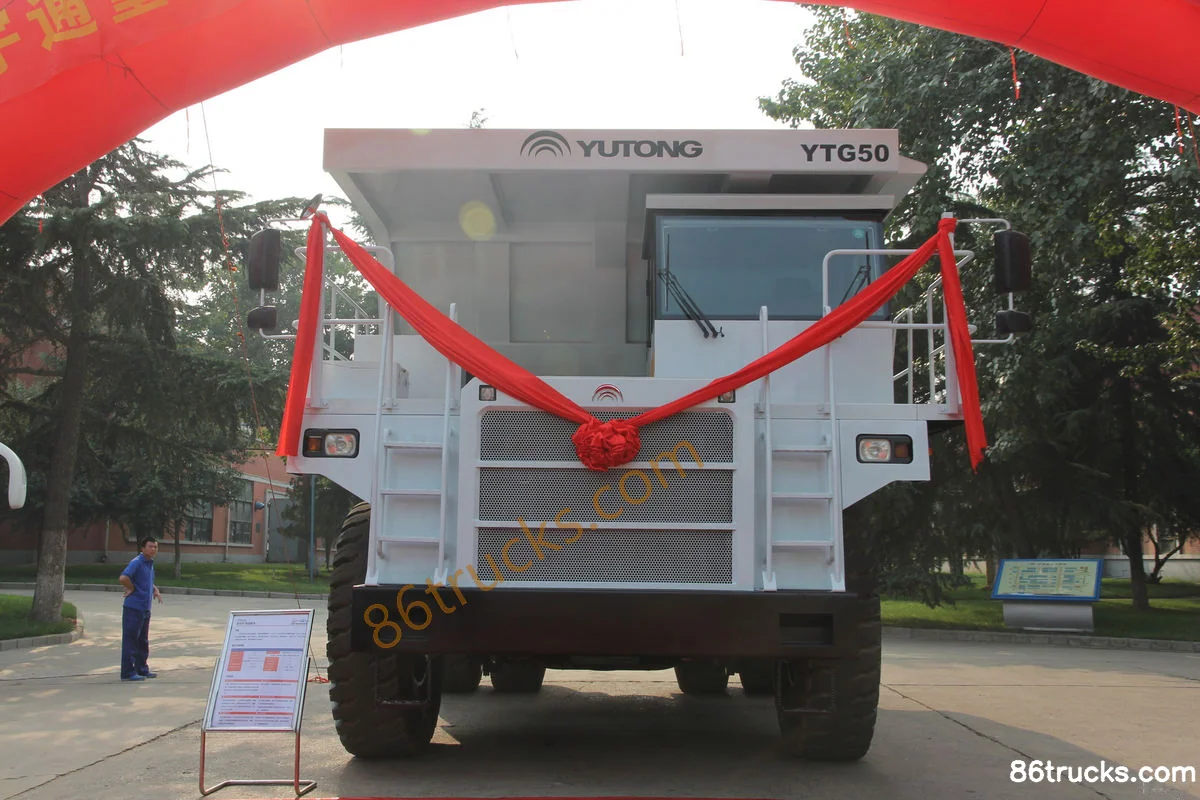

Exterior3

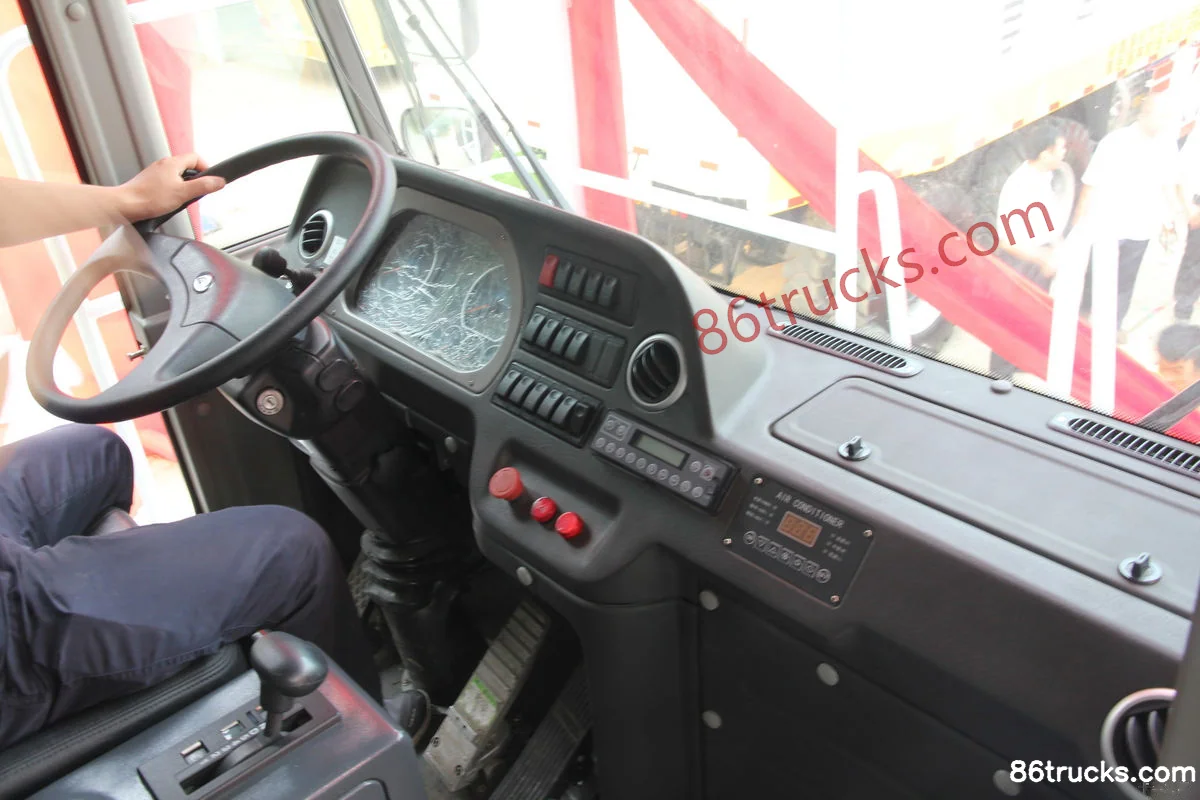

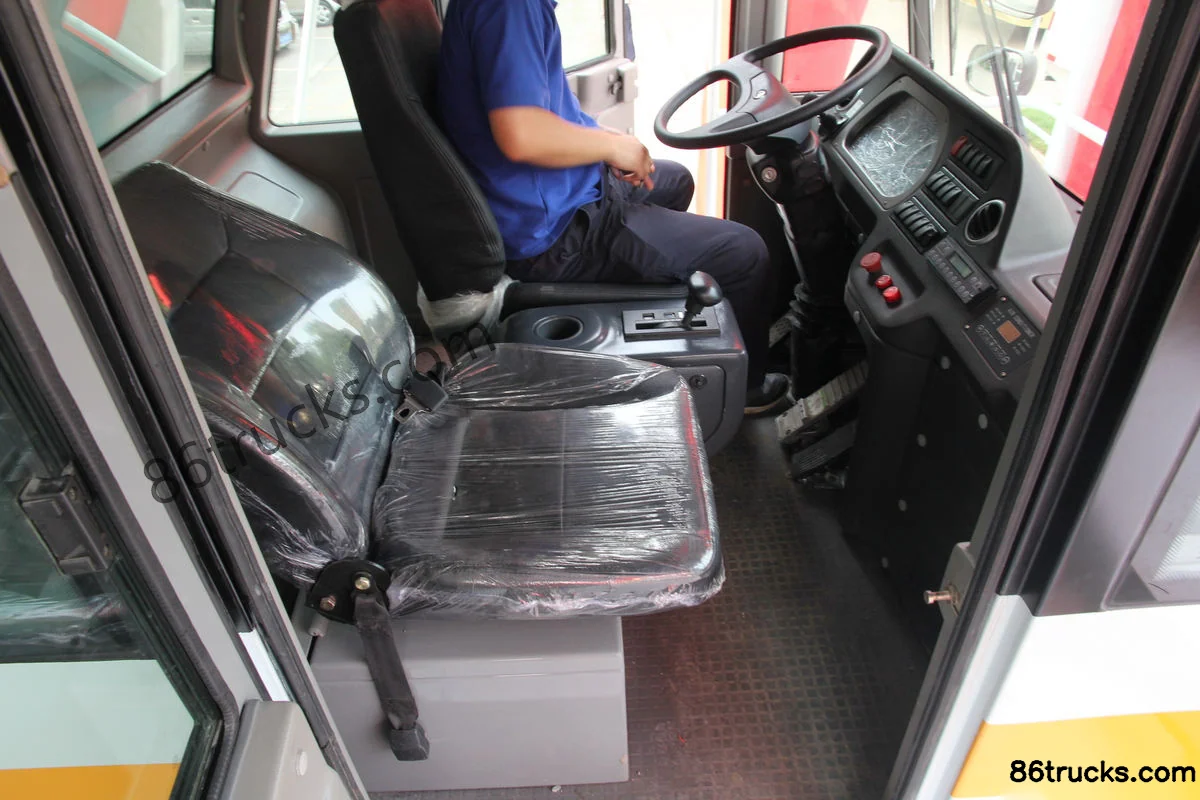

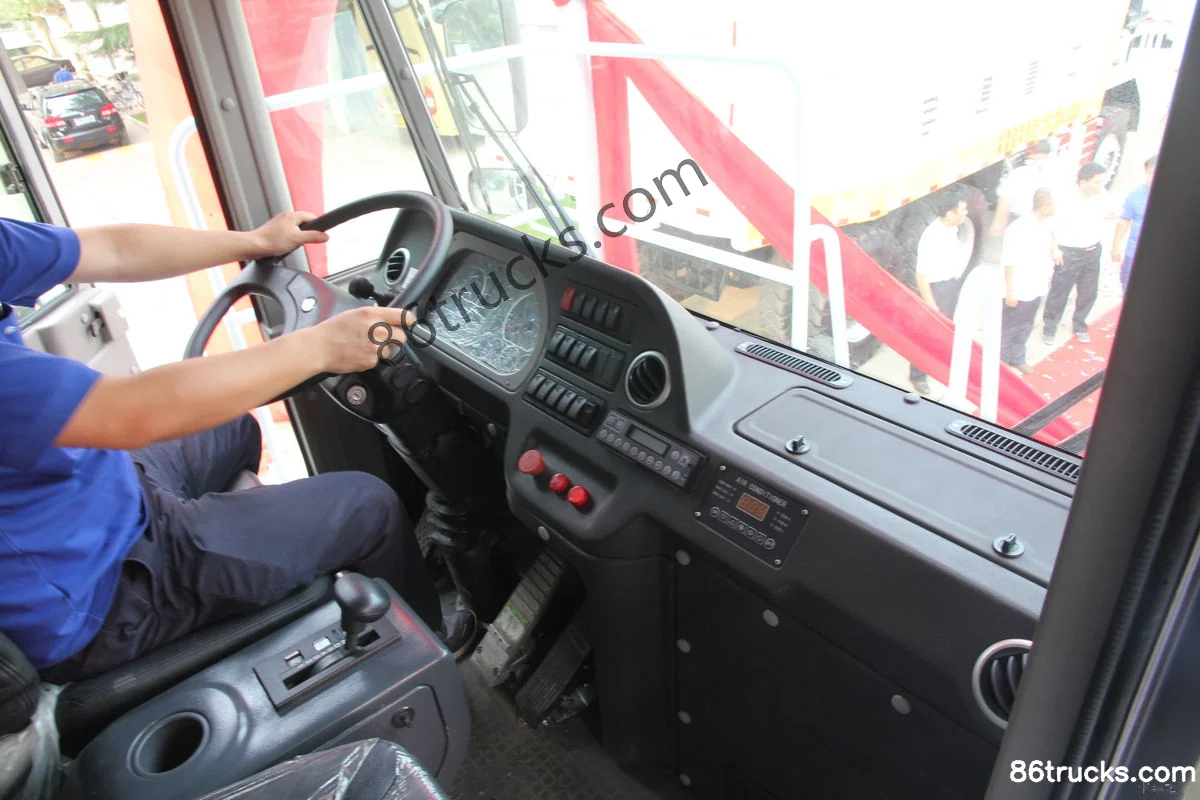

Cab3

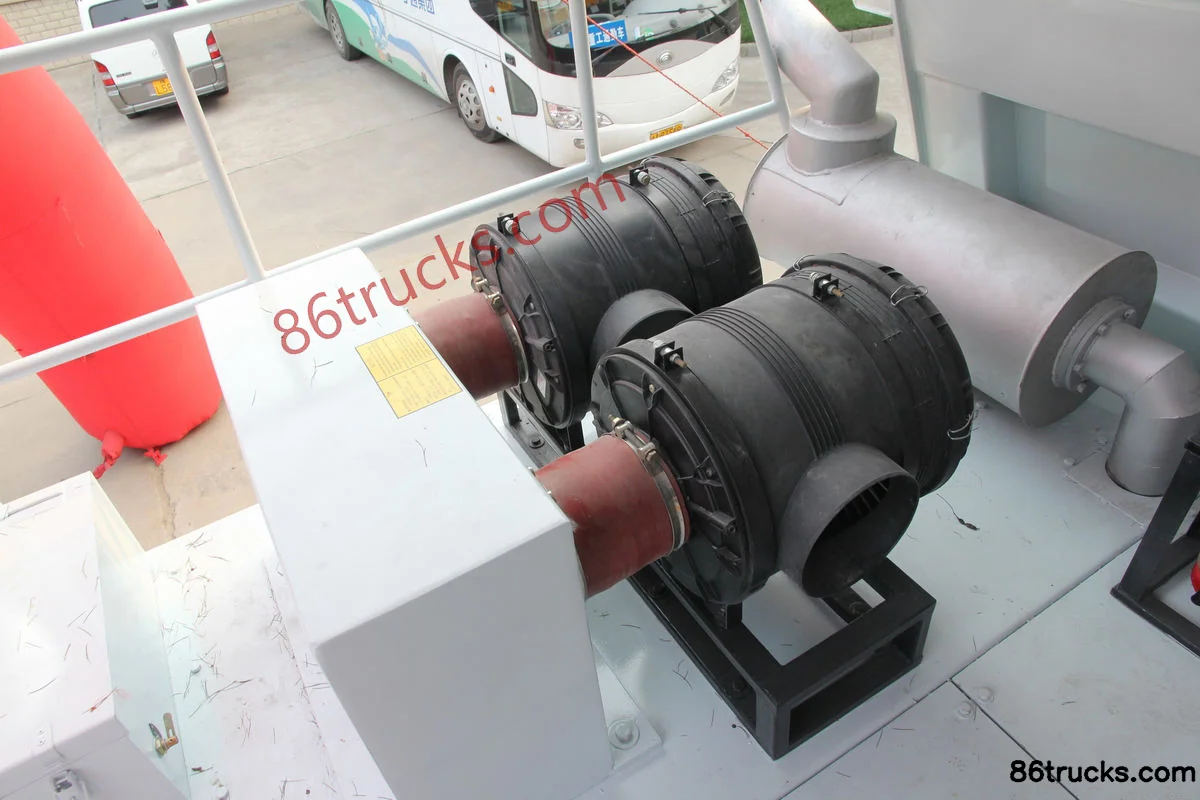

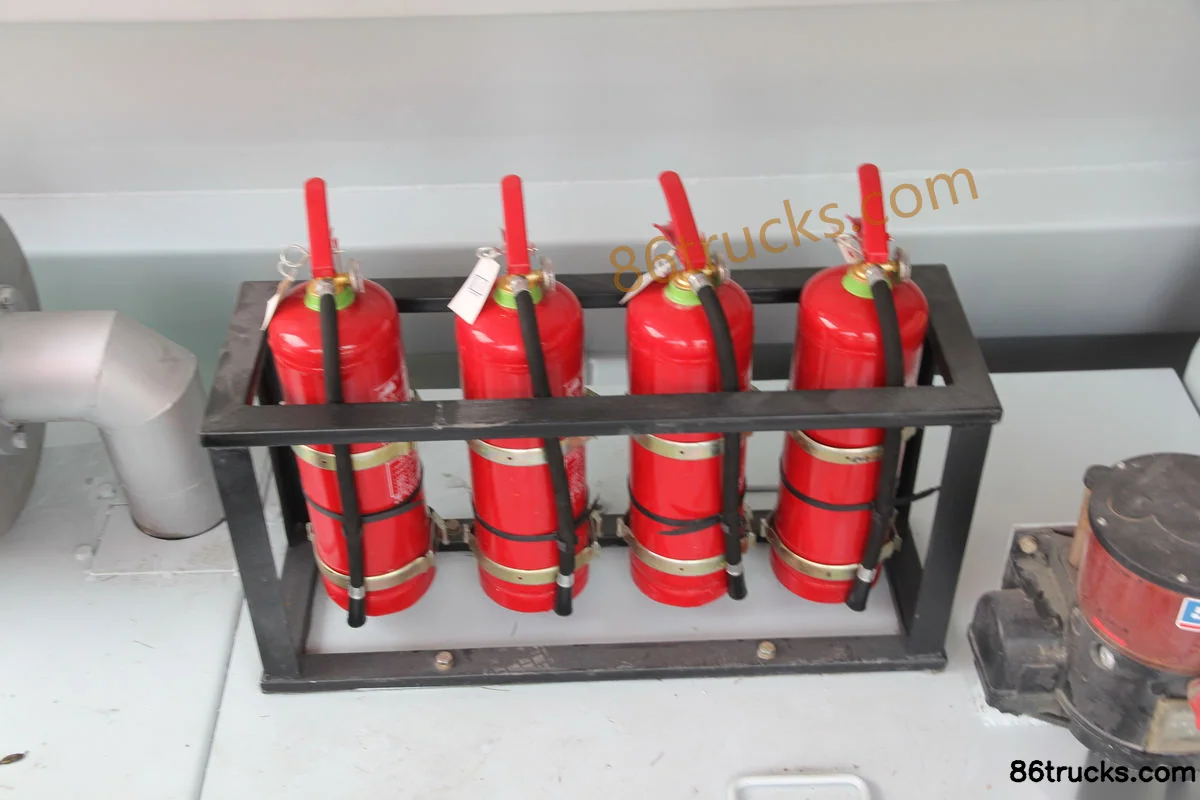

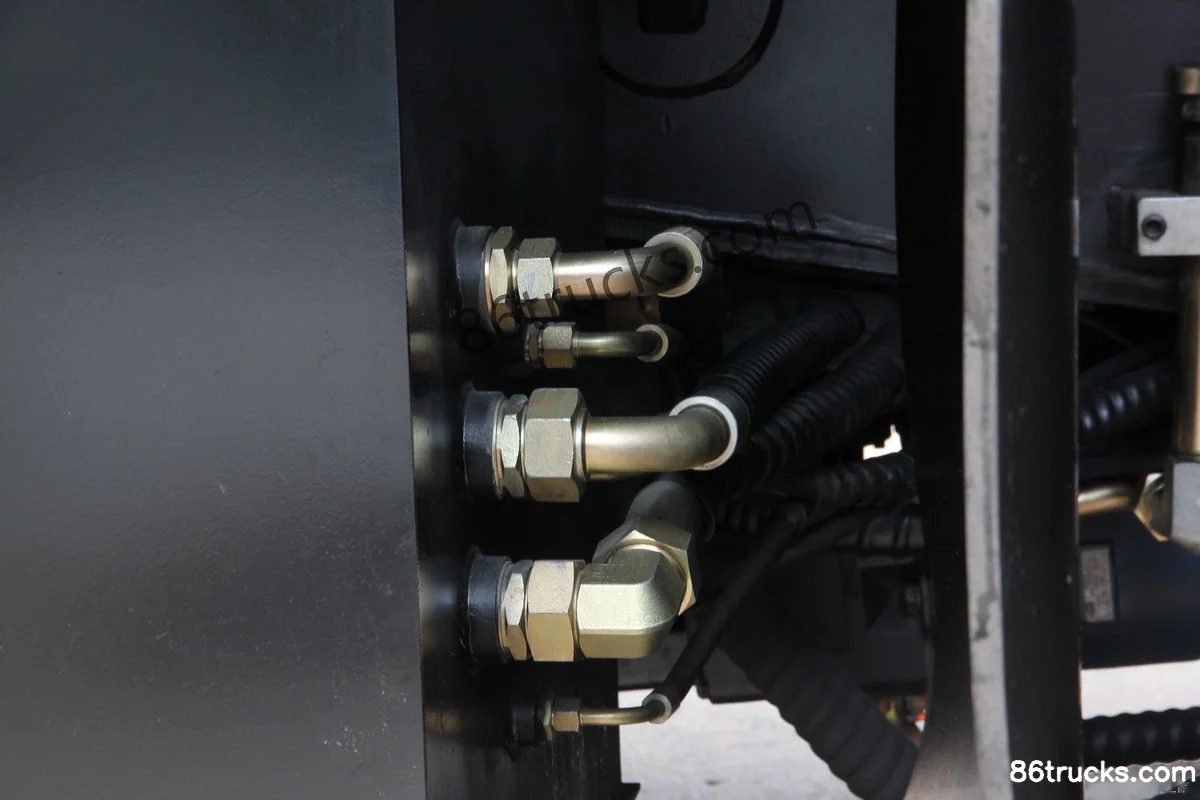

Chassis3

9 photos

FAQ

What are the key specs of Yutong 533 hp 4X2(6 wheels) wide-body mining dump truck?

Key specs of Yutong 533 hp 4X2(6 wheels) wide-body mining dump truck: Drive: 4x2; Horsepower: 533 hp. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yutong 533 hp 4X2(6 wheels) wide-body mining dump truck suited for?

Yutong 533 hp 4X2(6 wheels) wide-body mining dump truck is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yutong 533 hp 4X2(6 wheels) wide-body mining dump truck differ from other variants in the same series?

Yutong 533 hp 4X2(6 wheels) wide-body mining dump truck belongs to Yutong Zhengzhou Yutong Yutong Brand (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yutong 533 hp 4X2(6 wheels) wide-body mining dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yutong 533 hp 4X2(6 wheels) wide-body mining dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
