WLY WLY5GS32 5-Speed Manual Transmission

Export reference
MSRP N/A
Features:: Shift fork shaft with linear bearing, new self-locking and interlocking mechanism.
Max input torque:: 320N·m
1st gear ratio:: 5.595

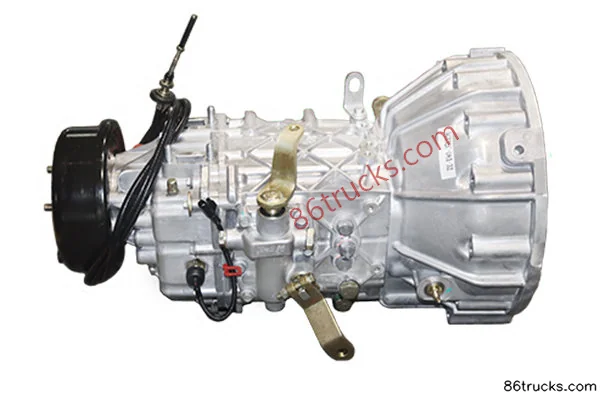

WLY WLY5GS32 5-Speed Manual Transmission exterior
View more photos (1)
Transmission Model: WLY5GS32
Transmission Brand: WLY
Matching Range: Light-duty vehicles

Overview

The WLY WLY5GS32 5-Speed Manual Transmission is a parts product with spec WLY5GS32.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: WLY
Transmission series: WLY 5-Speed Series
Matching Range: Light-duty vehicles
Features: Shift fork shaft with linear bearing, new self-locking and interlocking mechanism.
Max input torque: 320N·m
1st gear ratio: 5.595
2nd gear ratio: 2.848
3rd gear ratio: 1.691
4th gear ratio:
5th gear ratio: 0.794
Reverse Gear 1 Ratio: 5.347
Transmission weight: 58kg
Transmission oil capacity: 2.7L
Number of gears: 5Gear
shift type: Manual
Transmission Model: WLY5GS32
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

Photos

Exterior1

WLY WLY5GS32 5-Speed Manual Transmission Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is WLY WLY5GS32 5-Speed Manual Transmission suited for?

Match WLY WLY5GS32 5-Speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does WLY WLY5GS32 5-Speed Manual Transmission differ from other variants in the same series?

WLY WLY5GS32 5-Speed Manual Transmission belongs to WLY 5-Speed Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for WLY WLY5GS32 5-Speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export WLY WLY5GS32 5-Speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
