WLY WLY5GS36 5-Speed Manual Transmission
EXW
Export quote
WLY 5-Speed Series transmission
Main model photos
16 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| WLY WLY5GS36 5-Speed Manual Transmission | — | ||
| WLY WLY5GS32 5-Speed Manual Transmission | — | ||
| WLY WLY5G21 5-Speed Manual Transmission | — | ||
| WLYWLY5G20 5-Speed Manual Transmission | — | ||
| WLYWLY5G18 5-Speed Manual Transmission | — |
WLY WLY5GS32 5-Speed Manual Transmission
EXW
Export quote

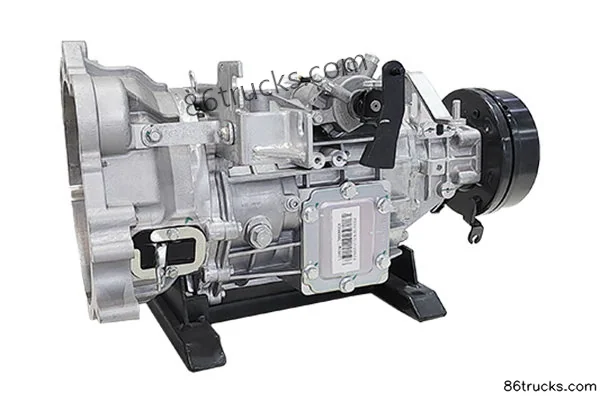

WLY WLY5G21 5-Speed Manual Transmission
EXW
Export quote

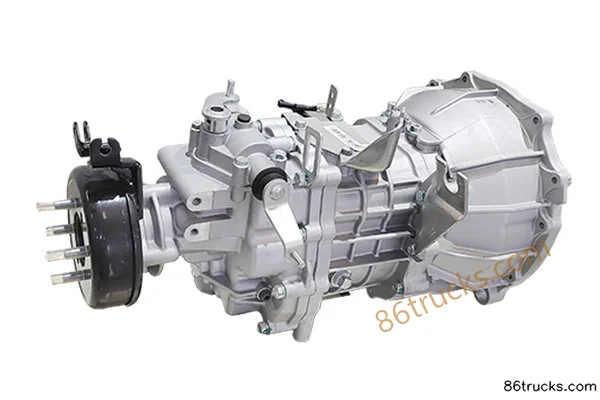

WLYWLY5G20 5-Speed Manual Transmission
EXW
Export quote
WLYWLY5G18 5-Speed Manual Transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: WLY
Transmission series: WLY 5-Speed Series
Matching Range: Light-duty vehicles / Engine: ISF2.8, JX493ZLQ3, 4J28TC, D28, ZD30, HFC4DA1, YN27CRD, YN33CRD, CA4DD1, Quanchai 4B1/4B2, etc. up to 300 N·m; Application: high-end light trucks, light buses, and chassis / For high-end light trucks, light buses, and chassis.
Features: Shift fork shaft with linear bearing, new self-locking and interlocking mechanism. / Forward and reverse gears fully synchronized, 1st-2nd gears triple-cone / Forward and reverse gears fully synchronized, 1st-2nd gears double-cone / Short-stroke synchronizer design, 1st-2nd gear double-cone, 3rd-4th, 5th and reverse single-cone / Forward gears fully synchronized, 1st-2nd gears double-cone / International shift pattern for easier operation / Main and auxiliary box structure, multiple gears, main box gears 2-5 with synchronizers, 1st and reverse gear sliding sleeve engagement, equipped with gear selection and shift positioning mechanism / Auxiliary box structure, multiple gears, wide ratio range; main box 2nd-5th gears with synchronizers, 1st and reverse sliding sleeve engagement, equipped with gear selection/shift positioning mechanism. / Hydraulic release bearing, full synchronizer shift, integrated shift mechanism, compact design / Optimized gear ratio design with small step ratio; shift fork shaft with linear bearing, new self-locking and interlocking mechanism. / Full synchronization for forward gears, equipped with gear selection/shift positioning mechanism; uses short-stroke synchronizer, steel-based molybdenum-sprayed synchronizer ring. / Forward gears fully synchronized, with shift/gear selection positioning mechanism. / Single countershaft, main box with synchronizer and rear auxiliary box / Single countershaft, with synchronizer / Single countershaft, main box with synchronizer and front auxiliary box / Single countershaft, full synchronizer / Single countershaft, main box full synchronizer with rear auxiliary box
Max input torque: 350 / 320 / 230 / 200 / 180 / 170 / 150 / 120 / 400 / 460 / 300 / 530 / 260 / 470 / 850 / 550 / 380 / 280 / 250N·m
1st gear ratio: 4.714 / 5.595 / 4.759 / 4.845 / 3.759 / 3.891 / 3.99 / 3.86 / 5.502 / 4.76 / 7.31 / 5.06 / 6.8 / 4.77 / 5.5 / 4.71 / 5.6 / 5.54 / 4.72 / 11.216 / 12.6 / 3.494 / 9.36 / 5.057 / 19.565084 / 11.180048 / 7.312 / 6.3 / 11 / 6.11 / 4.763 / 5.53 / 4.717 / 7.73;5.568 / 5.568 / 9.49
synchronizer: Yes
Main box center distance: 69.5 / 63 / 92 / 100 / 121 / 123 / 154 / 88 / 85mm
2nd gear ratio: 2.467 / 2.848 / 2.679 / 2.844 / 2.054 / 2.107 / 2.17 / 2.18 / 2.79 / 2.81 / 4.31 / 2.61 / 3.88 / 2.42 / 2.47 / 2.85 / 3.05 / 5.72 / 7.174 / 2.033 / 4.83 / 2.609 / 11.53515825 / 6.591519 / 4.311 / 3.447 / 5.987 / 3.39 / 2.803 / 2.78 / 2.513 / 3.997;2.879 / 2.879 / 4.616 / 2.832
3rd gear ratio: 1.556 / 1.691 / 1.564 / 1.624 / 1.425 / 1.428 / 1.43 / 1.42 / 1.58 / 1.65 / 1.59 / 2.45 / 1.57 / 2.27 / 1.37 / 1.69 / 2.938 / 4.194 / 1.319 / 2.89 / 1.565 / 6.54756025 / 3.741463 / 2.447 / 2.11 / 4.118 / 2.05 / 1.594 / 1.64 / 1.679 / 2.269;1.634 / 1.634 / 2.728
4th gear ratio: 1 / 1.54 / 1.42 / 1.588 / 2.634 / 1.85 / 4.10727625 / 2.347015 / 1.535 / 1.32 / 2.419 / 1.495;1.00
5th gear ratio: 0.791 / 0.794 / 0.841 / 0.828 / 0.834 / 0.86 / 0.81 / 0.793 / 0.719 / 0.76 / 1 / 0.78 / 0.79 / 0.72 / 1.85 / 0.858 / 1.41 / 0.764 / 2.67575 / 1.529 / 1.44 / 0.756 / 0.785 / 1.13;0.814 / 0.814 / 0.789
6th gear ratio: 6.3 / 5.507 / 5.057 / 7.312 / 7.64
7th gear ratio: 3.592 / 2.609 / 4.311 / 4.095
8th gear ratio: 2.1 / 1.565 / 2.447 / 2.86
Reverse Gear 1 Ratio: 4.505 / 5.347 / 4.405 / 4.11 / 3.868 / 3.64 / 4.45 / 4.13 / 4.915 / 4.54 / 6.97 / 4.58 / 6.15 / 4.27 / 4.92 / 4.51 / 5.35 / 4.7 / 5.7 / 4.141 / 4.575 / 7.66 / 6.6 / 7.11 / 5.22 / 5.27 / 4.497 / 5.011 / 12.487 / 12.498
Transmission weight: 58 / 45 / 35 / 29 / 28 / 27 / 72 / 55 / 158 / 145 / 80 / 100 / 62 / 165 / 170 / 166 / 135 / 118 / 230 / 185 / 120 / 110 / 92 / 64 / 56kg
Transmission oil capacity: 2.7 / 2 / 1.8 / 1.4 / 1.5 / 1.2 / 2.8 / 2.9 / 5.2 / 4.6 / 3.3 / 3.1 / 3.2 / 3.5 / 5.5 / 5 / 10 / 1.7L
9th gear ratio: 1.32 / 1 / 1.535 / 1.68
10-speed gear ratio: 1 / 0.764
Number of gears: 5 / 10Gear
shift type: Manual
Transmission Model: WLY5GS36 / WLY5GS32 / WLY5G21 / WLY5G20 / WLY5G18 / WLY5G17 / WLY5G15 / WLY5G13 / WLY5GS40 / WLY5G32 / WLY10H46 / WLY10H46(7.31) / WLY10H35 / WLY10H30 / WLY5AG40 / WLY5G40 / WLY5TS40 / WLY5TS32 / WLY535 / WLY530H / WLY530 / WLY535H / WLY538H / WLY540H / WLY540F / WLY540 / WLY545 / WLY553H / WLY5T80 / WLY5T60 / WLY5T100 / WLY5T92 / WLY5T88 / WLY525H / WLY525 / WLY528 / WLY526 / WLY520
shift method: Manual
Number of Reverse Gears:
FAQ
What kind of truck is WLY WLY 5-Speed Series transmission?
WLY WLY 5-Speed Series is an export-oriented transmission lineup with about 45 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does WLY 5-Speed Series transmission include?
WLY 5-Speed Series transmission currently lists about 45 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for WLY 5-Speed Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
