Kobelco SK140LC-8 Crawler Excavator

Export reference
MSRP N/A
Model:: SK140LC-8
Engine Model:: crawler excavator
Tonnage:: 14ton
Bucket capacity:: 0.57cubic meter
boom length:: 4680mm
Arm Length:: 2380mm
Operating weight: 13ton
Bucket type: backhoe
Fuel Tank Capacity: 275L
Product power: Conventional Power

Overview

The Kobelco SK140LC-8 Crawler Excavator is a excavator featuring 13ton GVW, backhoe bucket capacity, 275L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: SK140LC-8
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 14ton
Operating weight: 13ton
Bucket capacity: 0.57cubic meter
boom length: 4680mm
Arm Length: 2380mm
Machine dimensions: 7.79×2.49×2.87mm
Track shoe width: 500mm
Track gauge: 1990mm
Counterweight ground clearance: 910mm
Min ground clearance: 440cm
Rear Overhang Radius: 2190mm
hydraulic system
Max flow of main pump: 2*130L/min
Working hydraulic circuit: 34.3
travel hydraulic circuit: 34.3Mpa
Swing Hydraulic Circuit: 28Mpa
Oil capacity
Fuel Tank Capacity: 275L
coolant: 14L
hydraulic oil tank: 101L
Engine Oil Capacity: 18.5L
performance specs
Travel speed: 3.4/5.6km/h
Bucket digging force: 90.1kN
Arm Digging Force: 64.4kN
Operating Range
Max digging radius: 8340mm
Max digging depth: 5520mm
Max digging height: 8500mm
Max unloading height: 6090mm
Max vertical digging depth: 4880mm
Engine parameters
Engine Model: Mitsubishi D04FR-KDP2TAAC
Max output power: 74kW

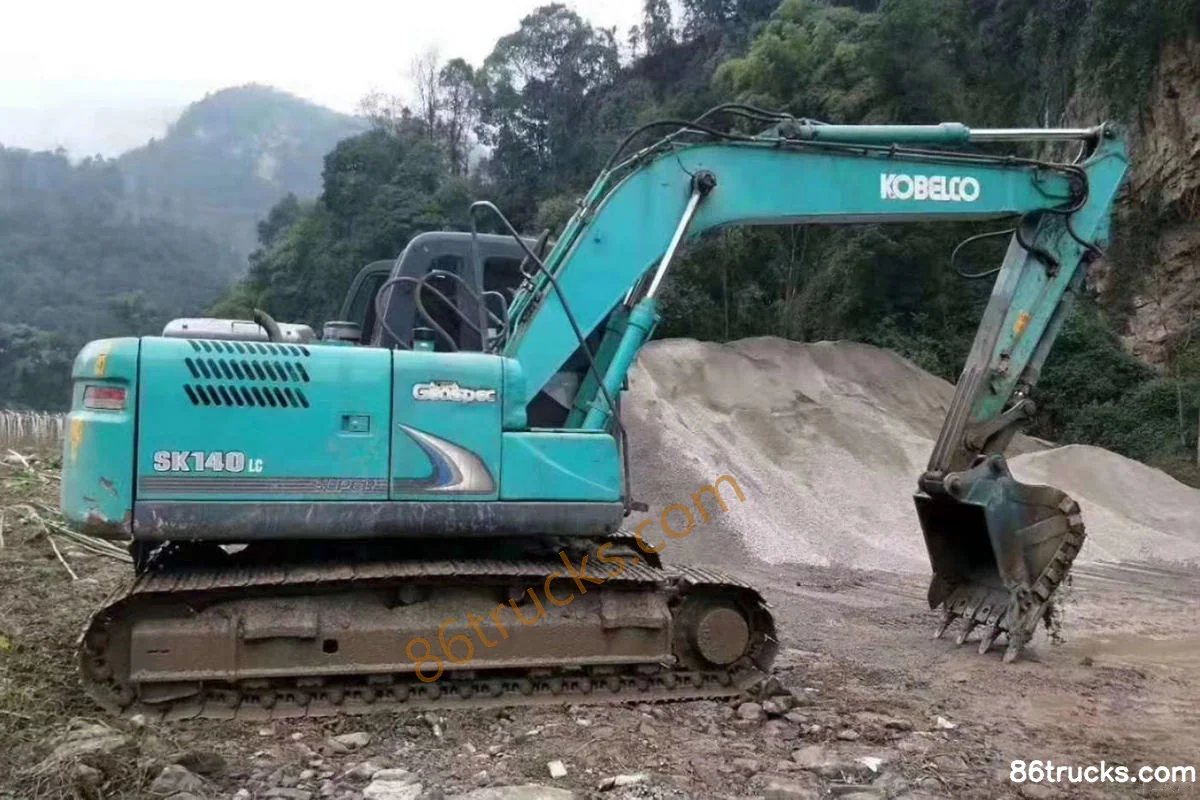

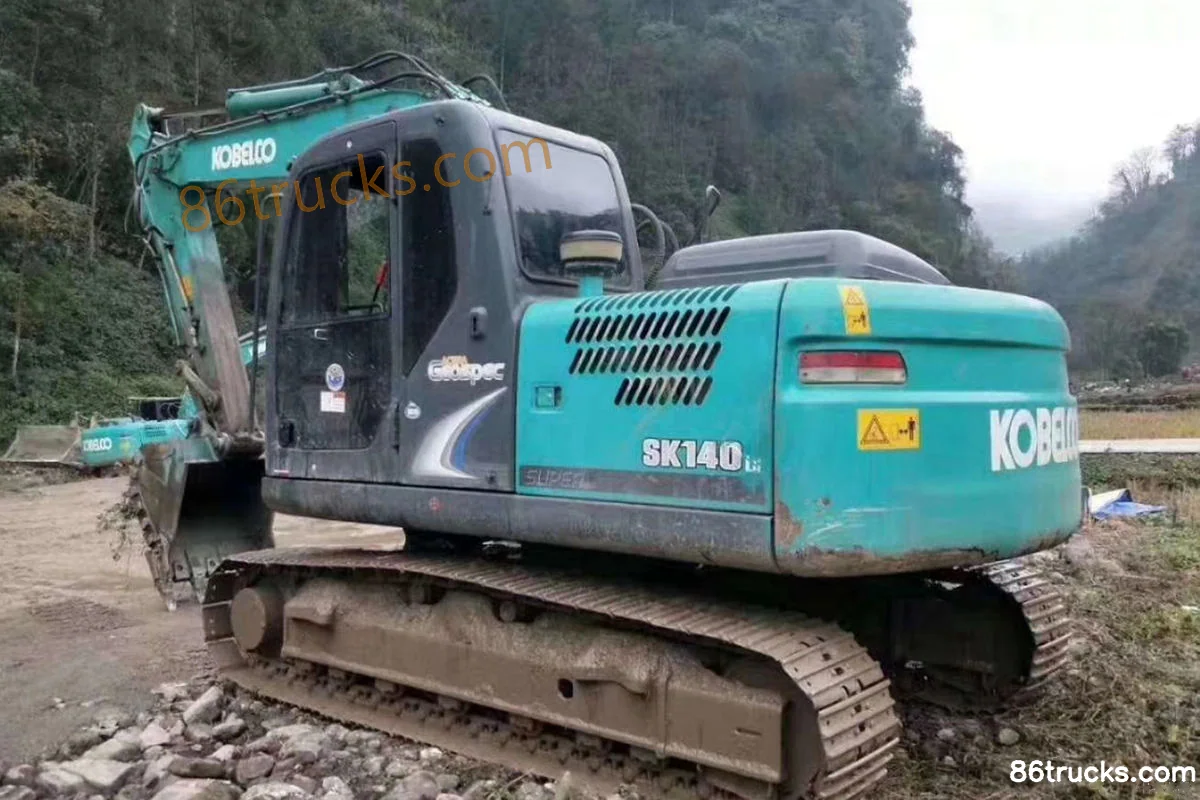

Photos

Exterior3

3 photos

FAQ

What transport jobs is Kobelco SK140LC-8 Crawler Excavator suited for?

Kobelco SK140LC-8 Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Kobelco SK140LC-8 Crawler Excavator differ from other variants in the same series?

Kobelco SK140LC-8 Crawler Excavator belongs to Kobelco crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kobelco SK140LC-8 Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kobelco SK140LC-8 Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
