Foton Auman GTL 9 Series Heavy Truck Quality Enjoy Edition 360hp 8X4(12 wheels) Dump Truck

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Wheelbase:: 1800+2550+1400mm
Tire Size:: 11.00R20 18PR
engine:: FotonISGe5-360
Rear Axle Ratio:: 5.26
Drive 8X4 (12 wheels)
Horsepower 360
Cargo box type: Rear-dump body
Emission China V

Overview

The Foton Auman GTL 9 Series Heavy Truck Quality Enjoy Edition 360hp 8X4(12 wheels) Dump Truck is a Heavy truck featuring Rear-dump body cargo body, 8X4 (12 wheels) drive and 8.8m cab. On the powertrain side, it comes with a FotonISGe5-360 engine, 360 hp, China V emissions and Fast Gear transmission.

China V 360 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 8X4
Wheelbase: 1800+2550+1400mm
engine: FotonISGe5-360
transmission: Fast Gear12JSD200-B
Rear Axle Ratio: 5.26
Cab length: 8.8m
Cab width: 2.55m
Cab height: 3.58m
Origin: Huairou, Beijing
tonnage class: Heavy truck
Series: 9 series
Version: Quality Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISGe5-360
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.8L
Emission standard: China V
Max output power: 265kW
Max hp: 360Horsepower
Max torque: 1900N·m
Max torque speed: 1000-1300rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD200-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 350L
Chassis Specs
Frame Dimensions: 225/286*80*(8+4)mm
rear axle description: 10T
Axle ratio: 5.26
Leaf spring count: 10/10/12
clutch: Φ430
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

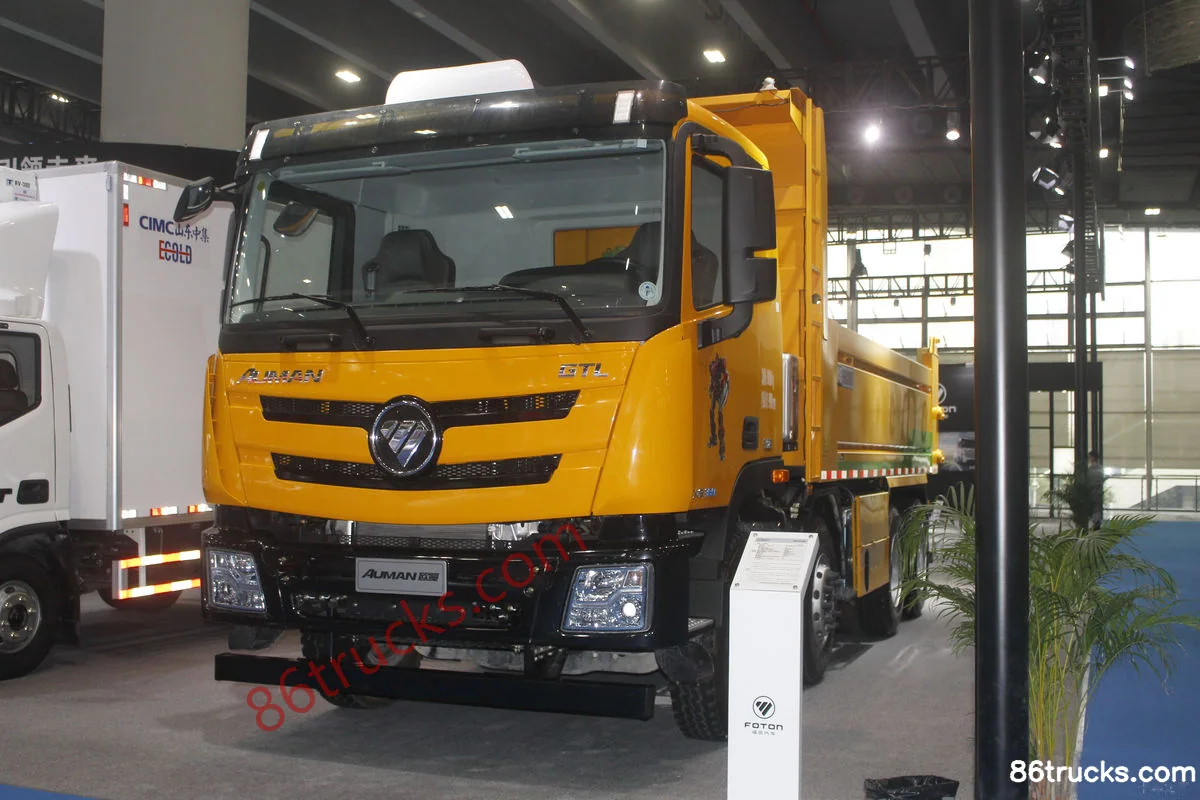

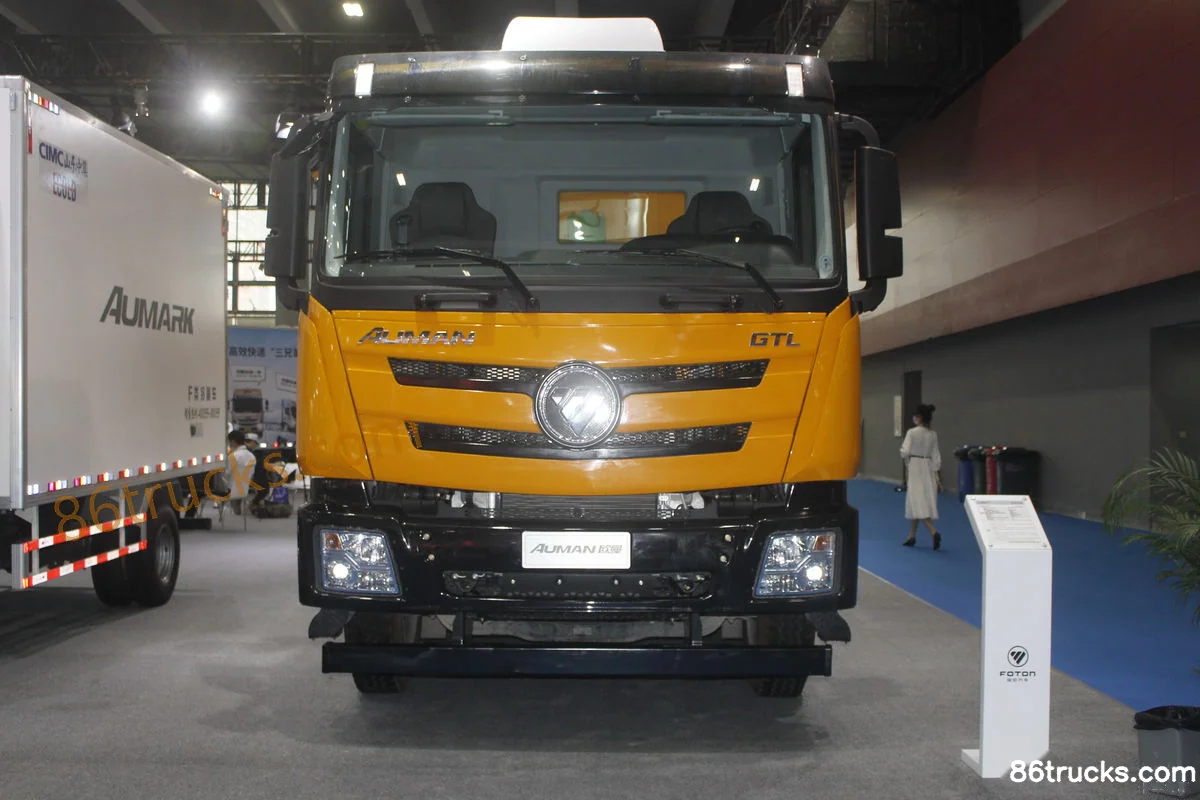

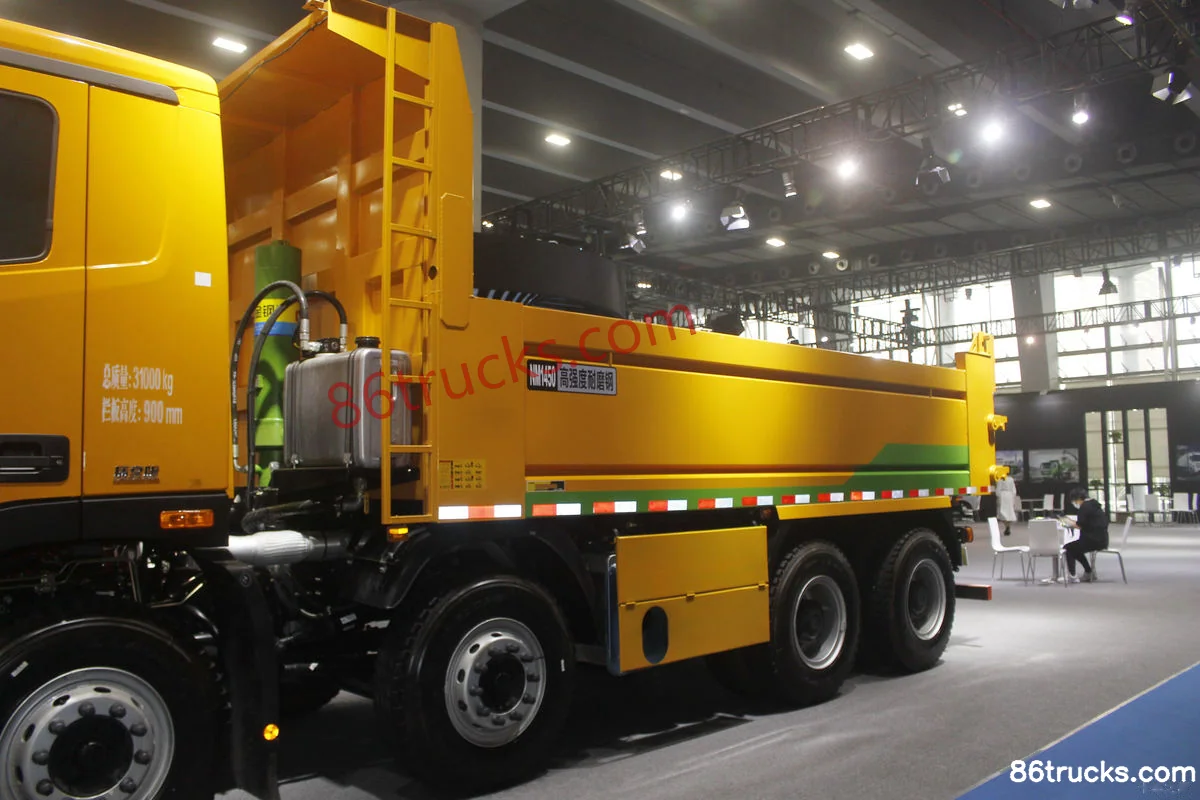

Photos

Exterior3

3 photos

FAQ

What emission standard does Foton Auman GTL 9 Series Heavy Truck Quality Enjoy Edition 360hp 8X4(12 wheels) Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman GTL 9 Series Heavy Truck Quality Enjoy Edition 360hp 8X4(12 wheels) Dump Truck?

Key specs of Foton Auman GTL 9 Series Heavy Truck Quality Enjoy Edition 360hp 8X4(12 wheels) Dump Truck: Drive: 8x4; Horsepower: 360 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman GTL 9 Series Heavy Truck Quality Enjoy Edition 360hp 8X4(12 wheels) Dump Truck suited for?

Foton Auman GTL 9 Series Heavy Truck Quality Enjoy Edition 360hp 8X4(12 wheels) Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Auman GTL 9 Series Heavy Truck Quality Enjoy Edition 360hp 8X4(12 wheels) Dump Truck differ from other variants in the same series?

Foton Auman GTL 9 Series Heavy Truck Quality Enjoy Edition 360hp 8X4(12 wheels) Dump Truck belongs to Foton Auman GTL Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman GTL 9 Series Heavy Truck Quality Enjoy Edition 360hp 8X4(12 wheels) Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman GTL 9 Series Heavy Truck Quality Enjoy Edition 360hp 8X4(12 wheels) Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
