Union Truck U340 340hp 8X4(12 wheels) LNG Transport Truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Wheelbase:: 1950+4500+1350mm
Cab dimensions:: 11.73×2.5×3.65,3.32m
Max. speed:: 60km/h
Transport medium:: LNG
Vehicle certification code:: SQR1311N6T6-E
Tank Size: 2.316×7.212m
Drive 8X4 (12 wheels)
Horsepower 340
Emission China IV

Overview

The Union Truck U340 340hp 8X4(12 wheels) LNG Transport Truck is a liquefied gas transport truck featuring 2.316×7.212m tank capacity and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YC6MK340N-40 engine, 340 hp, China IV emissions and LNG (liquefied natural gas) fuel.

China IV 340 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.73×2.5×3.65,3.32m
Drive type: 8X4
Wheelbase: 1950+4500+1350mm
Max. speed: 60km/h
Energy Type: LNG (liquefied natural gas)
Body Parameters

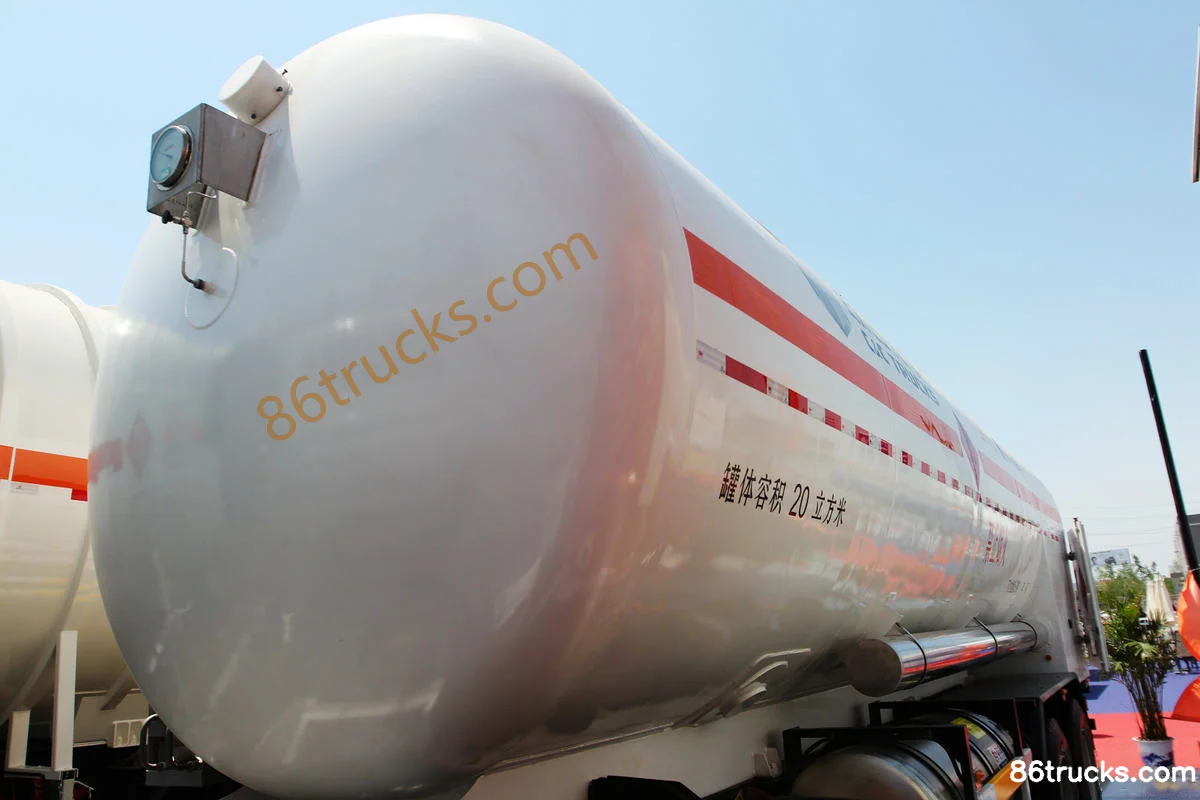

Tank Size: 2.316×7.212m
Transport medium: LNG
Vehicle certification code: SQR1311N6T6-E
Body Brand: Union Truck
Engine parameters
Engine Model: YC6MK340N-40
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 10.338L
Emission standard: China IV
Max output power: 250kW
Max hp: 340Horsepower
Max torque: 1500N·m
Max torque speed: 1100-1500rpm
Rated speed: 2100rpm
Chassis Specs
Chassis Brand: Union Truck
Chassis Series: Union U Series
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JS150T-B+QH70
Tire

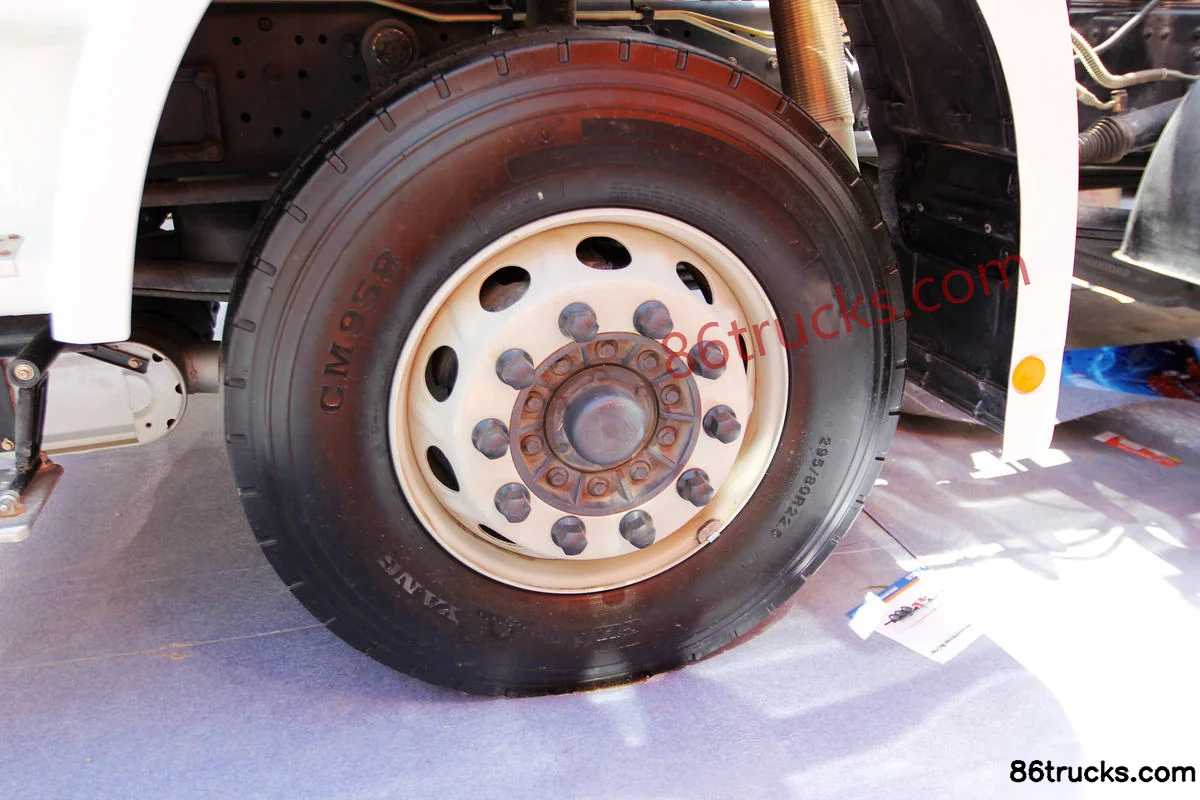

Tire Size: 11.00R20
Number of tires: 12pcs

Photos

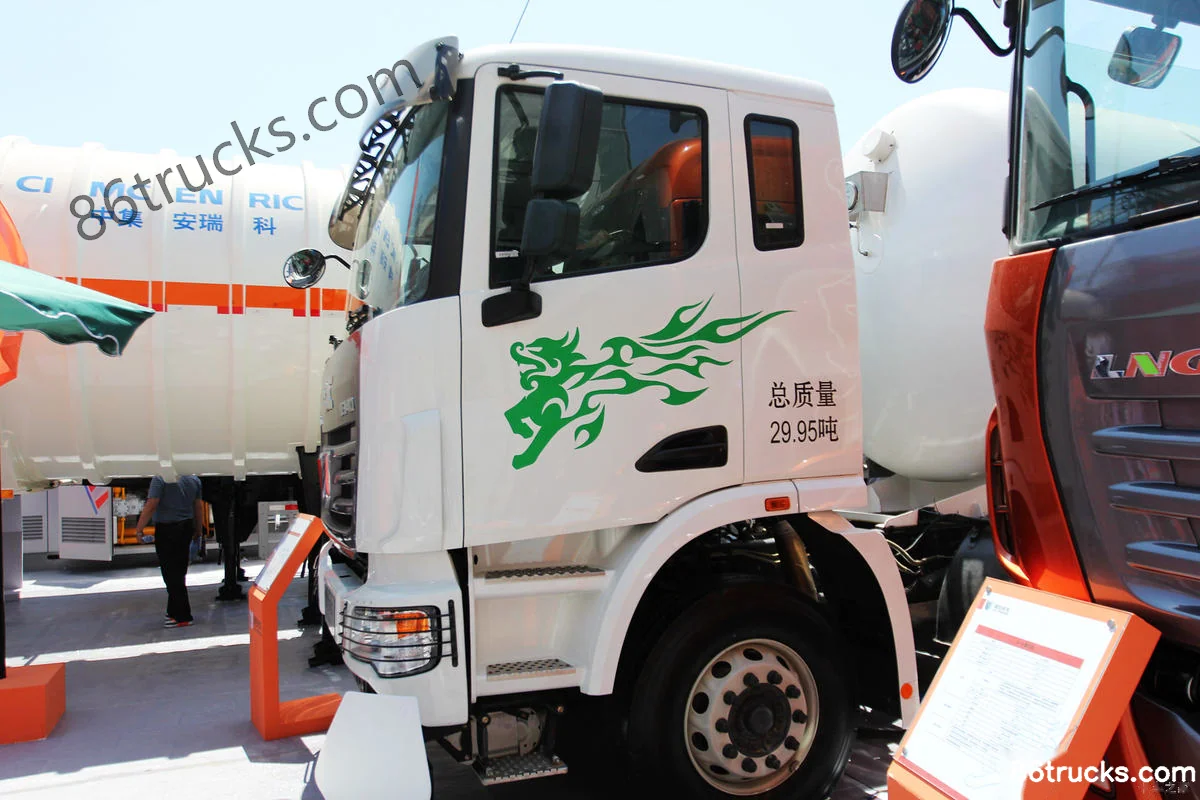

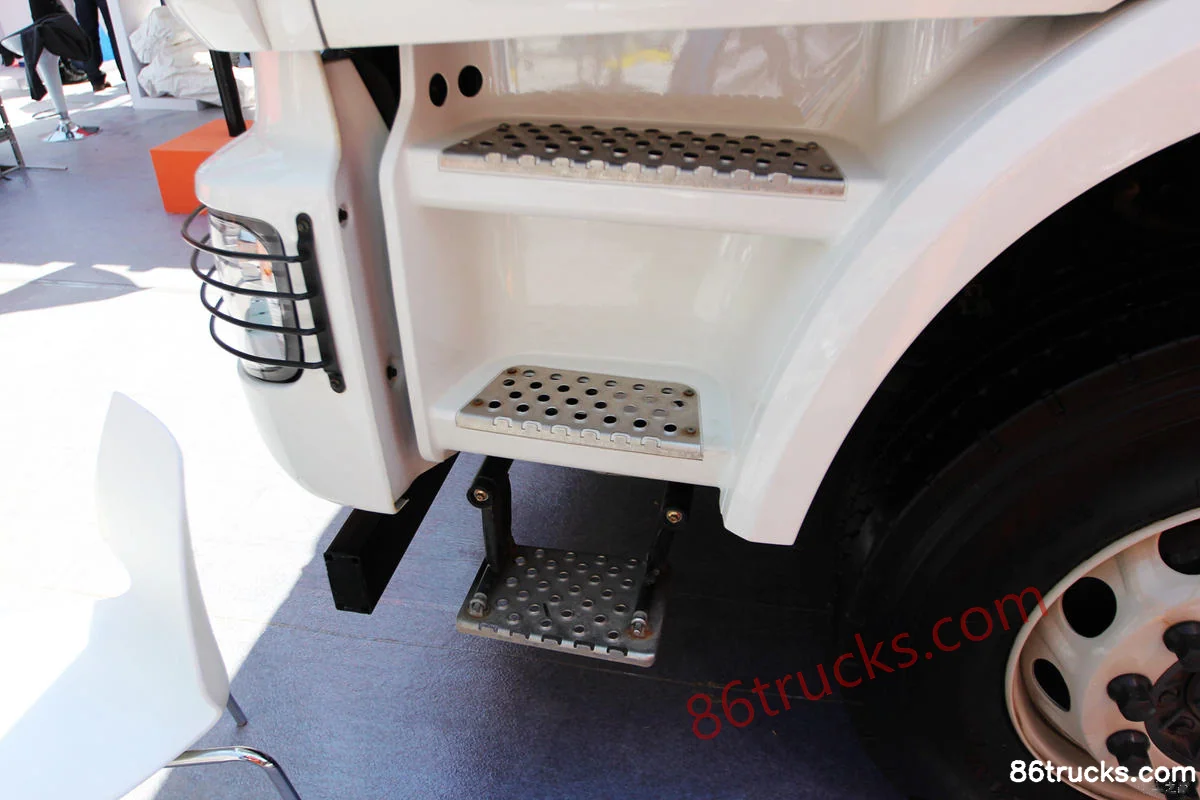

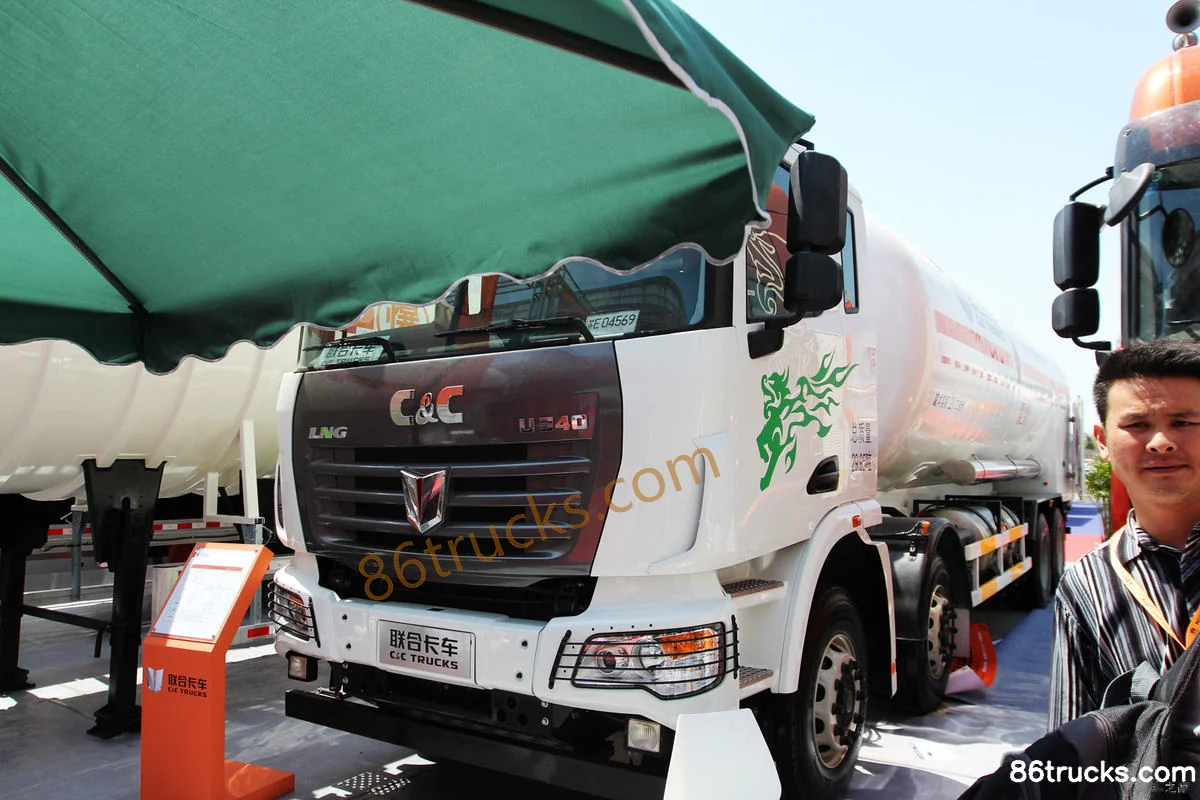

Exterior3

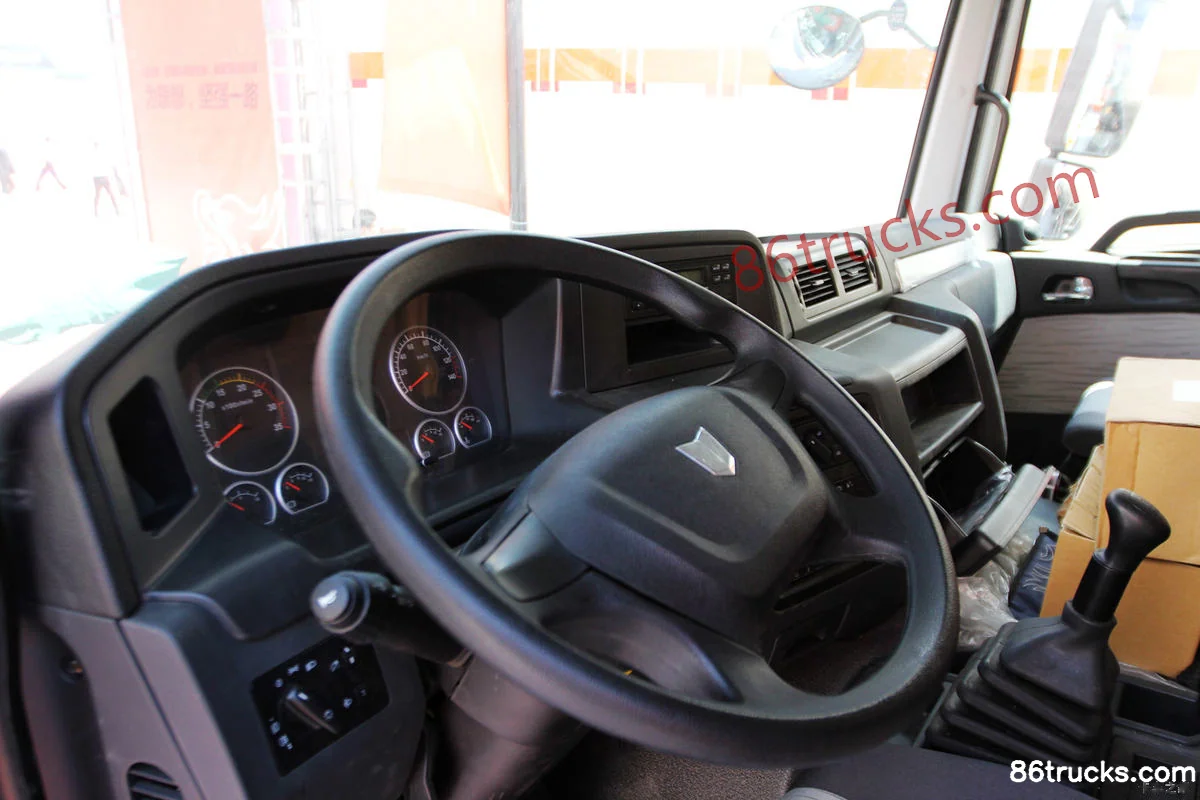

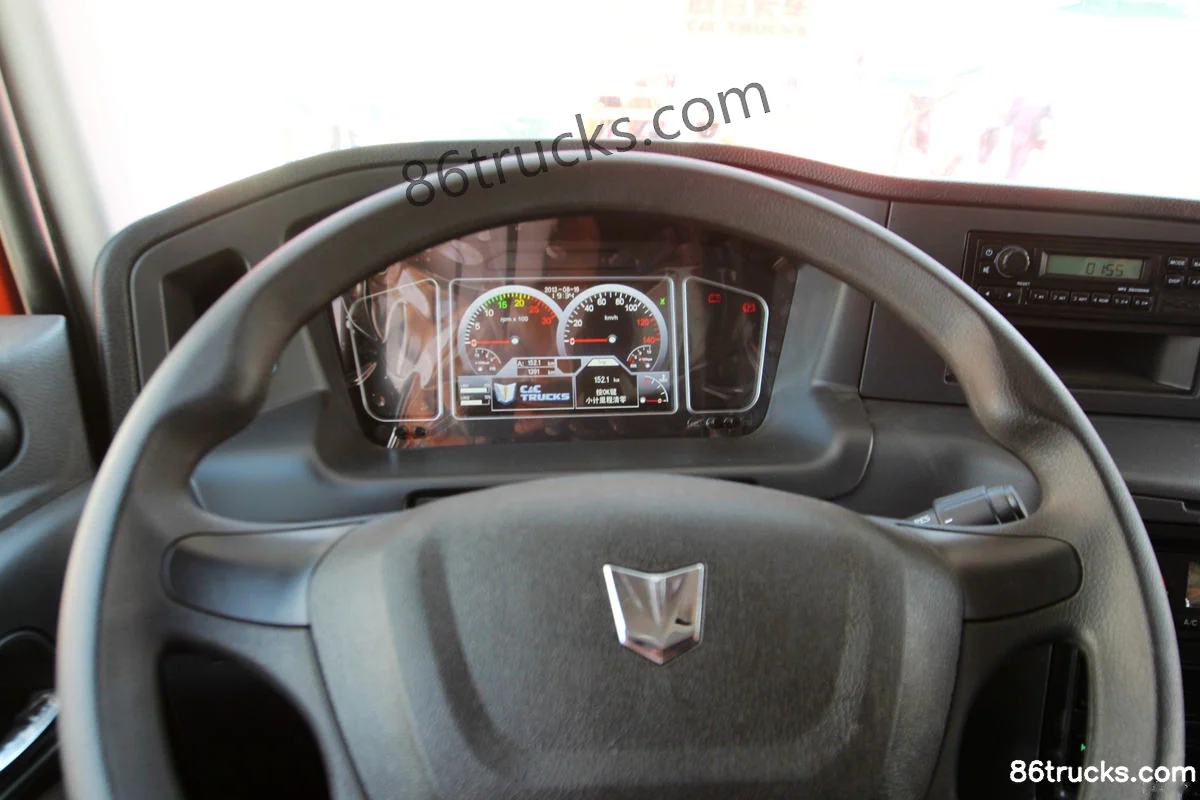

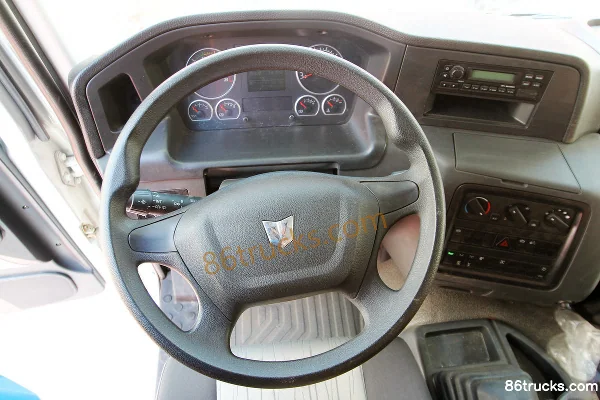

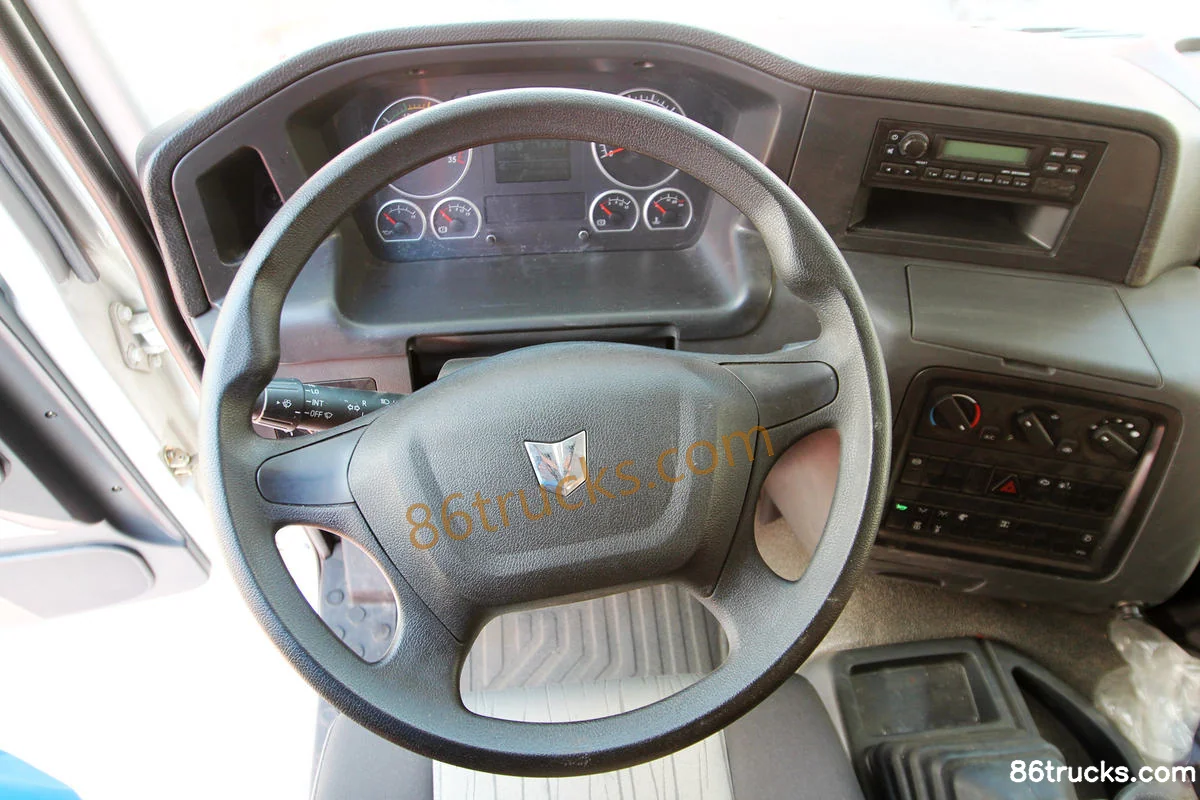

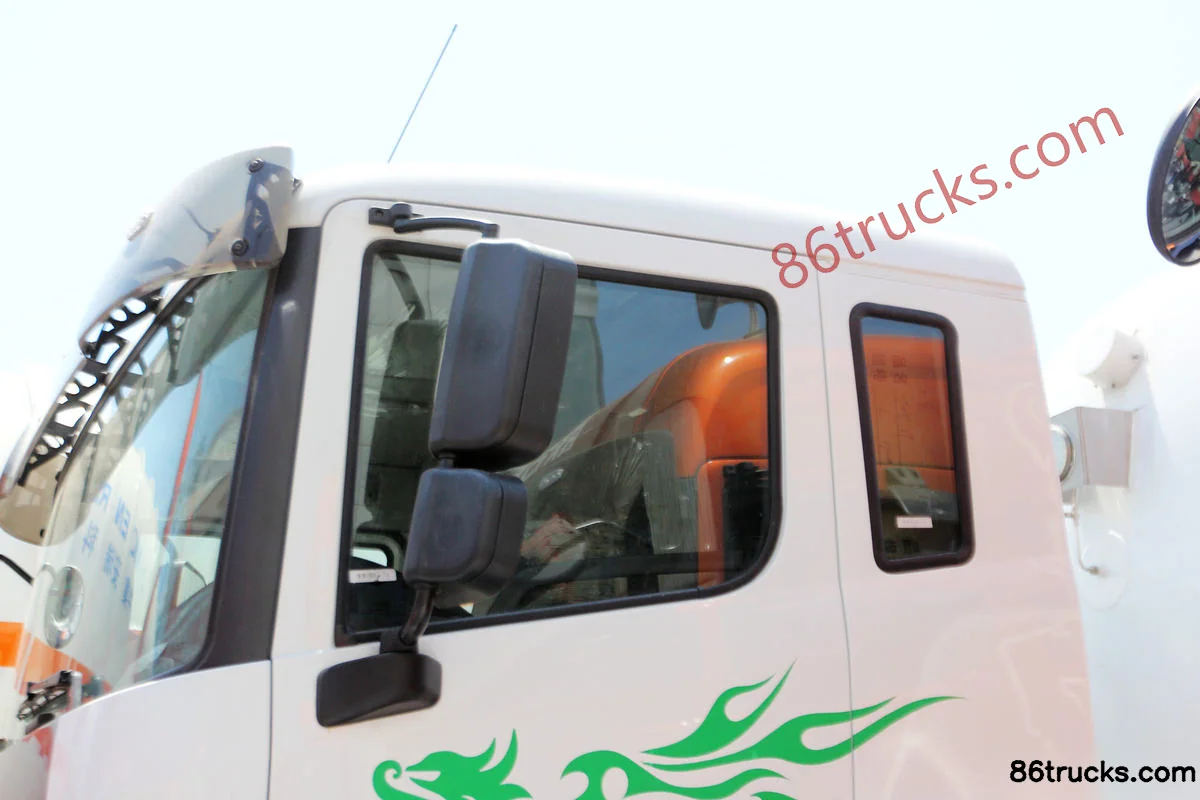

Cab3

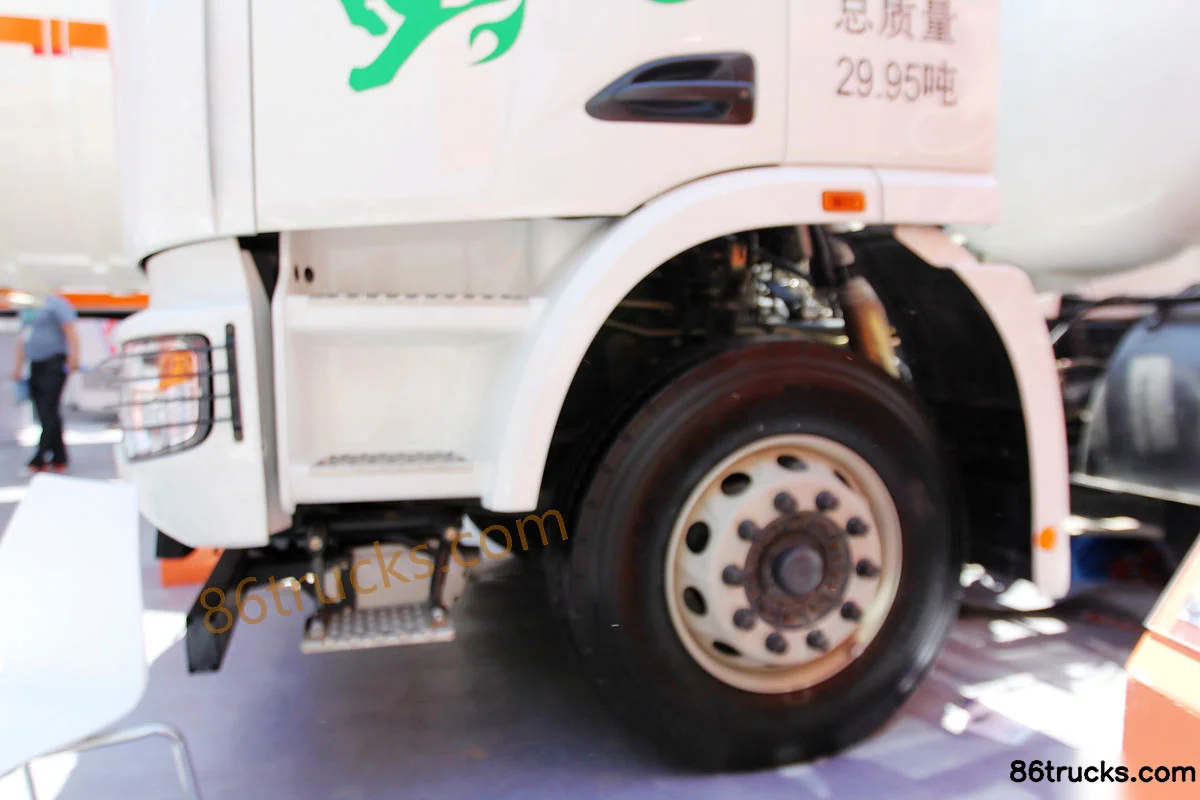

Chassis3

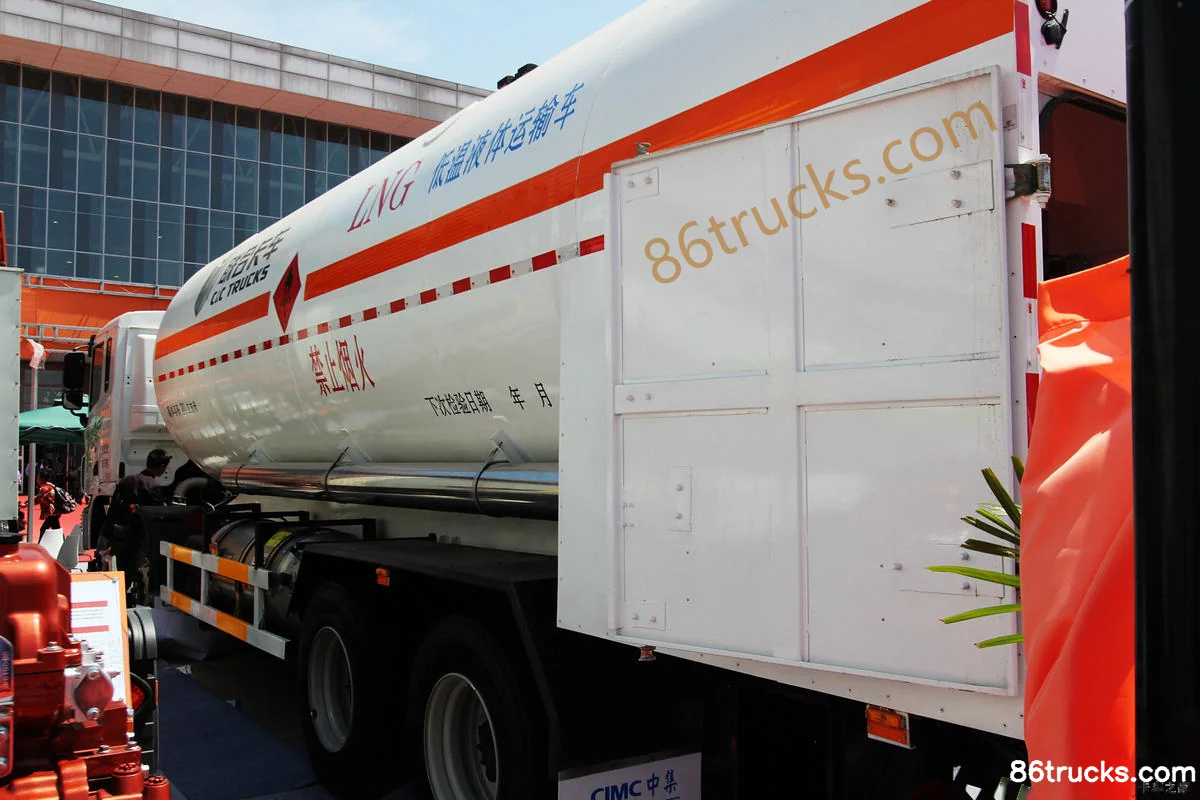

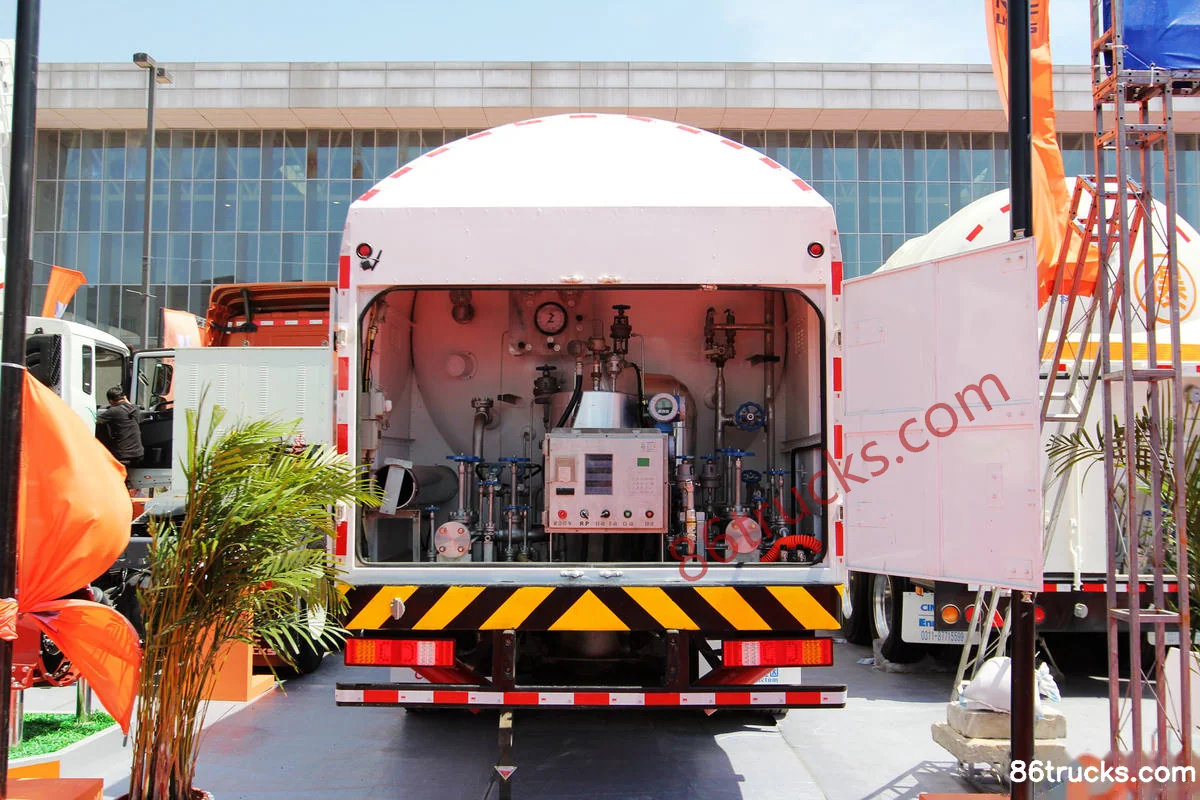

Body3

12 photos

FAQ

What emission standard does Union Truck U340 340hp 8X4(12 wheels) LNG Transport Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U340 340hp 8X4(12 wheels) LNG Transport Truck?

Key specs of Union Truck U340 340hp 8X4(12 wheels) LNG Transport Truck: Drive: 8x4; Horsepower: 340 hp; Emission: China IV; Fuel: LNG (liquefied natural gas). See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U340 340hp 8X4(12 wheels) LNG Transport Truck suited for?

Union Truck U340 340hp 8X4(12 wheels) LNG Transport Truck is a liquefied gas transport truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Union Truck U340 340hp 8X4(12 wheels) LNG Transport Truck differ from other variants in the same series?

Union Truck U340 340hp 8X4(12 wheels) LNG Transport Truck belongs to Union Truck U-Series Heavy Truck (liquefied gas transport truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U340 340hp 8X4(12 wheels) LNG Transport Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U340 340hp 8X4(12 wheels) LNG Transport Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
