Sinotruk HOWO N5W medium truck 270 hp 4X2(6 wheels) 5.8m stake cargo truck (China VI)

Export reference
MSRP N/A
Horsepower: 270
Emission: China VI
Fuel: Diesel
Engine: WeichaiWP6
Transmission: Sinotruk
Curb Weight:: 7.35ton
seating capacity: 3Personnel
Rated payload: 10.52ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO N5W medium truck 270 hp 4X2(6 wheels) 5.8m stake cargo truck (China VI) is a Medium-duty truck featuring 5.8m cargo length, stake body cargo body, 3Personnel volume and 10.52t payload. Its segment focus covers LTL transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP6 engine, 270 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 270 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1187K511JF1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5100mm
Box length class: 5.8m
engine: WeichaiWP6H270E61
transmission: SinotrukHW95508STCL
Rear Axle Ratio: 4.11
Cab length: 8.15m
Cab width: 2.55m
Cab height: 3m
Front track width: 1956mm
rear track: 1800mm
Curb Weight: 7.35ton
Rated payload: 10.52ton
GVWR: 18ton
Max. speed: 102km/h
Origin: Jining, Shandong
tonnage class: Medium-duty truck
Approach angle: 17°
departure angle: 13°
market segment: LTL transport
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP6H270E61
Engine info: WeichaiWP6
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.22L
Emission standard: China VI
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1100N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, high-pressure common rail, turbocharged intercooled
Transmission Parameters
Transmission Model: SinotrukHW95508STCL
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.8m
Cargo box width: 2.46m
Cargo box height: 0.6m
*Cargo box interior width: 2.460000038147
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 1094 self-adjusting arm front axle (drum)
Front axle allowable load: 6500kg
Frame Dimensions: Single-layer frame (7/232)mm
rear axle description: MCJ09BG self-adjusting single rear axle (drum)
rear axle allowable load: 11500kg
Axle ratio: 4.11
Leaf spring count: 7/7+3
Suspension (front/rear): Front and rear standard multi-leaf springs (7/7+3)
Tire
Tire Size: 295/60R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:

Photos

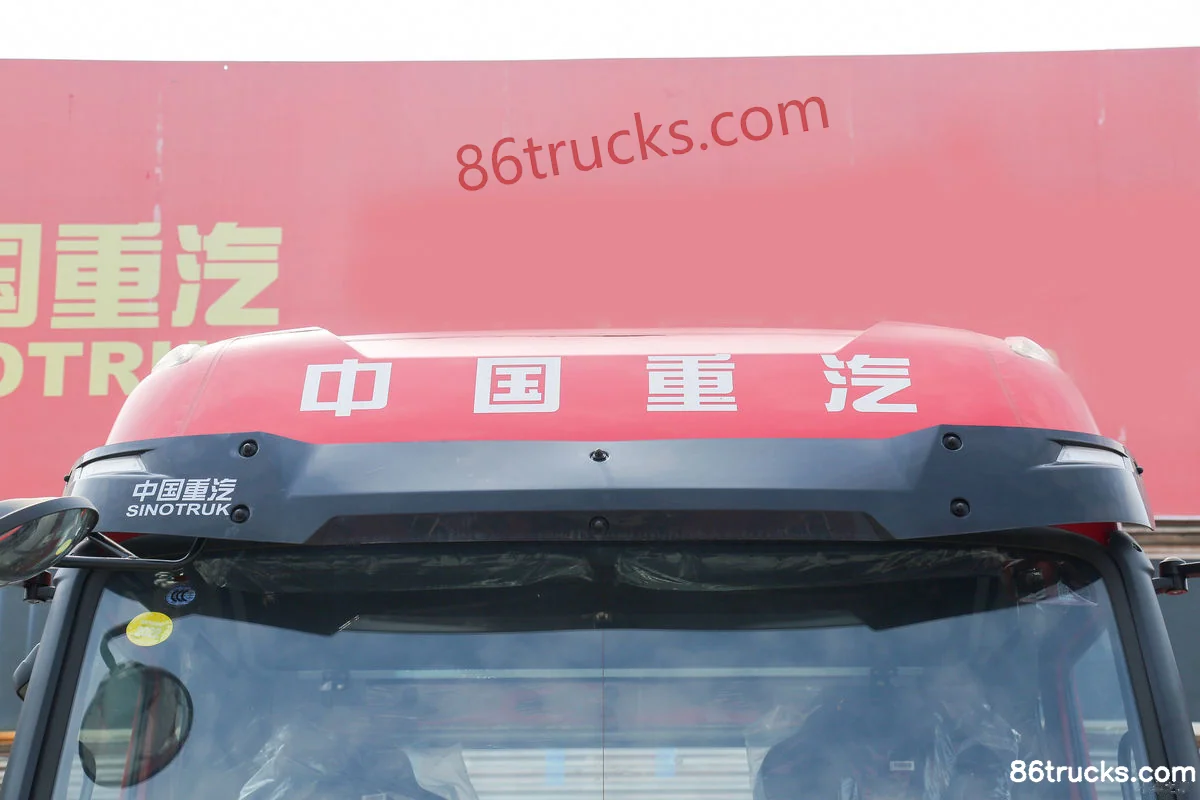

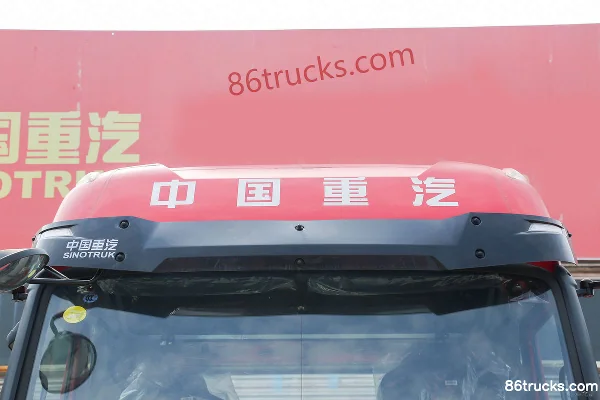

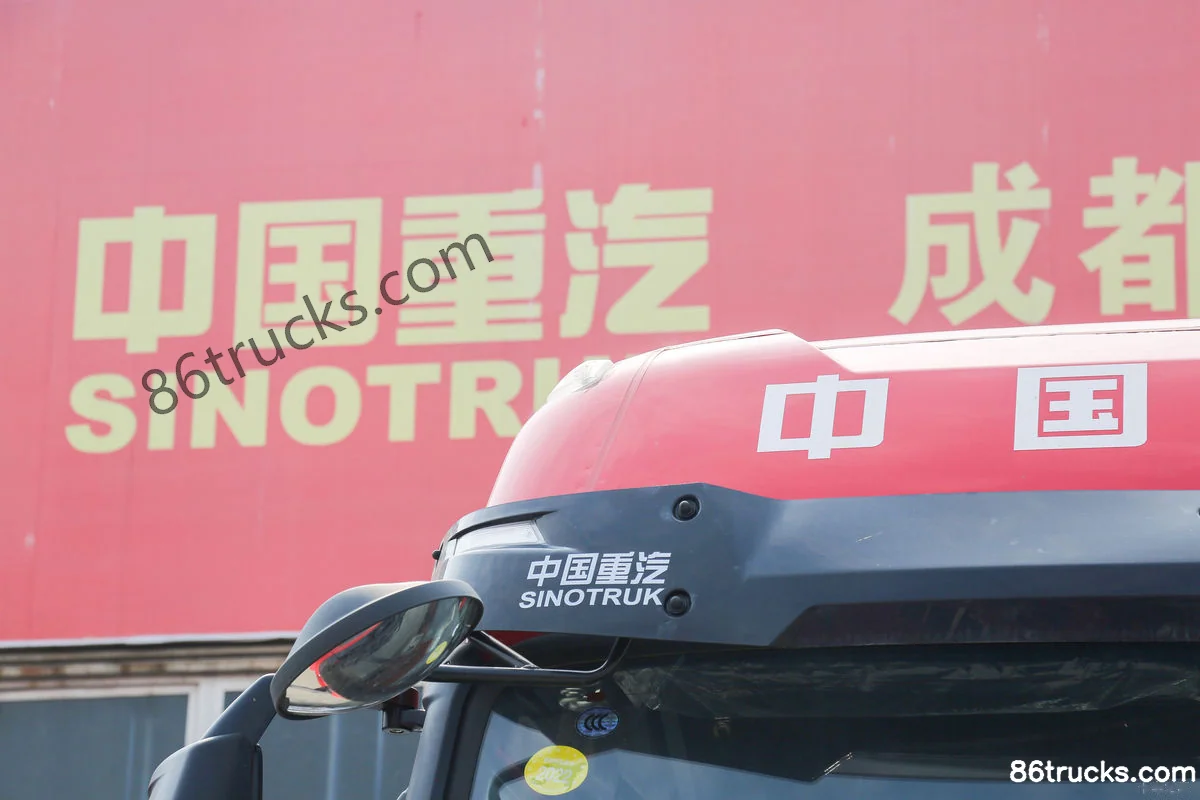

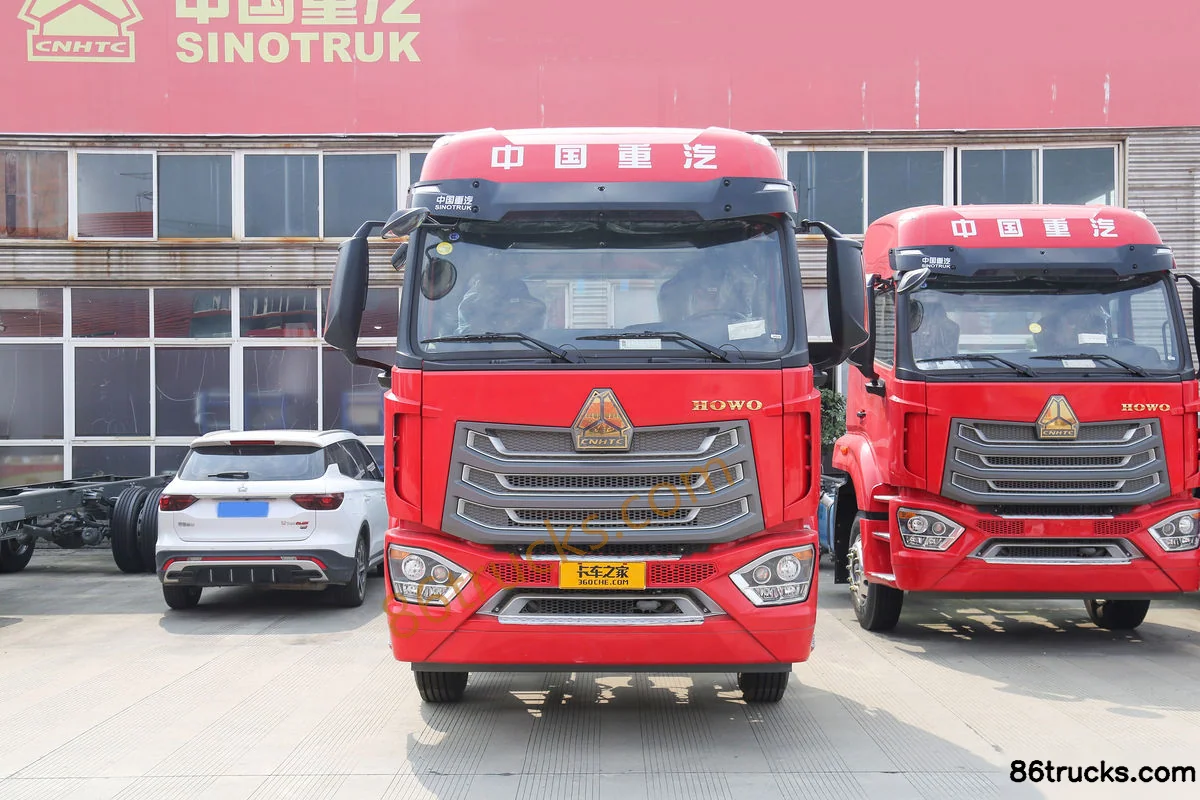

Exterior3

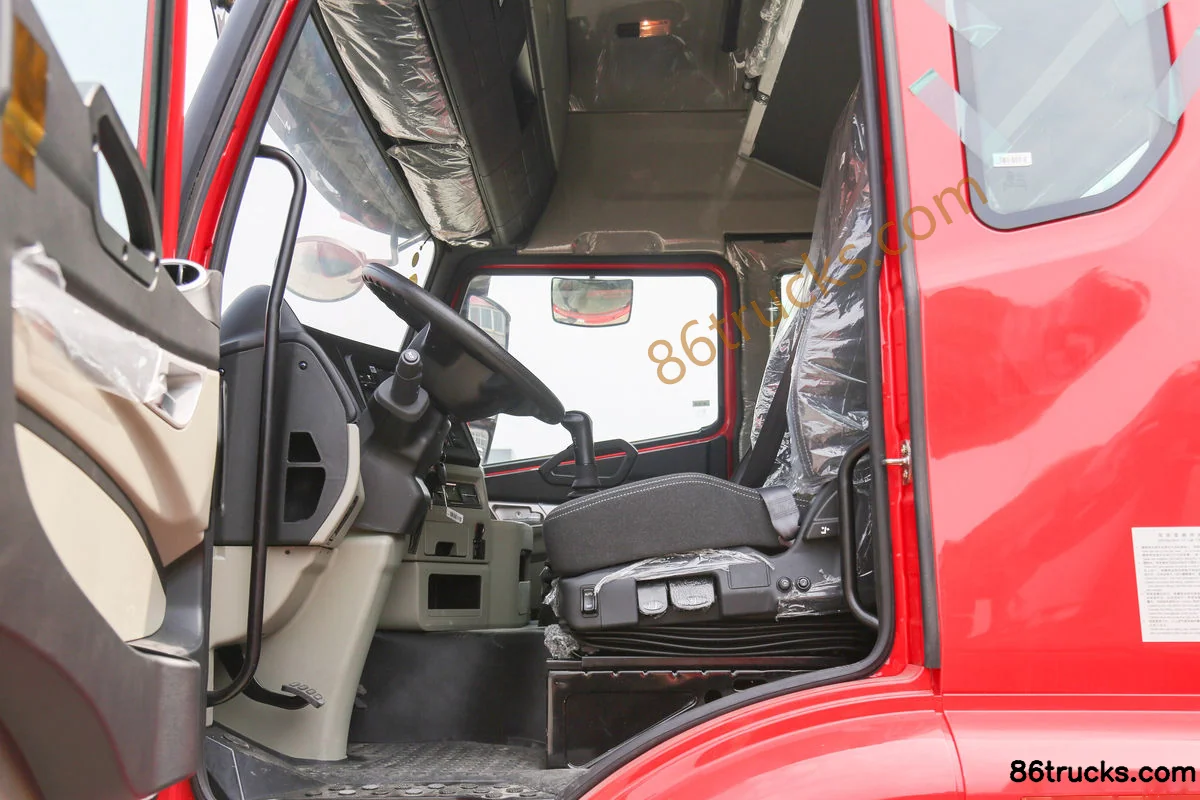

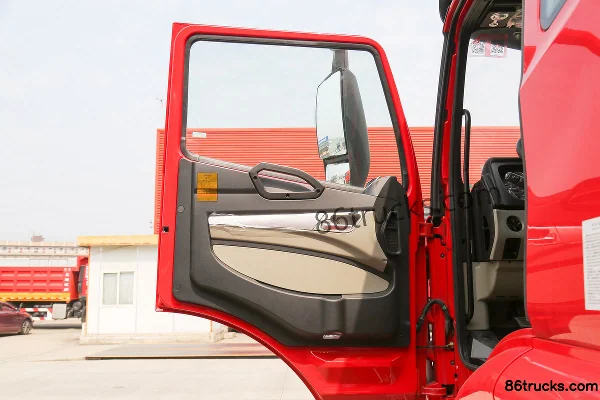

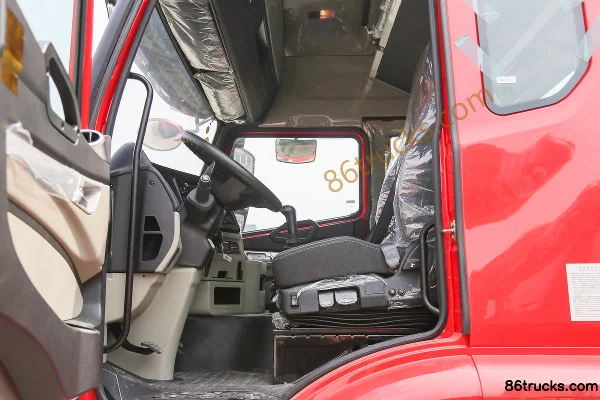

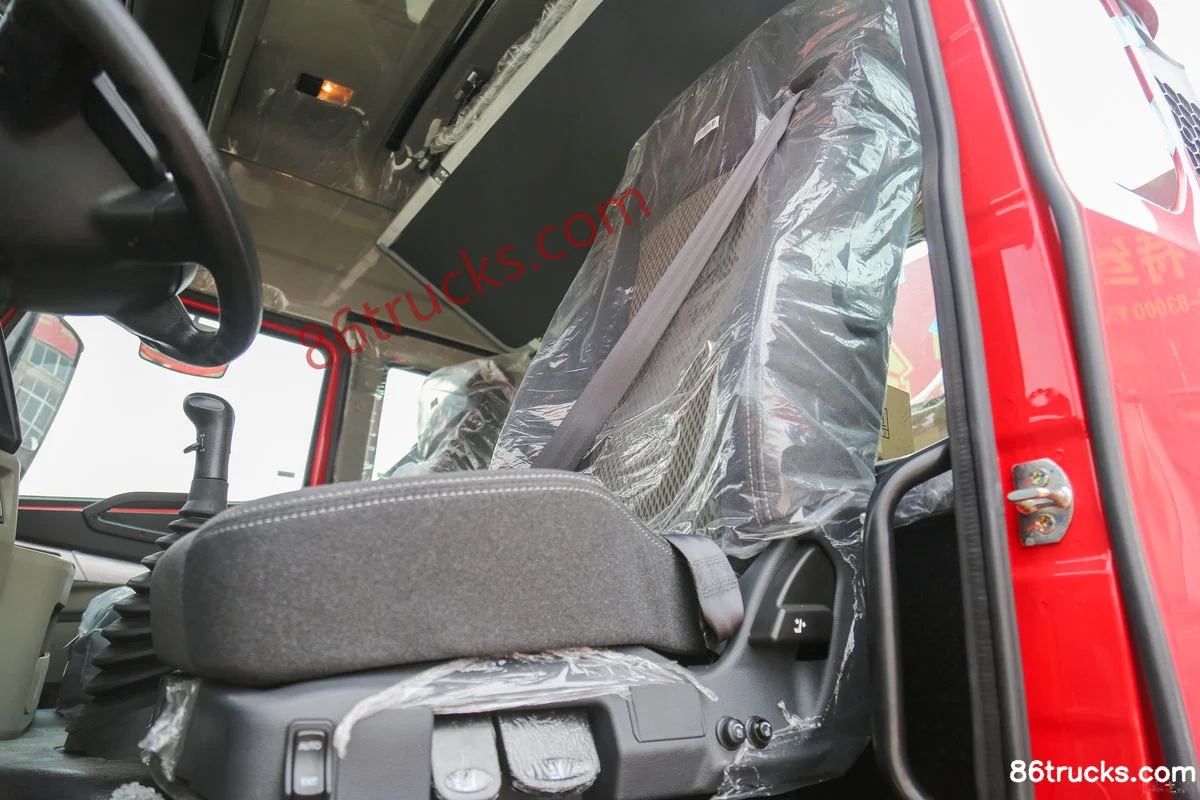

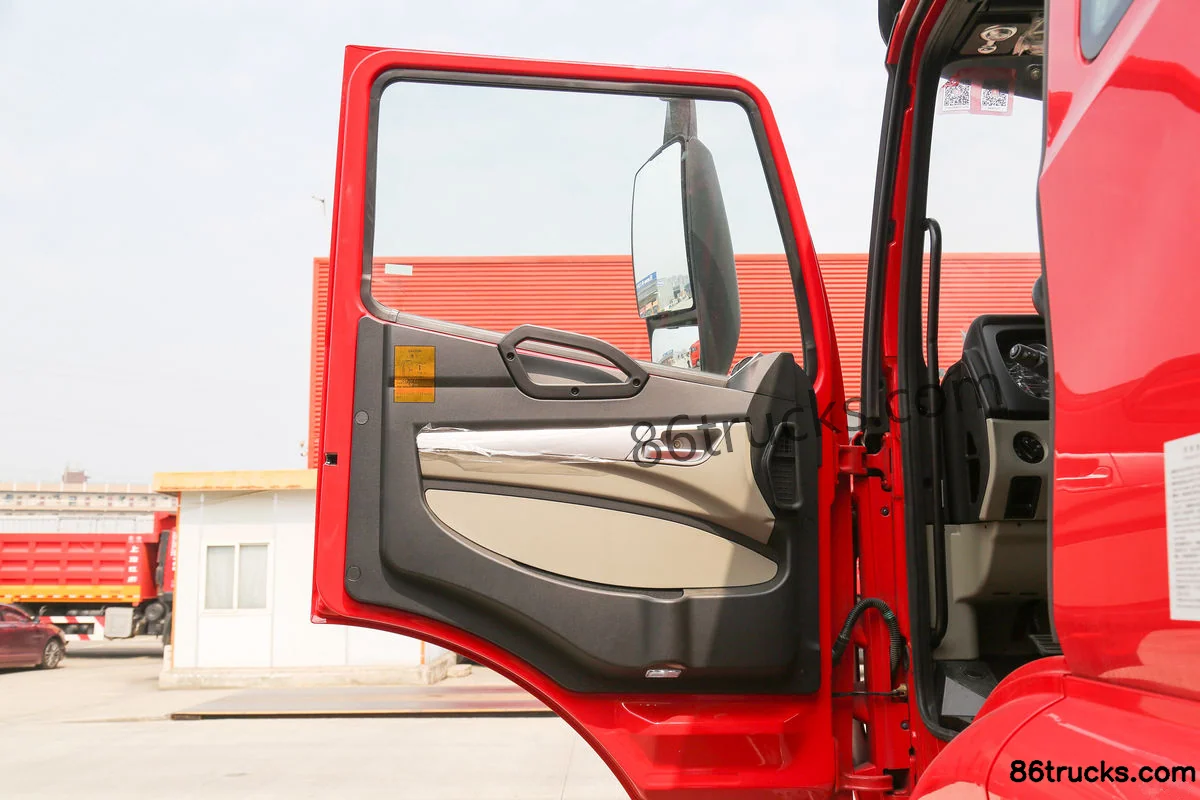

Cab3

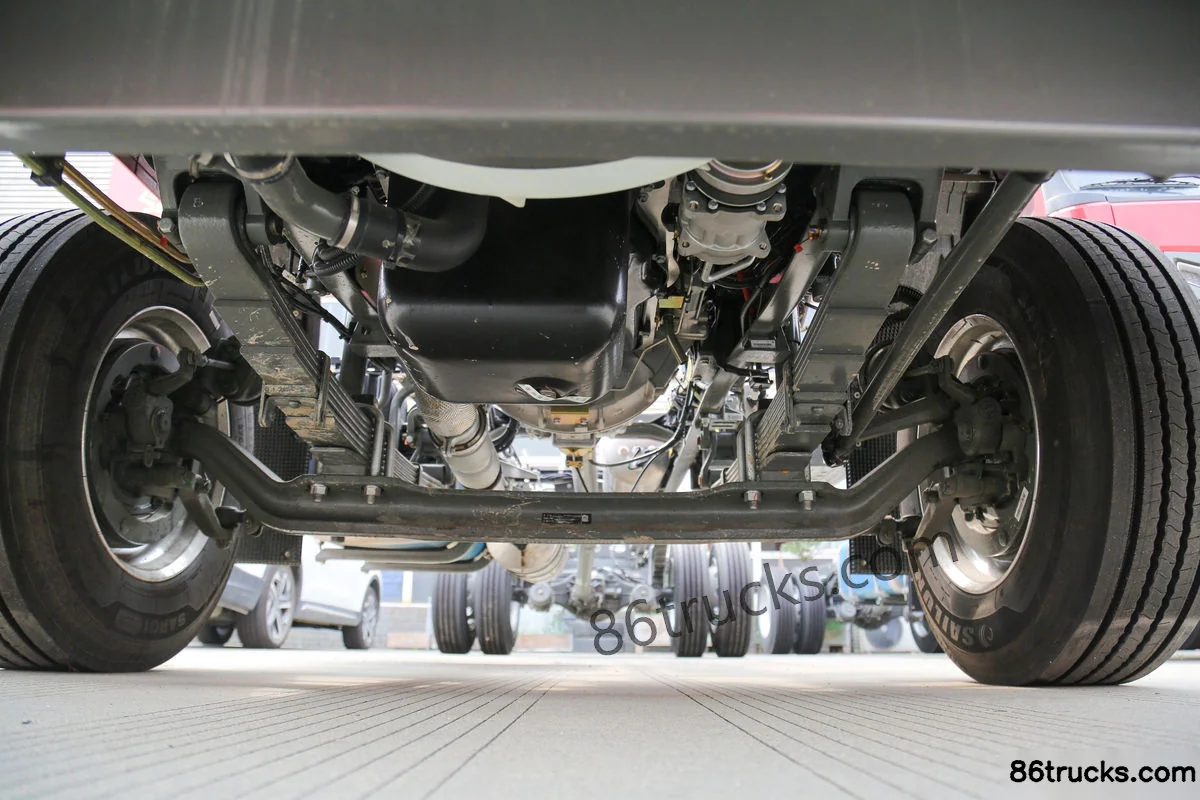

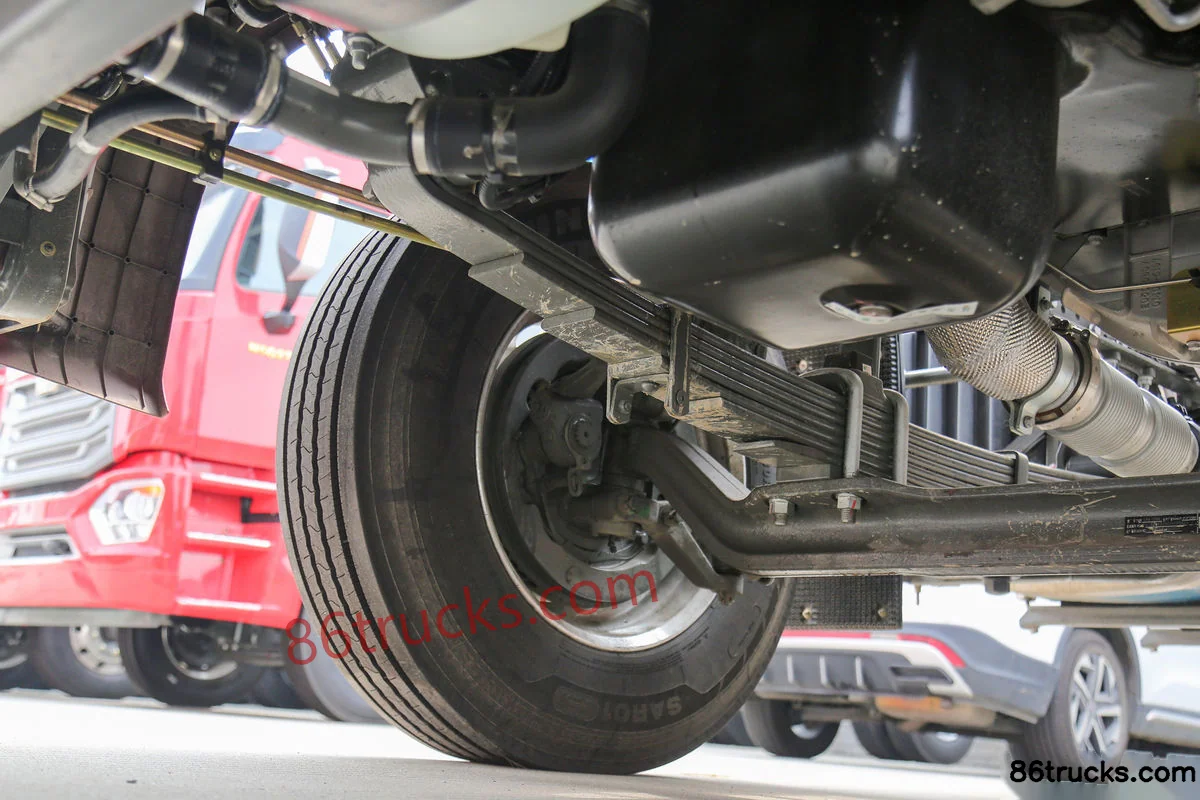

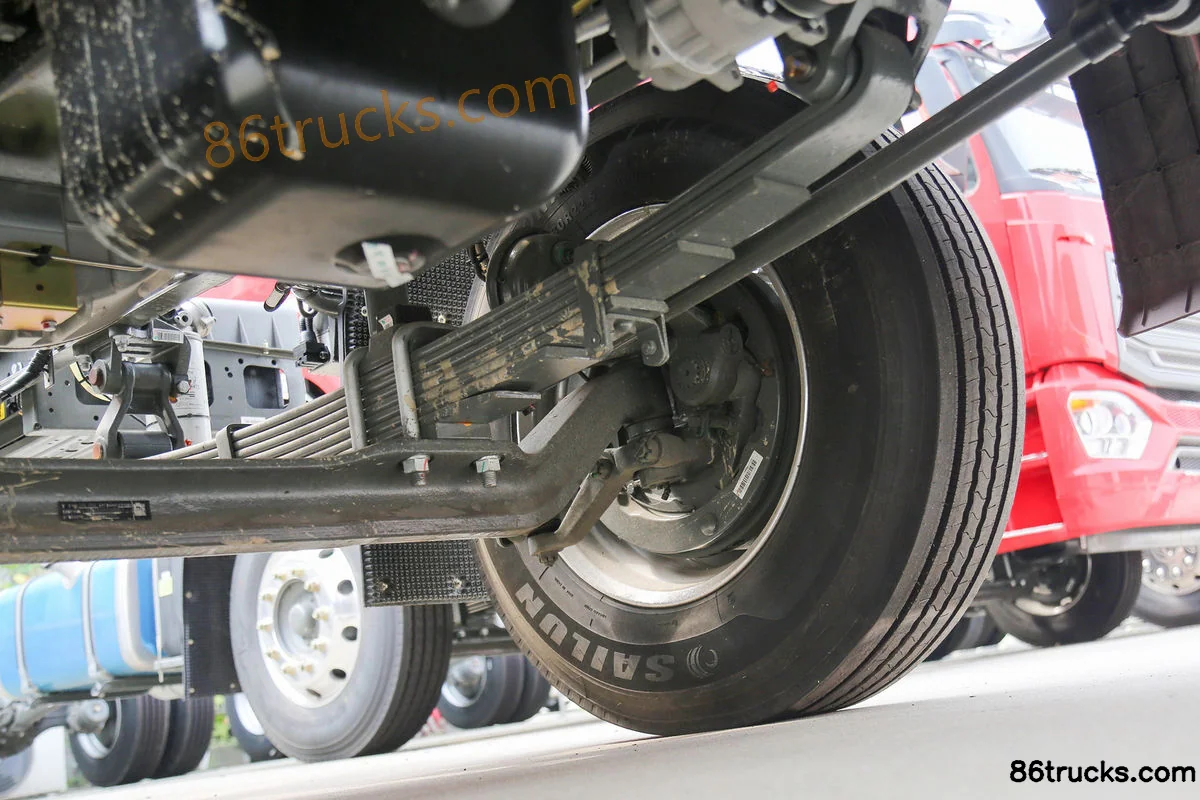

Chassis3

9 photos

FAQ

What emission standard does Sinotruk HOWO N5W medium truck 270 hp 4X2(6 wheels) 5.8m stake cargo truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO N5W medium truck 270 hp 4X2(6 wheels) 5.8m stake cargo truck (China VI)?

Key specs of Sinotruk HOWO N5W medium truck 270 hp 4X2(6 wheels) 5.8m stake cargo truck (China VI): Drive: 4x2; Horsepower: 270 hp; Emission: China VI; Fuel: Diesel; Engine: WeichaiWP6; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO N5W medium truck 270 hp 4X2(6 wheels) 5.8m stake cargo truck (China VI) suited for?

Sinotruk HOWO N5W medium truck 270 hp 4X2(6 wheels) 5.8m stake cargo truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO N5W medium truck 270 hp 4X2(6 wheels) 5.8m stake cargo truck (China VI) differ from other variants in the same series?

Sinotruk HOWO N5W medium truck 270 hp 4X2(6 wheels) 5.8m stake cargo truck (China VI) belongs to Sinotruk HOWO NX Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO N5W medium truck 270 hp 4X2(6 wheels) 5.8m stake cargo truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO N5W medium truck 270 hp 4X2(6 wheels) 5.8m stake cargo truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
