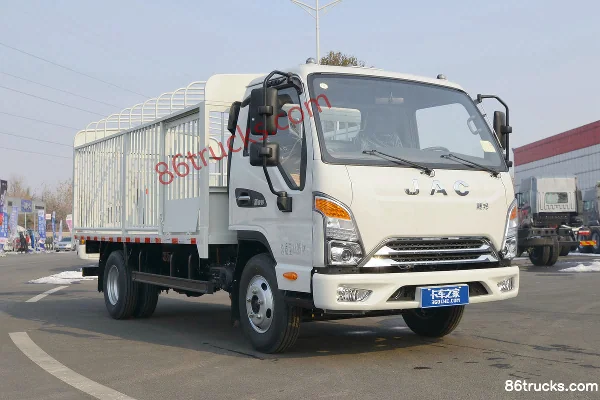

JAC Kangling J5 152 hp 4X2(6 wheels) 4.18m Single-Row Stake Truck (8-speed)
EXW
From $16,389
Export quote
JAC J5 light-duty truck Cargo Trucks
Main model photos
343 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Kangling J5 152 hp 4X2(6 wheels) 4.18m Single-Row Stake Truck (8-speed) | 4x2 / 152hp / China VI | From $16,389 | |

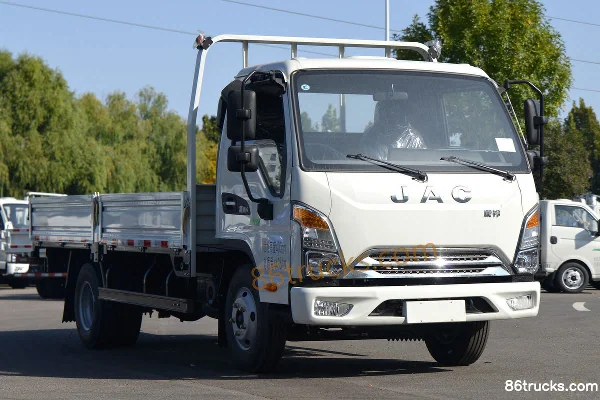

| JAC Zhengju J5 Luxury Underground Version 143 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI) | 4x2 / 143hp / China VI | From $14,306 | |
| JAC Zhengju J5 Luxury Underground Version 143 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (China VI) | 4x2 / 143hp / China VI | From $14,722 | |

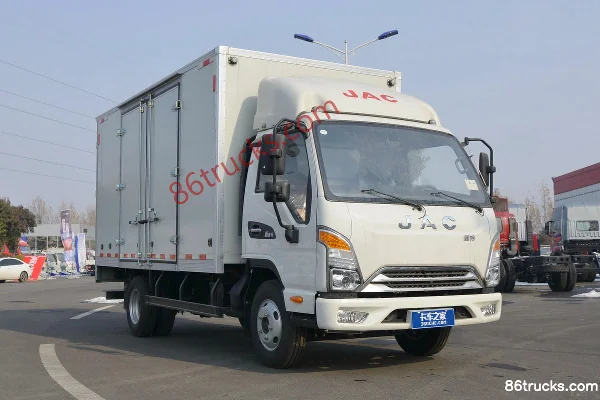

| JAC Kangling J5 127 hp 4X2(6 wheels) 3.82m semi-row vending truck (China VI) | 4x2 / 127hp / China VI | From $12,722 | |
| JAC Kangling J5 127 hp 4X2(6 wheels) 4.15m single-row vending truck (China VI) | 4x2 / 127hp / China VI | From $12,514 |
JAC Zhengju J5 Luxury Underground Version 143 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck (China VI)
EXW
From $14,306
Export quote
JAC Zhengju J5 Luxury Underground Version 143 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (China VI)
EXW
From $14,722
Export quote
JAC Kangling J5 127 hp 4X2(6 wheels) 3.82m semi-row vending truck (China VI)
EXW
From $12,722
Export quote
JAC Kangling J5 127 hp 4X2(6 wheels) 4.15m single-row vending truck (China VI)
EXW
From $12,514
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Kangling J5 Custom Edition 132 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (China VI) | 4x2 / 132hp / China VI | ||
| JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck | 4x2 / 116hp / China V | ||
| JAC Kangling J5 150 hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) | 4x2 / 150hp / China VI | From $15,278 | |
| JAC Kangling J5 116hp 4X2(6 wheels) 4.18m single-row stake truck | 4x2 / 116hp / China V | From $13,889 | |
| JAC Kangling J5 132 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Ratio 5.571) | 4x2 / 132hp / China V | From $16,667 |
JAC Kangling J5 Custom Edition 132 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (China VI)
EXW
Export quote
JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck
EXW
Export quote
JAC Kangling J5 150 hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI)
EXW
From $15,278
Export quote
JAC Kangling J5 116hp 4X2(6 wheels) 4.18m single-row stake truck
EXW
From $13,889
Export quote
JAC Kangling J5 132 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Ratio 5.571)
EXW
From $16,667
Export quote
Series Specs
Basic Info
Model code (announced): HFC5045CCYB22K1C7S-1 / HFC1045P32K1C7NS / HFC5045XSHP22K1C7S / HFC2045CCYP22K1C7NS / HFC2045XXYP22K1C7NS / HFC2045P22K1C7NS / HFC5045CCYP22K1C7S-1 / HFC5045CCYP22K1C7S / HFC5045XXYP22K2C7S / HFC5045XXYP22K1C7S-1 / HFC5045XXYP22K1C7S / HFC1045P22K2C7S / HFC5045CCYP32K1C7NS / HFC5045XXYP32K1C7NS-1 / HFC5045XXYP32K1C7NS / HFC1041P23K2C7S / HFC5043CCYP31K1C4NS
Type: stake truck / Cargo Trucks / enclosed cargo truck
Drive type: 4X2
Wheelbase: 3365 / 2850mm
Box length class: 4.2 / 3.7 / 3.8m
Engine Model: QuanchaiQ25-152E60 / Yunnei PowerYN25PLUS1 / Yunnei PowerD20TCIF1 / JACHFC4DB3-2E / QuanchaiQ23-132E60
Transmission Model: 8-speed gearbox / JACML540A / WLYWLY8G45B / JACML532A
Rear Axle Ratio: 5.125 / 4.875
Cab length: 5.995 / 5.46 / 5.985m
Cab width: 2.46 / 2.115 / 2.18 / 2.125 / 2.11 / 1900 / 1950m
Cab height: 3.25 / 2.18 / 3.05 / 2.32m
Front track width: 1595 / 1440 / 1455mm
rear track: 1560 / 1425mm
Curb Weight: 2.72 / 2.56 / 3.555 / 2.975 / 3.455 / 2.6 / 2.4 / 3.21 / 2.805 / 2.25 / 2.715 / 2.8 / 2.165ton
Rated payload: 1.58 / 1.73 / 0.745 / 0.995 / 0.845 / 1.495 / 1.245 / 1.09 / 1.575 / 1.49ton
GVWR: 4.495 / 4.485 / 4.165 / 4.29 / 3.84 / 3.94 / 3.79ton
Max. speed: 100 / 90 / 95km/h
Origin: Hefei, Anhui / Suining, Sichuan
tonnage class: Light Truck
Approach angle: 21 / 24°
departure angle: 14.5 / 14 / 16°
market segment: Urban Distribution
Remarks: Standard: LED headlights; Optional: auto A/C (requires MP5). / Optional: 4.33 ratio, leaf spring count 4/4+2 / Standard: MP3, I-beam front axle, roof vent; Optional: tread plate, five-door opening, aluminum side guard, 100L aluminum fuel tank, 6.50R16 tubeless tires, 5.375 ratio. / Standard: MP3, I-beam front axle, roof vent; Optional: tread plate, five-door opening, aluminum side guard, 100L plastic fuel tank, 6.50R16 tubeless tires, 5.375 ratio. / Standard: preheating, MP3, iron air tanks, iron side & rear guards; optional: 5.375 ratio, MP5, aluminum side guards, 100L plastic fuel tank, ETC device, dual batteries, 6.50R16 tubeless tires. / Standard MP3, dual battery; optional ratio 5.375, 6.50R16 tubeless tires, aluminum side guard, plastic fuel tank.
Front/rear suspension: 1.1/1.53 / 1.1/1.52 / 1.1/1.525m
Version: Luxury Low-Height Edition / Platform Version
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai / Yunnei Power / JAC
Engine info: QuanchaiQ25 / Yunnei 2.5L / De Wei D20 / JAC2.2L / Quanchai2.3L / Quanchai2.5L
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.5 / 2.499 / 2 / 2.183 / 2.3L
Emission standard: China VI
Max output power: 112 / 105 / 93 / 95 / 97kW
Max hp: 152 / 143 / 127 / 130 / 132Horsepower
Max torque: 440 / 350 / 320N·m
Max torque speed: 1400 / 1400-2400rpm
Rated speed: 3000 / 3200rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Brand: JAC / WLY
shift method: Manual
FAQ
What kind of truck is JAC JAC J5 light-duty truck Cargo Trucks?
JAC JAC J5 light-duty truck is an export-oriented Cargo Trucks lineup with about 204 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC J5 light-duty truck Cargo Trucks?
JAC J5 light-duty truck Cargo Trucks export reference is about $10,903 – $21,639. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC J5 light-duty truck Cargo Trucks cover?
JAC J5 light-duty truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 116 hp / 127 hp / 132 hp / 143 hp / 150 hp / 152 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC J5 light-duty truck Cargo Trucks?
For JAC J5 light-duty truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC J5 light-duty truck Cargo Trucks include?
JAC J5 light-duty truck Cargo Trucks currently lists about 204 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC J5 light-duty truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
