JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck

Export reference
MSRP N/A
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: Yunnei 490
Transmission: JAC
Curb Weight:: 2.8ton
JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 1.565ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck is a Light Truck featuring 4.15m cargo length, Van body cargo body, 2Personnel volume and 1.565t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Yunnei 490 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5043XXYP92K1C2V-S
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
engine: Yunnei PowerYN27CRE10
transmission: JACML528A
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.115m
Cab height: 2.9m
Front track width: 1580mm
rear track: 1560mm
Curb Weight: 2.8ton
Rated payload: 1.565ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 21°
departure angle: 16°
market segment: Urban Distribution
Remarks: Standard: LED headlights; Optional: auto A/C (requires MP5).
Front/rear suspension: 1.1/1.587m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN27CRE10
Engine info: Yunnei 490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.672L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 305N·m
Max torque speed: 1600-2600rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: JACML528A
Transmission Brand: JAC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.01m
Cargo box height: 1.85m
*Cargo box interior width: 2.0099999904633
Cab parameters
Cab width: 1900mm
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 85L
Chassis Specs
Front axle allowable load: 1800kg
Frame Dimensions: 180×65×4.5mm
rear axle allowable load: 2695kg
Axle ratio: 4.875
Leaf spring count: 3/3+3
Frame Type: Dovetail beam
rear axle oil change interval: 60,000 km
Tire
Tire Size: 7.00R16
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: fabric/leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Wiper type: flat wiper blades
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Radio:
standard instrument cluster: none
LCD instrument cluster:
Roadside assistance call:
lighting configuration
Front fog lamp:
daytime running lights:
LED taillight:
Halogen Headlights: none
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
adaptive cruise control (ACC):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 18 months or 50,000 km
Rescue service: none

Photos

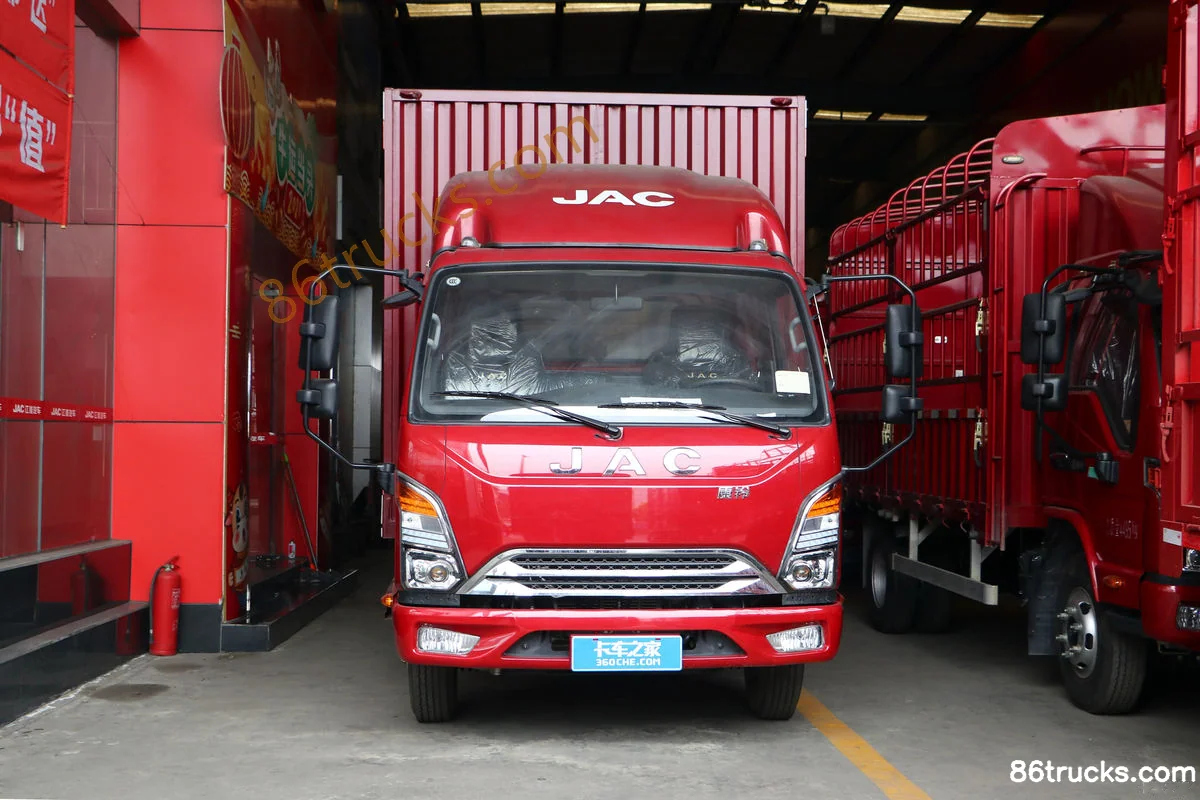

Exterior3

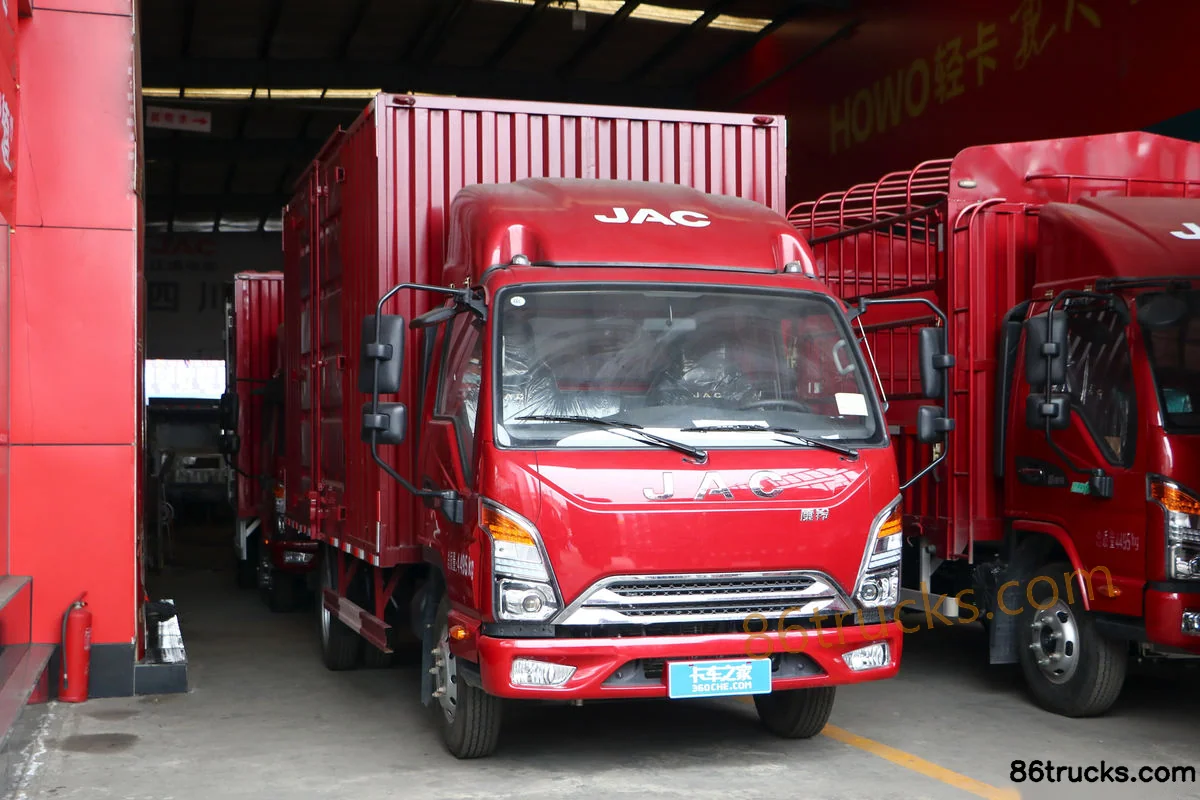

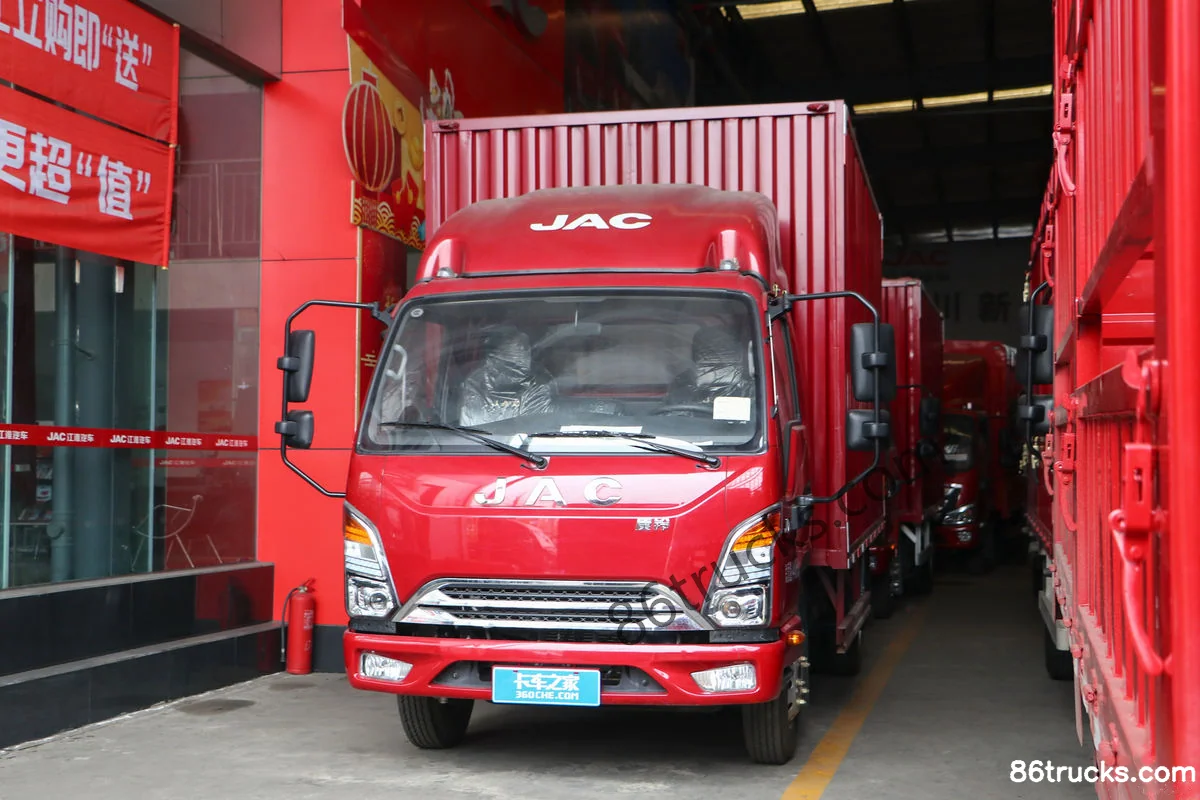

JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck Exterior (1) | 86Trucks JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck Exterior (2) | 86Trucks JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck Exterior (3) | 86Trucks

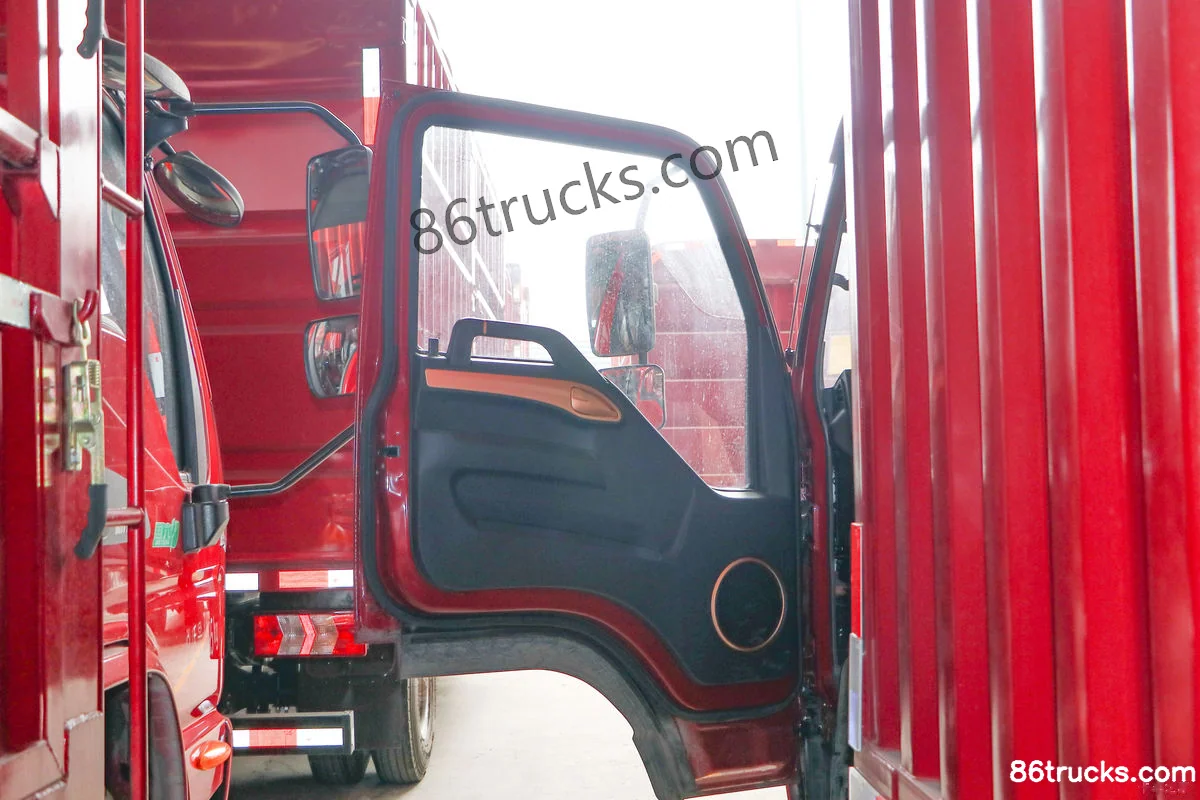

Cab3

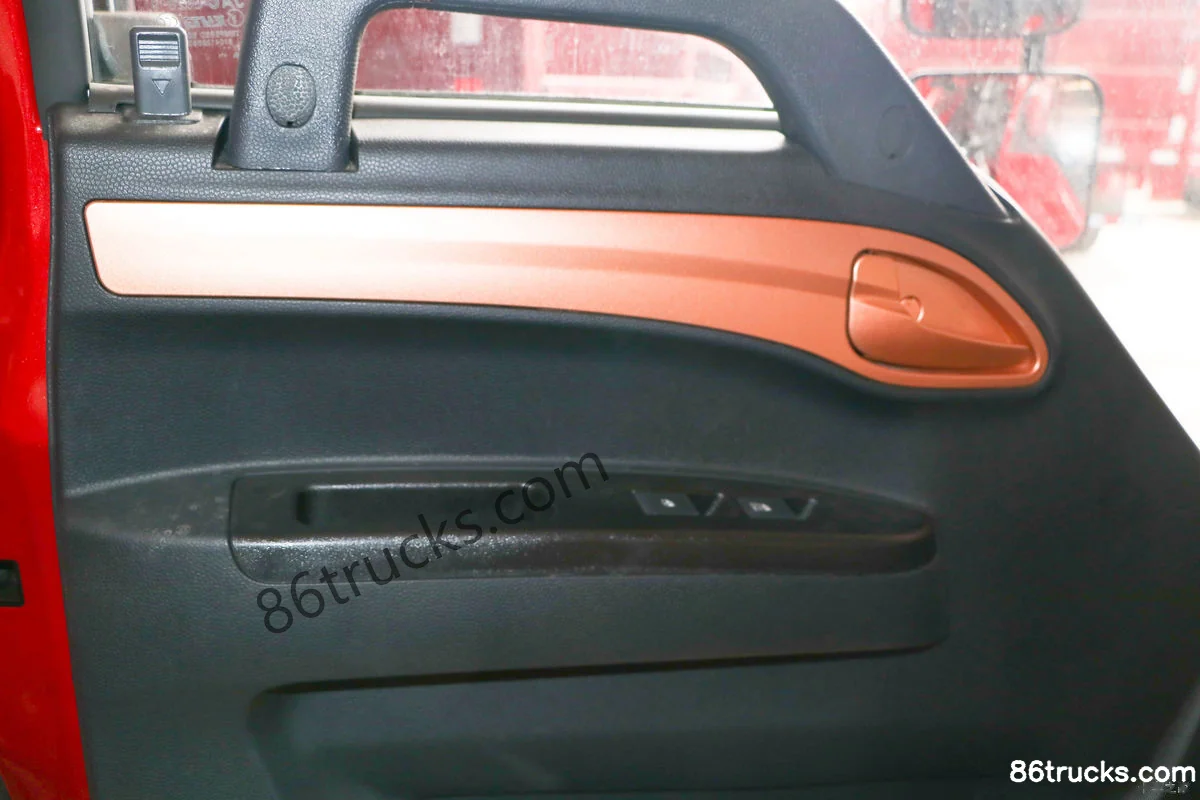

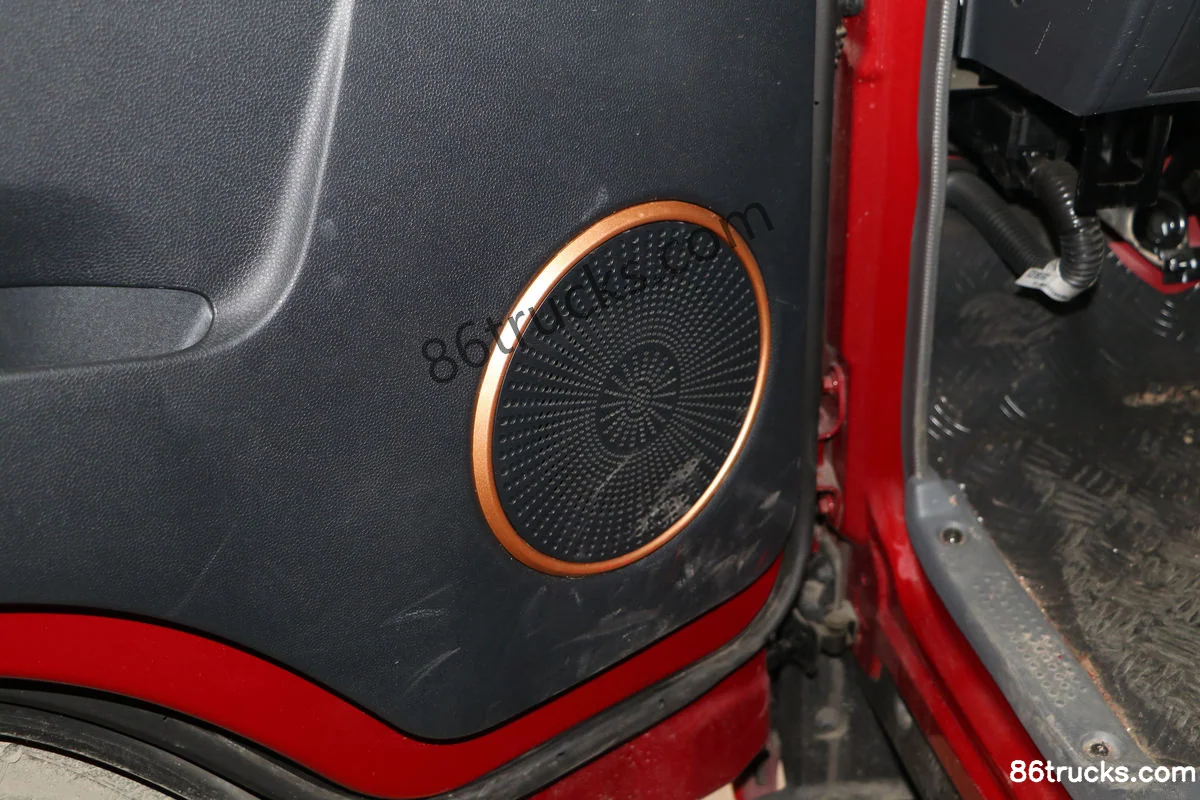

JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck Cab (1) | 86Trucks JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck Cab (2) | 86Trucks JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck Cab (3) | 86Trucks

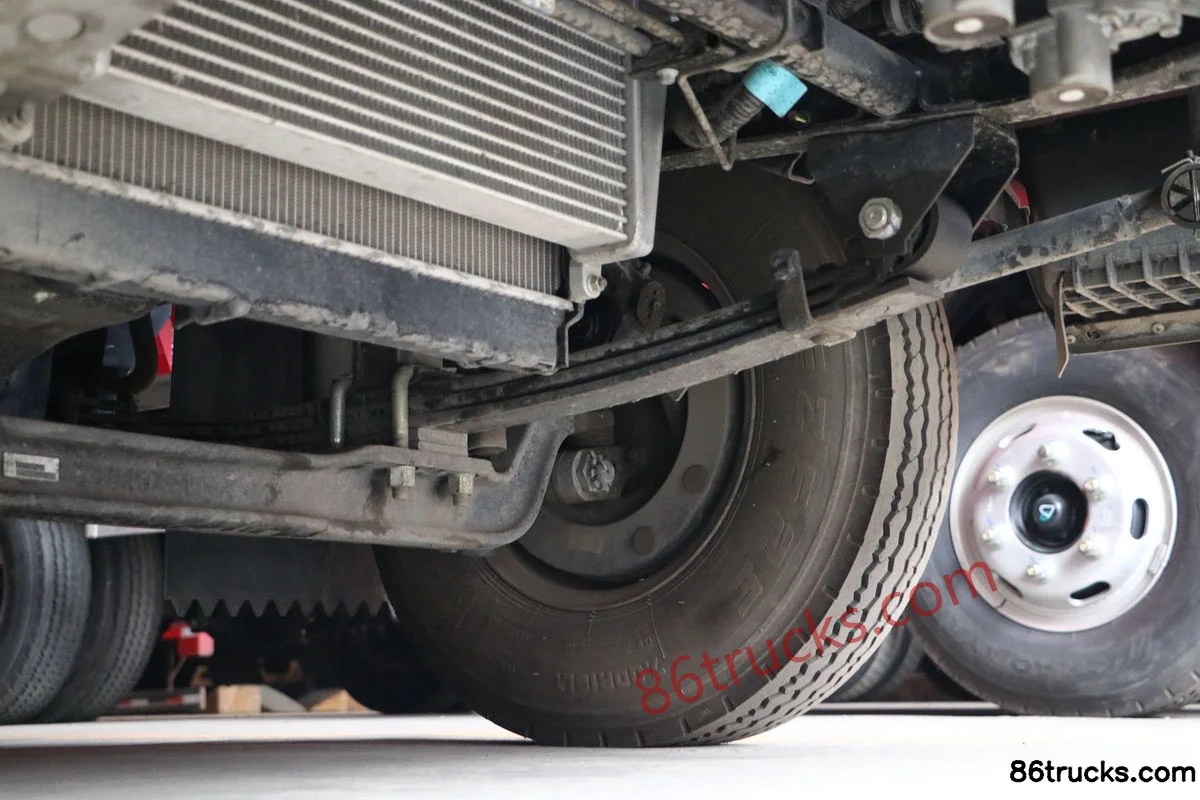

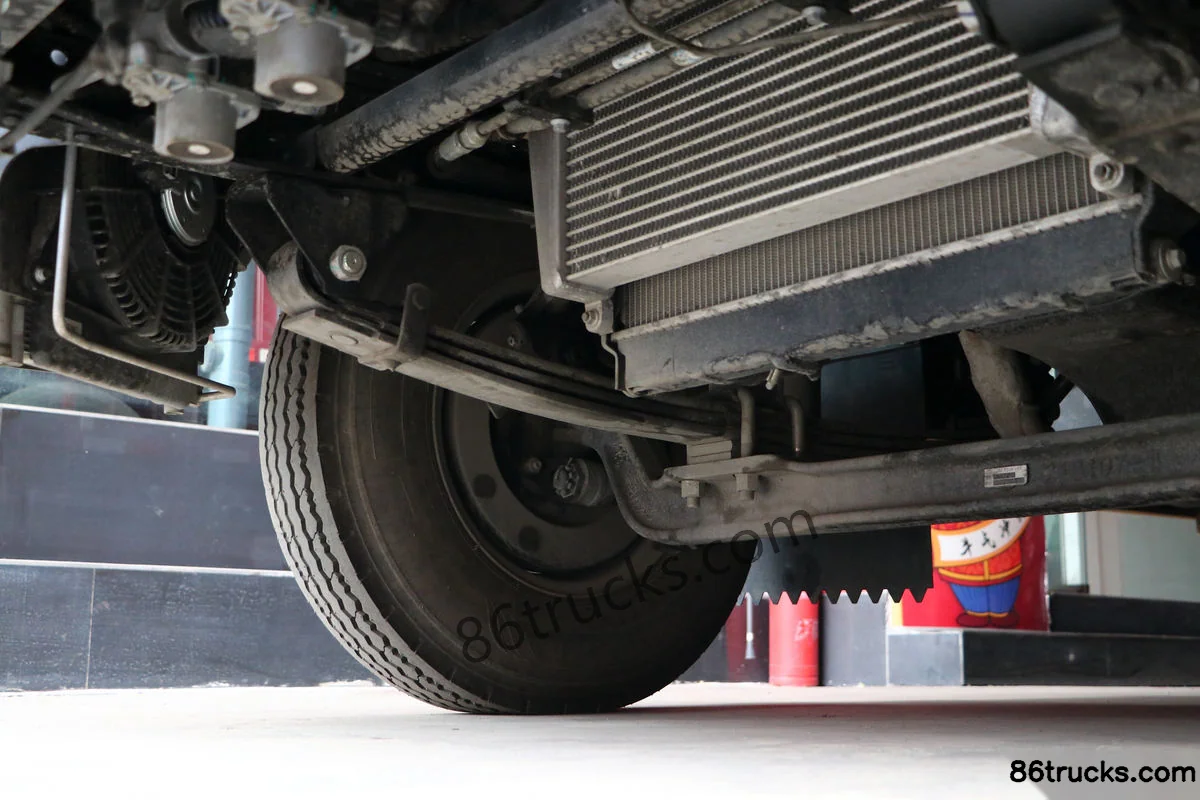

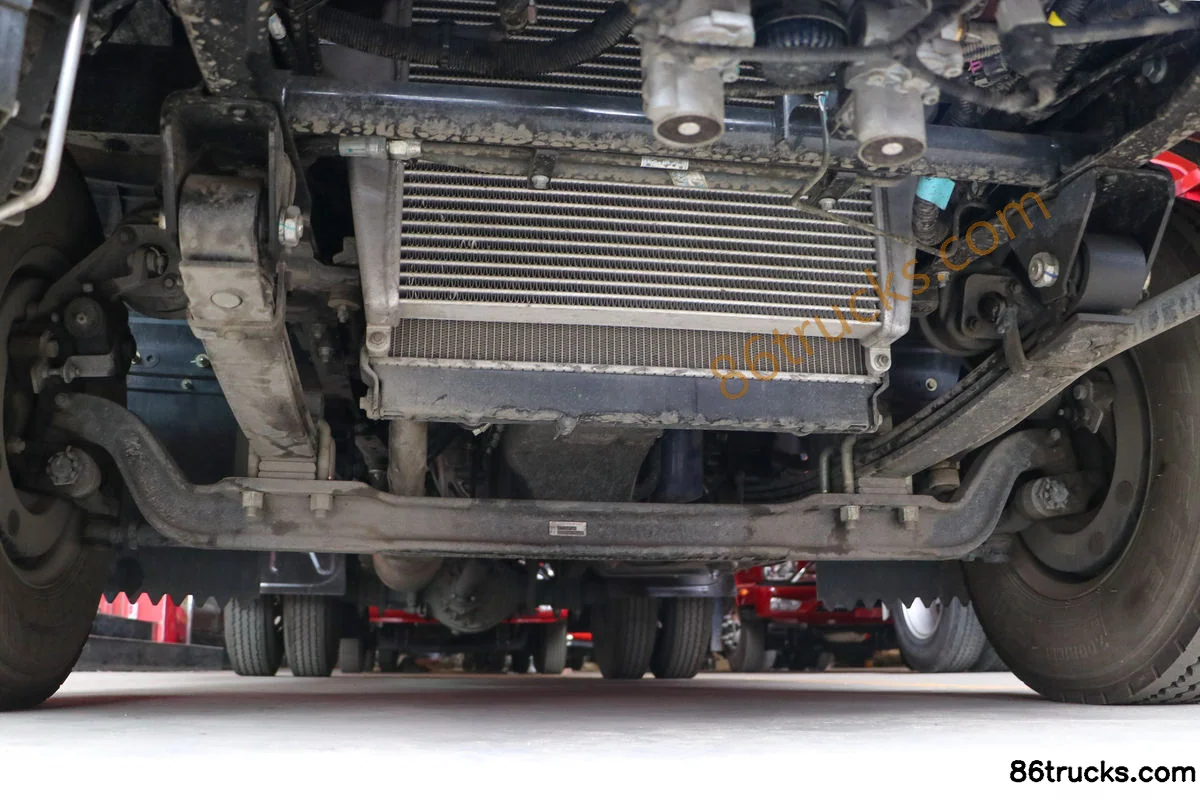

Chassis3

JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck Chassis (1) | 86Trucks JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck Chassis (2) | 86Trucks JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck Chassis (3) | 86Trucks

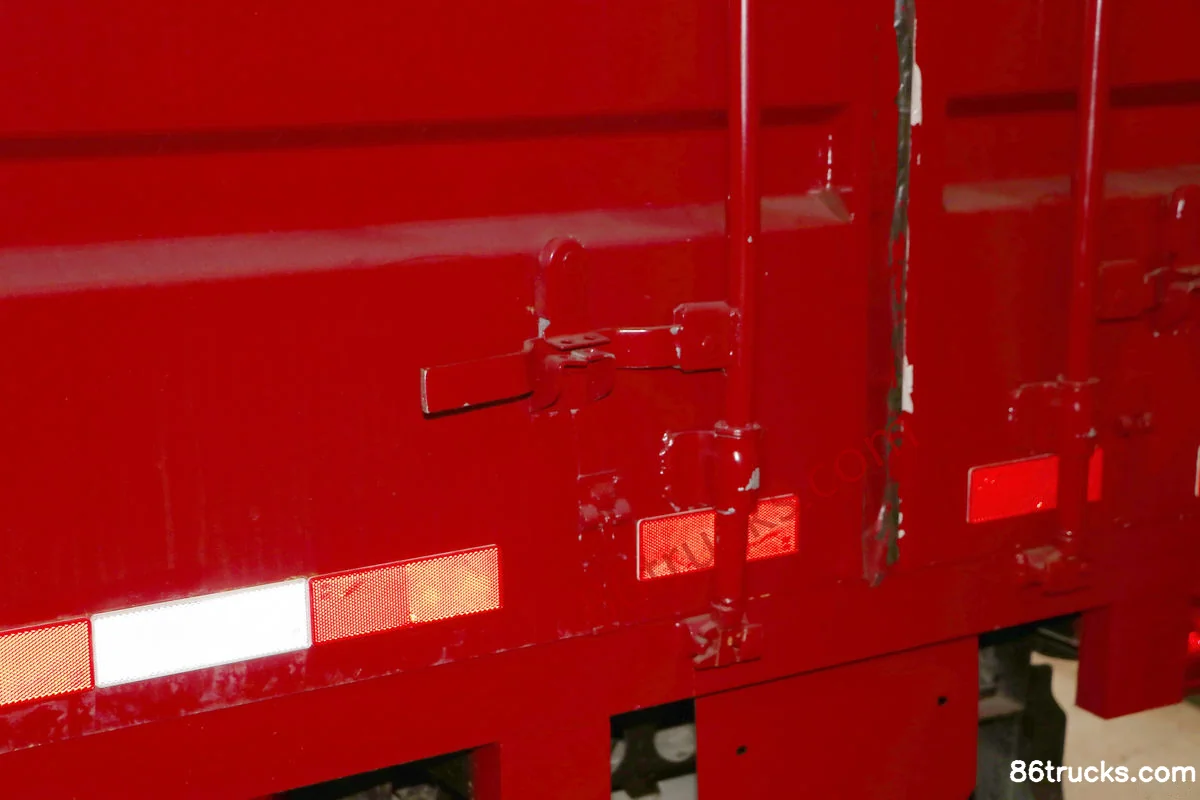

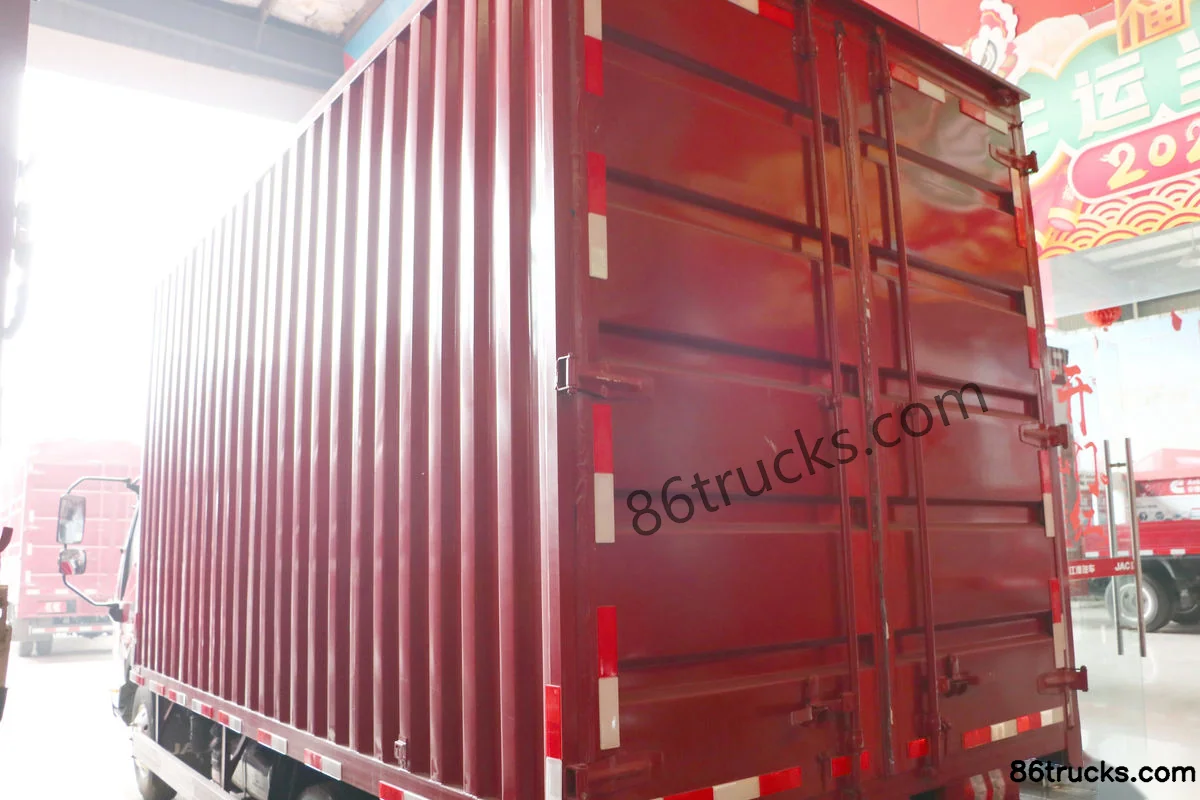

Body3

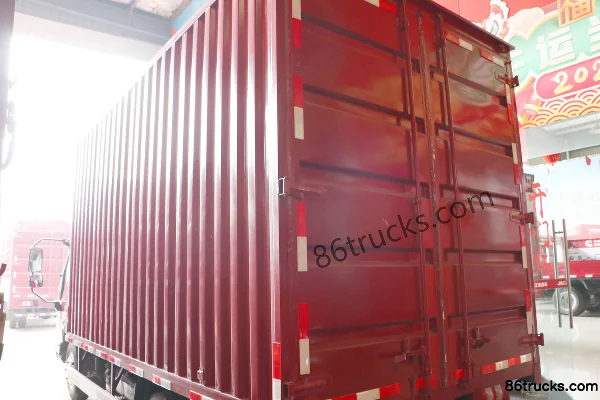

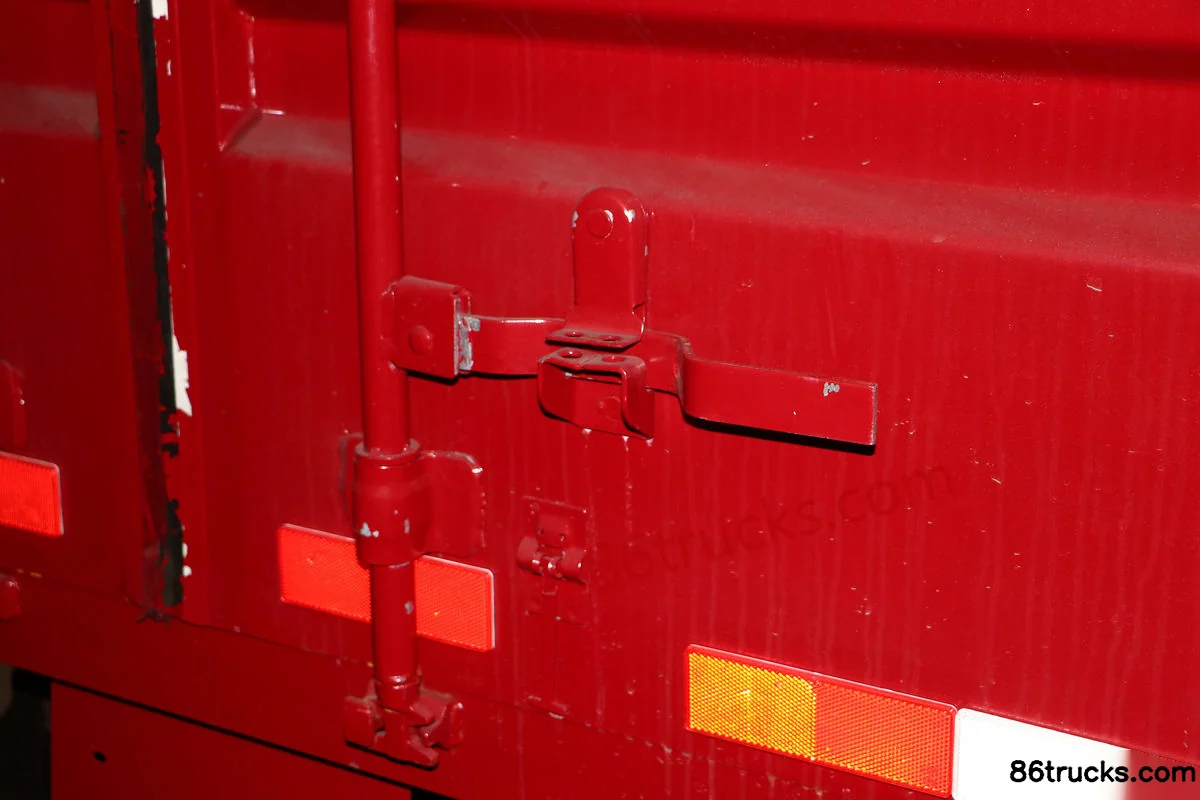

JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck Body (1) | 86Trucks JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck Body (2) | 86Trucks JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck?

Key specs of JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei 490; Transmission: JAC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck suited for?

JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck differ from other variants in the same series?

JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck belongs to JAC J5 light-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling J5 116 hp 4X2(6 wheels) 4.15m single-row enclosed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
