Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis

Export reference
From $52,500
MSRP ¥37.8M CNY
Horsepower: 410
Emission: China IV
Fuel: Diesel
Transmission: Hyundai Truck & Bus (Sichuan)
Curb Weight:: 13.3ton
Wheelbase:: 1990+4710+1350mm
seating capacity: 2Personnel
Rated payload: 17.57ton
Drive 8X4 (12 wheels)
Cargo box type: Chassis

Overview

The Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis is a Heavy-duty cargo trucks featuring 9.3m cargo length, Chassis cargo body, 2Personnel volume and 17.57t payload. On the powertrain side, it comes with 410 hp, 8X4 (12 wheels) drive, China IV emissions and Hyundai Truck & Bus (Sichuan) transmission.

China IV 410 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CHM1310KPQ80M
Type: Chassis
Drive type: 8X4
Wheelbase: 1990+4710+1350mm
Box length class: 9.3m
engine: Hyundai Commercial VehicleD6CF41E4
transmission: Hyundai T230S12
Rear Axle Ratio: 4.111
Cab length: 11.925m
Cab width: 2.495m
Cab height: 3.815m
Front track width: 2070/2070mm
rear track: 1828/1828mm
Curb Weight: 13.3ton
Rated payload: 17.57ton
GVWR: 31ton
Max. speed: 120km/h
Origin: Ziyang, Sichuan
tonnage class: Heavy-duty cargo trucks
Approach angle: 16°
departure angle: 14°
Front/rear suspension: 1.54/2.335m
Energy Type: Diesel
Engine parameters
Engine Brand: Hyundai Commercial Vehicle
Engine Model: Hyundai Commercial VehicleD6CF41E4
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.742L
Emission standard: China IV
Max output power: 302kW
Max hp: 410Horsepower
Max torque: 1796N·m
Transmission Parameters
Transmission Model: Hyundai T230S12
Transmission Brand: Hyundai Truck & Bus (Sichuan)
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 9.3m
Cargo box width: 2.3m
Cargo box height: 0.8m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: Tandem axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 4.111
Leaf spring count: 3/3/12
Tire
Tire Size: 315/80R22.5
Number of tires: 12pcs
Control configuration
ABS:

Photos

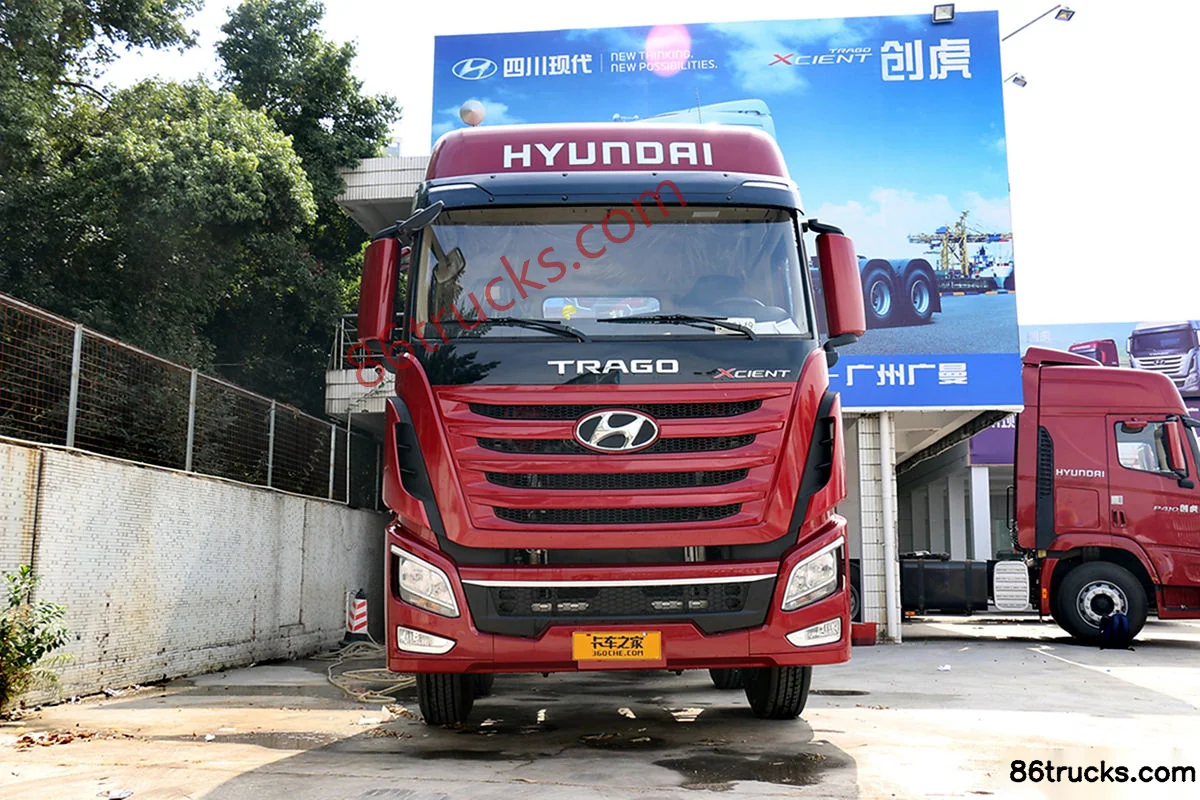

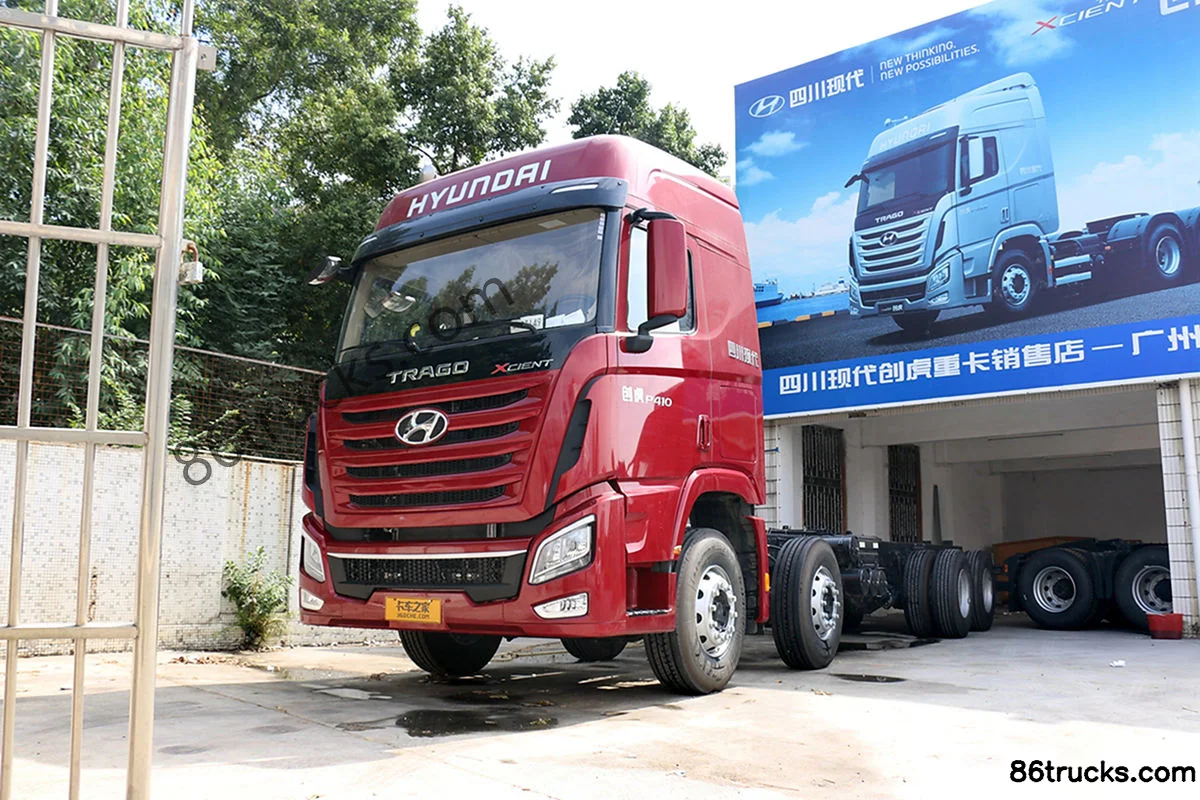

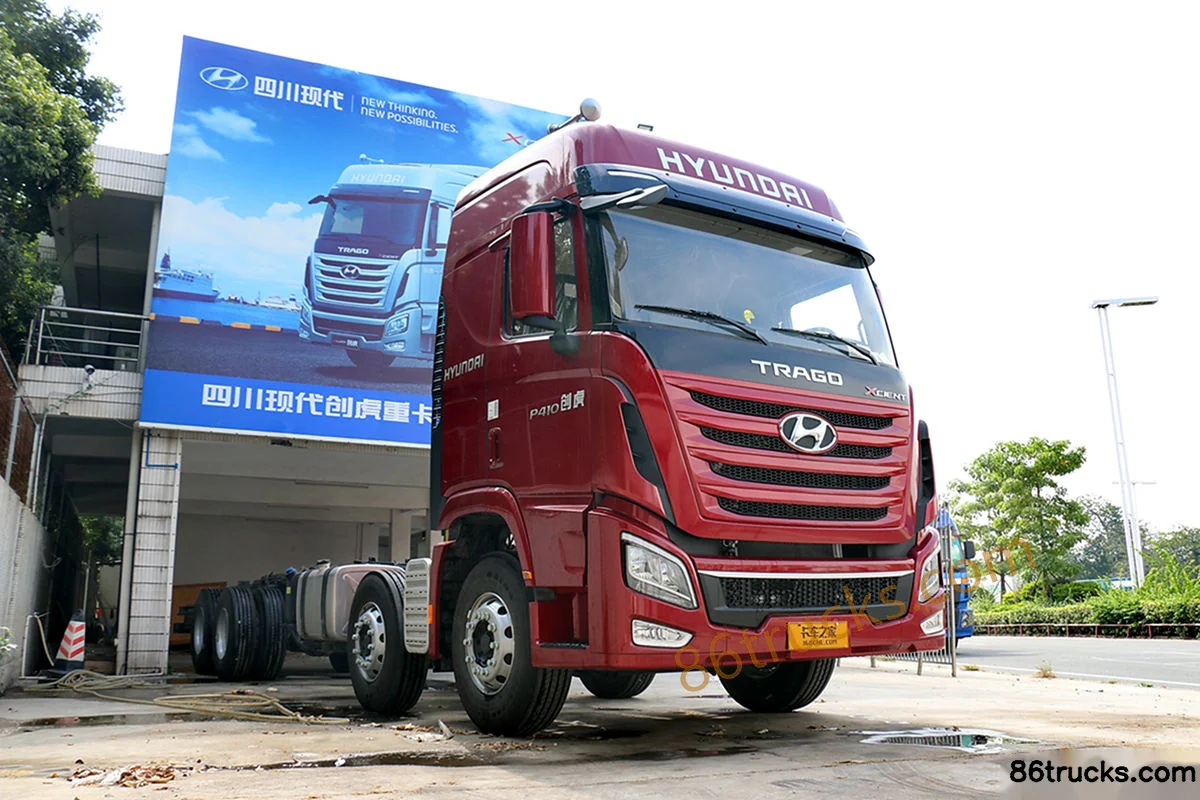

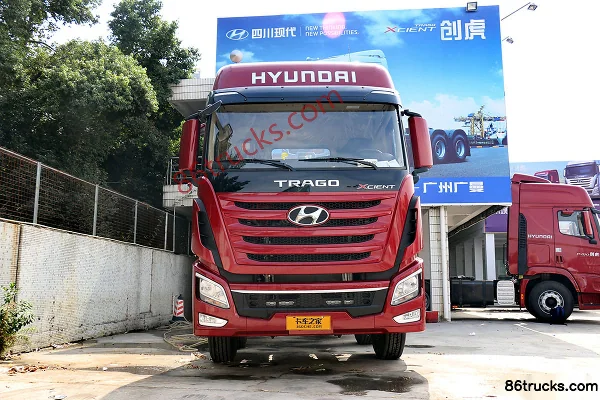

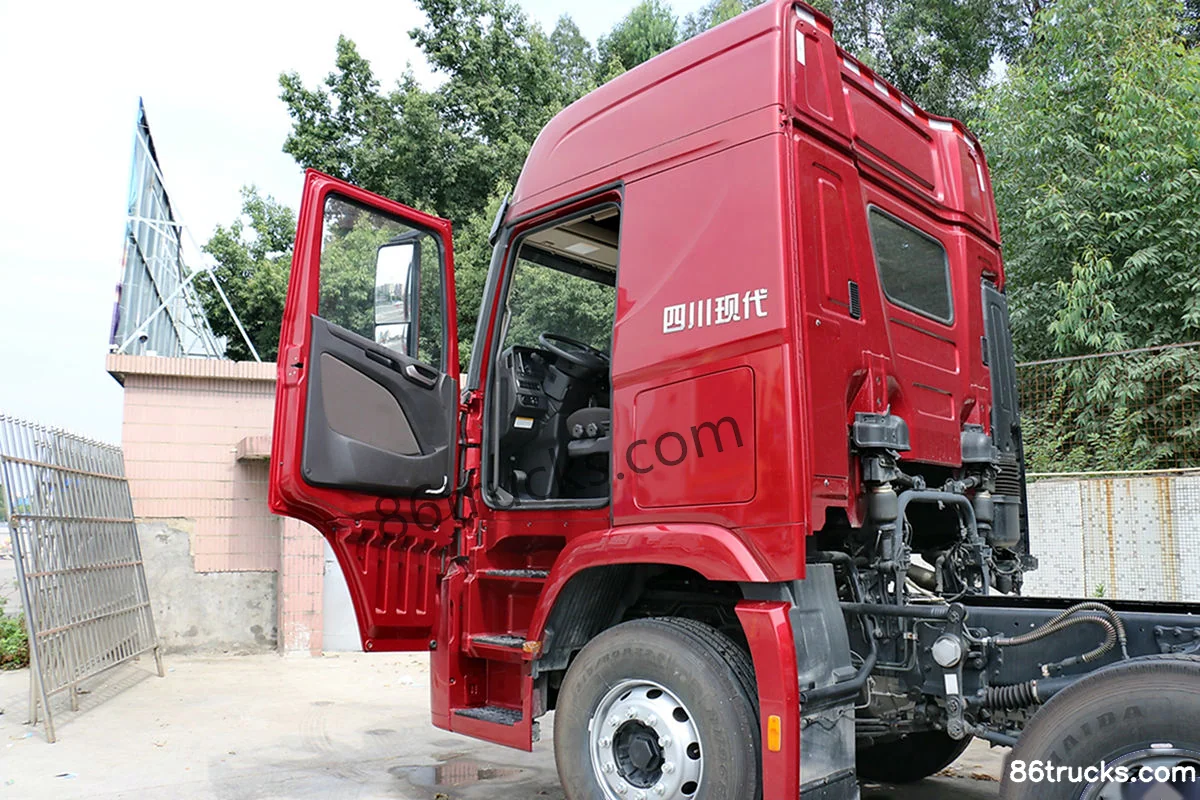

Exterior3

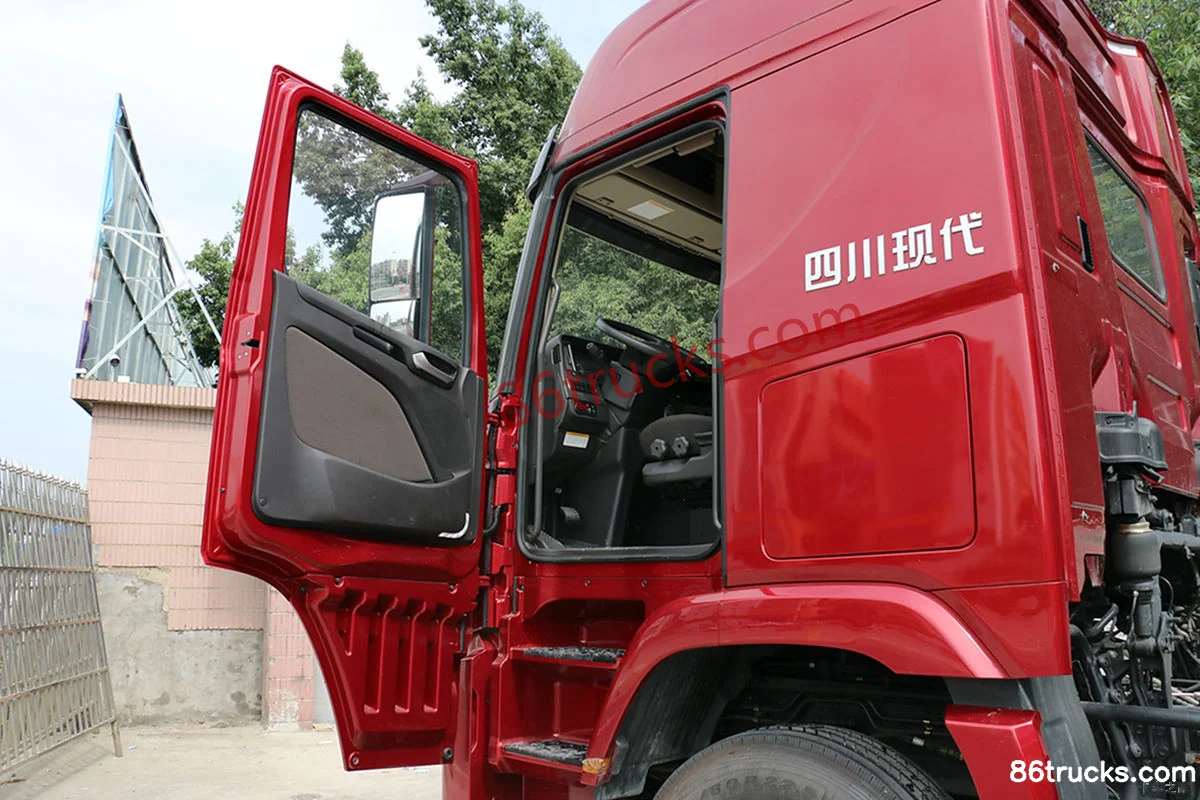

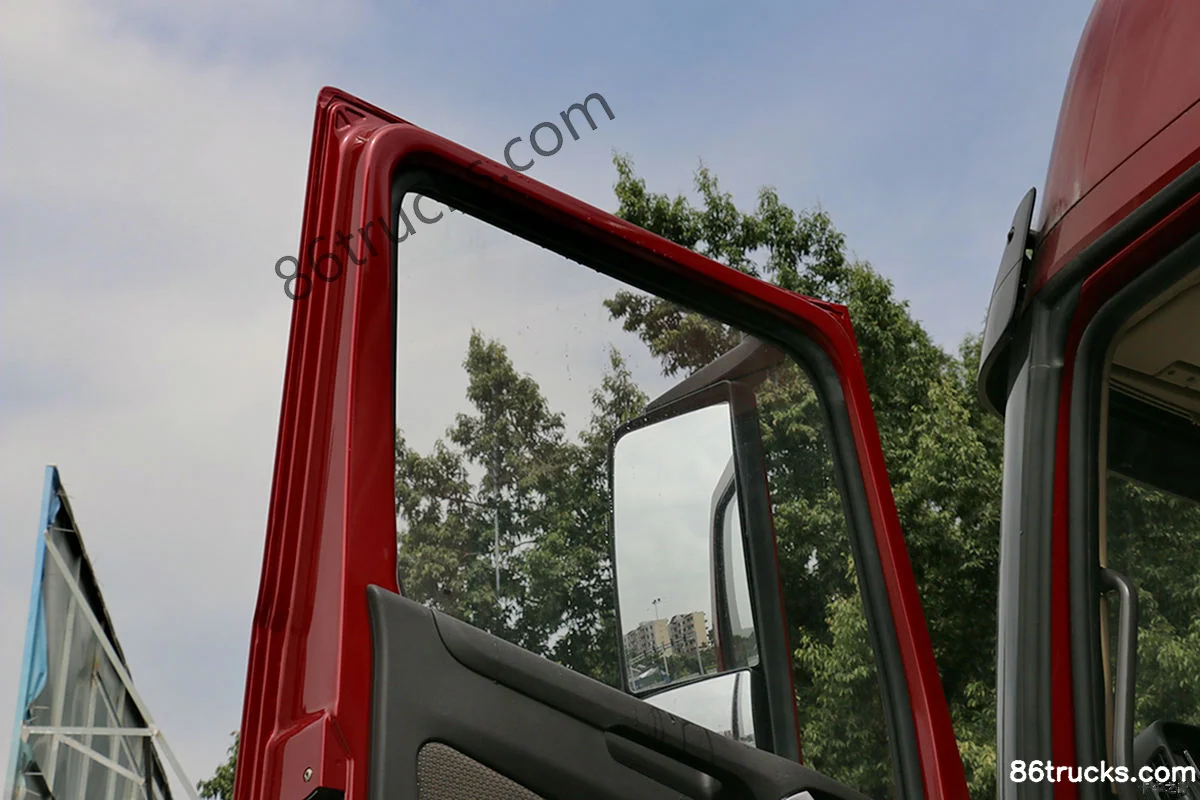

Cab3

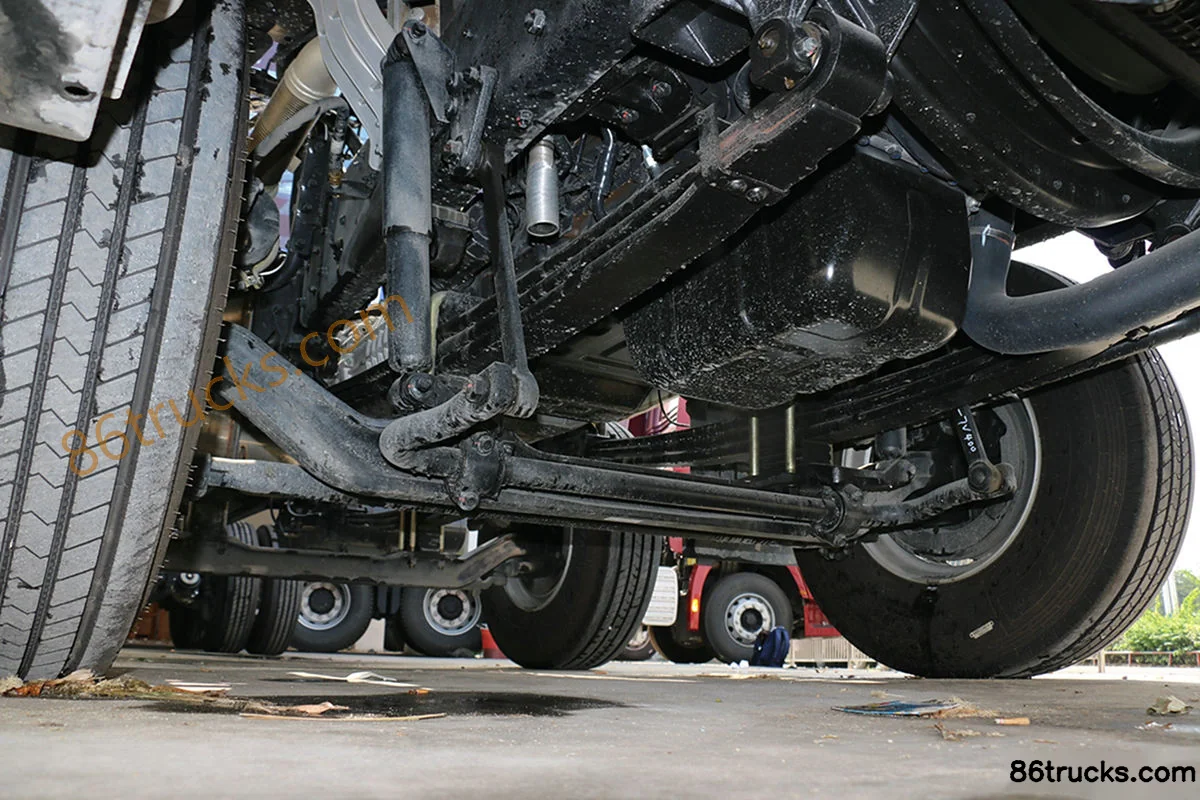

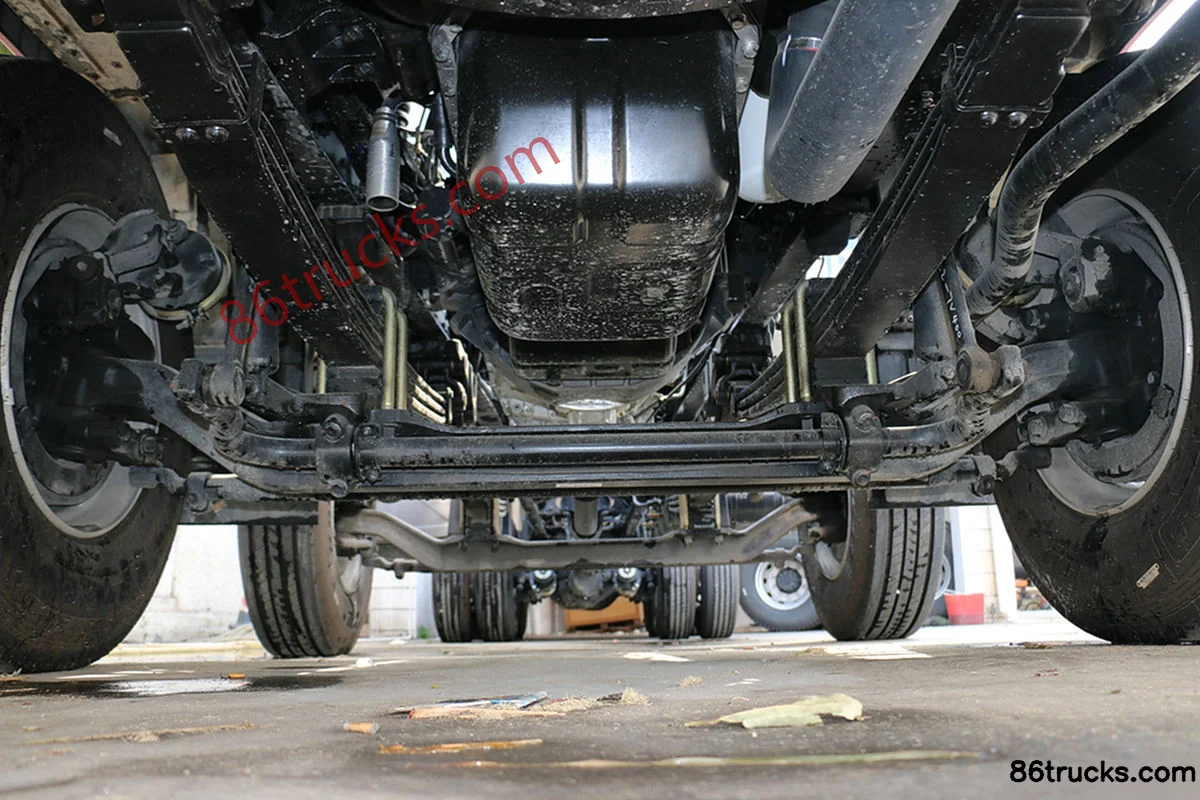

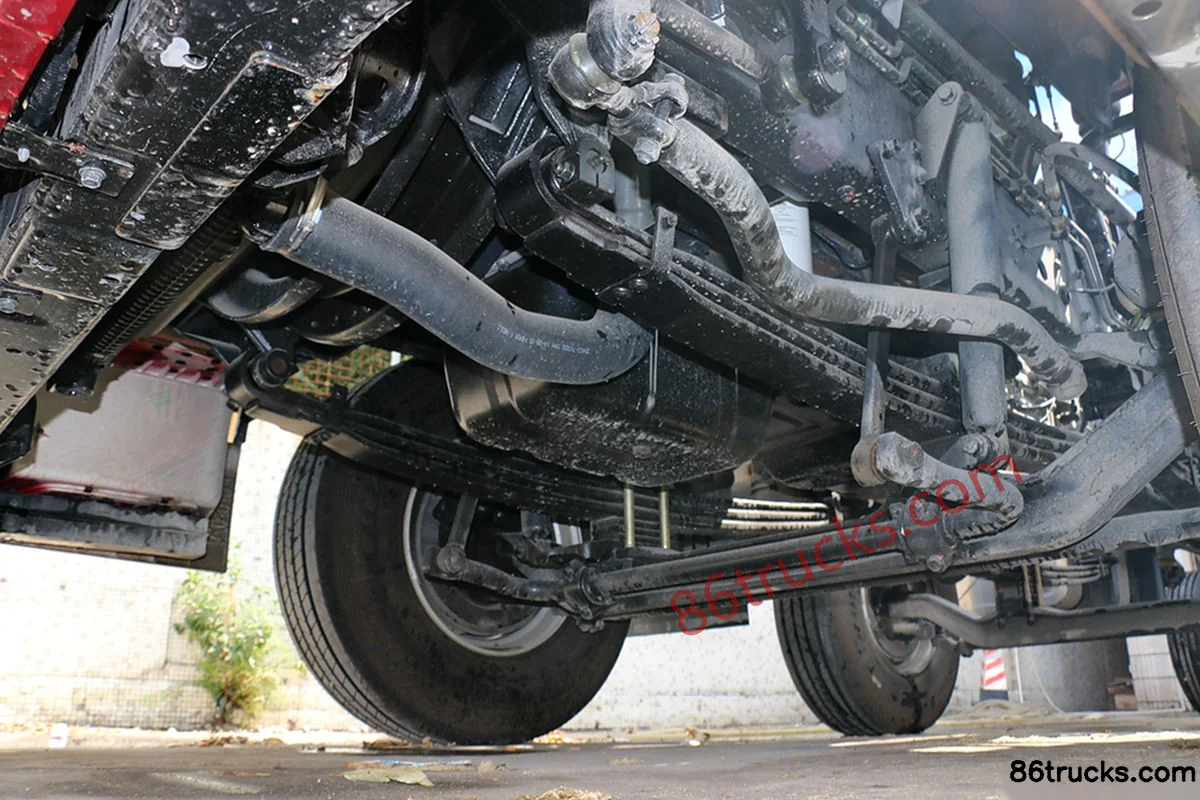

Chassis3

9 photos

FAQ

What is the export price of Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis, and what does it include?

Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis export reference is about From $52,500; MSRP is ¥37.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis?

Key specs of Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis: Drive: 8x4; Horsepower: 410 hp; Emission: China IV; Fuel: Diesel; Transmission: Hyundai Truck & Bus (Sichuan). See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis suited for?

Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis differ from other variants in the same series?

Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis belongs to Sichuan Hyundai Chuanghu XCIENT Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sichuan Hyundai Chuanghu XCIENT heavy truck 410 hp 8X4(12 wheels) 9.3m double-row cargo truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
