FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version)

Export reference
From $20,389
MSRP ¥14.68M CNY
Horsepower: 164
Emission: China IV
Fuel: Diesel
Engine: Dachai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 7.325ton
seating capacity: 3Personnel
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version) is a Medium-duty truck featuring 6.5m cargo length, Chassis cargo body, 3Personnel volume and 7.99t payload. On the powertrain side, it comes with a Dachai 4-cylinder engine, 164 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 164 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1160P62K1L4E4
Type: Chassis
Drive type: 4X2
Wheelbase: 5300mm
engine: DachaiBF4M2012-16E4
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.875
Cab length: 8.8m
Cab width: 2.459m
Cab height: 2.805m
Front track width: 1800mm
rear track: 1800mm
Curb Weight: 7.325ton
Rated payload: 7.99ton
GVWR: 15.51ton
Max. speed: 96km/h
Origin: Changchun, Jilin
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
Remarks: Aluminum radiator, cab lift kit, front multi-leaf (reinforced)/rear multi-leaf (reinforced) suspension, self-contained air-assisted urea system, front underrun protection, reserved space for water tank
Front/rear suspension: 1.4/2.2m
Version: Southwest Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiBF4M2012-16E4
Engine info: Dachai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.04L
Emission standard: China IV
Max output power: 121kW
Max hp: 164Horsepower
Max torque: 530N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Engine Type: 4-cylinder inline, turbocharged & intercooled, electronic unit pump
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 6.5m
Cargo box width: 2.3m
Cargo box height: 0.6m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: J6L semi-floating flat top small cab with half row cab
Cab tilting: Electric
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: Mechanical suspension seat
Chassis Specs
Front axle allowable load: 5690kg
rear axle description: 378 cast axle
rear axle allowable load: 9820kg
Axle ratio: 4.875
Leaf spring count: 10/12+8
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Multimedia features
GPS/Beidou driving recorder:

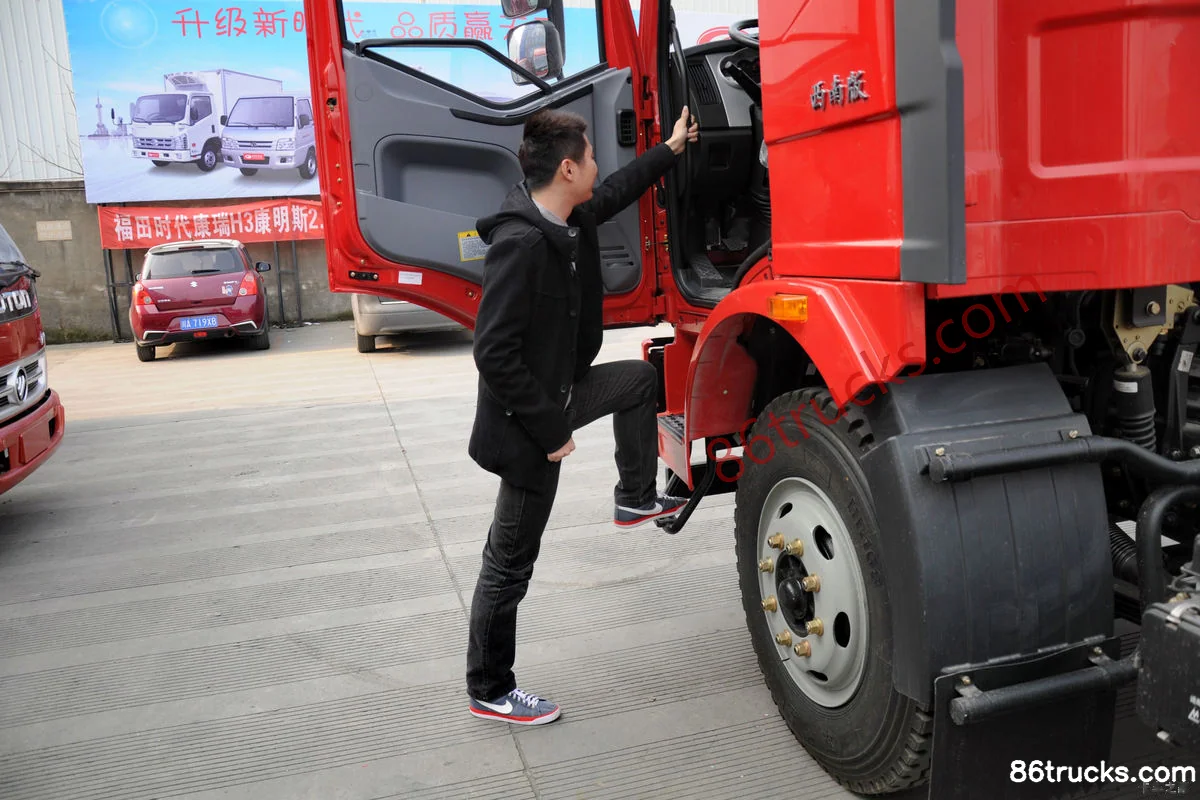

Photos

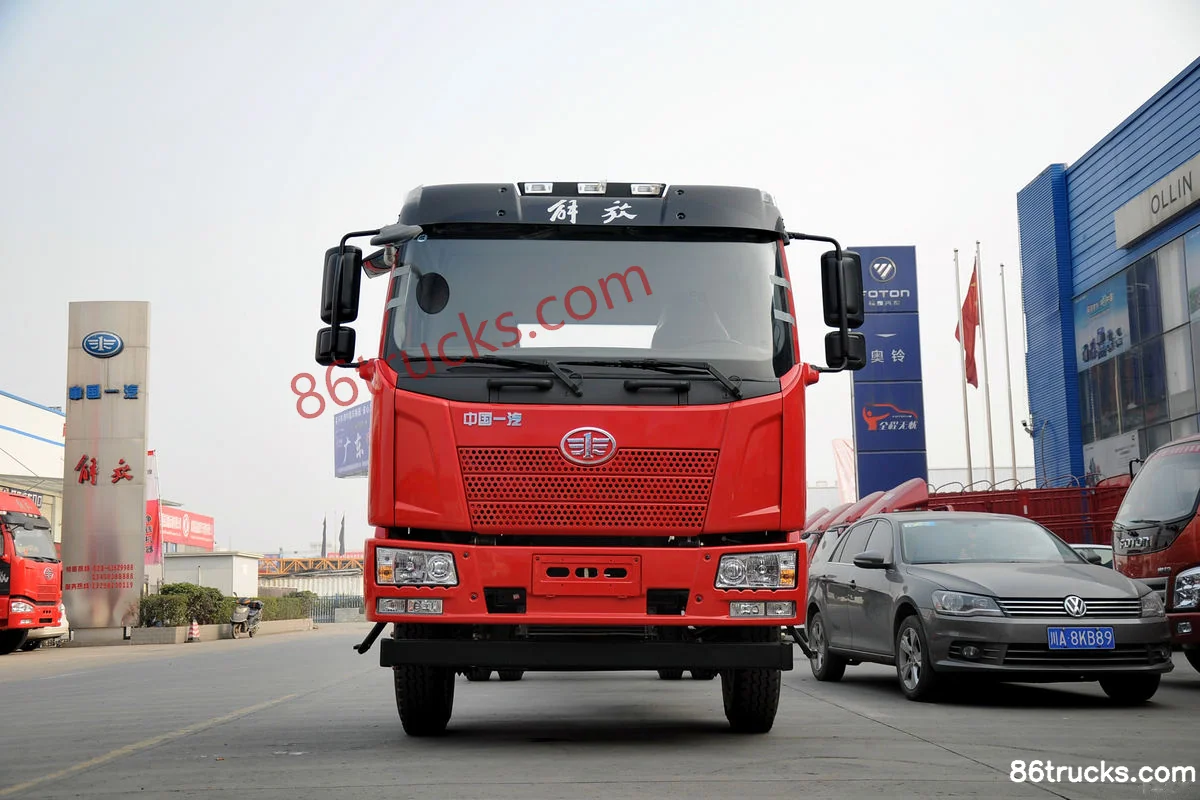

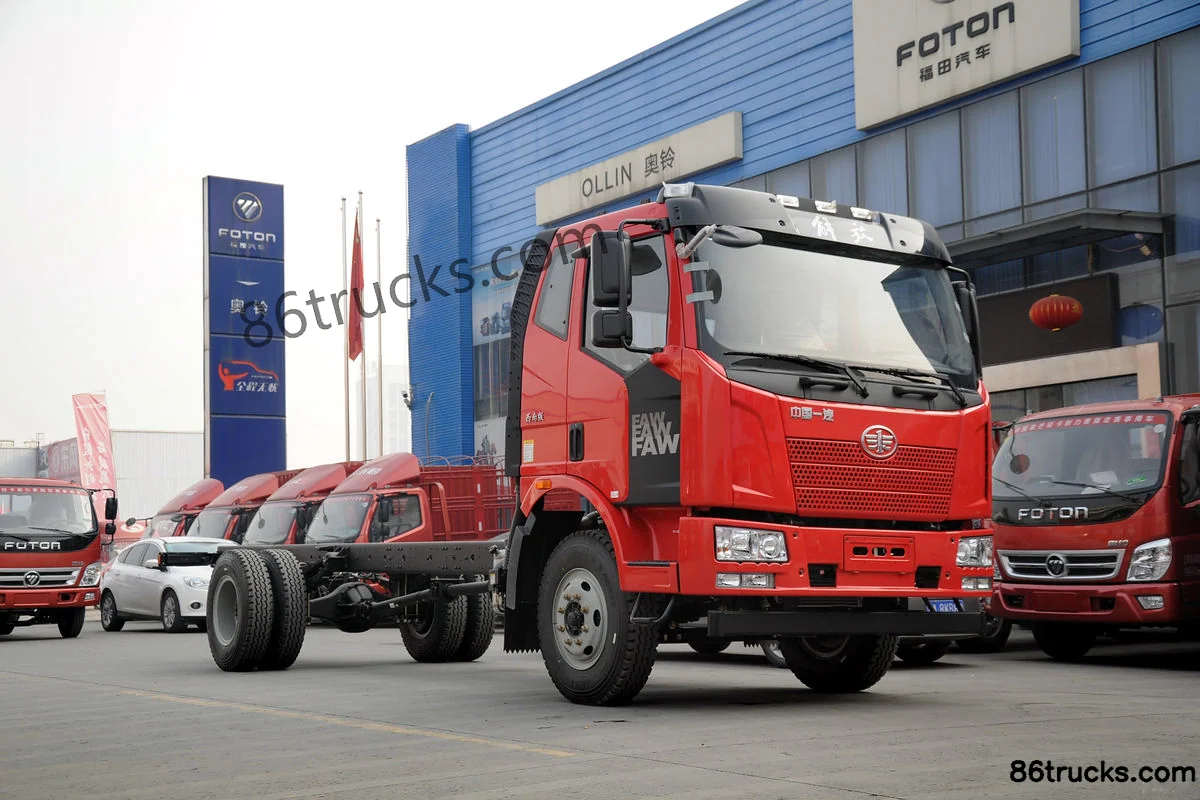

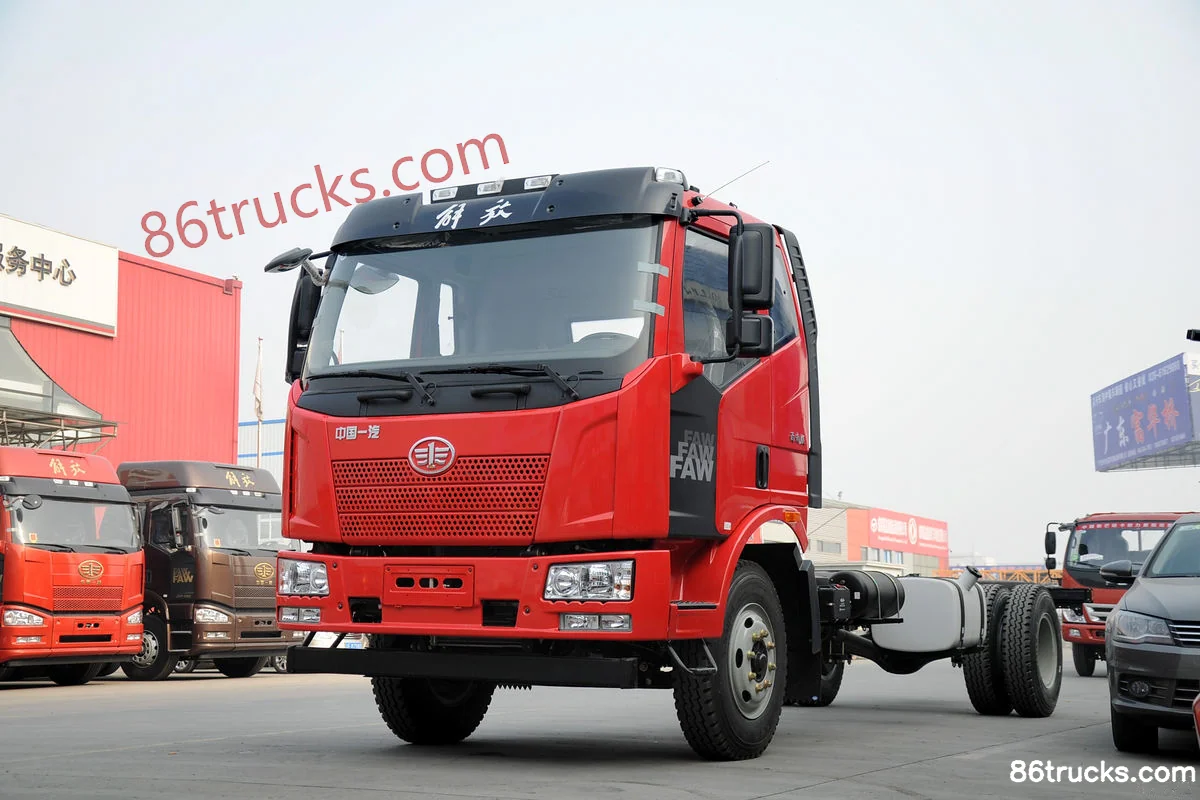

Exterior3

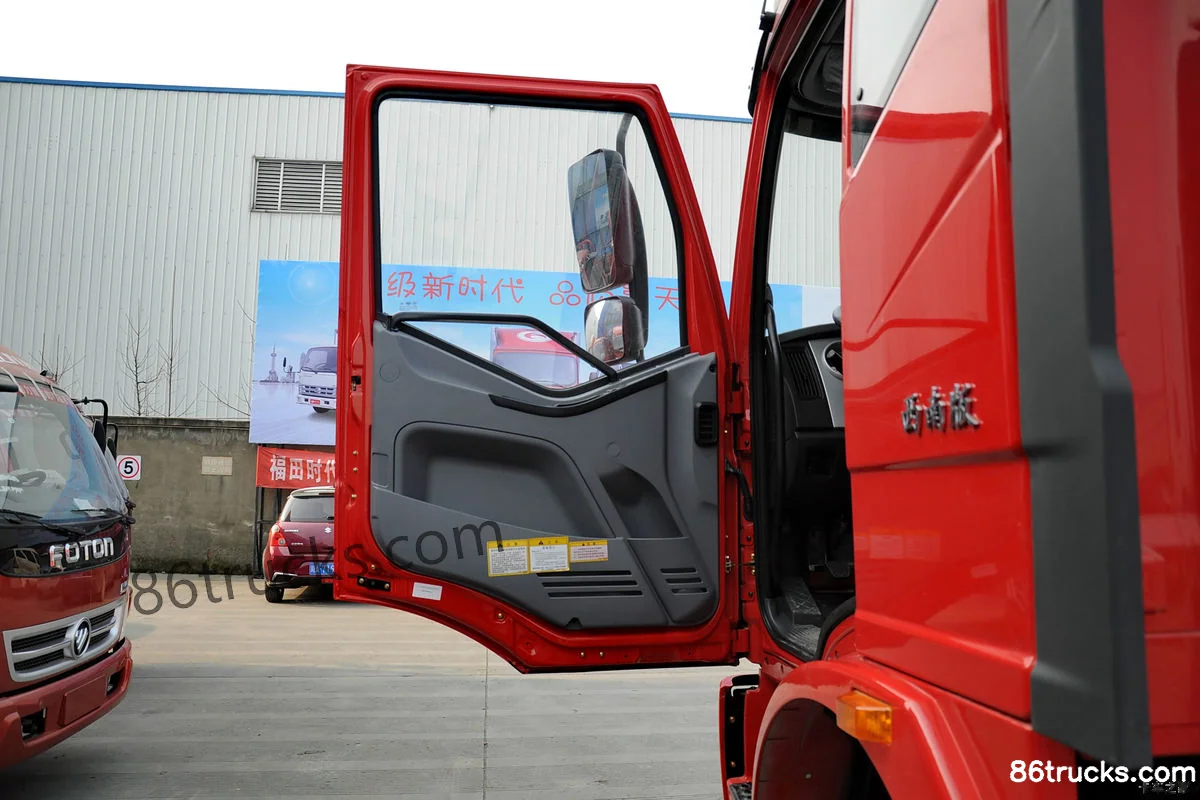

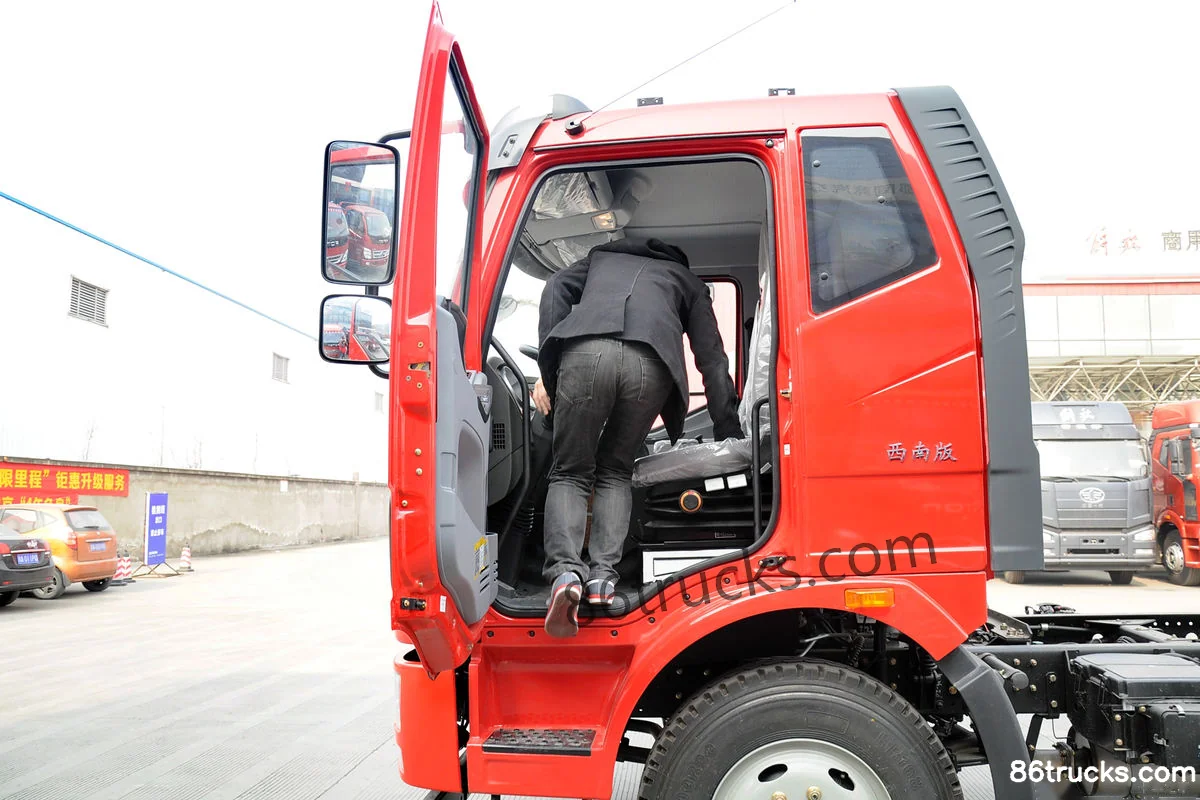

Cab3

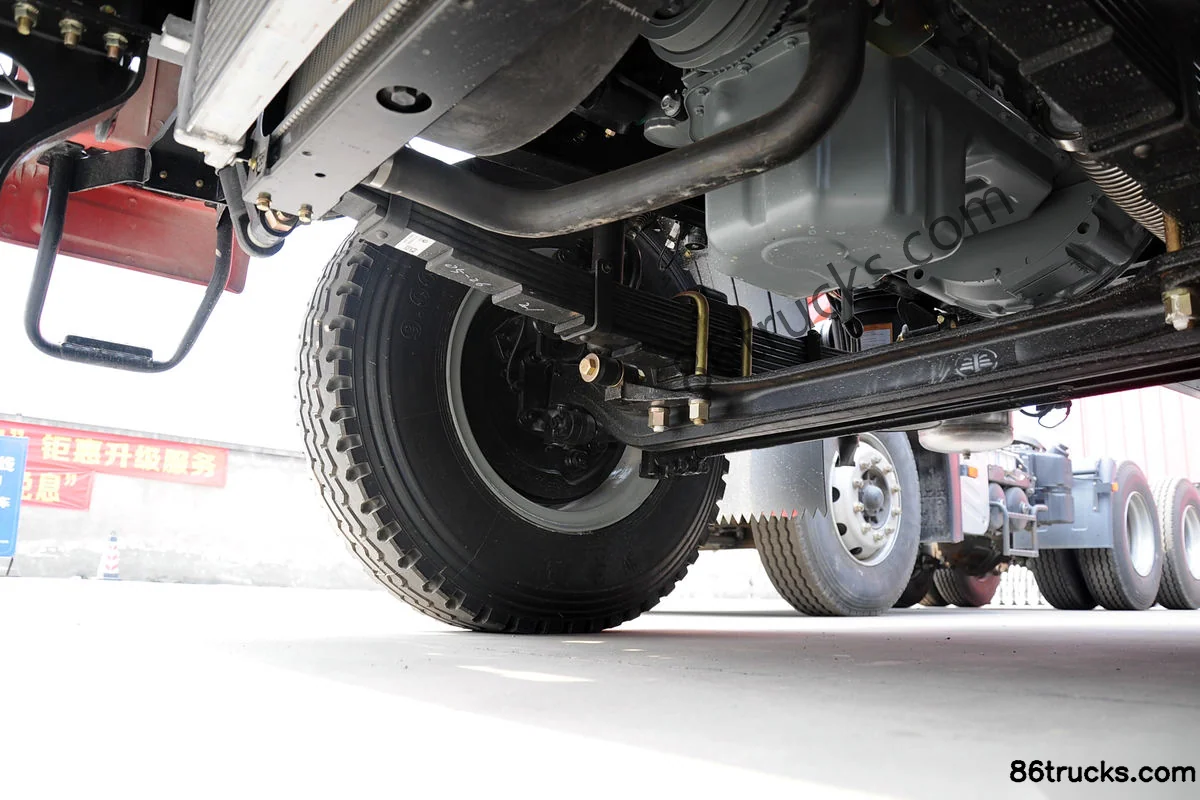

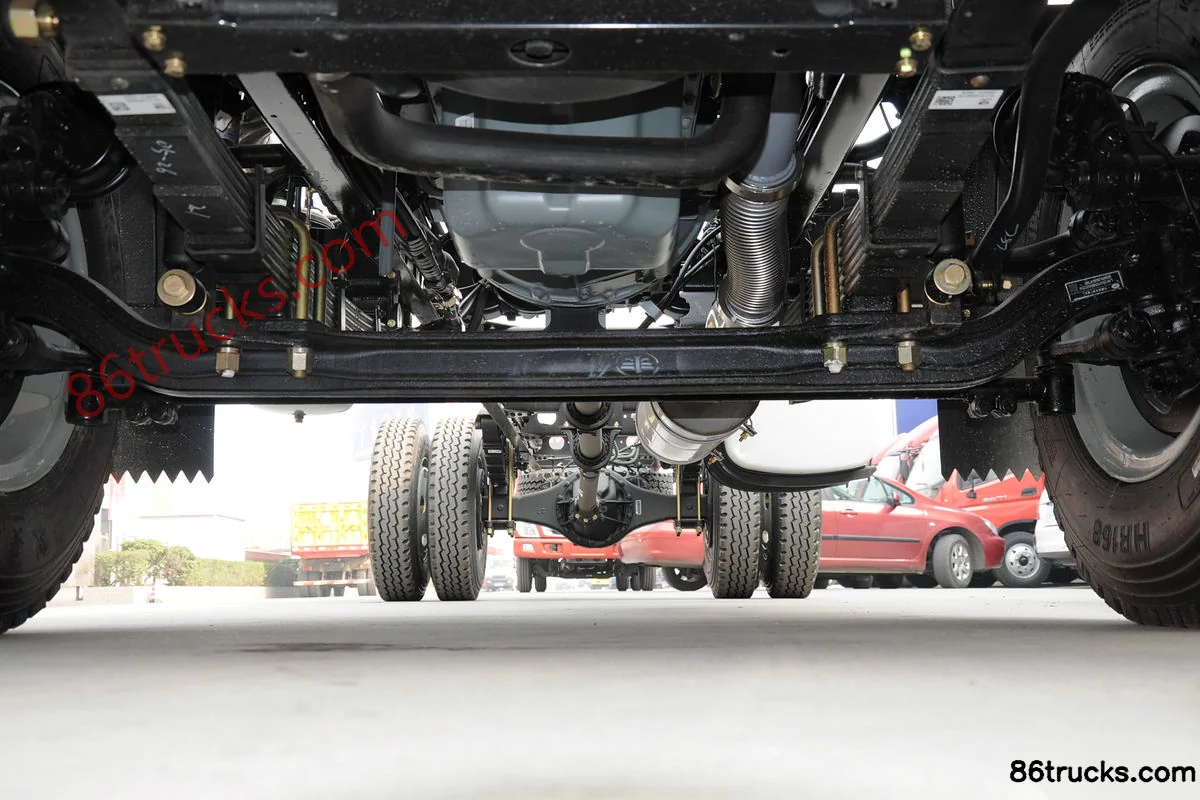

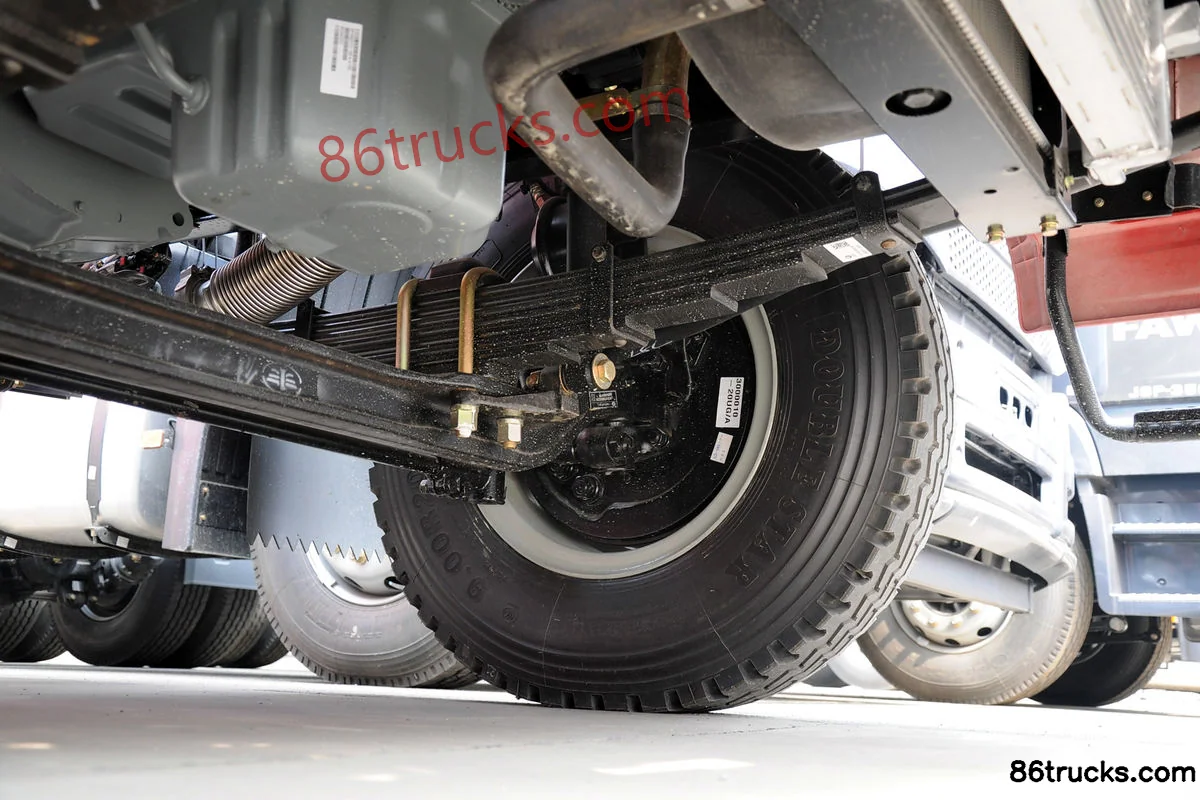

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version), and what does it include?

FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version) export reference is about From $20,389; MSRP is ¥14.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version)?

Key specs of FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version): Drive: 4x2; Horsepower: 164 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version) suited for?

FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version) differ from other variants in the same series?

FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version) belongs to FAW Jiefang J6L Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L Medium Truck 164hp 4X2(6 wheels) Cargo Truck Chassis (Southwest Version)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
