Dachi DC5J100TA 5-speed Manual Transmission

Export reference

MSRP N/A

Features:: Three-shaft fixed-shaft transmission, gears use high-profile full-arc root fillet and strong shot peening technology, shift control optional with pneumatic booster, can be equipped with eddy current and hydraulic retarder.

Max input torque:: 980N·m

1st gear ratio:: 6.116

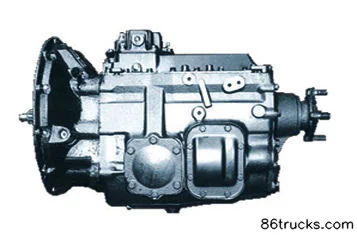

Dachi DC5J100TA 5-speed Manual Transmission exterior

View more photos (1)

Transmission Model: DC5J100TA

Transmission Brand: Dachi

Matching Range: For domestic city buses over 10 meters

Overview

The Dachi DC5J100TA 5-speed Manual Transmission is a parts product with spec DC5J100TA.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters

Transmission Brand: Dachi

Transmission series: DC5J series

Matching Range: For domestic city buses over 10 meters

Features: Three-shaft fixed-shaft transmission, gears use high-profile full-arc root fillet and strong shot peening technology, shift control optional with pneumatic booster, can be equipped with eddy current and hydraulic retarder.

Max input torque: 980N·m

1st gear ratio: 6.116

synchronizer: Yes

Main box center distance: 148mm

2nd gear ratio: 3.727

3rd gear ratio: 2.29

4th gear ratio: 1.444

5th gear ratio:

Reverse Gear 1 Ratio: 6.109

Transmission weight: 220kg

Transmission oil capacity: 8.5L

Control type: FARIZON single-lever or dual-lever control and direct control

Number of gears: 5Gear

shift type: Manual

Transmission Model: DC5J100TA

shift method: Manual

Forward gears: 5Gear

Number of Reverse Gears:

Photos

Exterior1

1 photos

FAQ

What transport jobs is Dachi DC5J100TA 5-speed Manual Transmission suited for?

Match Dachi DC5J100TA 5-speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Dachi DC5J100TA 5-speed Manual Transmission differ from other variants in the same series?

Dachi DC5J100TA 5-speed Manual Transmission belongs to Dachi DC5J Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dachi DC5J100TA 5-speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dachi DC5J100TA 5-speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
