Dachi DC5J150T 5-Speed Manual Transmission
EXW
Export quote
Dachi DC5J Series transmission

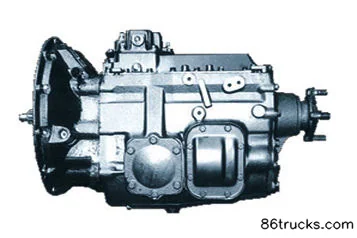

Main model photos
5 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dachi DC5J150T 5-Speed Manual Transmission | — | ||
| Dachi DC5J120TC 5-speed Manual Transmission | — | ||
| Dachi DC5J120TB 5-speed Manual Transmission | — | ||
| Dachi DC5J120TA 5-speed Manual Transmission | — | ||
| Dachi DC5J100TC 5-speed Manual Transmission | — |
Dachi DC5J120TC 5-speed Manual Transmission
EXW
Export quote
Dachi DC5J120TB 5-speed Manual Transmission
EXW
Export quote
Dachi DC5J120TA 5-speed Manual Transmission
EXW
Export quote
Dachi DC5J100TC 5-speed Manual Transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: Dachi
Transmission series: DC5J series
Matching Range: For port trucks or pit trucks with 260-340 hp / Suitable for domestic city buses over 10 meters / For domestic city buses over 10 meters
Features: 1. Compact structure, high strength reserve factor, good reliability. 2. Full synchronizer, light and flexible shift operation. 3. All test standards follow Nissan Diesel standards, high reliability. / Three-shaft fixed-shaft transmission, gears use high-profile full-arc root fillet and strong shot peening technology, shift control optional with pneumatic booster, can be equipped with eddy current and hydraulic retarder. / Three-shaft fixed-shaft transmission, gears use high-tooth full-arc root fillet and shot peening technology, shift control optional with pneumatic booster, can be equipped with eddy current and hydraulic retarder
Max input torque: 1500 / 1176 / 980 / 882 / 813.4 / 700N·m
1st gear ratio: 10.132 / 6.373 / 6.567 / 6.116 / 6.914
synchronizer: Yes
Main box center distance: 165 / 148mm
2nd gear ratio: 5.701 / 3.39 / 4.002 / 3.727 / 3.977
3rd gear ratio: 3.24 / 1.827 / 2.548 / 2.29 / 2.458 / 2.293
4th gear ratio: 1.842 / 1 / 1.55 / 1.444 / 1.525
5th gear ratio: 1 / 0.837
Reverse Gear 1 Ratio: 10.043 / 6.366 / 6.56 / 6.109 / 6.907
Transmission weight: 275 / 220 / 160kg
Transmission oil capacity: 12 / 8.5 / 7.2L
Control type: dual-lever, single-lever and other control methods / FARIZON single-lever or dual-lever control and direct control / Manual shift, can be FARIZON single-lever or dual-lever operated and direct-operated / FARIZON or direct / dual-lever or single-lever
Number of gears: 5Gear
shift type: Manual
Transmission Model: DC5J150T / DC5J120TC / DC5J120TB / DC5J120TA / DC5J100TC / DC5J100TB / DC5J100TA / DC5J90TC / DC5J90TB / DC5J90TA / DC5J80TC / DC5J80TB / DC5J80TA / DC5J70T
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
FAQ
What kind of truck is Dachi Dachi DC5J Series transmission?
Dachi Dachi DC5J Series is an export-oriented transmission lineup with about 14 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Dachi DC5J Series transmission include?
Dachi DC5J Series transmission currently lists about 14 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dachi DC5J Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
