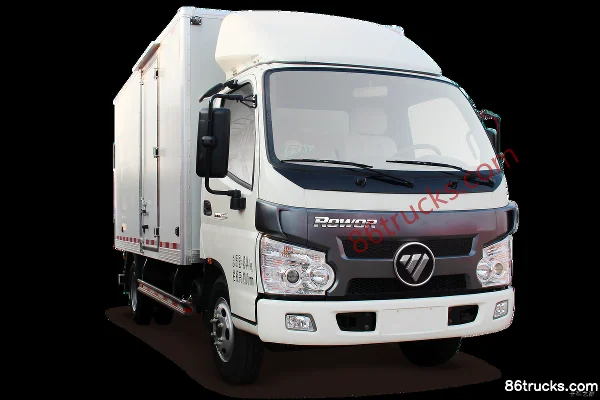

Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck

Export reference
From $16,639
MSRP ¥11.98M CNY
Horsepower: 141
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Curb Weight:: 2.8ton
Wheelbase:: 3360mm
seating capacity: 3Personnel
Rated payload: 1.499ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck is a Light Truck featuring 3.7m cargo length, Van body cargo body, 3Personnel volume and 1.499t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 141 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 141 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5045XXY-1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.7m
engine: FotonISF3.8s4R141
transmission: 6-speed transmission
Cab length: 5.98m
Cab width: 2.185m
Cab height: 2.9m
Front track width: 1720mm
rear track: 1590mm
Curb Weight: 2.8ton
Rated payload: 1.499ton
GVWR: 4.494ton
Max. speed: 95km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 21°
departure angle: 15°
market segment: Urban Distribution
Front/rear suspension: 1.11/1.51m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s4R141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 105kW
Max hp: 141Horsepower
Max torque: 450N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: 6-speed transmission
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.7m
Cargo box width: 2.05m
Cargo box height: 1.9m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1800kg
rear axle description: 1047
rear axle allowable load: 2694kg
Leaf spring count: 3/6+6
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
Power steering:
interior configuration
Power Windows:
Reverse Camera:
Electronic Central Lock:
Service brake
Parking brake: Spring brake

Photos

0 photos

FAQ

What is the export price of Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck, and what does it include?

Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck export reference is about From $16,639; MSRP is ¥11.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck?

Key specs of Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck: Drive: 4x2; Horsepower: 141 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck suited for?

Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck differ from other variants in the same series?

Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck belongs to Foton Xiaoyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Xiaoyun L3 141 hp 4X2(6 wheels) 3.7 m Day Cab Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
