JAC Lingpao L3 2.7L CNG 130hp 4X2(6 wheels) JAC 5-speed 3.9m semi-sleeper van truck
EXW
From $13,236
Export quote
JAC Lingpao L3 Light Truck Cargo Trucks
Main model photos
75 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Lingpao L3 2.7L CNG 130hp 4X2(6 wheels) JAC 5-speed 3.9m semi-sleeper van truck | 4x2 / 130hp / China VI | From $13,236 | |
| JAC Lingpao L3 2.7L CNG 130hp 4X2(6 wheels) JAC 5-speed 4.15m single-row van truck | 4x2 / 130hp / China VI | From $13,028 | |
| JAC Lingpao L3 2.7L CNG 130hp 4X2(6 wheels) JAC 5-speed 3.9m semi-sleeper stake truck | 4x2 / 130hp / China VI | From $13,236 | |
| JAC Lingpao L3 2.7L CNG 130 hp 4X2(6 wheels) JAC 5-Speed 4.18m Single Row Stake Light Truck | 4x2 / 130hp / China VI | From $13,028 | |
| JAC Lingpao L3 2.7 CNG 130 hp 4X2(6 wheels) JAC 5-Speed 3.9m Semi-Row Flatbed Light Truck | 4x2 / 130hp / China VI | From $12,125 |

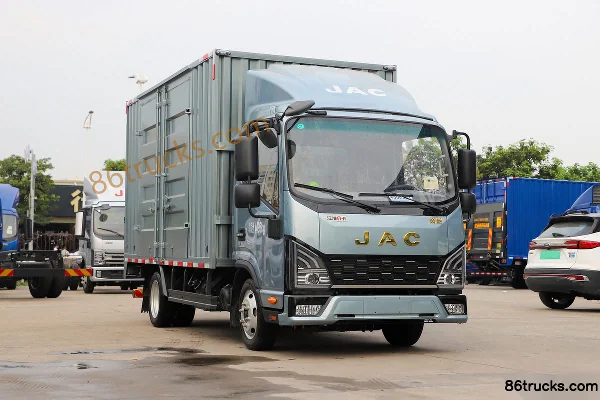

JAC Lingpao L3 2.7L CNG 130hp 4X2(6 wheels) JAC 5-speed 4.15m single-row van truck
EXW
From $13,028
Export quote
JAC Lingpao L3 2.7L CNG 130hp 4X2(6 wheels) JAC 5-speed 3.9m semi-sleeper stake truck
EXW
From $13,236
Export quote
JAC Lingpao L3 2.7L CNG 130 hp 4X2(6 wheels) JAC 5-Speed 4.18m Single Row Stake Light Truck
EXW
From $13,028
Export quote

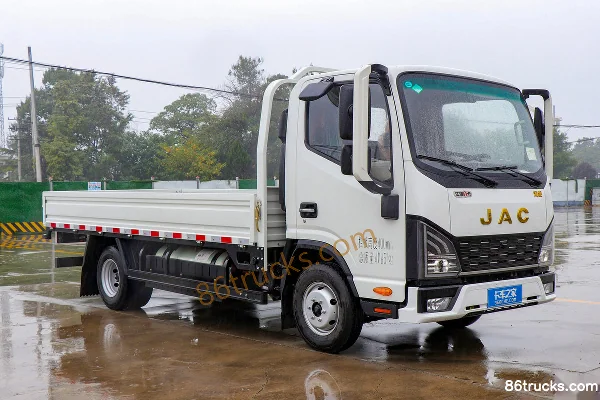

JAC Lingpao L3 2.7 CNG 130 hp 4X2(6 wheels) JAC 5-Speed 3.9m Semi-Row Flatbed Light Truck
EXW
From $12,125
Export quote
Series Specs
Basic Info
Model code (announced): HFC5041XXYP33N1C7NS / HFC5041CCYP33N1C7NS / HFC1041P33N1C7NS / HFC5031CCYP23E3C7QS / HFC5041CCYR53N1C7NS / HFC5041XXYR53N1C7NS / HFC1041R53N1C7NS / HFC5031CCYP23E3B4QS / HFC5031XXYP23E3B4QS / HFC1031P23E3B4QS-1 / HFC1031P23E3B4QS / HFC1041P23N3C1QS / HFC5031CCYP23N3C1QS / HFC5031XXYP23N3C1QS / HFC1031P23N3C1QS-1 / HFC1031P23N3C1QS / HFC5041XXYP23K1C7QS / HFC5031CCYP23E2C1QS / HFC5031CCYP23E2B3QS / HFC5031XXYP23E2C1QS / HFC5031XXYP23E2B3QS / HFC1031P23E2C1QS / HFC1031P23E2B3QS / HFC5041CCYP23K1C7QS-1
Type: enclosed cargo truck / stake truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 3365 / 3600 / 2950mm
Box length class: 3.9 / 4.2 / 3.8 / 3.2 / 3.5m
Engine Model: QuanchaiF28N-130E63 / DonganDAN20L / DonganDAN20CL / QuanchaiQ25A-150E60 / DonganDAM16KL / F28N-130E63
Transmission Model: JACML525A1 / DonganT25R / Dongan 5-Speed / WLYWLY5G32C / DonganDAT18R / ML525A1 / T25R
Rear Axle Ratio: 5.375 / 4.875
Cab length: 5.995 / 5.99 / 5.58 / 5.6 / 5.577m
Cab width: 2 / 2.11 / 2.1 / 1.91/2 / 1.91 / 1725m
Cab height: 3.1 / 2.9 / 2.26 / 2.85 / 2.37 / 2.21 / 2.075 / 2.1 / 3m
Front track width: 1475 / 1525 / 1455 / 1500 / 1440 / 1415mm
rear track: 1405 / 1425 / 1475 / 1330mm
Curb Weight: 2.805 / 2.72 / 2.565 / 2.04 / 2.05 / 1.77 / 2.005 / 2.23 / 2.25 / 1.9 / 2.02 / 1.935 / 2.7 / 1.97 / 1.665 / 2.5ton
Rated payload: 1.495 / 1.58 / 1.735 / 1.325 / 1.45 / 1.365 / 1.605 / 1.315 / 1.295 / 1.595 / 1.95 / 1.135 / 1.115 / 1.465 / 1.345 / 1.165 / 1.13 / 1.665 / 0.995 / 1.395 / 1.7ton
GVWR: 4.495 / 3.495 / 3.195 / 4.085 / 3.025 / 3.095 / 2.79 / 4.125ton
Max. speed: 110 / 105km/h
Origin: Suining, Sichuan / Hefei, Anhui
tonnage class: Light Truck
Approach angle: 20 / 15 / 22 / 13 / 14°
departure angle: 19 / 12 / 18 / 14 / 13°
Remarks: Optional ratio 4.875 / Optional 160L+120L dual gas cylinders. / With tail lift / Optional ratio 5.375; optional leaf spring configuration 4/7+6
Front/rear suspension: 1.075/1.555 / 1.11/1.515 / 1.11/1.285 / 1.11/1.52 / 1.125/1.68 / 1.125/1.665 / 1.11/1.54 / 1.135/1.492 / 1.135/1.372m
Energy Type: Compressed Natural Gas (CNG) / gasoline / Diesel
Engine parameters
Engine Brand: Quanchai / Dongan
Engine info: Quanchai2.7L / Dongan2L / Dongan2.0L / Quanchai2.5L / Dongan1.6L / QuanchaiQ25A
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.723 / 1.998 / 2.496 / 1.597L
Emission standard: China VI
Max output power: 95 / 110 / 93 / 90kW
Max hp: 130 / 150 / 127 / 122Horsepower
Max torque: 235 / 204 / 185 / 330 / 158N·m
Max torque speed: 4400-4800 / 1200-3000 / 4400rpm
Rated speed: 6000 / 3000rpm
Transmission Parameters
Transmission Brand: Dongan / WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body / Stake type / stake body
FAQ
What kind of truck is JAC JAC Lingpao L3 Light Truck Cargo Trucks?
JAC JAC Lingpao L3 Light Truck is an export-oriented Cargo Trucks lineup with about 89 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Lingpao L3 Light Truck Cargo Trucks?
JAC Lingpao L3 Light Truck Cargo Trucks export reference is about $8,167 – $14,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Lingpao L3 Light Truck Cargo Trucks cover?
JAC Lingpao L3 Light Truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Compressed Natural Gas (CNG). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Lingpao L3 Light Truck Cargo Trucks?
For JAC Lingpao L3 Light Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC Lingpao L3 Light Truck Cargo Trucks include?
JAC Lingpao L3 Light Truck Cargo Trucks currently lists about 89 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Lingpao L3 Light Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
