Dayun Ruisheng 4X2(6 wheels) 3.2m electric dump truck

Export reference
MSRP N/A
Rated payload:: 6.665ton
Wheelbase:: 2860mm
Cargo box length:: 3.2m
Model code (announced):: DYQ3123BEVAB
Cab length:: 5.46m
GVWR:: 11.995ton
Drive 4X2 (6 wheels)
CLTC range: 220km
Motor 1 Brand: Langao
Curb Weight: 4.955ton

Overview

The Dayun Ruisheng 4X2(6 wheels) 3.2m electric dump truck is a Light Truck featuring 220km battery/range, Langao motor, 4X2 (6 wheels) drive and 6.665t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYQ3123BEVAB
Drive type: 4X2
Wheelbase: 2860mm
Cab length: 5.46m
Cab width: 2.18m
Cab height: 2.2m
CLTC range: 220km
Curb Weight: 4.955ton
Rated payload: 6.665ton
GVWR: 11.995ton
Max. speed: 85km/h
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Langao
Motor 1 Model: TZ342XSLGV01
Motor Type: Permanent magnet synchronous motor
total rated power: 105kW
Peak power: 165kW
Battery/Charging
Battery Brand: CATL
Cargo box parameters
Cargo box length: 3.2m
Cargo box width: 2m
Cargo box height: 0.6m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 4000kg
rear axle allowable load: 7995kg
Tire
Tire Size: 245/70R17.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

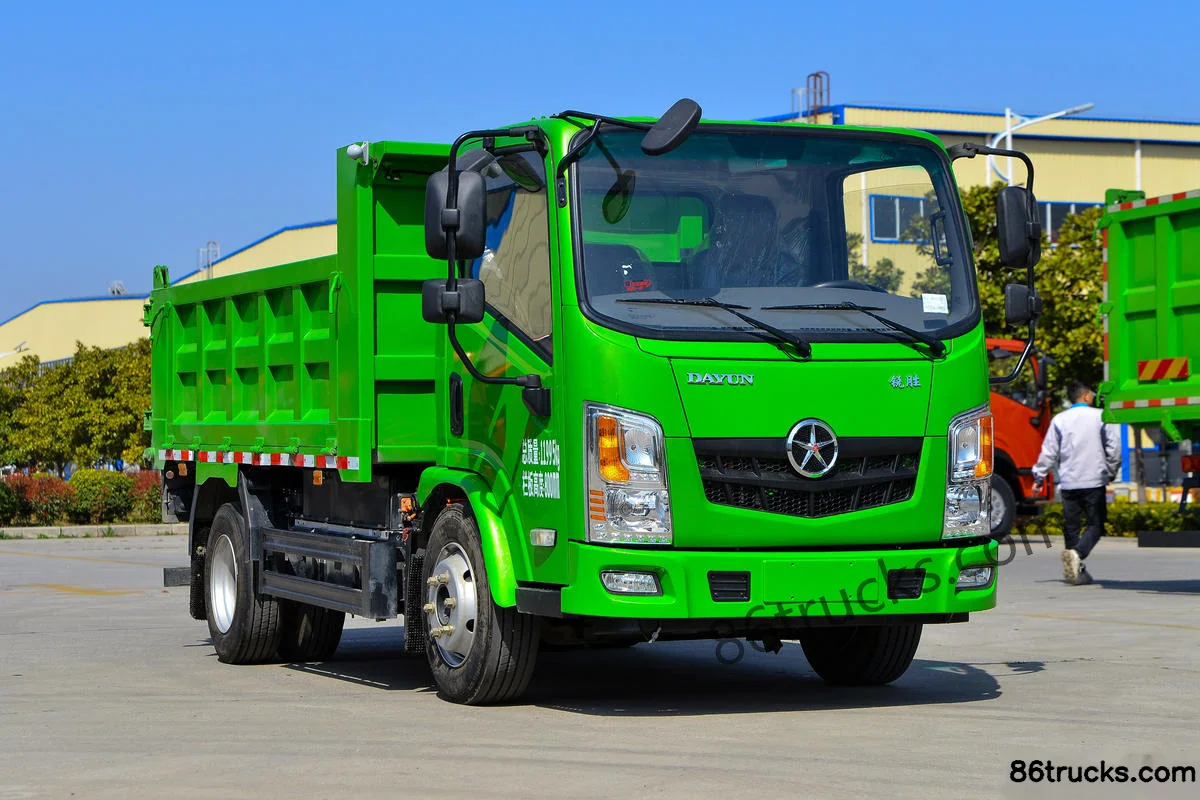

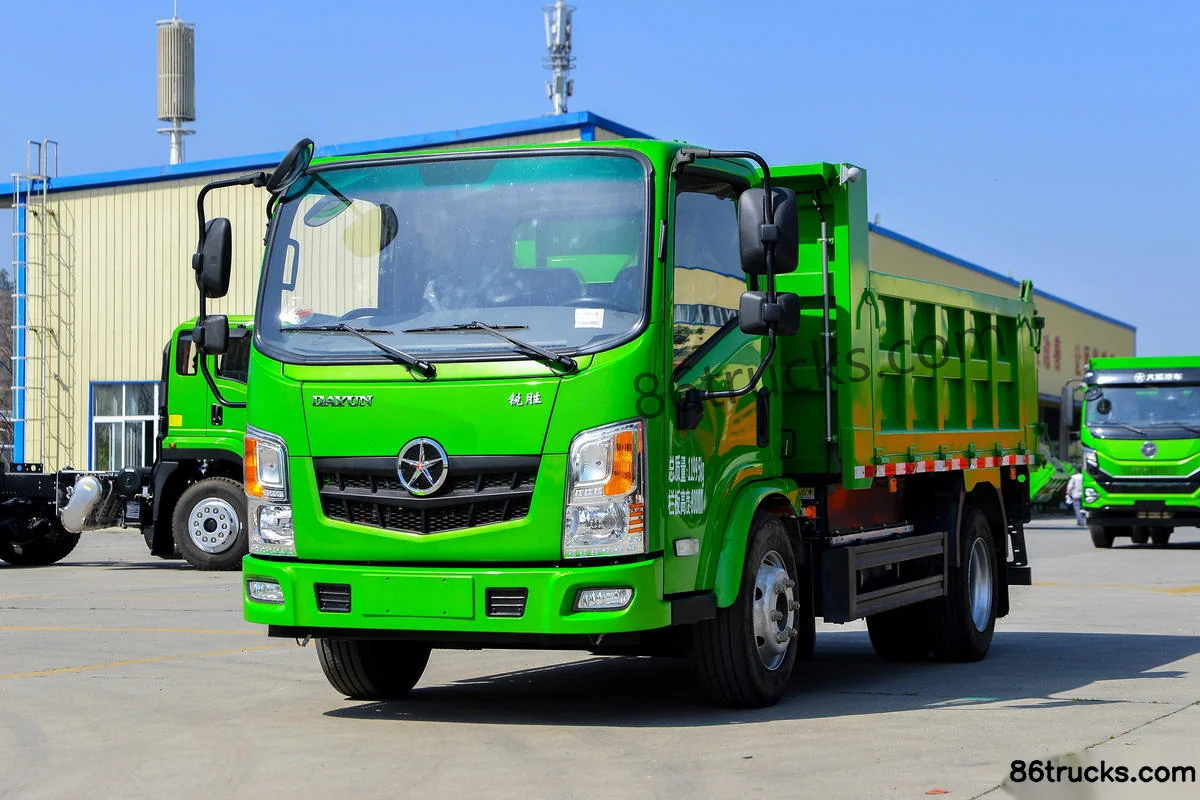

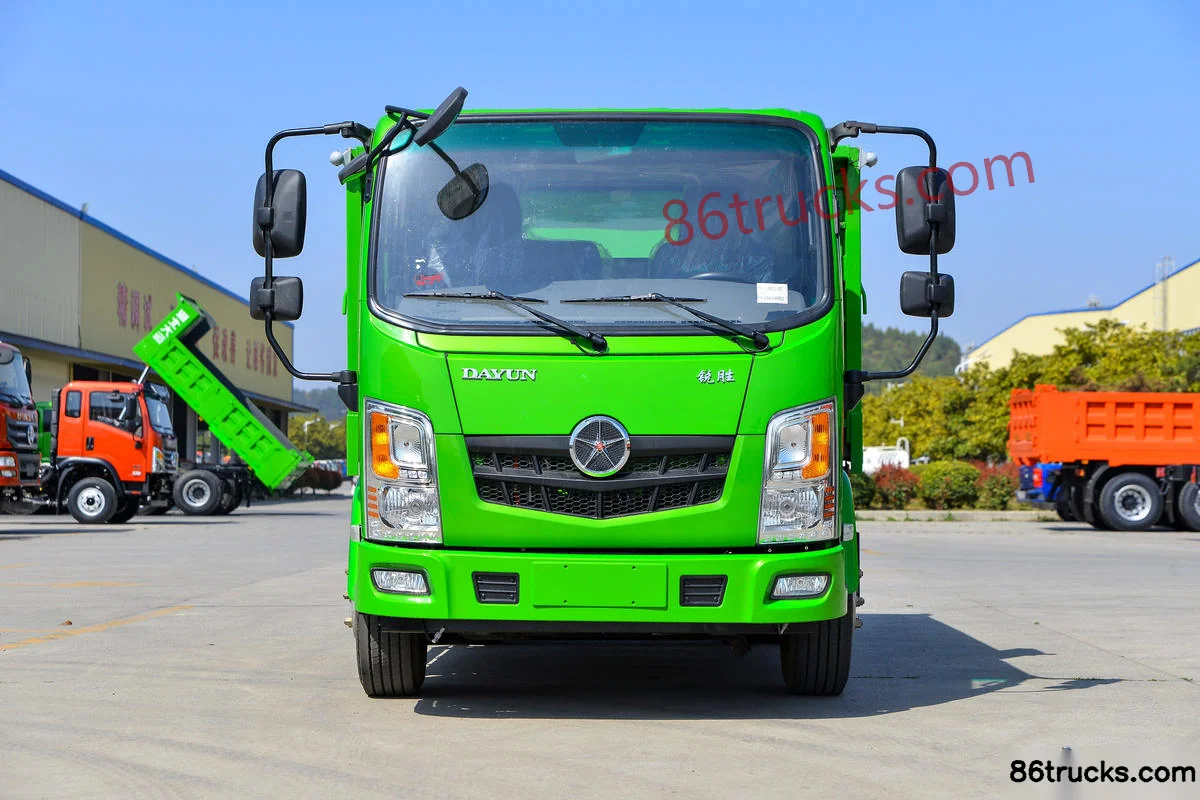

Exterior3

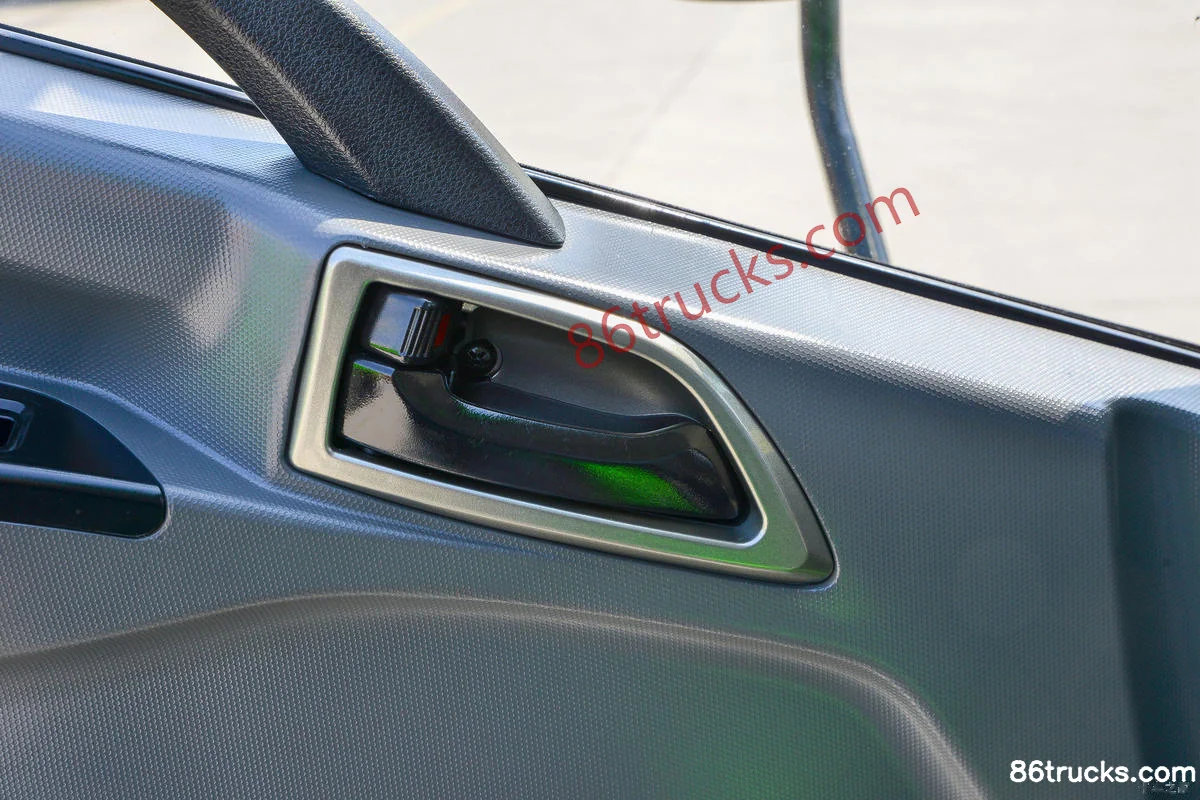

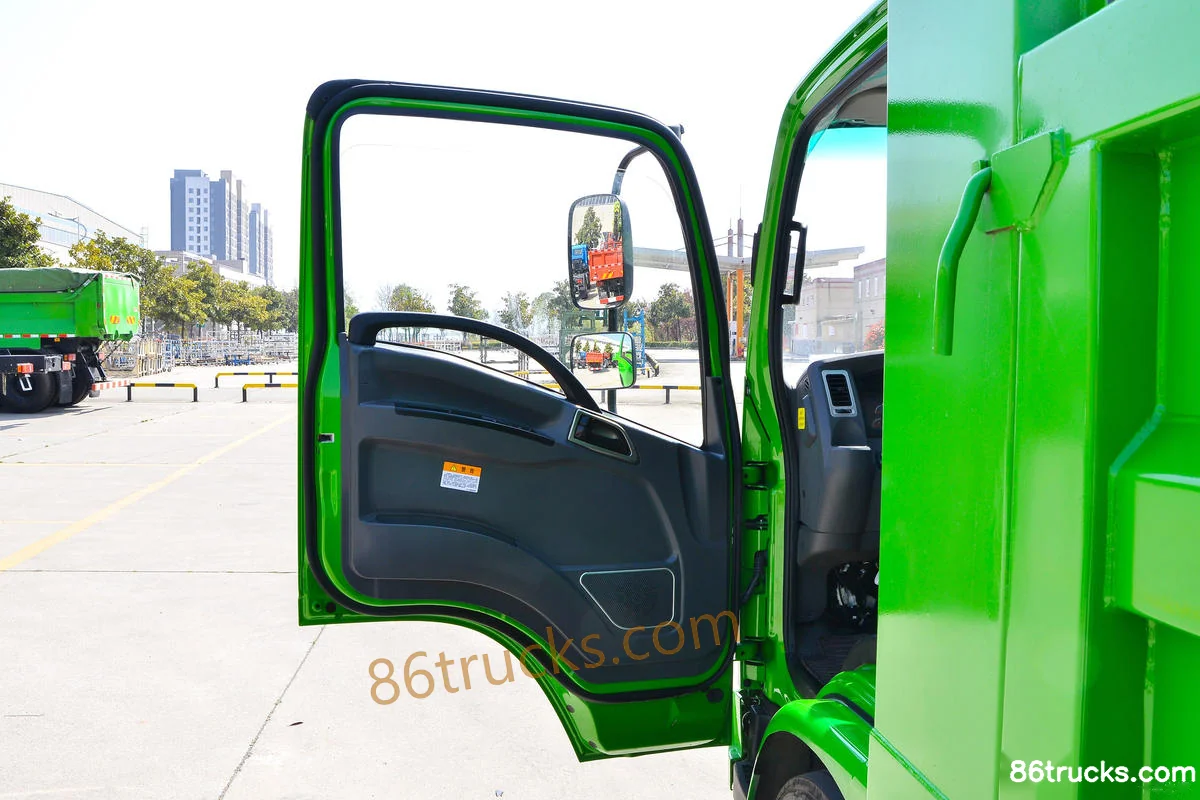

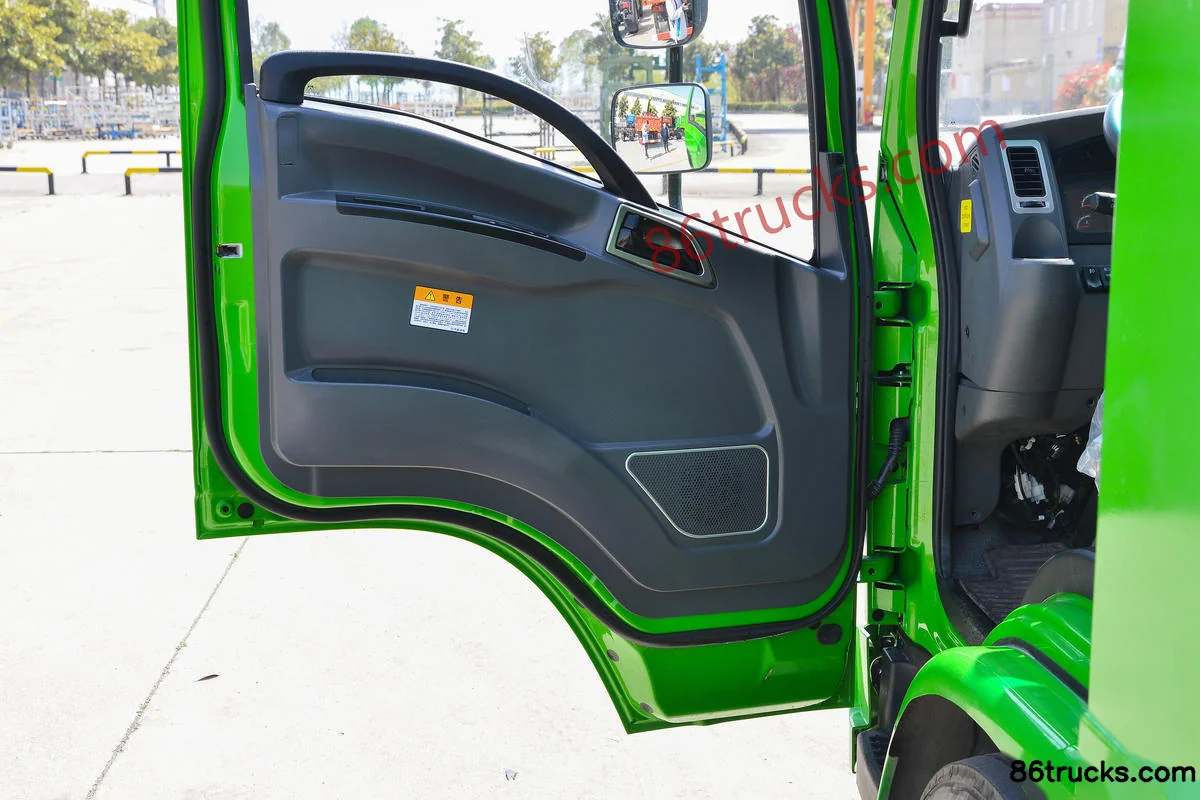

Cab3

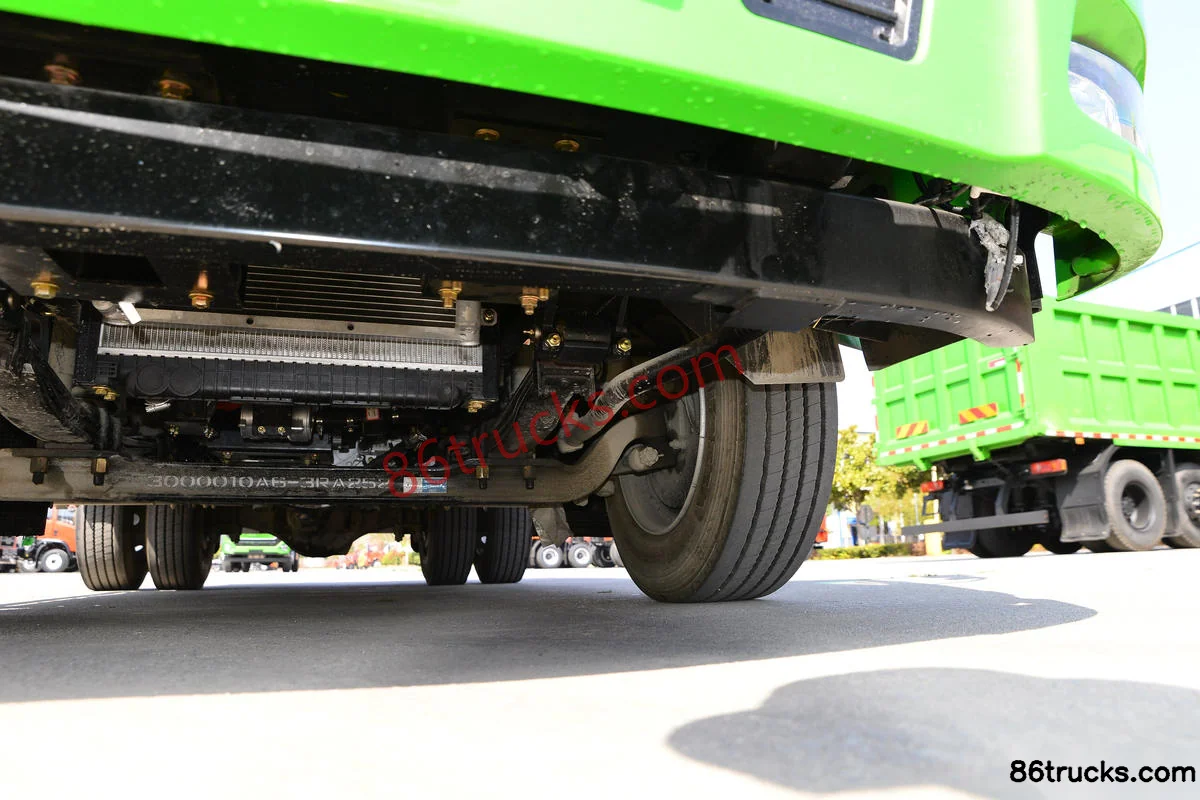

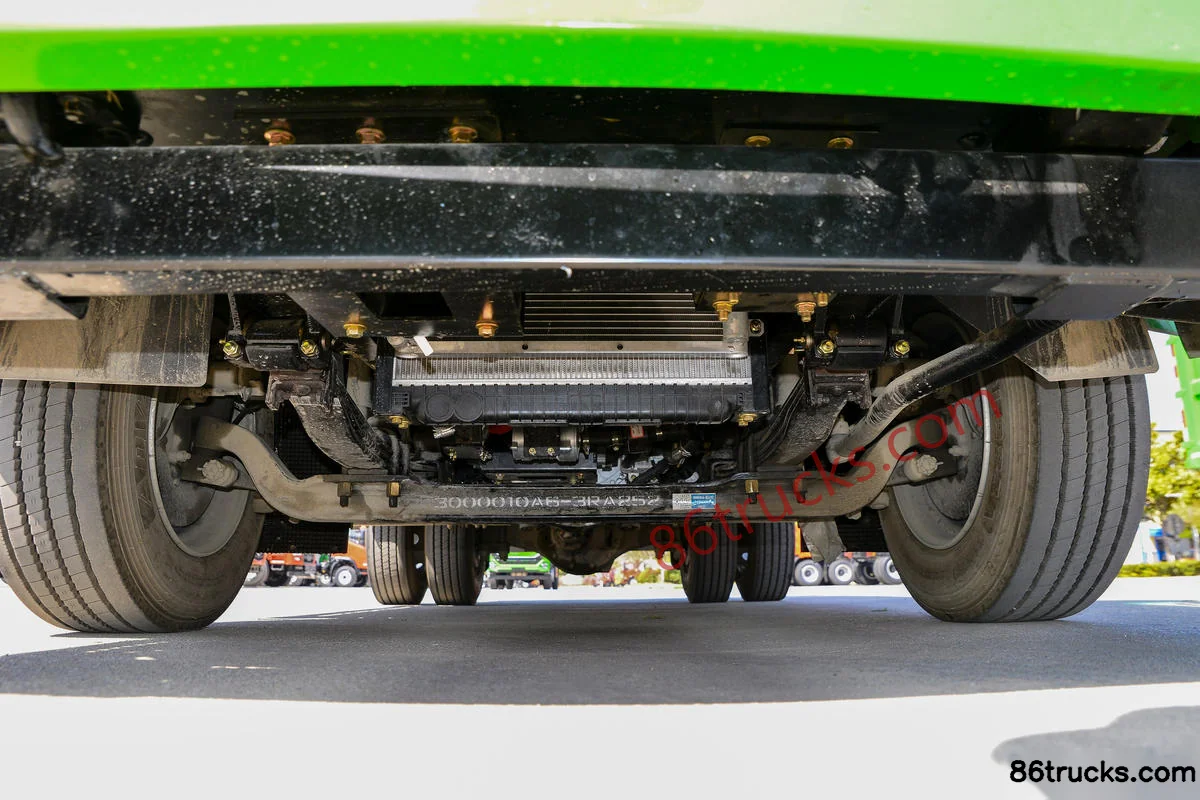

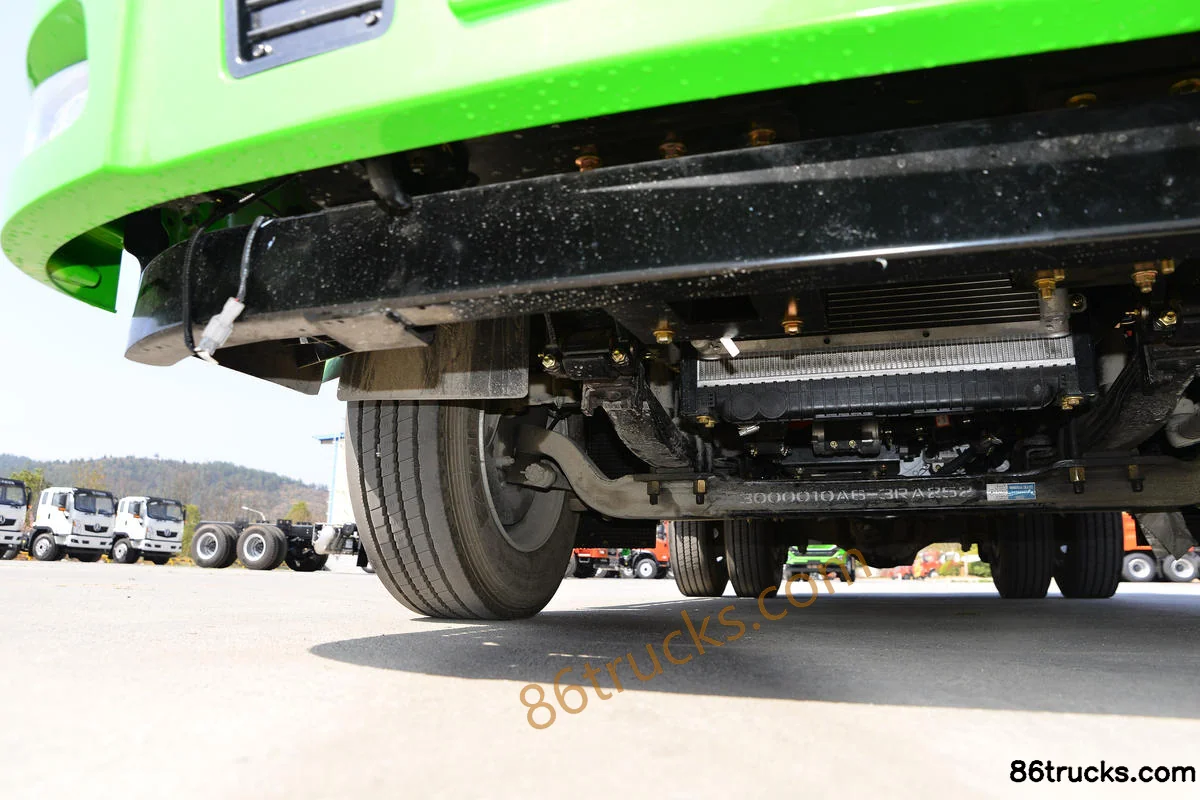

Chassis3

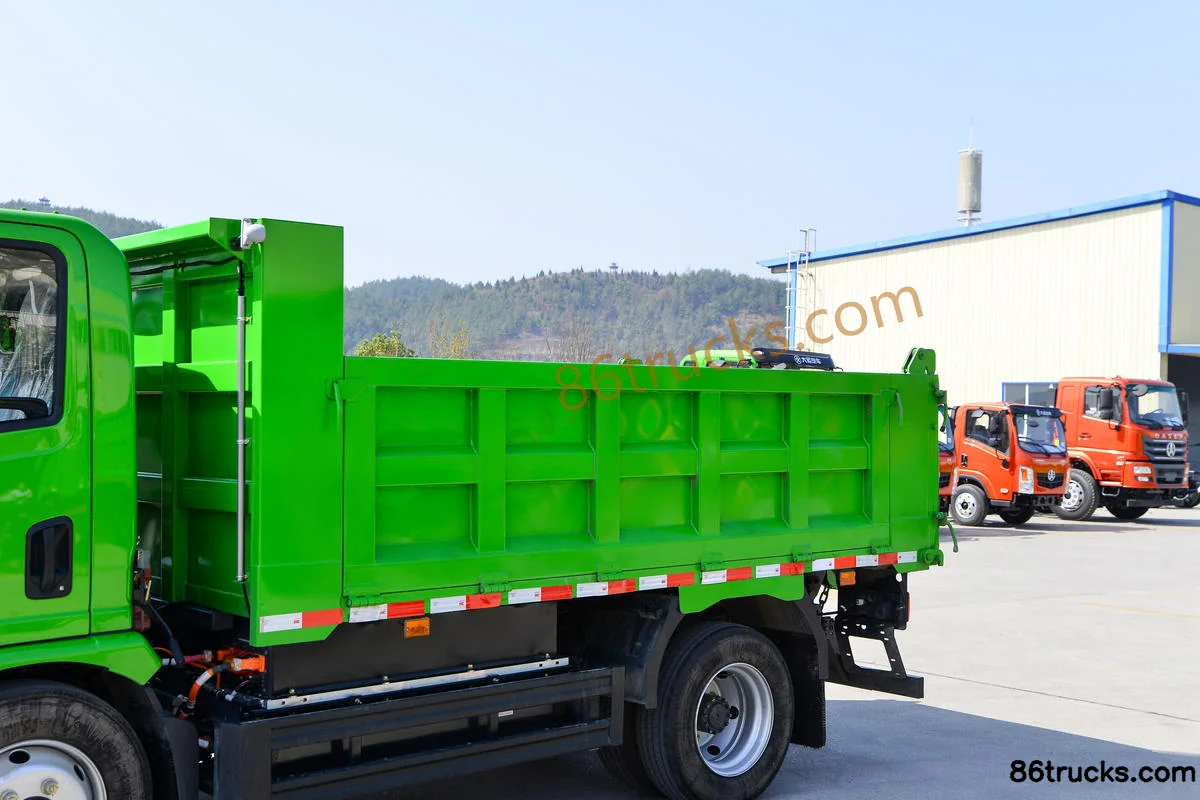

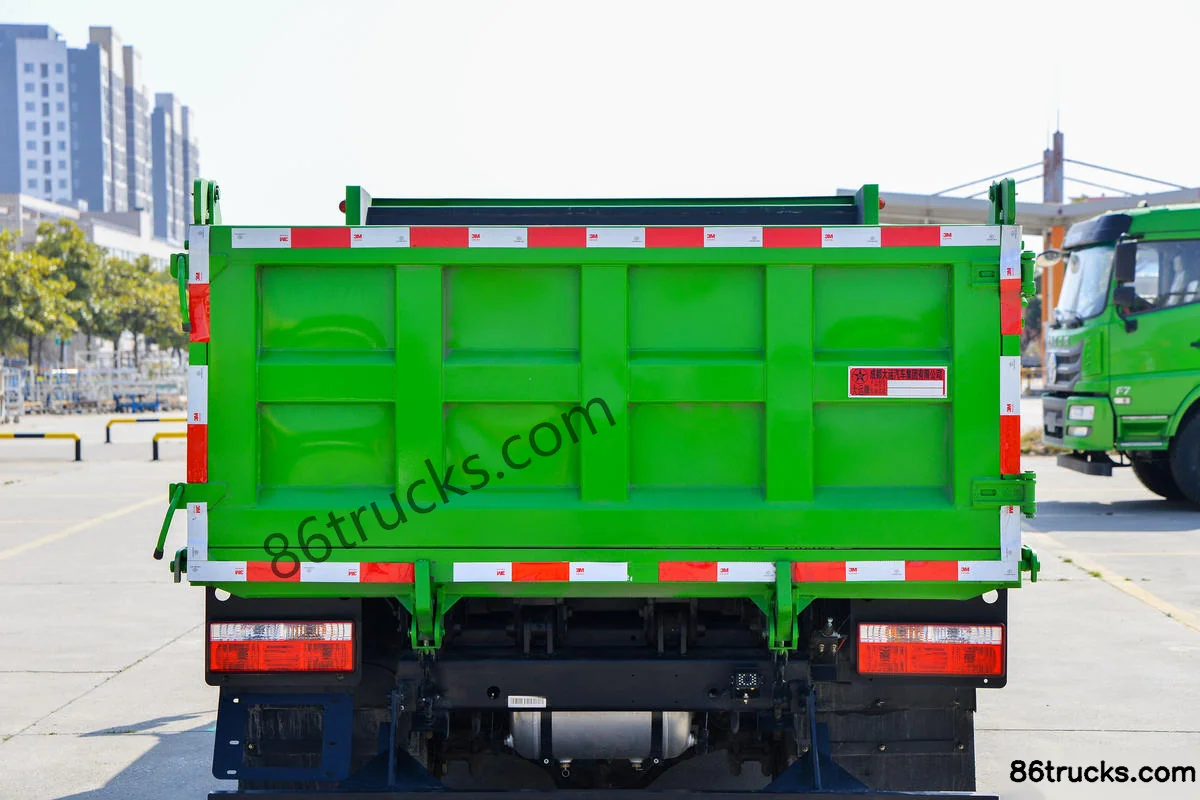

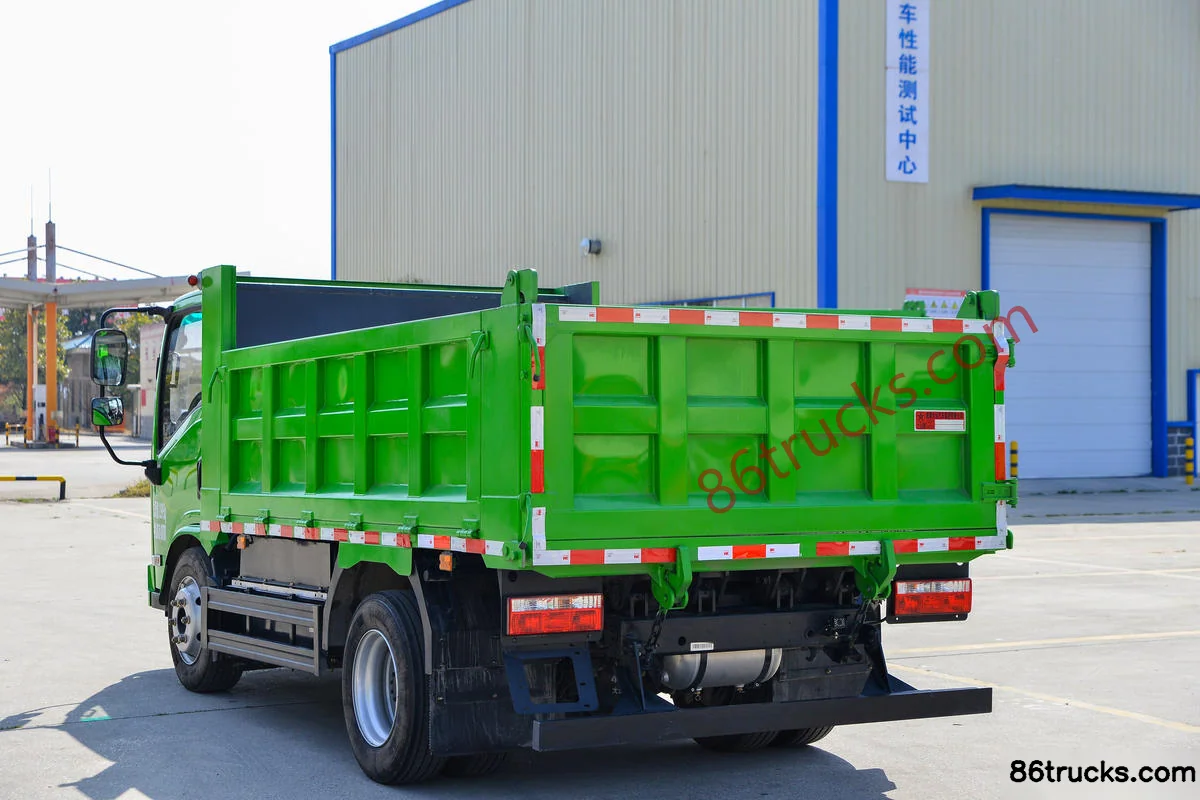

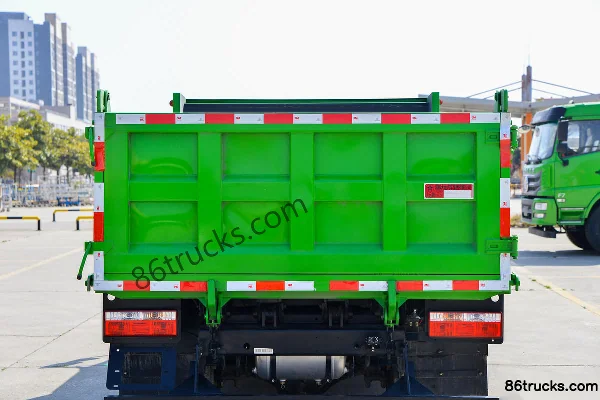

Body3

12 photos

FAQ

What are the key specs of Dayun Ruisheng 4X2(6 wheels) 3.2m electric dump truck?

Key specs of Dayun Ruisheng 4X2(6 wheels) 3.2m electric dump truck: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Ruisheng 4X2(6 wheels) 3.2m electric dump truck suited for?

Dayun Ruisheng 4X2(6 wheels) 3.2m electric dump truck is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun Ruisheng 4X2(6 wheels) 3.2m electric dump truck differ from other variants in the same series?

Dayun Ruisheng 4X2(6 wheels) 3.2m electric dump truck belongs to Dayun Ruisheng Light Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Ruisheng 4X2(6 wheels) 3.2m electric dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Ruisheng 4X2(6 wheels) 3.2m electric dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
