FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh
EXW
Export quote
FARIZON X7M heavy truck electric dump truck
Main model photos
11 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh | 8x4 / 245hp / China VI | ||
| FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh | 8x4 / 245hp / China VI | From $94,444 |

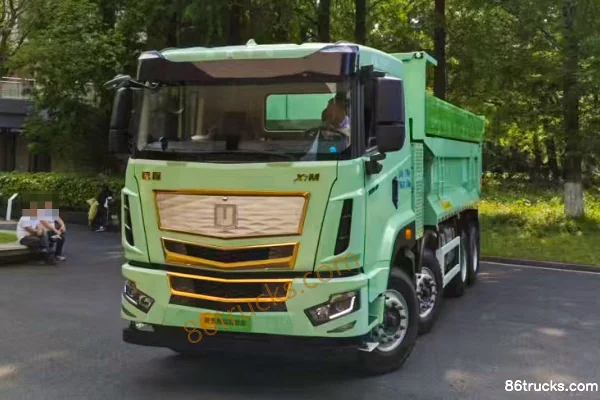

FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh
EXW
From $94,444
Export quote
Series Specs
Basic Info
Model code (announced): HN3310MH41CLSHEVY / HN3310MH41C2SHEVY
Drive type: 8X4
Wheelbase: 1850+3200+1350mm
Cab length: 9.2 / 9.33m
Cab width: 2.55m
Cab height: 3.45 / 3.4m
Curb Weight: 15.7 / 17.1ton
Rated payload: 15.17 / 13.77ton
GVWR: 31ton
Max. speed: 85km/h
Origin: Ma'anshan / Ma'anshan, Anhui
tonnage class: Heavy truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: Bosch
Motor 1 Model: TZ370XSHME03
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 410kW
Motor 1 Peak Power: 410kW
Battery/Charging
Battery Brand: Xuanwu / Guoxuan High-Tech
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 98kWh
Engine parameters
Engine Model: GS06M245H-61
Number of cylinders: 6cylinder
Displacement: 5.91L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Cargo box parameters
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1 / 1.5m
Cab parameters
Cab: Flat roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 16T
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 11.00R20 18PR
Number of tires: 6 / 12pcs
Control configuration
ABS:
FAQ
What kind of truck is FARIZON FARIZON X7M heavy truck electric dump truck?
FARIZON FARIZON X7M heavy truck is an export-oriented electric dump truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FARIZON X7M heavy truck electric dump truck?
FARIZON X7M heavy truck electric dump truck export reference is about From $94,444. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FARIZON X7M heavy truck electric dump truck cover?
FARIZON X7M heavy truck electric dump truck mainly covers: Drive: 8x4; Horsepower: 245 hp; Emission: China VI. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FARIZON X7M heavy truck electric dump truck?
For FARIZON X7M heavy truck electric dump truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is electric dump truck typically used for?
electric dump truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FARIZON X7M heavy truck electric dump truck include?
FARIZON X7M heavy truck electric dump truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FARIZON X7M heavy truck electric dump truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
