FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh

Export reference
From $94,444
MSRP ¥68M CNY
Curb Weight:: 17.1ton
Rated payload:: 13.77ton
Wheelbase:: 1850+3200+1350mm
Cargo box length:: 5.6m
Emission: China VI
Model code (announced):: HN3310MH41C2SHEVY
Drive 8X4 (12 wheels)
Battery Brand: Guoxuan High-Tech
Motor 1 Model: TZ370XSHME03
Horsepower 245

Overview

The FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh is a Heavy truck featuring Guoxuan High-Tech battery/range, TZ370XSHME03 motor, 8X4 (12 wheels) drive and 13.77t payload. On the powertrain side, it comes with 245 hp.

China VI 245 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN3310MH41C2SHEVY
Drive type: 8X4
Wheelbase: 1850+3200+1350mm
Cab length: 9.33m
Cab width: 2.55m
Cab height: 3.4m
Curb Weight: 17.1ton
Rated payload: 13.77ton
GVWR: 31ton
Max. speed: 85km/h
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
Energy Type: Hybrid
electric motor
Motor 1 Model: TZ370XSHME03
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 410kW
Motor 1 Peak Power: 410kW
Battery/Charging
Battery Brand: Guoxuan High-Tech
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 98kWh
Engine parameters
Engine Model: GS06M245H-61
Number of cylinders: 6cylinder
Displacement: 5.91L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Cargo box parameters
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

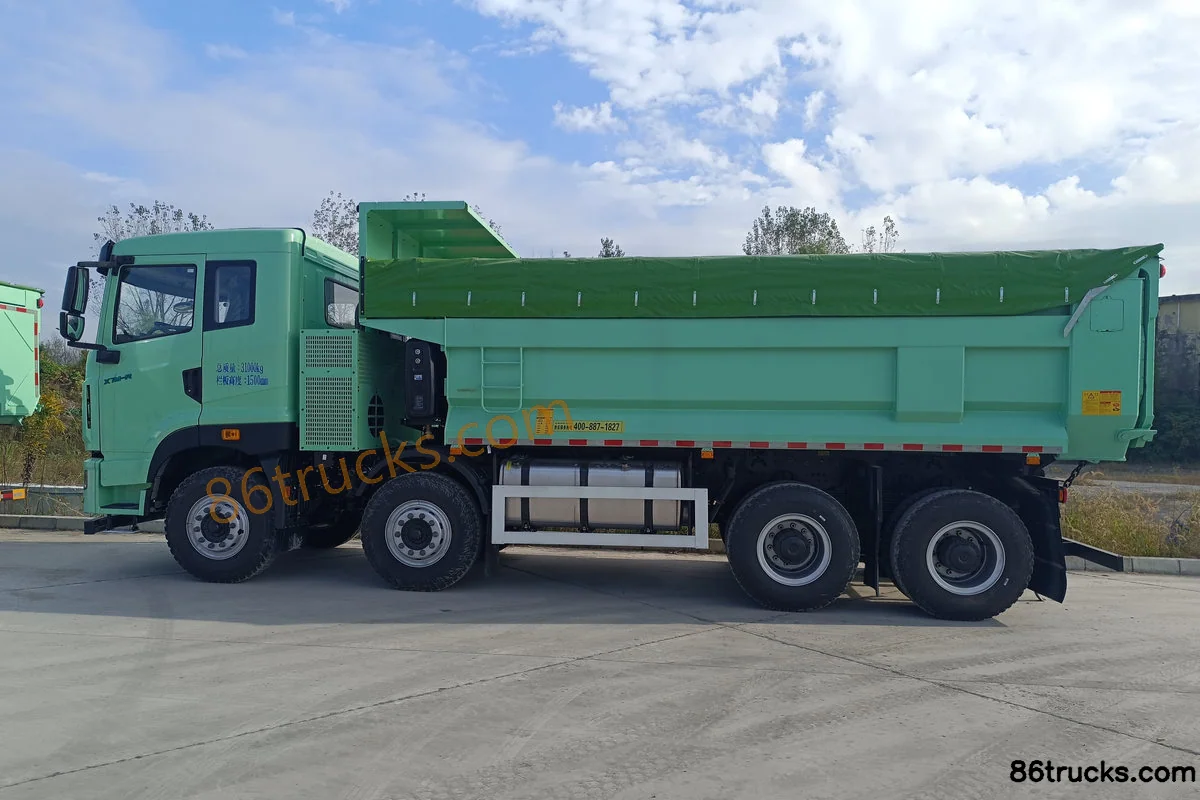

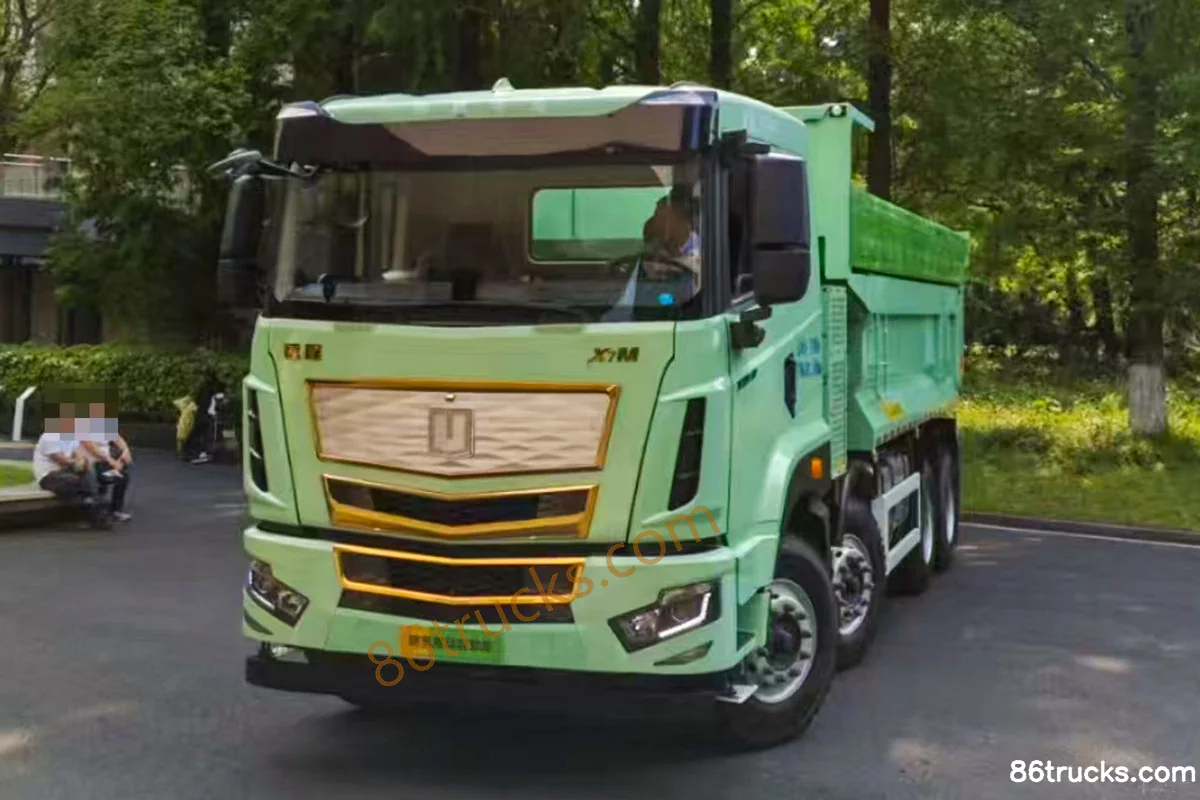

Photos

Exterior2

2 photos

FAQ

What is the export price of FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh, and what does it include?

FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh export reference is about From $94,444; MSRP is ¥68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh?

Key specs of FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh: Drive: 8x4; Horsepower: 245 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh suited for?

FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh differ from other variants in the same series?

FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh belongs to FARIZON X7M heavy truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON X7M 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extended Dump Truck Guoxuan High-Tech 98kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
