FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh

Export reference
MSRP N/A
Curb Weight:: 15.7ton
Rated payload:: 15.17ton
Wheelbase:: 1850+3200+1350mm
Cargo box length:: 5.6m
Emission: China VI
Model code (announced):: HN3310MH41CLSHEVY
Drive 8X4 (12 wheels)
Battery Brand: Xuanwu
Motor 1 Brand: Bosch
Horsepower 245

Overview

The FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh is a Heavy truck featuring Xuanwu battery/range, Bosch motor, 8X4 (12 wheels) drive and 15.17t payload. On the powertrain side, it comes with 245 hp.

China VI 245 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN3310MH41CLSHEVY
Drive type: 8X4
Wheelbase: 1850+3200+1350mm
Cab length: 9.2m
Cab width: 2.55m
Cab height: 3.45m
Curb Weight: 15.7ton
Rated payload: 15.17ton
GVWR: 31ton
Max. speed: 85km/h
Origin: Ma'anshan
tonnage class: Heavy truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: Bosch
Motor 1 Model: TZ370XSHME03
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 410kW
Motor 1 Peak Power: 410kW
Battery/Charging
Battery Brand: Xuanwu
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 98kWh
Engine parameters
Engine Model: GS06M245H-61
Number of cylinders: 6cylinder
Displacement: 5.91L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Cargo box parameters
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height:
Cab parameters
Cab: Flat roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
rear axle description: 16T
Tire
Tire Size: 11.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Electric
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

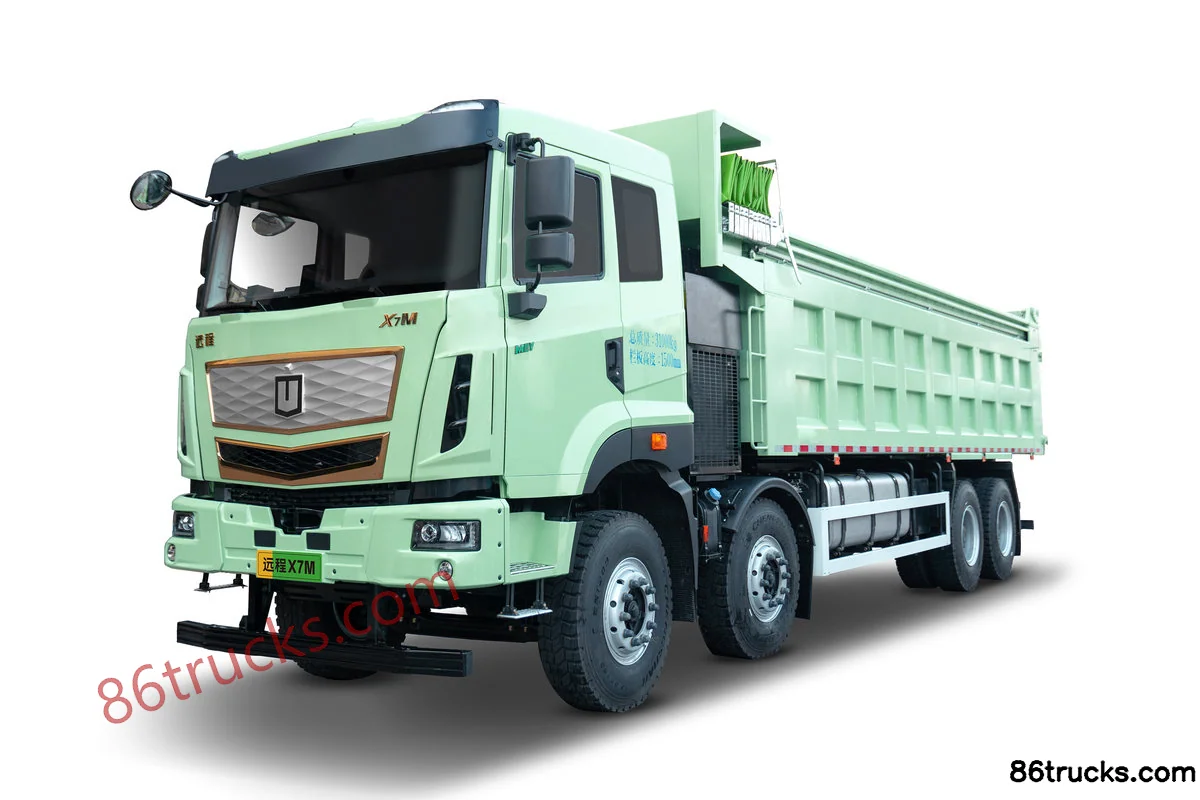

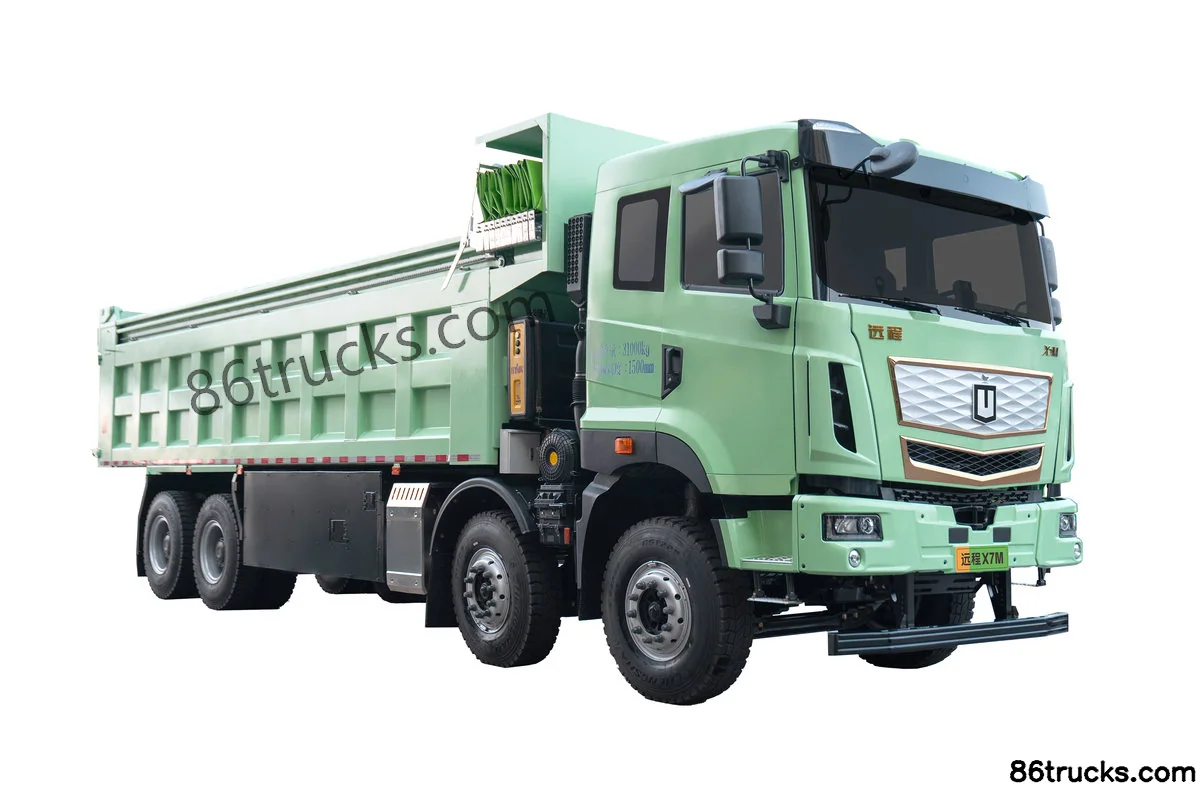

Photos

Exterior2

2 photos

FAQ

What emission standard does FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh?

Key specs of FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh: Drive: 8x4; Horsepower: 245 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh suited for?

FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh differ from other variants in the same series?

FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh belongs to FARIZON X7M heavy truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON X7M Composite Edition 8X4(12 wheels) 5.6m Methanol Plug-in Hybrid Range-Extender Dump Truck Xuanwu 98kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
