SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck

Export reference
From $21,389
MSRP ¥15.4M CNY
Horsepower: 156
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D30
Transmission: Fast Gear
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck is a Light Truck featuring 4.18m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D30 engine, 156 hp, 4X2 (6 wheels) drive and China V emissions.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX1040NP5331
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: Yunnei PowerD30TCIE4
transmission: Fast GearC6J45TB
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.1/2.4/2.5m
Cab height: 2.45m
Front track width: 1760mm
rear track: 1800mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Baoji, Shaanxi
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
market segment: Building materials, agricultural products
Front/rear suspension: 1.2/1.495m
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIE4
Engine info: Yunnei Dewei D30
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.977L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 450N·m
Max torque speed: 1500-2700rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: Fast GearC6J45TB
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.18m
Cargo box width: 2.1/2.3/2.43m
Cargo box height: 0.4m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: Mechanical suspension seat
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1500kg
rear axle description: 3.5T
rear axle allowable load: 2995kg
Axle ratio: 4.875
Leaf spring count: 2/2+1
Tire
Tire Size: 7.00R16LT 8PR,7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

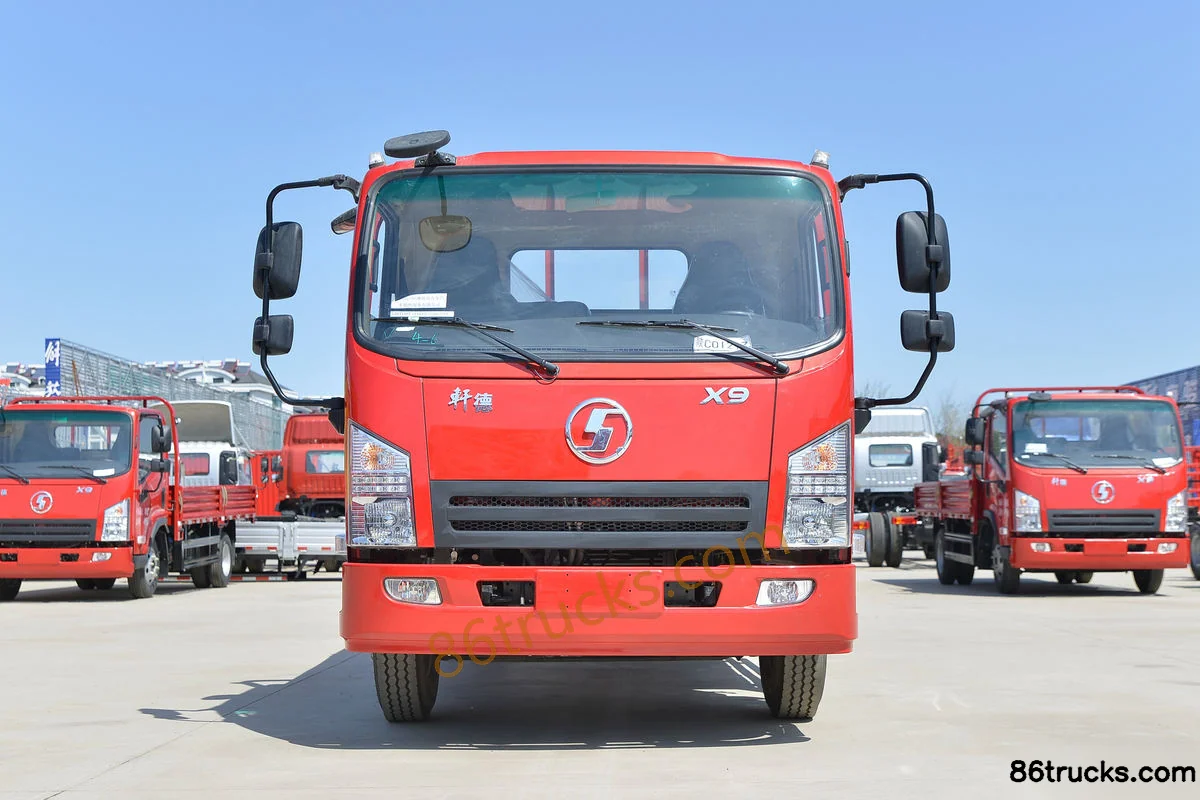

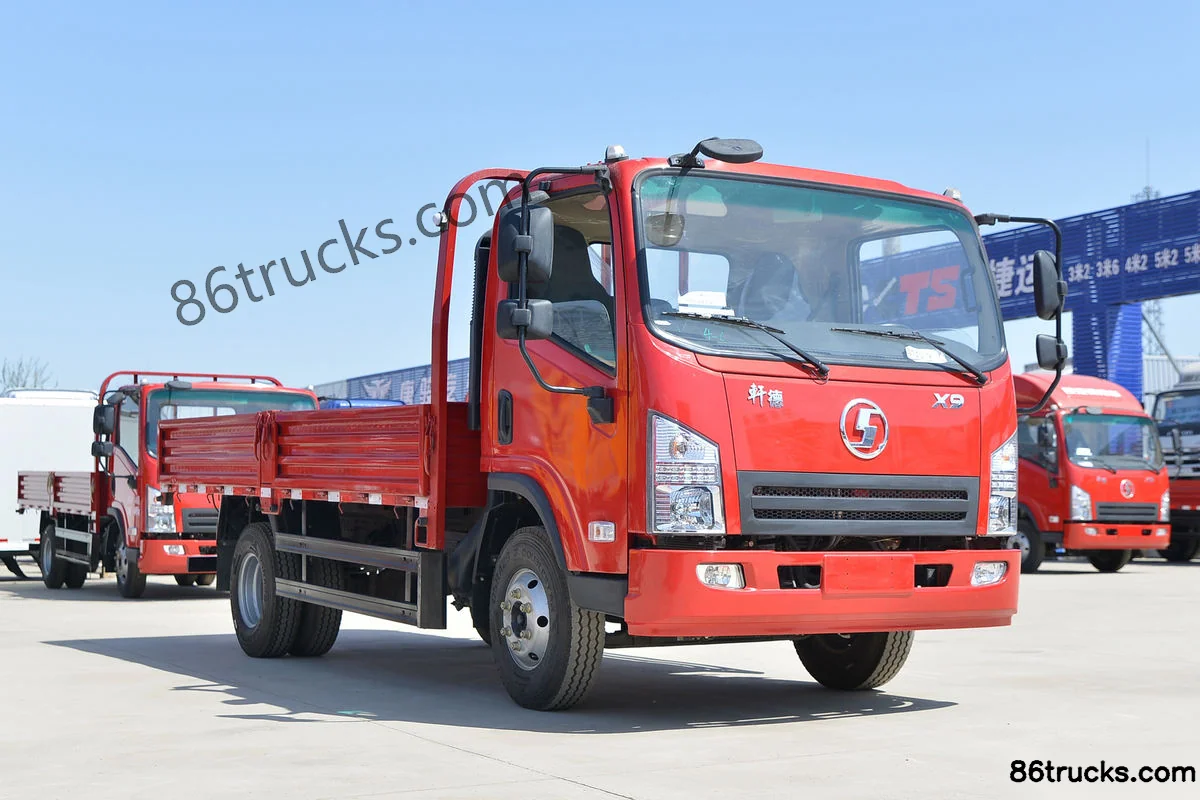

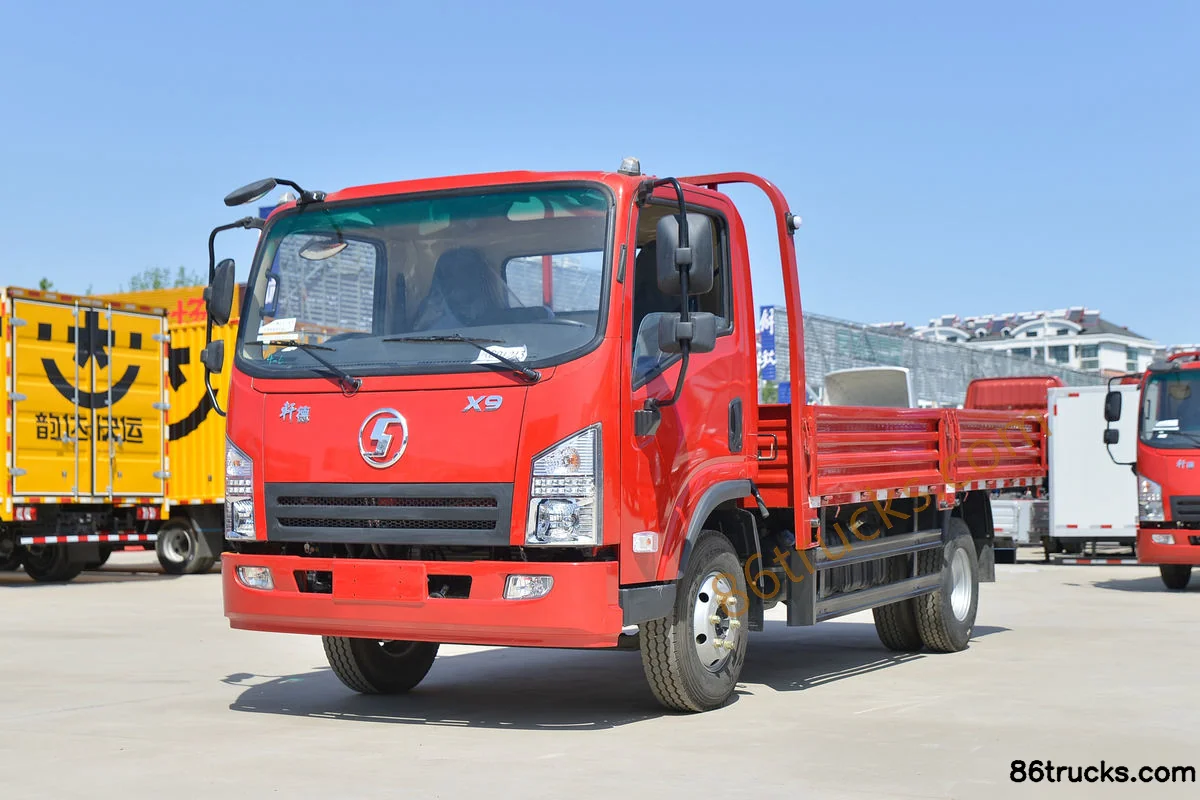

Exterior3

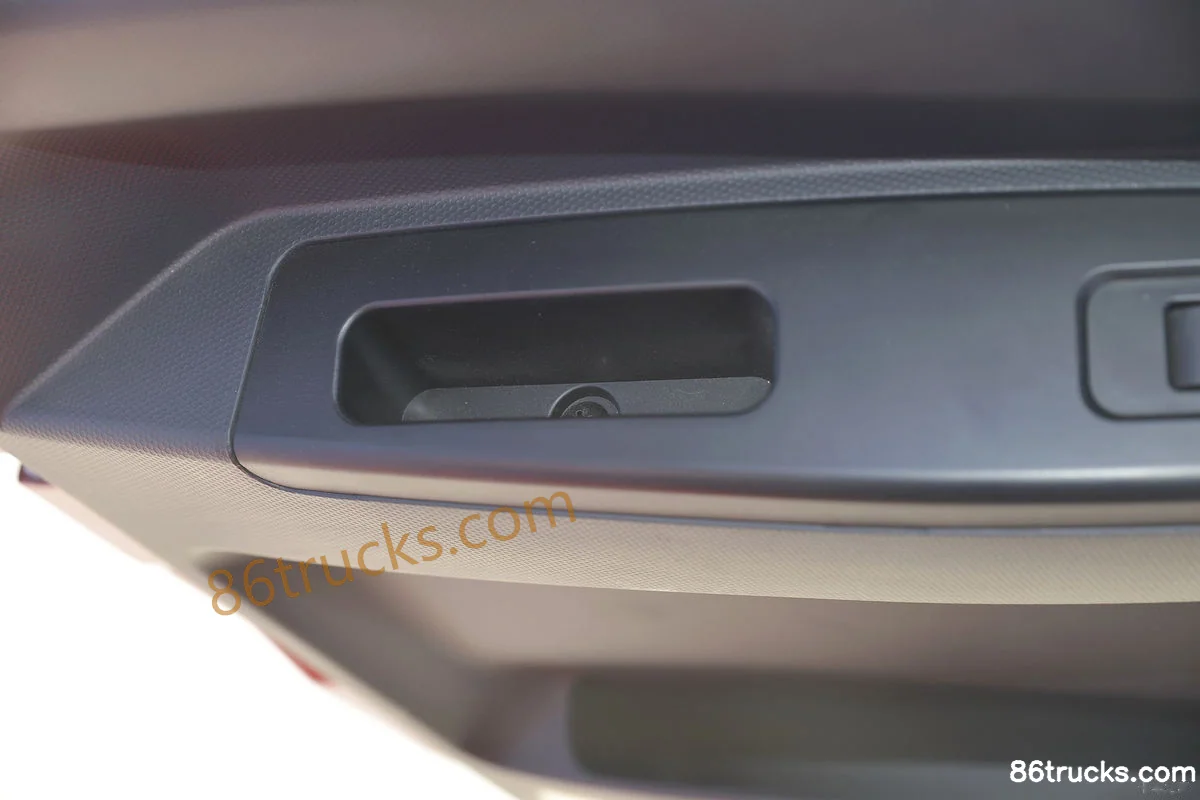

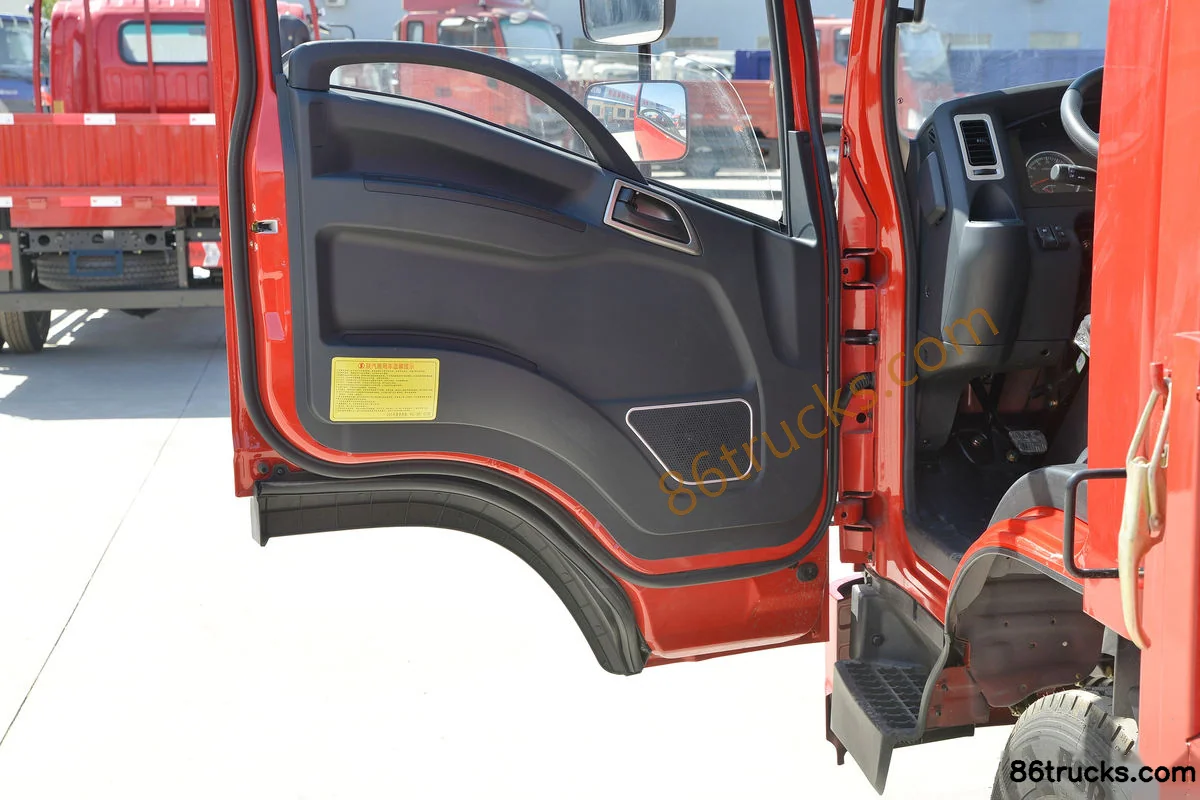

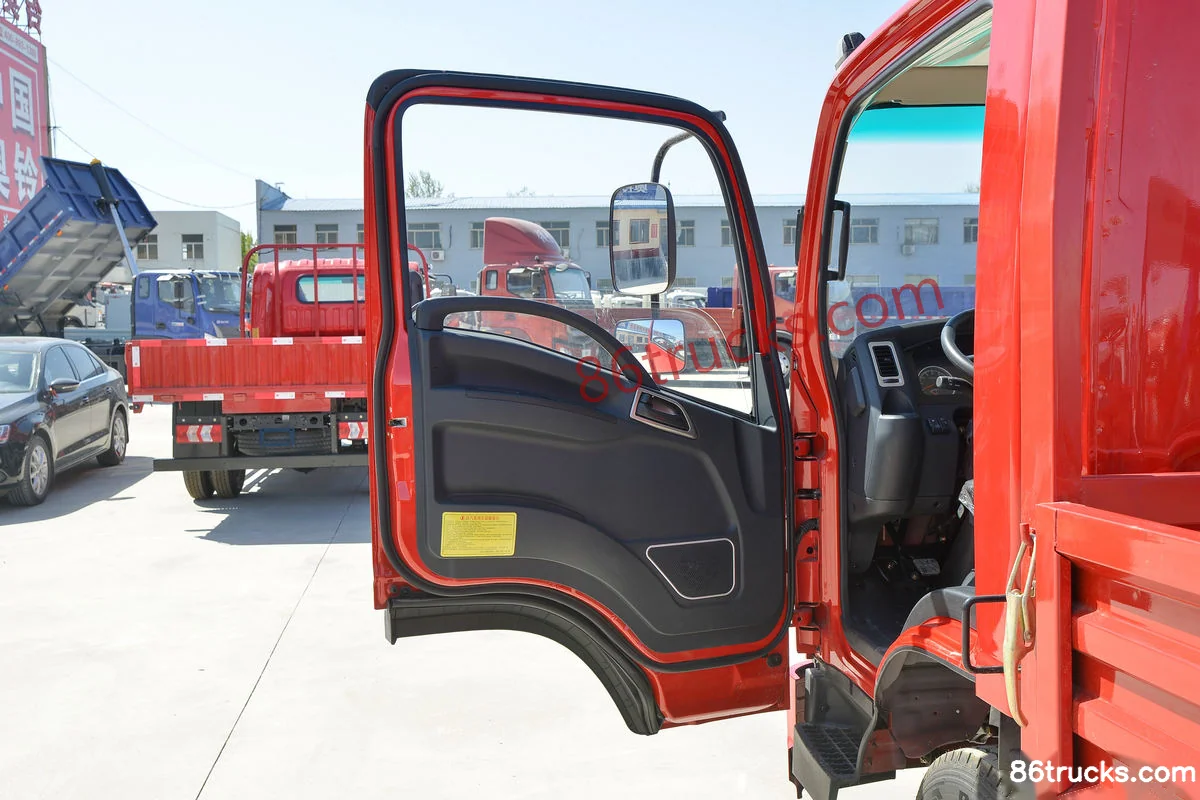

Cab3

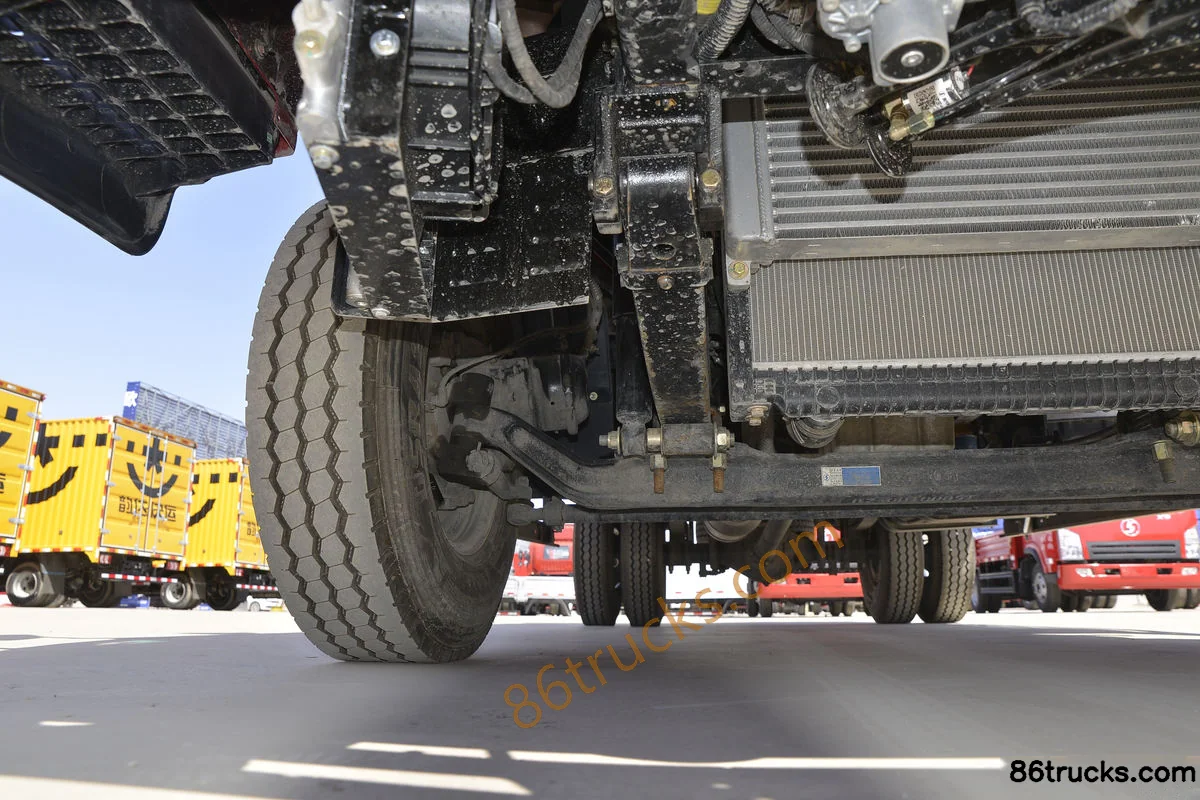

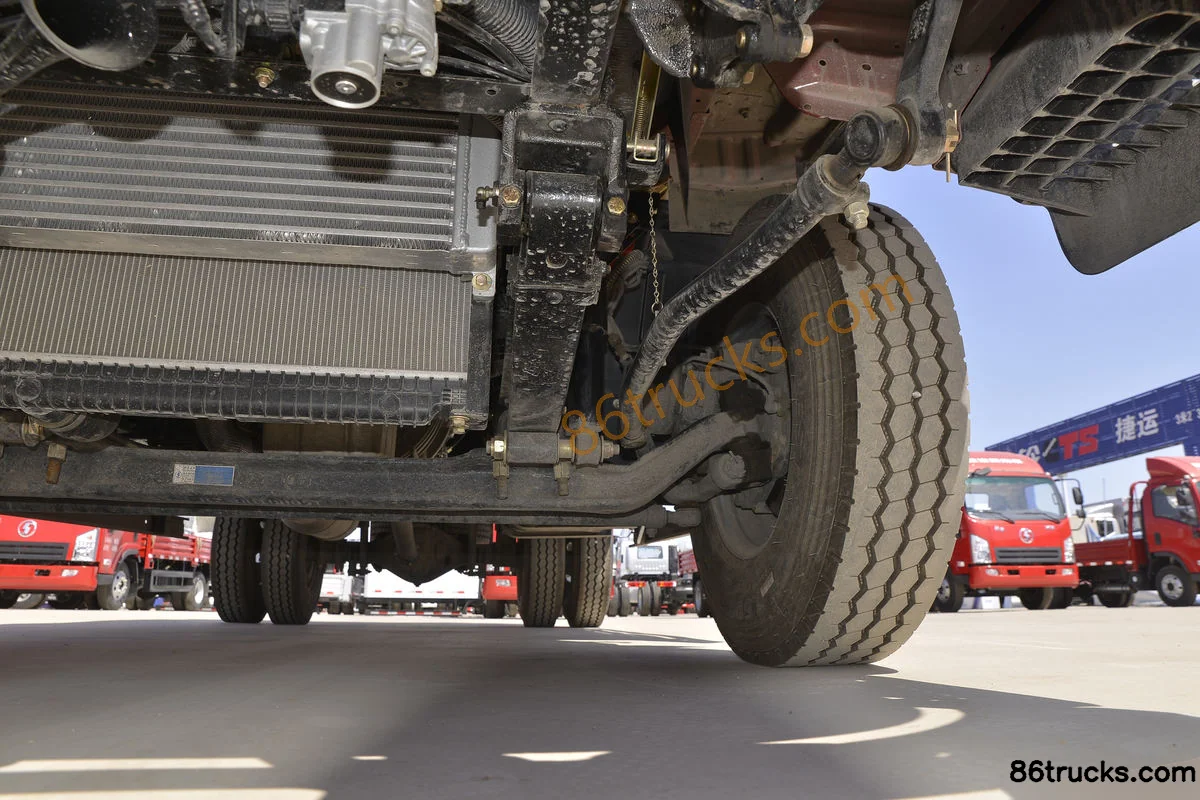

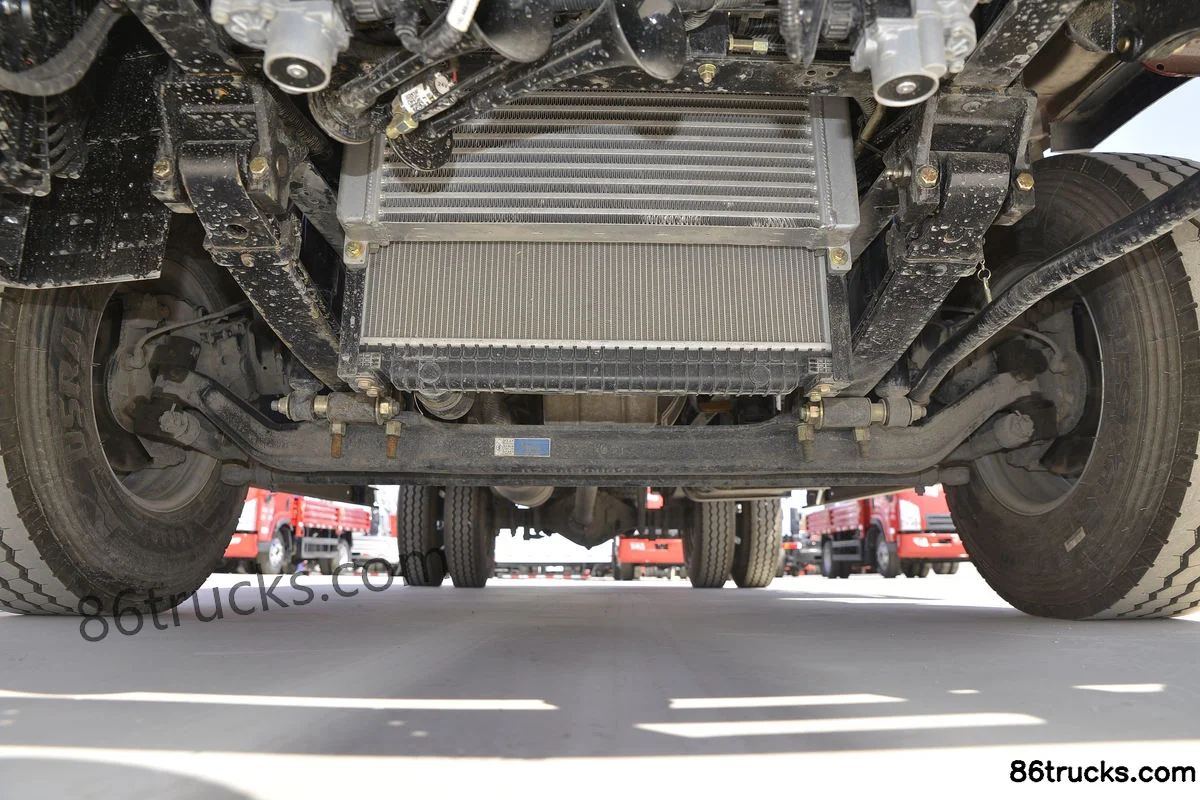

Chassis3

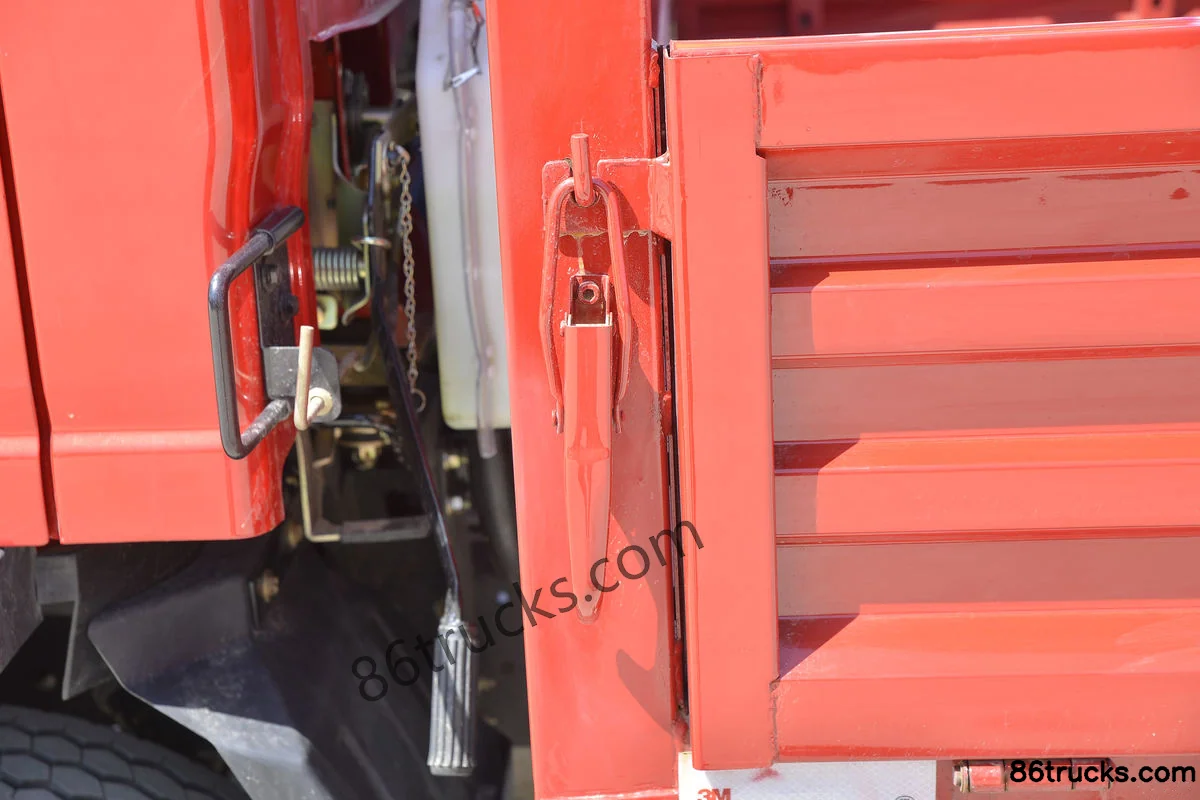

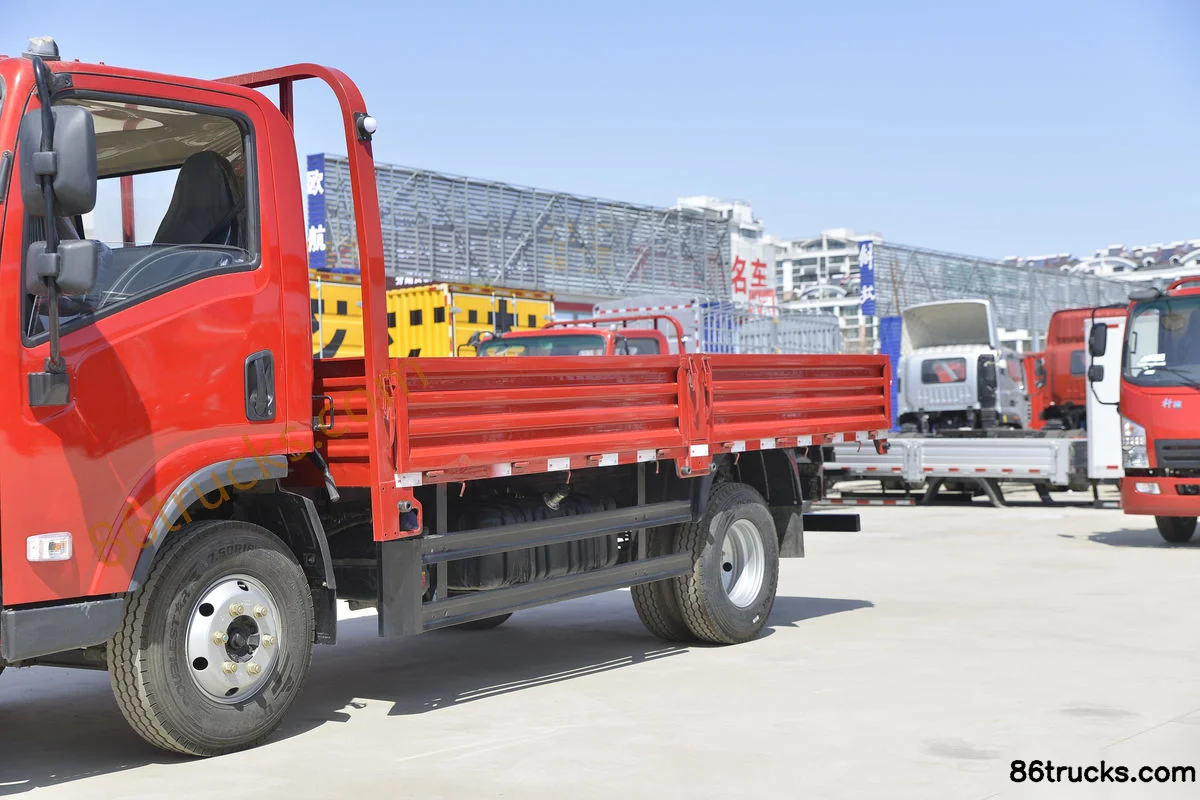

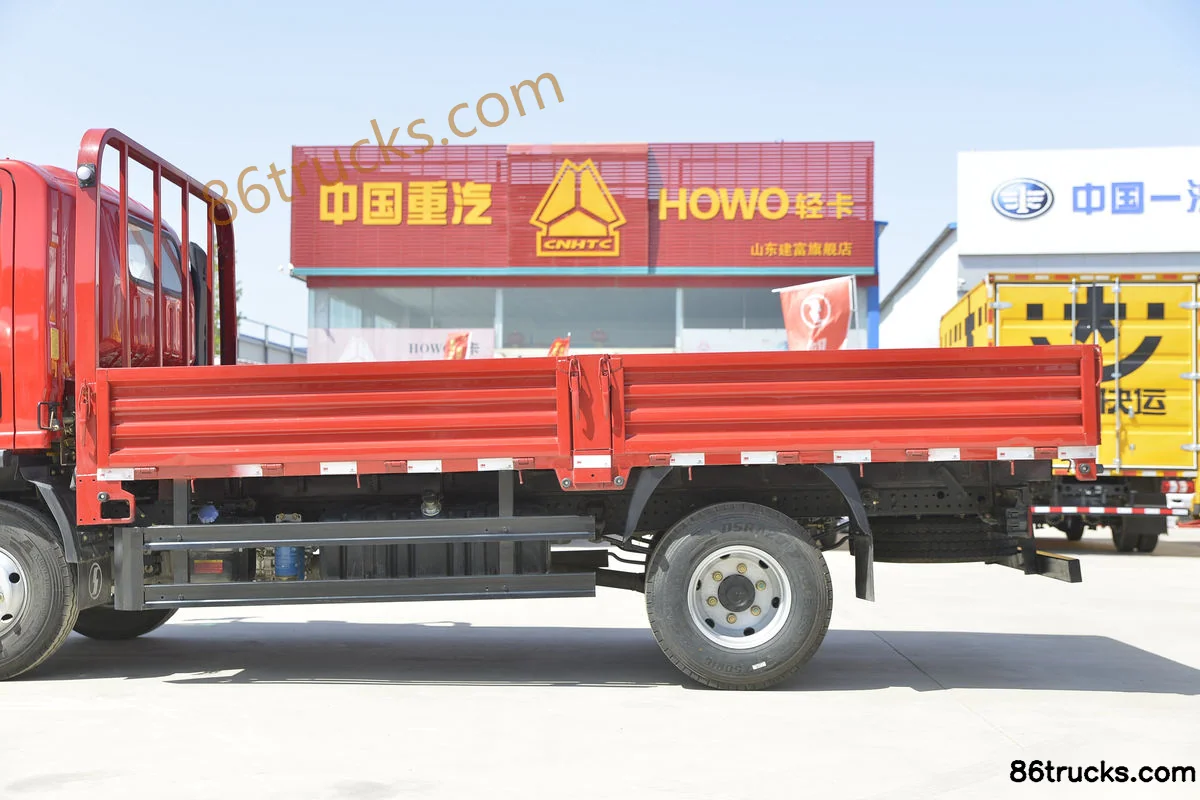

Body3

12 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck, and what does it include?

SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck export reference is about From $21,389; MSRP is ¥15.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck?

Key specs of SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D30; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck suited for?

SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck belongs to SHACMAN Xuande X9 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 156 hp 4X2(6 wheels) 4.18 m single-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
