Hitachi ZX350H-3 Crawler Excavator

Export reference
MSRP N/A
Model:: ZX350H-3
Engine Model:: crawler excavator
Tonnage:: 35ton
Bucket capacity:: 1.38cubic meter
Machine dimensions:: 11×3.19×3.27mm
Track shoe width:: 600mm
Operating weight: 33.7ton
Bucket type: backhoe
Fuel Tank Capacity: 630L
Product power: Conventional Power

Overview

The Hitachi ZX350H-3 Crawler Excavator is a excavator featuring 33.7ton GVW, backhoe bucket capacity, 630L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: ZX350H-3
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 35ton
Operating weight: 33.7ton
Bucket capacity: 1.38cubic meter
Machine dimensions: 11×3.19×3.27mm
Track shoe width: 600mm
Track gauge: 2590mm
Counterweight ground clearance: 1160mm
Min ground clearance: 500cm
Rear Overhang Radius: 3390mm
hydraulic system
Max flow of main pump: 2×288+30.2L/min
Working hydraulic circuit: 34.3
travel hydraulic circuit: 34.3Mpa
Swing Hydraulic Circuit: 32.4Mpa
Oil capacity
Fuel Tank Capacity: 630L
coolant: 32L
hydraulic oil tank: 180L
Engine Oil Capacity: 41L
performance specs
Travel speed: 3.2/5.0km/h
Bucket digging force: 234kN
Arm Digging Force: 204kN
Operating Range
Max digging radius: 11100mm
Max digging depth: 7380mm
Max digging height: 10360mm
Max unloading height: 7240mm
Engine parameters
Engine Model: IsuzuISUZU AH-6HK1X
Max output power: 202kW

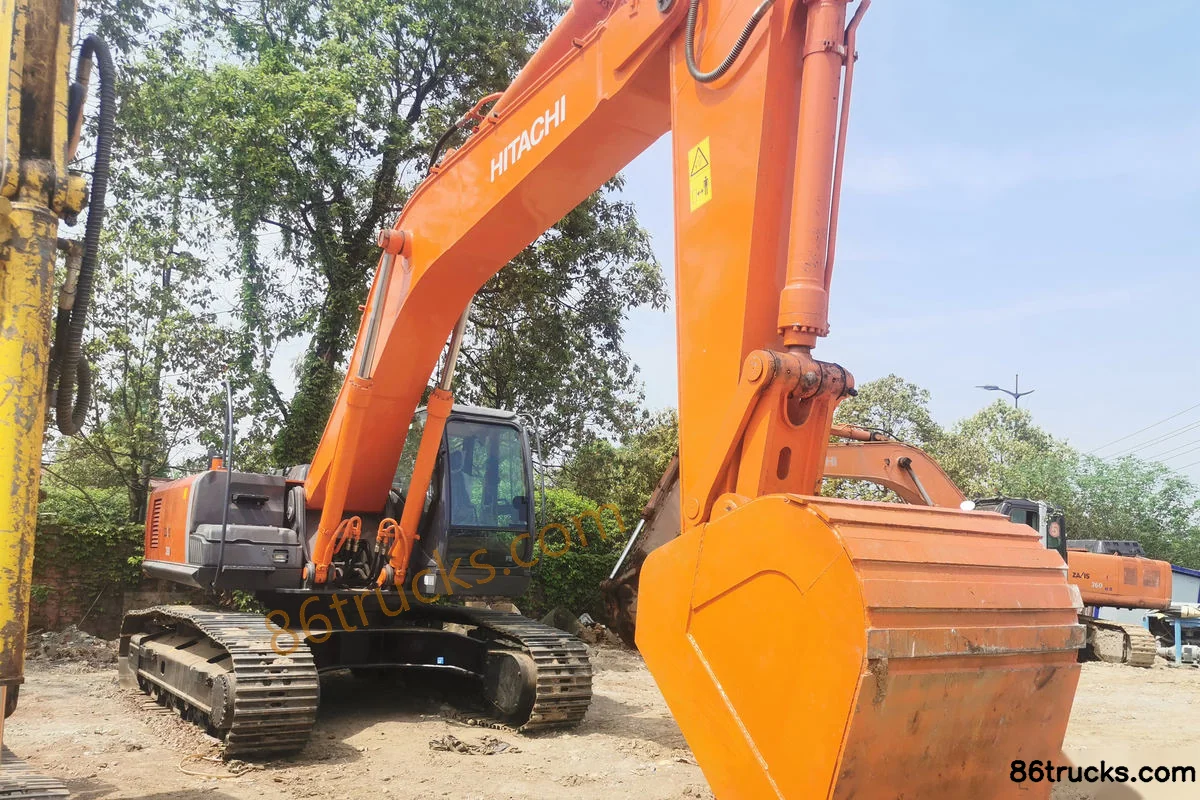

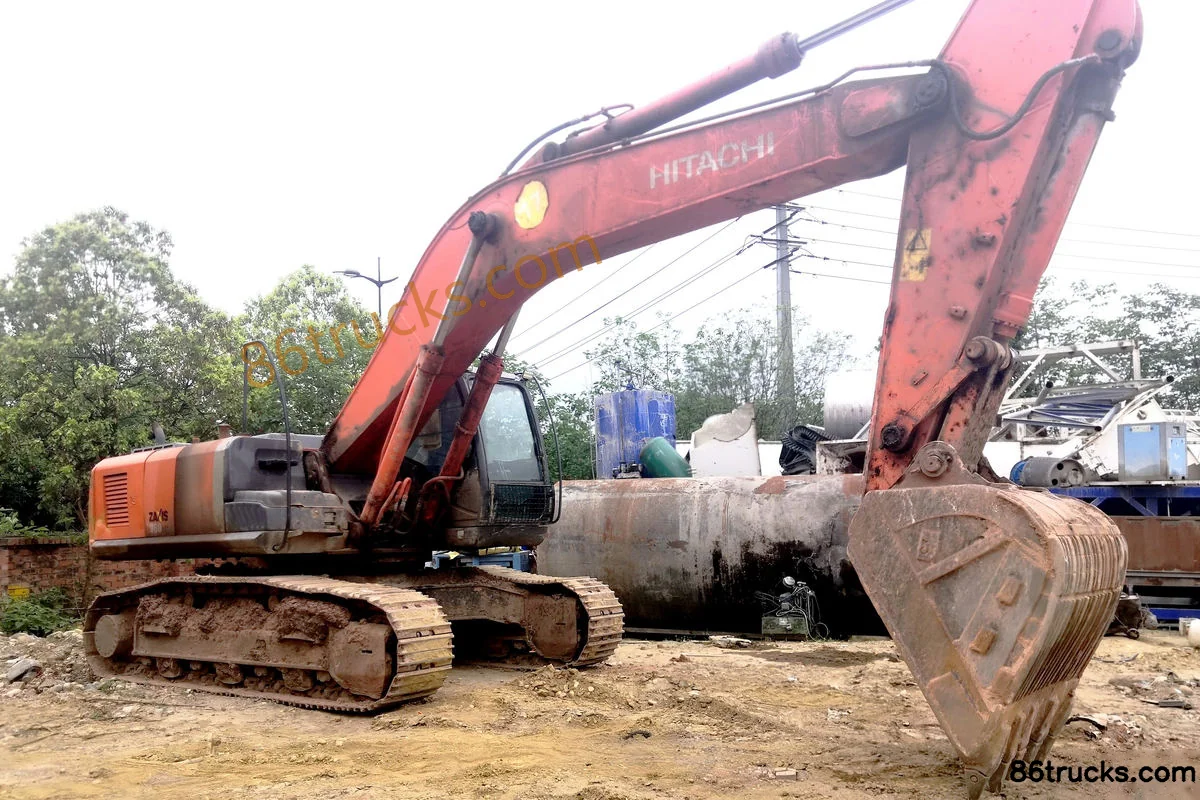

Photos
