JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis

Export reference
From $17,778
MSRP ¥12.8M CNY
Horsepower: 150
Emission: China IV
Fuel: Diesel
Engine: Xichai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 5.7ton
seating capacity: 3Personnel
Rated payload: 9.705ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis is a Medium-duty truck featuring 6.8m cargo length, stake body cargo body, 3Personnel volume and 9.705t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Xichai 4-cylinder engine, 150 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1161PZ5K1E1AF
Type: Chassis
Drive type: 4X2
Wheelbase: 5300mm
Box length class: 6.8m
engine: XichaiCA4DLD-15E4R
transmission: Fast Gear8JS75E
Rear Axle Ratio: 4.875
Cab length: 8.98m
Cab width: 2.495m
Cab height: 3.2m
Front track width: 1830mm
rear track: 1800mm
Curb Weight: 5.7ton
Rated payload: 9.705ton
GVWR: 15.6ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 12°
market segment: Building materials, agricultural products
Front/rear suspension: 1.47/21m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DLD-15E4R
Engine info: Xichai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.4L
Emission standard: China IV
Max output power: 112kW
Max hp: 150Horsepower
Max torque: 530N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Transmission Parameters
Transmission Model: Fast Gear8JS75E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.8m
Cargo box width: 2.34m
Cargo box height: 0.55m
*Cargo box interior width: 2.3399999141693
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 5600kg
rear axle allowable load: 10000kg
Axle ratio: 4.875
Leaf spring count: 9/9+7
Tire

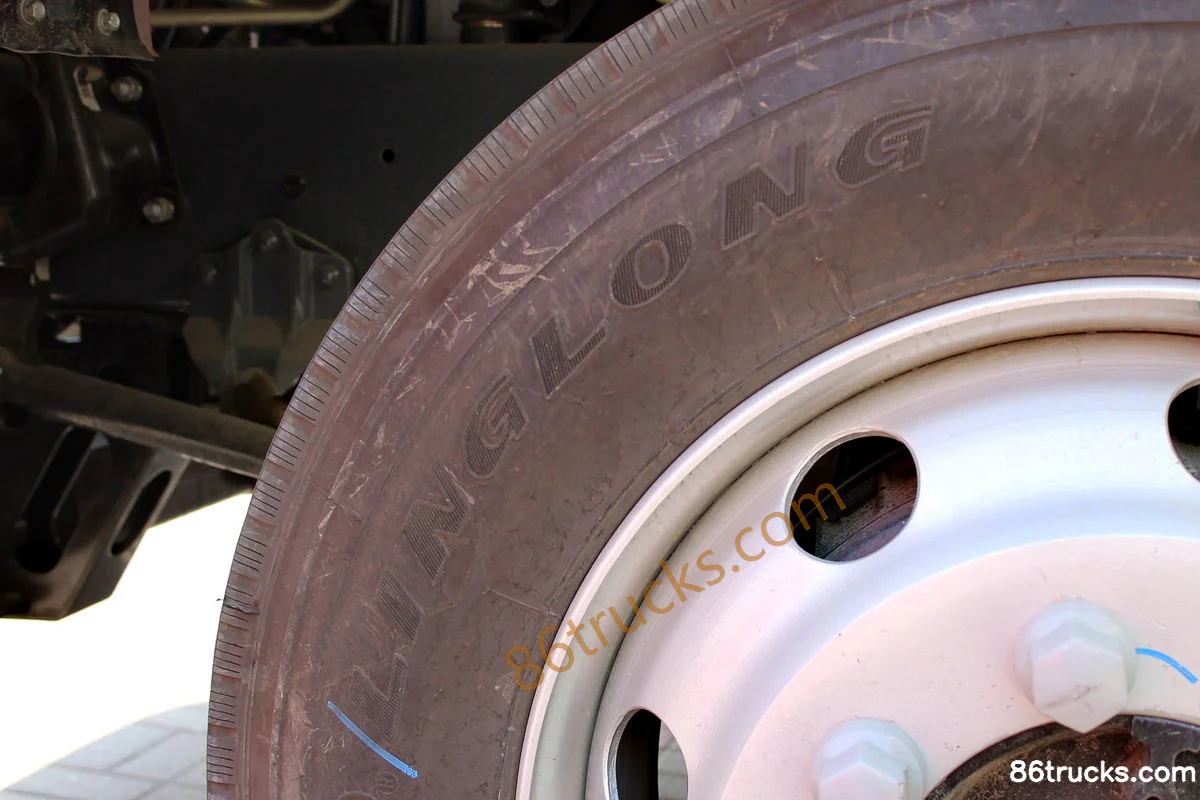

Tire Size: 9.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

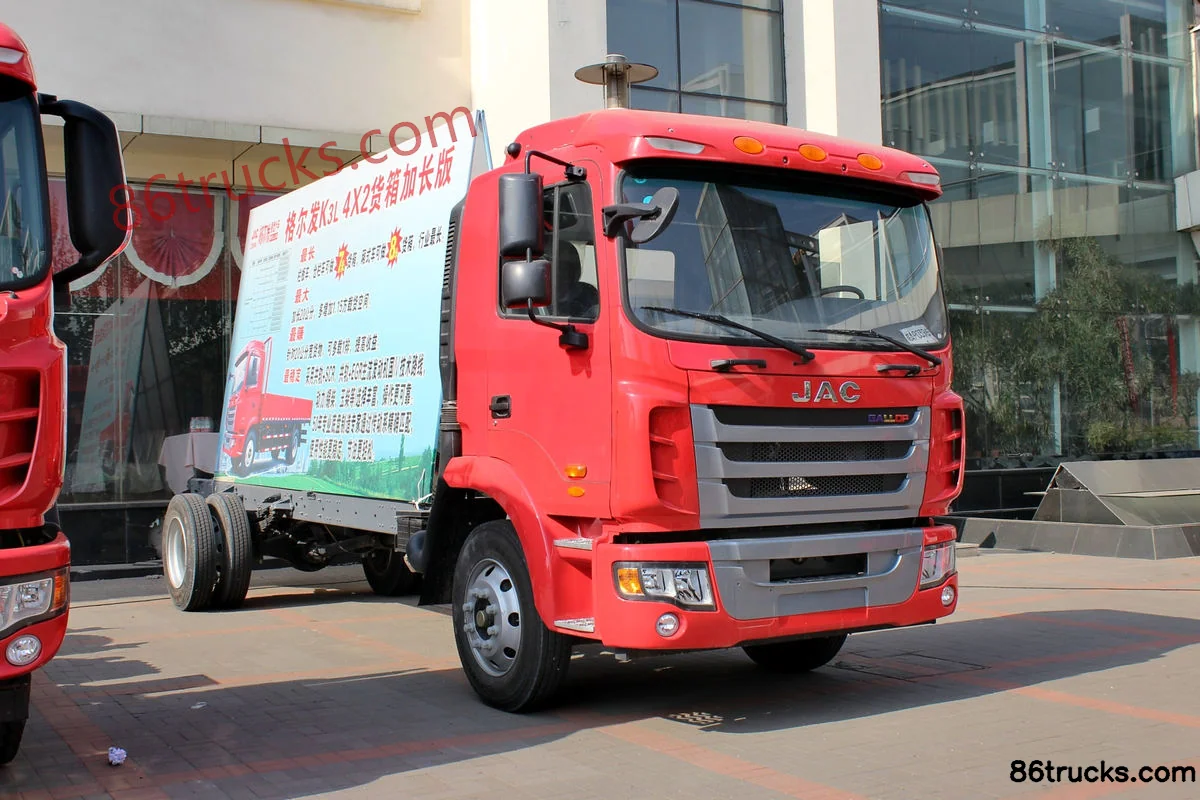

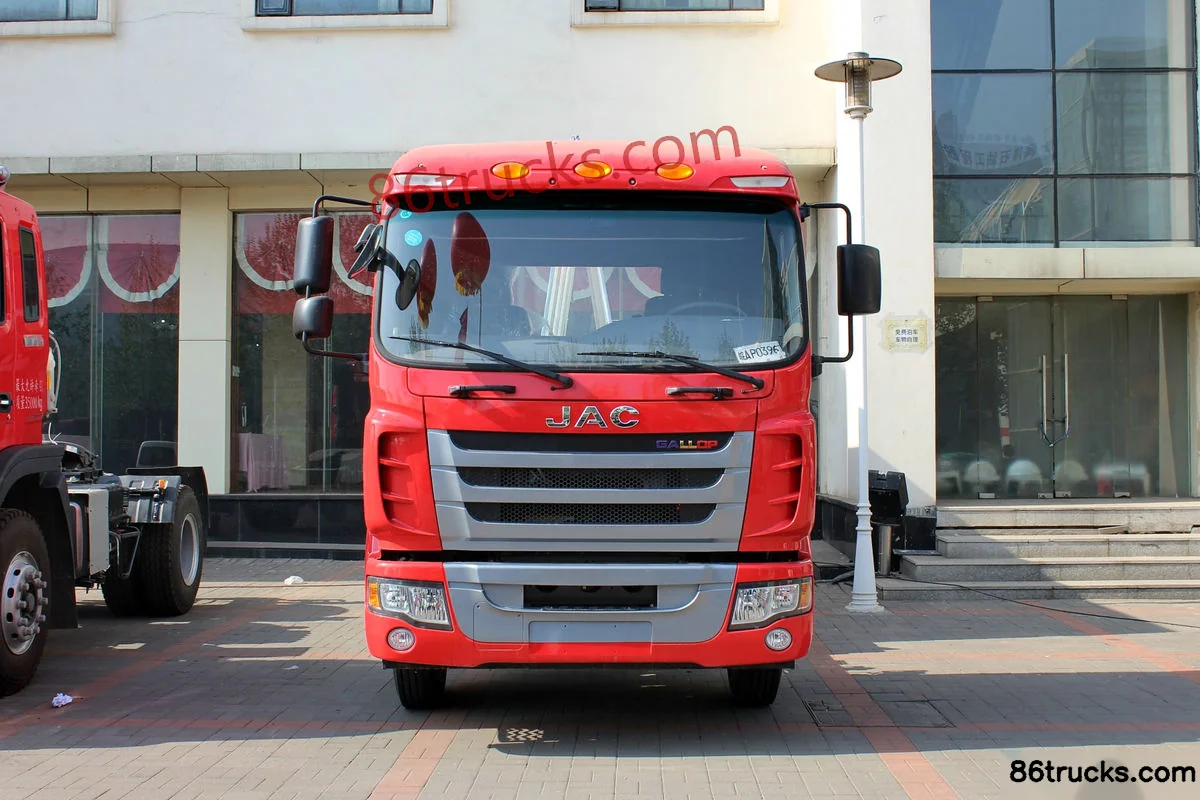

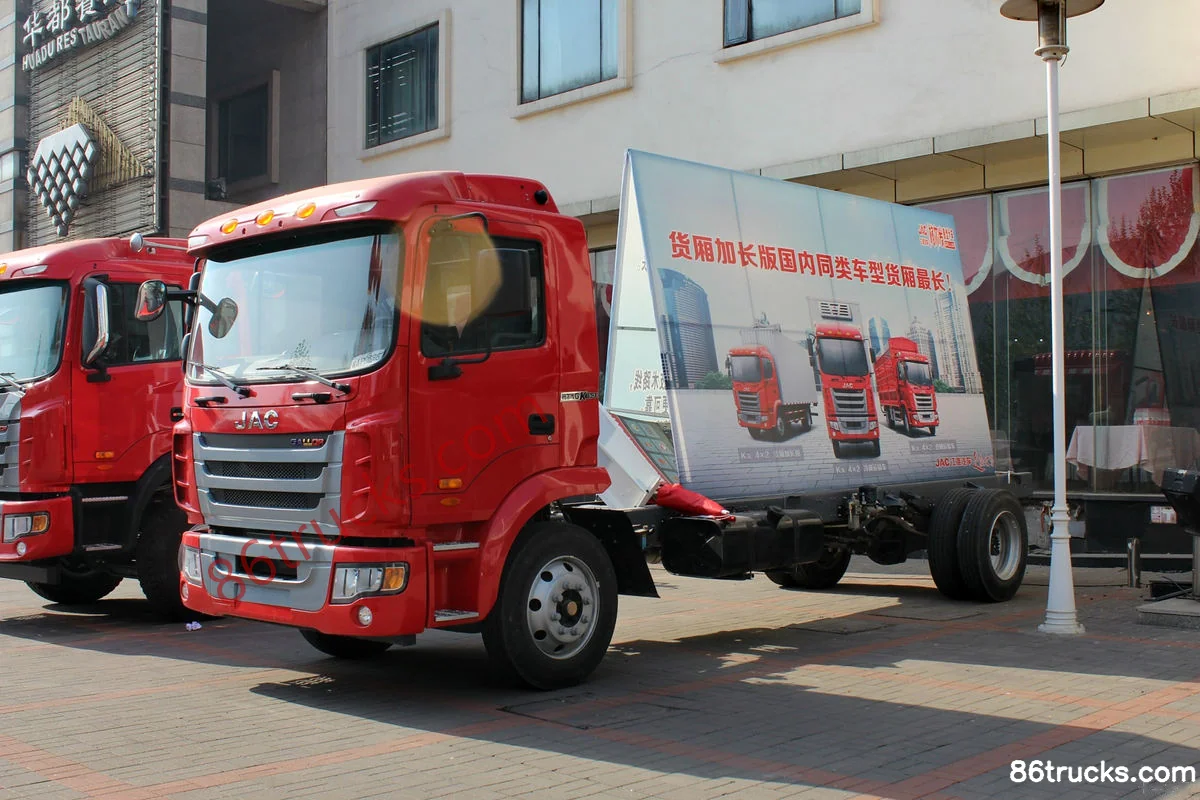

Exterior3

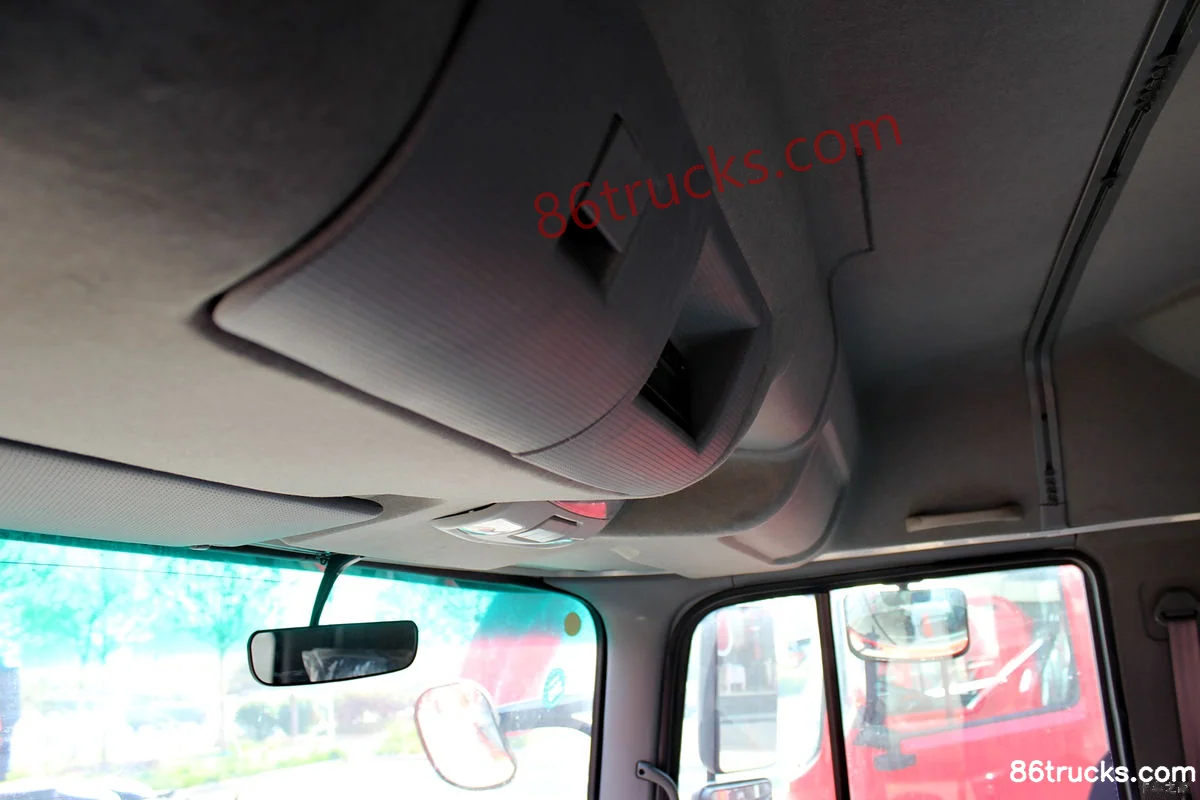

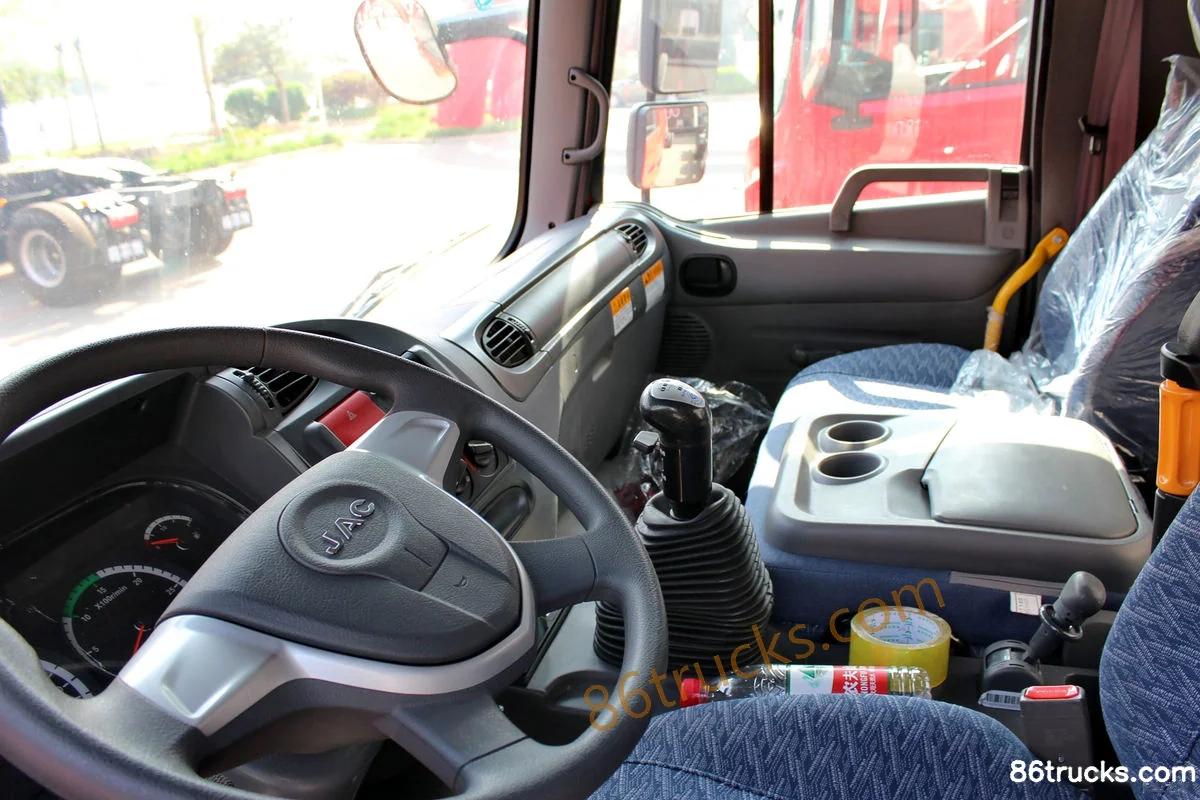

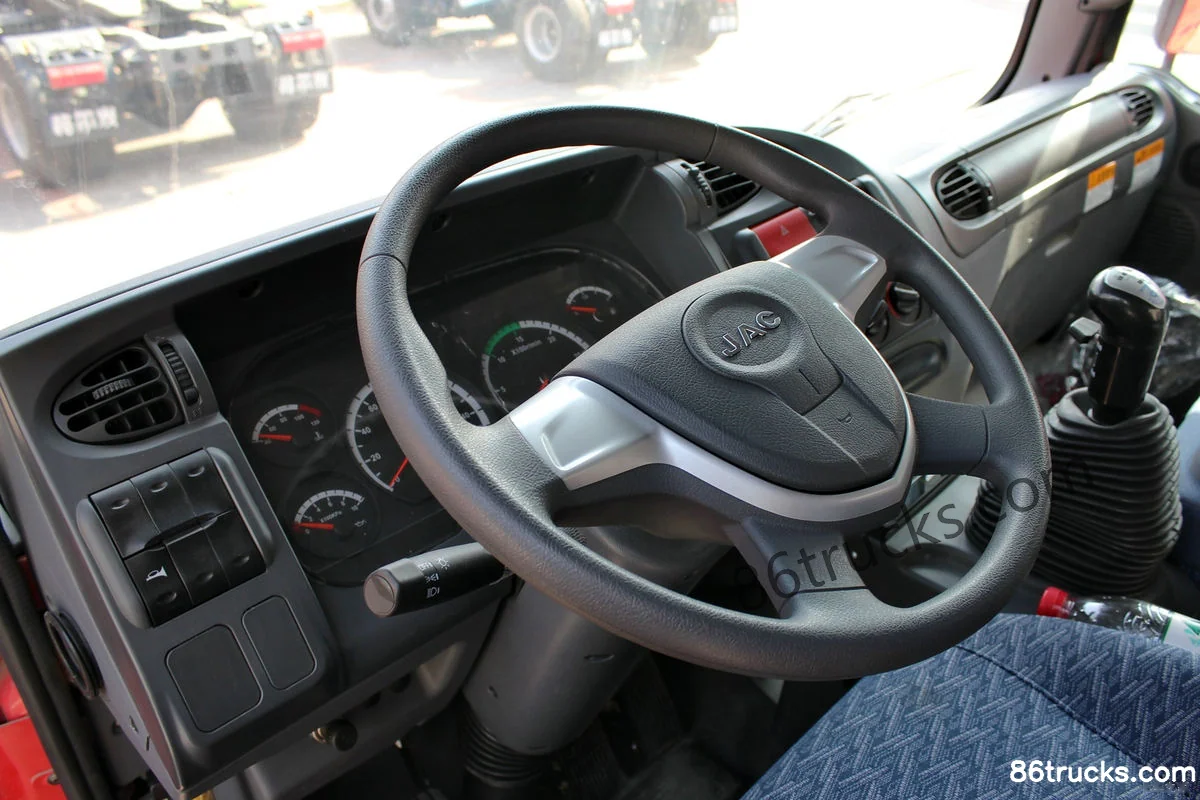

Cab3

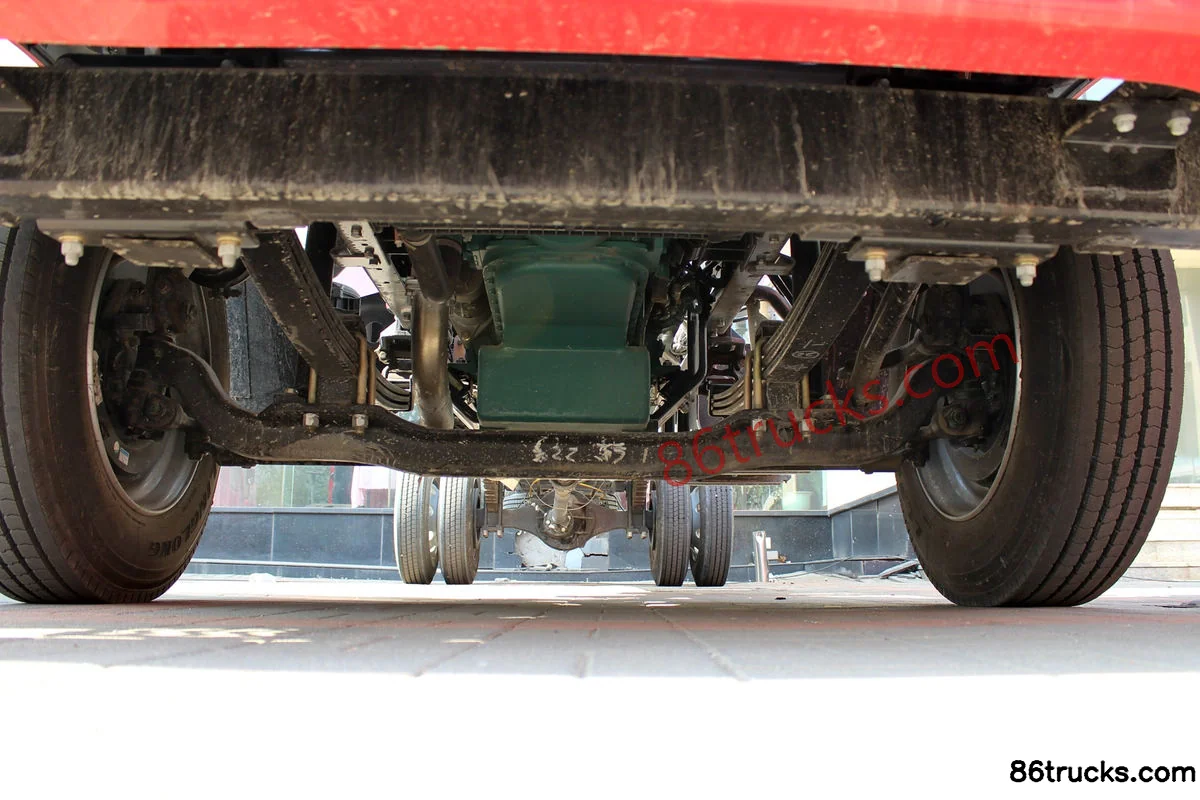

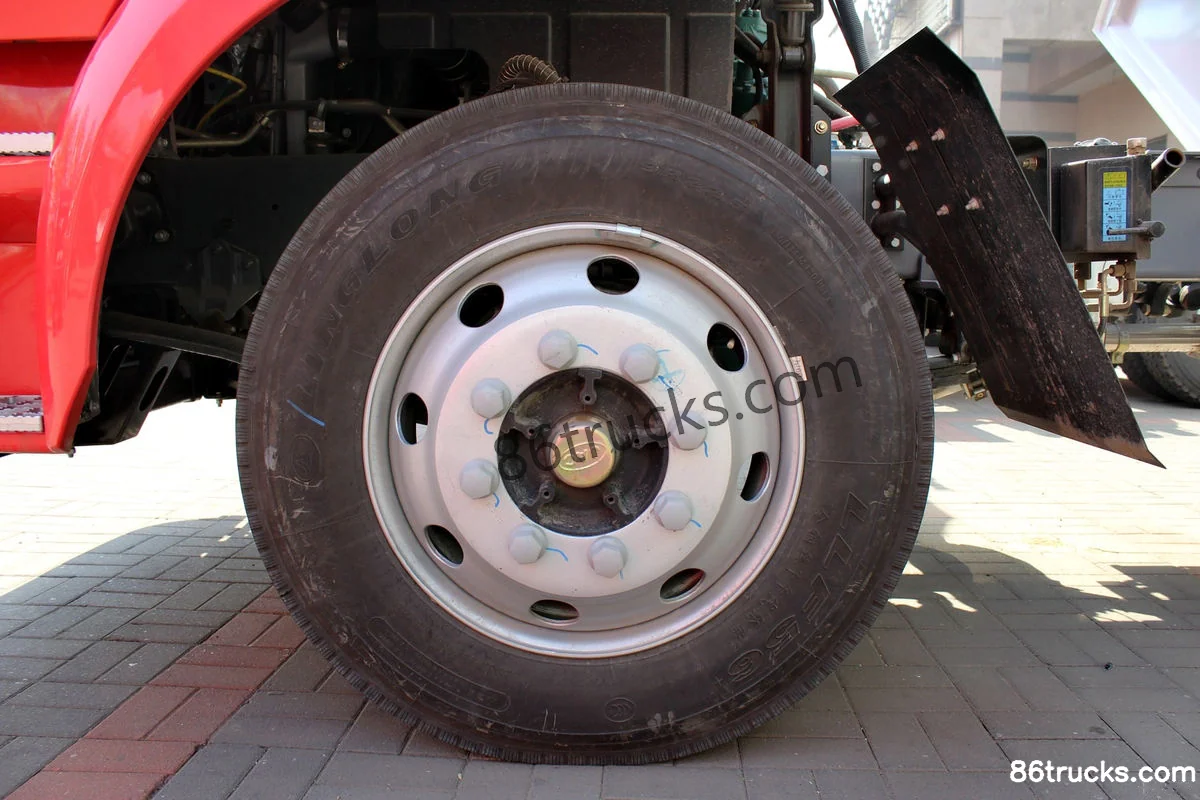

Chassis3

9 photos

FAQ

What is the export price of JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis, and what does it include?

JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis export reference is about From $17,778; MSRP is ¥12.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis?

Key specs of JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis: Drive: 4x2; Horsepower: 150 hp; Emission: China IV; Fuel: Diesel; Engine: Xichai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis suited for?

JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis differ from other variants in the same series?

JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis belongs to JAC Gallop K3 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3 Medium Truck 150 hp 4X2(6 wheels) 6.8m Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
