Dayun Yuntu 140hp 4X2(6 wheels) 3.75m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 2.6ton
Wheelbase:: 3300mm
Tire Size:: 8.25R16 6PR
Model code (announced):: DYQ3042D5AB
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 140
Cargo box type: Dump type

Overview

The Dayun Yuntu 140hp 4X2(6 wheels) 3.75m dump truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E140-56 engine, 140 hp, China V emissions and 6-speed transmission transmission.

China V 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYQ3042D5AB
Drive type: 4X2
Wheelbase: 3300mm
engine: YuchaiYC4E140-56
transmission: 6-speed transmission
Rear Axle Ratio: 6.333
Cab length: 5.995m
Cab width: 2.44m
Cab height: 2.8m
Front track width: 1740mm
rear track: 1650mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 25°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E140-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 103kW
Max hp: 140Horsepower
Max torque: 500N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: 6-speed transmission
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.75m
Cargo box width: 2.2m
Cargo box height: 0.6m
Chassis Specs
Front axle allowable load: 1840kg
rear axle allowable load: 2450kg
Axle ratio: 6.333
Leaf spring count: 8/11+8
Tire
Tire Size: 8.25R16 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

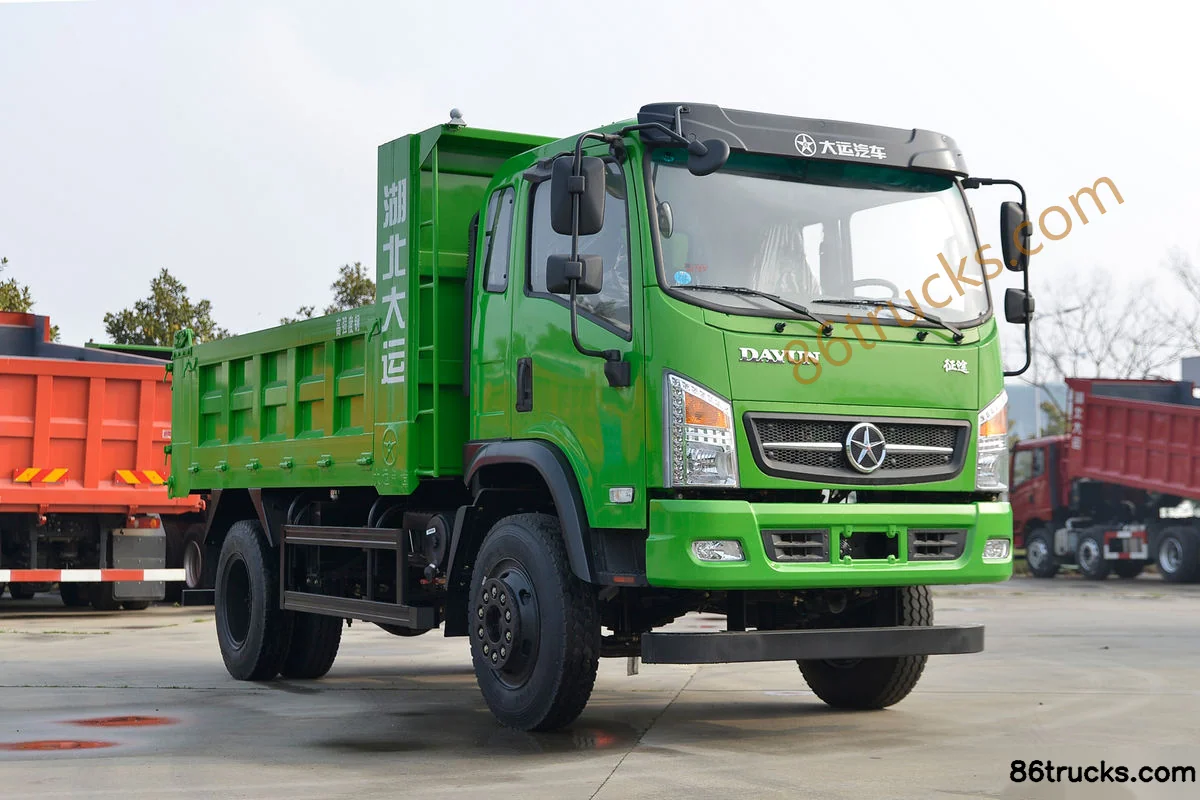

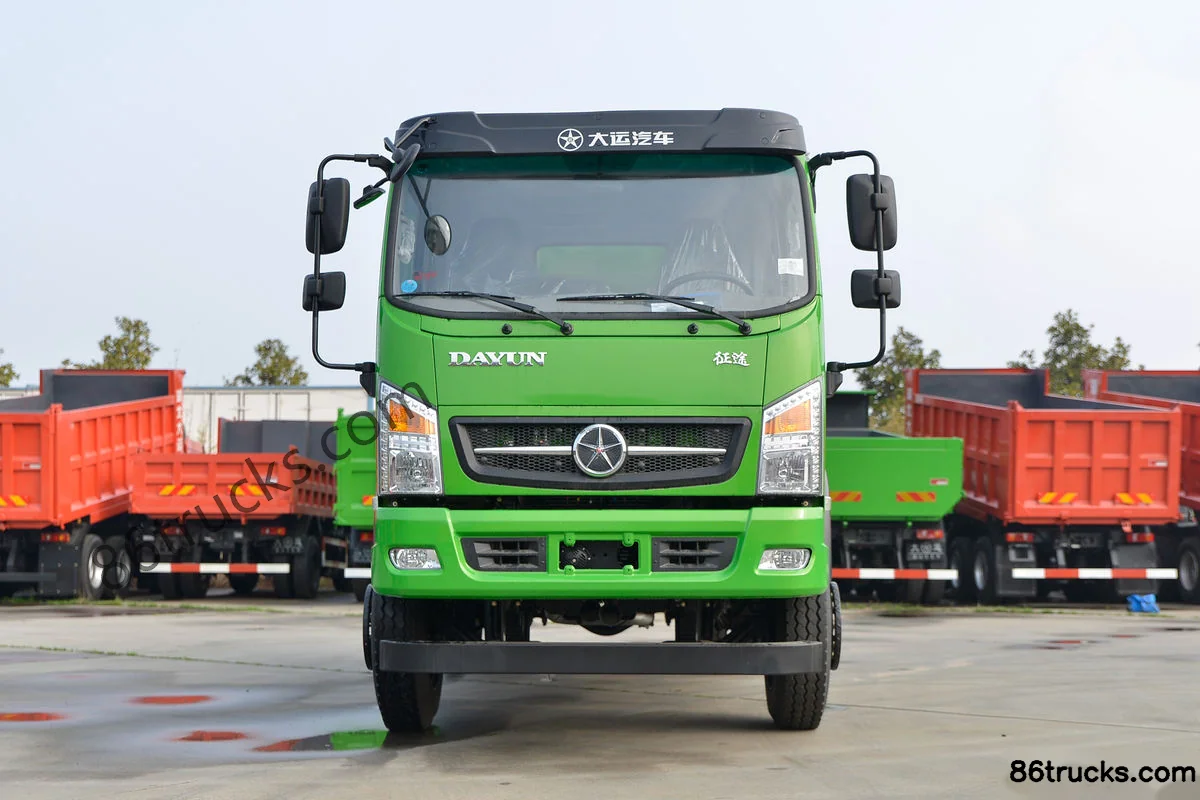

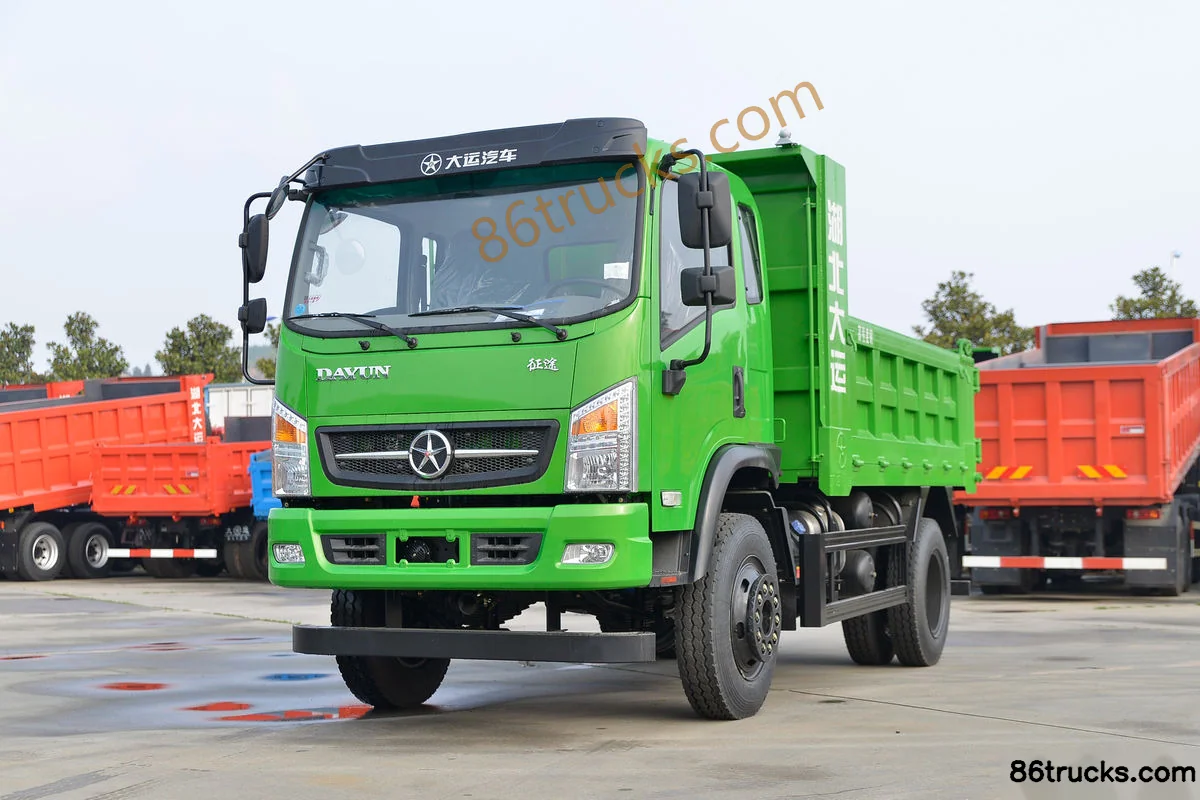

Exterior3

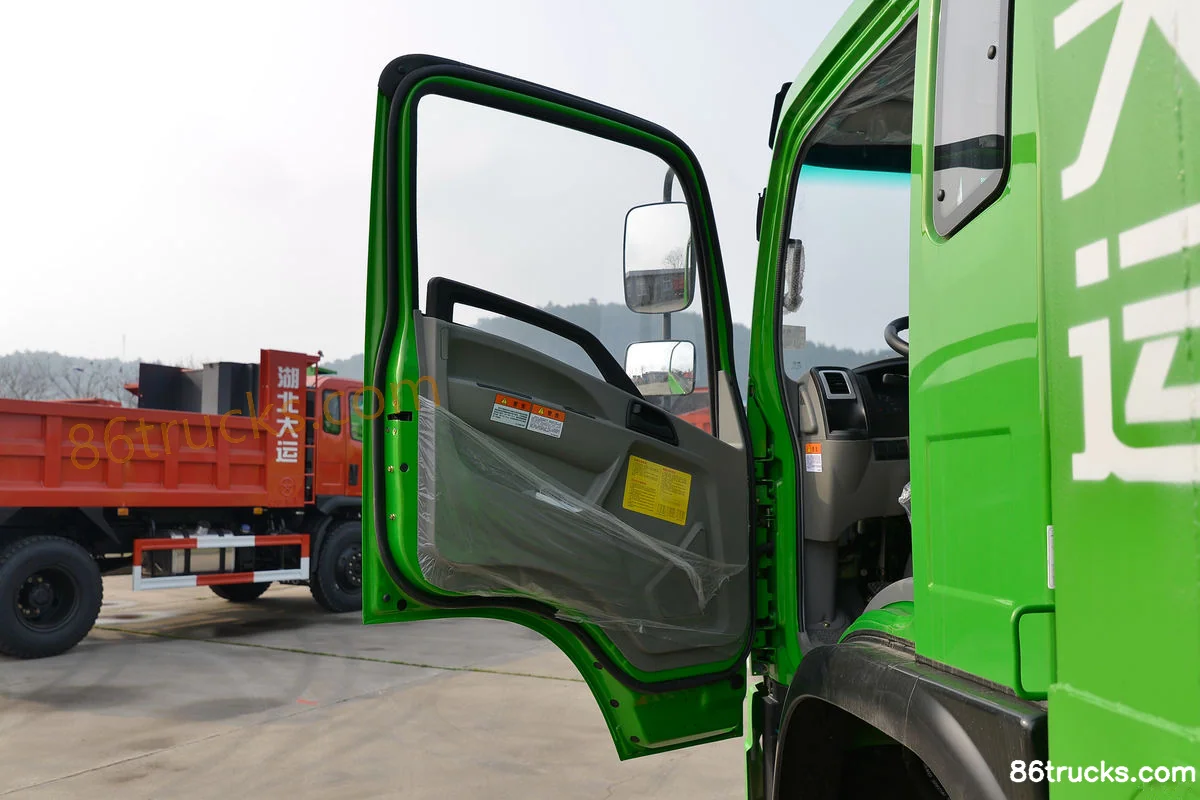

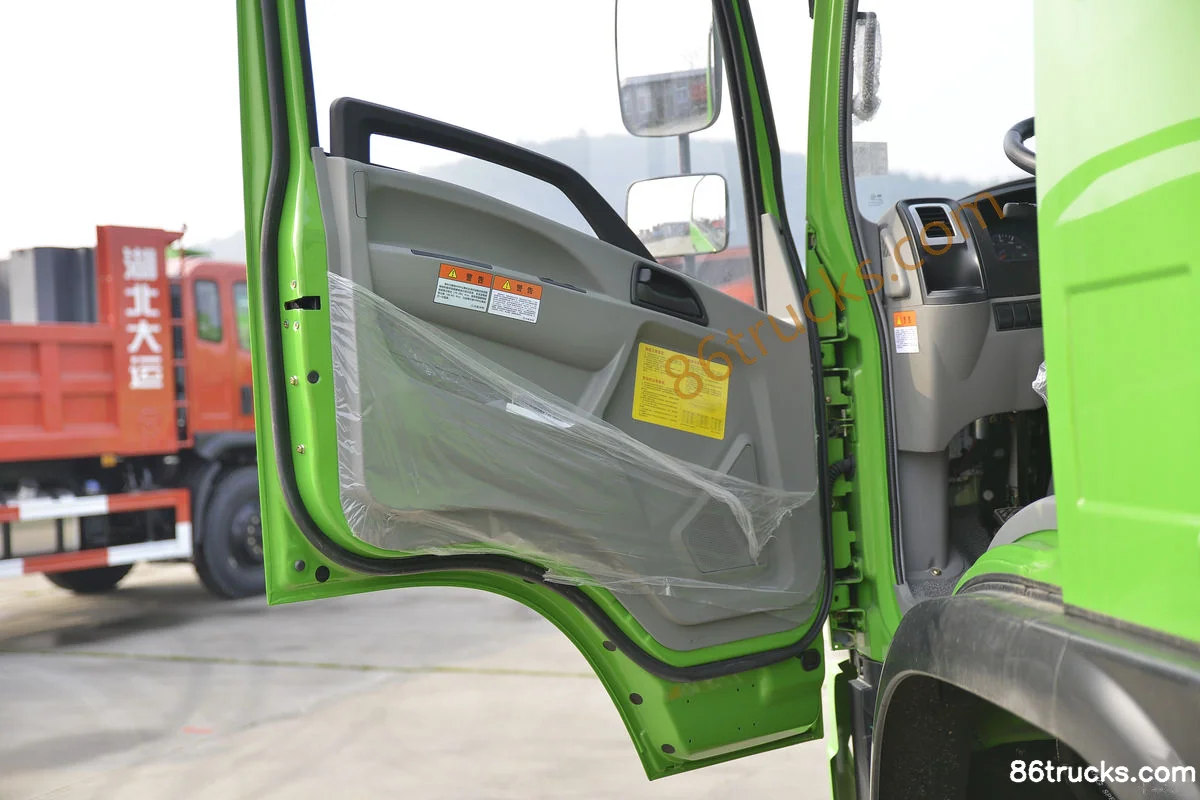

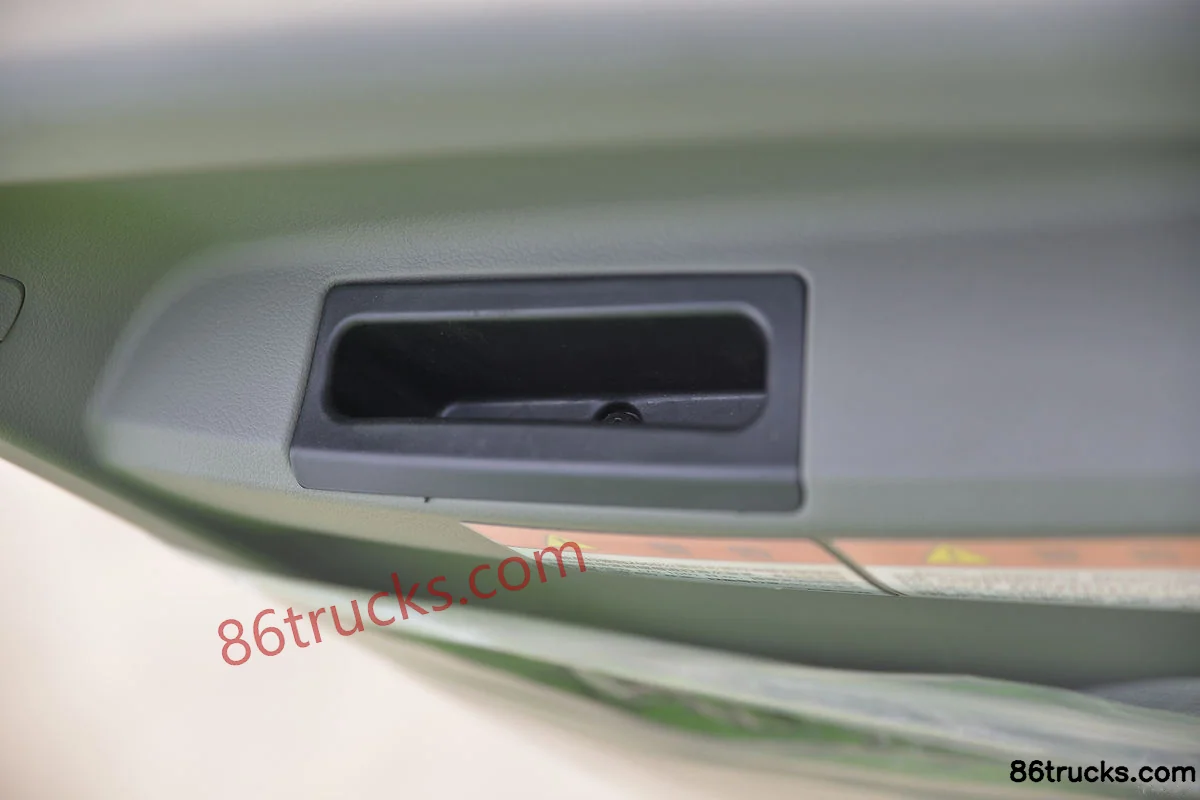

Cab3

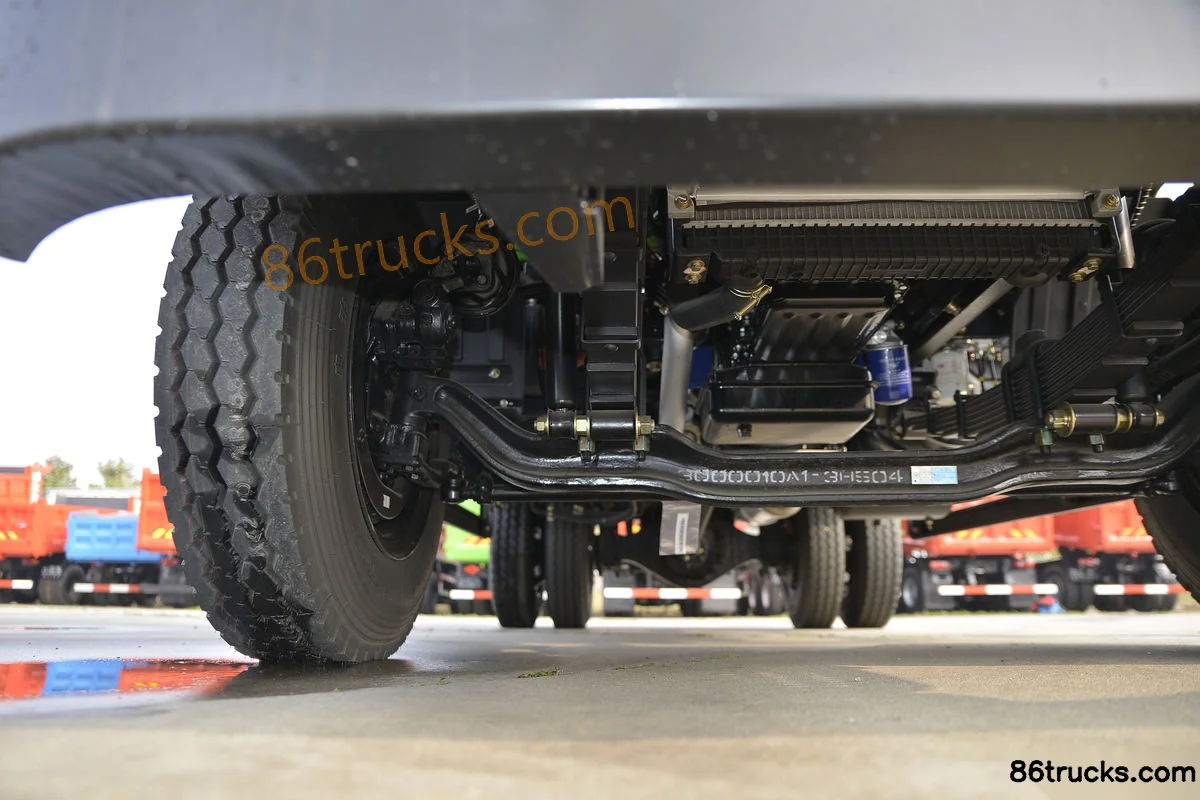

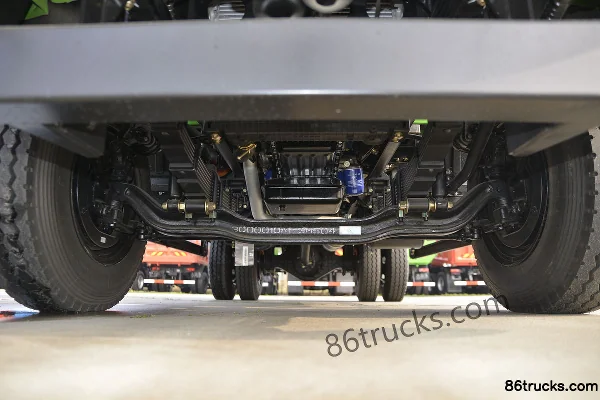

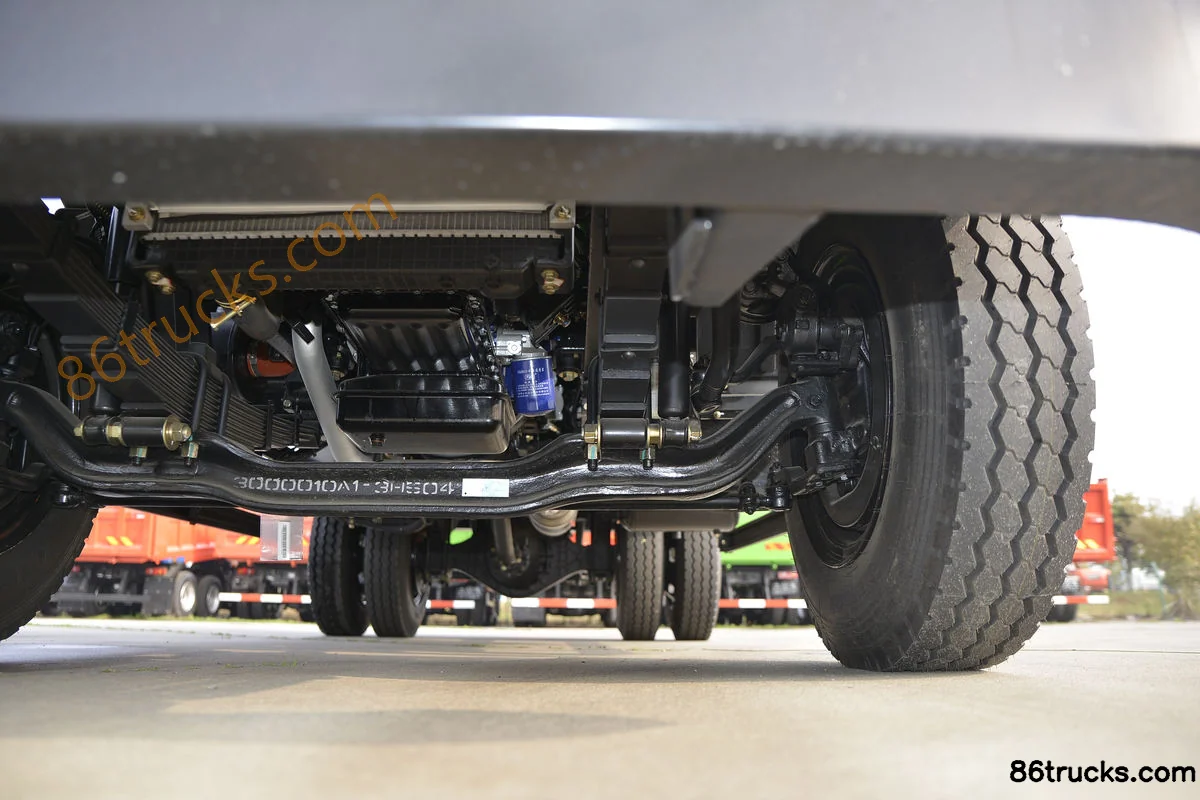

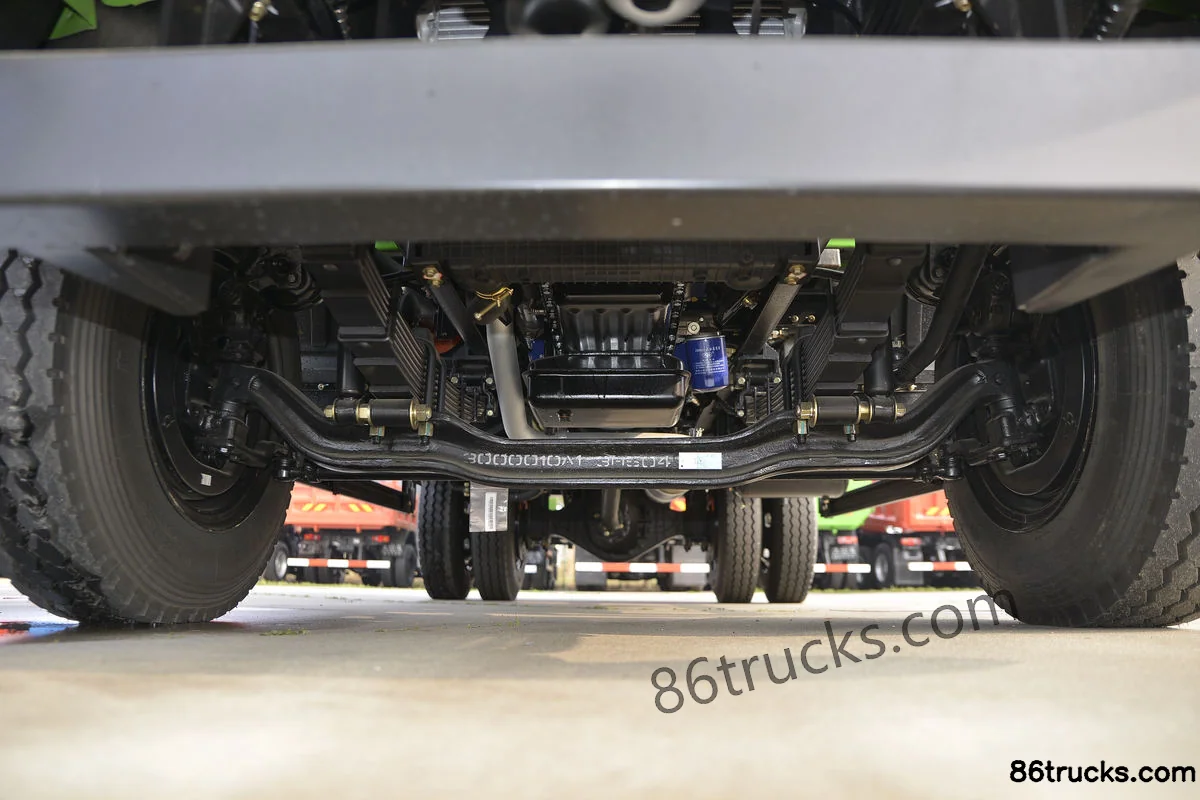

Chassis3

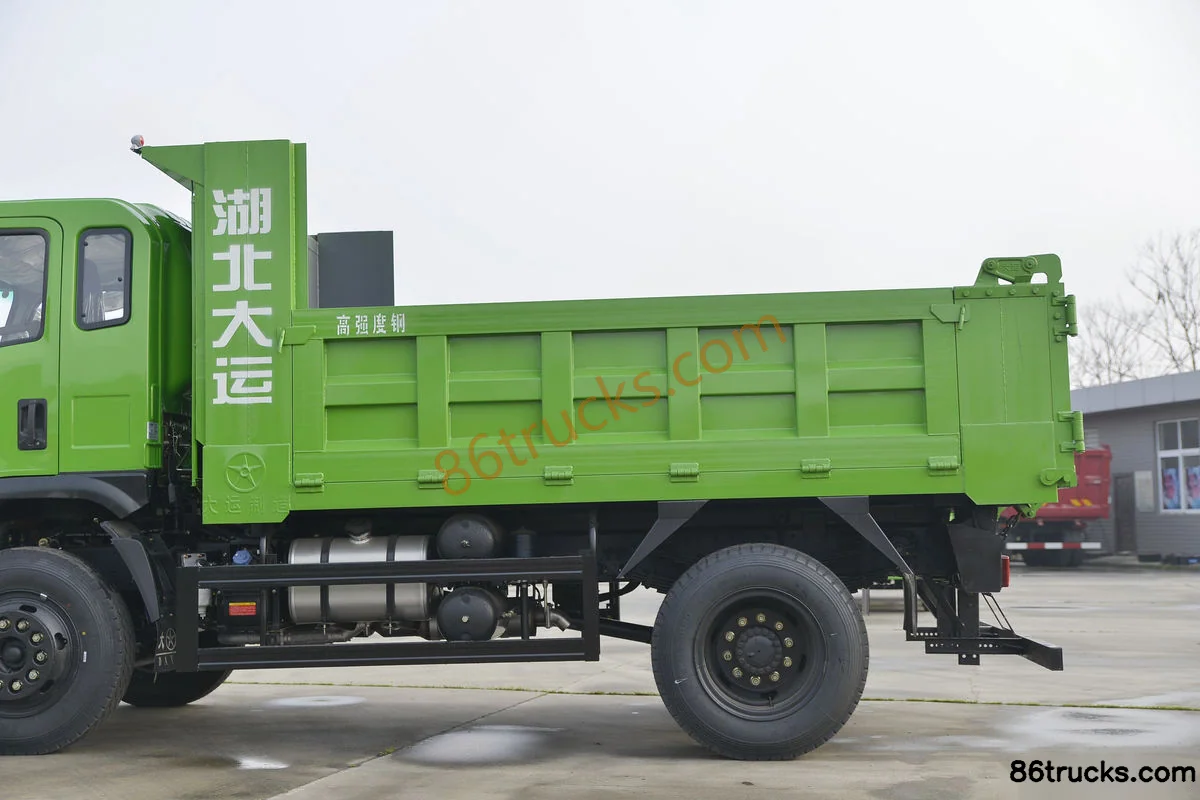

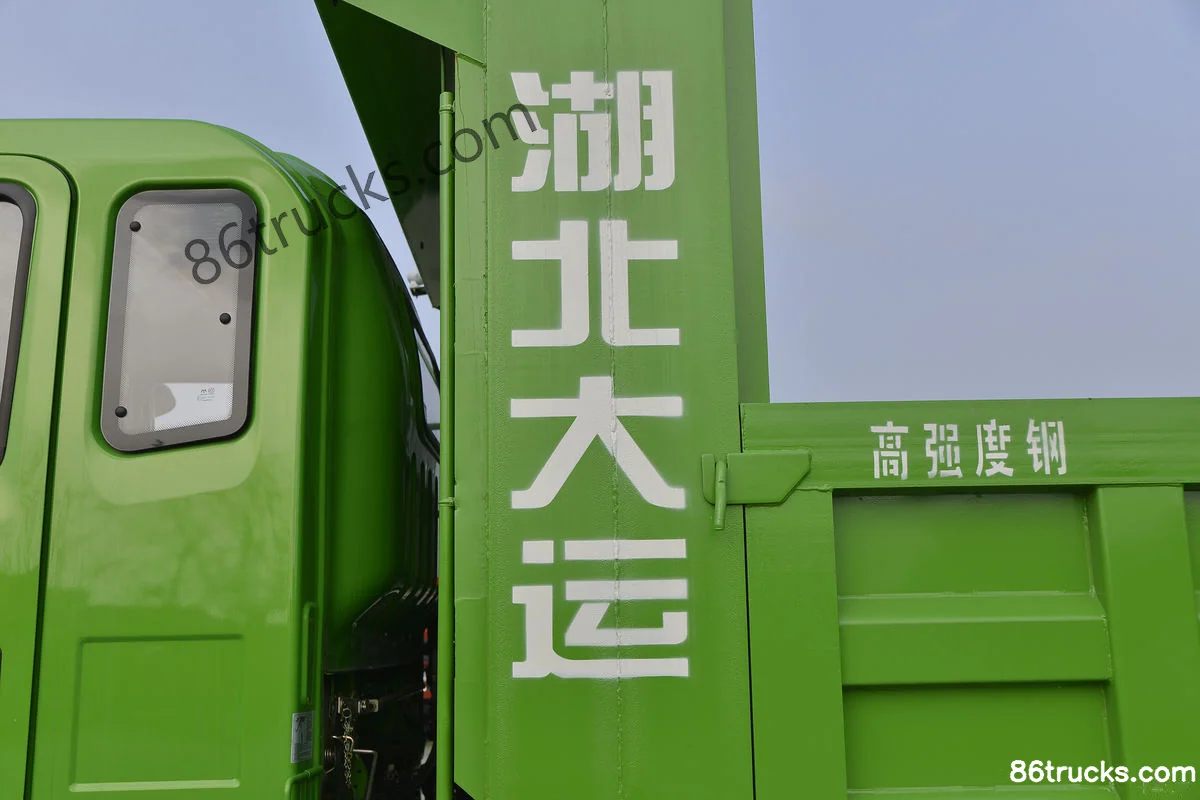

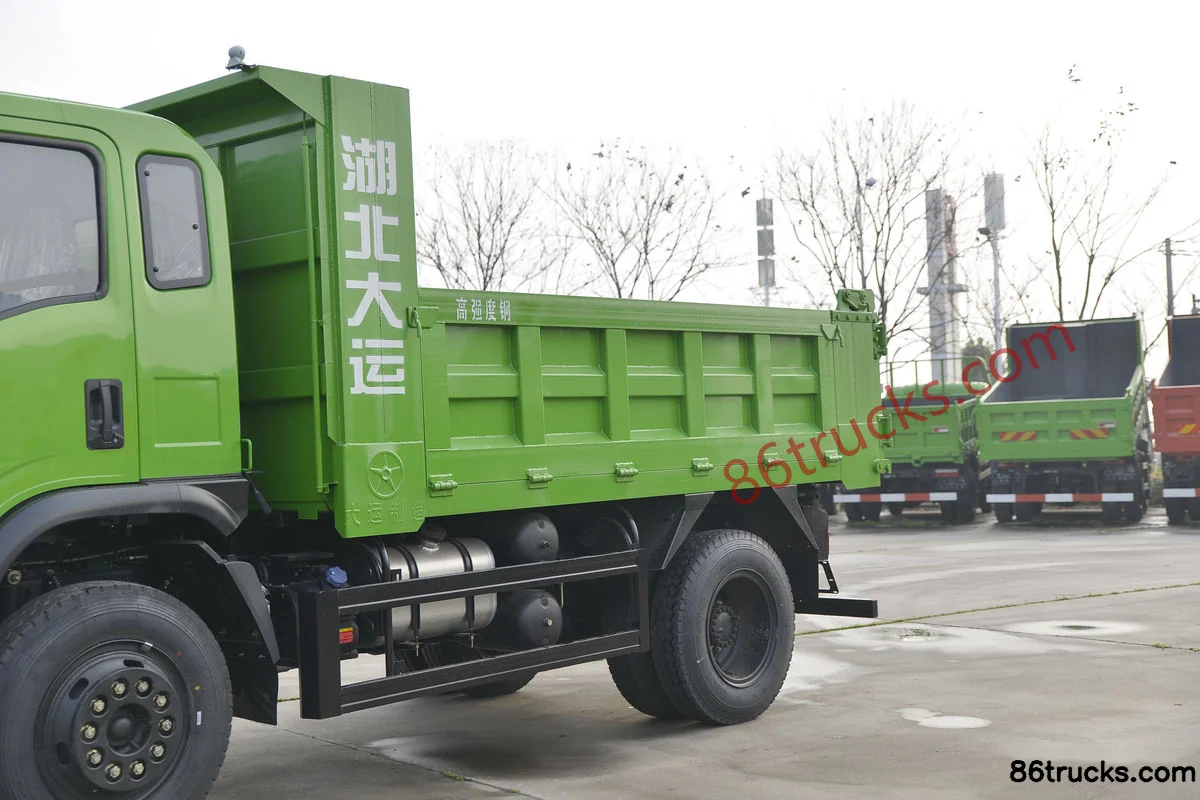

Body3

12 photos

FAQ

What emission standard does Dayun Yuntu 140hp 4X2(6 wheels) 3.75m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun Yuntu 140hp 4X2(6 wheels) 3.75m dump truck?

Key specs of Dayun Yuntu 140hp 4X2(6 wheels) 3.75m dump truck: Drive: 4x2; Horsepower: 140 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Yuntu 140hp 4X2(6 wheels) 3.75m dump truck suited for?

Dayun Yuntu 140hp 4X2(6 wheels) 3.75m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun Yuntu 140hp 4X2(6 wheels) 3.75m dump truck differ from other variants in the same series?

Dayun Yuntu 140hp 4X2(6 wheels) 3.75m dump truck belongs to Dayun Zhengtu light-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Yuntu 140hp 4X2(6 wheels) 3.75m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Yuntu 140hp 4X2(6 wheels) 3.75m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
