SHACMAN Aolong Enhanced 300 hp 6X4(10 wheels) 4.8m dump truck
EXW
Export quote
SHACMAN Aolong Heavy Truck Dump Trucks
Main model photos
76 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Aolong Enhanced 300 hp 6X4(10 wheels) 4.8m dump truck | 6x4 / 300hp / China IV | ||
| SHACMAN Aolong Enhanced 336hp 6X4(10 wheels) Dump Truck Chassis (12-speed) | 6x4 / 336hp / China IV | From $42,583 | |
| SHACMAN Aolong Enhanced 336hp 6X4(10 wheels) Dump Truck Chassis | 6x4 / 336hp / China IV | From $42,583 | |
| SHACMAN Aolong Enhanced 300hp 6X4(10 wheels) Dump Truck Chassis (12-speed) | 6x4 / 300hp / China IV | From $40,514 | |
| SHACMAN Aolong Enhanced 336hp 6X4(10 wheels) Dump Truck Chassis | 6x4 / 336hp / China IV | From $41,806 |

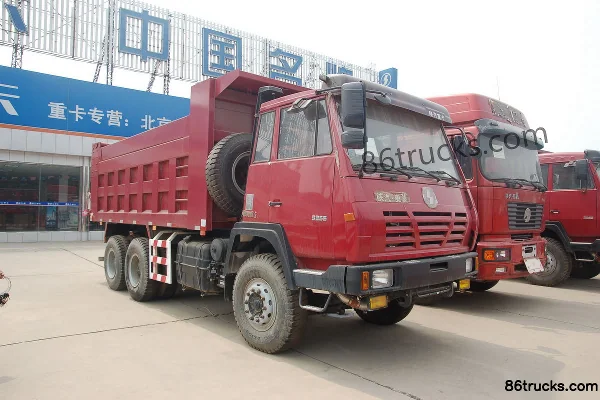

SHACMAN Aolong Enhanced 336hp 6X4(10 wheels) Dump Truck Chassis (12-speed)
EXW
From $42,583
Export quote
SHACMAN Aolong Enhanced 336hp 6X4(10 wheels) Dump Truck Chassis
EXW
From $42,583
Export quote
SHACMAN Aolong Enhanced 300hp 6X4(10 wheels) Dump Truck Chassis (12-speed)
EXW
From $40,514
Export quote
SHACMAN Aolong Enhanced 336hp 6X4(10 wheels) Dump Truck Chassis
EXW
From $41,806
Export quote
Series Specs
Basic Info
Model code (announced): SX3256UN294 / SX3256UR384 / SX3256UR354 / SX3256UR324 / SX3256DR354 / SX3255UR324 / SX3255UN384 / SX3255BR384 / SX3255BN384T / SX3255BM354 / SX3315TR456 / SX3315UR366 / SX3315UR326 / SX3315BM286 / SX3255UR464 / SX3255UR404 / SX3255UM384 / SX3255BM324 / SX3254BL324 / SX3315UR286 / SX3255BM294
Drive type: 6X4 / 8X4
Wheelbase: 2925+1350 / 3800+1350 / 3525+1350 / 3225+1350 / 3575+1400 / 1800+4500+1350 / 1800+3600+1350 / 1800+3200+1350 / 1800+2800+1350 / 4600+1350 / 4000+1350mm
Engine Model: WeichaiWP10.300E40 / WeichaiWP10.336E40 / WeichaiWP10.340E32 / WeichaiWP10.310E32 / WeichaiWP10.290 / WeichaiWP10NG300E30 / WeichaiWP10.375 / WeichaiWP10.336N / WeichaiWP10.300N / WeichaiWP10.336 / WeichaiWP10.270 / WeichaiWP10.270N / WeichaiWD615.56
Transmission Model: Fast Gear9JS150A / Fast Gear12JSD160T / Fast GearRT-11509C / Fast Gear10JSD160 / Fast Gear9JS135 / Fast Gear9JSD150A / Fast Gear9JS119
Rear Axle Ratio: 4.8 / 5.73 / 5.262 / 5.92 / 5.919
Cab length: 7.28 / 8.376 / 8.25 / 8.021 / 8.621 / 7.701 / 7.505 / 8.15 / 7.831 / 8.326 / 8.436 / 8.105 / 11.326 / 10.426 / 10.026 / 9.206 / 9 / 9.001 / 8.401 / 7.836 / 6.951m
Cab width: 2.49 / 2.48m
Cab height: 3.45 / 3.02m
Front track width: 1939 / 2036 / 2018 / 1939/1939 / 1939/1939,2018/2018 / 1939,2018 / 1939/2018mm
rear track: 1860/1860 / 1850/1850 / 1800/1800,1850/1850 / 1800/1800,1860/1860 / 1800mm
Curb Weight: 11.91 / 12.05 / 12 / 11.95 / 12.315 / 12.4 / 12.2 / 12.37 / 12.5 / 12.32 / 14.7 / 14.57 / 14.47 / 13.87 / 14.1ton
Rated payload: 12.96 / 12.82 / 12.805 / 12.87 / 12.92 / 12.555 / 12.47 / 12.67 / 25 / 12.37 / 12.85 / 16.04 / 16.3 / 16.4 / 17 / 12.55 / 16.77ton
GVWR: 25 / 30.87 / 30.597 / 31ton
Origin: Xi'an, Shaanxi / Xi'an
tonnage class: Heavy truck
Approach angle: 28 / 20°
departure angle: 30 / 23 / 25 / 31 / 20 / 26 / 45 / 32°
Remarks: Metal bumper, hydraulic driver seat, heater, manual windows, Tianxingjian Zhiya Edition BD onboard terminal, domestic steering gear, oil bath air filter, domestic Φ430 clutch, transmission with QH50 PTO, reinforced driveshaft, multi-leaf front/rear springs, domestic 4-channel ABS, 165Ah standard battery; optional: standard (B) cab, standard cab simple sleeper (B cab only), built-in A/C, 380L iron fuel tank; RTD11509C+16T STR dual reduction 5.73 / Metal bumper, hydraulic driver seat, heater, manual windows, Tianxingjian Zhiya Edition BD onboard terminal, domestic steering gear, desert air filter, domestic Φ430 clutch, transmission with QH50 PTO, reinforced driveshaft, reinforced front leaf springs, domestic 4-channel ABS, 165Ah standard battery, optional: standard (B) cab, standard cab simple sleeper (B cab only), built-in A/C, 380L iron fuel tank, oil bath air filter, RTD11509C+16T STR dual reduction 5.73 / Metal bumper, hydraulic driver seat, heater, manual windows, Tianxingjian Zhiya Edition BD onboard terminal, domestic steering gear, desert air filter, domestic Φ430 clutch, transmission with QH50 PTO, reinforced driveshaft, reinforced front leaf springs, domestic 4-channel ABS, 165Ah standard battery, optional: medium-long semi-high roof (U) cab, standard cab simple sleeper (B cab only), built-in A/C, 300L iron fuel tank, oil bath air filter, RTD11509C+16T STR dual reduction 5.73 / Metal bumper, hydraulic driver seat, heater, manual windows, Tianxingjian Zhiya Edition BD onboard terminal, domestic steering gear, desert air filter, domestic Φ430 clutch, transmission with QH50 PTO, reinforced driveshaft, reinforced front leaf springs, domestic 4-channel ABS, 165Ah standard battery, optional: standard cab simple sleeper (B cab only), built-in A/C, RTD11509C+13T STR dual reduction 5.73 / Optional covered cargo body. With cover, curb weight 12400 kg, cover weight 300 kg. Side/rear guard material: Q235; connection: bolted; rear guard section (mm): 48 × 100; rear guard ground clearance (mm): 450. / fuel tank (K29, K32 standard 200L steel) / Side and rear guard material: Q235; connection: bolted; rear guard section width (mm): 48×100; rear guard ground clearance (mm): 450 / This vehicle is optionally equipped with a covered cargo body. With the covered body, curb weight is 12500kg. Optional cargo body lengths: with a 5800mm body, overall length is 8576mm, rear overhang 1850mm. Optional side panel structure. Dump direction: rear tipping. / Clutch (430mm diaphragm) / Steering gear (ZF technology); clutch (430 diaphragm) / Cargo box internal dimensions L7600,6450 / W2300,2000 / H1100,1460 (one-to-one). Dump direction: rear dump. Tire specs also available: 11.00R20, 12.00-20, 12.00R20 / Tire specification also available: 11.00R20, 12.00-20, 12.00R20 / Optional same-series semi-high-roof cab. When rear overhang is 2900mm, overall length 10426mm, cargo box internal dimensions 7700mm×2300×880mm, dump direction side; when rear overhang is 2224mm, overall length 9750mm, cargo box internal dimensions 7000mm×2300×960mm, dump direction rear. Tire sizes also available: 11.00R20, 12.00-20, 12.00R20 / The dumping direction of this vehicle is rear tipping. Optional environmentally friendly cover for the cargo body is available; the cover weighs 300 kg. With the cover, curb weight is 12400 kg, rated payload is 12470 kg, and the payload-to-weight ratio is 1.01. Without the cover, curb weight is 12100 kg, rated payload is 12770 kg, and the payload-to-weight ratio is 1.06. When the cargo body length is 5600 mm, overall vehicle length is 8401 mm, with a rear overhang of 1675 mm; when the cargo body length is 5800 mm, overall vehicle length is 8601 mm, with a rear overhang of 1875 mm. Additional tire specifications: 12.00-20, 12.00R20, 11.00R20. / This vehicle is optionally equipped with a covered cargo body (cover weight 300kg). With the covered body, curb weight is 12500kg, rated payload can also be 12.67 tons, cargo body length can also be 5.6m, tire size can also be 11.00R20, 12.00-20, 12.00R20. / Optional covered body; curb weight with cover 12800 kg (cover weight 300 kg). Additional tire sizes: 11.00R20, 12.00-20, 12.00R20. / This product serves as the basis for vehicle registration since October 1, 2004. The vehicle shall be equipped with rear reflective markings. / The cargo box cover weighs 300kg. With cover, curb weight is 12320kg, payload 12550kg; without cover, curb weight is 12020kg, payload 12850kg. / Optional same-series low roof cab; when cargo box length is 6400mm, cargo box height is 1360mm; when cargo box length is 6500mm, cargo box height is 1340mm; dump direction is rear tipping.
Version: reinforced version / Mining transport version / Urban Construction Edition / CNG Version / Standard Load Edition
Energy Type: Diesel / Compressed Natural Gas (CNG)
Engine parameters
Engine Brand: Weichai
Number of cylinders: 6cylinder
Displacement: 9.726L
Emission standard: China IV / China III / Euro III / China II/Euro II
Max output power: 221 / 247 / 250 / 228 / 213 / 276 / 199 / 193kW
Max hp: 300 / 336 / 340 / 310 / 290 / 375 / 270 / 262Horsepower
Max torque: 1390 / 1500 / 1250 / 1160 / 1460 / 1100 / 1270N·m
Max torque speed: 1200-1500 / 1300-1600 / 1400-1600 / 1200-1600 / 1350-1500rpm
Rated speed: 1900 / 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled / Inline, water-cooled, wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn / Inline 6-cylinder
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9 / 12 / 10Gear
Number of Reverse Gears: 1 / 2pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 4.8 / 5.8 / 5.4 / 5.2 / 5.6 / 5 / 8.2 / 7.6 / 7.2 / 6.5 / 7 / 7.7 / 6.2 / 5.15 / 6.4m
Cargo box width: 2.3m
Cargo box height: 1.4 / 0.88 / 1.24 / 1.15 / 0.85 / 0.95 / 1.34 / 1.2 / 1.25 / 1.1 / 1.13 / 1 / 1.3 / 0.96 / 1.07 / 1.35 / 1.36m
fuel tank
Fuel tank capacity: 200 / 300 / 400L
FAQ
What kind of truck is SHACMAN SHACMAN Aolong Heavy Truck Dump Trucks?
SHACMAN SHACMAN Aolong Heavy Truck is an export-oriented Dump Trucks lineup with about 43 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Aolong Heavy Truck Dump Trucks?
SHACMAN Aolong Heavy Truck Dump Trucks export reference is about $33,222 – $47,847. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Aolong Heavy Truck Dump Trucks cover?
SHACMAN Aolong Heavy Truck Dump Trucks mainly covers: Drive: 6x4; Horsepower: 300 hp / 336 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Aolong Heavy Truck Dump Trucks?
For SHACMAN Aolong Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SHACMAN Aolong Heavy Truck Dump Trucks include?
SHACMAN Aolong Heavy Truck Dump Trucks currently lists about 43 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Aolong Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
