SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.2m Dump Truck (Urban Construction Edition)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.315ton
Wheelbase:: 3575+1400mm
Tire Size:: 12.00R20
Rated payload: 12.555ton
Drive 6X4 (10 wheels)
Horsepower 336
Cargo box type: Rear-dump body

Overview

The SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.2m Dump Truck (Urban Construction Edition) is a Heavy truck featuring 12.555t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.336E40 engine, 336 hp, China IV emissions and Fast Gear transmission.

China IV 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3256DR354
Drive type: 6X4
Wheelbase: 3575+1400mm
engine: WeichaiWP10.336E40
transmission: Fast Gear10JSD160
Rear Axle Ratio: 5.262
Cab length: 8.15m
Cab width: 2.49m
Cab height: 3.45m
Front track width: 2036mm
rear track: 1860/1860mm
Curb Weight: 12.315ton
Rated payload: 12.555ton
GVWR: 25ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 28°
departure angle: 23°
Version: Urban Construction Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.336E40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1600rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear10JSD160
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.2m
Cargo box width: 2.3m
Cargo box height: 1.2m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: Hande 16t MAN double reduction cast axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 5.262
Leaf spring count: 10/12
Tire
Tire Size: 12.00R20
Number of tires: 10pcs
Control configuration
ABS:

Photos

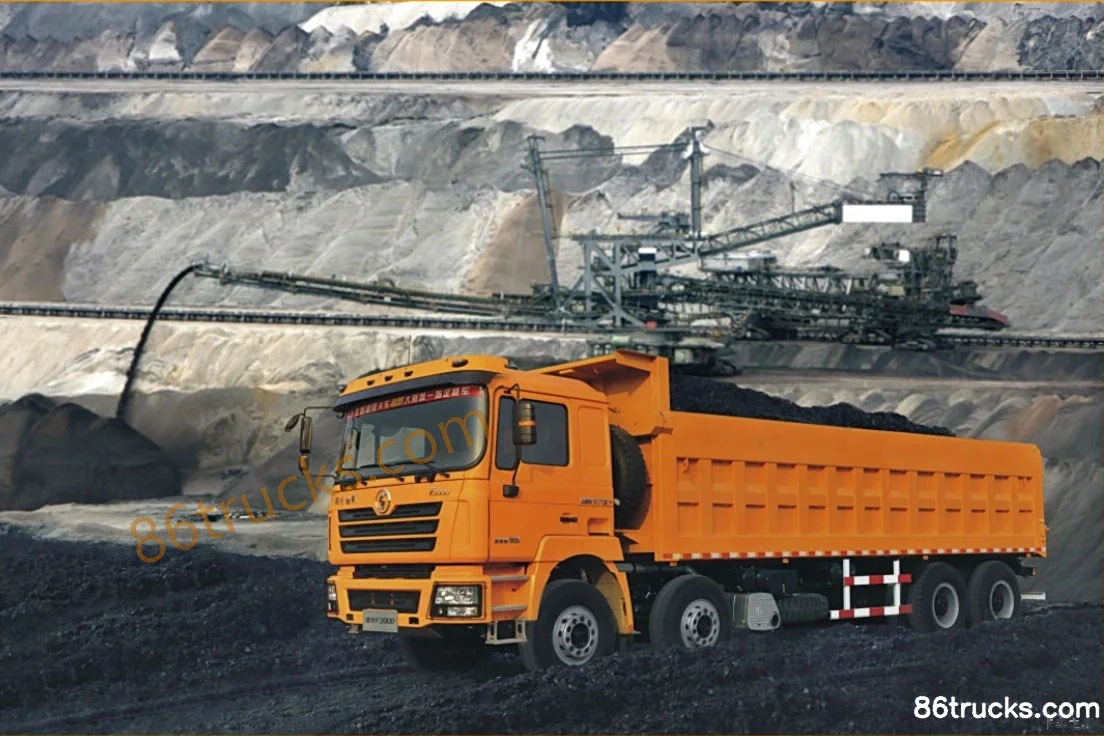

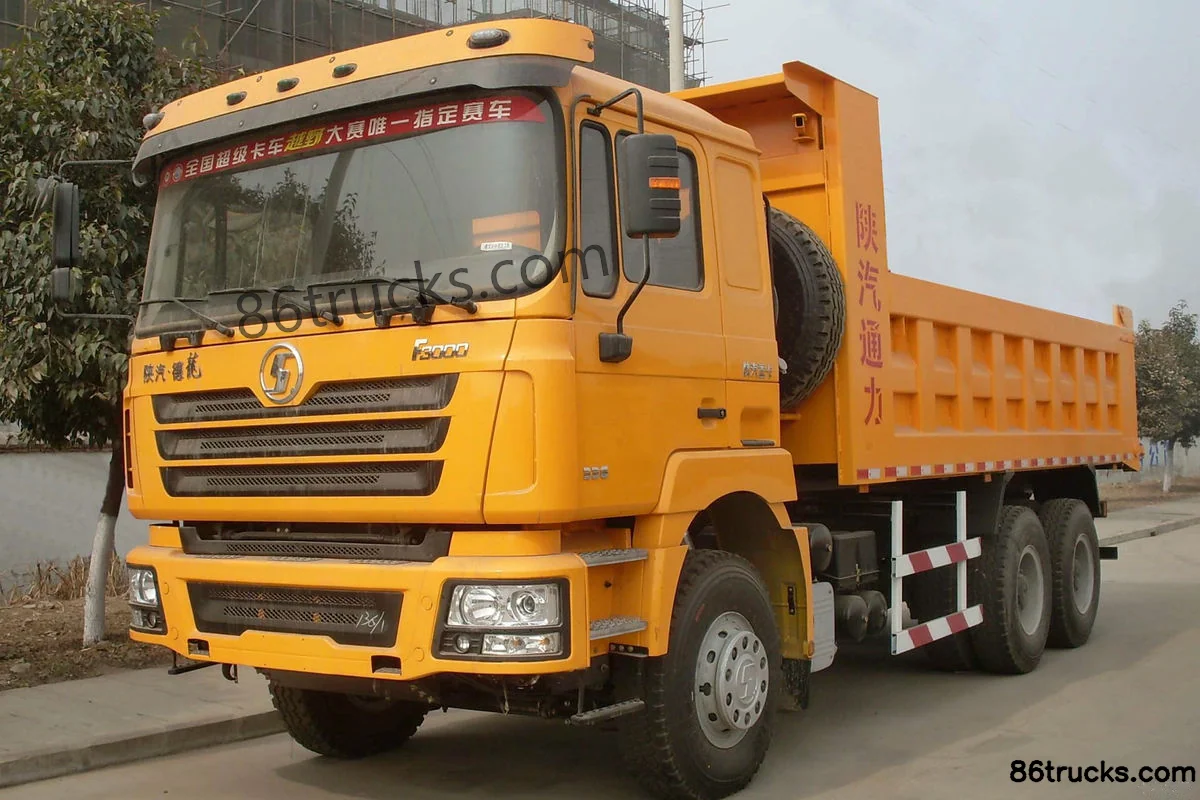

Exterior2

2 photos

FAQ

What emission standard does SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.2m Dump Truck (Urban Construction Edition) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.2m Dump Truck (Urban Construction Edition)?

Key specs of SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.2m Dump Truck (Urban Construction Edition): Drive: 6x4; Horsepower: 336 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.2m Dump Truck (Urban Construction Edition) suited for?

SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.2m Dump Truck (Urban Construction Edition) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.2m Dump Truck (Urban Construction Edition) differ from other variants in the same series?

SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.2m Dump Truck (Urban Construction Edition) belongs to SHACMAN Aolong Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.2m Dump Truck (Urban Construction Edition)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.2m Dump Truck (Urban Construction Edition)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
