FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY)

Export reference
MSRP N/A
Horsepower: 148
Emission: China V
Fuel: Diesel
Engine: Fukang 2.8
Transmission: WLY
Curb Weight:: 2.56ton
FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 1.74ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) is a Light Truck featuring 3.85m cargo length, stake body cargo body, 3Personnel volume and 1.74t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Fukang 2.8 engine, 148 hp, 4X2 (6 wheels) drive and China V emissions.

China V 148 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA1046P40K2L1E5A84
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 3.8m
engine: FotonISF2.8s5148T
transmission: WLYWLY6G40
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.47m
Cab height: 3.125m
Front track width: 1730mm
rear track: 1620mm
Curb Weight: 2.56ton
Rated payload: 1.74ton
GVWR: 4.495ton
Max. speed: 115km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Agricultural product transport, green channel
Remarks: Front brake optional disc brake. Frame optional 216*865
Front/rear suspension: 1.155/1.54m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF2.8s5148T
Engine info: Fukang 2.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.78L
Emission standard: China V
Max output power: 110kW
Max hp: 148Horsepower
Max torque: 360N·m
Max torque speed: 1500-2900rpm
Rated speed: 2900rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: WLYWLY6G40
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.85m
Cargo box width: 2.3m
Cargo box height: 0.55m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Lingtu
Cab width: 2010mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 1850kg
Frame Dimensions: 180*780mm
rear axle description: 295H rear axle
rear axle allowable load: 2645kg
Axle ratio: 4.875
Leaf spring count: 3/7+9,3/3+3,7/10+3,7/7+9
Aluminum wheels:
Tire
Tire Size: 7.00-16 8PR,7.00R16 8PR,7.50-16 6PR,7.50R16 6PR,6.50-16 10PR,6.50R16 10PR,8.25-16 6PR,8.25R16 6PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
EBS electronic braking system:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type: Frameless
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster: none
LCD instrument cluster:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 24 months unlimited mileage
24-hour service hotline:
Rescue service:

Photos

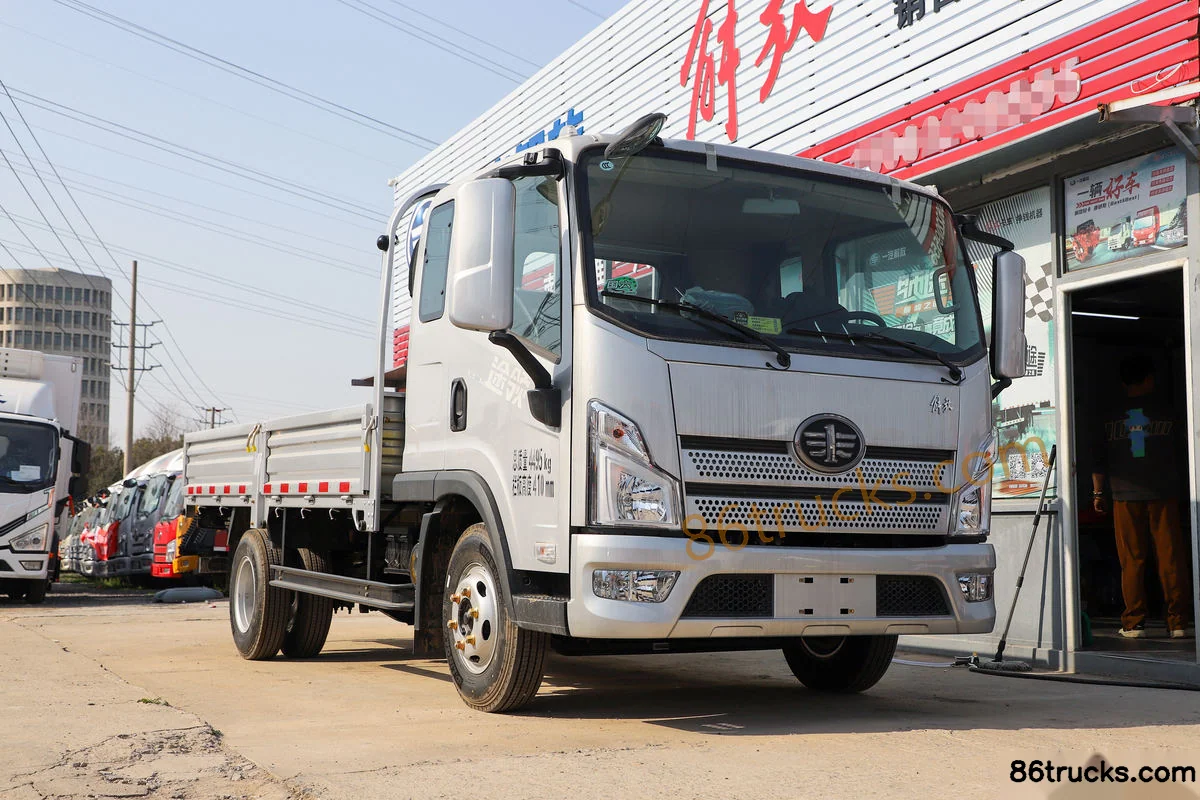

Exterior3

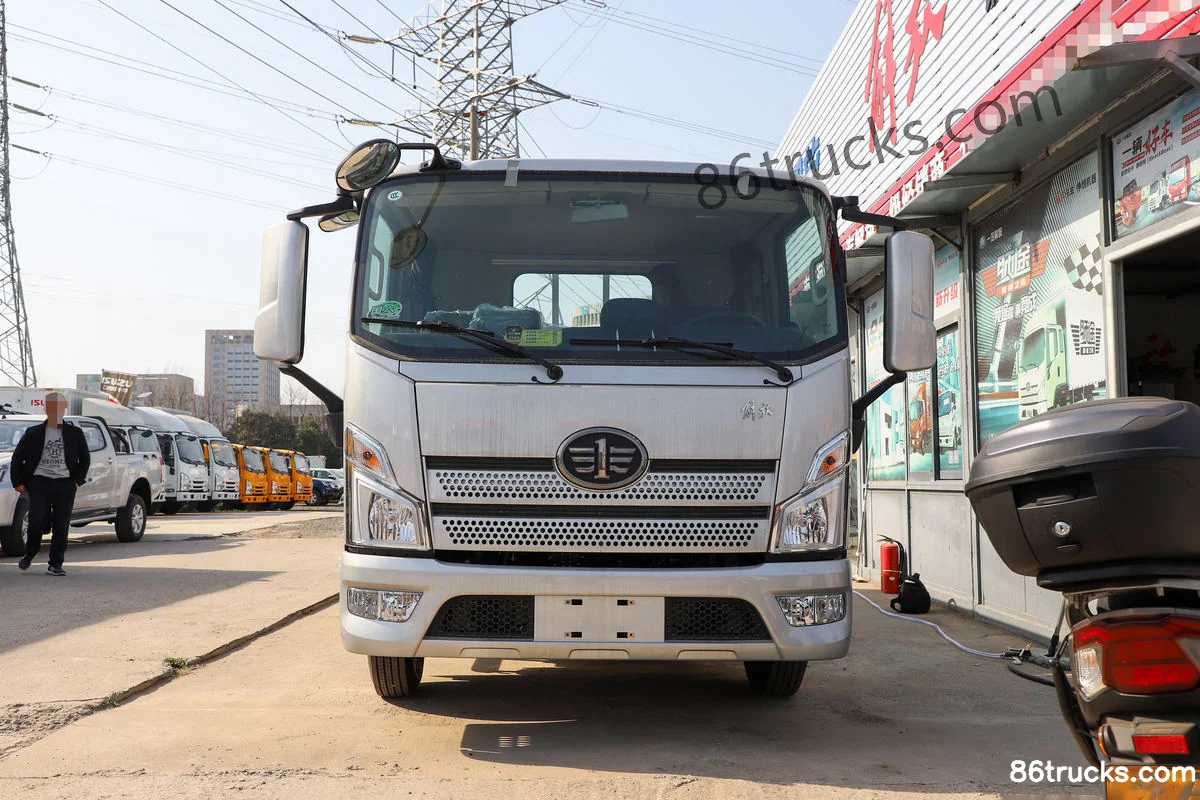

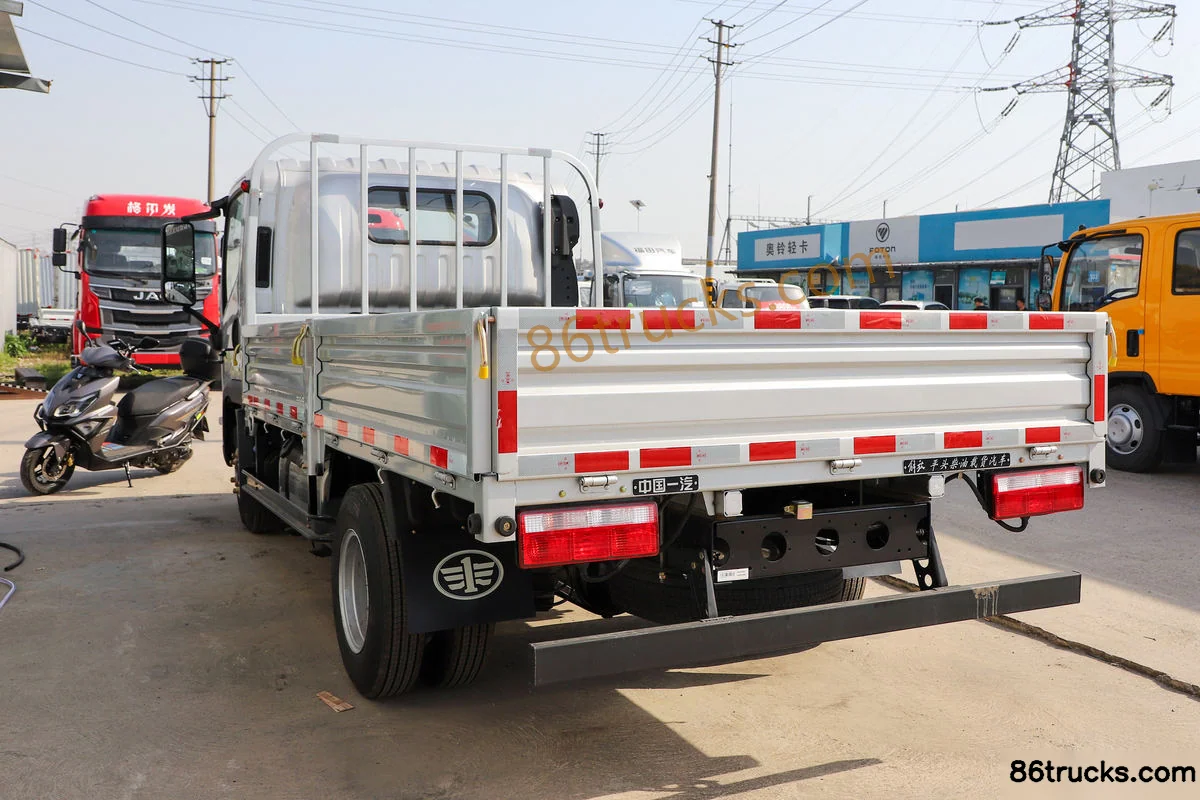

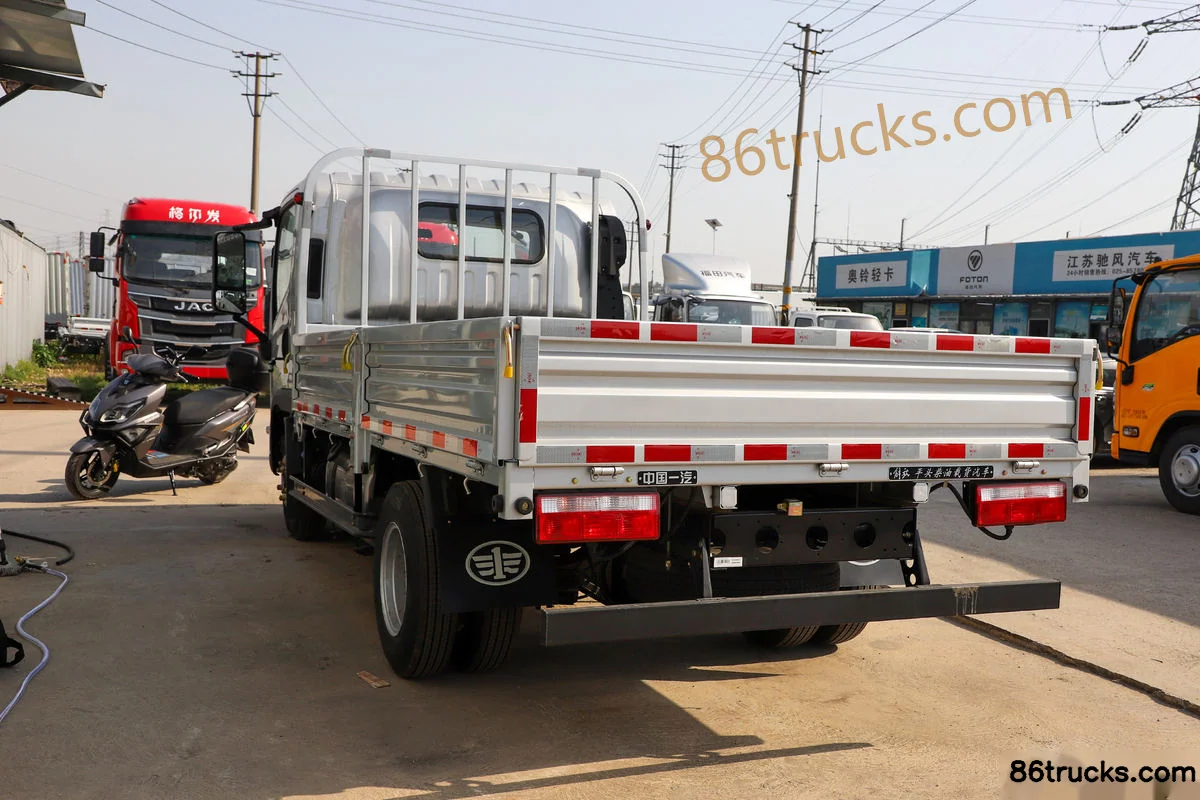

FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) Exterior (1) | 86Trucks FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) Exterior (2) | 86Trucks FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) Exterior (3) | 86Trucks

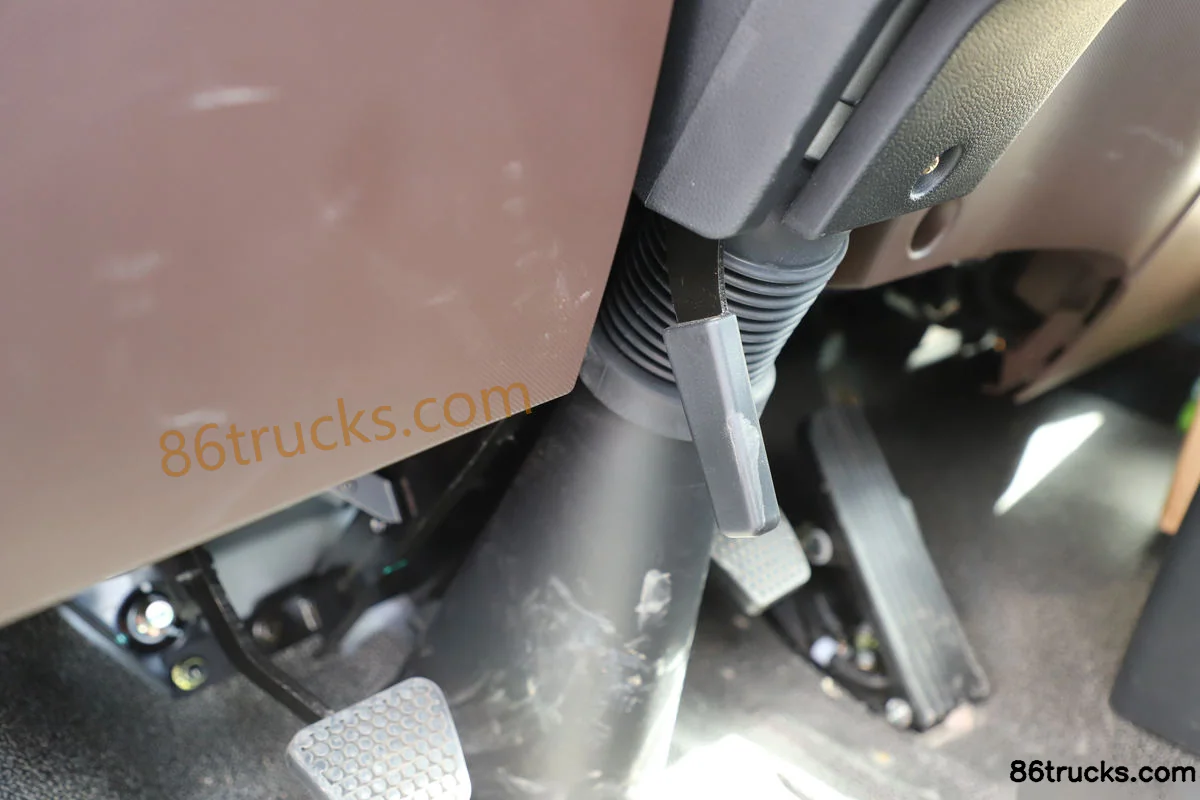

Cab3

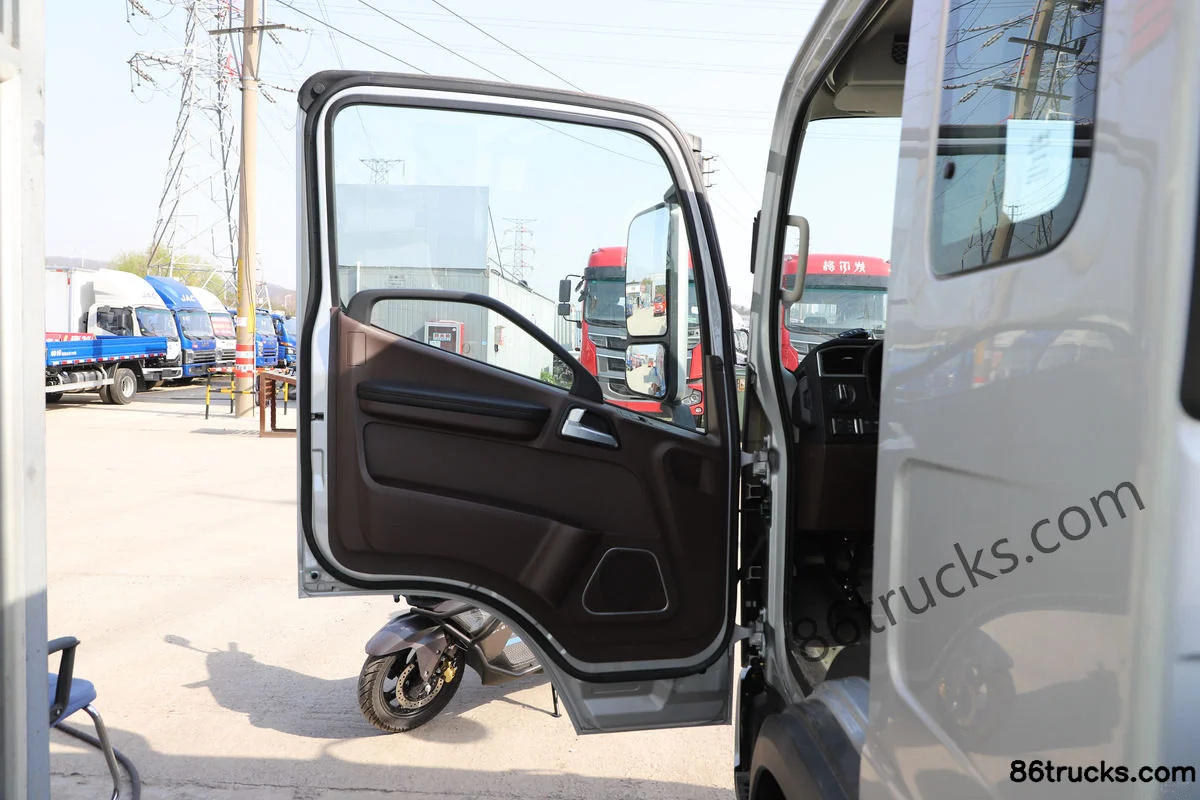

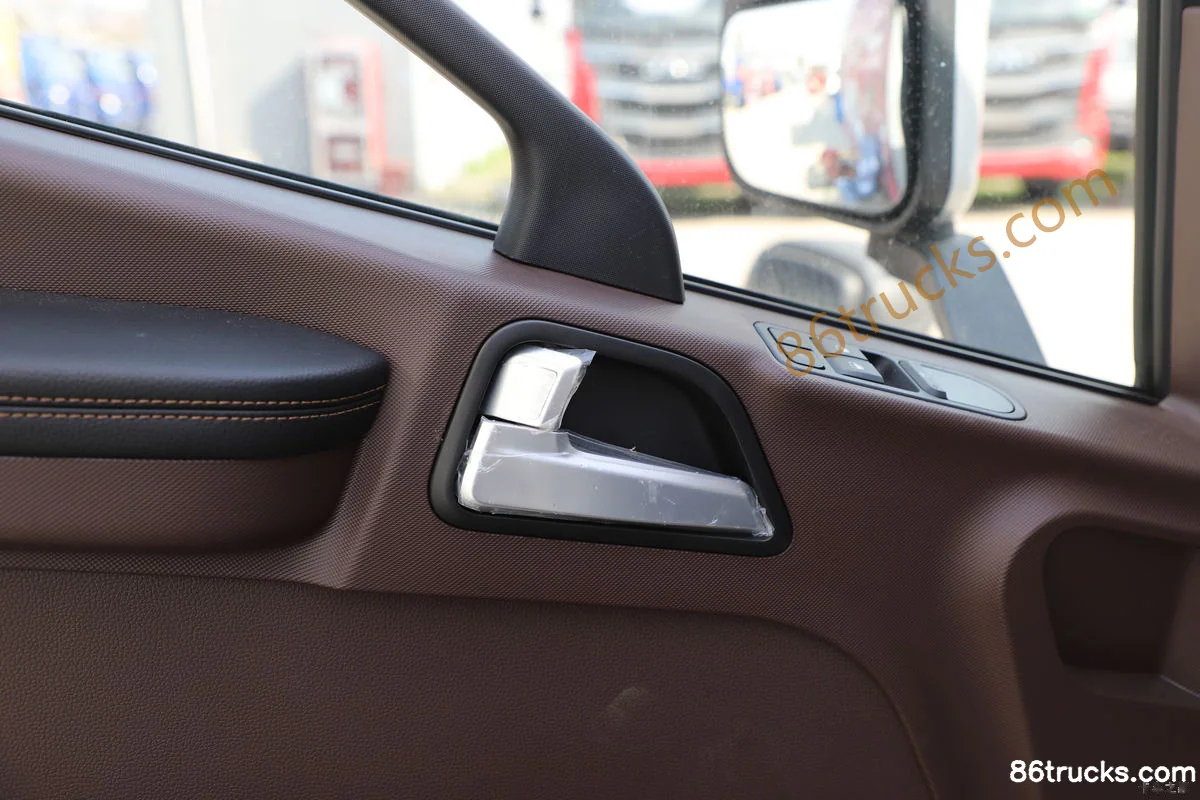

FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) Cab (1) | 86Trucks FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) Cab (2) | 86Trucks FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) Cab (3) | 86Trucks

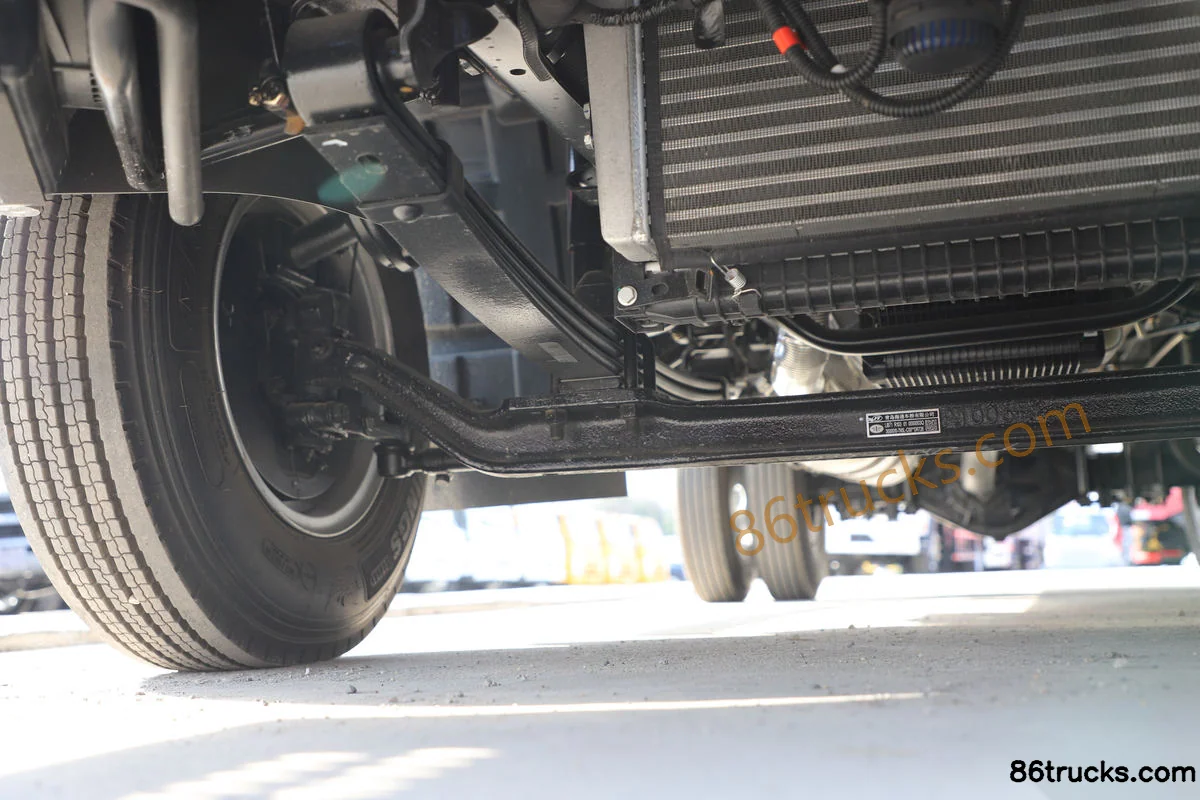

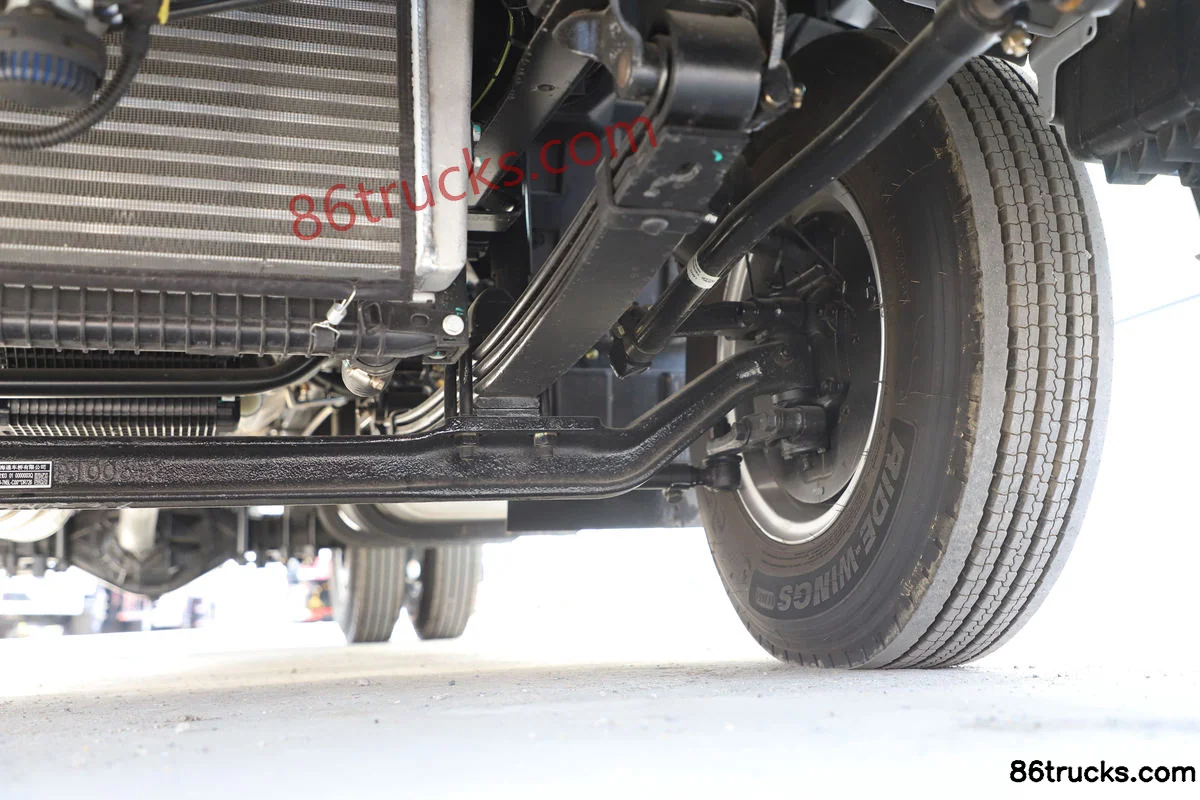

Chassis3

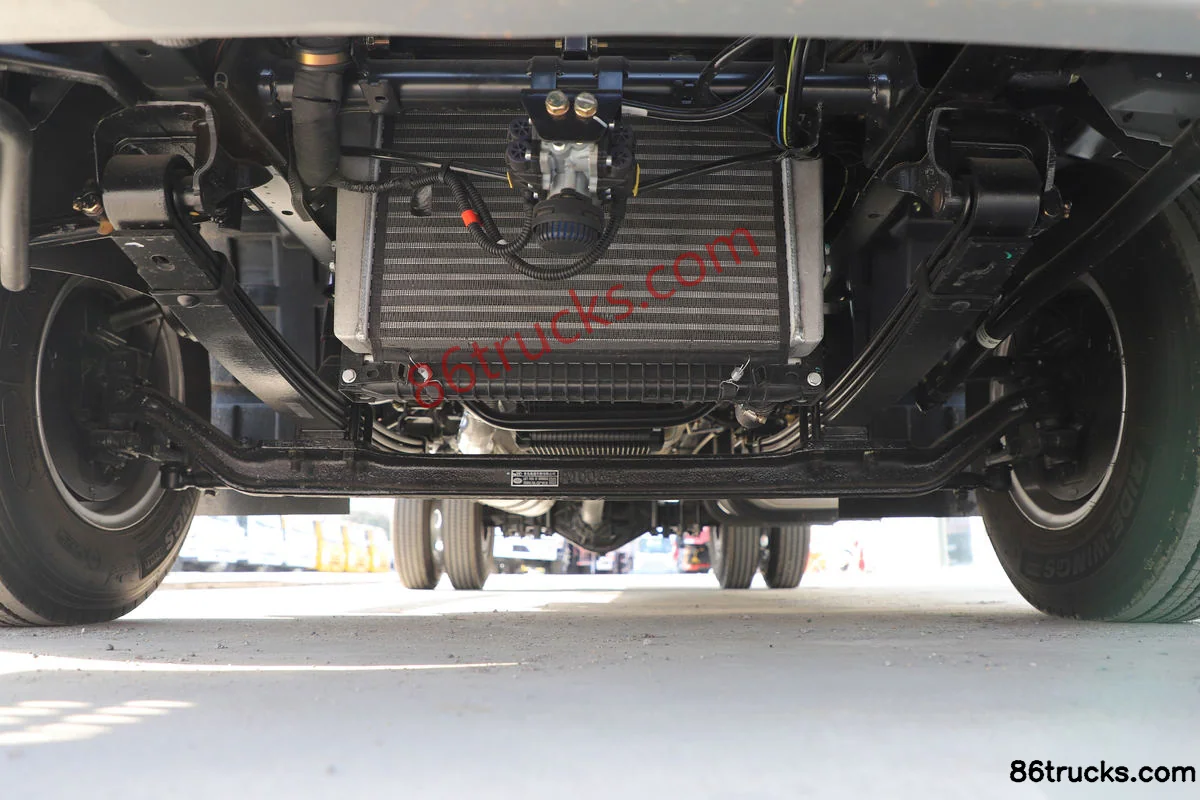

FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) Chassis (1) | 86Trucks FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) Chassis (2) | 86Trucks FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) Chassis (3) | 86Trucks

Body3

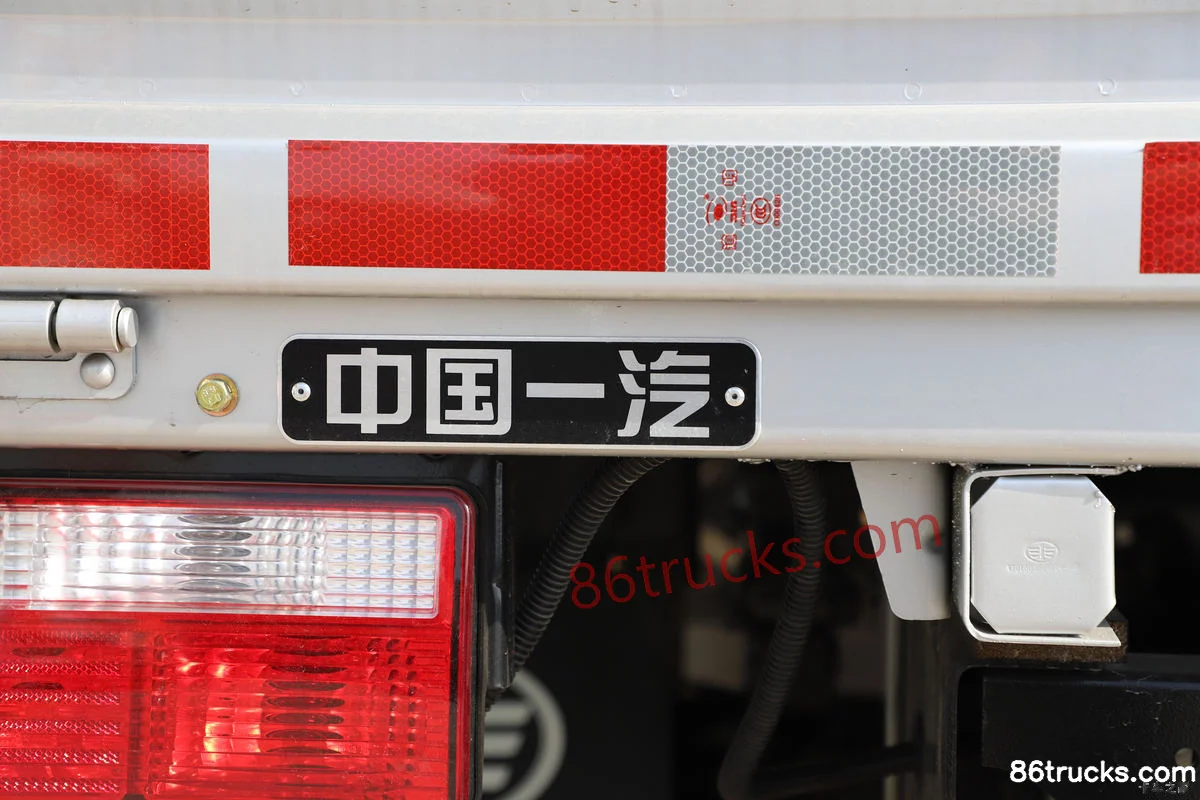

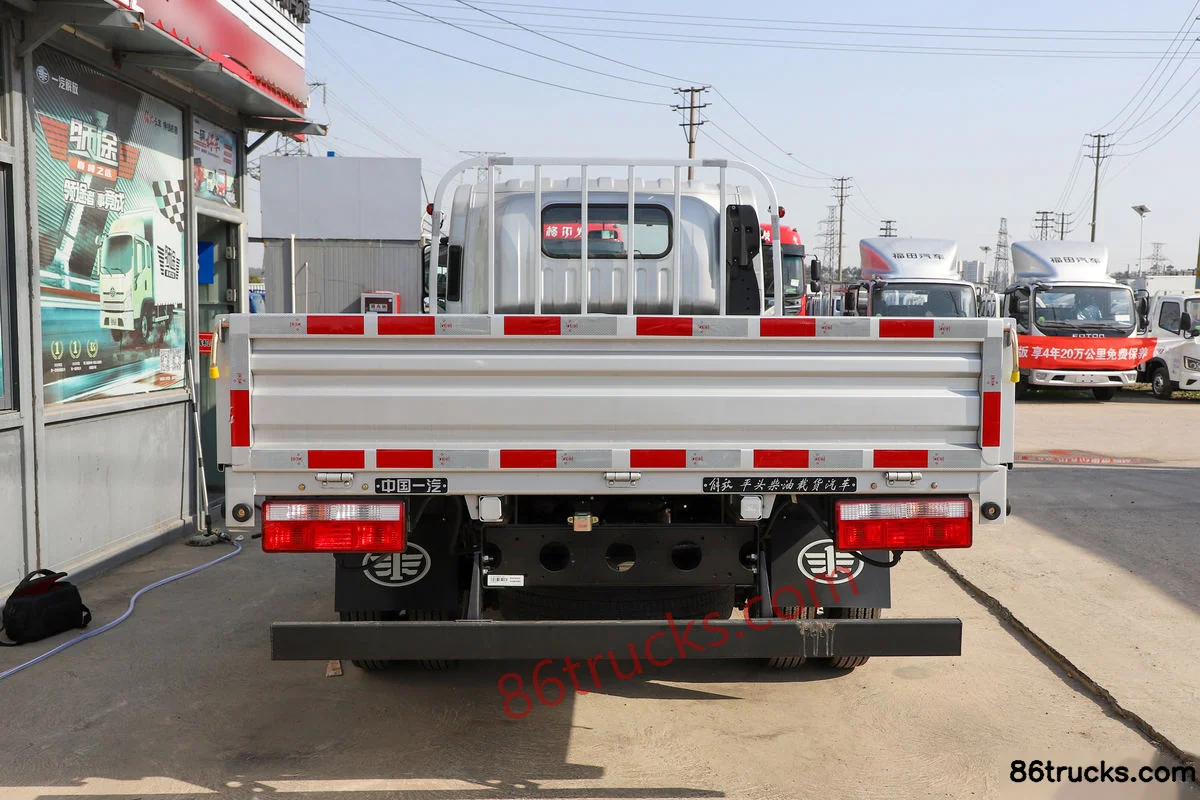

FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) Body (1) | 86Trucks FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) Body (2) | 86Trucks FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY)?

Key specs of FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY): Drive: 4x2; Horsepower: 148 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 2.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) suited for?

FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) differ from other variants in the same series?

FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY) belongs to FAW Jiefang Lingtu Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.85m semi-crew flatbed light truck(WLY)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
